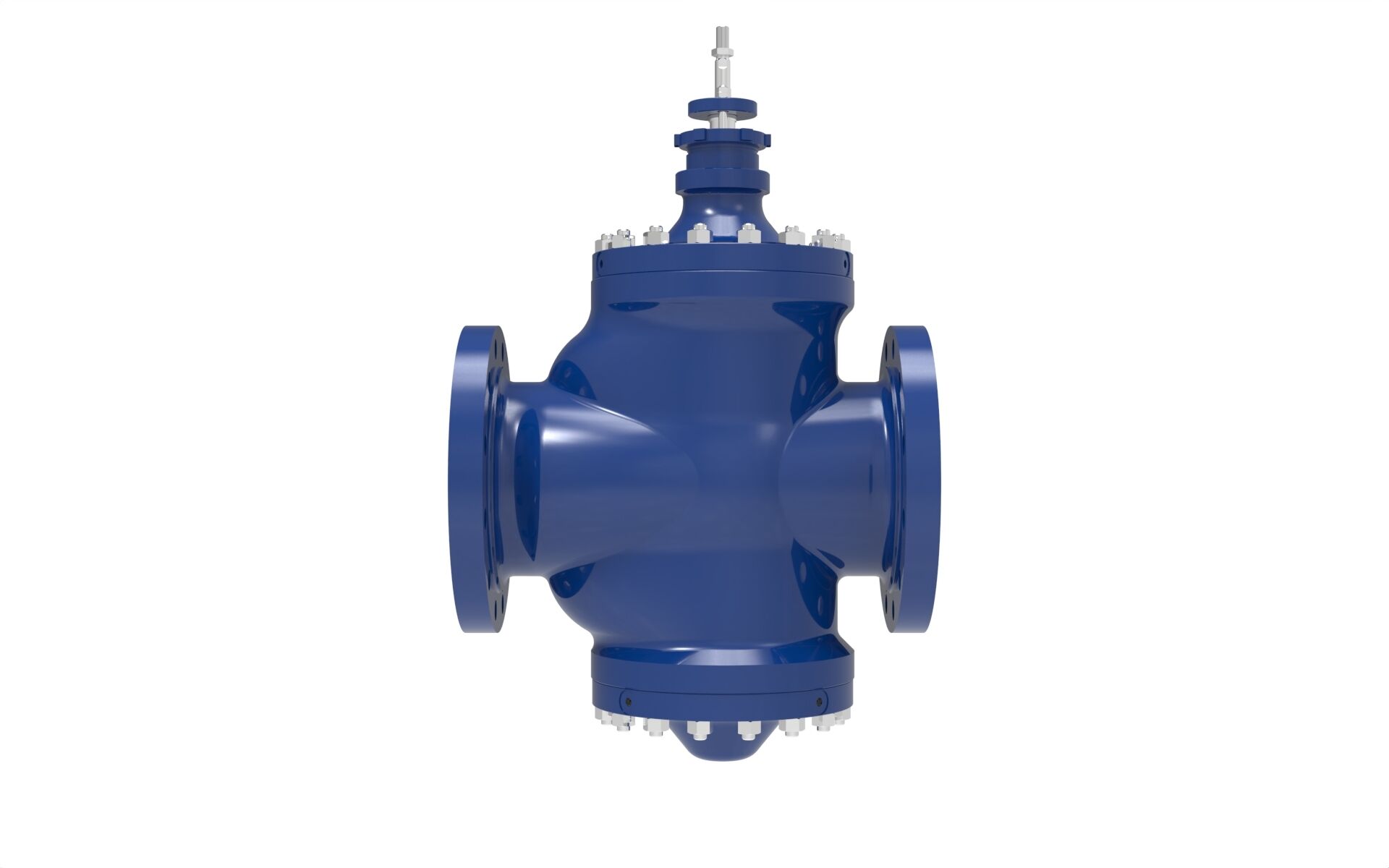

• BLAKEBOROUGH® BV800 SERIES CONTOUR TRIM VALVES front view

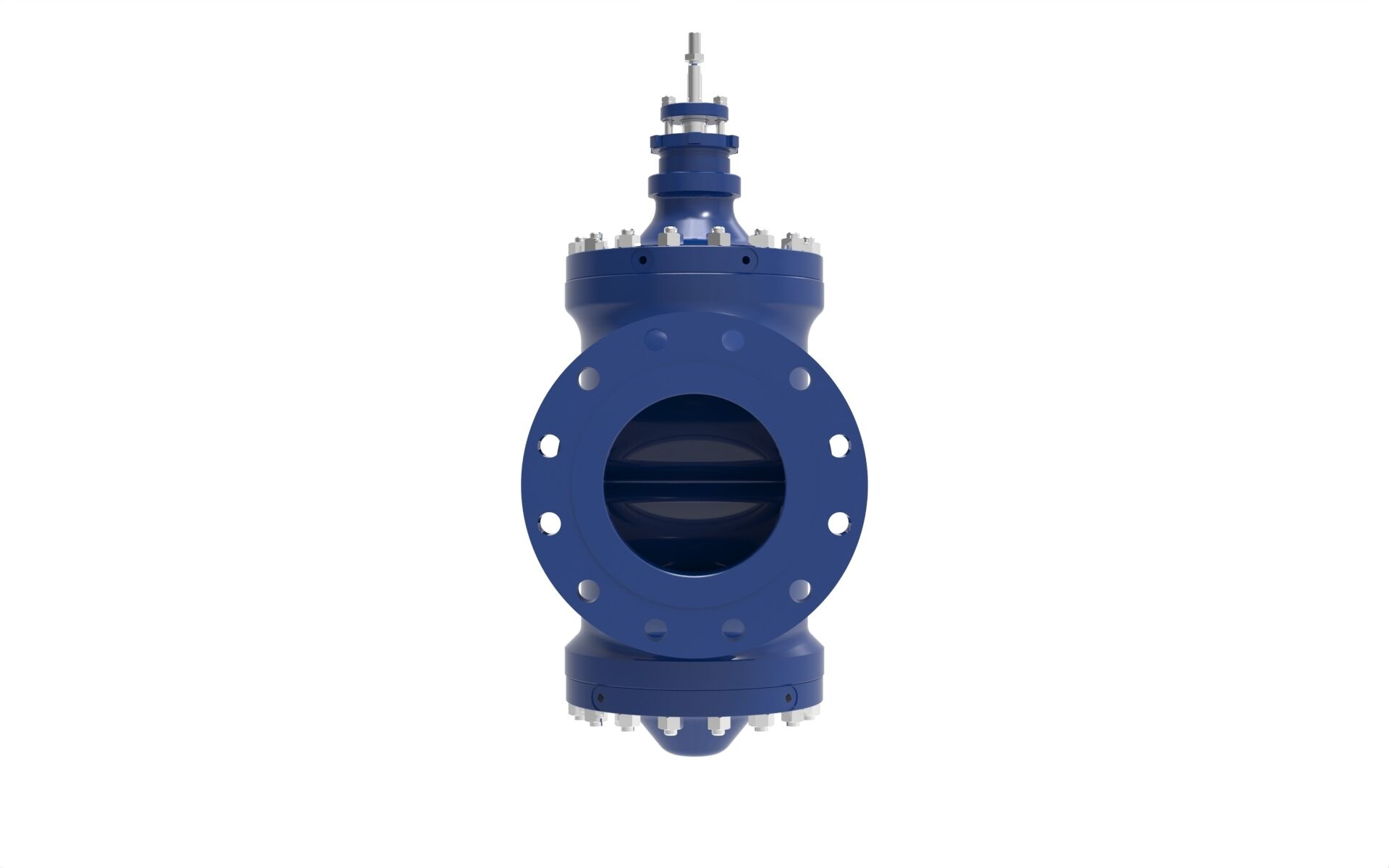

  • BLAKEBOROUGH® BV800 SERIES CONTOUR TRIM VALVES right side view
  • BLAKEBOROUGH® BV800 SERIES CONTOUR TRIM VALVES back view

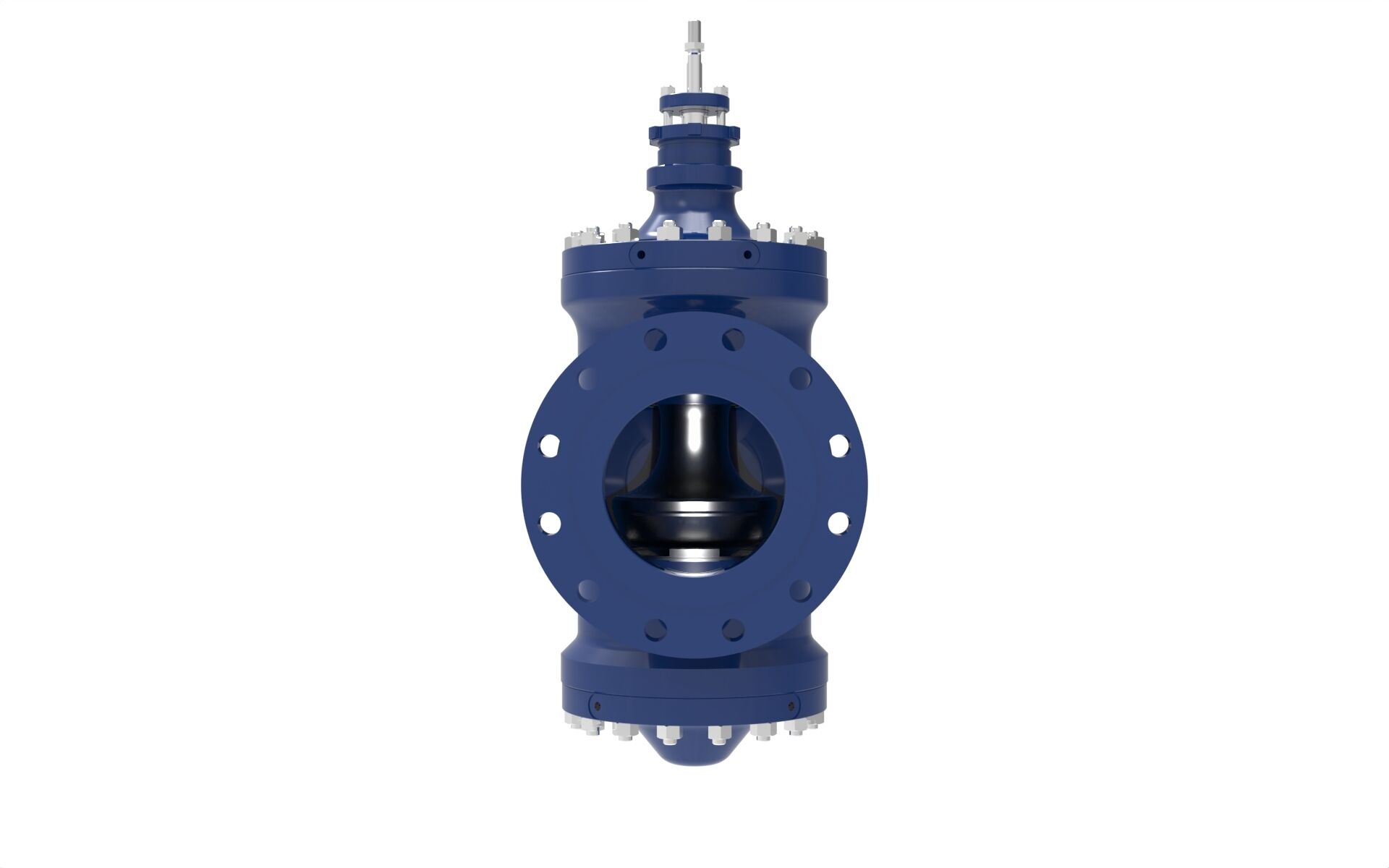

  • BLAKEBOROUGH® BV800 SERIES CONTOUR TRIM VALVES left side view

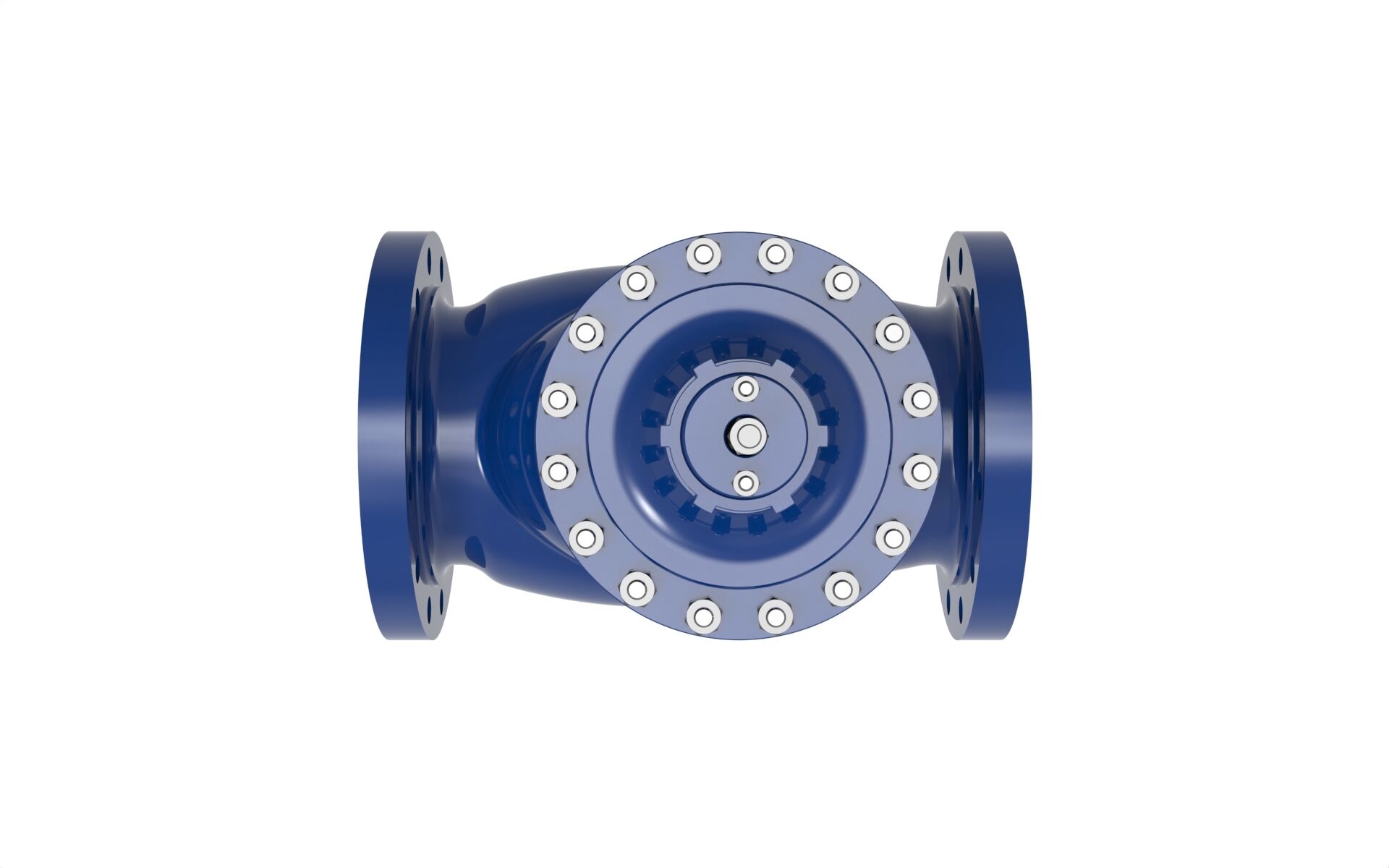

  • BLAKEBOROUGH® BV800 SERIES CONTOUR TRIM VALVES top view

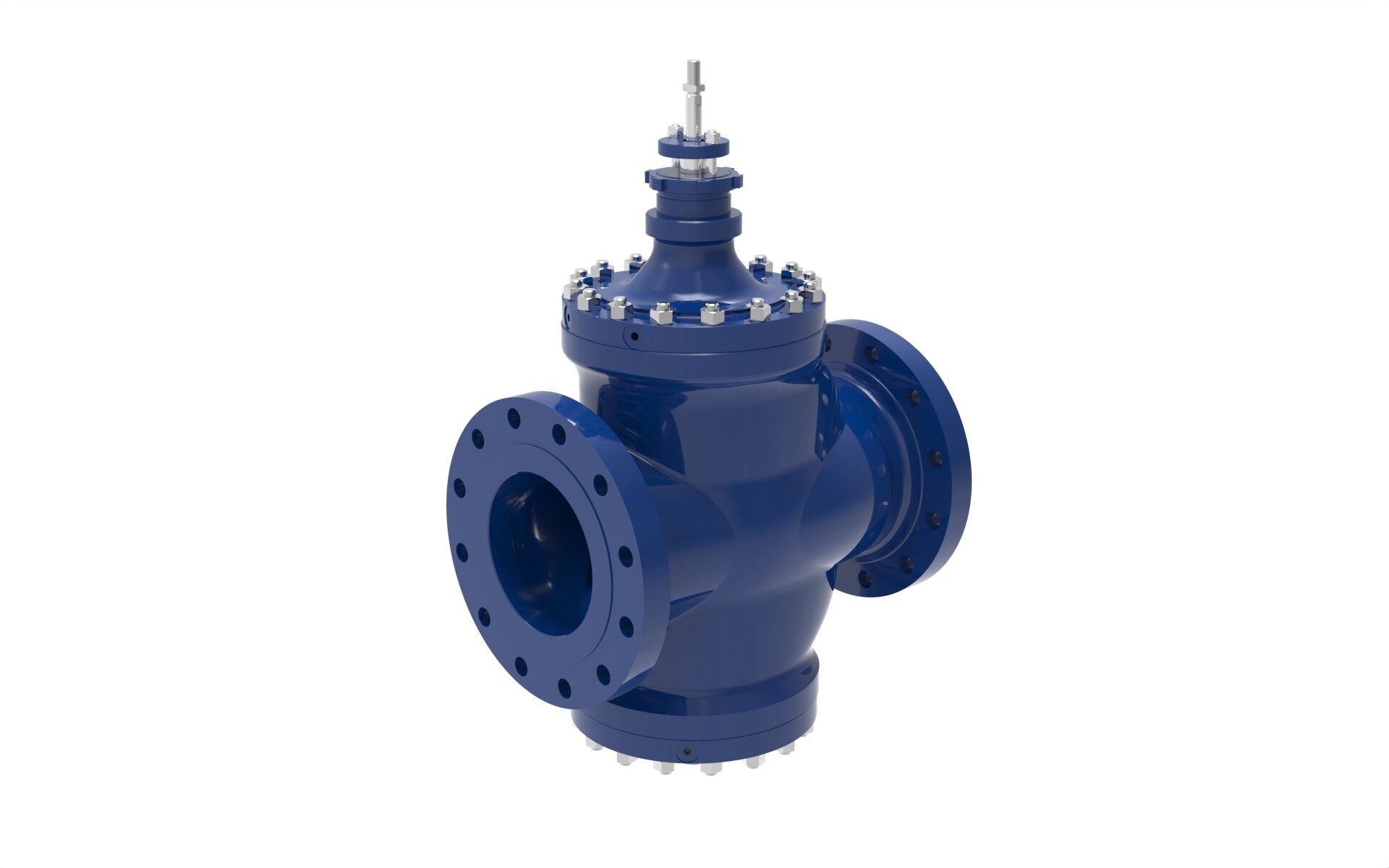

  • BLAKEBOROUGH® BV800 SERIES CONTOUR TRIM VALVES right angled view

BLAKEBOROUGH®

BV800 Series Contour Trim Valves

The Blakeborough® BV800/1/2/3 series is a top and bottom guided control valve offering customers flexibility, enduring design, and noise reduction options. The BV800 and BV801 design are a top and bottom guided design with a double seated plug.

The valves are inherently balanced designs with pressure acting simultaneously on both the upper and lower plug heads. These valves offer a higher capacity than typical cage guided control valves. They are used across a wide variety of industries but are more commonly found in low and medium pressure applications in petrochemical applications.

One niche application for these valves is on mixing duties where the valves are used to create turbulence between the oil and water. The Blakeborough® BV802 and BV803 valves are top and bottom guided designs with a single screwed seat. The valves are mainly applied to low and medium pressure petrochemical applications where a tighter shut off is required.

TRIM OPTIONS

  • Contour “V” port
  • Multi-flow cage trim

CONNECTIONS

  • Flanged
  • Butt weld
  • Socket weld
  • Screwed

APPLICATIONS

  • All Power applications (except desuperheating)
  • All oil & gas applications
  • All other industrial applications

BONNET FORMS

  • Standard – standard range of temperatures
  • Normalizing – protection of gland packing for temperatures beyond standard
  • Bellows Seal – high leak protection system
  • Cryogenic – for extremely low temperatures to prevent packing freezing

ACTUATORS

  • Pneumatic single spring diaphragm
  • Pneumatic multi-spring diaphragm
  • Pneumatic double acting piston actuator
  • Self-contained electro-hydraulic
  • Hydraulic (separate HPU and controls unit)
  • Electric

DESIGN STANDARDS

  • ASME B16.34
  • ANSI FCI 70-2
  • ASME B16.25
  • ASME B16.5
  • NACE MR-01-75

DESIGN RATINGS

  • ASME B16.34 Class 150LB to 1500
  • LBPN10 to PN250

SIZE RANGE & DIMENSIONS

  • BV 800/1: 40 – 600mm (1.5 – 24 ft.)
  • BV802/3: 40 – 250mm (1.5 – 10 ft.)

TEMPERATURE RANGE

  • 196ºC – 800ºC (-321ºF – 1472ºF)

MATERIALS

  • Carbon steel
  • Grade WCB, Stainless steel
  • Grade 316/304/347, 1.1/4% chrome moly. steel
  • Grade WC6, 2.1/4% chrome moly.steel
  • Grade WC9
  • Monel
  • Hastelloy B/C
  • Duplex/Super duplex
