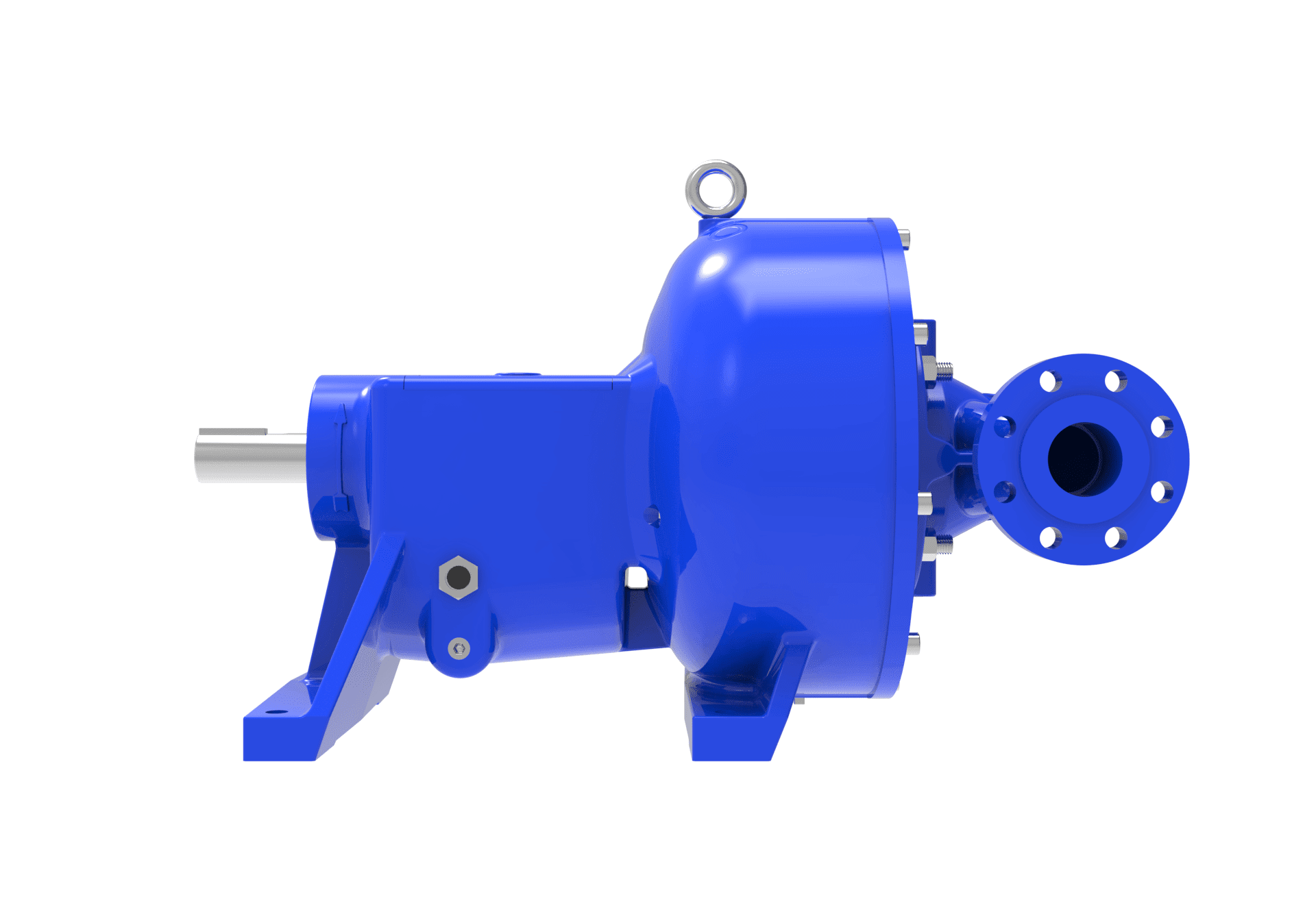

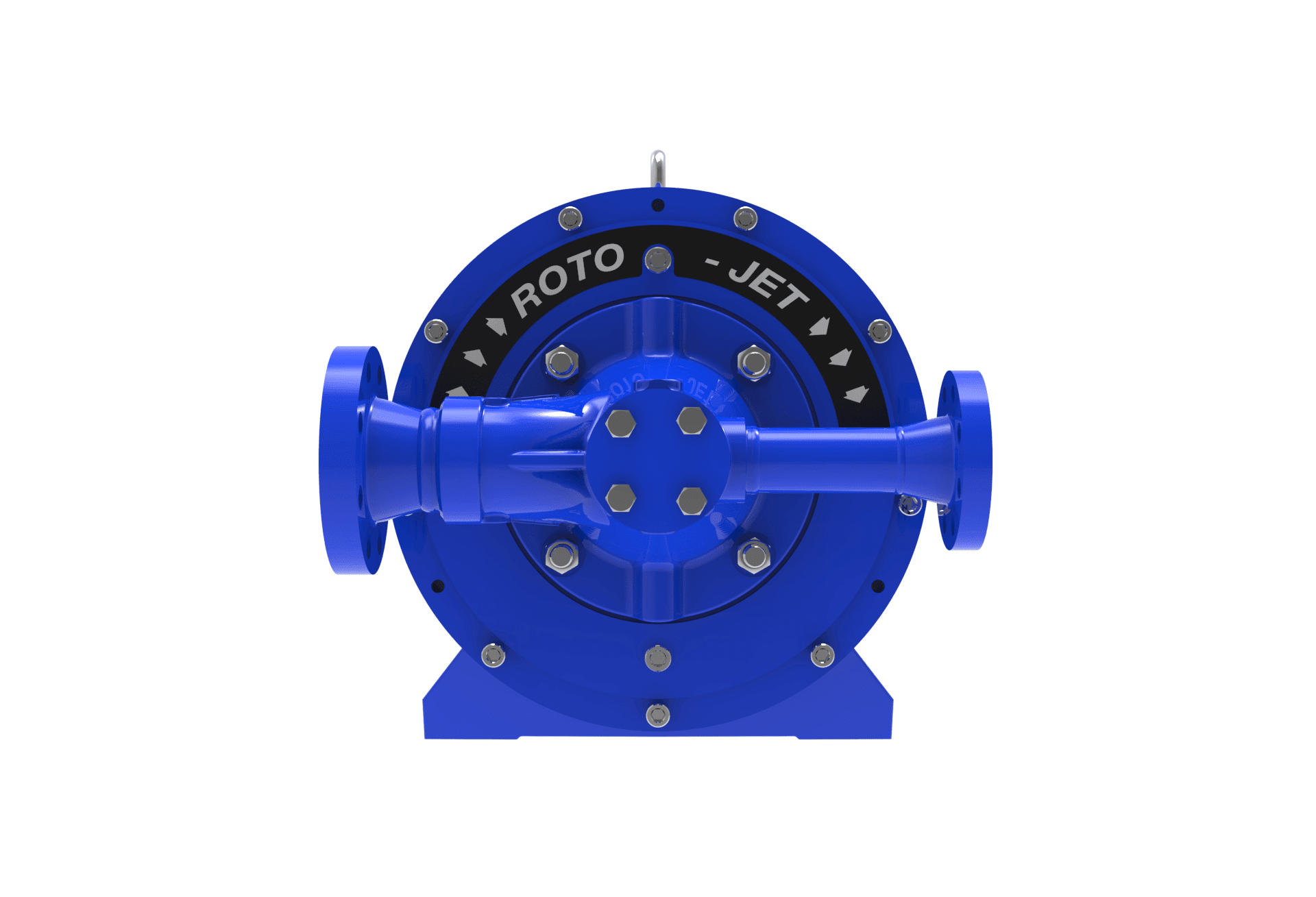

  • ROTO-JET® HIGH PRESSURE PITOT TUBE PUMPS front view

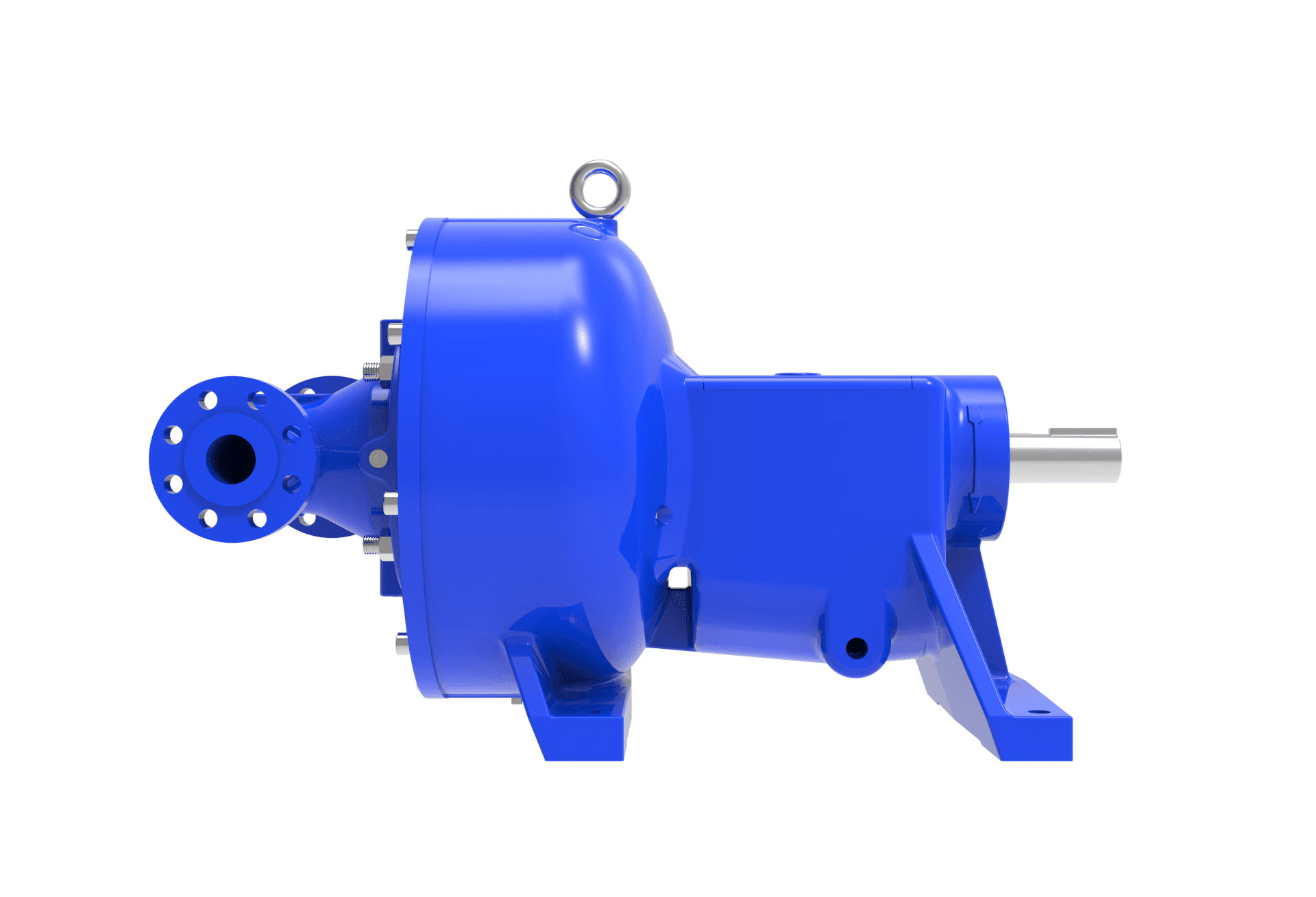

  • ROTO-JET® HIGH PRESSURE PITOT TUBE PUMPS right side view

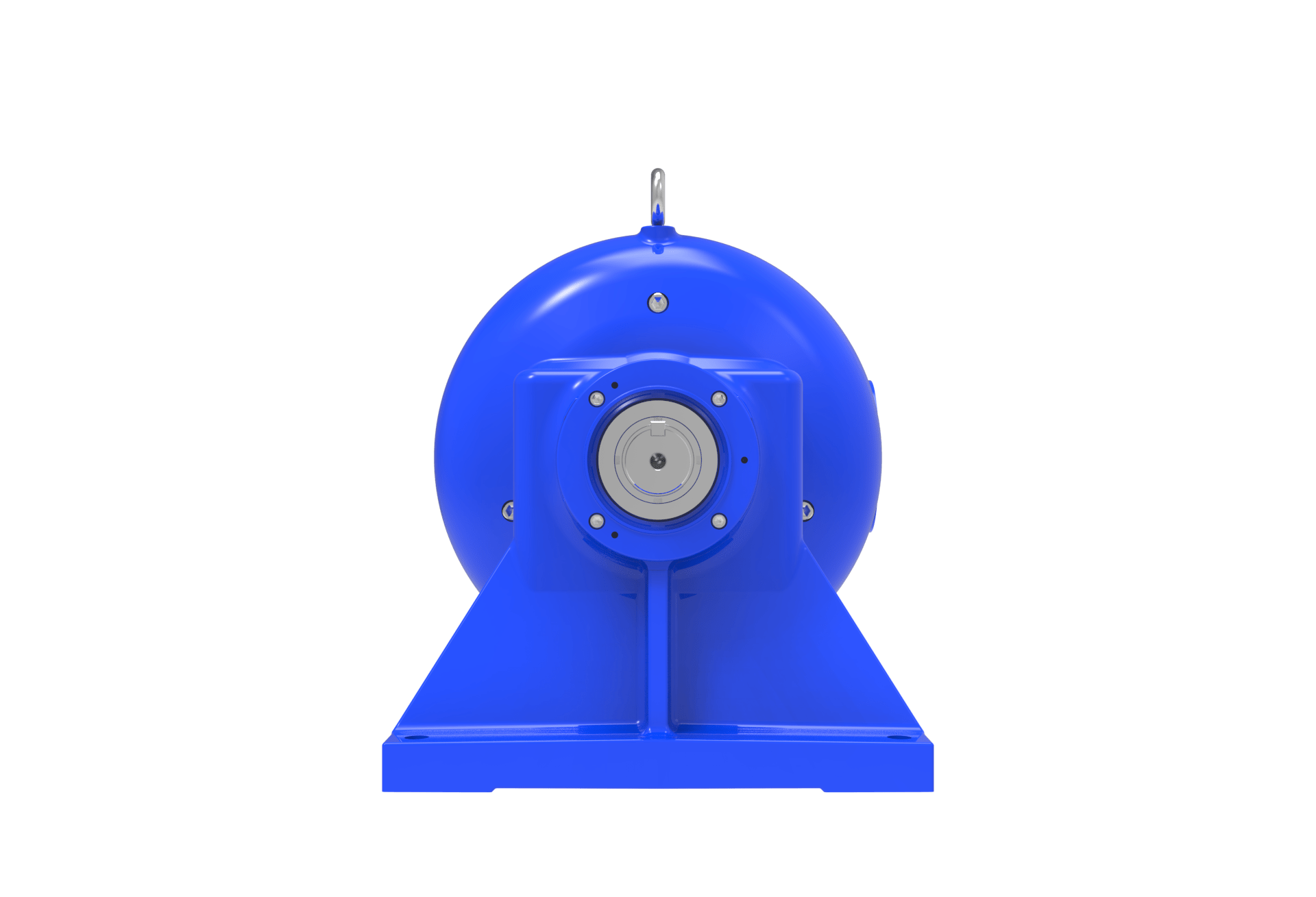

  • ROTO-JET® HIGH PRESSURE PITOT TUBE PUMPS back view

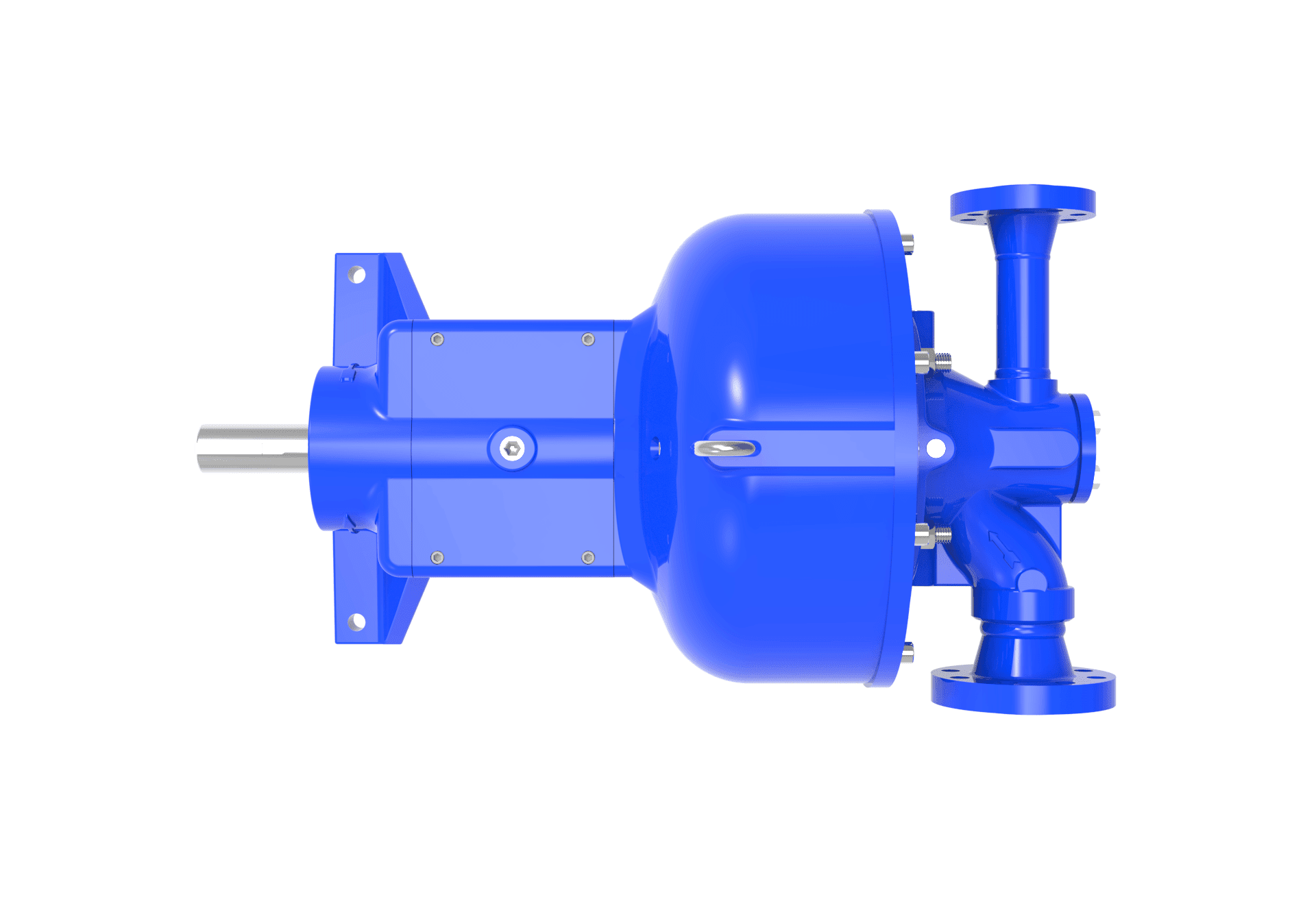

  • ROTO-JET® HIGH PRESSURE PITOT TUBE PUMPS top view

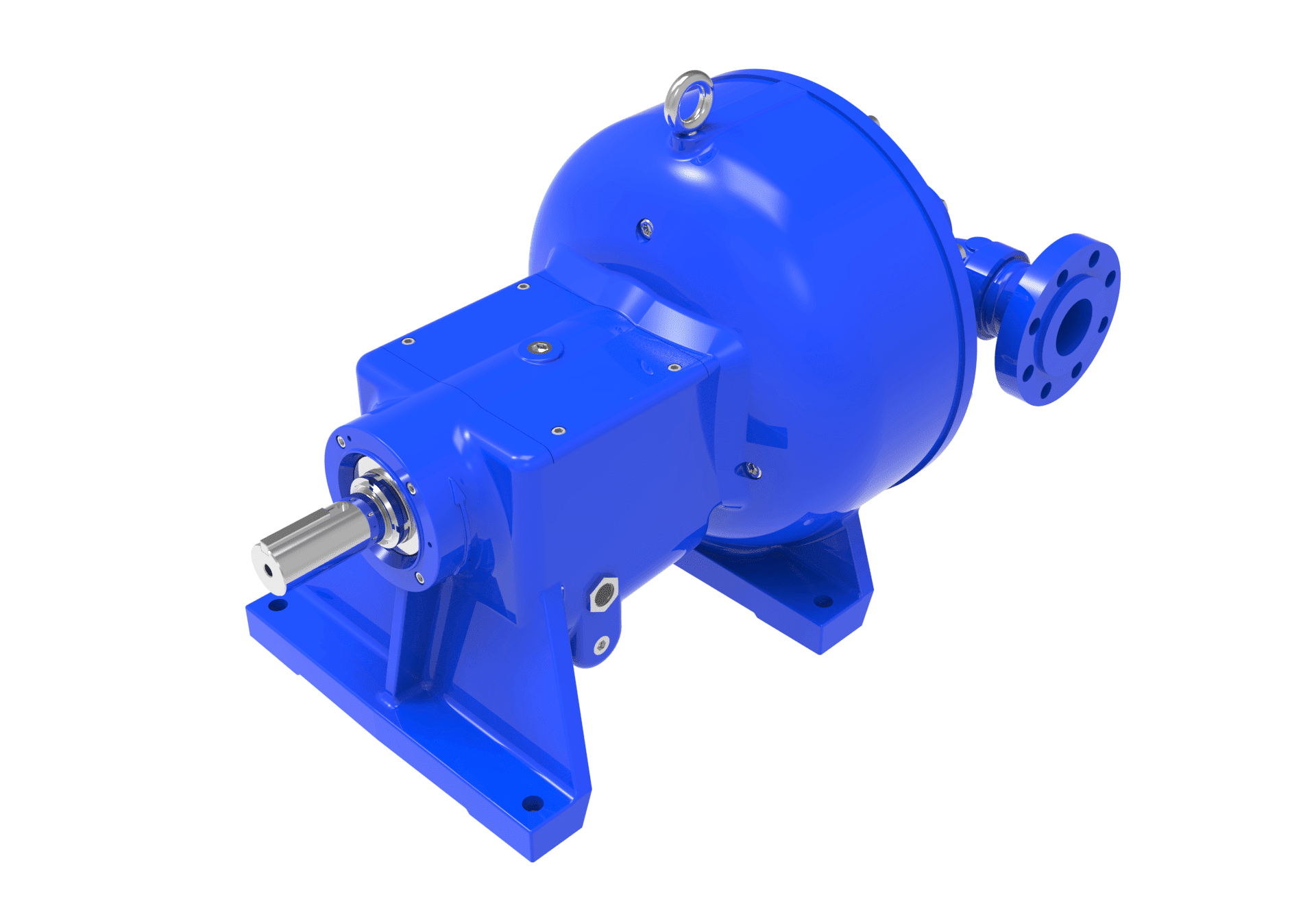

  • ROTO-JET® HIGH PRESSURE PITOT TUBE PUMPS left angled view

ROTO-JET®

High Pressure Pitot Tube Pumps

Roto-Jet pumps are high pressure single-stage centrifugal pumps using advanced pitot tube technology and are designed to handle tough applications across multiple industries.
Roto-Jet® pumps have a unique pitot tube technology that provide a more durable solution in demanding and difficult, high pressure general industrial and API applications.

KEY FEATURES/BENEFITS

  • High pressure without high speed
  • Adjustable performance with change in pitot tube for high flexibility
  • Only two basic working parts for simplicity
  • Hydraulically stable along the entire performance curve and beyond BEPAPI 610 design available

APPLICATIONS

  • Boiler feed
  • Central cleaning systems
  • Water injection
  • High pressure spraying
  • API/HPI

SIZE RANGE/ DIMENSIONS

  • 1.5 to 3 in (38 to 76 mm)

TEMPERATURE RANGE

  • 32ºF to 550ºF (0ºC – 288ºC)

CAPACITY – HEAD

  • to 5500 ft. (1676 m) Flow: to 750 gpm (170 m³/hr)

MATERIALS

  • 17-4-PH
  • Inconel 718Roto: Ductile iron
  • Stainless steel
  • CA6Nm
  • CD4MCu
