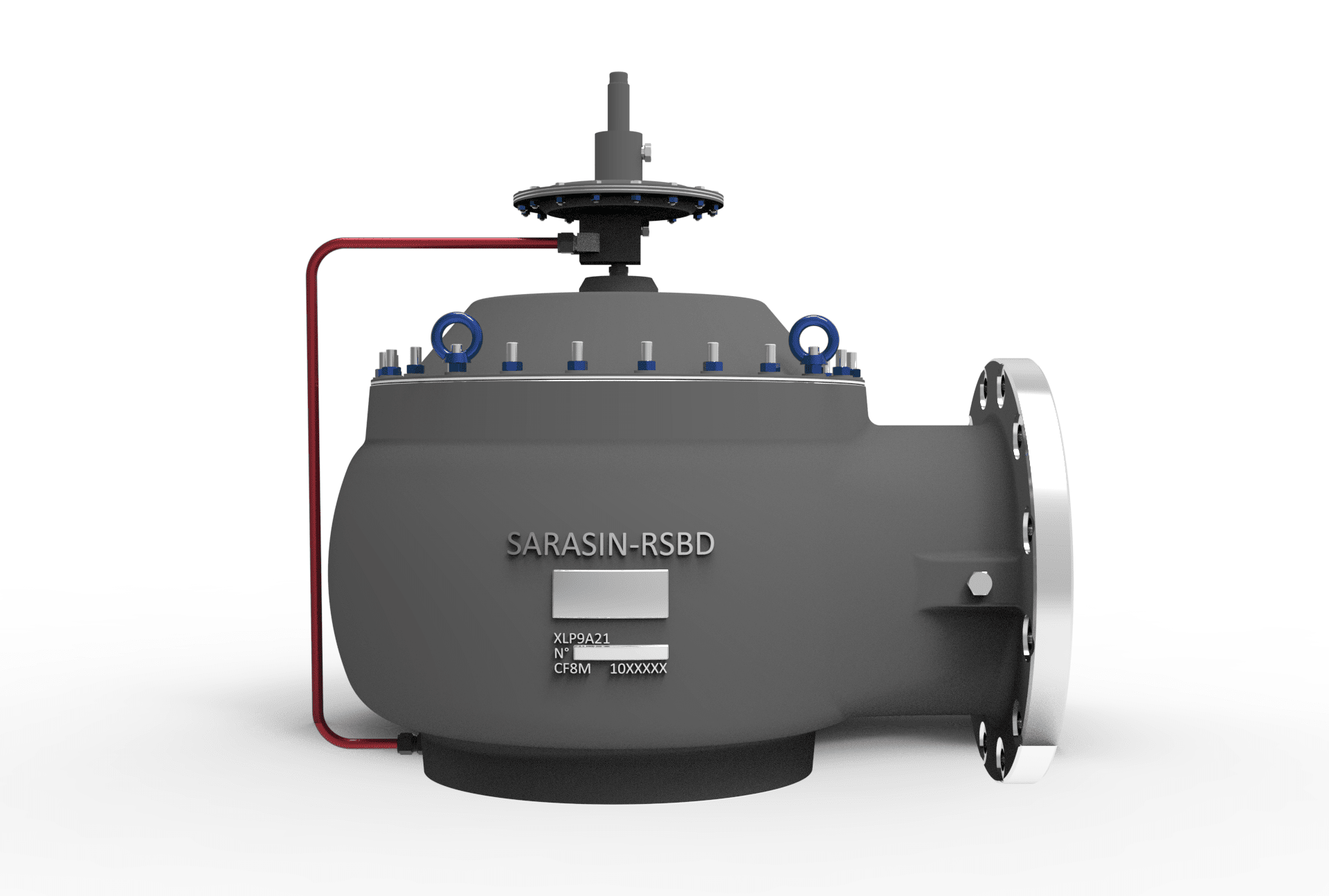

• SARASIN-RSBD® 74LP, 74VP, & 78LP SERIES PILOT OPERATED PRESSURE RELIEF VALVE, right side view

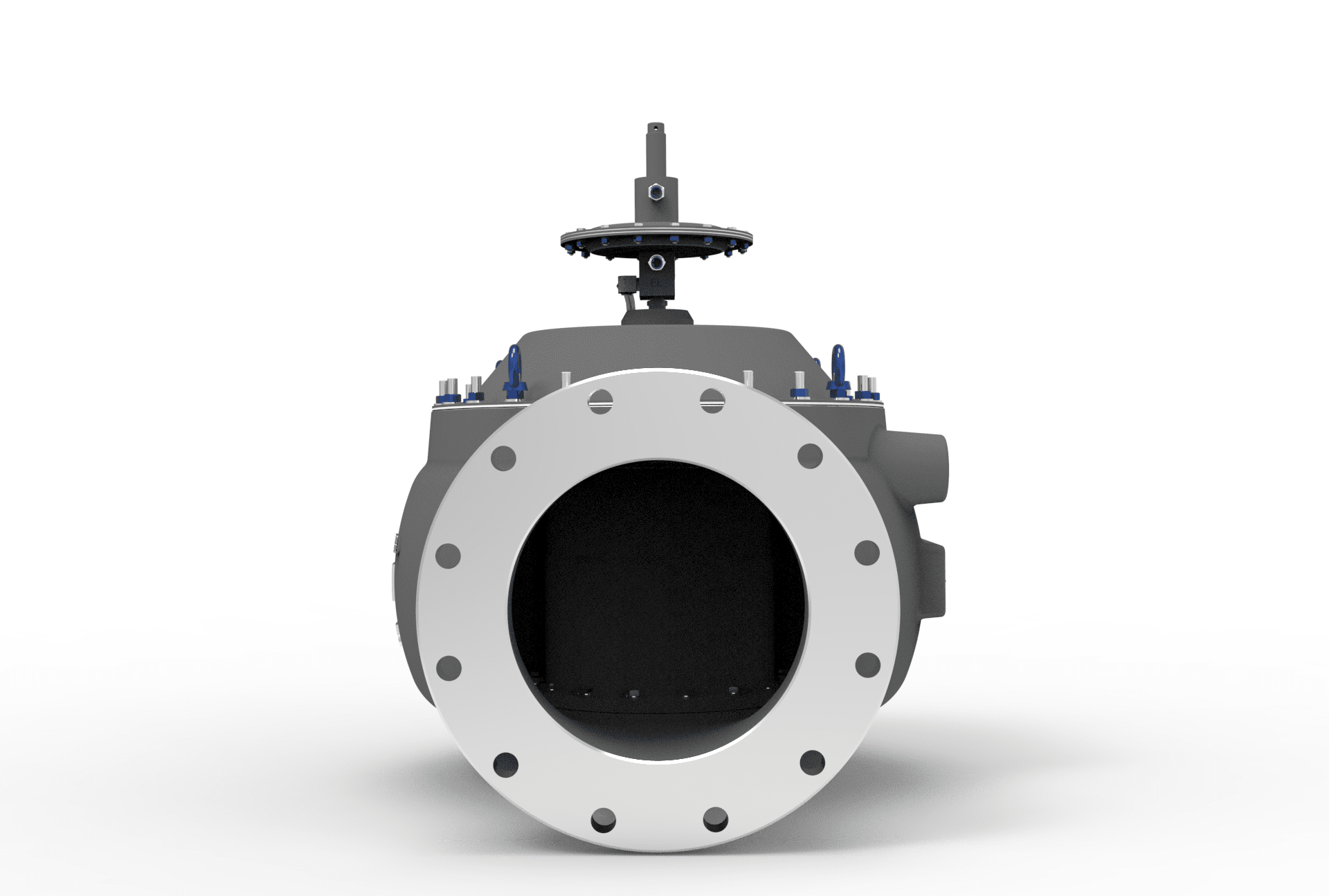

  • SARASIN-RSBD® 74LP, 74VP, & 78LP SERIES PILOT OPERATED PRESSURE RELIEF VALVE, front view

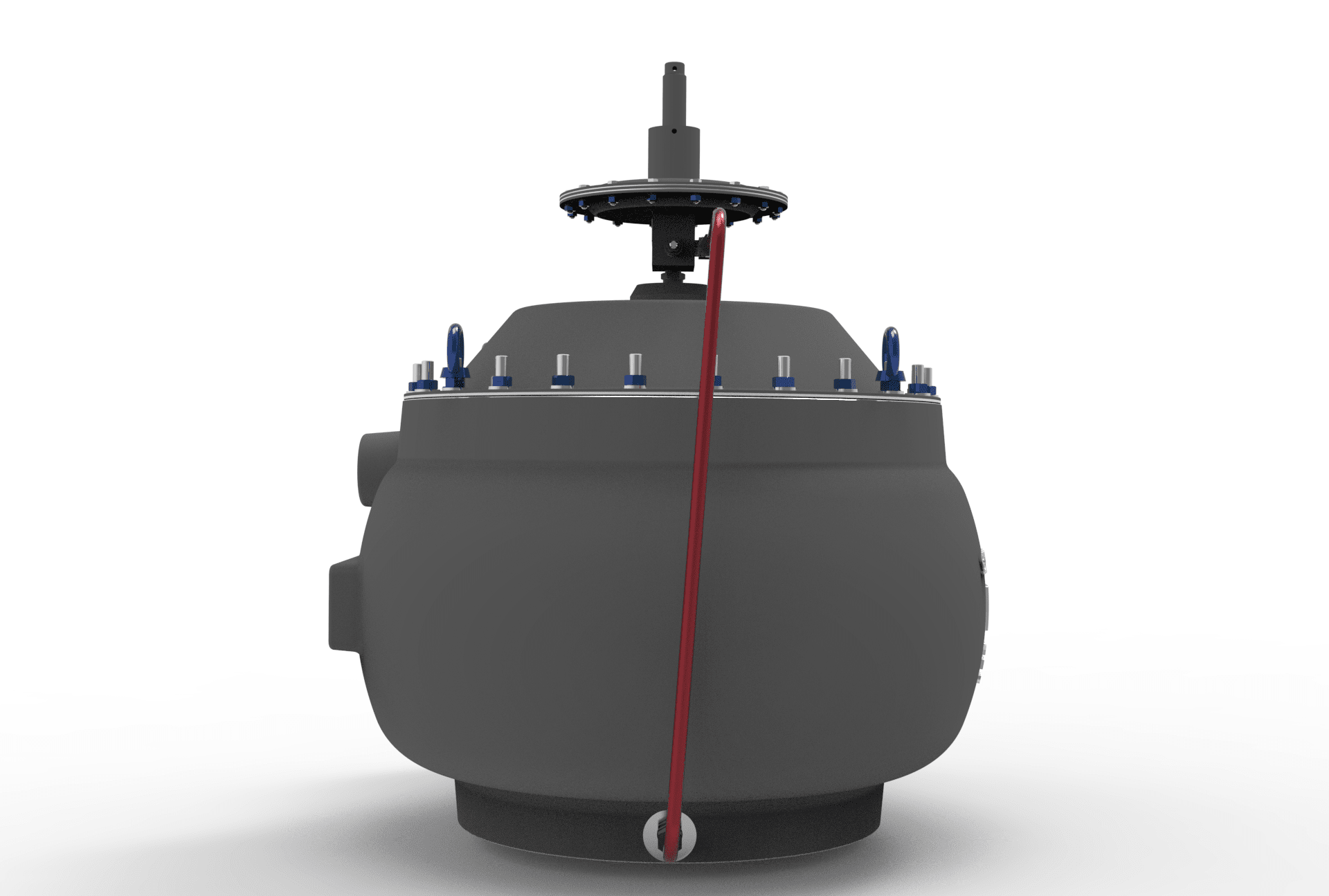

  • SARASIN-RSBD® 74LP, 74VP, & 78LP SERIES PILOT OPERATED PRESSURE RELIEF VALVE, back view

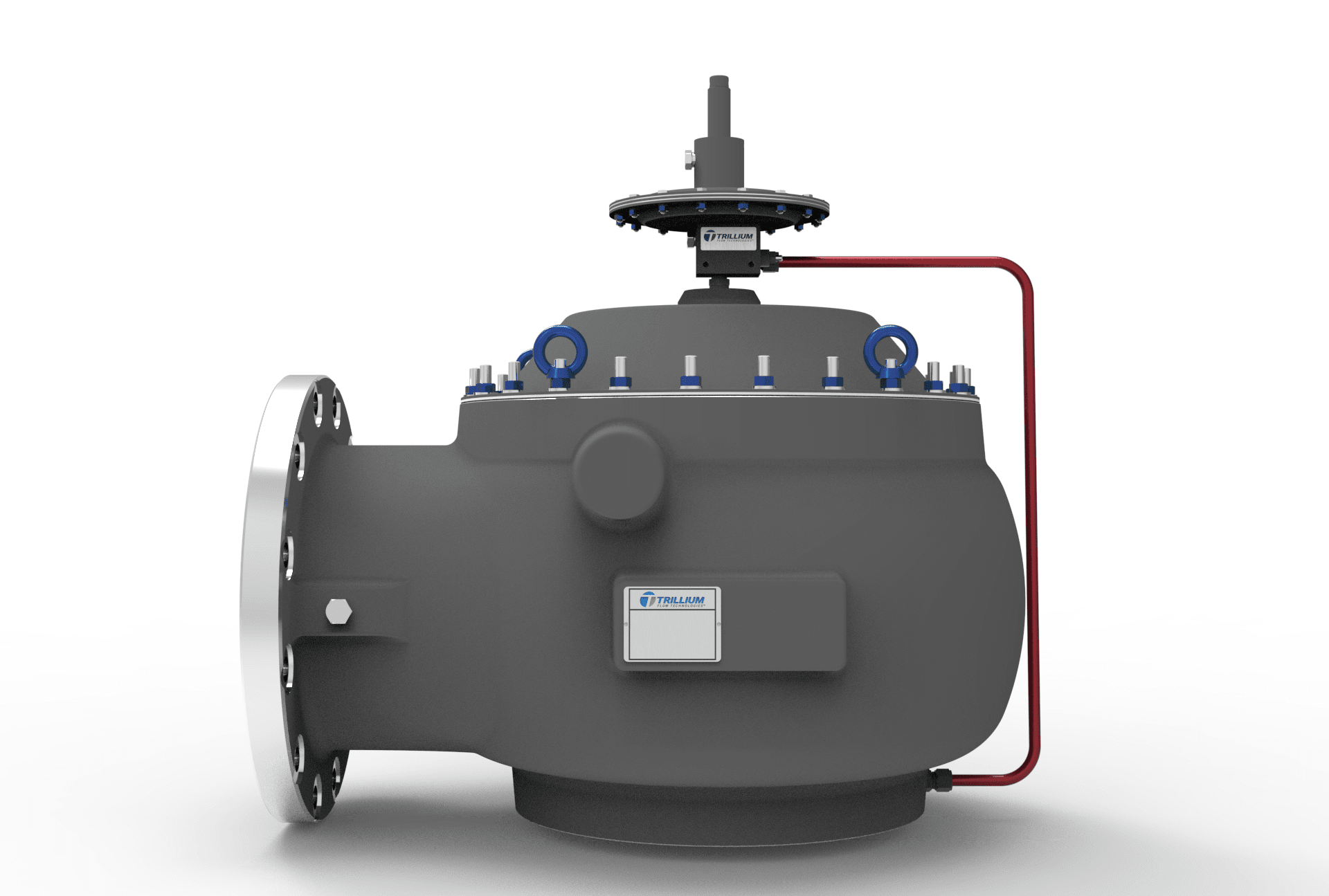

  • SARASIN-RSBD® 74LP, 74VP, & 78LP SERIES PILOT OPERATED PRESSURE RELIEF VALVE, left side view

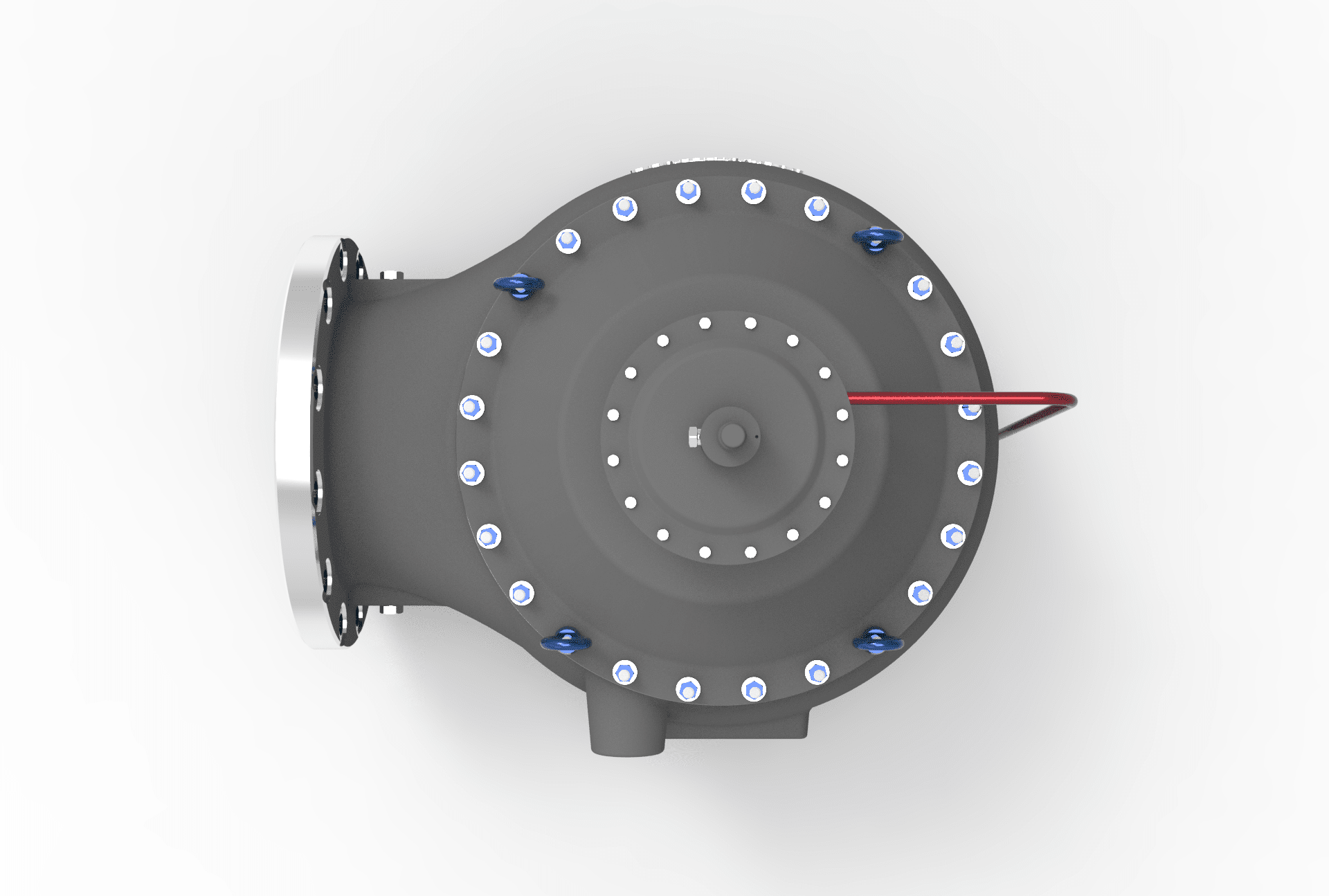

  • SARASIN-RSBD® 74LP, 74VP, & 78LP SERIES PILOT OPERATED PRESSURE RELIEF VALVE top view

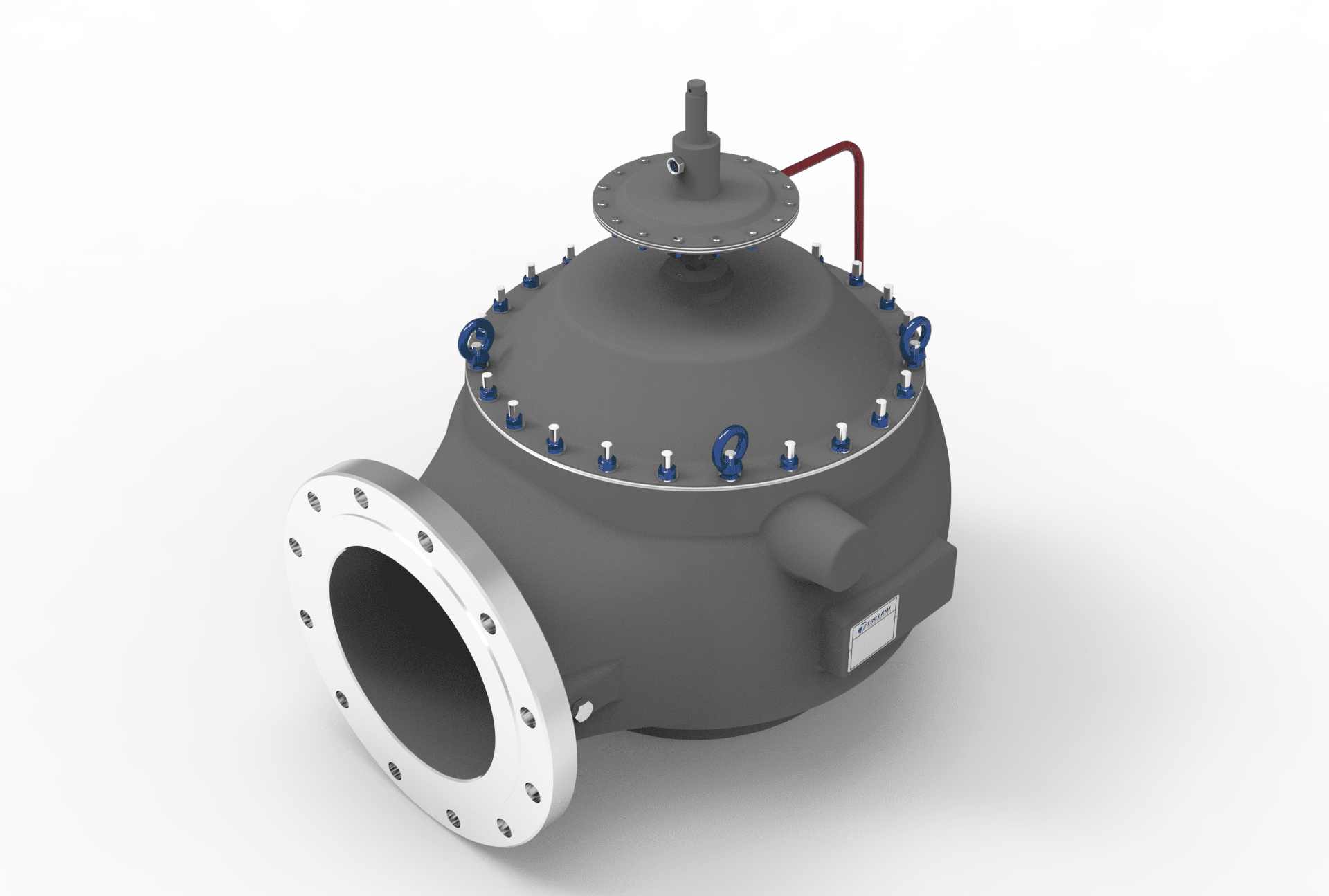

  • SARASIN-RSBD® 74LP, 74VP, & 78LP SERIES PILOT OPERATED PRESSURE RELIEF VALVE, left angled view

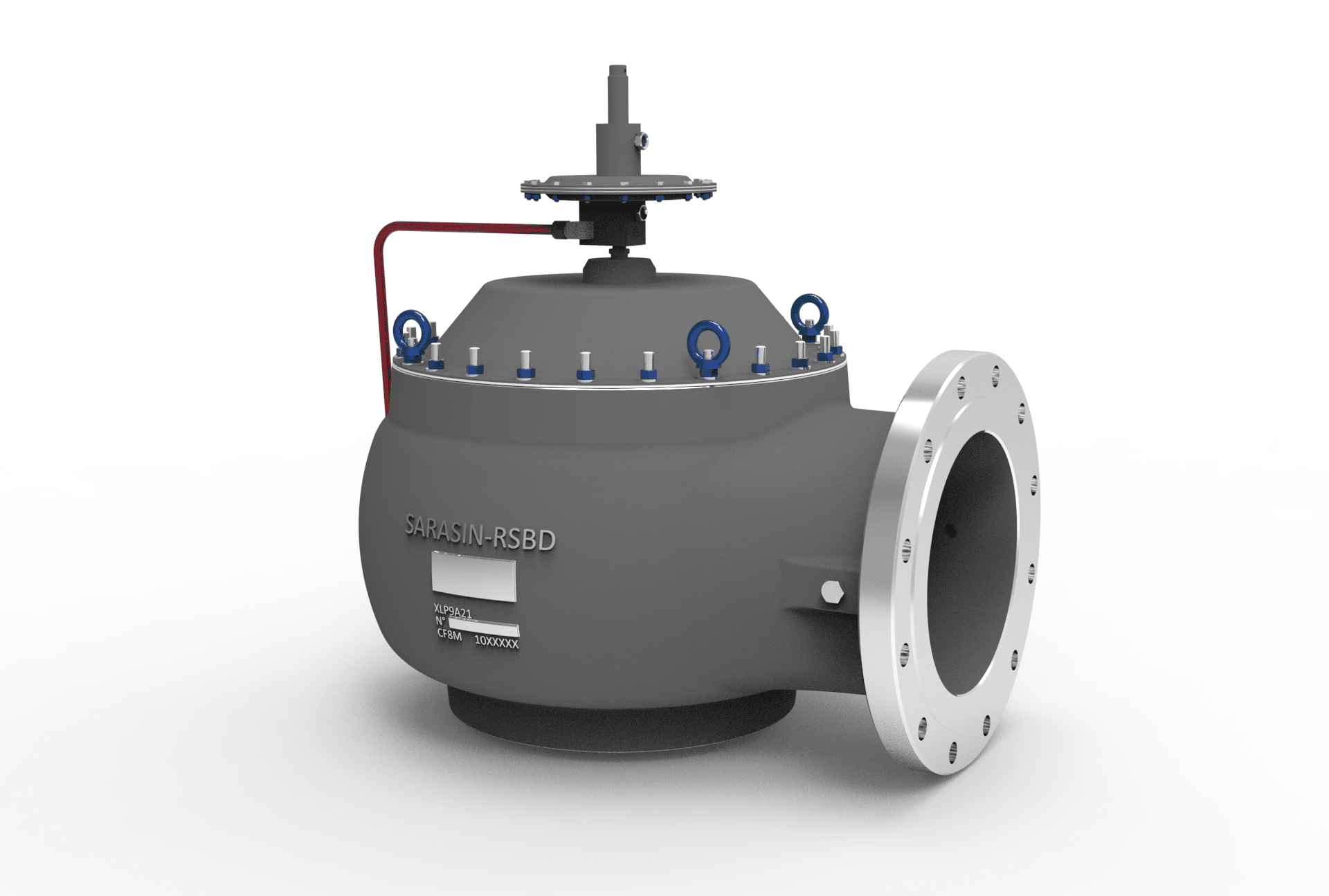

  • SARASIN-RSBD® 74LP, 74VP, & 78LP SERIES PILOT OPERATED PRESSURE RELIEF VALVE, right angled view

SARASIN-RSBD®

74LP, 74VP, & 78LP Series Pilot Operated Pressure Relief Valve

The Sarasin-RSBD® 74 Series Pilot Operated Pressure Relief Valve provides the capability for the protection of storage vessels, tanks, and piping systems under low pressure and vacuum conditions.

The Sarasin-RSBD® 74VP, 74LP, & 78LP Series Pilot Operated Pressure Relief Valves are autonomous units and therefore they do not need an external source of power to operate. Pilot operated pressure relief valves are most effectively used within liquefied natural gas and floating liquefied natural gas industries. The valves are also effective in processes involving petrochemical refinement and the power industry. The Sarasin-RSBD® pressure relief valves are designed to provide excellent operational performance and repeatability by their use of precision machined internal components and high integrity soft goods.

KEY FEATURES & BENEFITS

  • Diaphragm or piston technology selected to provide the best option for the process application
  • Capacity tested by the US National Board and carrying the ASME UV code stamp
  • Available in either flanged configuration or with ISO or UNC threaded inlet connections
  • Pop or modulating action pilot
  • Excelling in cryogenic applications
  • Externally adjustable blowdown
  • Balanced against back pressure
  • High degree of seat tightness

APPLICATIONS

  • Tank & vessel protection
  • Industrial gas (cryogenics)

DESIGN STANDARDS

  • ASME BPVC Section VIII
  • Marine standards

DESIGN RATINGS

  • ASME & API Class 150 to 300

SIZE RANGE & DIMENSIONS

  • 74VP & 74LP Series – 2 inches x 3 inches thru 14 inches x 18 inches
  • 78 Series – 2 inches x 3 inches thru 6 inches x  8 inches

PRESSURE RANGE

  • 15 (6 wc) to 250 (100 wc) mbar – standard applications
  • 70 mbar (28 wc) to 2 bar (29 psig) – standard & cryogenic applications

TEMPERATURE RANGE

  • Reaching -196ºC (-320°F) cryogenic levels to 200ºC (392°F)

CAPACITY

  • Individually calculated and selected for each process application

SEAT TIGHTNESS

  • 95%

MATERIALS

  • Carbon steel
  • Austenitic stainless steel
