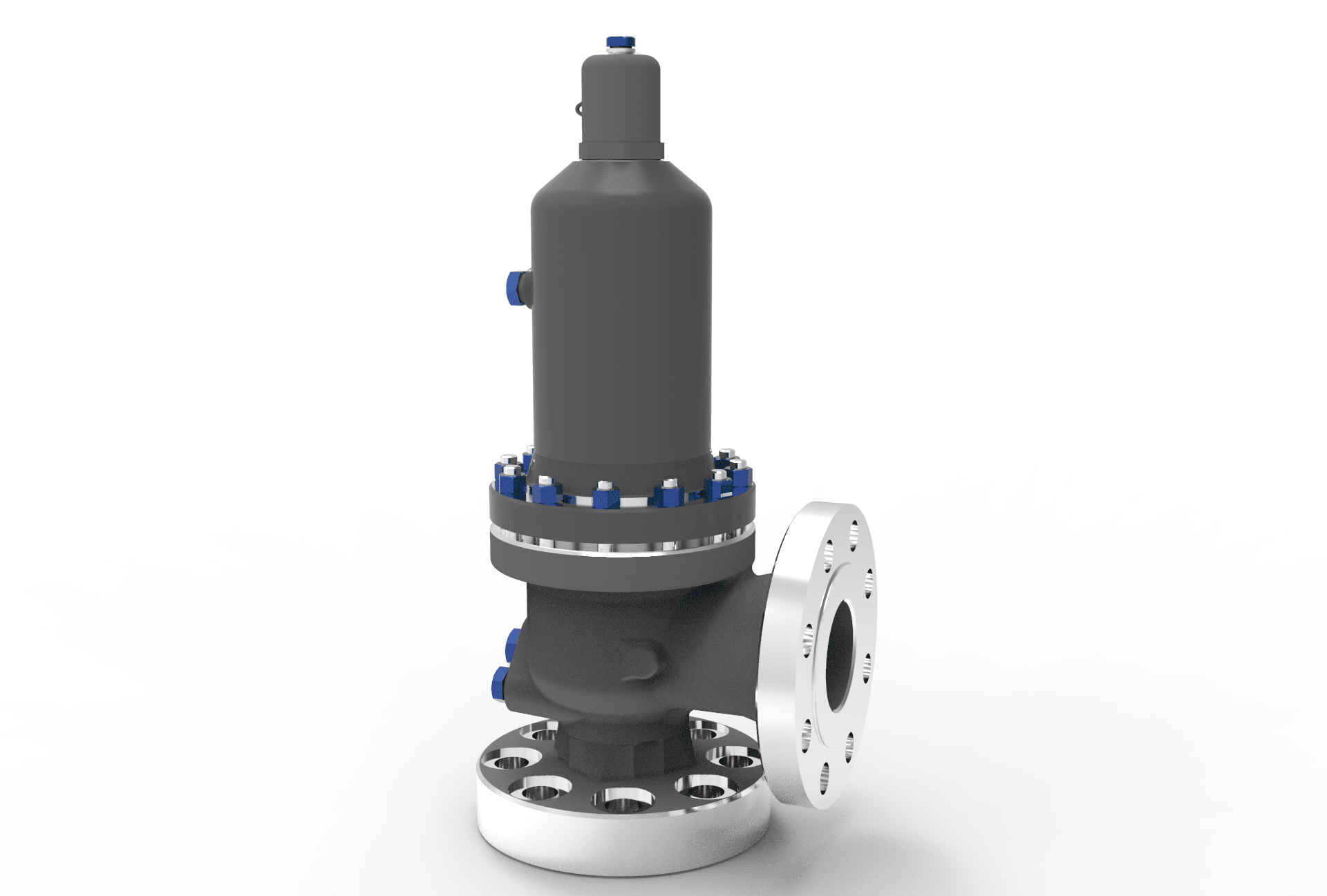

• Sarasin Starflow (P Series) Pressure Relief Valve 1

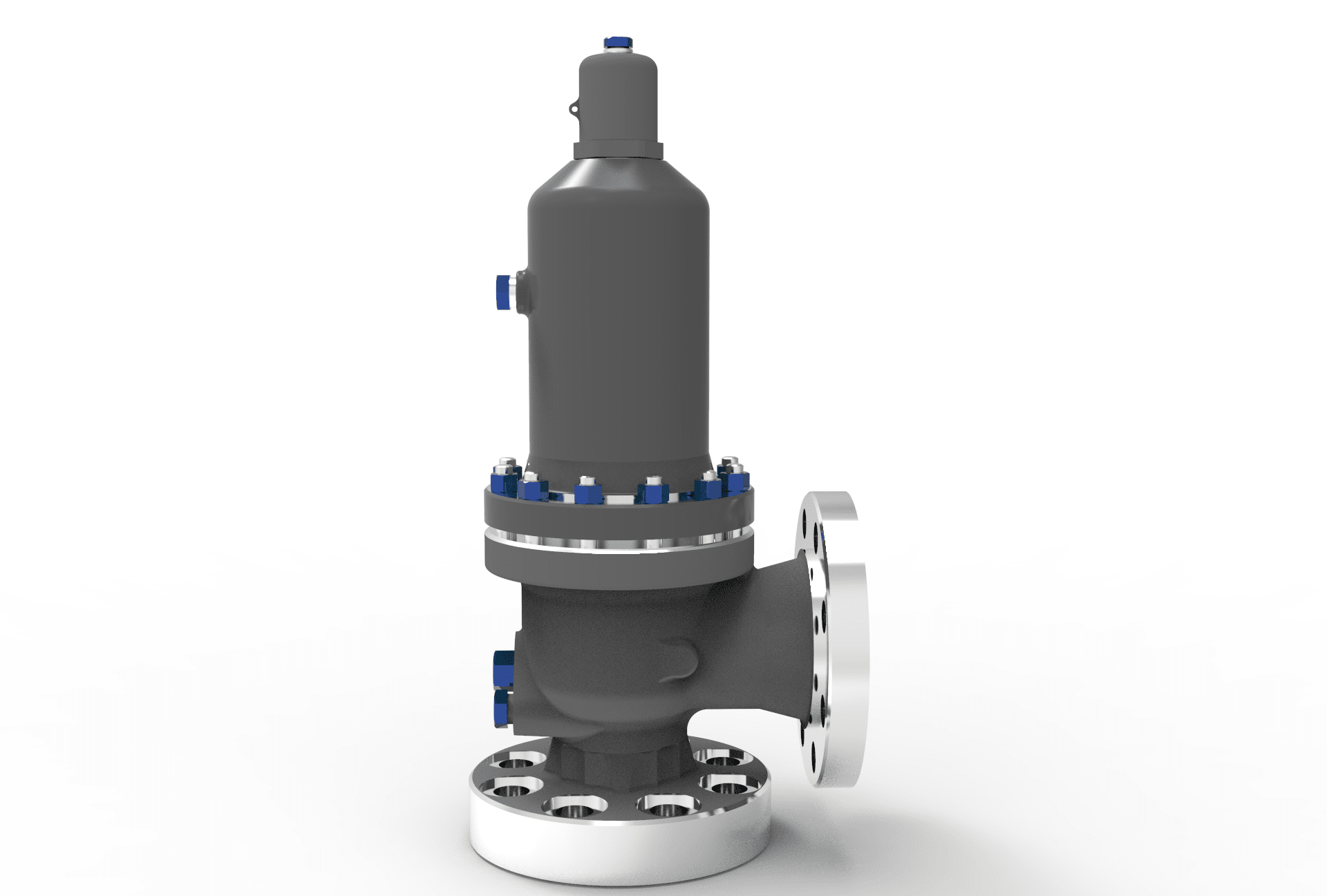

  • Sarasin Starflow (P Series) Pressure Relief Valve 2

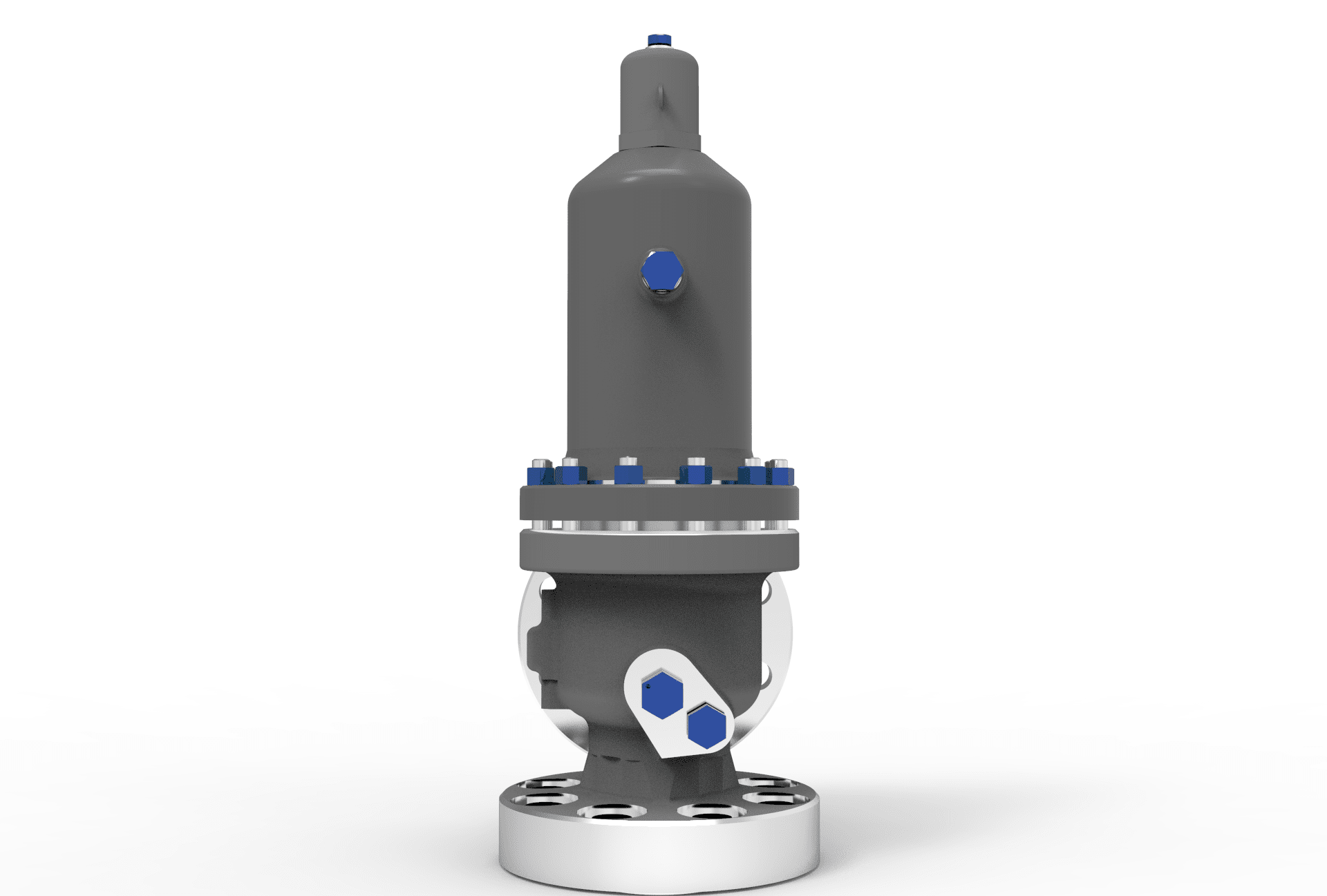

  • Sarasin Starflow (P Series) Pressure Relief Valve 3

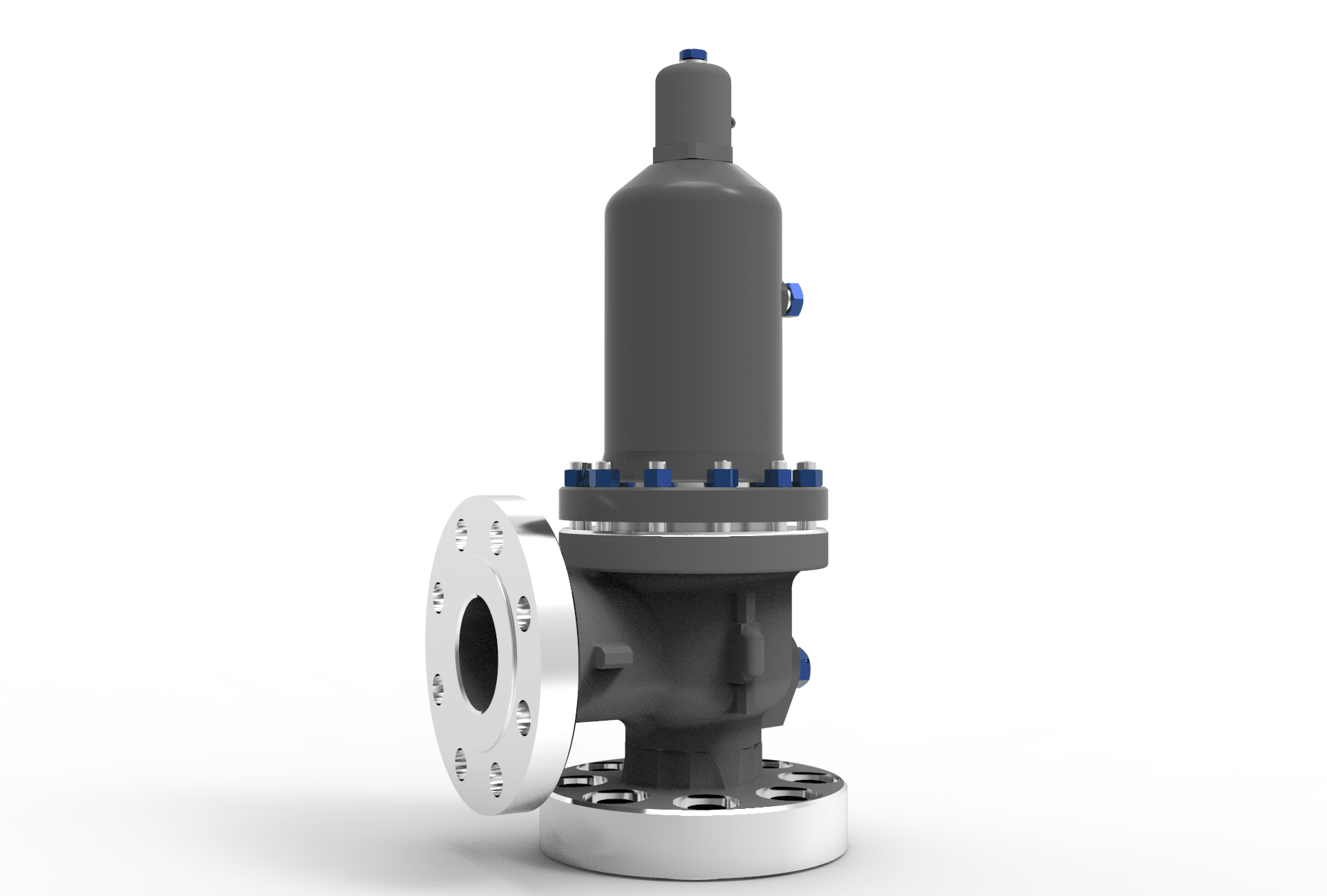

  • Sarasin Starflow (P Series) Pressure Relief Valve 4

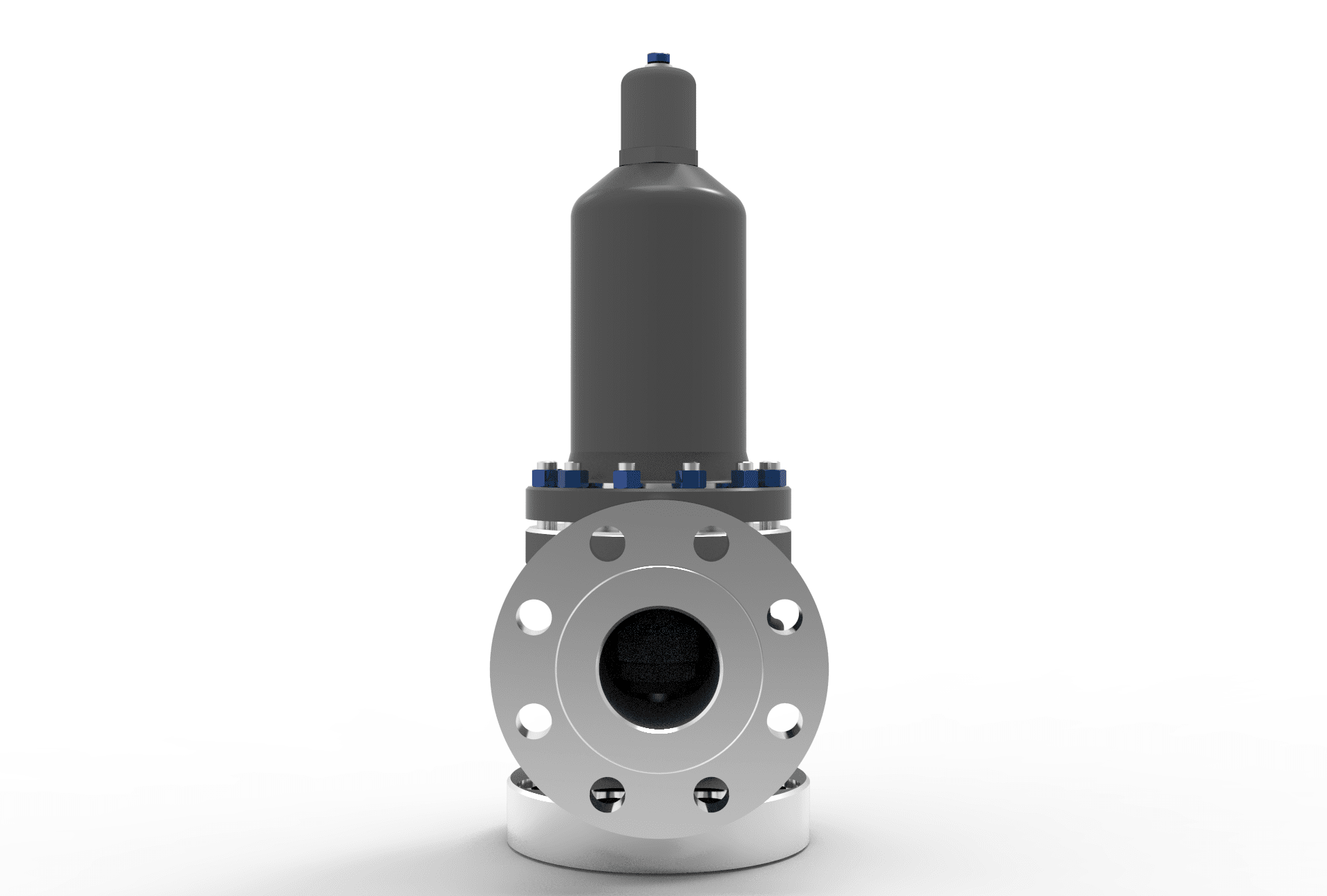

  • Sarasin Starflow (P Series) Pressure Relief Valve 5

SARASIN-RSBD®

Starflow

(P Series) Pressure Relief Valve

The Sarasin-RSBD® Starflow Spring Loaded Pressure Relief Valve is designed using the concepts of safety, high performance, interchangeability, and simplicity for oil and gas applications.

The Starflow range of Spring Loaded Pressure Relief Valves are available in both conventional and balanced bellows designs.

These Sarasin-RSBD® safety relief valves feature a wide range of material options and trim designs to meet the demands of many processes and applications.

Starflow spring loaded pressure safety valves can be used in vapor, gas, liquid, or steam applications in the oil and gas industry as well as cryogenics. The valves are designed to provide high integrity performance and repeatability by their use of an integral full, one-piece nozzle, a self-aligning top-guided disc & disc-holder, and a single adjusting ring for blowdown setting.

KEY FEATURES & BENEFITS

  • An extensive range of material options and trim designs for varying process applications
  • Conversion of trim designs using a minimum of components
  • Resilient seat design for maximum seat tightness and to prevent fugitive fluid emissions
  • Flow capacity tested by the US National Board and carrying the ASME UV code stamp
  • API Standard 526 compliant (sizes up to 8 inches)
  • Block forged body design for high pressure & severe service applications
  • Suitability for NACE MR-01-75 / ISO 15156 and cryogenic applications

APPLICATIONS

  • LNG & FLNG
  • Oil & Gas; Upstream (E & P), Midstream (LNG), and downstream (refining)
  • Oil & Gas – pipelines & compression stations
  • Chemical & petrochemical production
  • Industrial gas & cryogenics
  • Nuclear power plants

DESIGN RATINGS

  • ASME & API Class 150 to 2500, API Class 5000 & 10000 (customized)
  • ASME Section III (St. Victoret Plant)

SIZE RANGE & DIMENSIONS

  • 15 – 400mm (1 – 16 inches)

SEAT TIGHTNESS

  • Metal seats 90%
  • Soft seats 93%

TEMPERATURE RANGE

  • -196°C – 538°C (-320°F – 1000°F)

CAPACITY

  • Individually calculated and selected for each process application

MATERIALS

  • Carbon steel, austenitic & martensitic stainless steels, duplex & super-duplex alloys, 6Mo, alloy 400, alloys B & C, alloy 625 &825

UPGRADES & ADAPTATIONS

  • Forged block body
  • Assisted lift
  • Supplementary loading
  • Limit switch
  • Balanced piston
  • Bellows failure sensor
  • Damping system (GRAB / QUIRI)
  • Inlet and outlet butt-weld ends on customer demand
  • Steam jacket
