WEMCO®

Torque-Flow

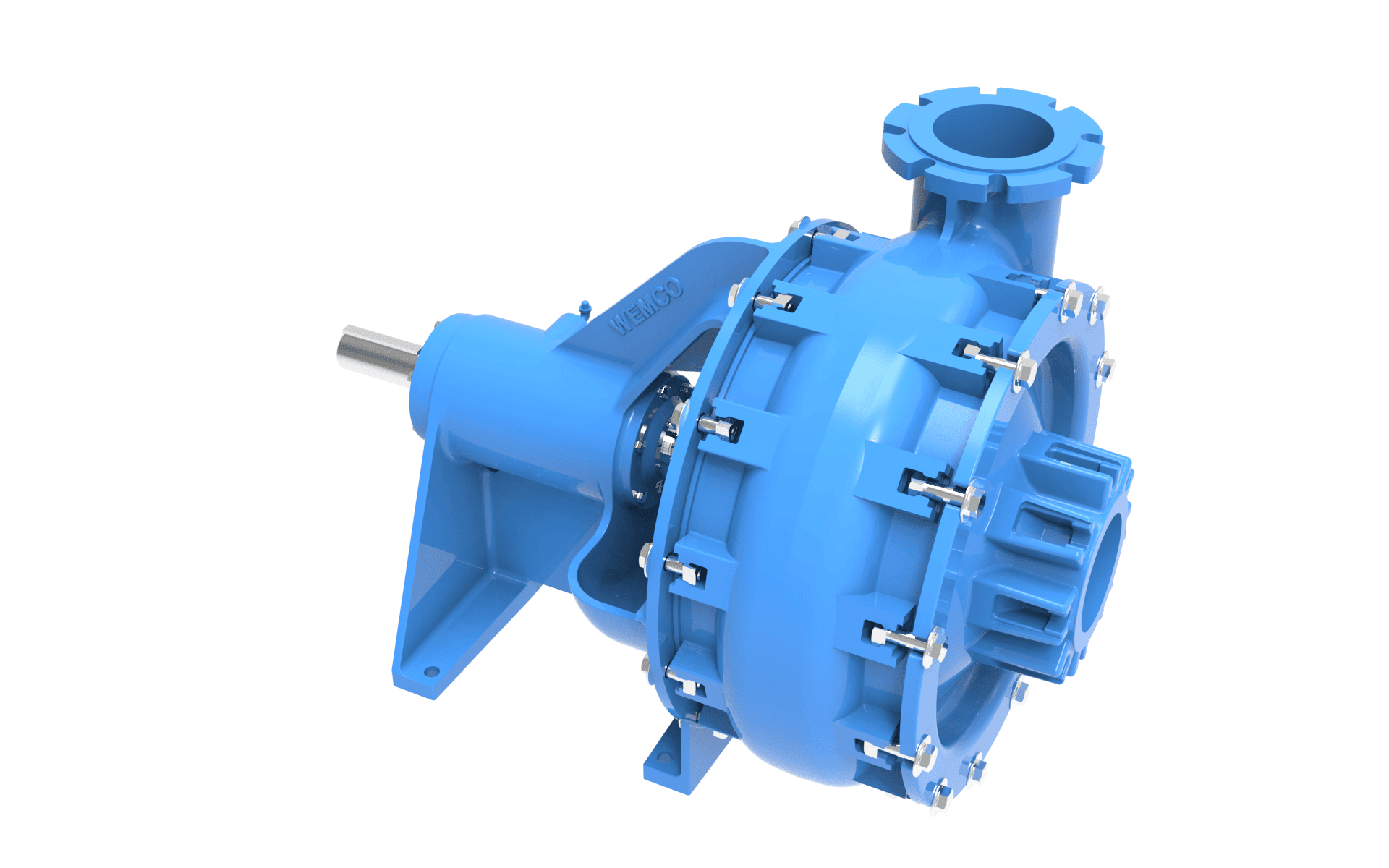

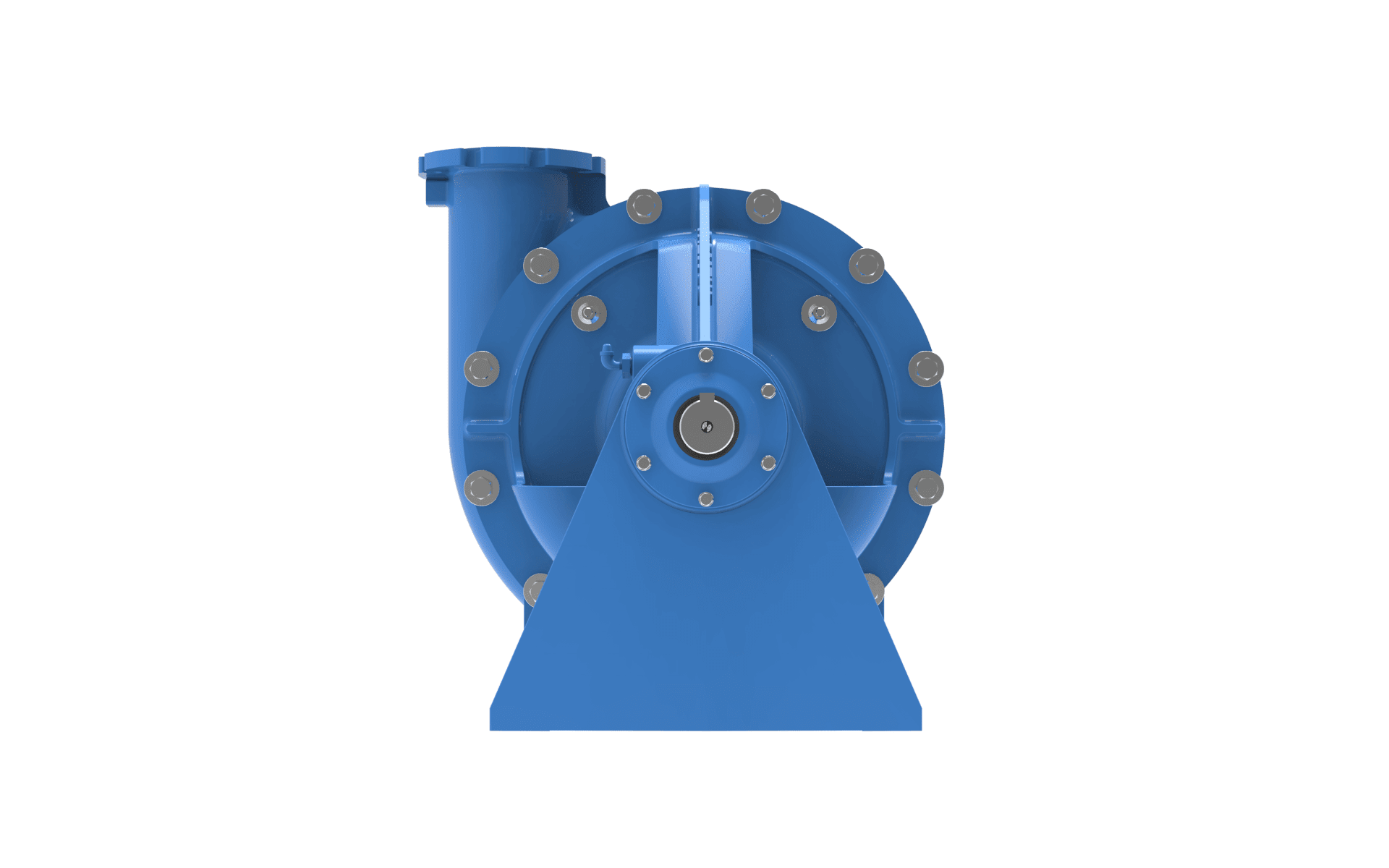

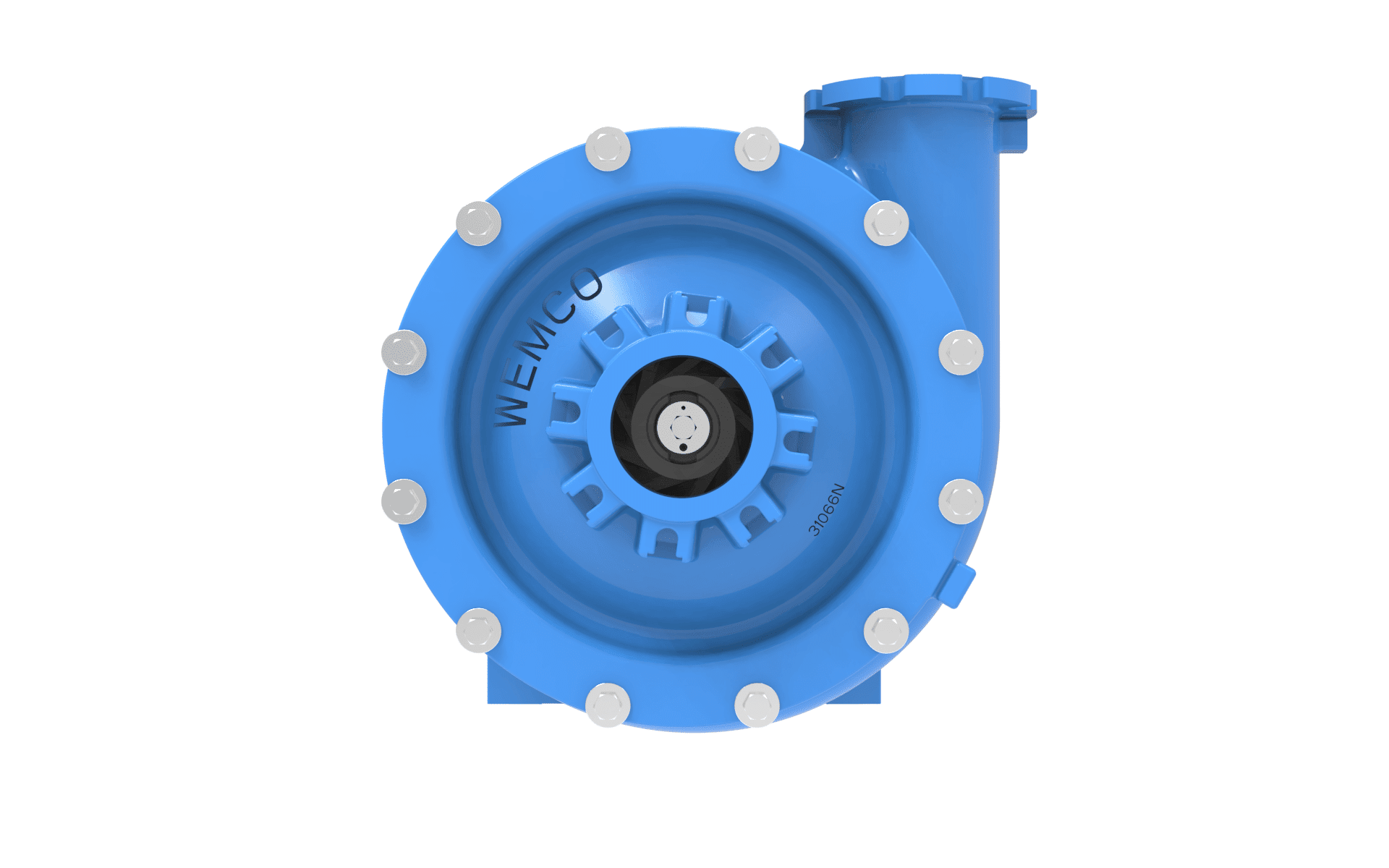

The WEMCO® Torque-Flow is a recessed impeller pump designed by industrial experts to perform challenging grit-handling duties.

The WEMCO® Torque-Flow® is the industry’s toughest grit-handling vortex pump, it easily moves pipe size solids without clogging. With abrasion resistant construction it is a robust solids handling pump.

KEY FEATURES & BENEFITS

  • The original recessed impeller pump
  • Fully recessed cup-type impeller
  • Replaceable hard iron wear plate
  • Two-piece case with replaceable suction piece
  • Wet-end parts available in 650+ Brinell hardness
  • SST wet end available on some models

APPLICATIONS

  • Wastewater treatment
  • Grit & sludge
  • Chemicals
  • Abrasives
  • Fluids with large solids

CAPACITY HEAD

  • 0 – 230 ft. (70.1 m)

FLOW

  • 0 to 4,500 gpm (1,022 m³/h)

CONFIGURATIONS

  • Horizontal/Vertical
  • Belt drive
  • Direct connect
  • Submersible
  • Cantilever

SIZE RANGE & DIMENSIONS

  • 1 – 10 inch (25.4 – 254 mm)

TEMPERATURE RANGE

  • 32ºF (0°C) – 200ºF (93°C)

MATERIALS CASE & IMPELLER

  • Cast iron
  • Hi-chrome iron
  • Ni-hard
  • Stainless steel
  • Ductile iron
