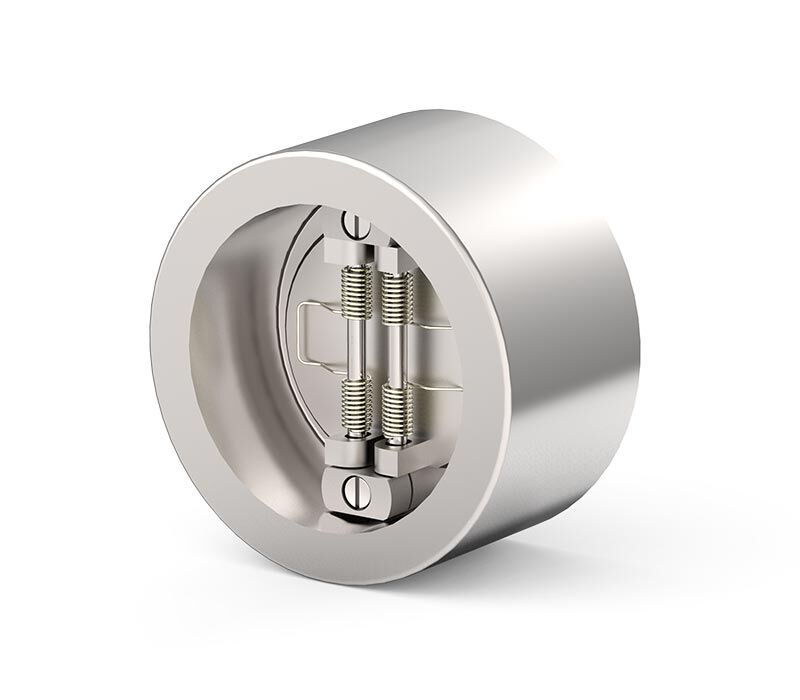

• Red Point Dual Plate Check Valve

Red Point®

Dual Plate Check Valves

Dual Plate Check Valves from Red Point® can be deployed for a wide variety of applications in the oil & gas and petrochemical industries when high quality, reliable valves are required.

Our dual plate check valves are available as forged or cast valves featuring exotic material options with short delivery times.

Design

  • Wafer
  • Lug
  • Double Flanged

End connections

  • Flanged
  • BW
  • SW
  • THR
  • HUB

Options

  • Soft and metal seat

Design features

  • Retainerless Design

Design & testing

  • All available international standards according to API, EN, ISO

Installation position

  • Horizontal and/or vertical

Size & bore

Forged Valves:

  • ANSI 1” – 6”
  • DN 25 to DN 100



Cast Valves:

  • ANSI 6” to 16”
  • DN 10 to DN 400

Pressure range

Forged Valves:

  • ANSI 125 to 4,500 lbs
  • ISO PN 10 to PN 640



Cast Valves:

  • ANSI 125 to 2,500 lbs
  • ISO PN 10 to PN 400

  • Retainerless valve body; no penetration through the body wall
  • Fire safe design
  • Self-seating design that reduces dragging along seat surfaces
  • Lapped seating surfaces that exceed API 598 seat leakage requirements for metal-seated valves
  • An uninterrupted gasket surface
  • Shock bumpers minimize shock-force on internal components
  • Immediately responsive spring design to changes in flow characteristics
  • Low pressure cracking
  • High flow capacity, minimizes flow velocity

Dual plate check valves from Red Point® can be deployed for a wide variety of applications in the oil & gas and petrochemical industries when high quality, reliable valves are required. A few example applications include:

  • High-temperature services
  • High-pressure oxygen, nitrogen, or hydrogen
  • Solids handling (powders, fines, dust, and catalysts)
  • Polyethylene or polypropylene
  • Coal conversion & gasification
  • Thermal fluids
  • Separator, filter, and drying systems
  • Compressor stations
  • On/off isolation service
  • Oil & gas manifolds

Nickel Alloys (Monel®, Inconel®, Hastelloy®, Incoloy®), Duplex and Super Duplex, Carbon Steel and Low Temp Carbon Steel, Low Alloy Steel, Stainless Steel, Titanium, Zirconium
