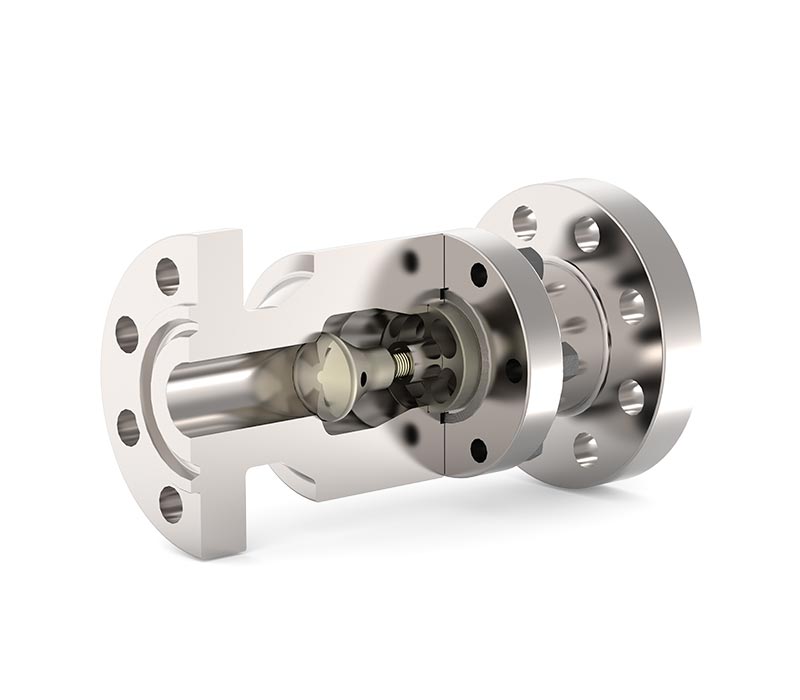

• Red Point Nozzle Check Valve

Red Point®

Nozzle Check Valves

Our nozzle check valves are available as forged or cast valves featuring exotic material options with short delivery times.

Design type

  • Nozzle check

Options

  • Pressure seal cover
  • Soft and metal seat

Design & testing

  • All available international standards according to API, EN, ISO

Size & bore

Forged Valves:

  • ANSI 1” – 6”
  • DN 25 to DN 100



Cast Valves:

  • ANSI 6” to 16”
  • DN 10 to DN 400

Pressure range

Forged Valves:

  • ANSI 125 to 4,500 lbs
  • ISO PN 10 to PN 640



Cast Valves:

  • ANSI 125 to 2,500 lbs
  • ISO PN 10 to PN 400

End connections

  • Flanged
  • BW
  • SW
  • THR
  • HUB

Design features

  • Springless design
  • Non-slam

Installation position

  • Horizontal and/or vertical

  • Full stellite disc and seat
  • Class A low emission gasket
  • Low emission valve technology design optimized for extended service life
  • Low pressure cracking
  • High flow capacity, minimizes flow velocity

Nozzle check valves by Red Point® can be deployed in a wide variety of applications in the oil & gas and petrochemical industries when high quality, reliable valves are required. A few example applications include:

  • High-temperature services
  • High-pressure oxygen, nitrogen, or hydrogen
  • Solids handling (powders, fines, dust, and catalysts)
  • Polyethylene or polypropylene
  • Coal conversion and gasification
  • Thermal fluids
  • Separator, filter, and drying systems
  • Compressor stations
  • On/off isolation service
  • Oil & gas manifolds

Nickel Alloys (Monel®, Inconel®, Hastelloy®, Incoloy®), Duplex and Super Duplex, Carbon Steel and Low Temp Carbon Steel, Low Alloy Steel, Stainless Steel, Titanium, Zirconium
