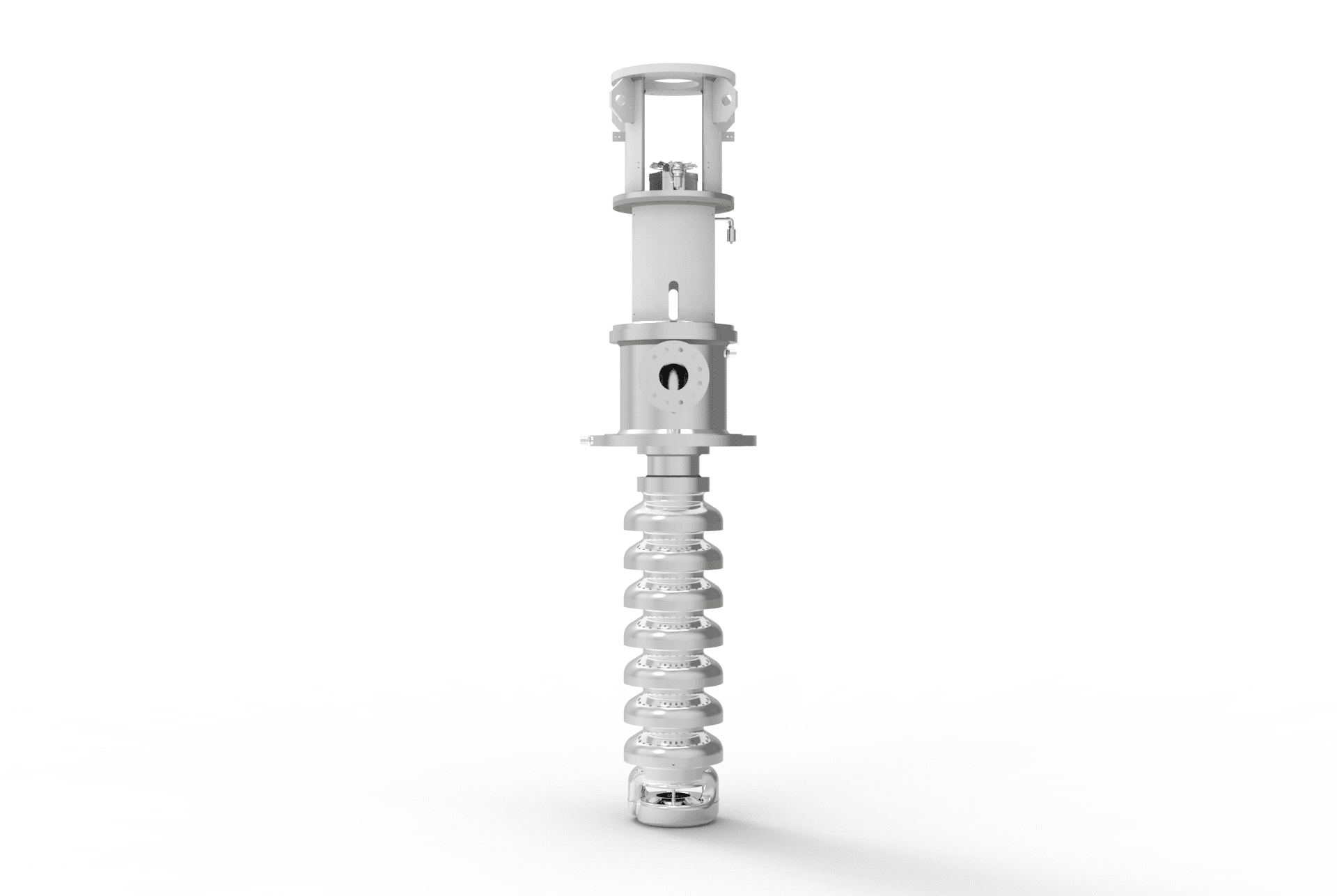

• GABBIONETA PUMPS® VBN & VBN-DS VS1 & VS6 TYPE API 610 CENTRIFUGAL PUMP front view

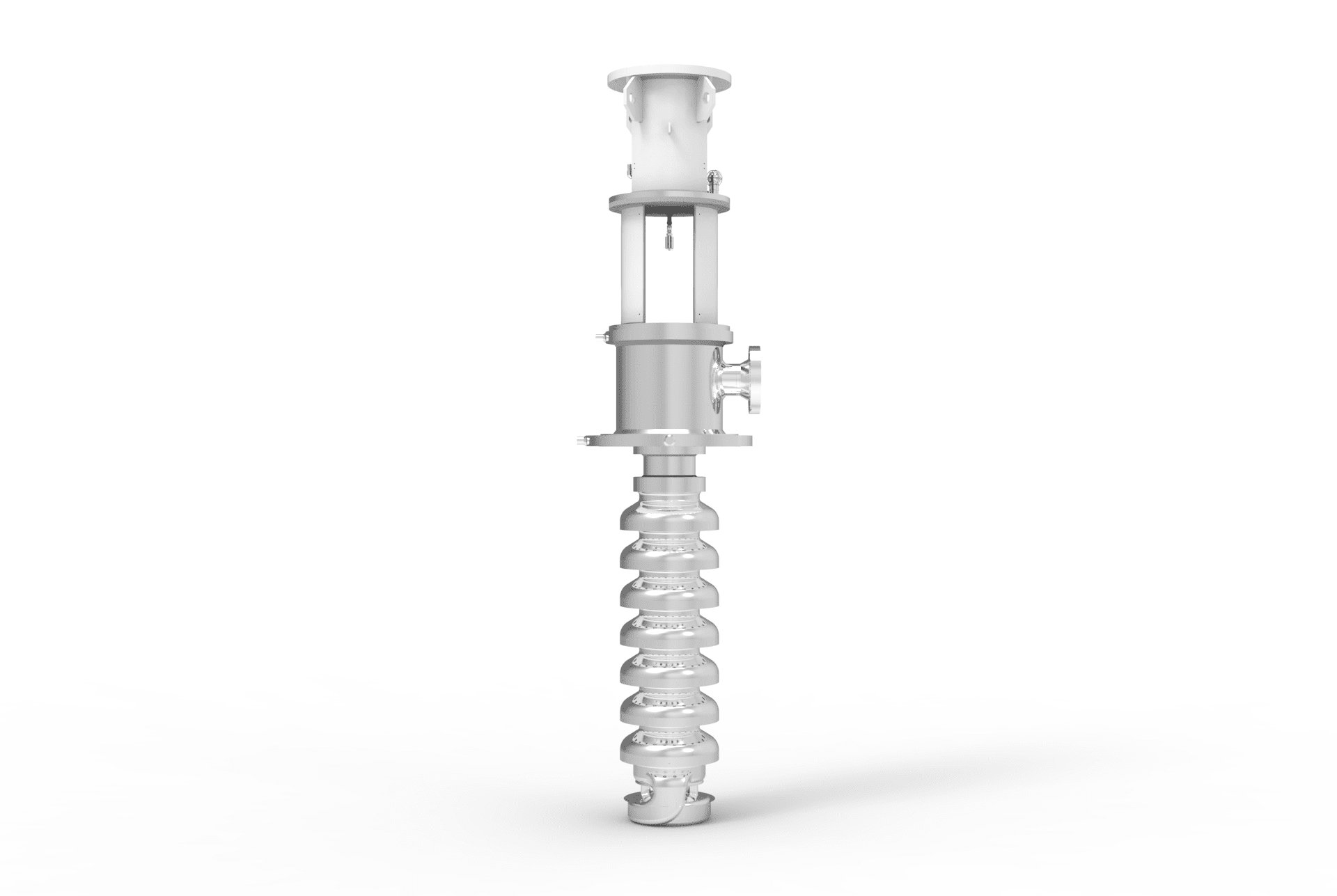

  • GABBIONETA PUMPS® VBN & VBN-DS VS1 & VS6 TYPE API 610 CENTRIFUGAL PUMP right side view

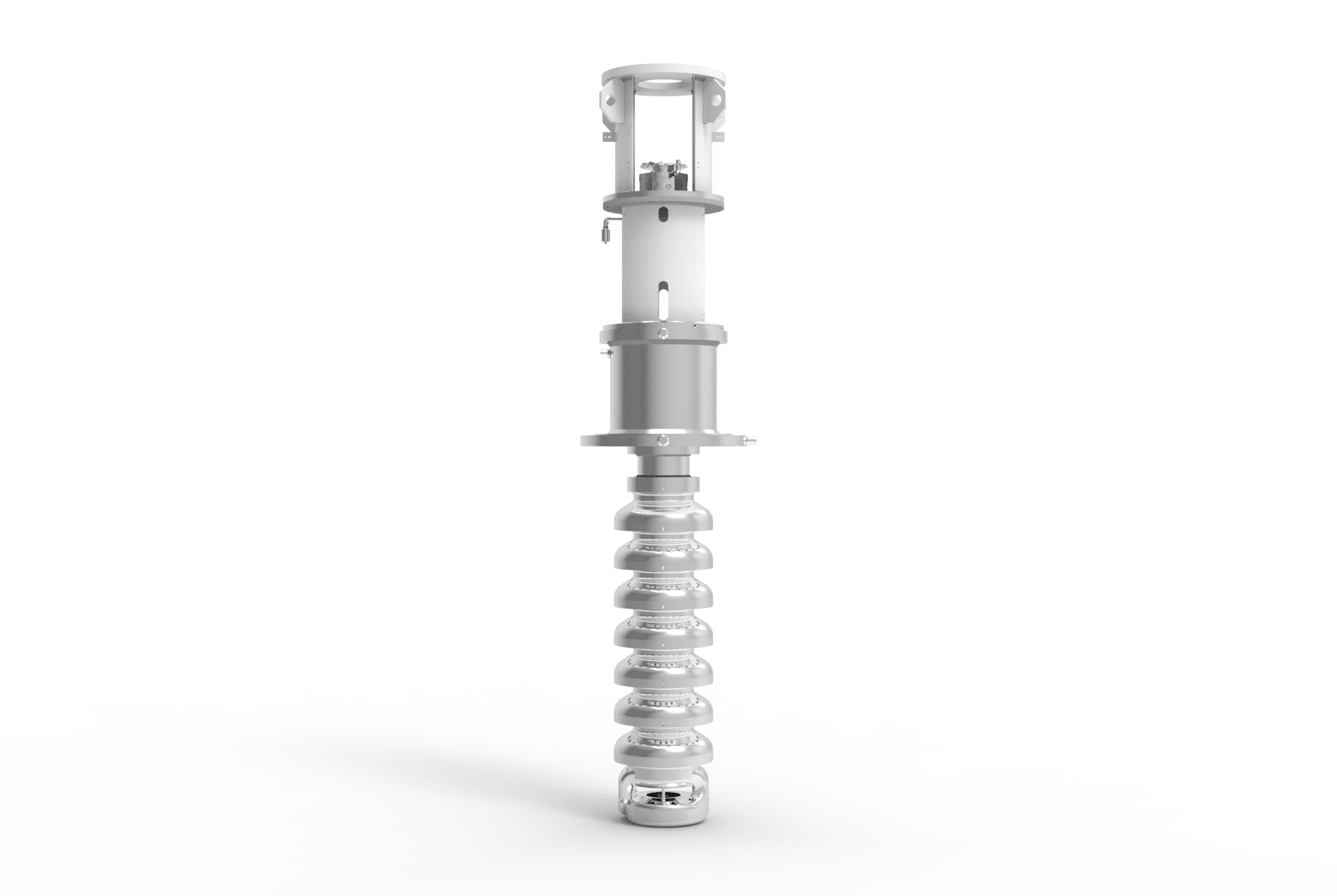

  • GABBIONETA PUMPS® VBN & VBN-DS VS1 & VS6 TYPE API 610 CENTRIFUGAL PUMP back view

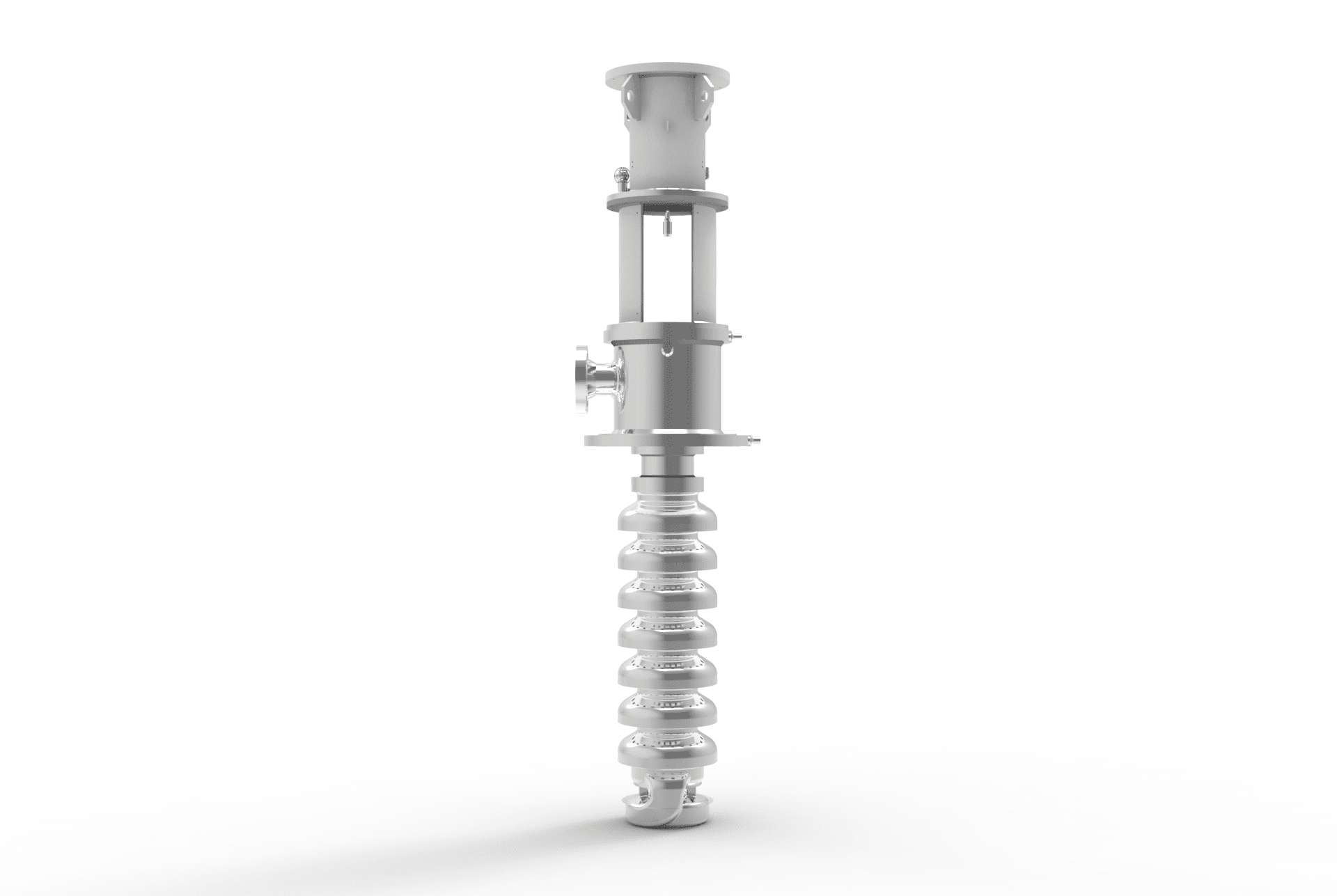

  • GABBIONETA PUMPS® VBN & VBN-DS VS1 & VS6 TYPE API 610 CENTRIFUGAL PUMP left side view

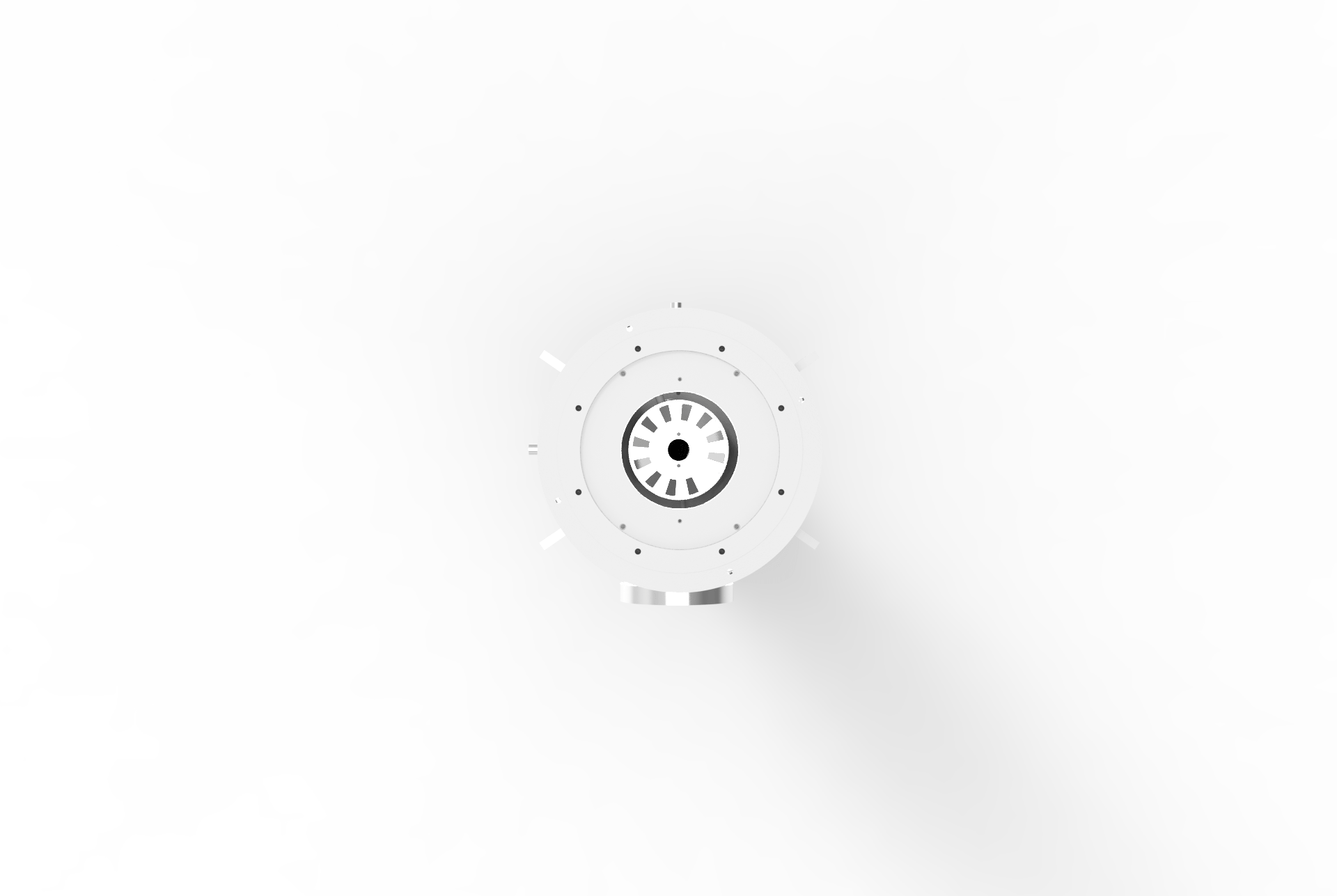

  • GABBIONETA PUMPS® VBN & VBN-DS VS1 & VS6 TYPE API 610 CENTRIFUGAL PUMP top view

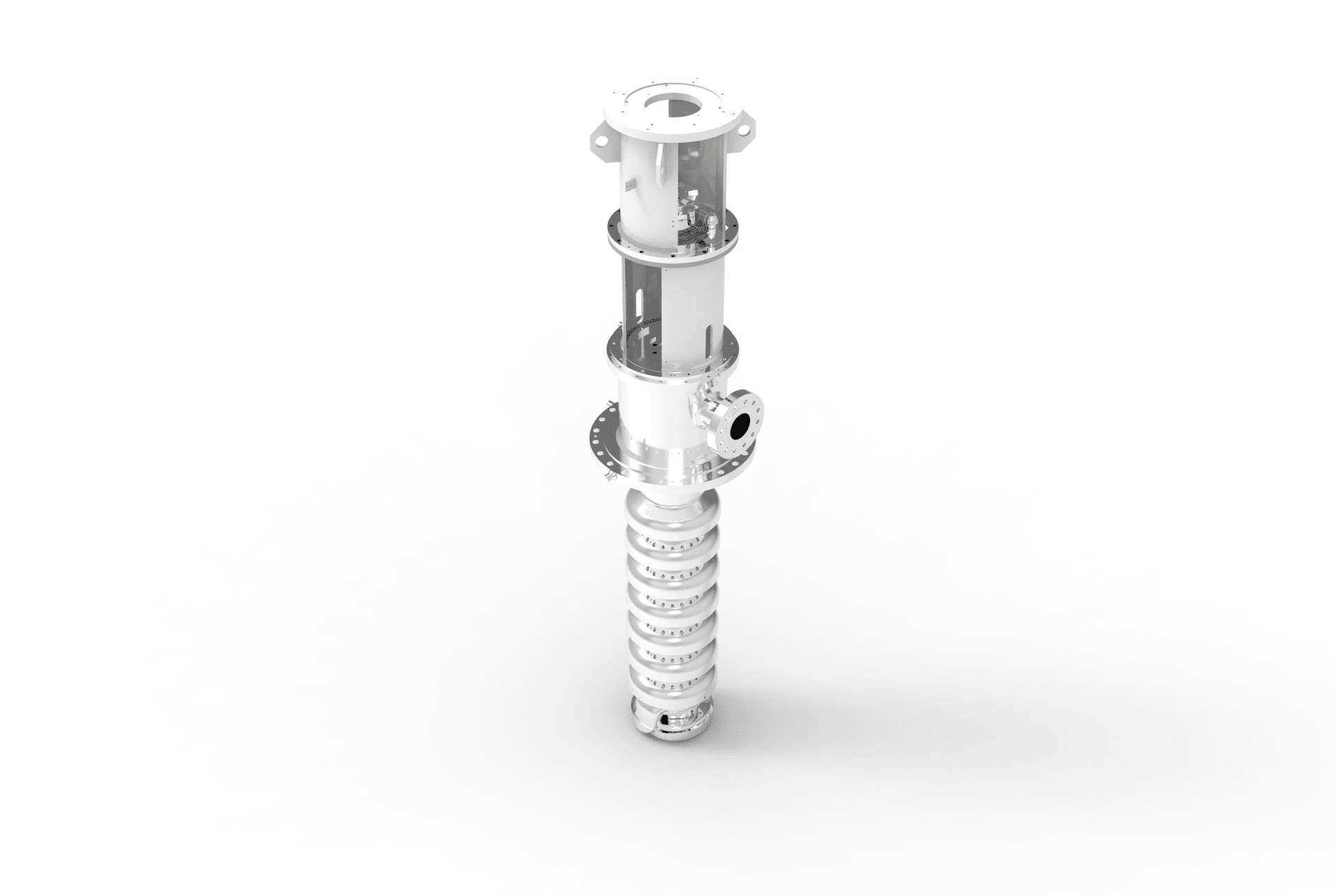

  • GABBIONETA PUMPS® VBN & VBN-DS VS1 & VS6 TYPE API 610 CENTRIFUGAL PUMP right angled view

GABBIONETA PUMPS®

VBN & VBN-DS VS1 & VS6 type API 610 Centrifugal Pump

The Gabbioneta VBN centrifugal pump series are designed to minimize axial thrust in low NPSH applications. The VBN and VBN-DS Gabbioneta Pumps® are vertical multistage, heavy-duty process pumps, available in double casing or wet pit configuration.

Available in a wide range of sizes, number of stages, and large eye suction or double suction first stage impeller, allows this pump to meet low NPSH requirements.

TECHNICAL DATA

  • Capacity up to 1,800 m3/h (8,000 gpm)
  • Head up to 2,000 m (6,500 ft.)
  • Operating temperature from -150ºC (-240 F) to 400ºC (750ºF)
  • Standard design pressure 40 bar (580 psig), special executions up to 210 bar (3,000 psig)
  • Rotational speed up to 3,600 RPM

DESIGN STANDARD

  • API 610 latest edition

MATERIALS

  • All API 610 class materials.
  • Special materials upon request.
