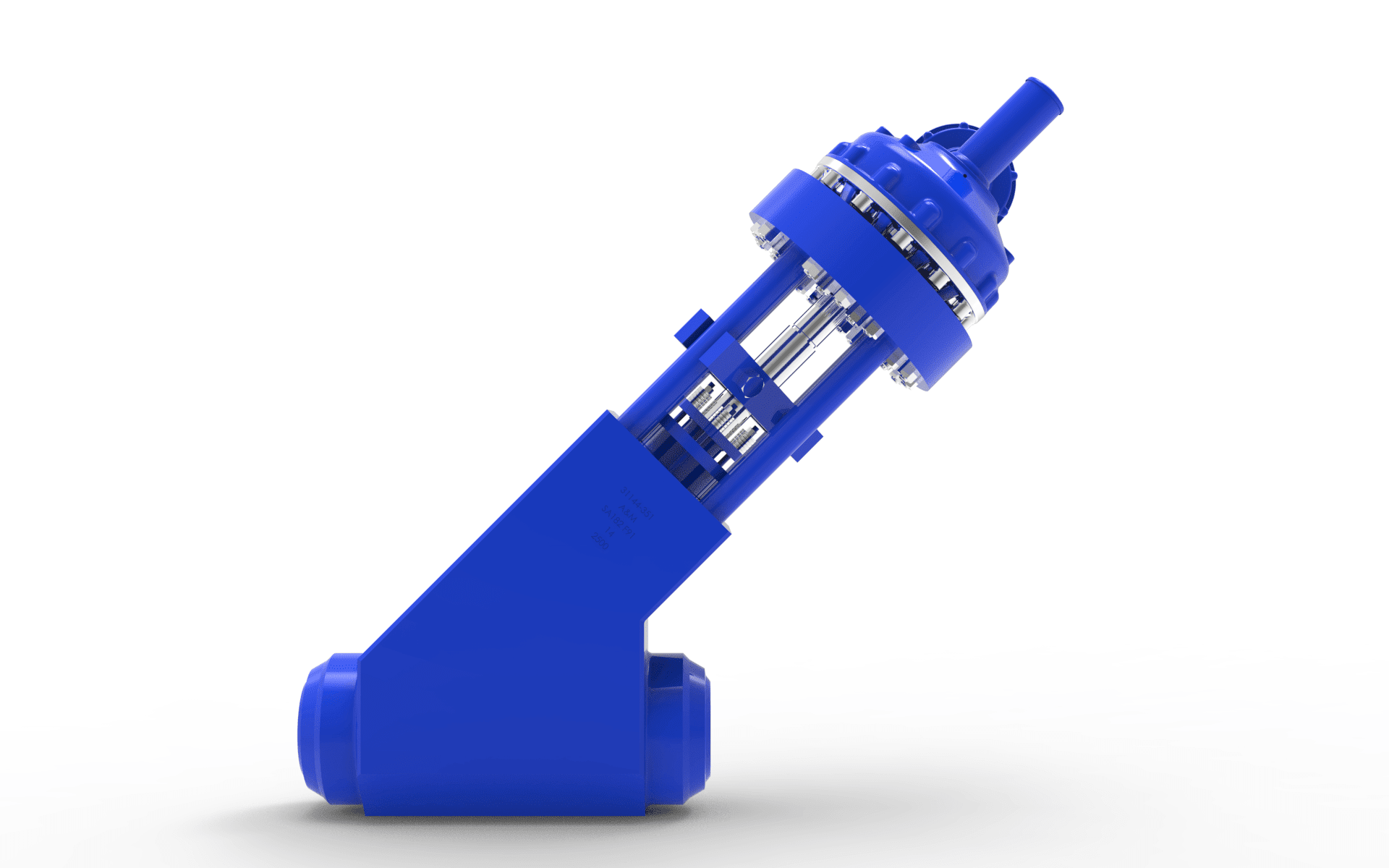

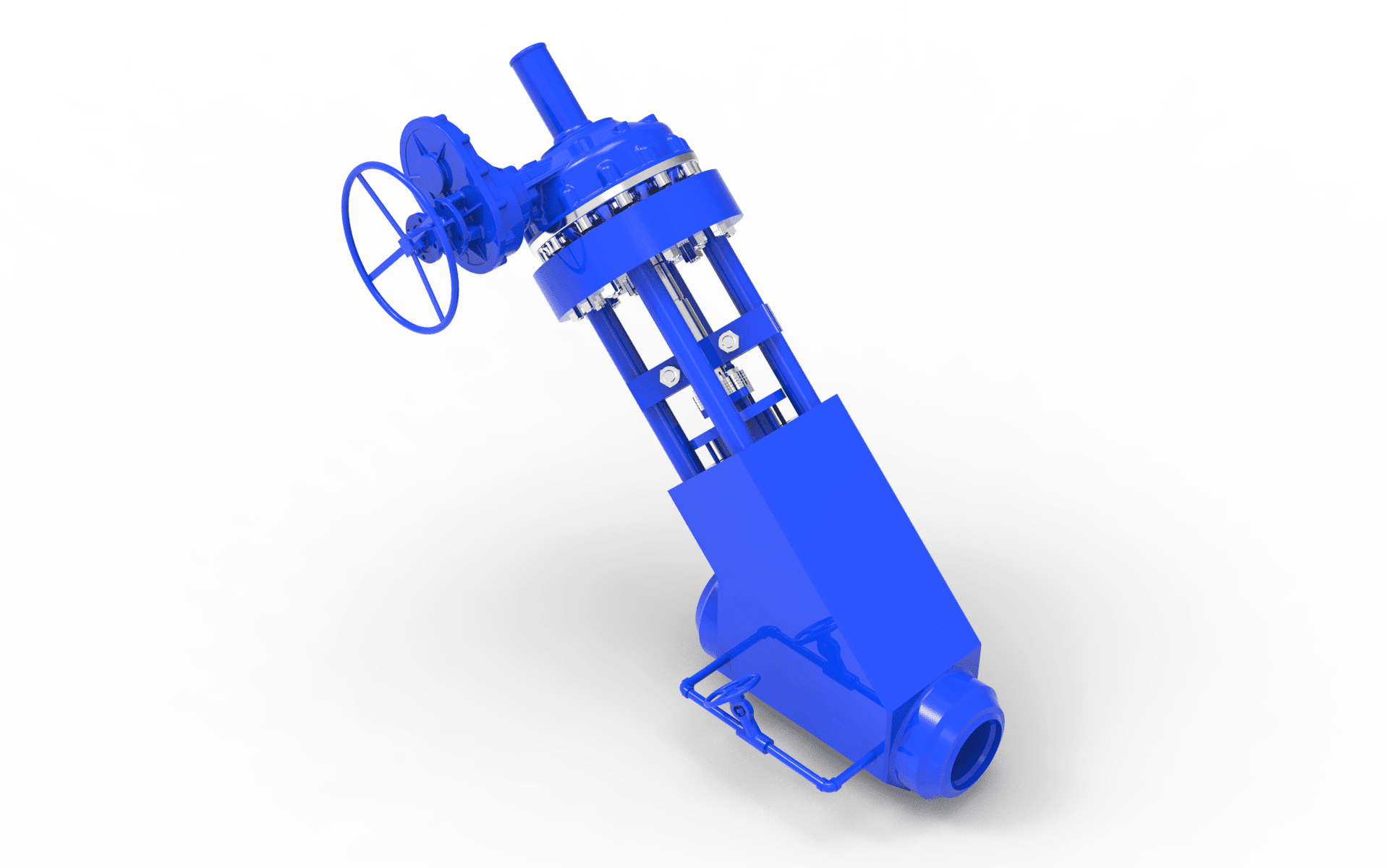

• ATWOOD&MORRILL Forged Wye Globe Valves 6

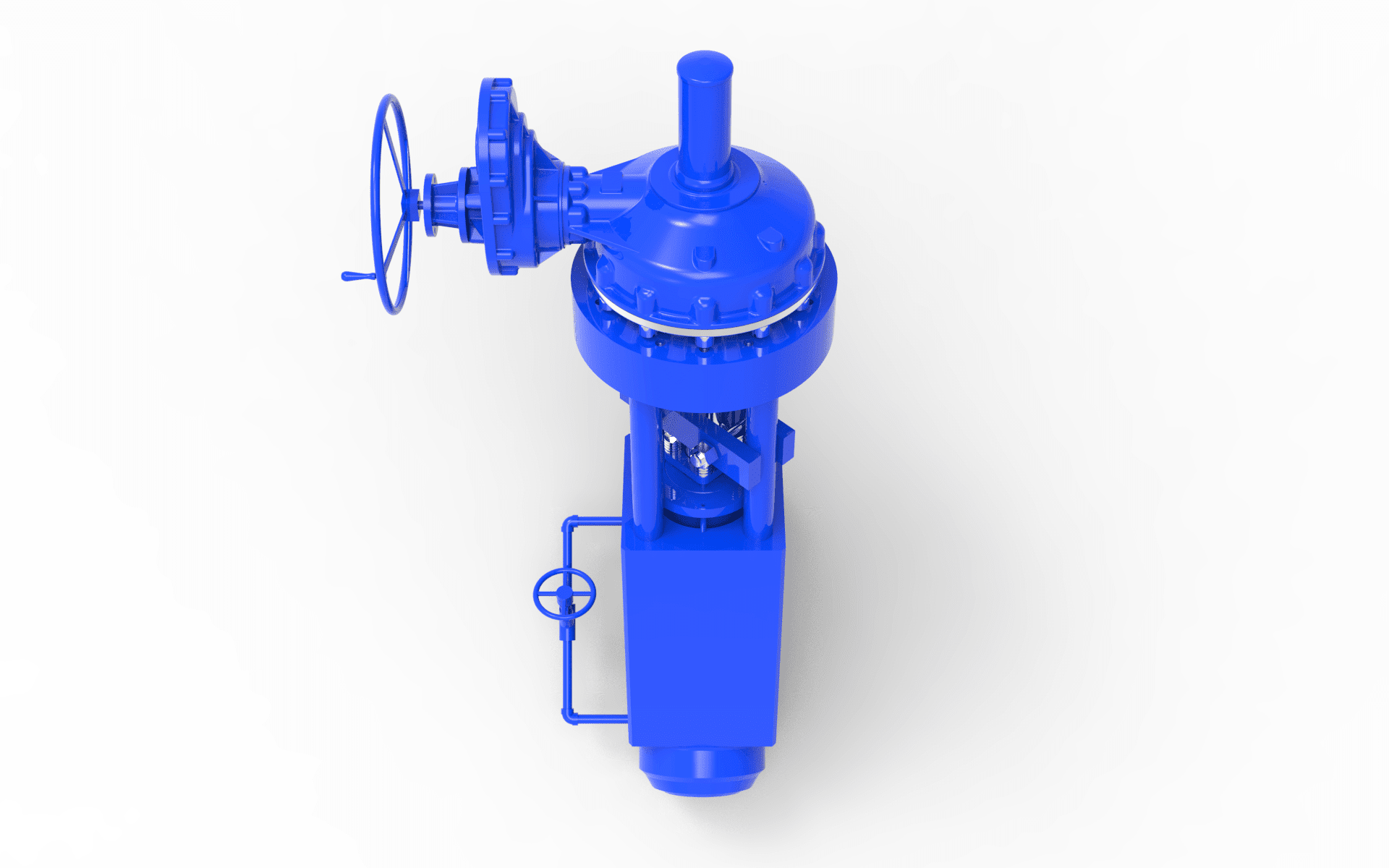

  • ATWOOD&MORRILL Forged Wye Globe Valves 5

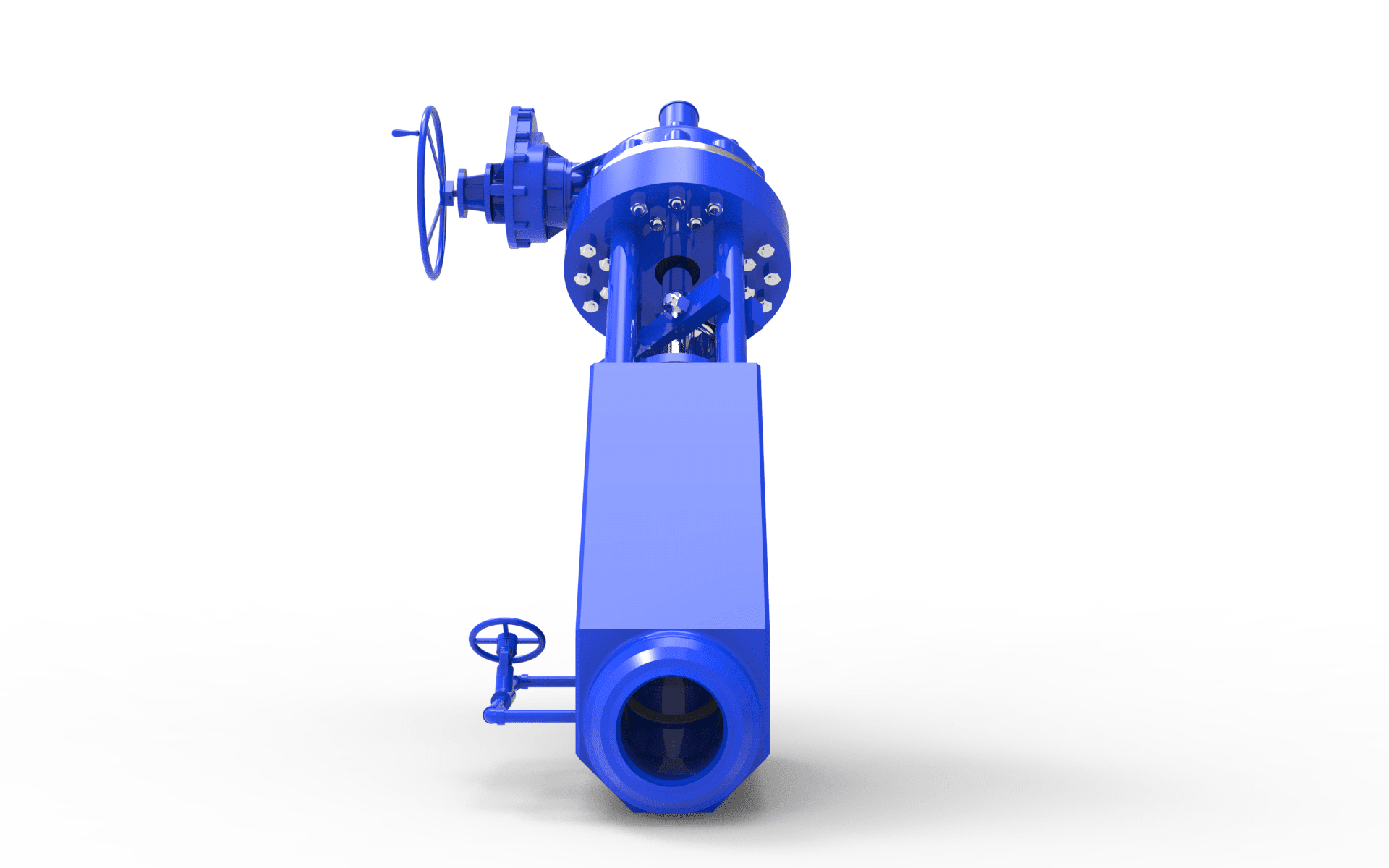

  • ATWOOD&MORRILL Forged Wye Globe Valves 1

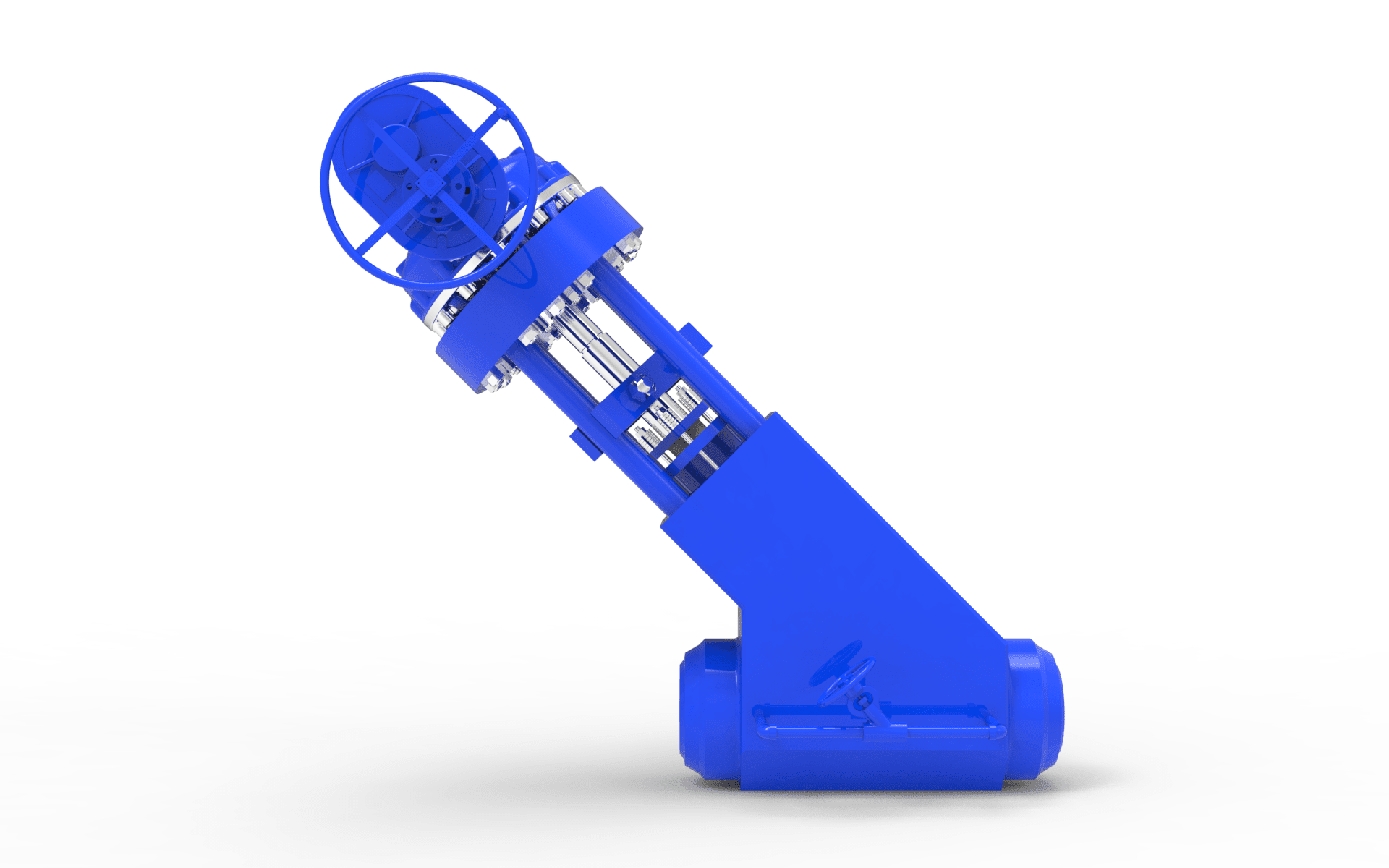

  • ATWOOD&MORRILL Forged Wye Globe Valves 2

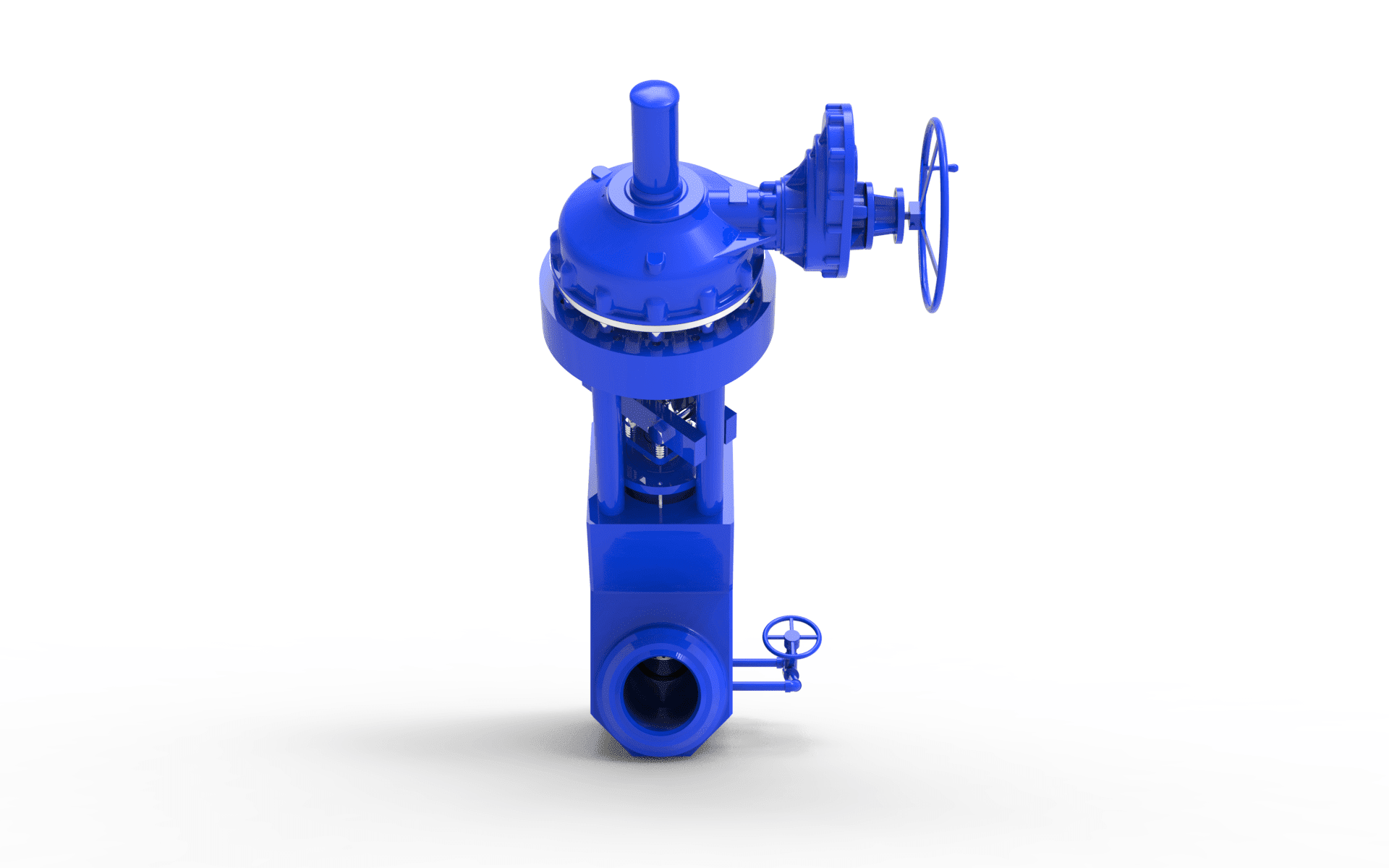

  • ATWOOD&MORRILL Forged Wye Globe Valves 3
  • ATWOOD&MORRILL Forged Wye Globe Valves 4

ATWOOD & MORRILL®

Forged Wye Globe Valves

Trillium Valves USA™ has developed a Forged Wye Globe Valve to add to the Atwood & Morrill® product offering.

These valves offer customers a forged material option for combined cycle, critical, super-critical, and ultra super critical steam power applications.

CONFIGURATIONS

  • Stop-check valve
  • Stop valve
  • Lift-check valve

APPLICATIONS

  • Main steam isolation
  • Hot reheat isolation
  • Other critical isolation valve applications

SPECIFICATIONS

  • ASME B16.34
  • Applicable international specifications as required

PRESSURE CLASS RANGE

  • ASME 600 to 2500
  • Special and Intermediate class ratings available

SIZE RANGE

  • 6 – 28 inches
  • Larger sizes available upon request

TEMPERATURE RANGE

  • Up to 1,150°F (620°C)

MATERIALS

  • ASTM A105
  • ASTM A182 F11
  • ASTM A182 F22
  • ASTM A182 F91
