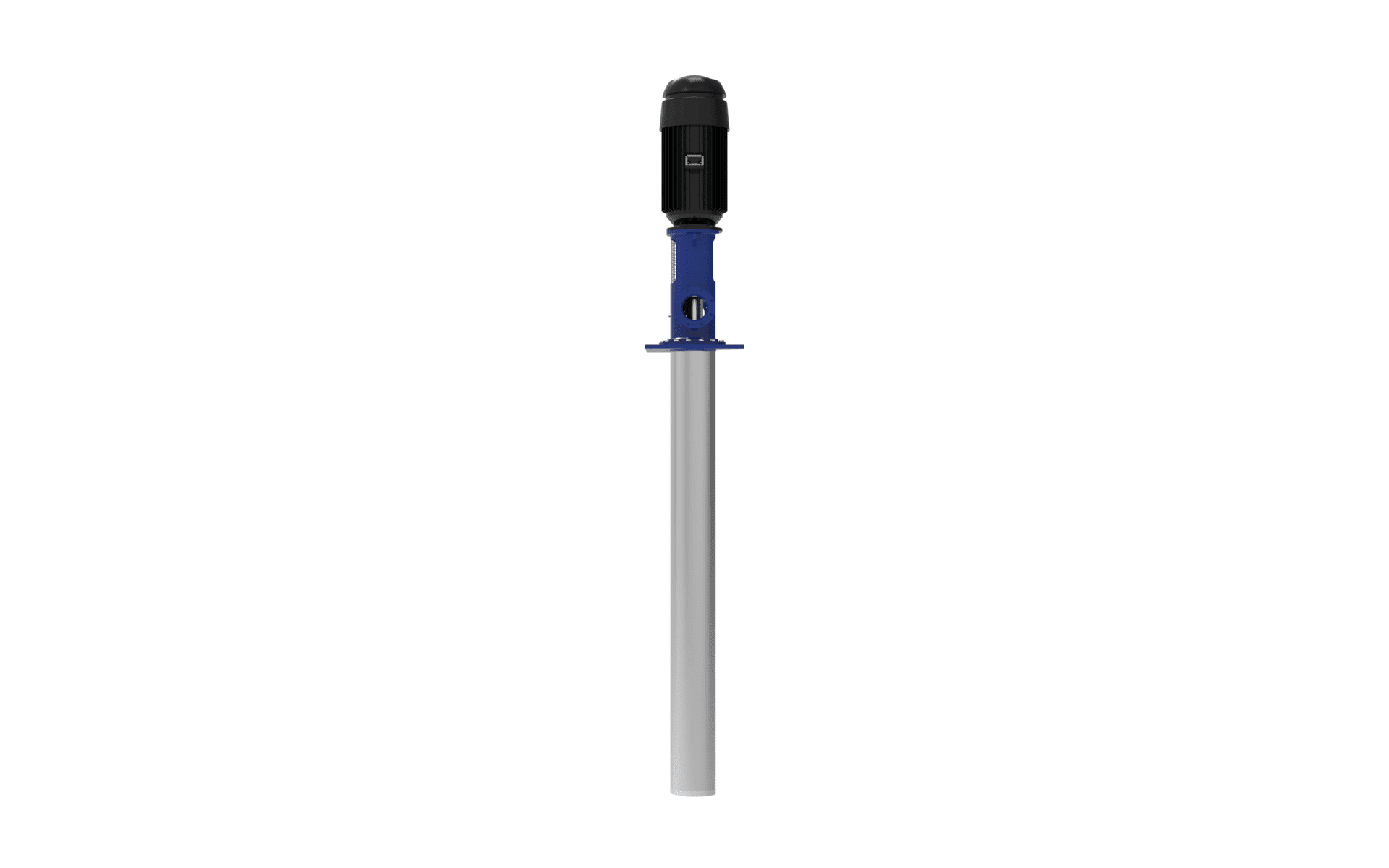

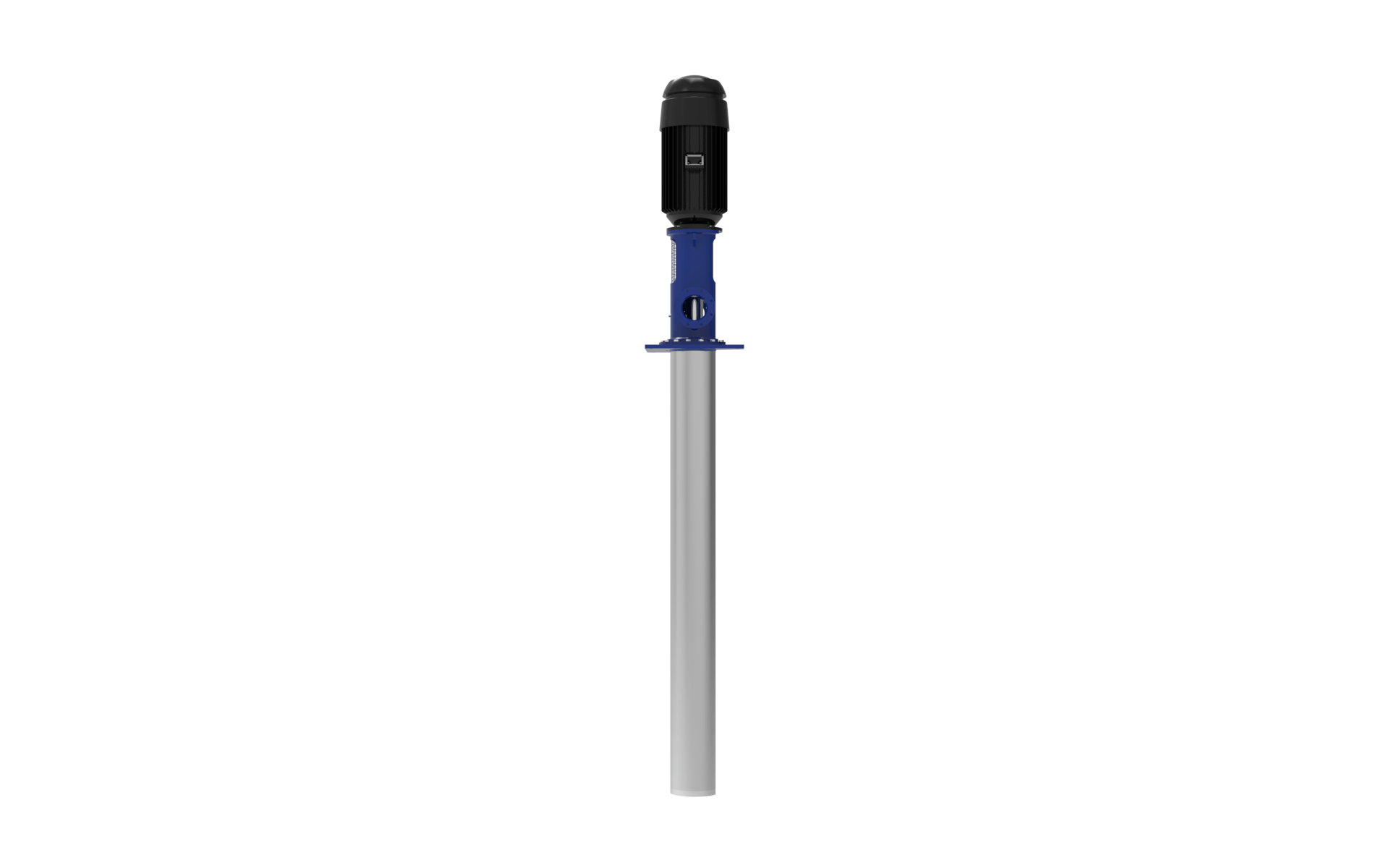

• FLOWAY® VHP API 610 VERTICAL TURBINE PUMP back view

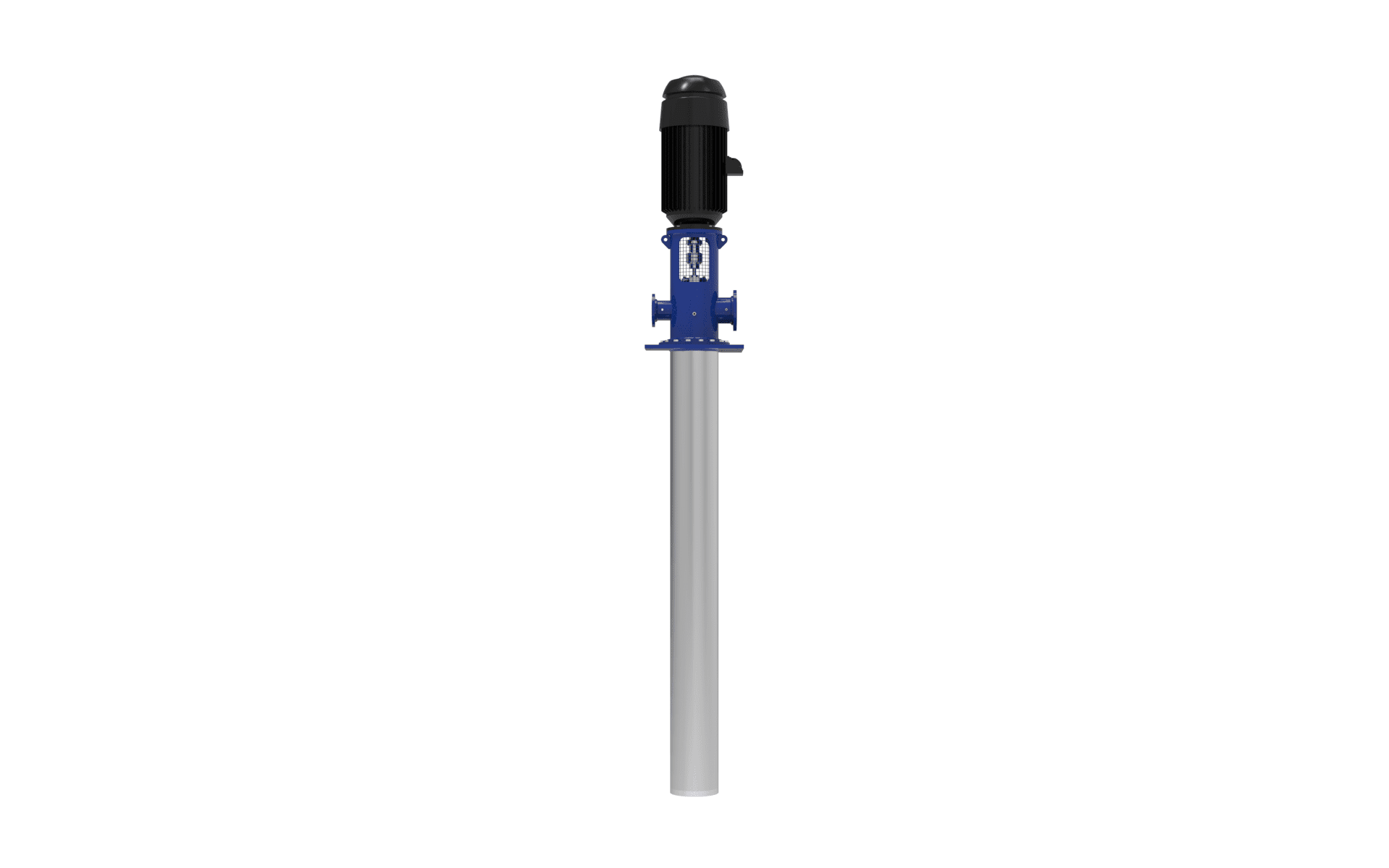

  • FLOWAY® VHP API 610 VERTICAL TURBINE PUMP front view
  • FLOWAY® VHP API 610 VERTICAL TURBINE PUMP right side
  • FLOWAY® VHP API 610 VERTICAL TURBINE PUMP left side

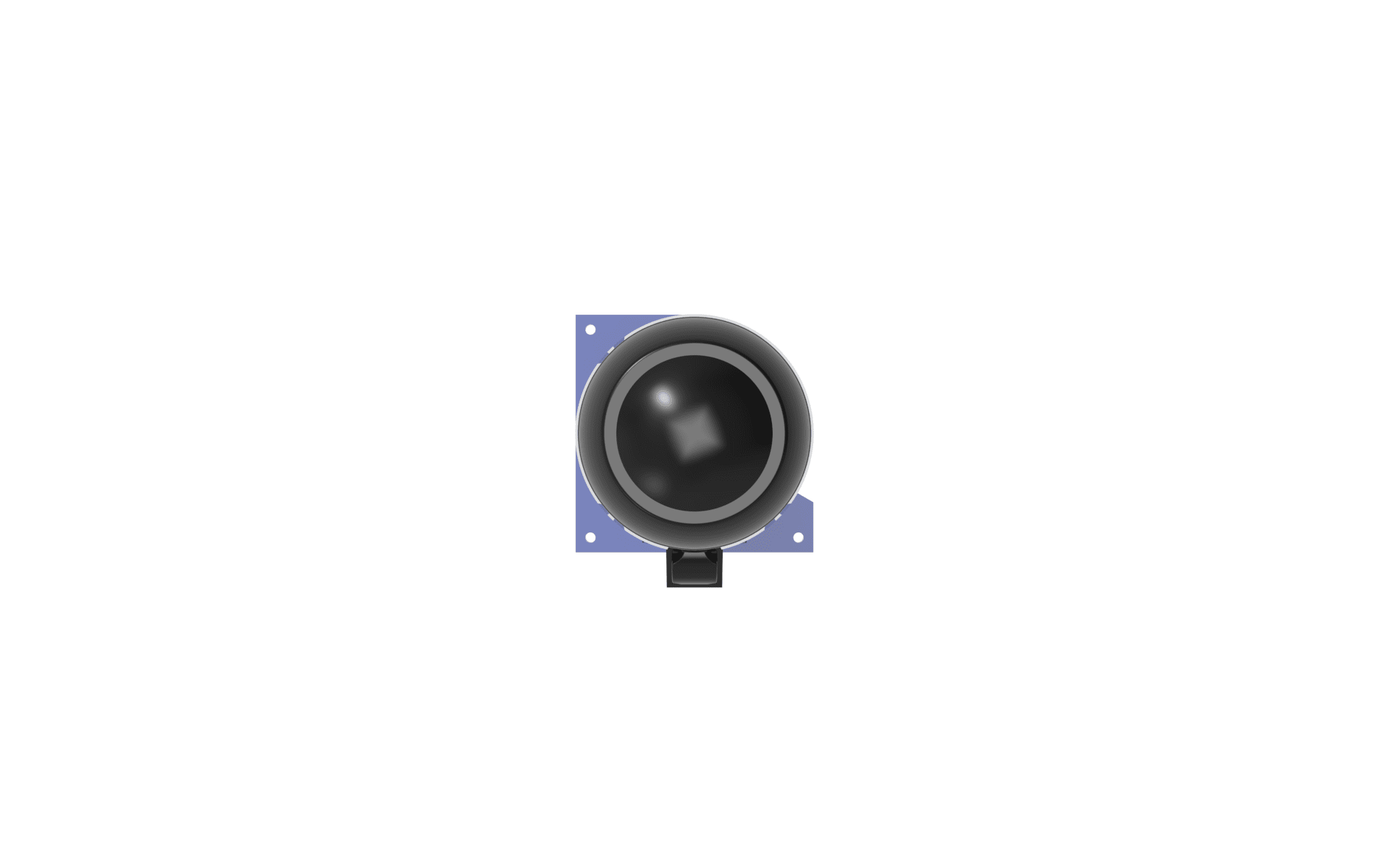

  • FLOWAY® VHP API 610 VERTICAL TURBINE PUMP top view

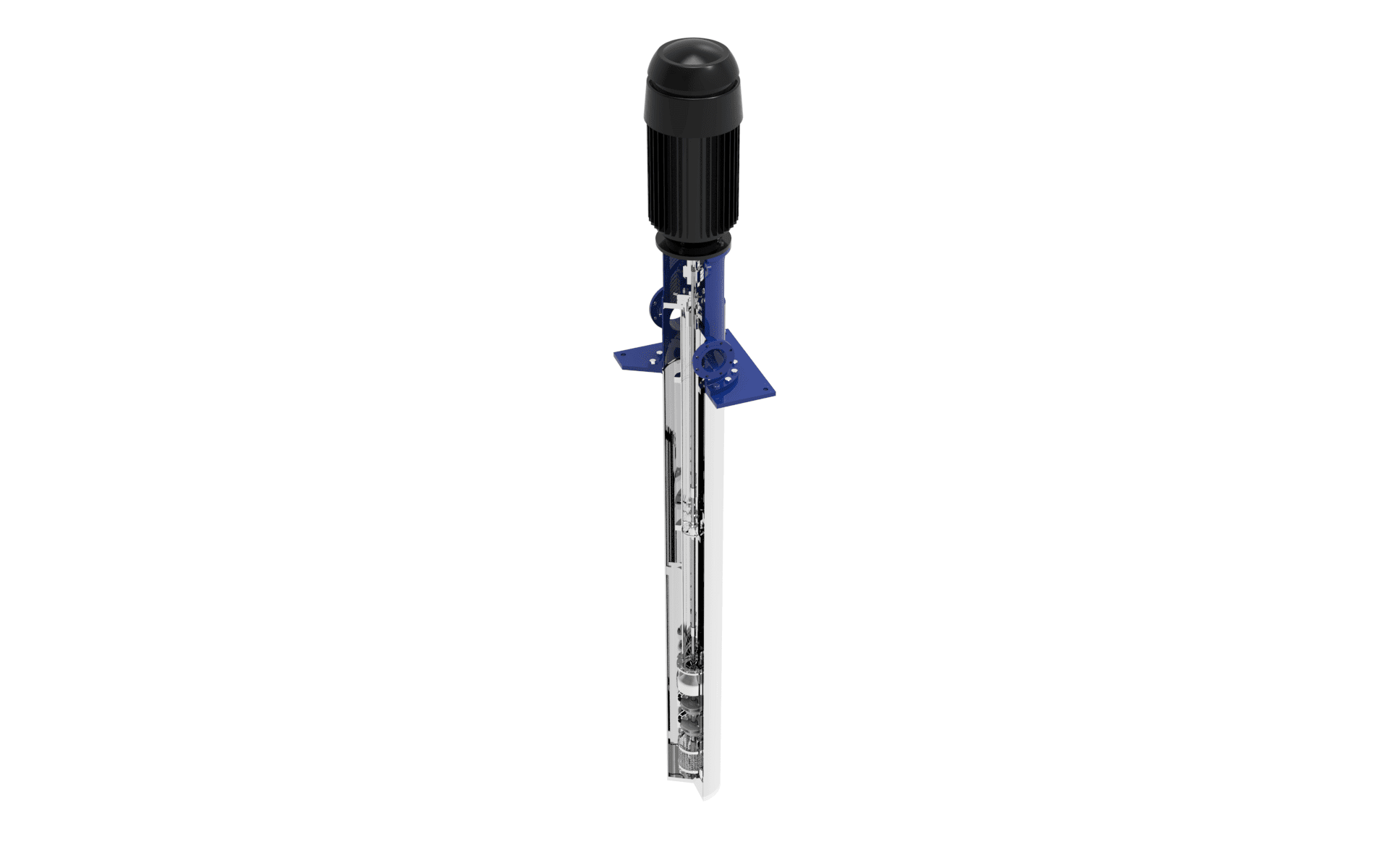

  • FLOWAY® VHP API 610 VERTICAL TURBINE PUMP right side angled view

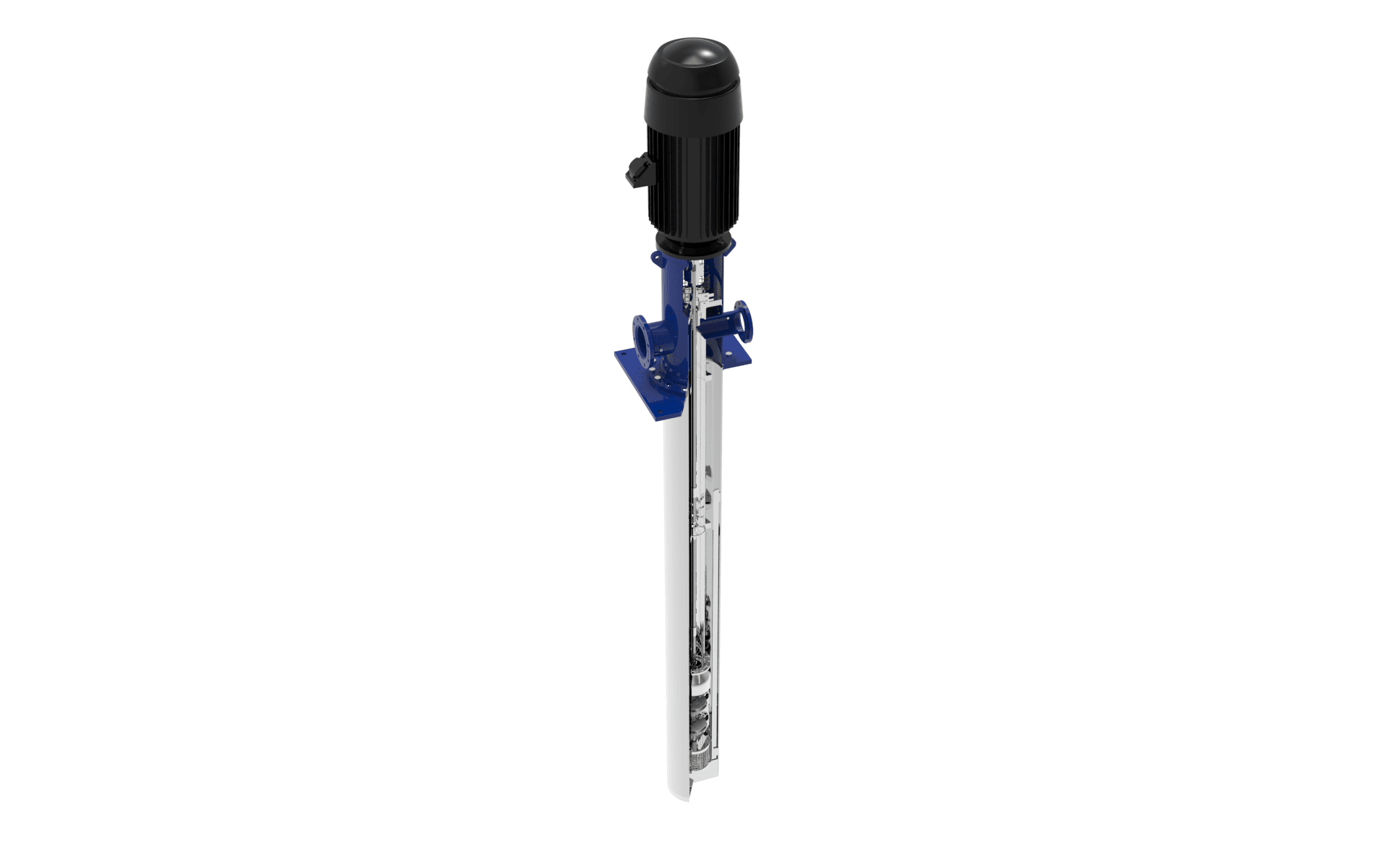

  • FLOWAY® VHP API 610 VERTICAL TURBINE PUMP left side angled view

FLOWAY®

VHP API 610 Vertical Turbine Pump

The Floway® VHP pump is API 610 current edition compliant, vertical close coupled, single or multistage turbine pump, with a fabricated discharge head, top mounted motor, and wet pit (VS1) or closed suction (VS6).

The Floway® VHP can withstand higher pressures with premium efficiencies and low operating costs. The available low-NPSH impeller allows for a reduced barrel length. The pump bowl assembly is characterized as low energy per stage resulting in a broad flow range with excellent hydraulic stability.

The “O” ring joints throughout pump eliminates leaking for higher pressure applications. A throttle bearing provides shaft support and allows for higher operating pressures.

KEY FEATURES & BENEFITS

  • API 610 current edition compliant
  • API 610 material combinations
  • Thrust bearing assembly available
  • Fabricated discharge head
  • Above & below ground suction
  • Flanged column
  • Enclosed & open impellers
  • Multiple coating options
  • Multiple NDE testing options
  • Bowl & impeller wear rings
  • Thrust balanced impeller
  • Hard chrome bearing journals
  • Product lube & oil lube shafting
  • Mechanical shaft sealing
  • VSS & VHS motor shafting
  • Keyed impeller mounting

APPLICATIONS

  • Vertical process
  • Light hydrocarbon
  • High vapor pressure (low NPSHA)
  • Pipeline
  • Pipeline booster
  • Offshore platform & seawater lift (crude oil transfer)
  • Refinery service
  • LPG transfer
  • Secondary recovery
  • Cryogenic liquid
  • Cooling water
  • Aircraft fueling
  • Terminal & transfer
  • Fire pumps

DESIGN STANDARD

  • API 610 11th edition

SIZE RANGE & DIMENSIONS

  • 4 – 37 inches

PRESSURE CLASS & POWER

  • Pressures up to 3,000 psi (200 bar)

TEMPERATURE RANGE

  • -130ºF (-90ºC) to 450ºF (220ºC)

CAPACITY

  • 35,000 gpm (8,000 m3/h)

MATERIALS

  • S4, S5, S6 A8, D1, D2
