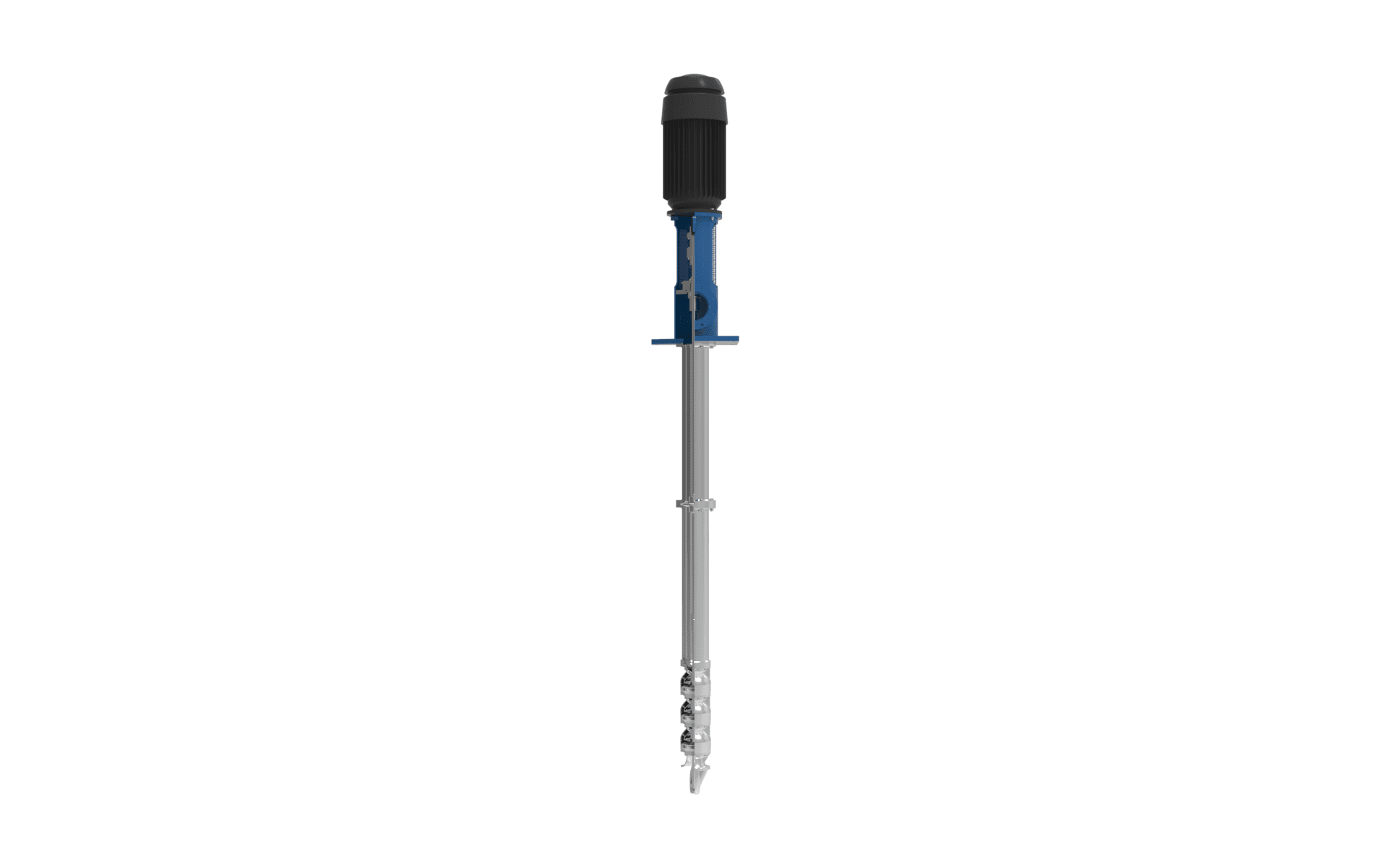

• FLOWAY® VTP GENERAL VERTICAL TURBINE PUMP back right view

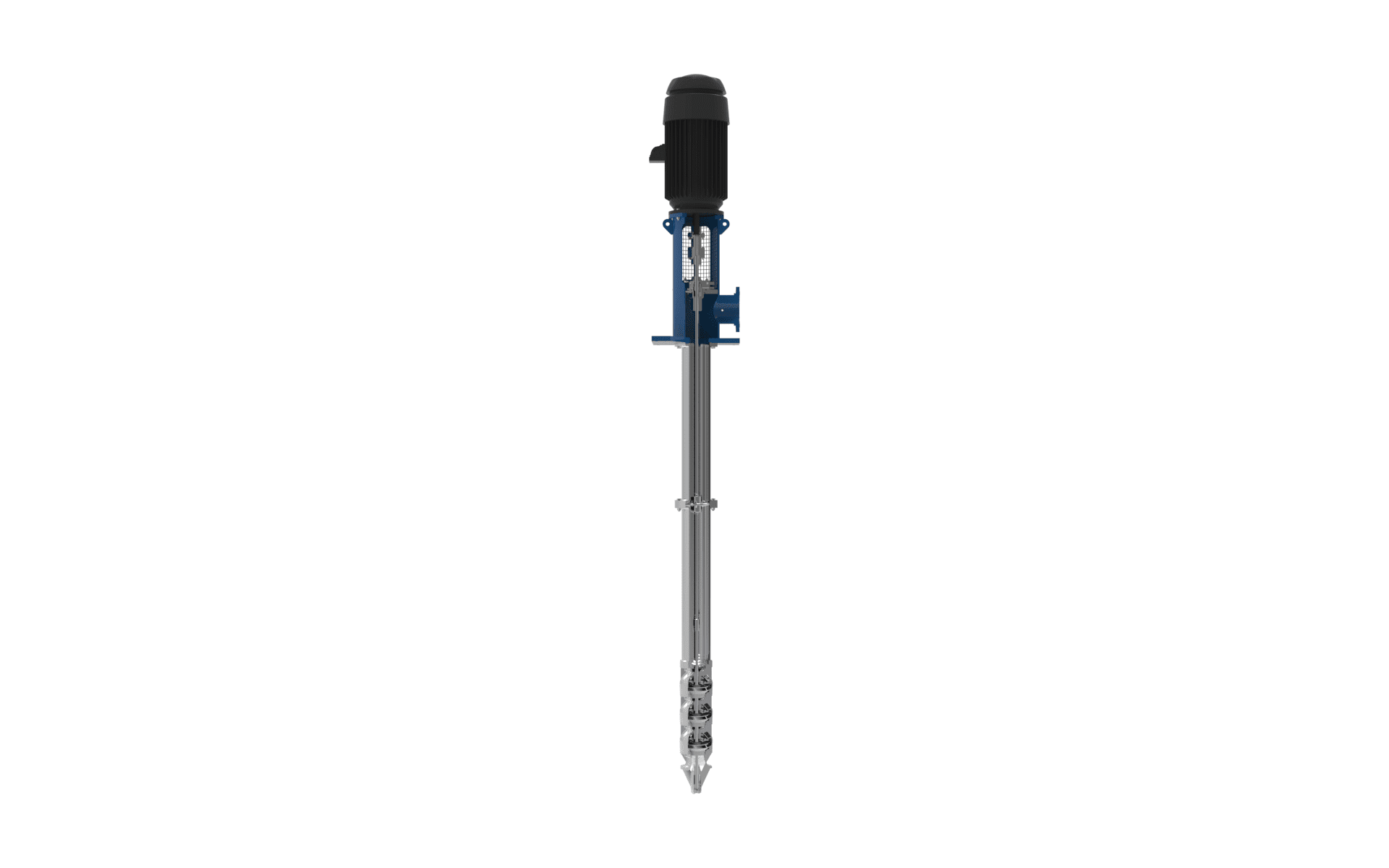

  • FLOWAY® VTP GENERAL VERTICAL TURBINE PUMP back view

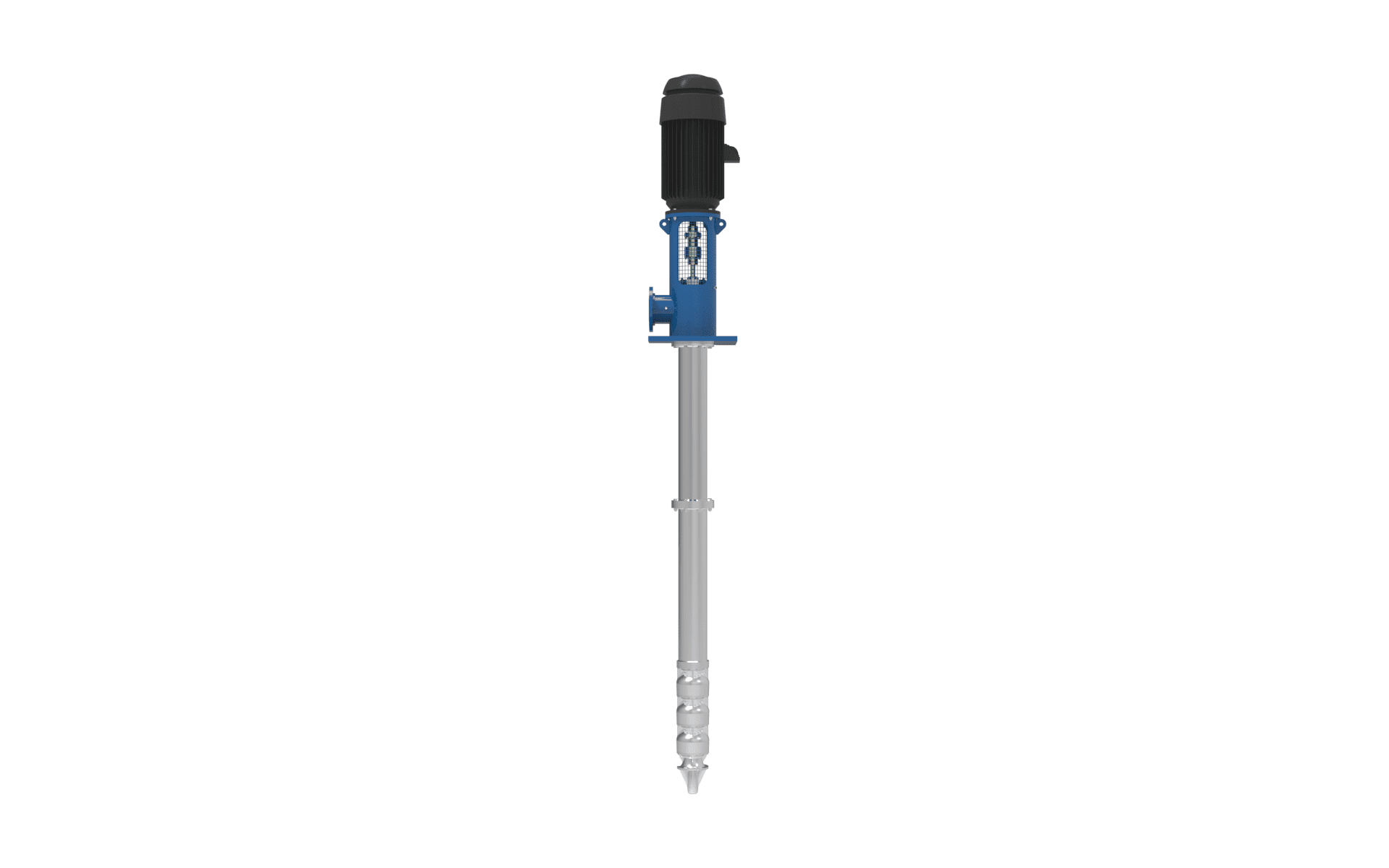

  • FLOWAY® VTP GENERAL VERTICAL TURBINE PUMP right side view

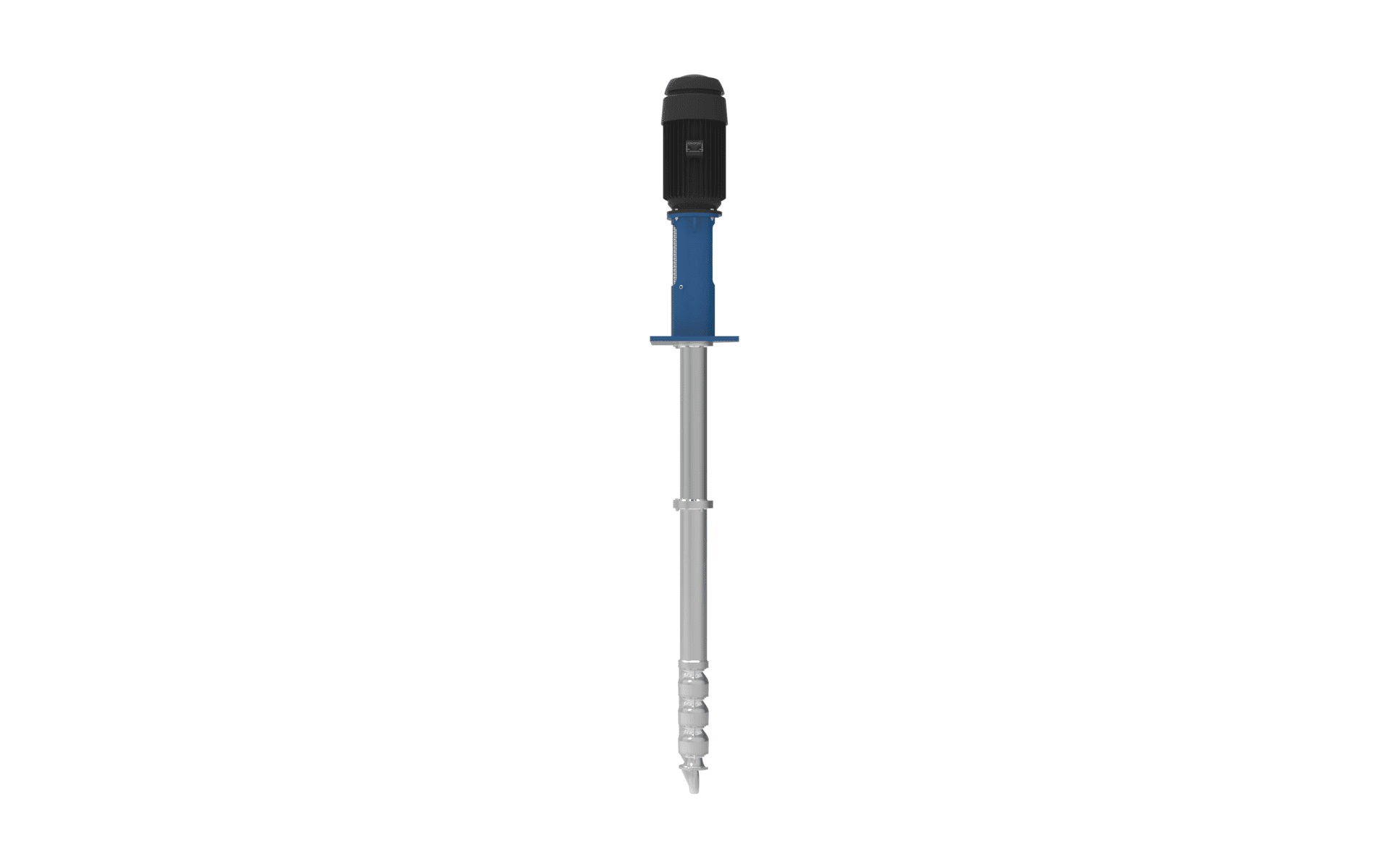

  • FLOWAY® VTP GENERAL VERTICAL TURBINE PUMP left front view

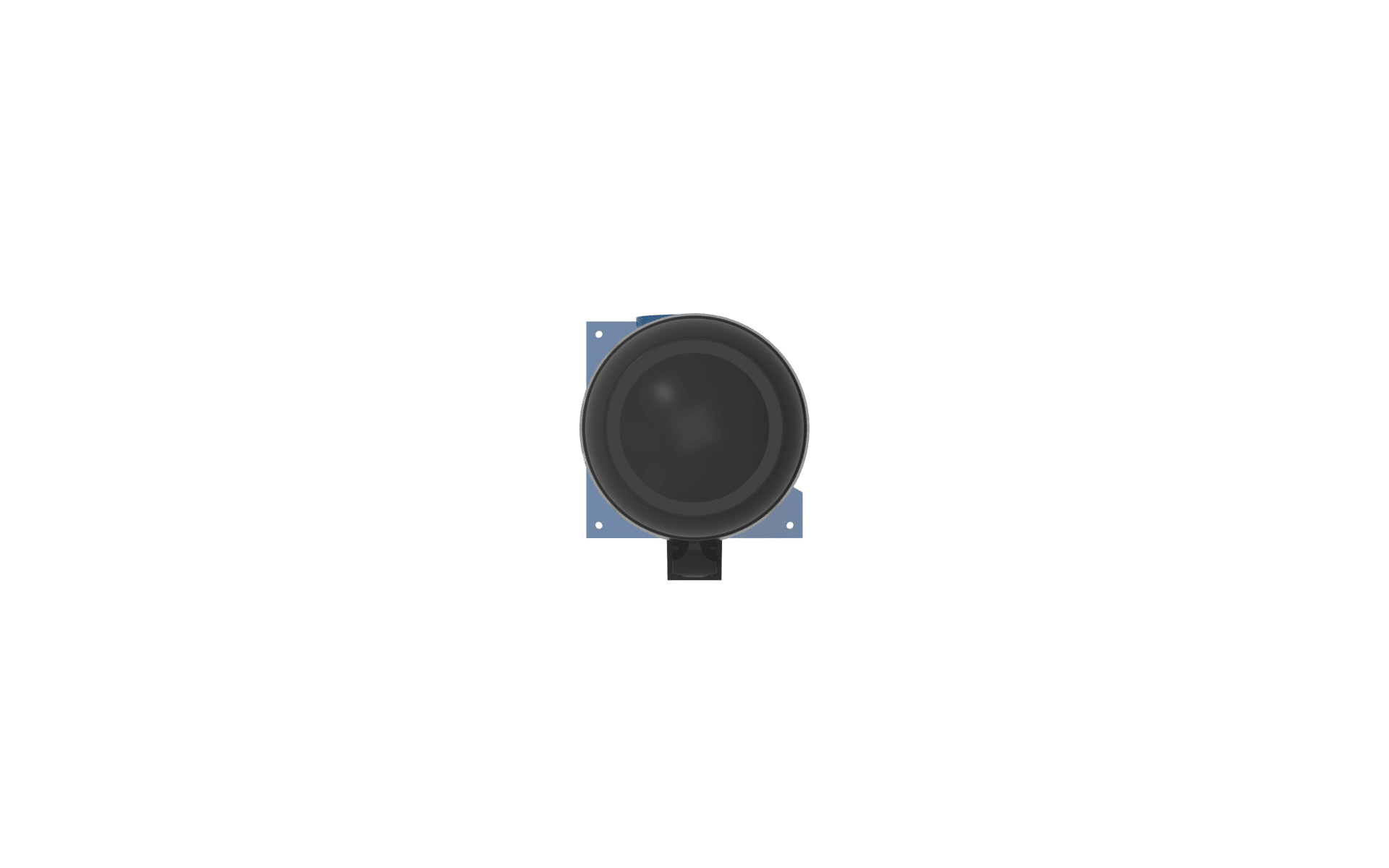

  • FLOWAY® VTP GENERAL VERTICAL TURBINE PUMP top view

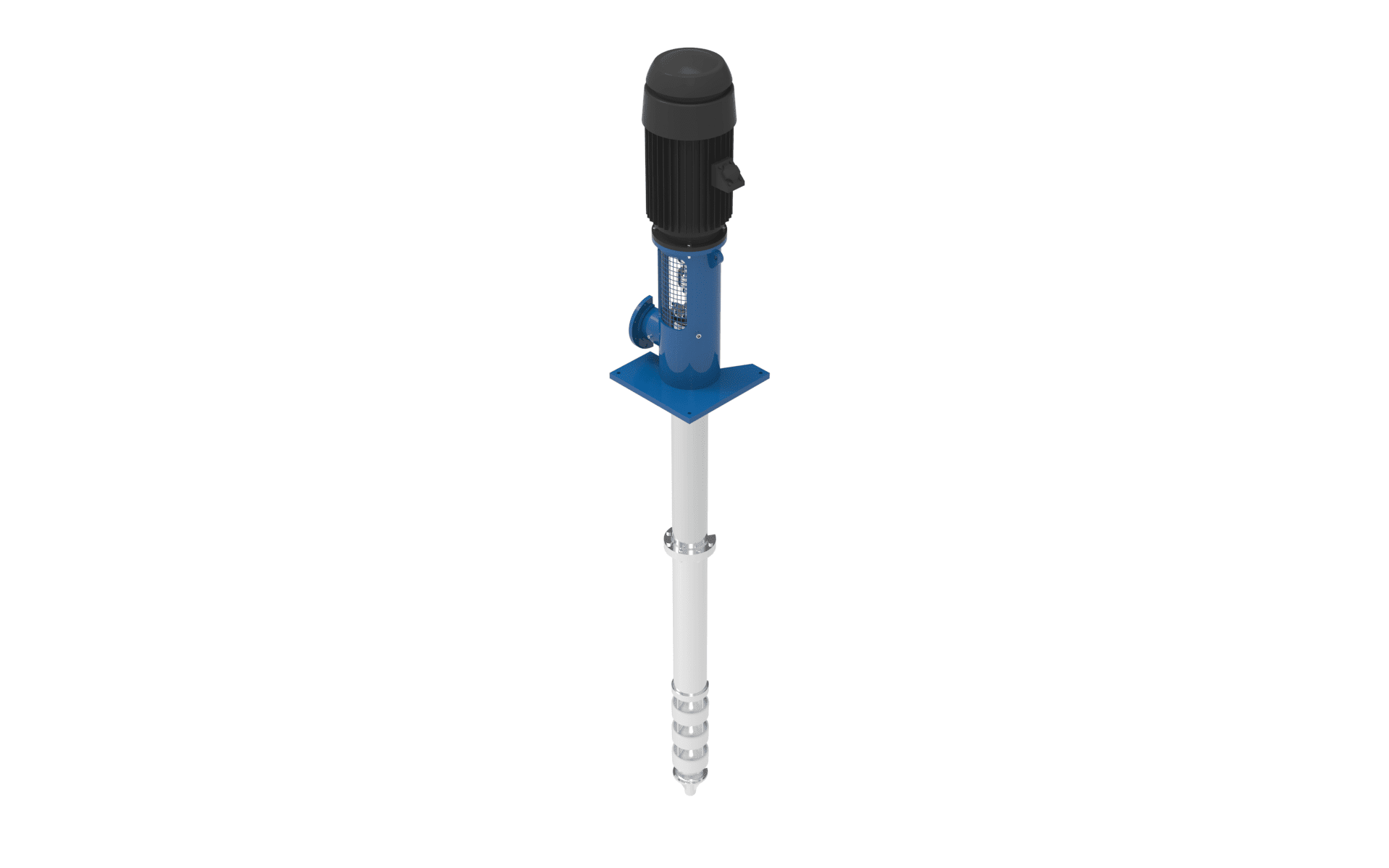

  • FLOWAY® VTP GENERAL VERTICAL TURBINE PUMP back angled view

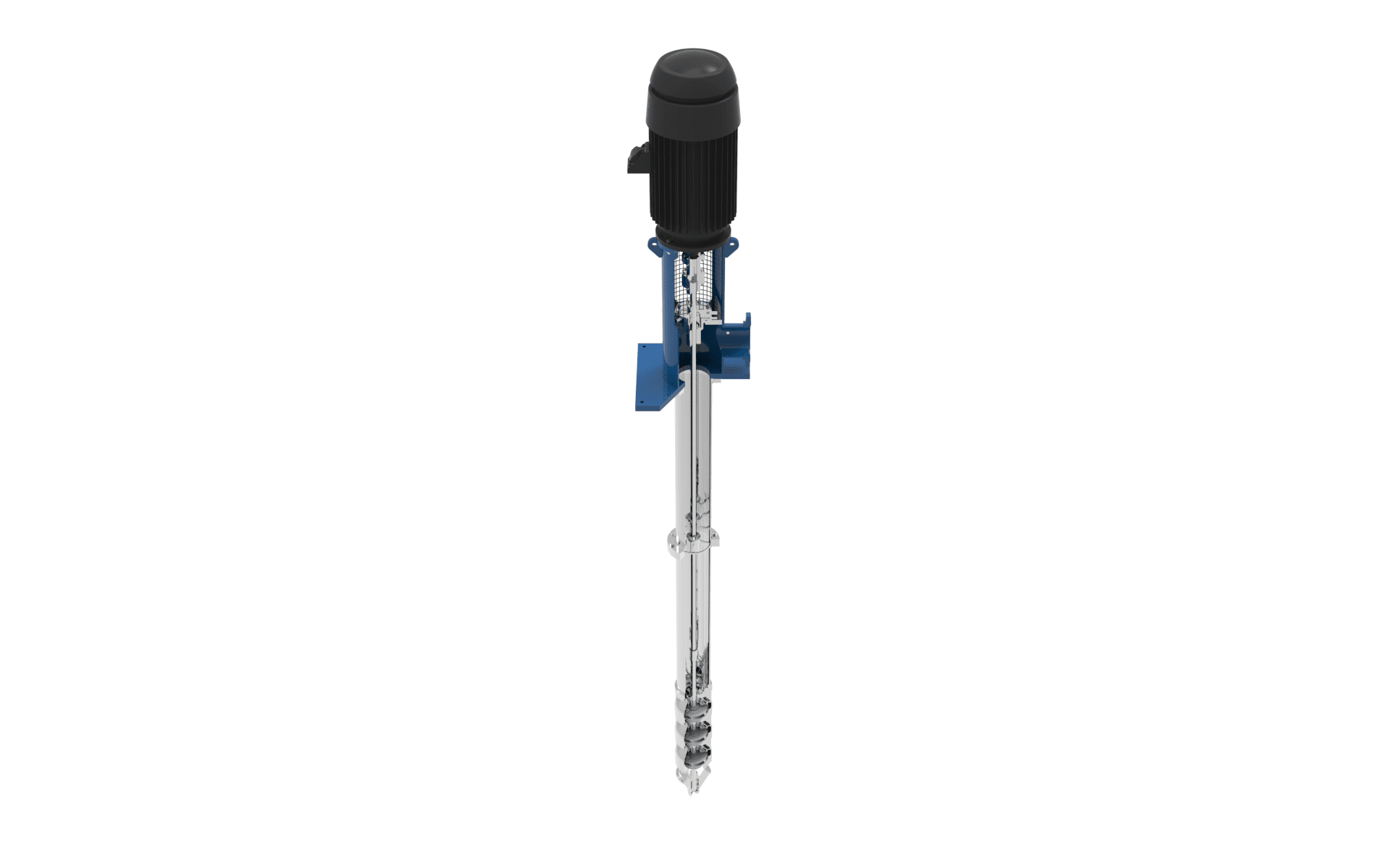

  • FLOWAY® VTP GENERAL VERTICAL TURBINE PUMP right angled view

FLOWAY®

VTP General Vertical Turbine Pump

Floway® VTP (Vertical Turbine Pump) is a vertical close coupled, single or multistage turbine pump, with a cast or fabricated discharge head, top mounted motor, and closed suction or wet pit design. This pump is available in a variety of material combinations for multiple applications.

The Floway® VTP features a special toleranced motor coupling and jacking posts for precise motor and pump shaft alignment, special impeller balancing, and reduced run-out on motor base resulting in industry leading low vibration levels. In addition the Floway® VTP has a tapered collet impeller mounting option for easy installation, lateral adjustment, and low hydraulic thrust, and a semi-open impeller option for solids handling capability, or flanged column option for ease of assembly.

KEY FEATURES & BENEFITS

  • Cast & fabricated discharge head
  • Above & below ground suction & discharge
  • Flanged & threaded column
  • Enclosed & open impellers
  • Multiple coating options
  • Multiple NDE/testing options
  • Bowl & impeller wear rings
  • Thrust balanced impeller
  • Hard chrome bearing journals
  • Product lube & oil lube shafting
  • Packed & mechanical shaft sealing
  • VSS/VHS motor shafting
  • Colletted & keyed impeller mounting
  • NSF/ANSI 61 & 372 certification

DESIGN STANDARD

  • Hydraulic Institute
  • UL/FM

PRESSURE CLASS & POWER

  • Pressures up to 1,500 psi (103 bar)

CAPACITY

  • 35,000 gpm (8,000 m3/h)

MATERIALS

  • Iron, Bronze
  • Ni Al Bronze
  • Carbon Steel
  • 12% Chrome
  • Stainless Steel
  • Duplex SS
  • 254 SMO
  • Titanium

TEMPERATURE RANGE

  • -40ºF (-40ºC) – 175ºF (80ºC)

APPLICATIONS

  • Vertical turbine pumps
  • Centrifugal pumps
  • Water Supply
  • Tailings Pumps
  • RO Treatment Pumps
  • Dewatering Pumps
  • Seepage Water Pumps
  • Reclaim Water Pumps
  • Overflow Water Pumps
  • Barge Mounted Pumps
  • High service
  • Treated water
  • Finished water
  • Booster
  • Effluent disposal
  • Lake or river raw water intake
  • Secondary recovery
  • Service water
  • Aquifer Storage and Recovery (ASR)
  • Backwash
  • Well water
  • Screen wash
  • Reverse osmosis
  • Corrosive water services
  • seawater & brackish water
  • Snow Making
  • Condensate
  • Cooling Tower
  • HVAC
  • Automotive
  • Amusement Park & Aquarium
  • Cooling Tower
  • Geothermal
  • Power
  • Nuclear Power (non-safety related)
  • Fire pump

SIZE RANGE & DIMENSIONS

  • 4 – 37 inches
