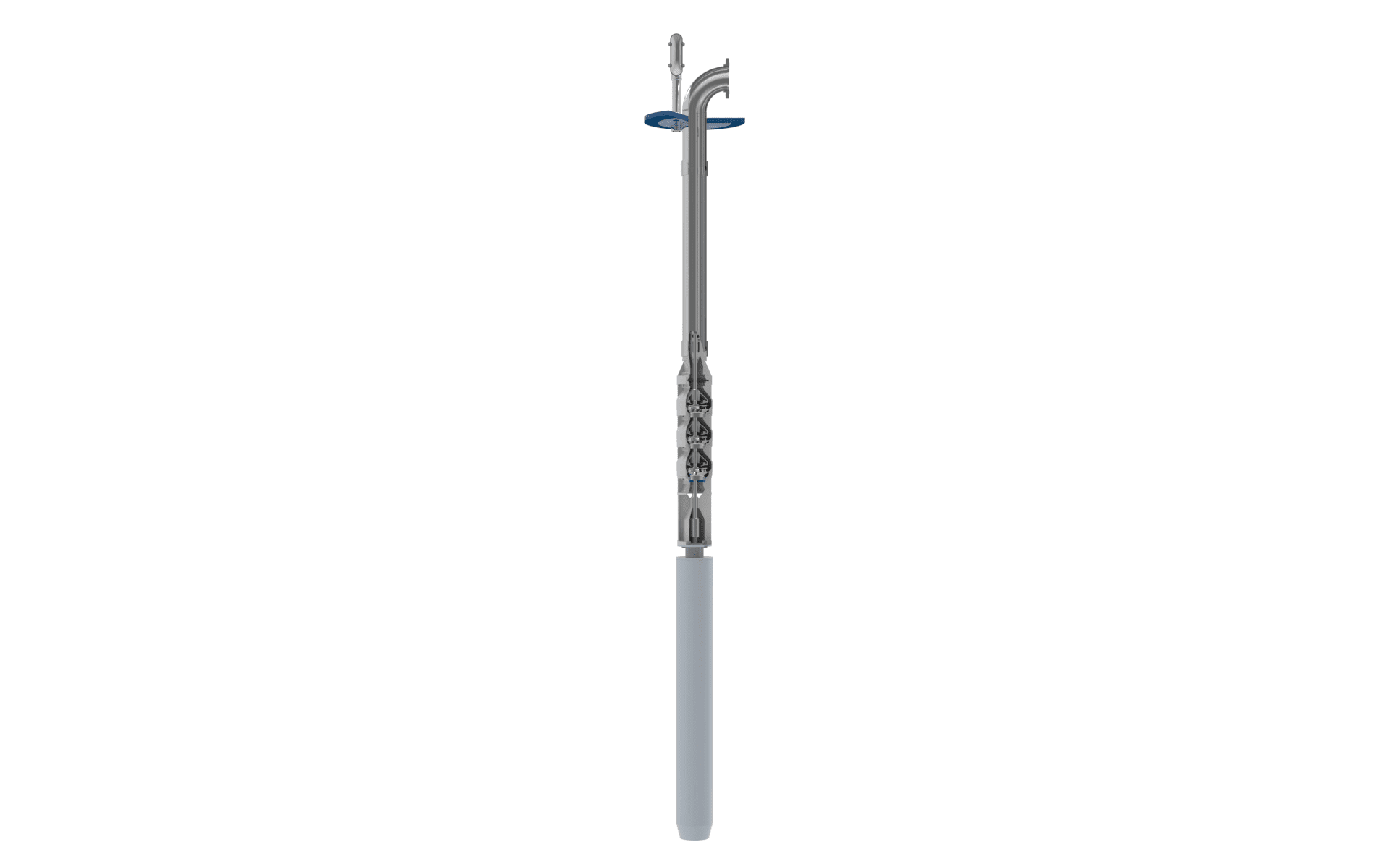

• FLOWAY® VSB VERTICAL TURBINE SUBMERSIBLE PUMP left side view

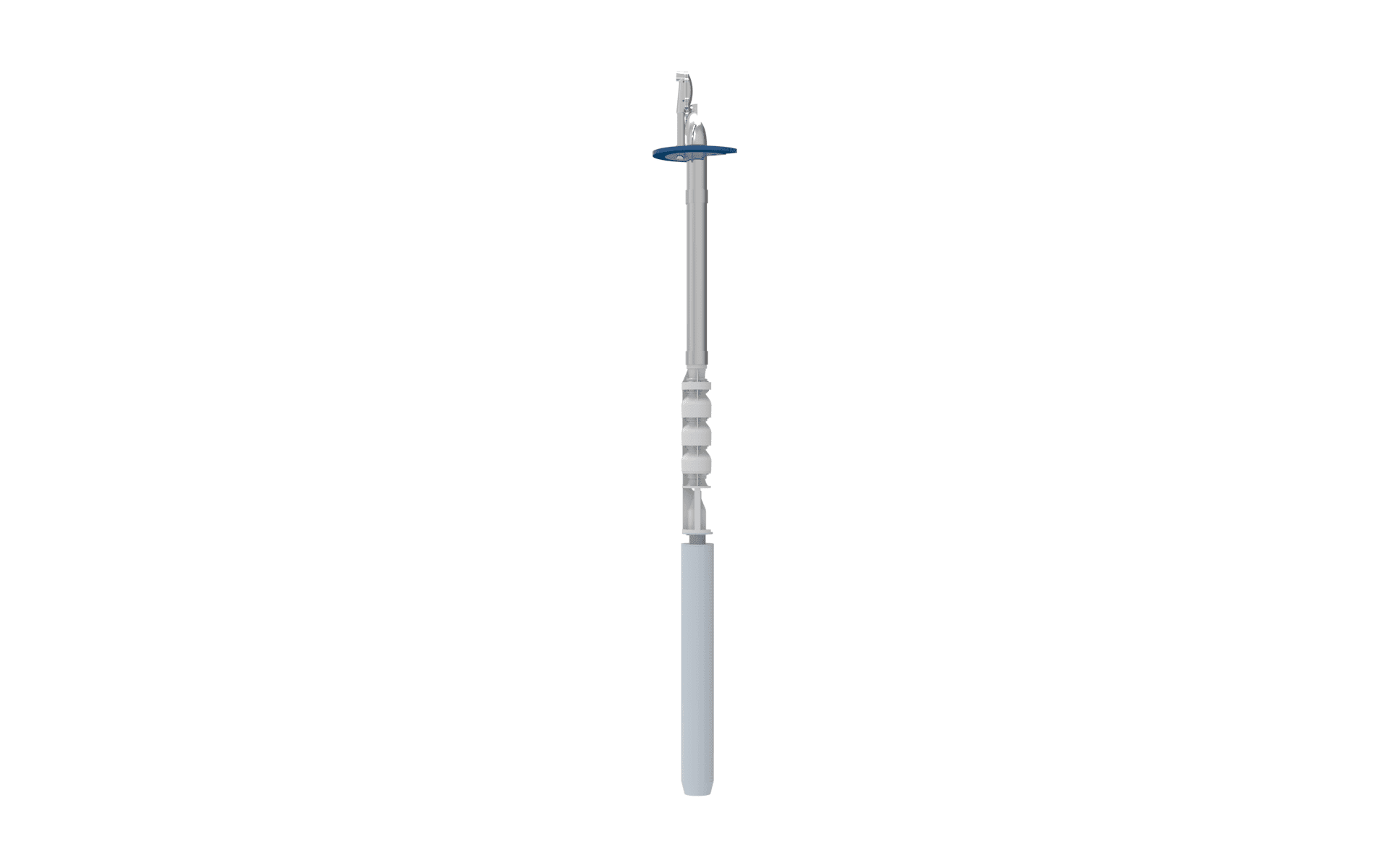

  • FLOWAY® VSB VERTICAL TURBINE SUBMERSIBLE PUMP back side view

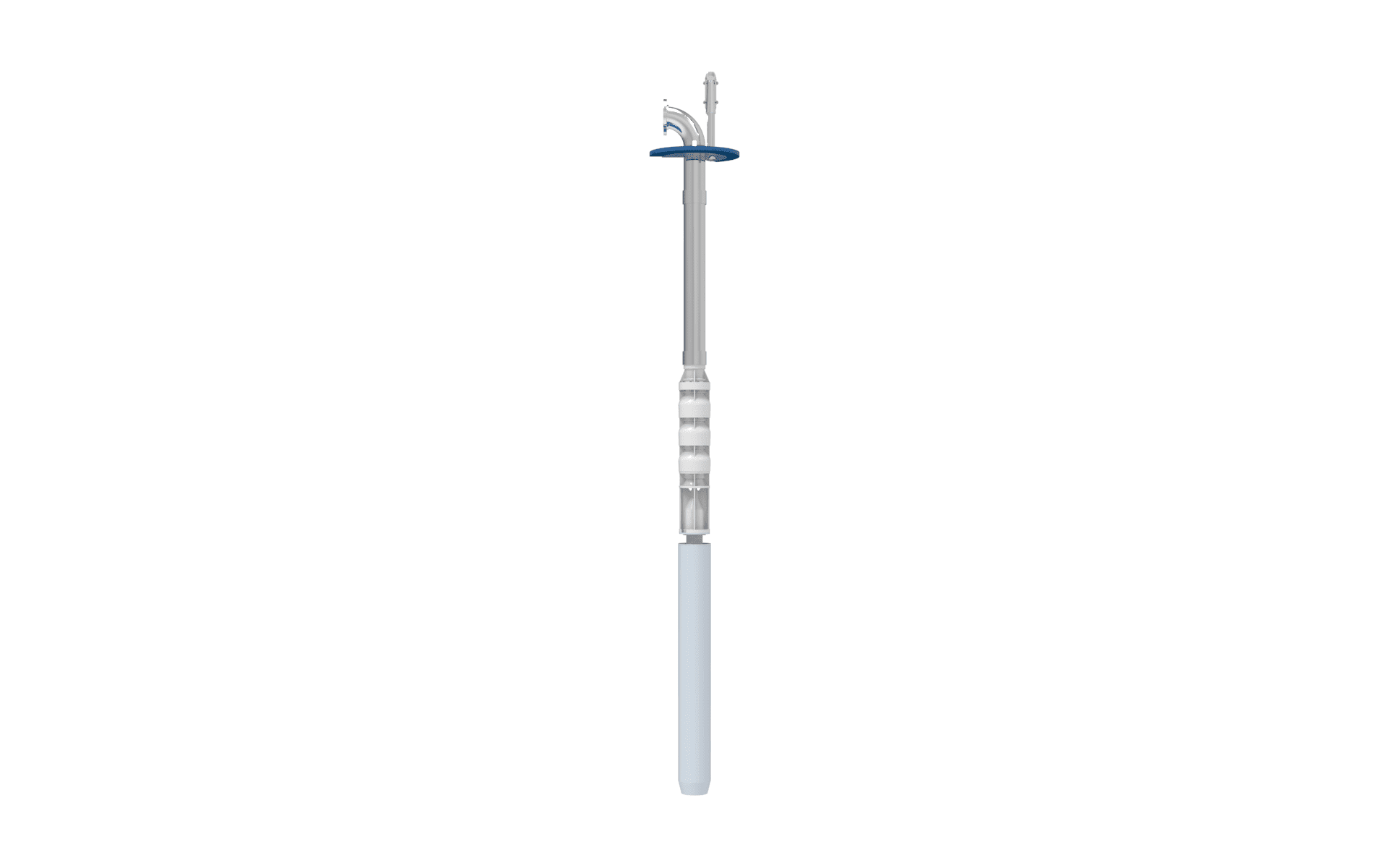

  • FLOWAY® VSB VERTICAL TURBINE SUBMERSIBLE PUMP right side view

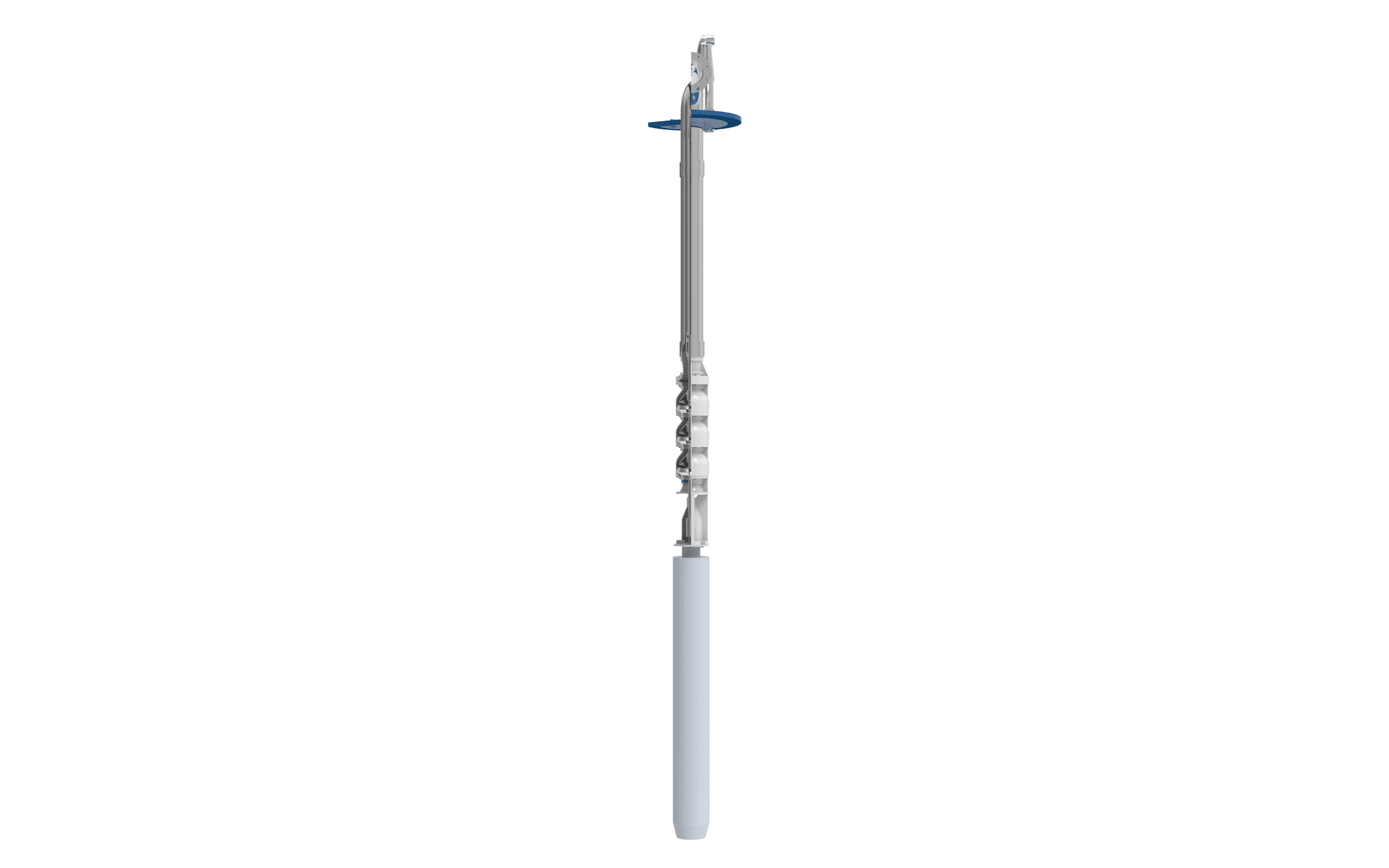

  • FLOWAY® VSB VERTICAL TURBINE SUBMERSIBLE PUMP left side view

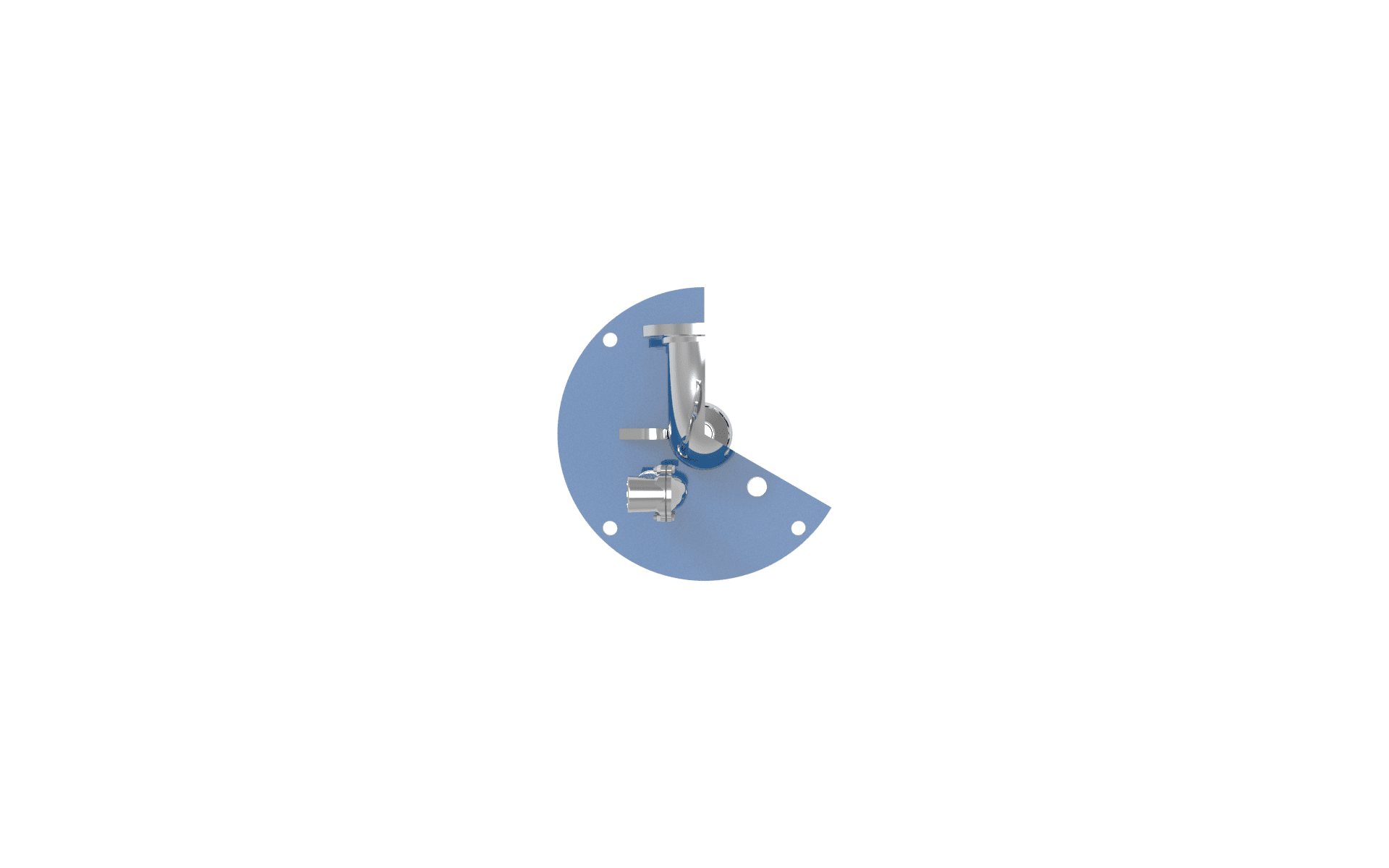

  • FLOWAY® VSB VERTICAL TURBINE SUBMERSIBLE PUMP top view

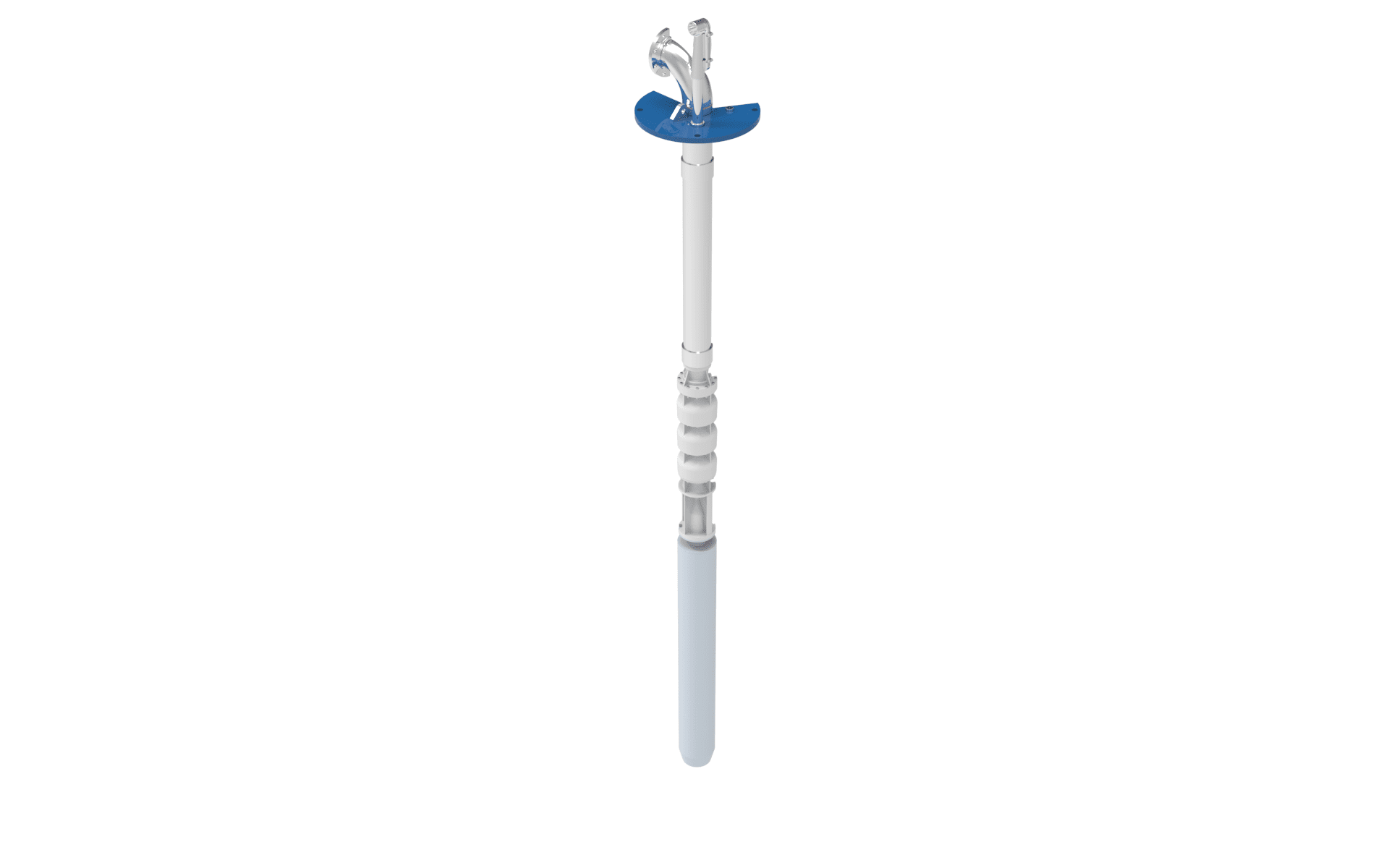

  • FLOWAY® VSB VERTICAL TURBINE SUBMERSIBLE PUMP back side angled view

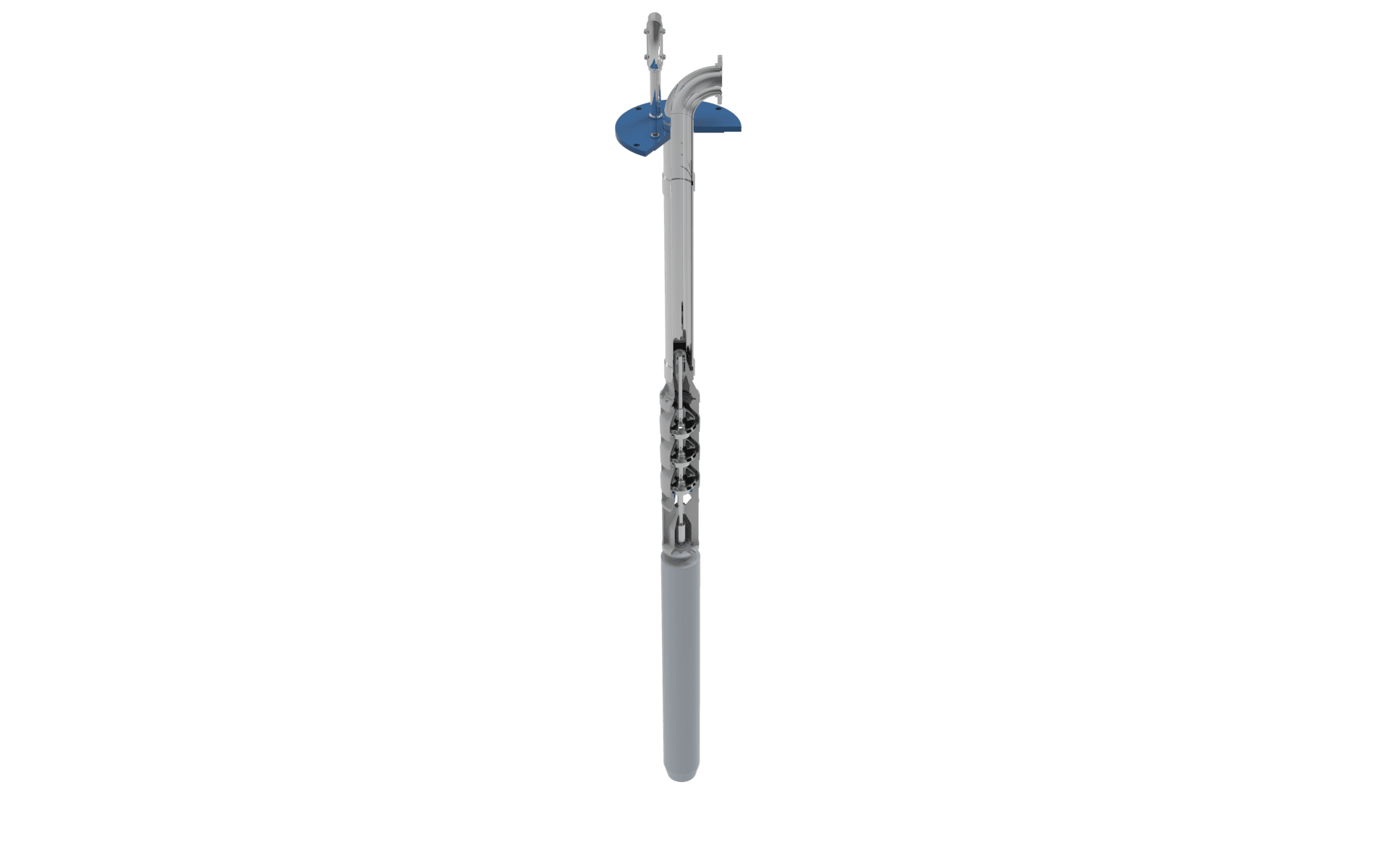

  • FLOWAY® VSB VERTICAL TURBINE SUBMERSIBLE PUMP left side angled view

Floway®

VSB Submersible Vertical Turbine Pump

The Floway® VSB (Vertical Submersible Pump) vertical close coupled, single and multistage submersible motor pump is suitable for various applications and markets.

Available in wet pit or closed suction designs, this submersible vertical pump is also available in a selection of material combinations. The Floway® VSB has a compact connection between the pump and motor which provides maximum shaft support, the flanged column option allows for ease of assembly, an internally mounted power cable eliminates potential hazards, and motor with water-tight insulated windings ensures improved cooling, extended life, and ease of maintenance.

KEY FEATURES & BENEFITS

  • Cast/fabricated discharge elbow
  • Flanged & threaded column
  • Enclosed impellers, Multiple NDE/testing options
  • Bowl & impeller wear rings
  • Hard chrome bearing journals
  • Product lube shafting
  • Submersible electric motor
  • Suction barrel available
  • Colletted & keyed impeller mounting
  • Check valve available
  • Cable & cable guards
  • Controllers available

DESIGN STANDARDS

  • Hydraulic Institute

PRESSURE CLASS & POWER

  • Pressures up to 750 psi (52 bar)

CAPACITY

  • Up to 30,000 gpm

MATERIALS

  • Iron, Bronze
  • Ni Al Bronze
  • Carbon Steel
  • 12% Chrome
  • Stainless Steel
  • Duplex SS
  • 254 SMO
  • Titanium

APPLICATIONS

  • Process Pumps
  • Water Supply
  • Tailings Pumps
  • RO Treatment Pumps
  • Dewatering Pumps
  • Seepage Water Pumps
  • Reclaim Water Pumps
  • Overflow Water Pumps
  • Barge Mounted Pumps
  • Drilling, Water Supply
  • Water Distribution
  • Flood Control
  • Irrigation
  • Cooling Water
  • Transformer Cooling
  • Geothermal
  • Water Treatment

SIZE RANGE & DIMENSIONS

  • 4 – 37 inches

TEMPERATURE RANGE

  • -40ºF (-40ºC) – 175ºF (80ºC)
