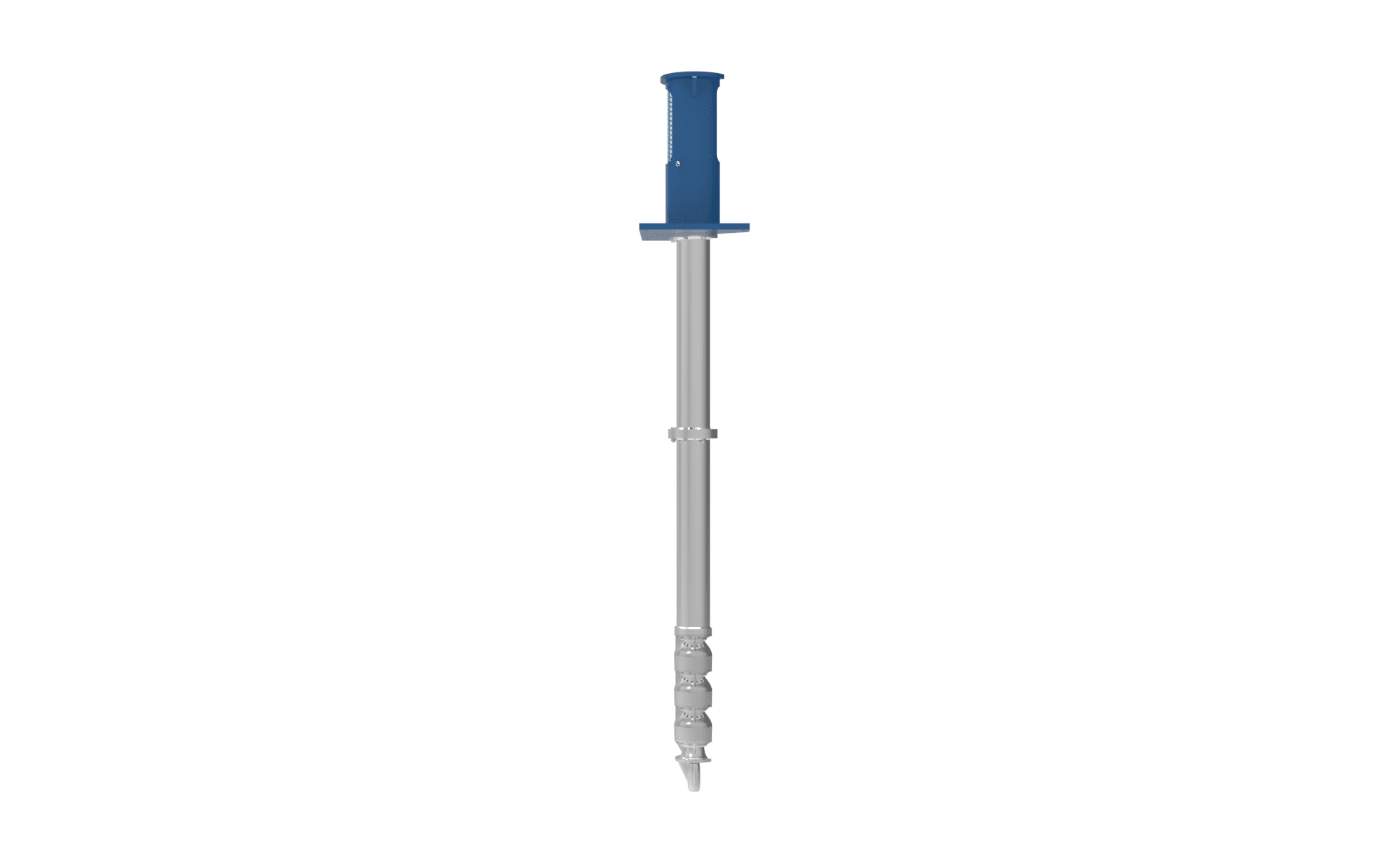

• FLOWAY® VTSP VERTICAL TURBINE SOLIDS PUMP left side view

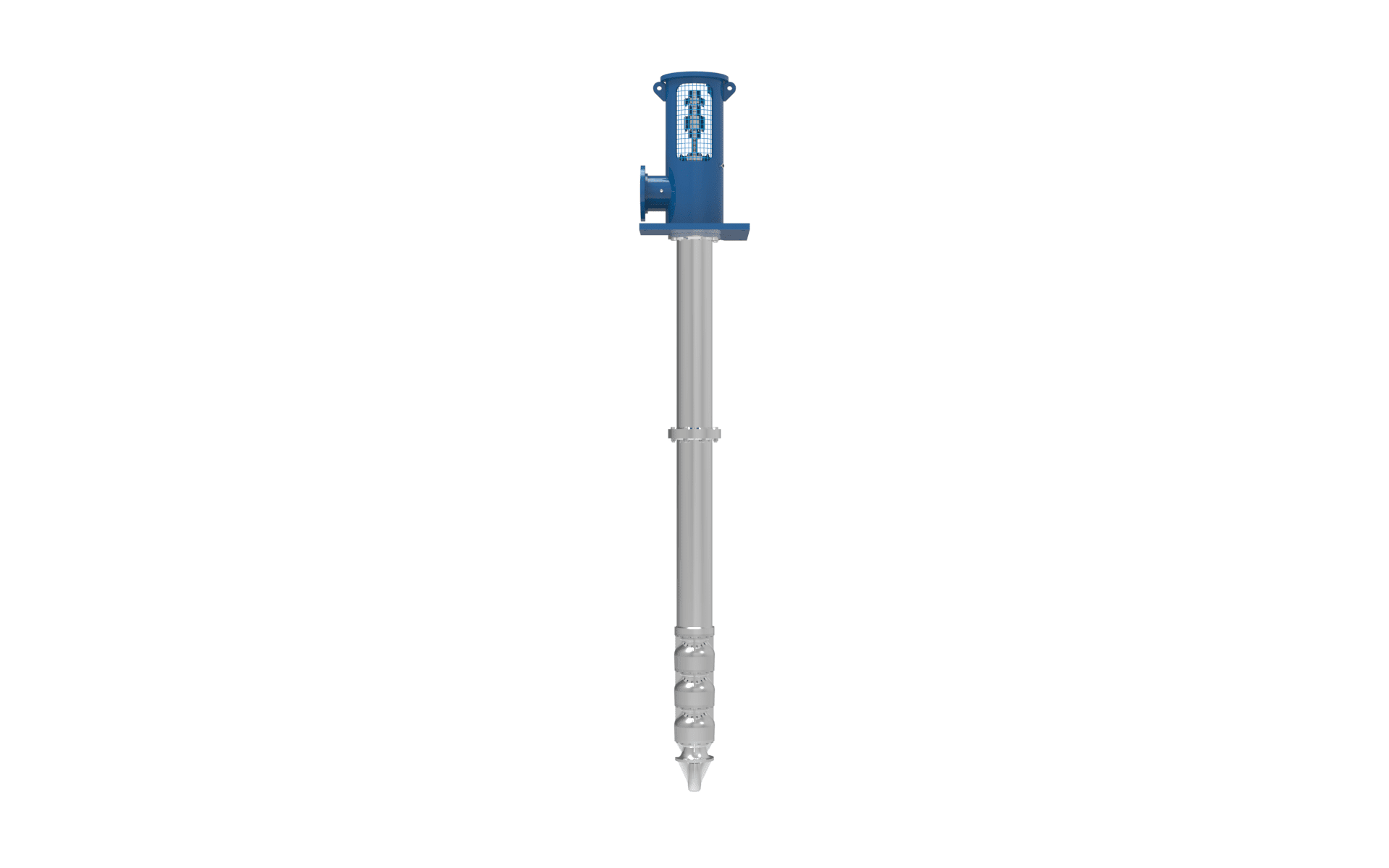

  • FLOWAY® VTSP VERTICAL TURBINE SOLIDS PUMP back view

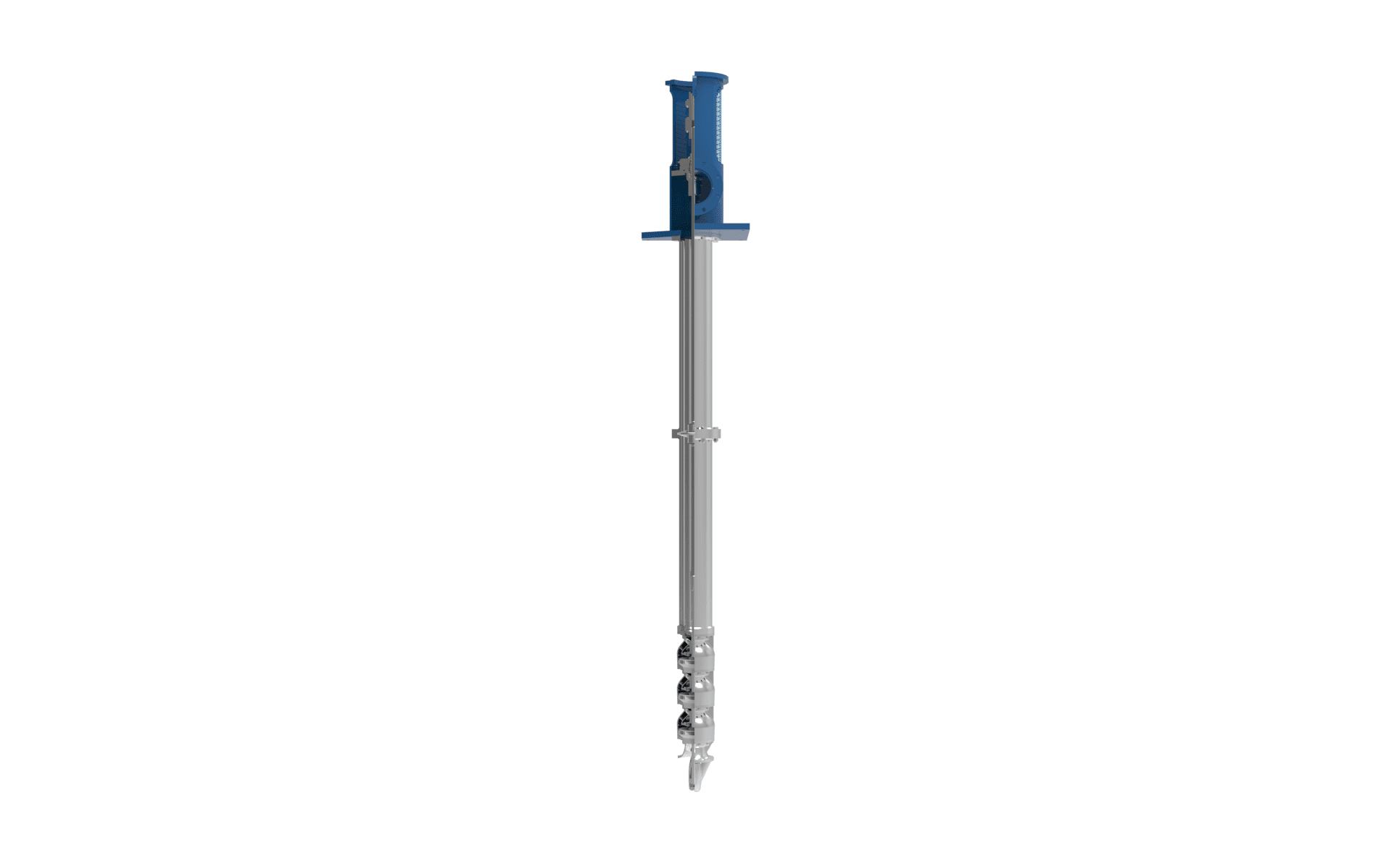

  • FLOWAY® VTSP VERTICAL TURBINE SOLIDS PUMP right side view

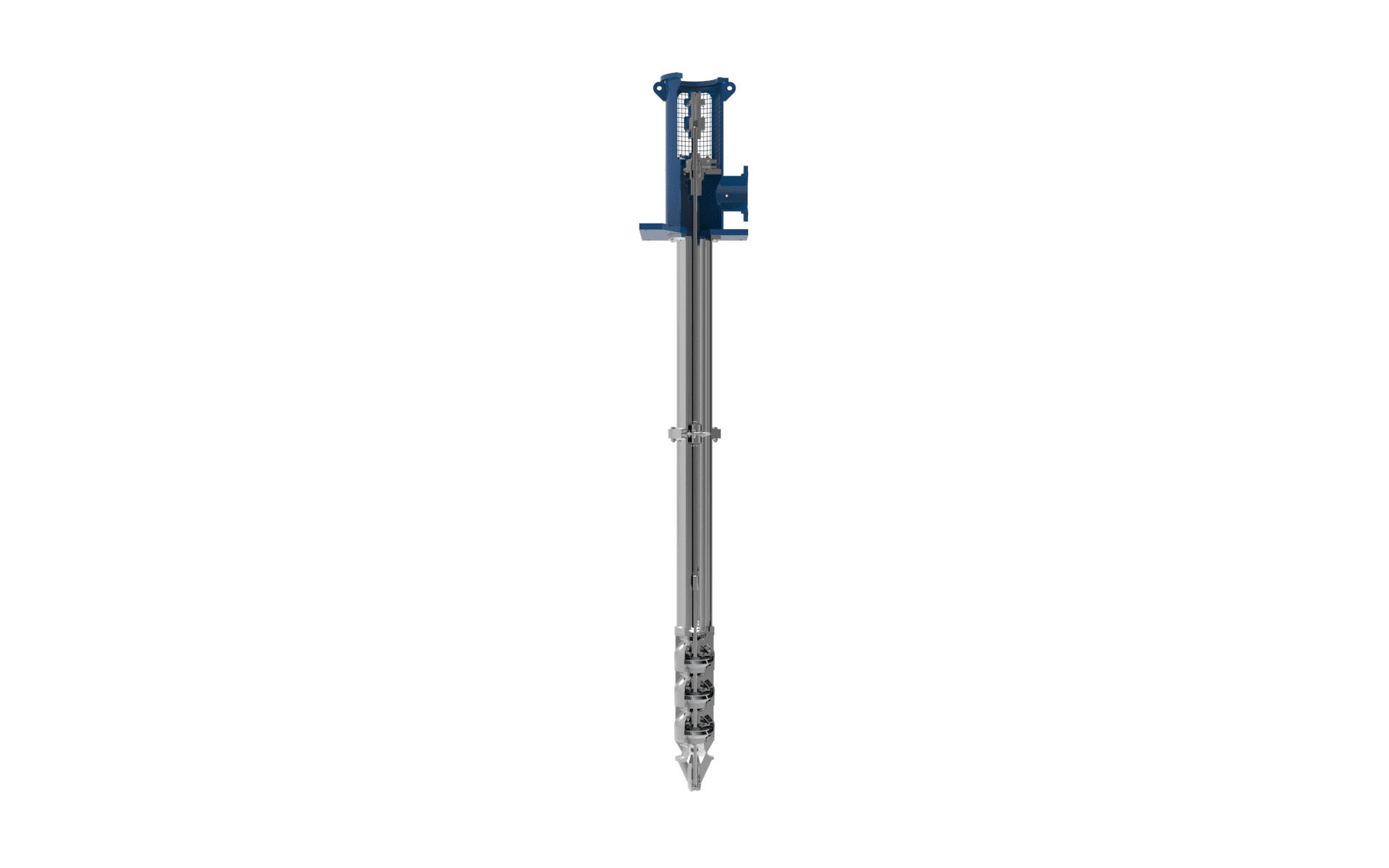

  • FLOWAY® VTSP VERTICAL TURBINE SOLIDS PUMP front view

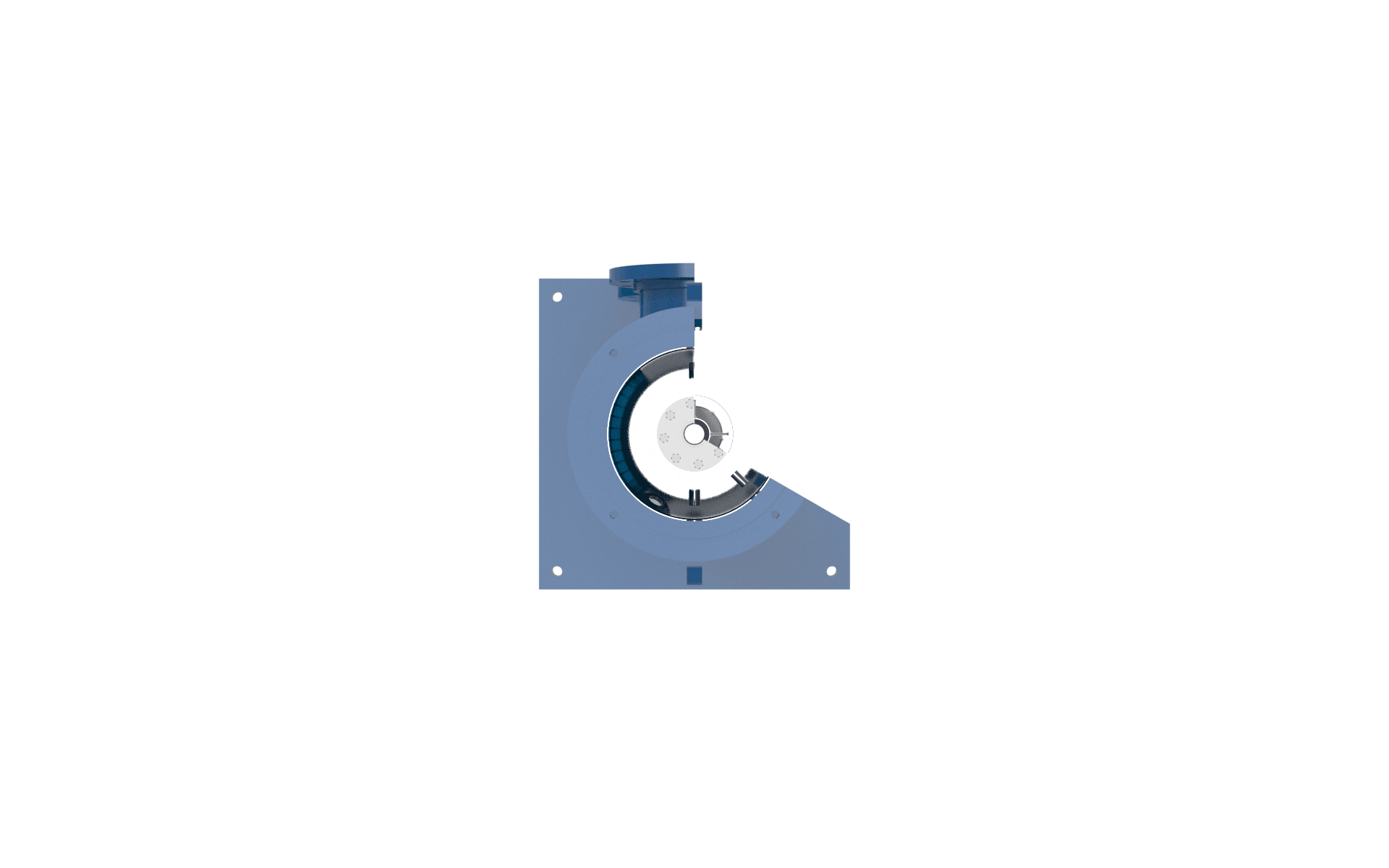

  • FLOWAY® VTSP VERTICAL TURBINE SOLIDS PUMP top view

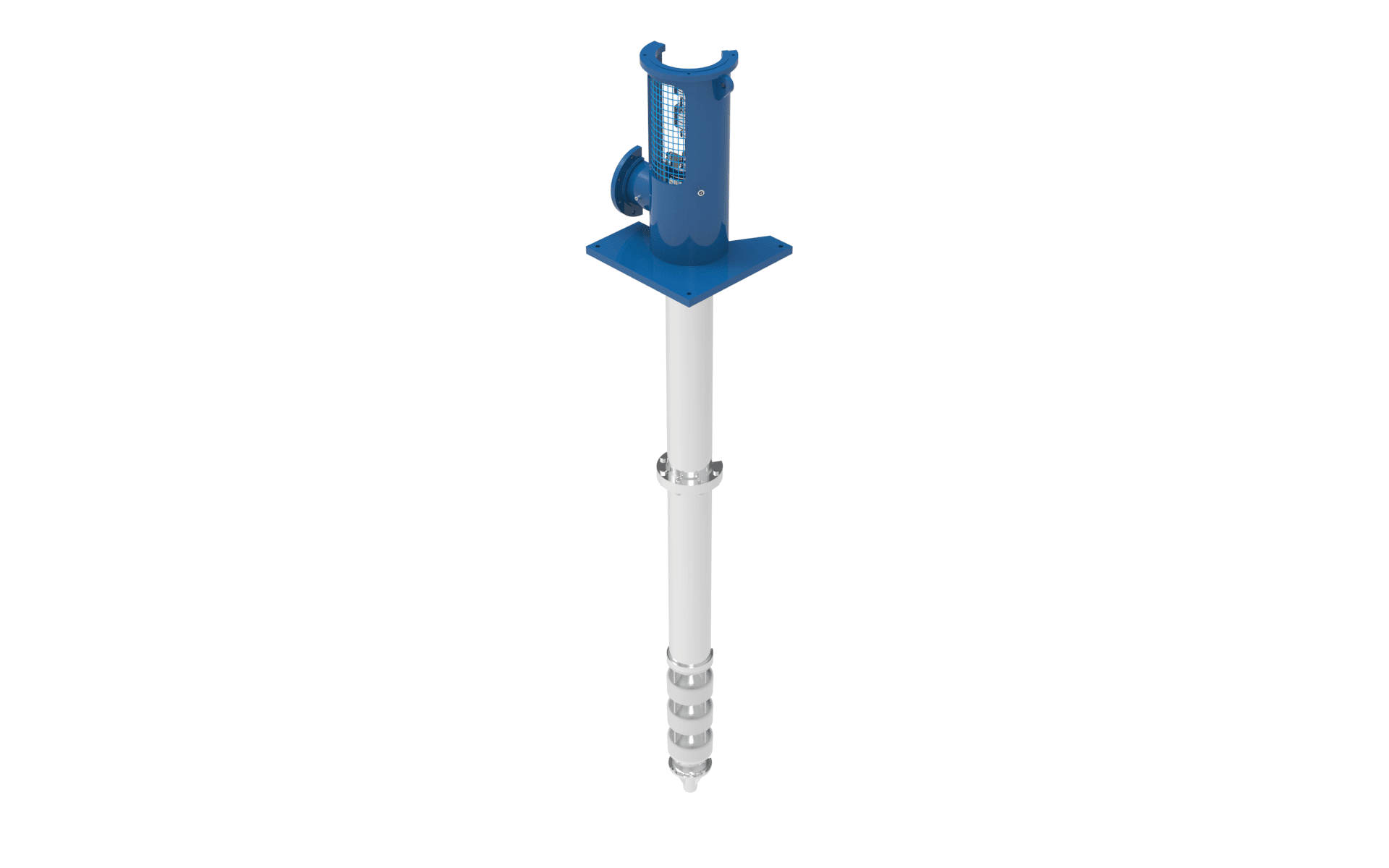

  • FLOWAY® VTSP VERTICAL TURBINE SOLIDS PUMP back angled view

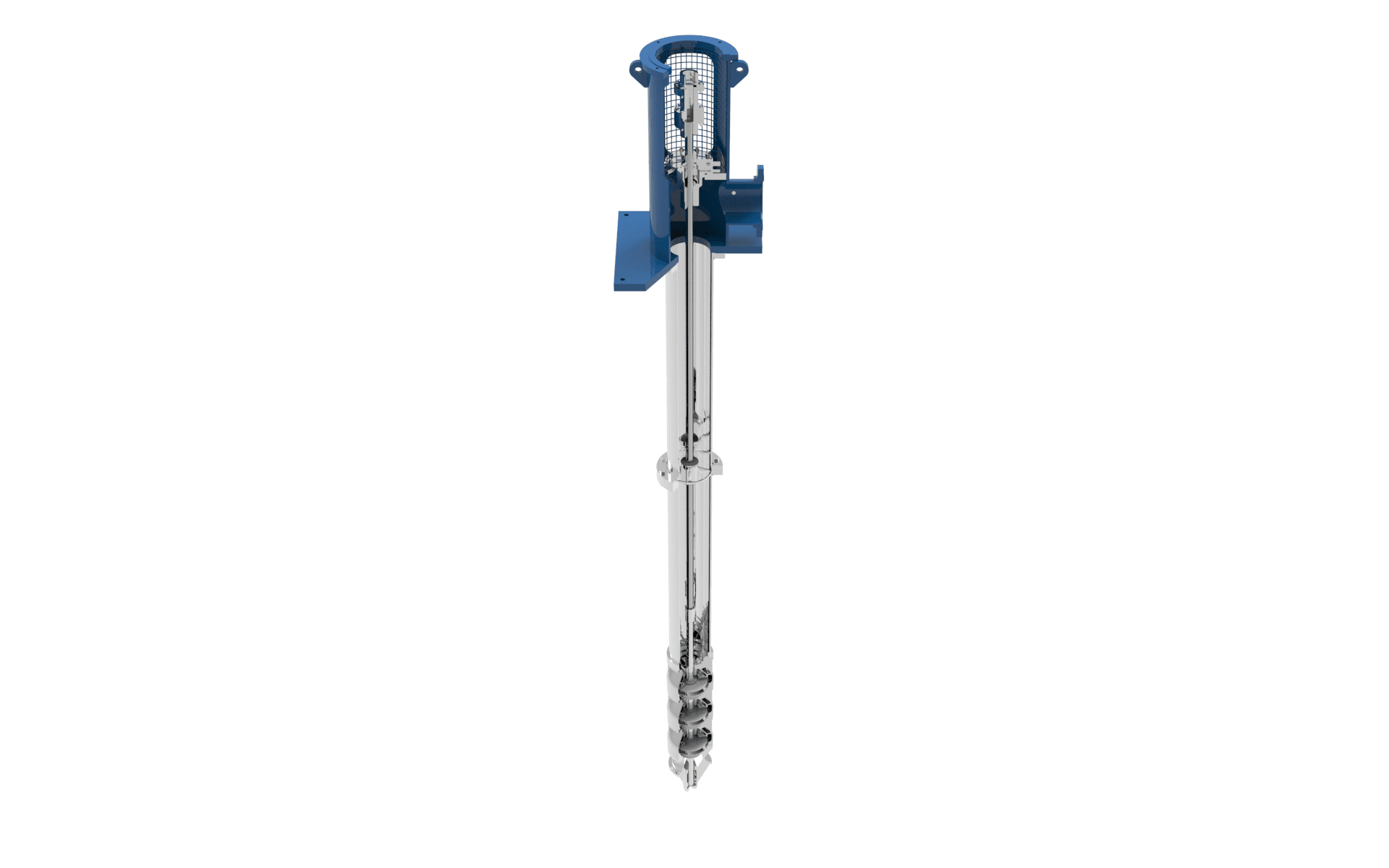

  • FLOWAY® VTSP VERTICAL TURBINE SOLIDS PUMP left angled view

FLOWAY®

VTSP Vertical Turbine Solids Pump

Floway® VTSP (Vertical Turbine Solids Pump) is a vertical close coupled, single and multistage turbine pump, with a cast or fabricated discharge head, top mounted motor and closed suction or wet pit design solids handling pump. This solids pump includes hardened materials and a patented bearing design resulting in an increased wear-life up to four times that of a standard vertical turbine solid pump.

In addition, the Floway® VTSP features a semi-open adjustable impeller design to accommodate solids and maintain performance without the need for disassembly. Handling solids up to 10% by weight, the Floway® VTSP is designed to reduce wear, decrease maintenance down time, and lower total ownership cost.

KEY FEATURES & BENEFITS

  • Iron bowls with abrasion resistant coating
  • Fabricated discharge head
  • Above & below ground suction & discharge
  • Flanged column
  • Semi-open 420SS impellers
  • Multiple NDE/testing options
  • Thrust balanced impeller
  • Patented bearing design
  • Product lube shafting
  • Mechanical shaft sealing
  • VSS/VHS motor shafting
  • Colletted & keyed impeller mounting
  • Hard coated shaft

APPLICATIONS

  • Mine dewatering
  • Tailings
  • Reclaim water
  • Overflow water
  • Process water supply
  • Thickener overflow
  • Barrel mounted booster
  • Barge mounted pumps
  • Water supply (fresh water, lakes, and rivers)
  • Vertical process
  • Offshore platform & seawater lift (crude oil transfer)
  • Cooling water
  • Terminal & transfer
  • River & raw water intake
  • Effluent disposal

DESIGN STANDARDS

  • Hydraulic Institute

SIZE RANGE & DIMENSIONS

  • 4 –  37 inches

PRESSURE CLASS & POWER

  • Up to 500 psi (35 bar)

TEMPERATURE RANGE

  • Up to 175ºF (80ºC)

CAPACITY

  • Up to 35,000 gpm
