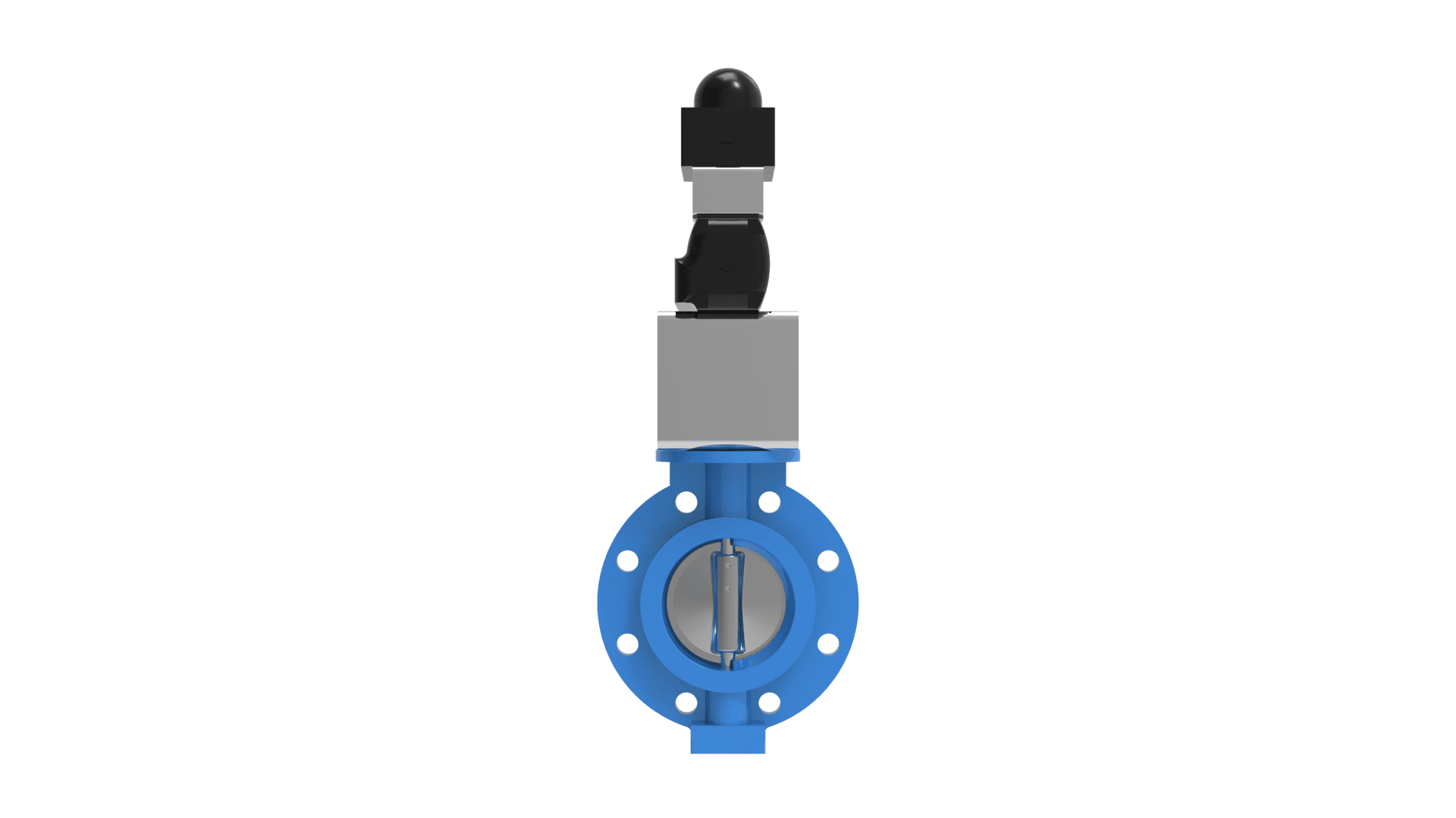

• BATLEY VALVE® BV 14000 LEDGE SEAL front view

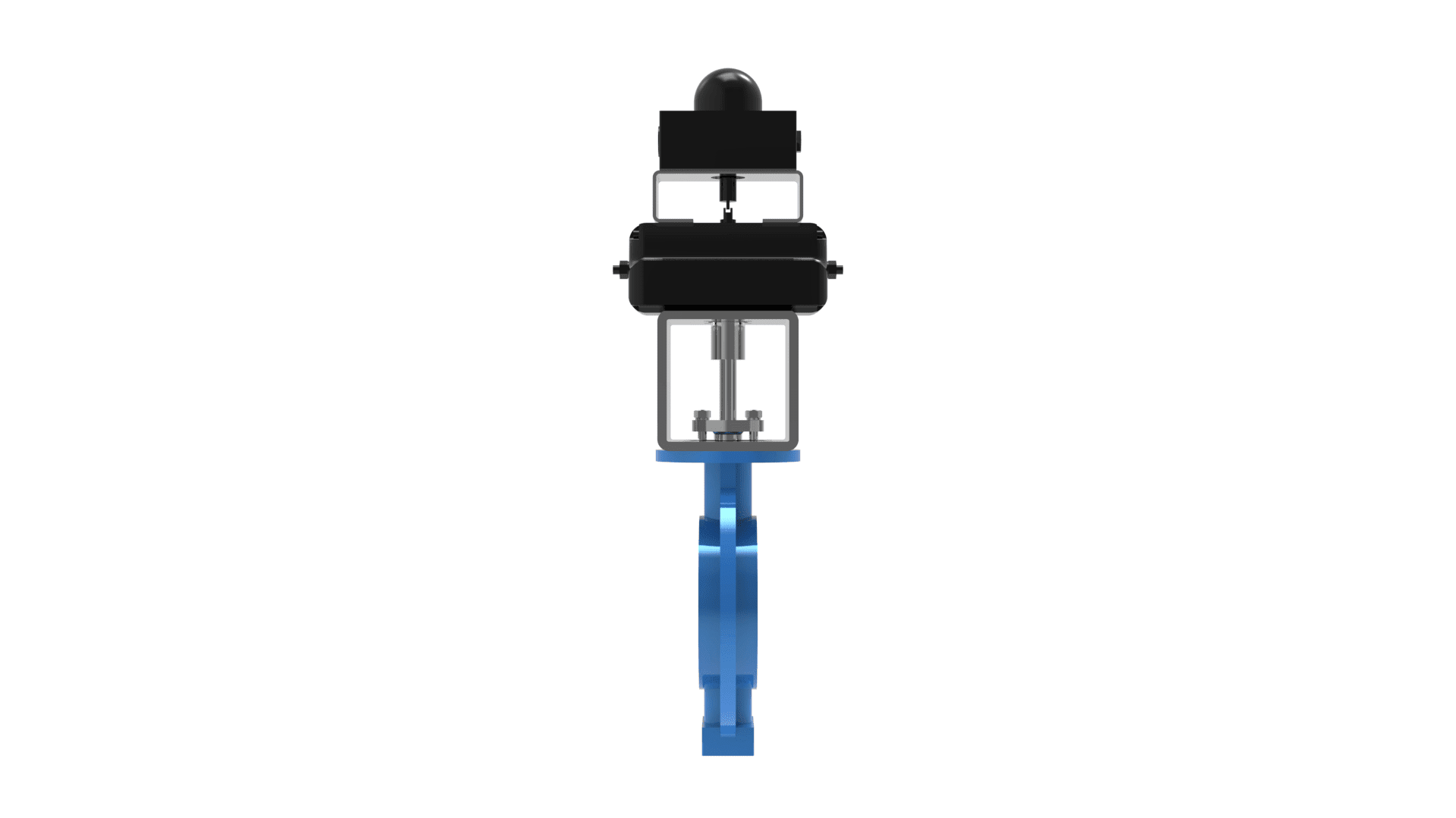

  • BATLEY VALVE® BV 14000 LEDGE SEAL left side view

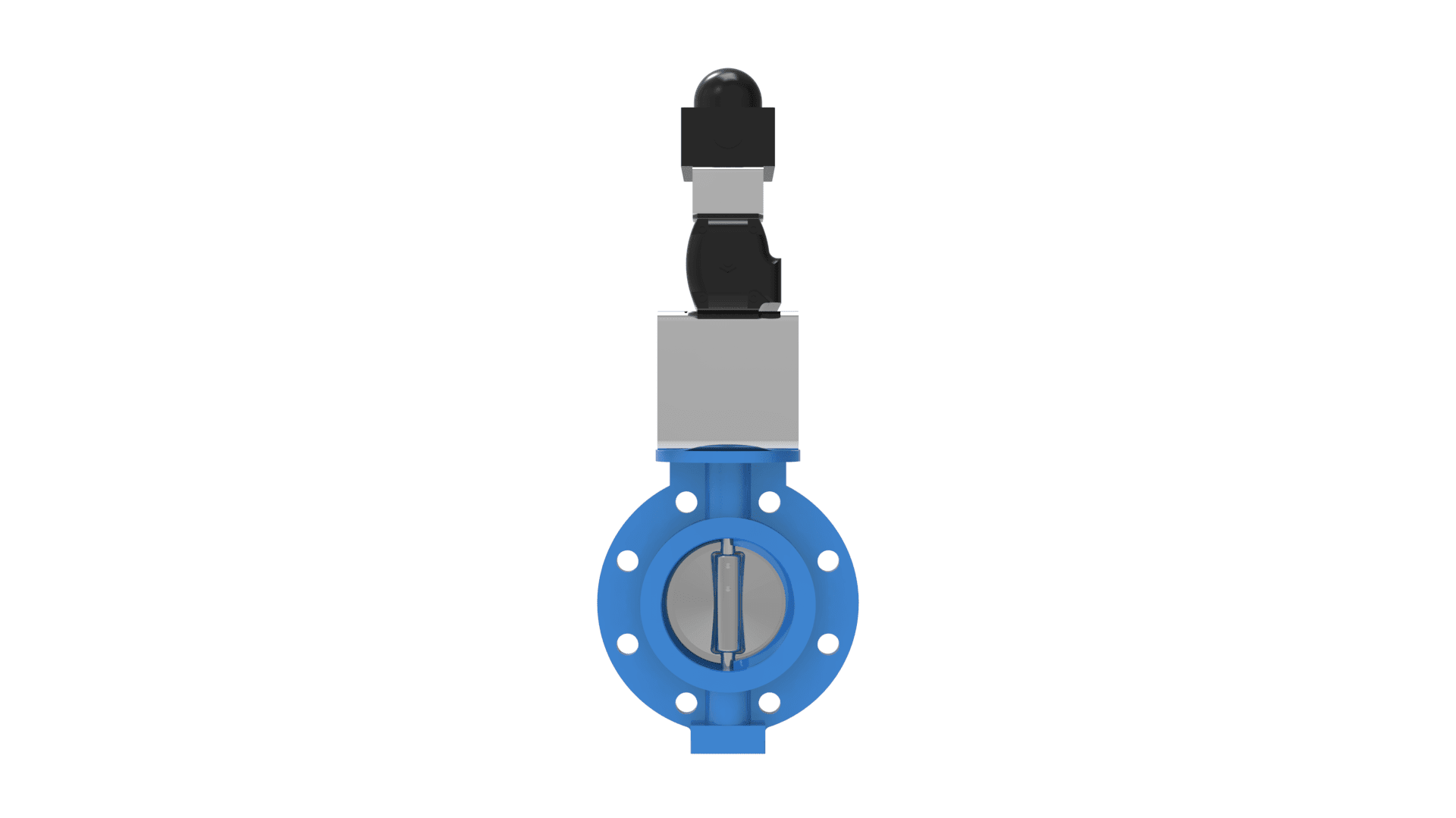

  • BATLEY VALVE® BV 14000 LEDGE SEAL back view

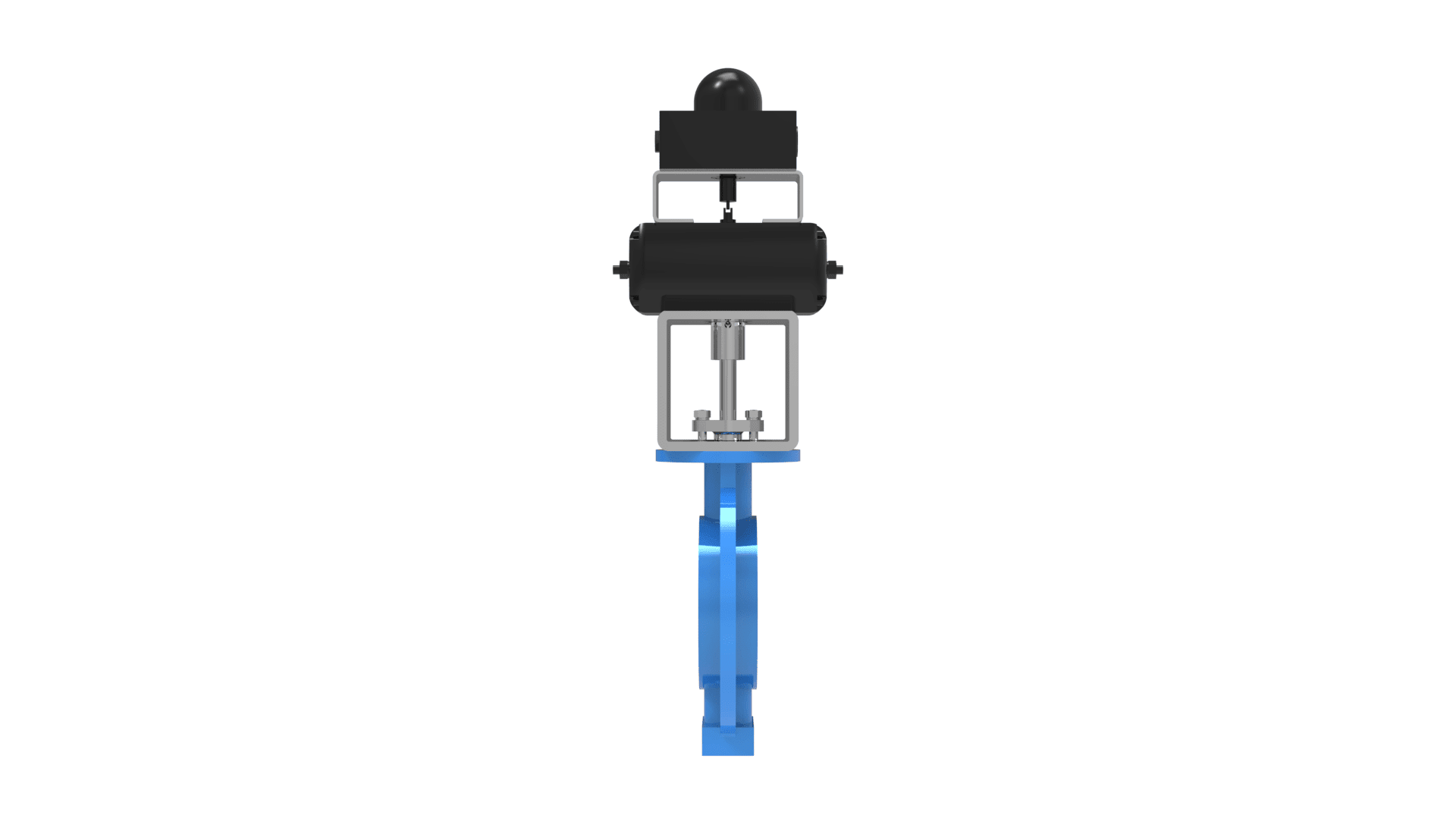

  • BATLEY VALVE® BV 14000 LEDGE SEAL right side view

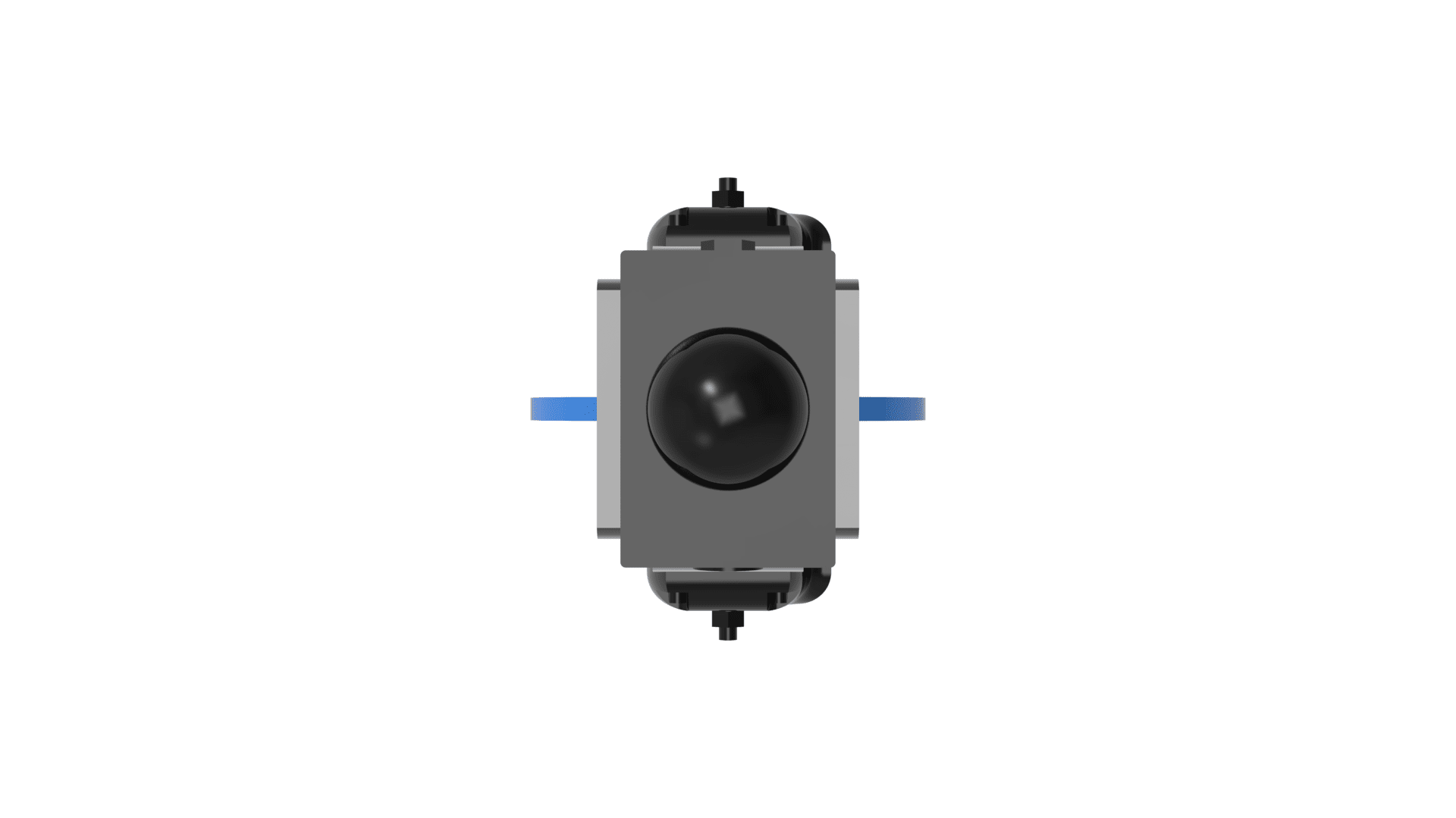

  • BATLEY VALVE® BV 14000 LEDGE SEAL top view

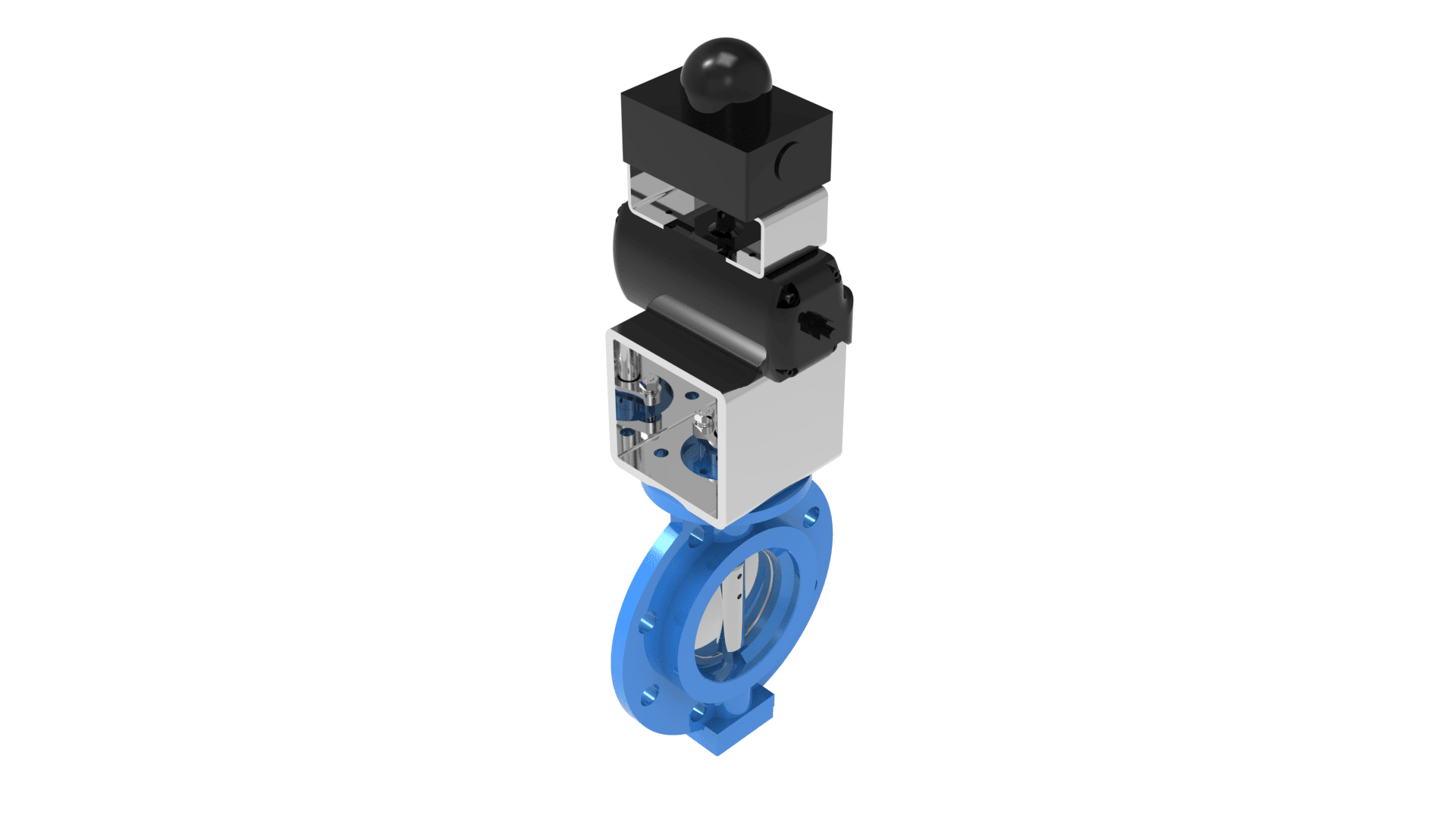

  • BATLEY VALVE® BV 14000 LEDGE SEAL right angled back view

Batley Valve®

BV 14000 Ledge Seal

The Batley Valve® BV 14000 Ledge Seal is ideal when handling high-temperature or low-pressure gases, and soft seated shut-off valves are not suitable. This valve is designed to reduce the leakage to approximately one-third of the swing-through valve. It should be noted that the ledge reduces the bore and may affect the flow capacity.

KEY FEATURES/BENEFITS

Design suitable where high temperature on low pressure gases are involved and soft seated shut-off valves are not suitable.

BODY TYPE

  • Wafer
  • Lugged
  • Flanged
  • Clamped
  • Butt Welded

APPLICATIONS

Very high temperature gas with low pressure deltaP

DESIGN STANDARDS

  • ANSI FCI 70.2
  • ANSI B16.34

DESIGN RATINGS

  • ASME 150

SIZE RANGE/ DIMENSIONS

  • 50 to 2000mm (2″” to 80″”)

MATERIALS

  • Carbon Steel
  • Stainless Steel
  • Duplex
  • Super Duplex
  • Hastalloy
  • Inconel
  • Monel
  • Titanium

TEMPERATURE RANGE

  • 0ºC up to 1000ºC (32ºF to 1832ºF)

UPGRADES/ADAPTATIONS

  • Reduced Leakage – 0,1% of rated cv Class III
