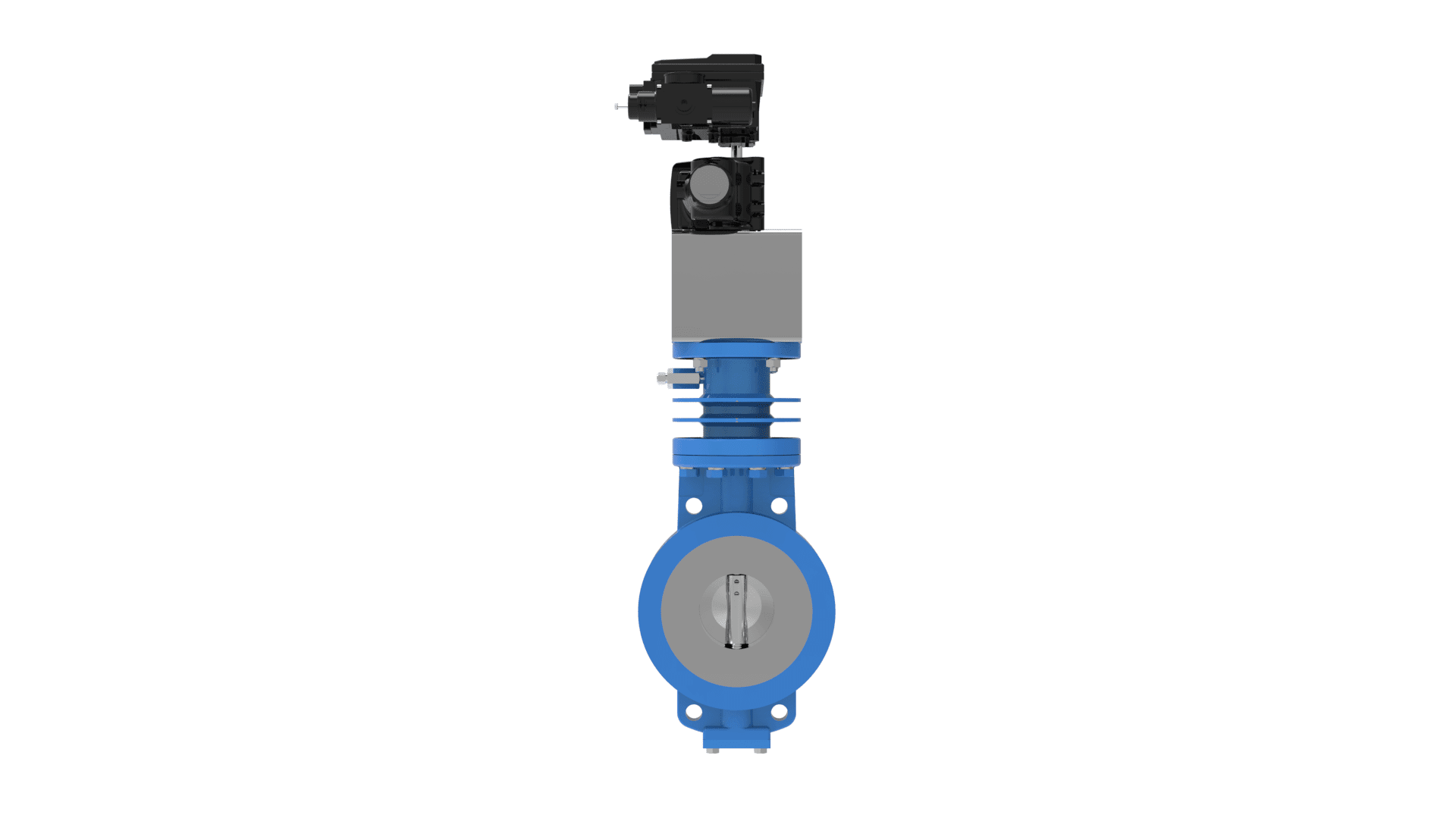

• BATLEY VALVE® BV 32000 REFRACTORY LINED front view

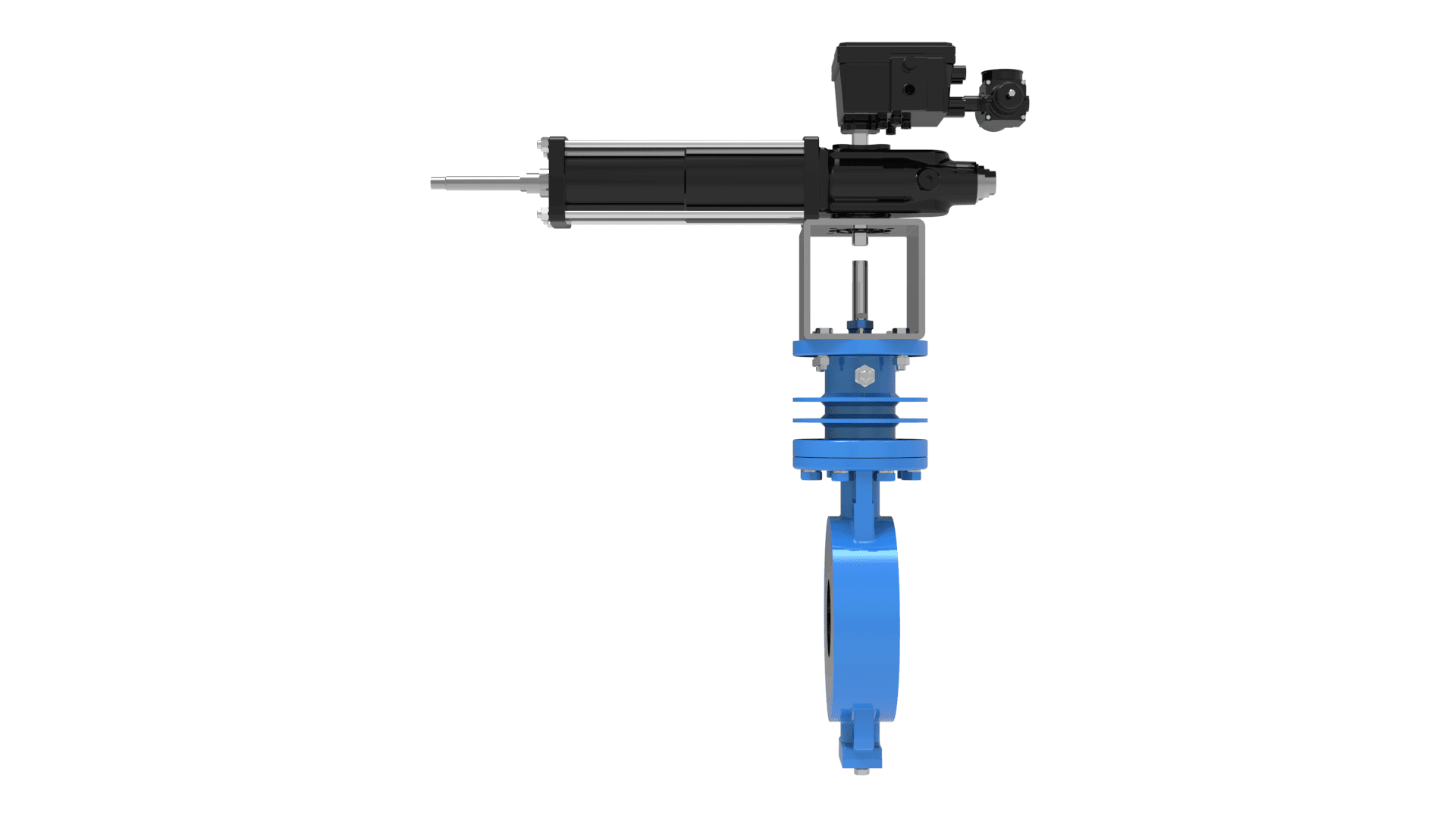

  • BATLEY VALVE® BV 32000 REFRACTORY LINED right side view

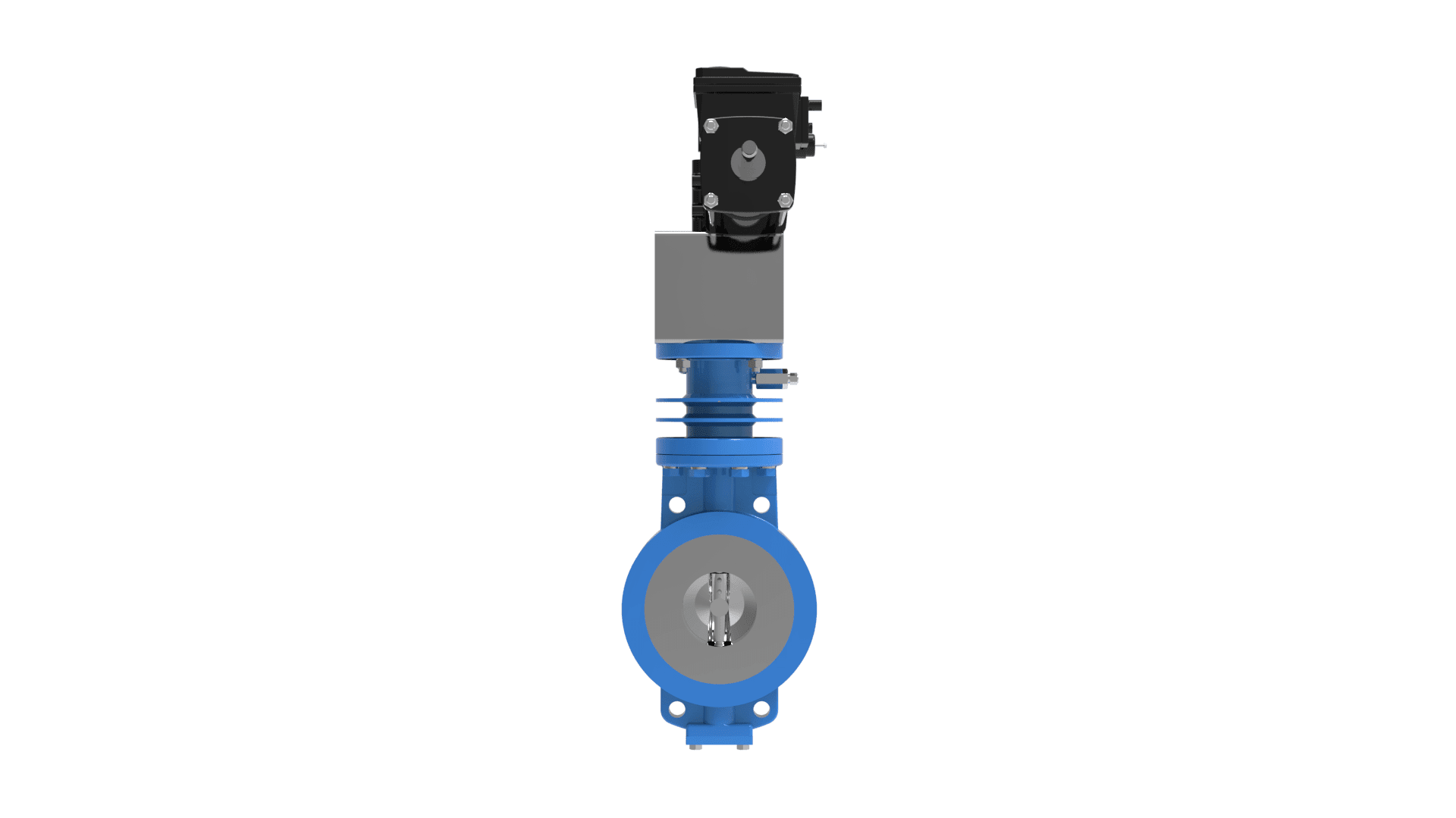

  • BATLEY VALVE® BV 32000 REFRACTORY LINED back view

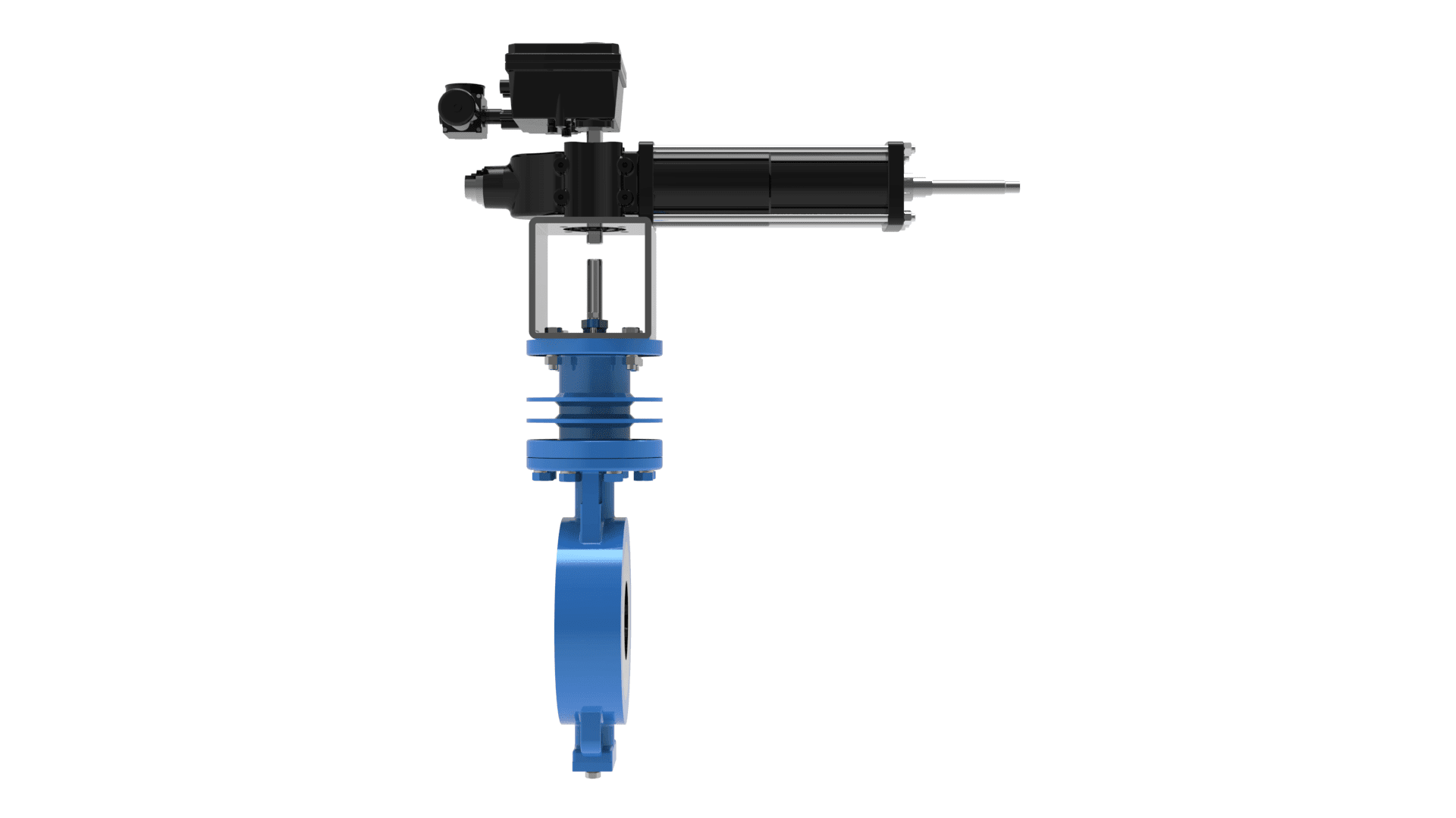

  • BATLEY VALVE® BV 32000 REFRACTORY LINED left side view

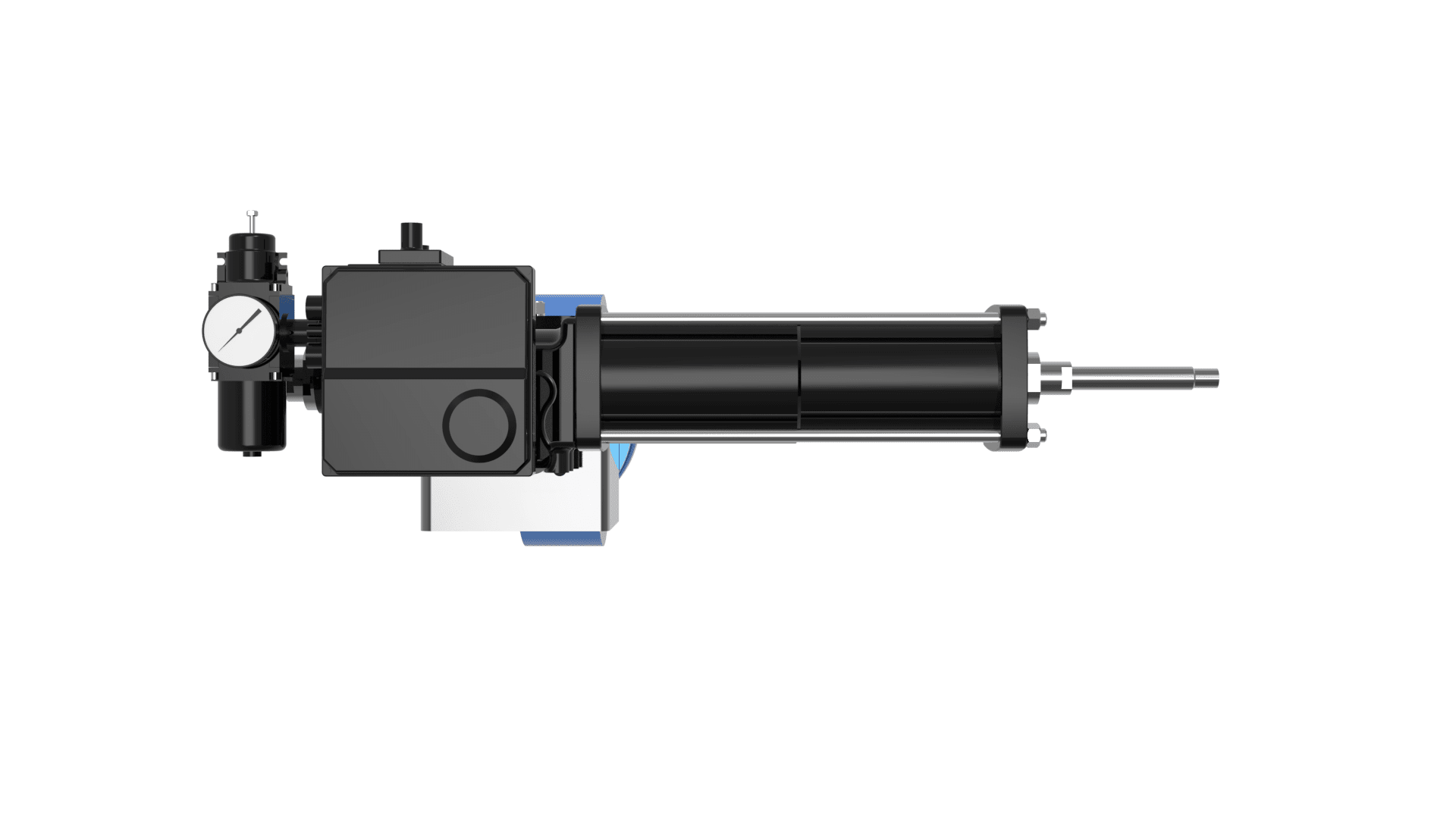

  • BATLEY VALVE® BV 32000 REFRACTORY LINED top view

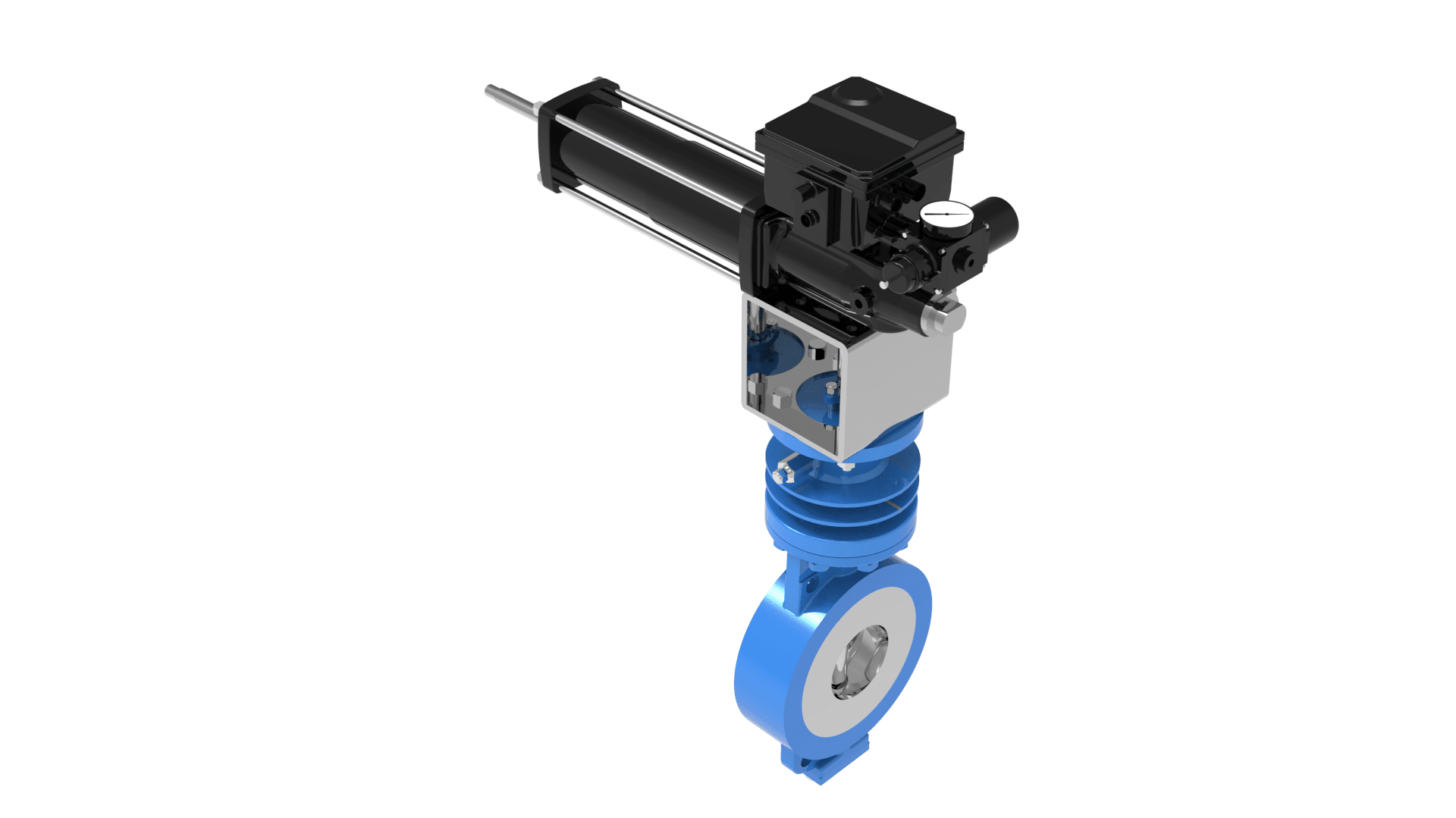

  • BATLEY VALVE® BV 32000 REFRACTORY LINED right angled view

Batley Valve®

BV 32000 Refractory lined

The BV 32000 – Refractory lined is designed for temperatures above 1000ºC, or where higher pressures are involved, such as a water cooled design. Experience of refractory lined valves has been for gases at temperatures up to 1200ºC with low or negligible pressure.

KEY FEATURES/BENEFITS

  • Where the flowing media is dirty or dust laden and there is a possibility of internal bearing seizure, the valve may be designed to incorporate outboard bearings

SIZE RANGE/ DIMENSIONS

  • 100mm to 2000mm (4″” to 80″”)

MATERIALS BODY MATERIAL

  • Carbon Steel.

TRIM MATERIALS

  • Austenitic SS
  • 17-4 PH
  • Duplex/Super Duplex SS
  • Various hard surfaces to seat & seal ring available (stellite, tungsten carbide).

APPLICATIONS

  • Extreme temperature service

DESIGN RATINGS

  • From ASME 150# to ASME 2500#

TEMPERATURE RANGE

  • Up to 1200ºC ( 2192ºF )
