BATLEY VALVE®

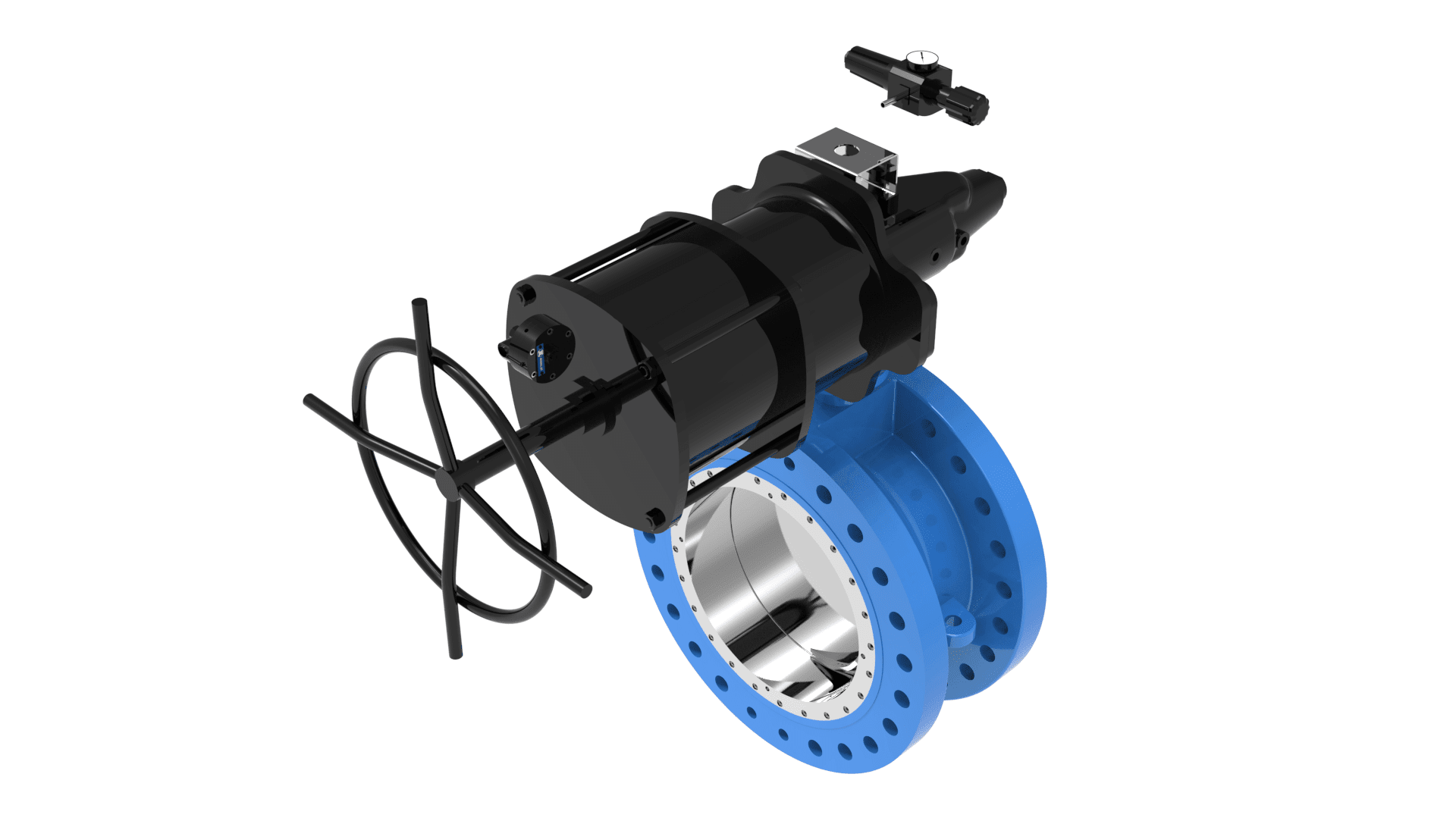

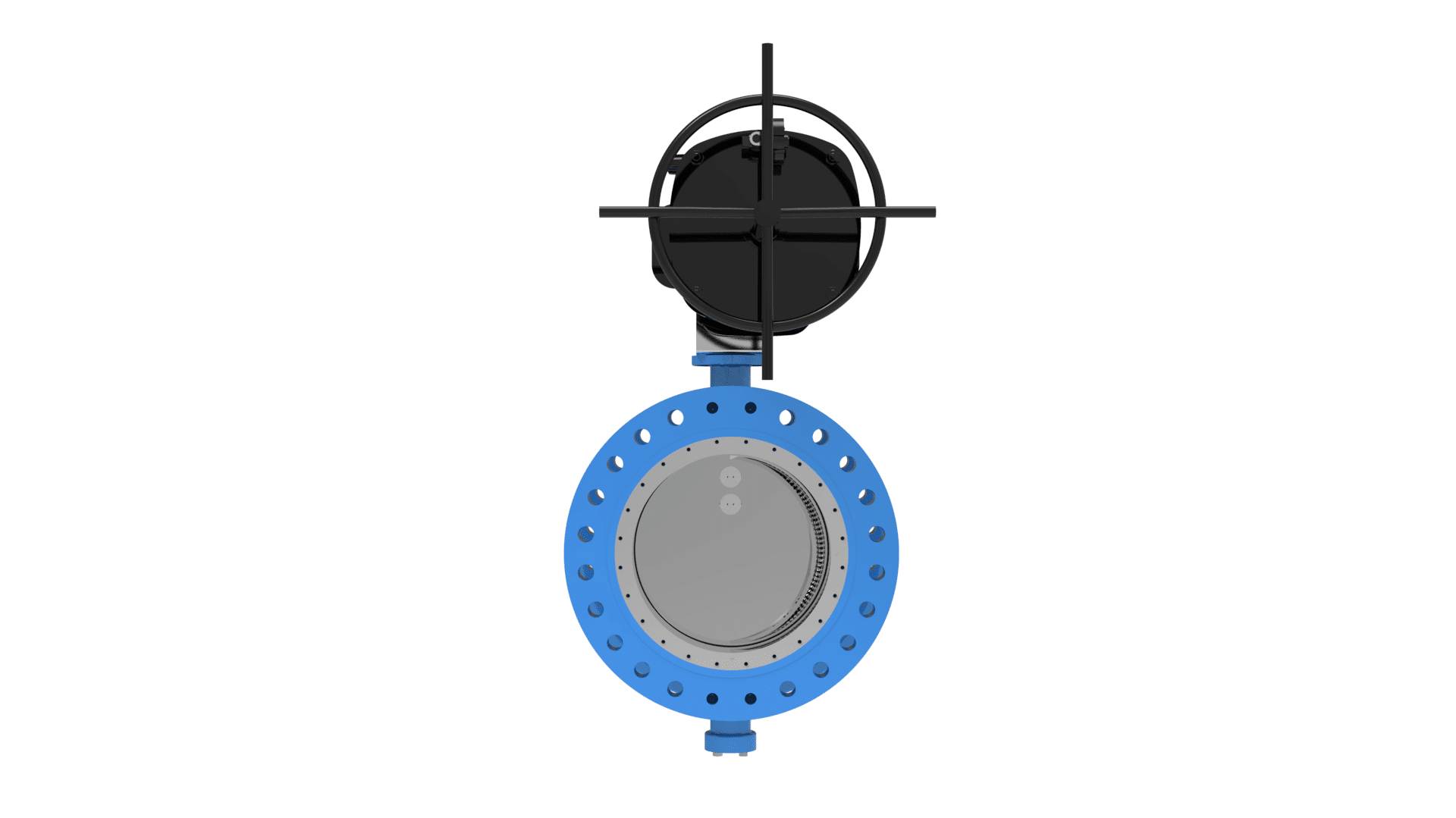

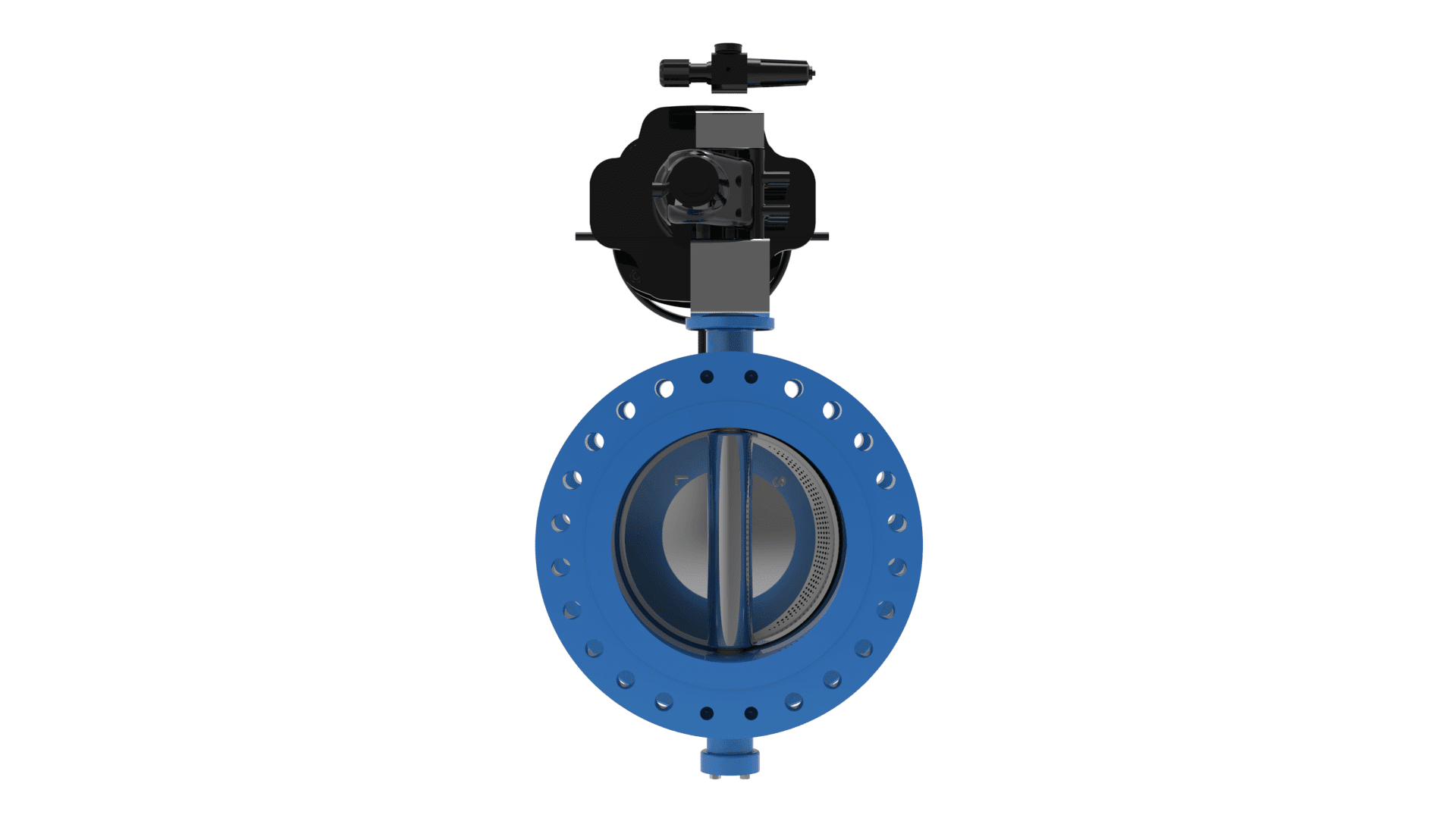

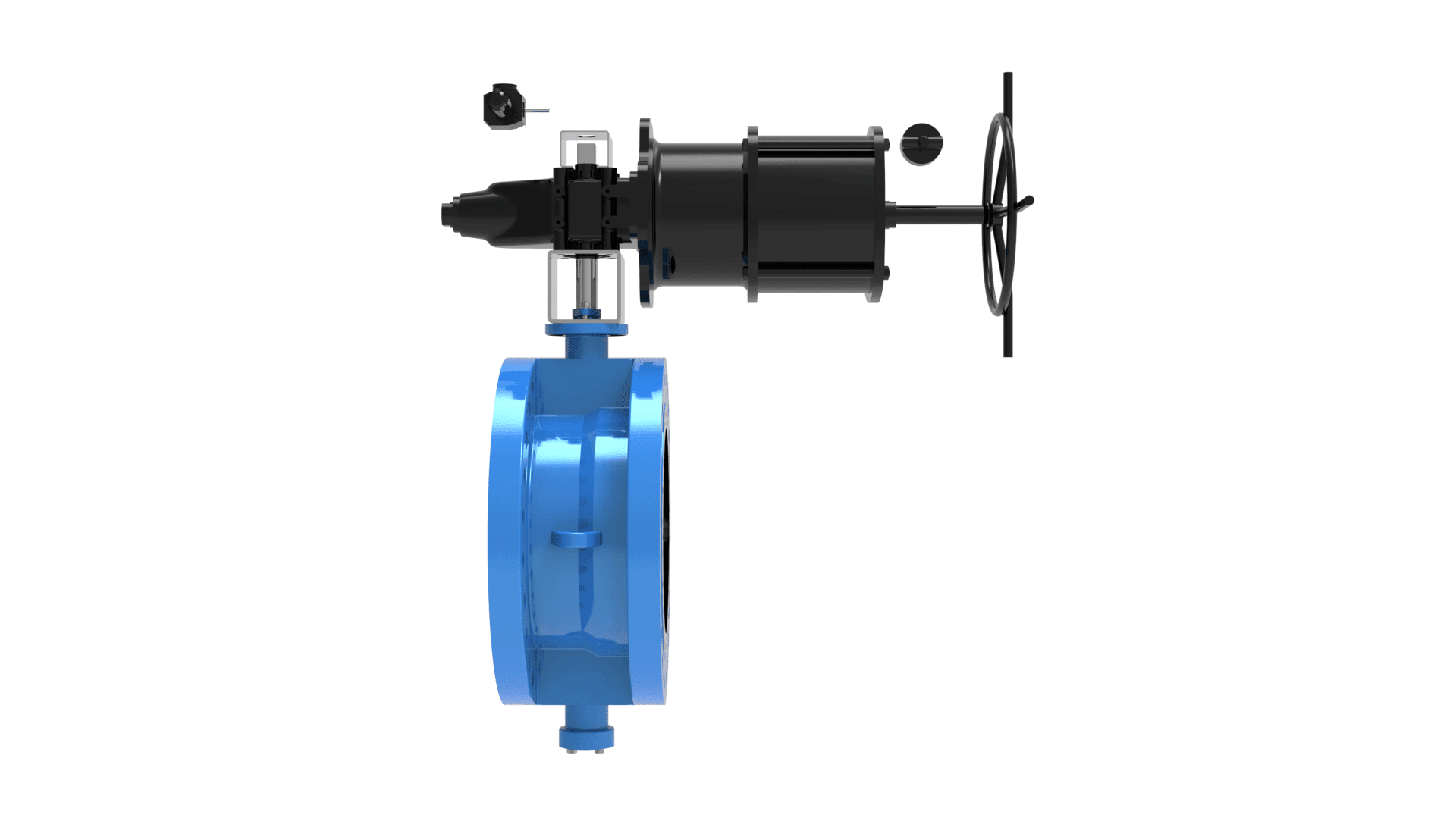

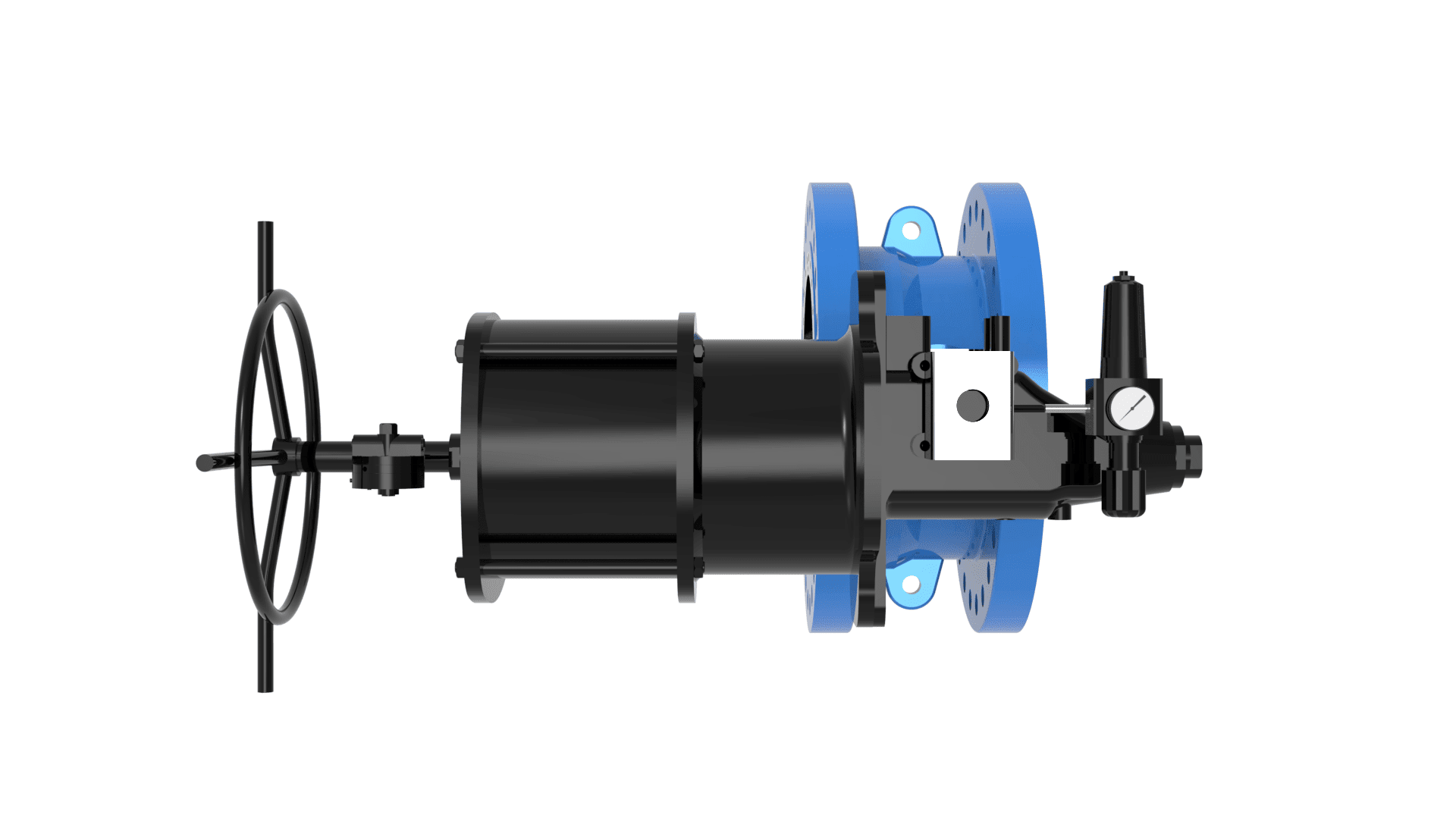

BV 22000 Hyperseal

Our standard Batley Valve® BV 22000 Hyperseal can be drilled to suit international standards up to class 300lb.

Special valves can be manufactured with bodies drilled to suit flanges up to ANSI class 2500lb.

The seat is designed to move slightly in the flow direction, allowing the pressure access to the back of the seat, making the seal progressively tighter as the pressure increases.

Any slight deflection on the disc in the case of very high pressures, increases the tightness and shut of potential. 90º on/off action allows for fast operation and the low torque characteristics are an economic advantage in power operation.

KEY FEATURES/BENEFITS

  • Double eccentric action moves the vane into and out of the seat with minimum wear and seating torque, giving longer seat life and reduced overall valve torque
  • Sealing Ring is easily replaceable
  • The vane’s streamlined design improves the flow line and reduces the head loss Shut-off pressure up to 100 bar Extensive range of body & trim options
  • Capable of dual purpose of modulating control and shut-off
  • Seat design enables stable tight shut off performance both in direct and reverse flow conditions

SIZE RANGE/ DIMENSIONS

  • 50 to 1600mm (2″” to 64″”)

MATERIALS

  • Carbon Steel
  • Stainless Steel
  • Duplex
  • Super Duplex
  • Hastalloy
  • Inconel
  • Monel
  • Titanium

UPGRADES/ADAPTATIONS

  • Material Reinforced Aluminium/Bronze
  • RATINGS ASME Class up to 2500
  • Varidiff Trim can be used to avoid problems related to cavitation

APPLICATIONS

  • Multipurpose Low and medium temperature service for gas and liquid applications, in control and isolation mode

DESIGN STANDARDS

  • API 609
  • BS 5155
  • MSS SP68
  • API 598
  • BS 6755
  • FCI 70.2
  • ANSI B16.34
  • ISO 5752
  • DIN 3202

DESIGN RATINGS

  • ASME 150# to 900#

TEMPERATURE RANGE

  • 30ºC up to 220ºC (86ºF to 428ºF)

TRIM MATERIALS

  • Austenitic SS
  • 17-4 PH
  • Duplex/Super Duplex SS
  • Various hard surfaces to seat & seal ring available (stellite, tungsten carbide)
