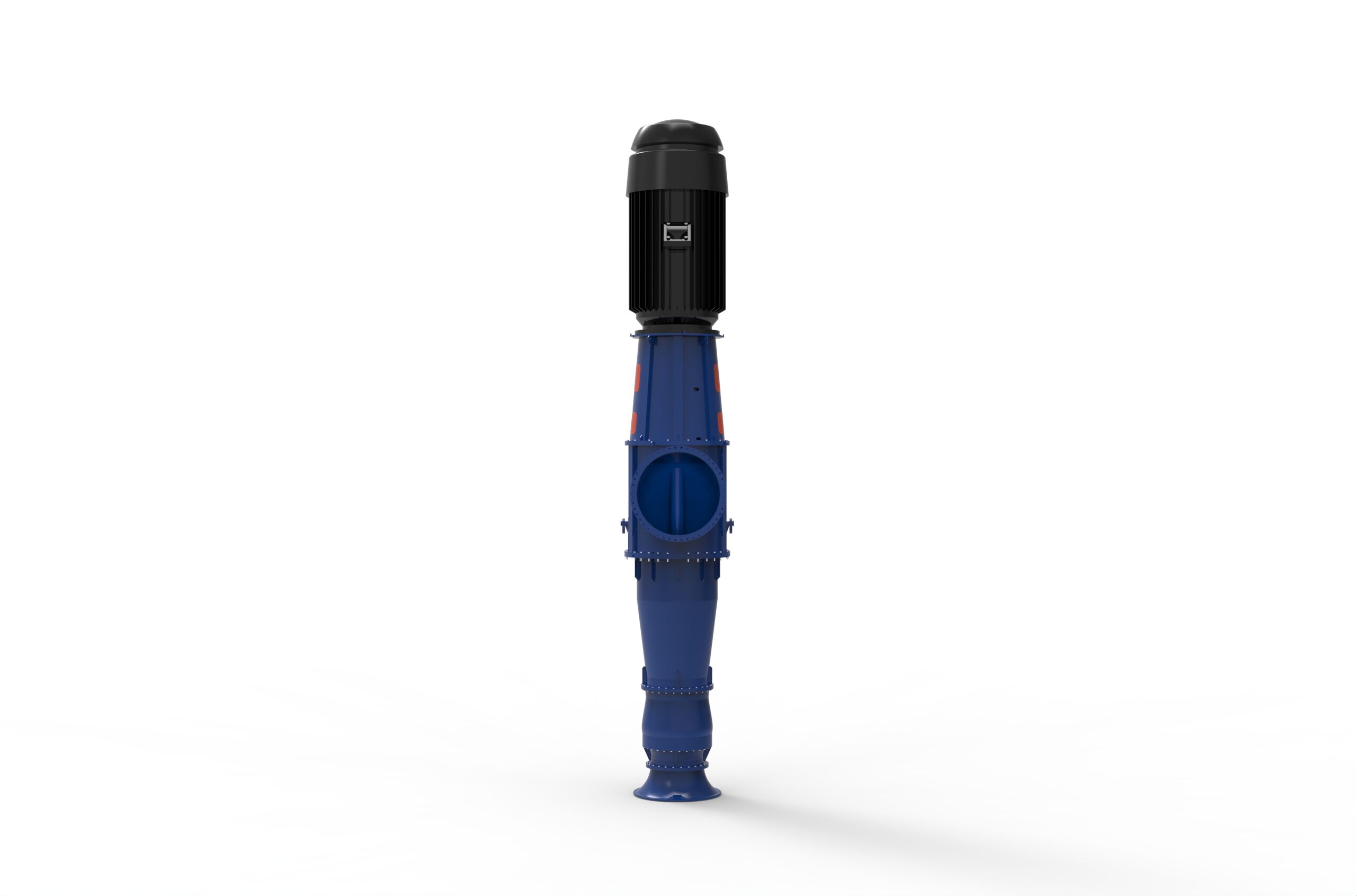

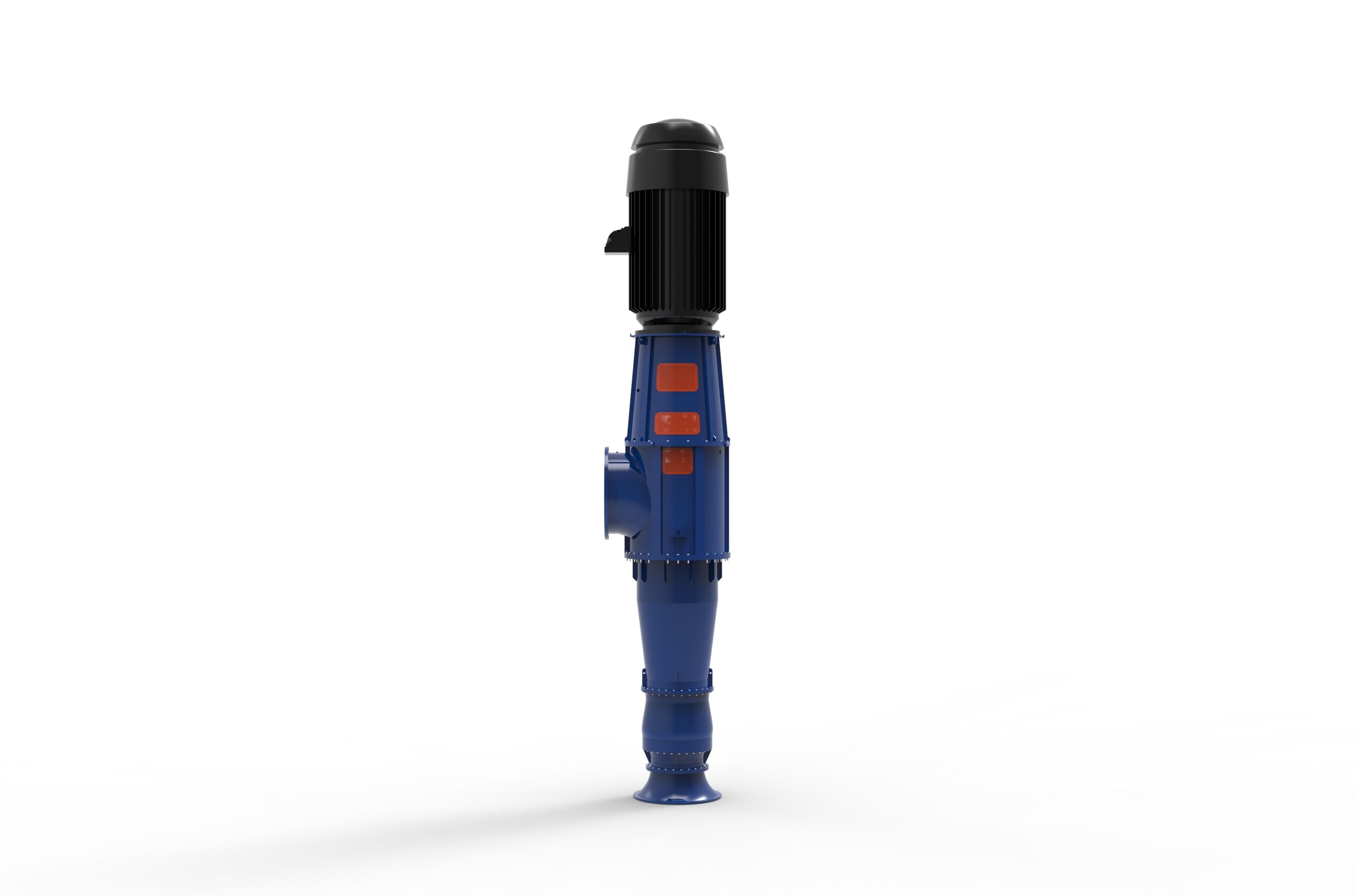

• Backside view of a Termomeccanica Pompe CEX & CEXD VS6 & VS7 Type API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

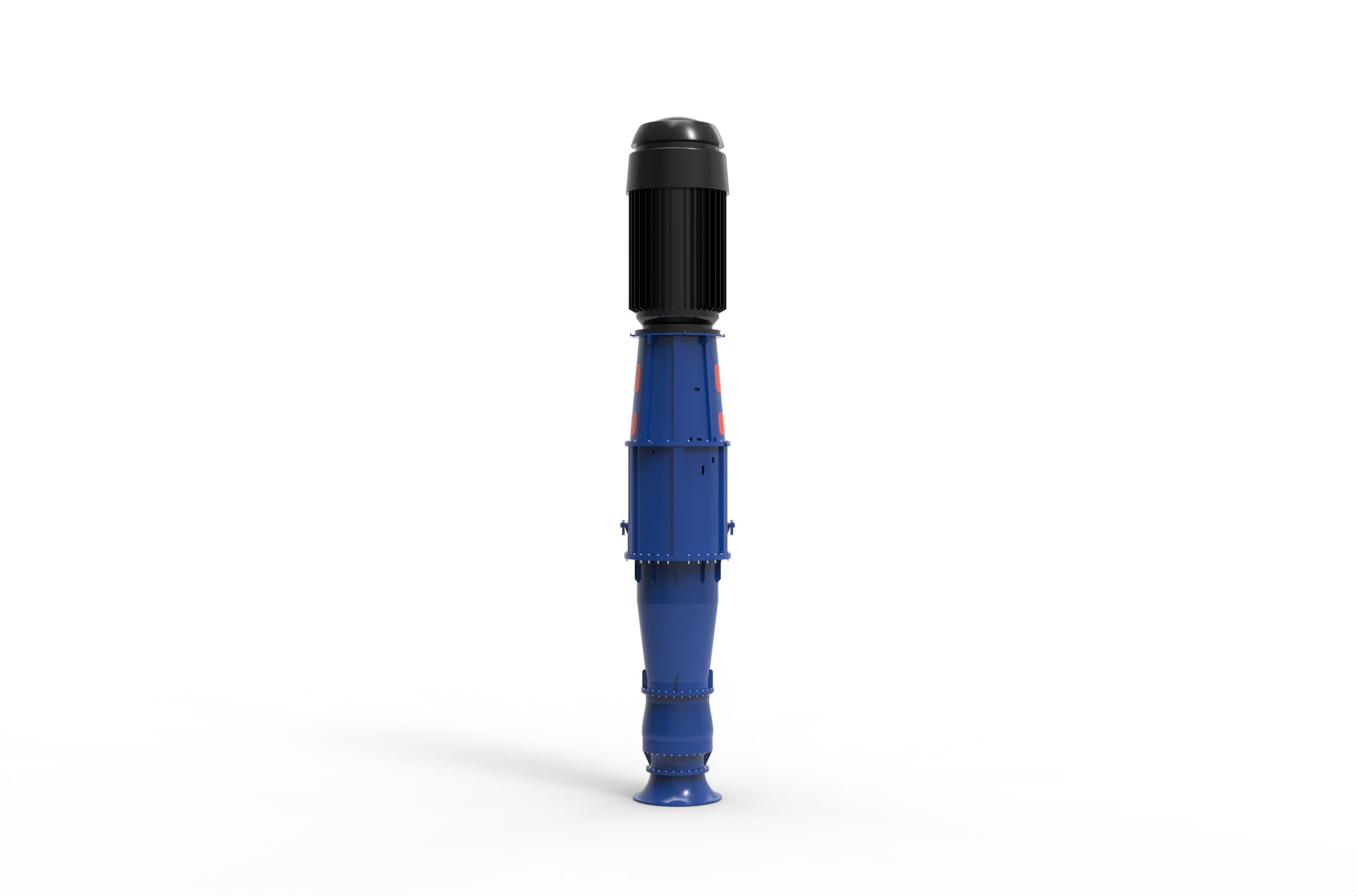

  • Right side view of a Termomeccanica Pompe CEX & CEXD VS6 & VS7 Type API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

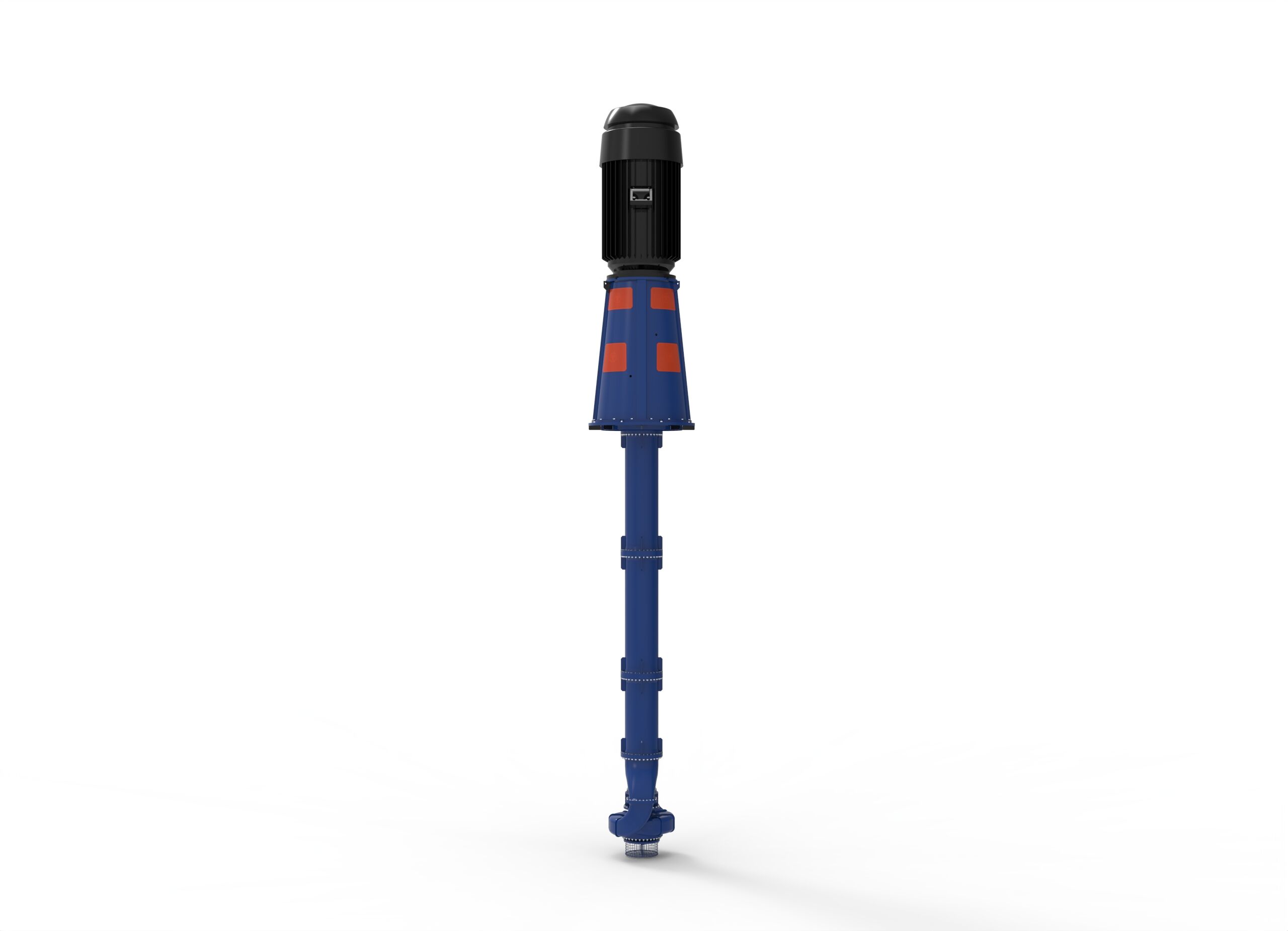

  • Right side view of a Termomeccanica Pompe CPP VS1 & VS2 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies
  • Backside view of a Termomeccanica Pompe CPP VS1 & VS2 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

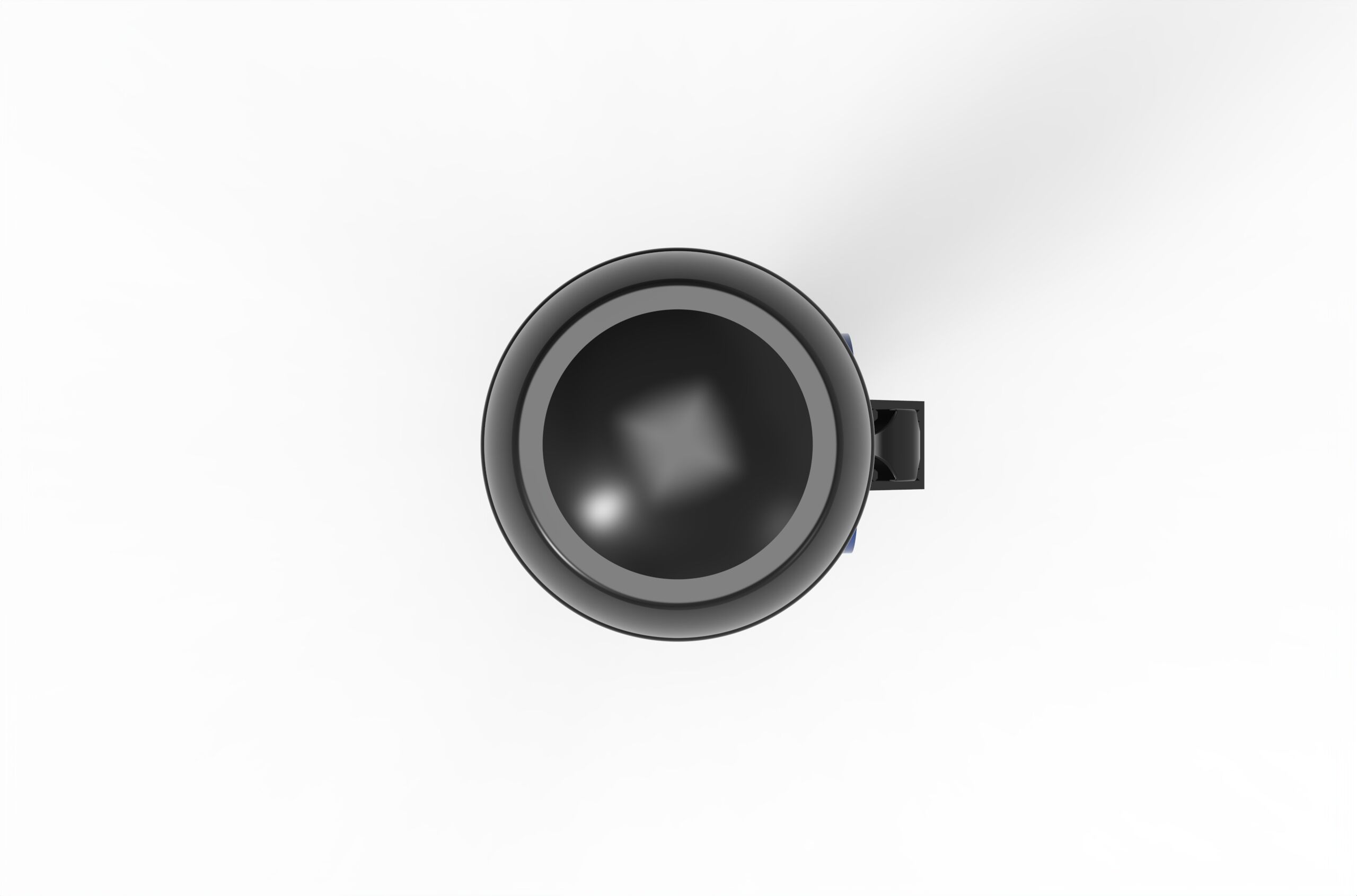

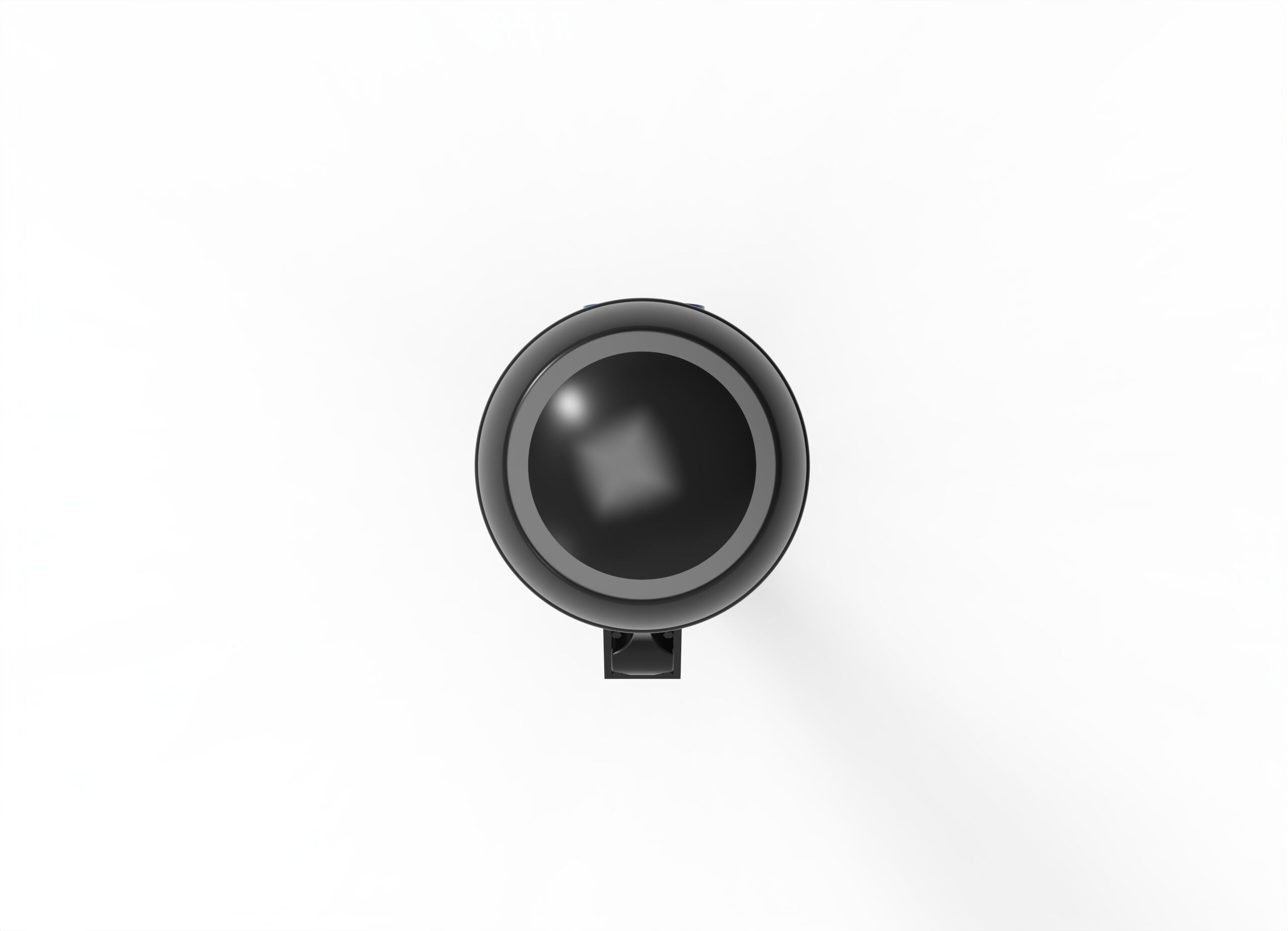

  • Top view of a Termomeccanica Pompe CPP VS1 & VS2 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

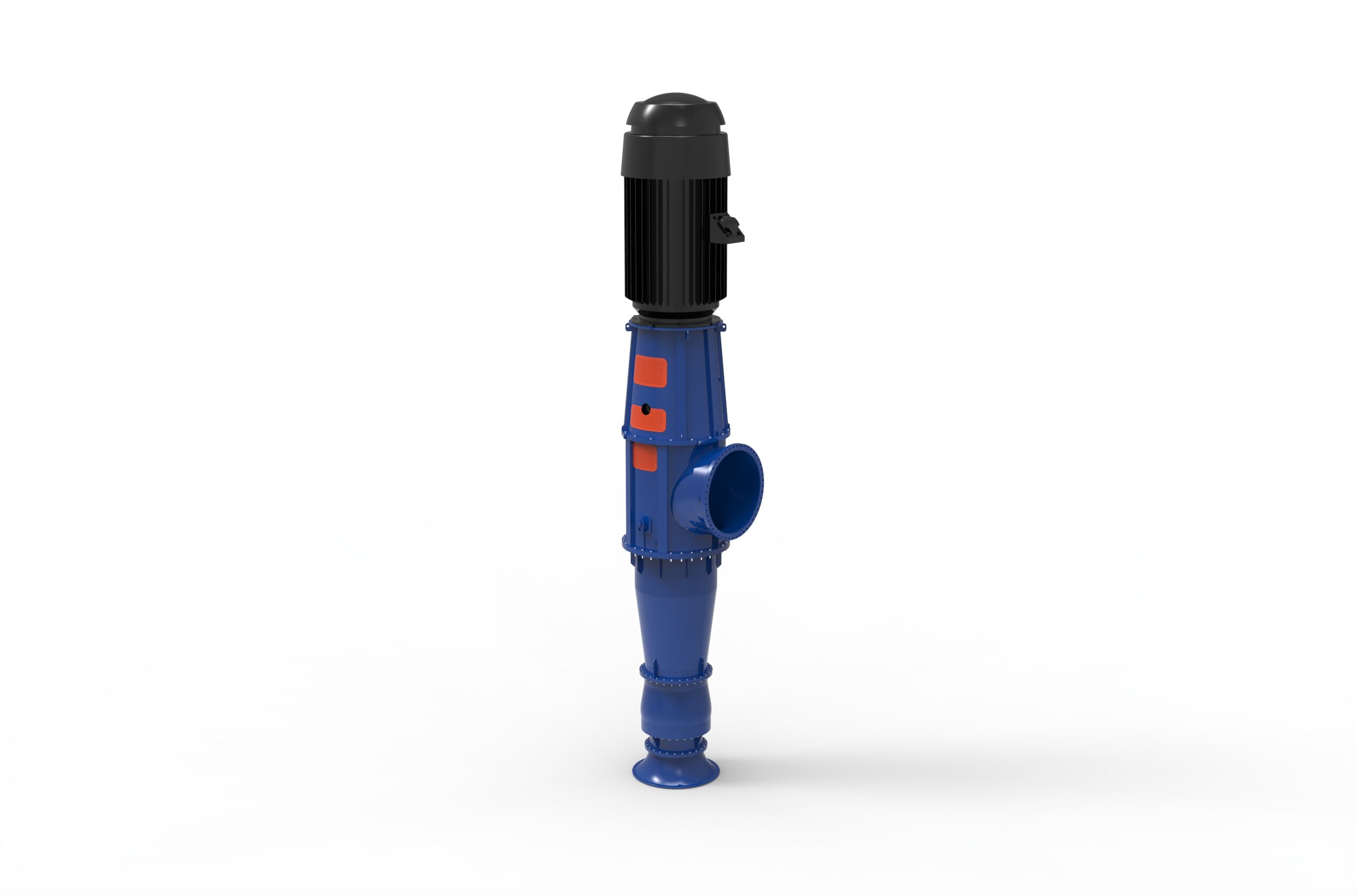

  • Angled front left side view of a Termomeccanica Pompe CPP VS1 & VS2 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

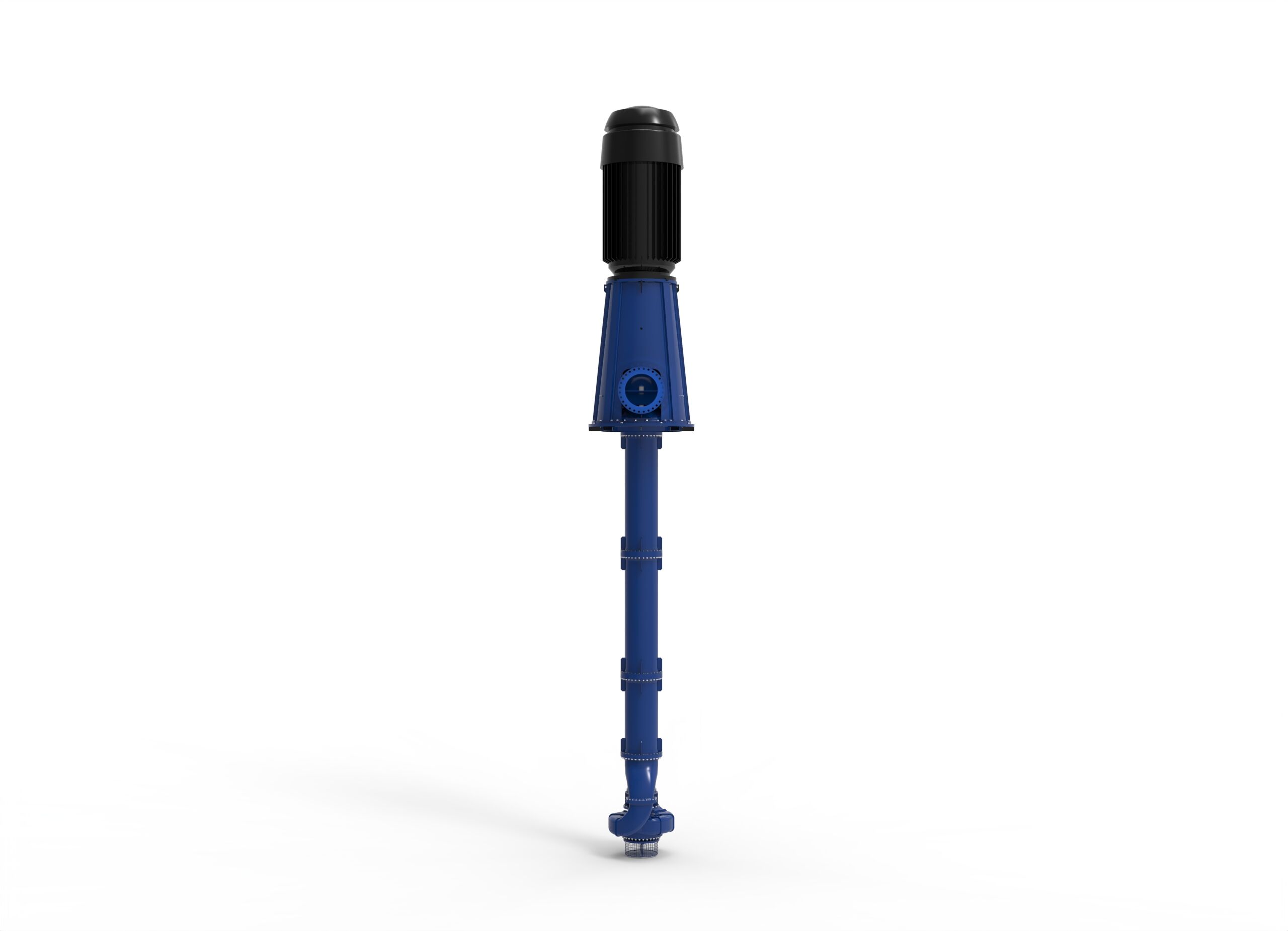

  • Front view of a Termomeccanica Pompe CPPD VS1 & VS2 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

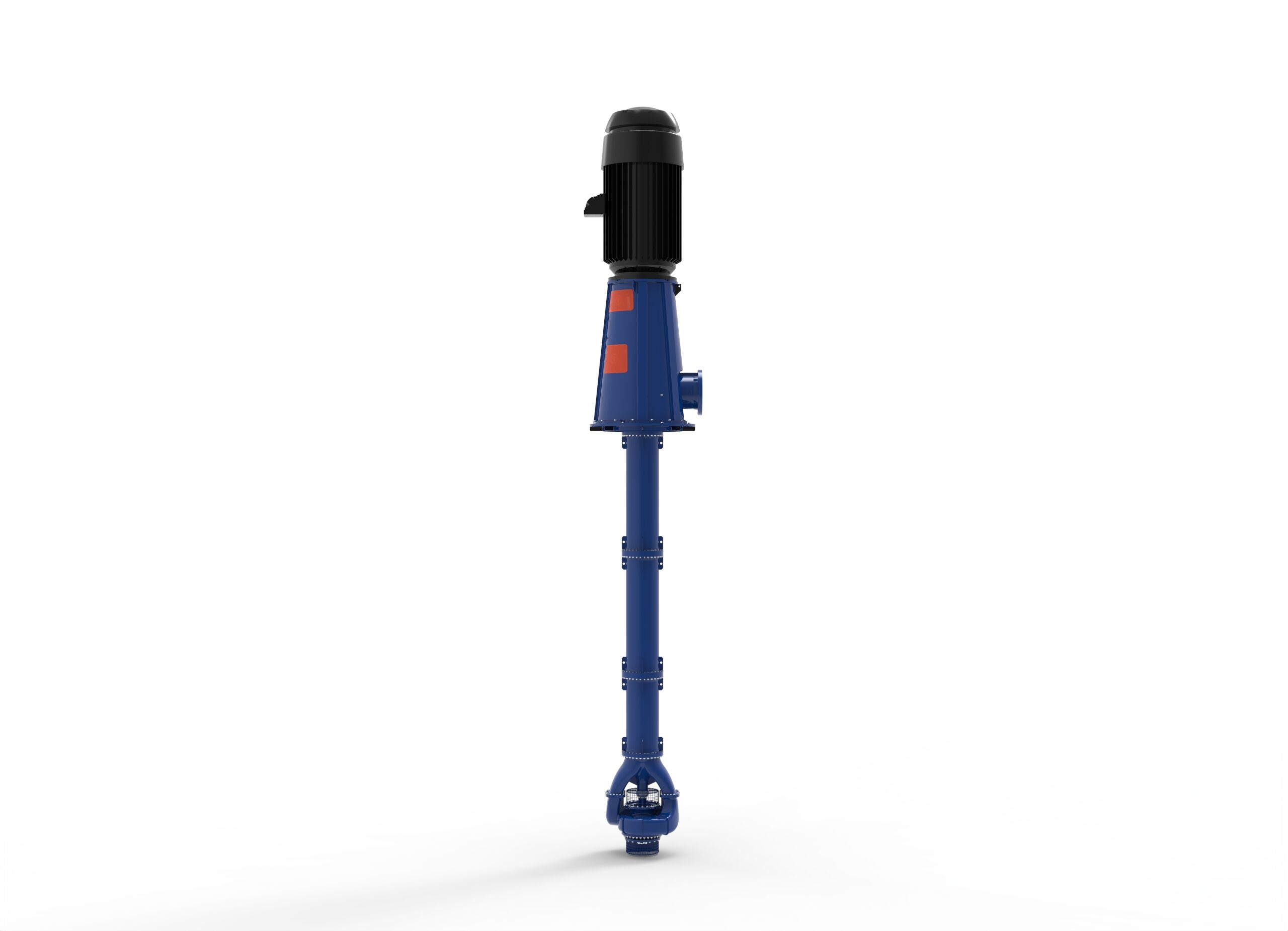

  • Left side view of a Termomeccanica Pompe CPPD VS1 & VS2 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies
  • Backside view of a Termomeccanica Pompe CPPD VS1 & VS2 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

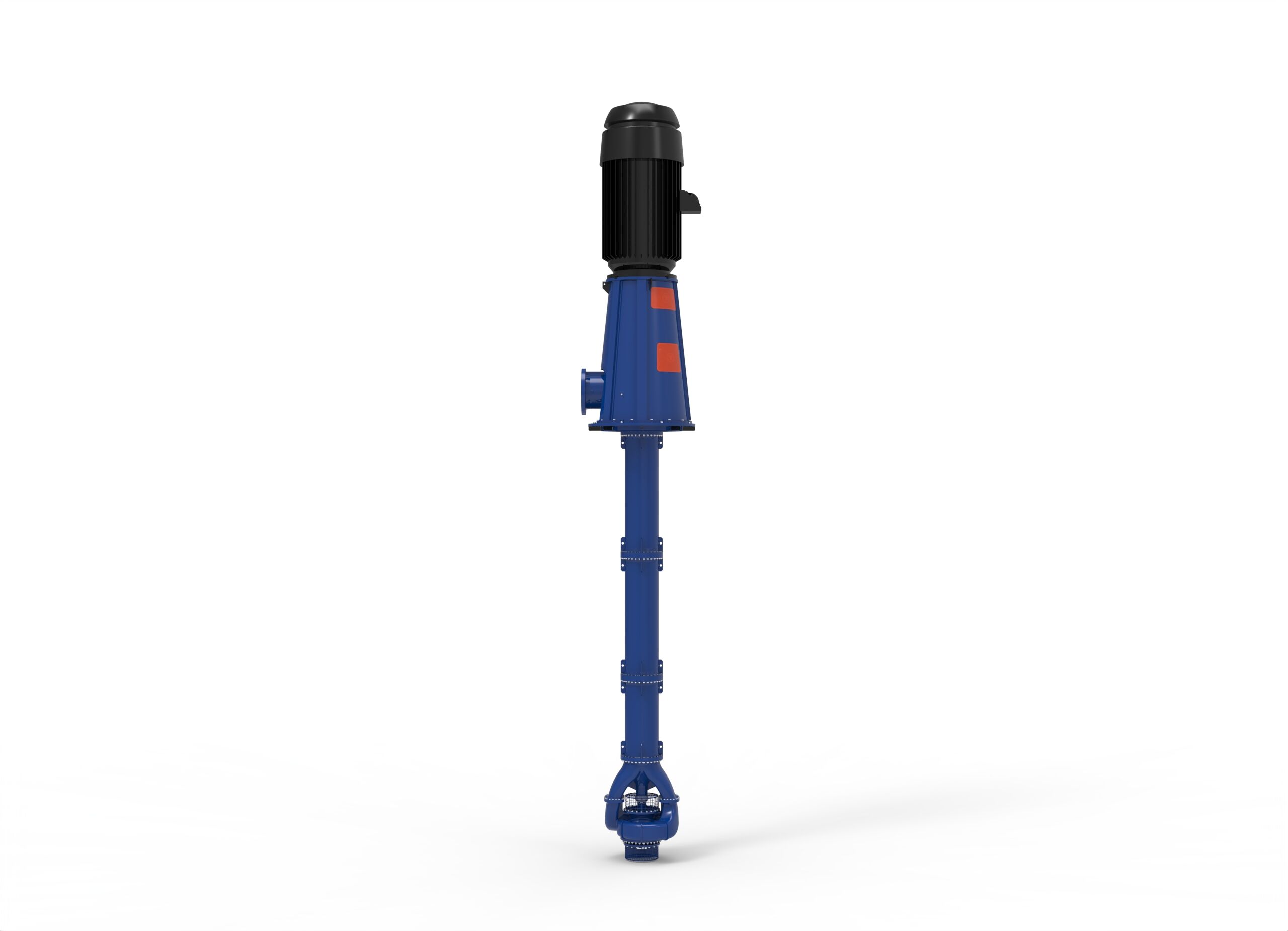

  • Right side view of a Termomeccanica Pompe CPPD VS1 & VS2 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies
  • Top view of a Termomeccanica Pompe CPPD VS1 & VS2 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

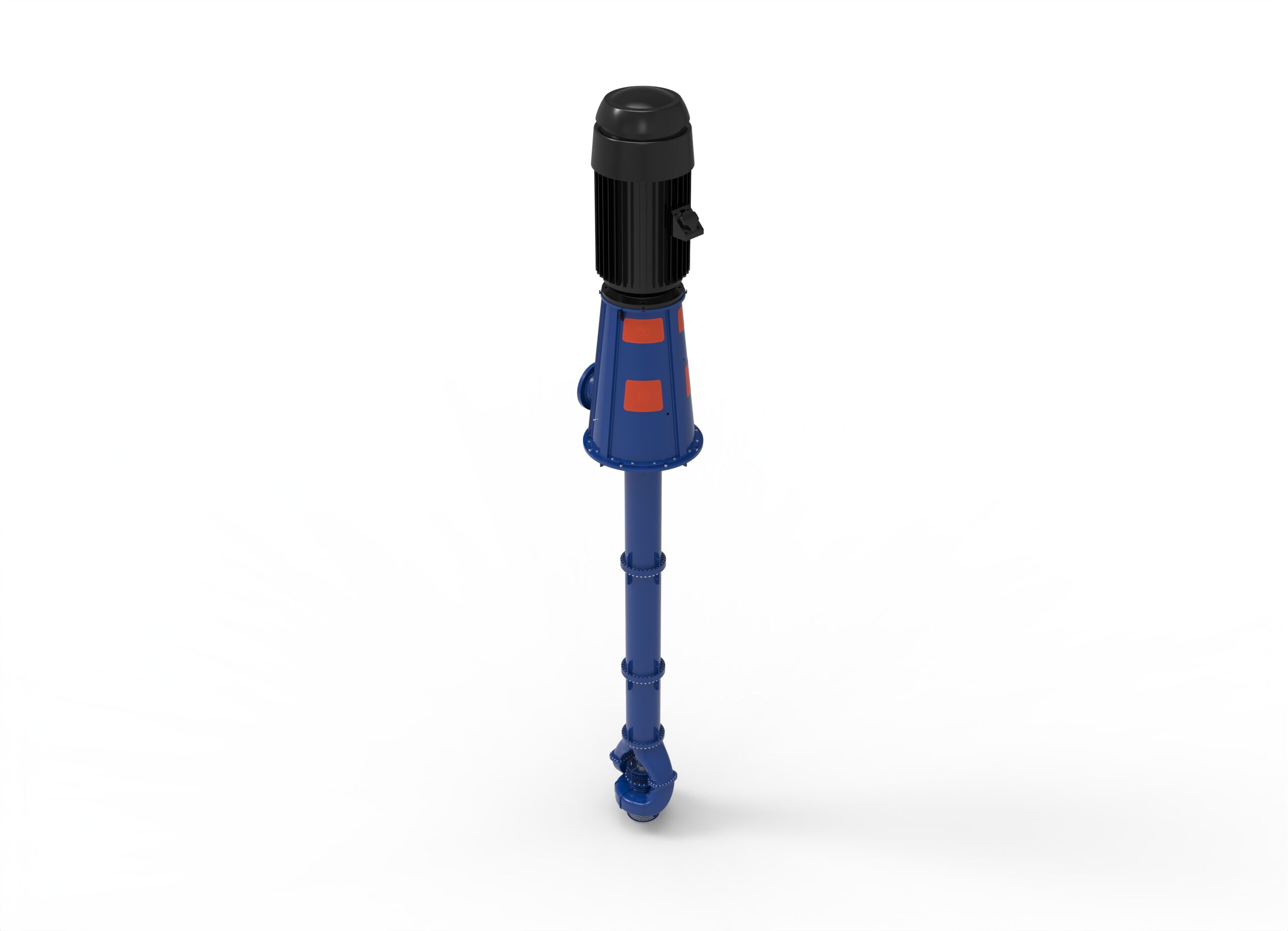

  • Angled front left side view of a Termomeccanica Pompe CPPD VS1 & VS2 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

Termomeccanica Pompe

CPP & CPPD VS1 & VS2 TYPE API 610 CENTRIFUGAL PUMP

Termomeccanica Pompe CPP & CPPD pumps are wet pit, vertically suspended, single casing, with discharge through the column.

The CPP model refers to single or multistage diffuser pumps (VS1), with radial or mixed flow impellers. The CPPD models refer to single stage volute pumps (VS2), with a single or double suction radial impeller.

Designs in full compliance with API 610 are available on small and medium size standardized models. Larger sizes are custom-made, designed in compliance with international standards, including API 610. For large capacities, CPP pumps can also be supplied in dry pit solutions.

OPERATING RANGE

  • Capacity up to 100,000 m³/h (440,000 gpm)
  • Head up to 2,000 m (6,560 ft.)
  • Pressure up to 220 bar (3,190psig)
  • Temperature range from -150°C (-300°F) to 400°C (750°F)
  • Settings up to 50 m (164 ft.)

MAIN APPLICATIONS

  • Condenser & cooling water for power plants
  • Industrial cooling water services
  • Water supply
  • Flood control & irrigation
  • Desalination sea water intake
  • Offshore sea water lift
  • Hydrocarbon pipelines & transfer service
  • Chemical & petrochemical auxiliary services
  • Molten salt services in solar power plants
  • Fire fighting service

DESIGN STANDARD

  • API 610 Latest Edition for O&G applications
