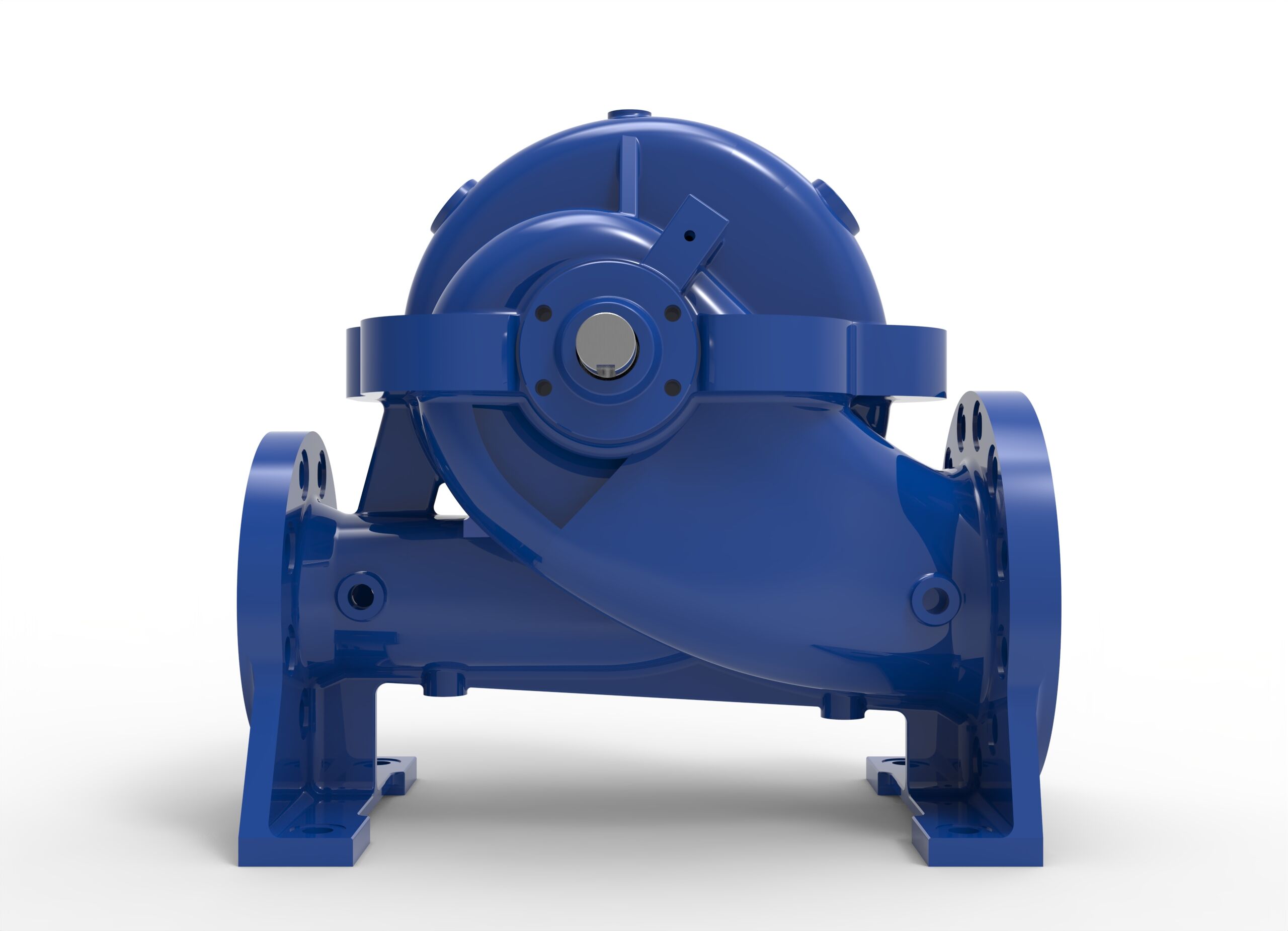

• Front view of a Termomeccanica Pompe HSS Patented Centrifugal Pump manufactured by Trillium Flow Technologies

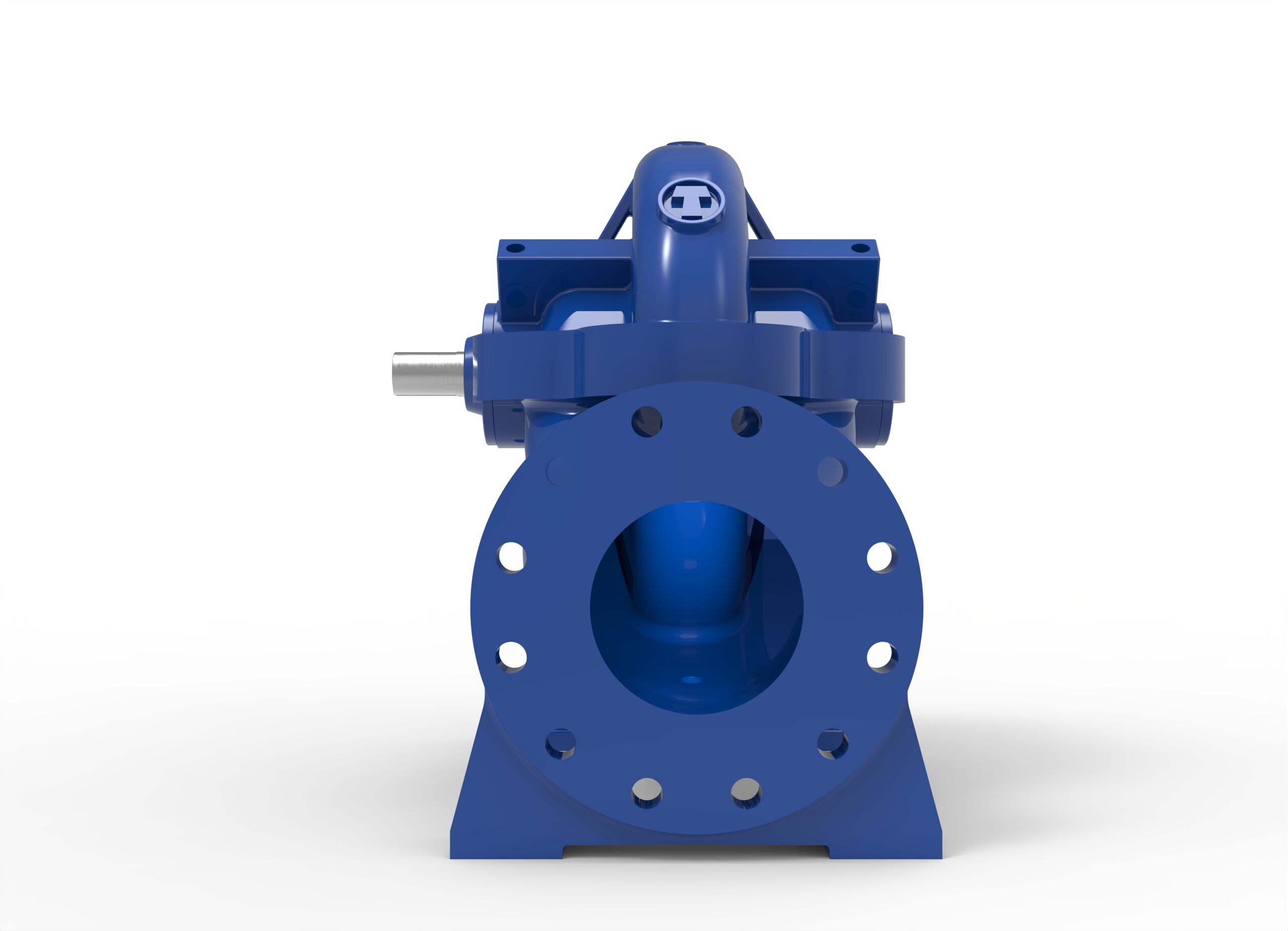

  • Left side view of a Termomeccanica Pompe HSS Patented Centrifugal Pump manufactured by Trillium Flow Technologies
  • Backside view of a Termomeccanica Pompe HSS Patented Centrifugal Pump manufactured by Trillium Flow Technologies

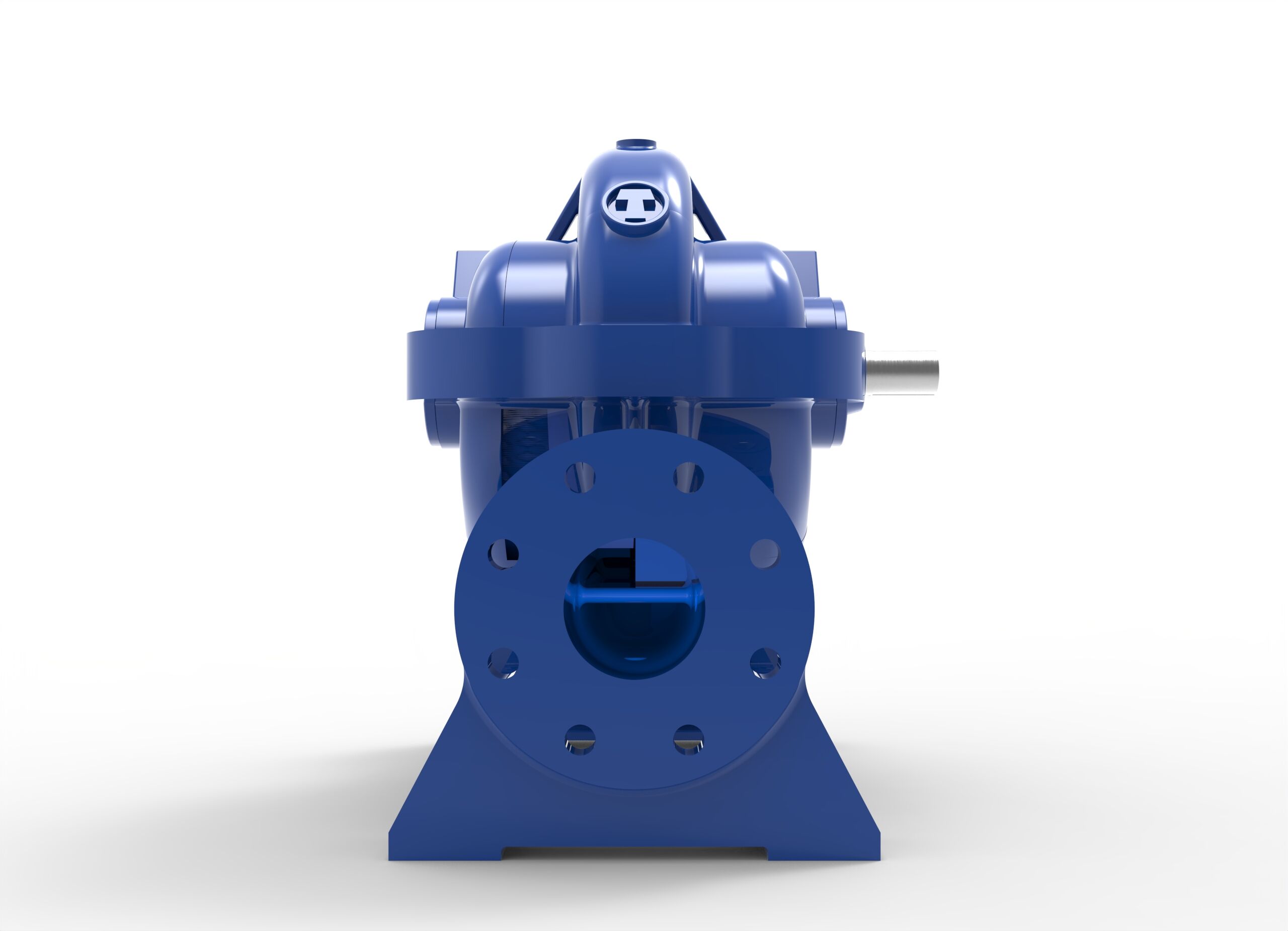

  • Right side view of a Termomeccanica Pompe HSS Patented Centrifugal Pump manufactured by Trillium Flow Technologies

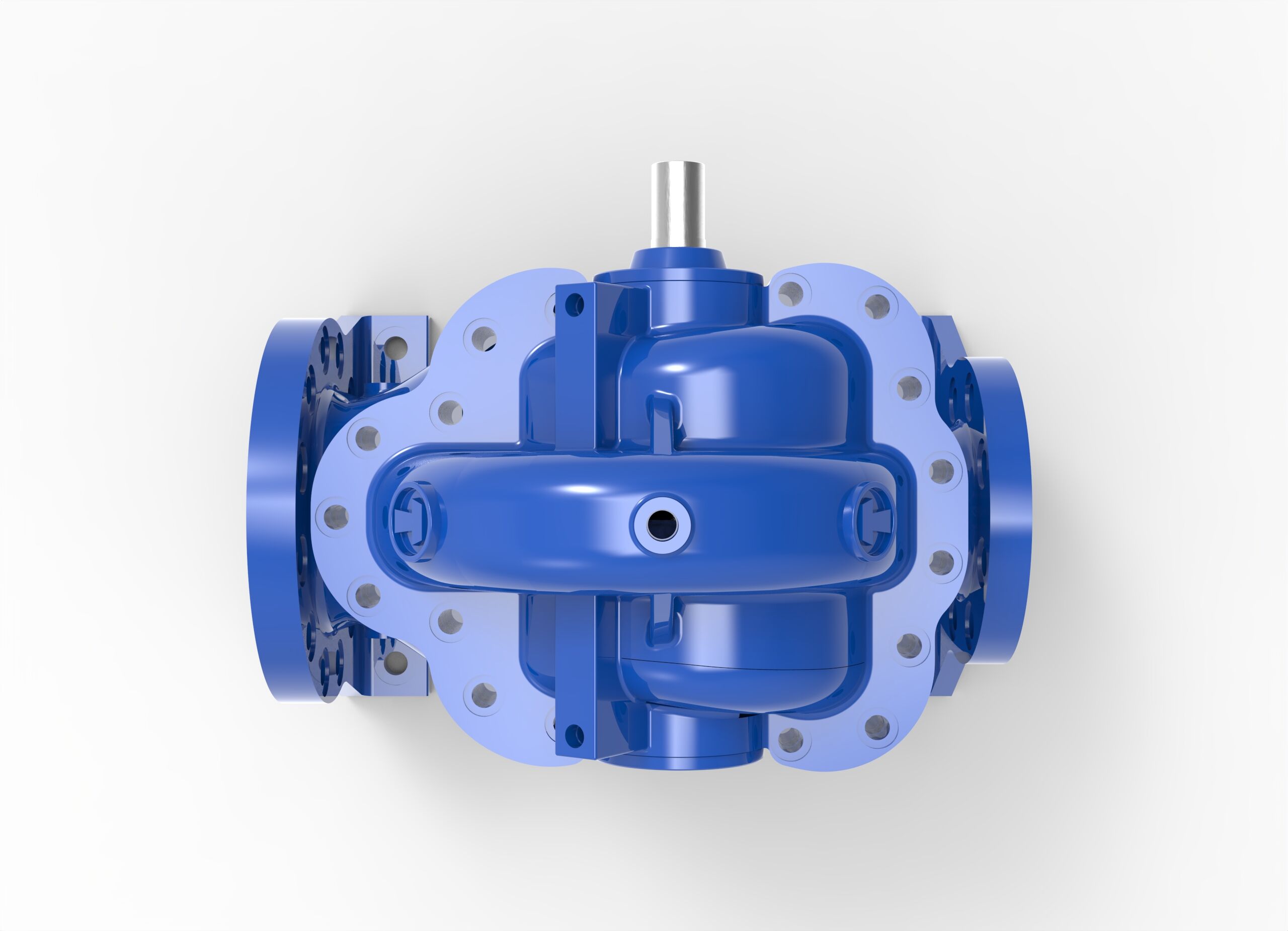

  • Top view of a Termomeccanica Pompe HSS Patented Centrifugal Pump manufactured by Trillium Flow Technologies

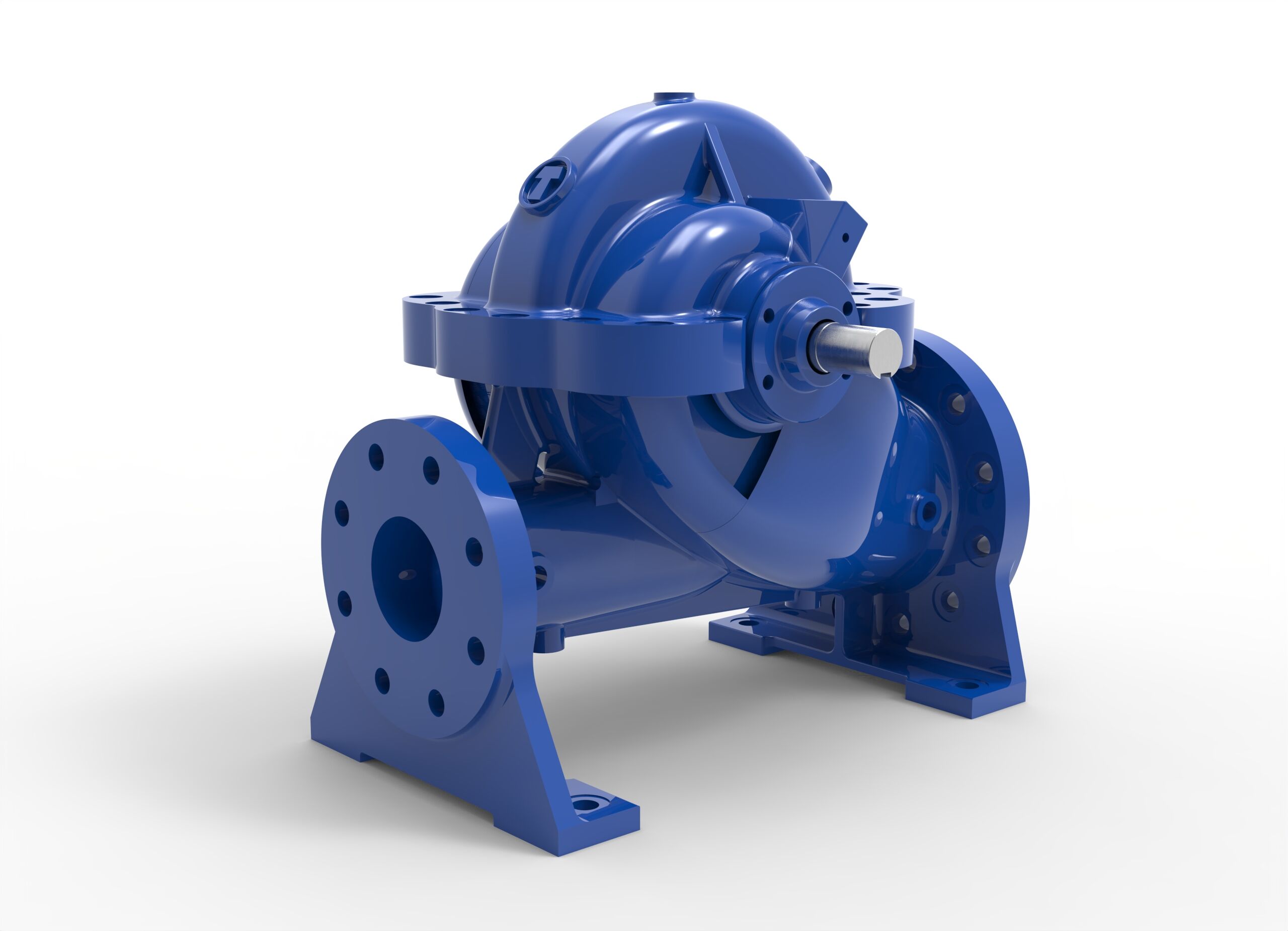

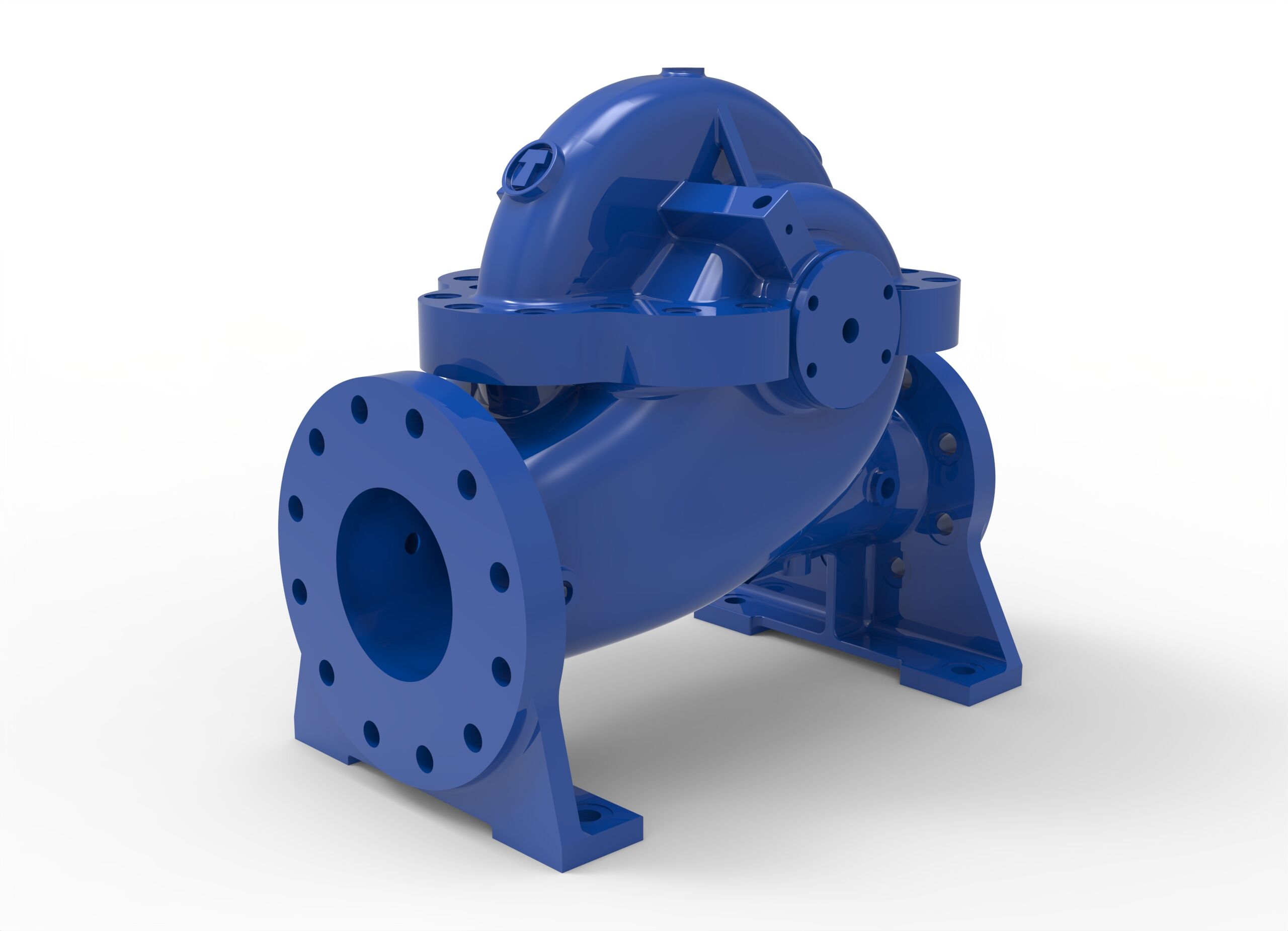

  • Angled front left side view of a Termomeccanica Pompe HSS Patented Centrifugal Pump manufactured by Trillium Flow Technologies
  • Angled back right side view of a Termomeccanica Pompe HSS Patented Centrifugal Pump manufactured by Trillium Flow Technologies

Termomeccanica Pompe

HSS PATENTED CENTRIFUGAL PUMP

Termomeccanica Pompe HSS pumps are horizontal between-bearings, axially split, single stage, and double suction configuration like our DD pumps but with a patented design where standard bearing housings are removed. The radial bearings are product lubricated from the impeller discharge to the suction chamber. Axial hydraulic thrusts are compensated by disc-type wear rings. Only one seal (either mechanical or packing) is provided on the drive end side.
The pump’s reduced number of components and simplicity of assembly/disassembly reduce operating and maintenance costs while maintaining a high level of efficiency, safety, and reliability.

OPERATING RANGE

  • Capacity up to 4,000 m³/h (18,000 gpm)
  • Head up to 200 m (650 ft.)
  • Pressure up to 25 bar (360 psig)
  • Temperature up to 150°C (300°F)

MAIN APPLICATIONS

  • Water transmission, distribution and irrigation
  • Various services in Reverse Osmosis Desalination plants
  • Clean or slightly polluted water & hydrocarbon services in general industry

DESIGN STANDARD

  • Termomeccanica Pompe patented design
