• Termomeccanica Pompe EV VS3 TYPE API 610 Centrifugal Pump diagram manufactured by Trillium Flow Technologies

Termomeccanica Pompe

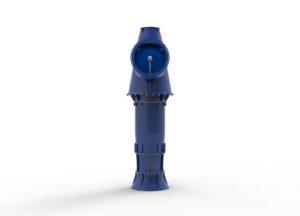

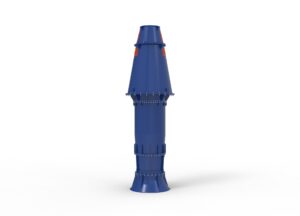

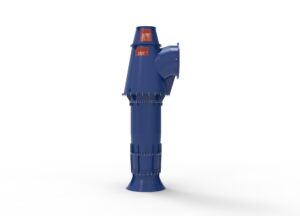

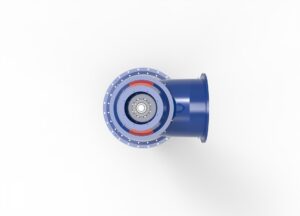

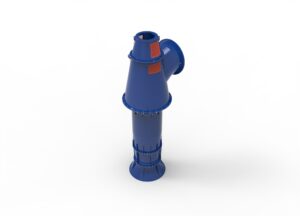

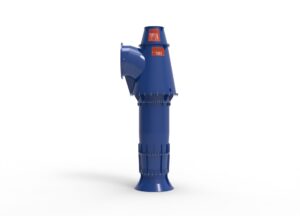

EV VS3 TYPE API 610 CENTRIFUGAL PUMP

Termomeccanica Pompe EV pumps have a vertical or inclined propeller and are suitable for pumping large flow rates at low pressure on wet pit applications. A wide range of hydraulics are available in combination with a variety of materials and construction options to meet any special service requirement. Adjustable impeller vanes or inlet guide vane designs are also available (EVR model). On large size pumps, pull out design is recommended for easy maintenance.

OPERATING RANGE

  • Capacity up to 130,000 m³/h (572,400 gpm)
  • Head up to 15 m (49 ft.)
  • Pressure up to 2 bar (29 psig)
  • Temperature up 50°C (120°F)

MAIN APPLICATIONS

  • River intake
  • Irrigation
  • Land reclamation & flood control
  • Water treatment
  • Cooling water
  • Dry docks
  • Storm & drain water services
