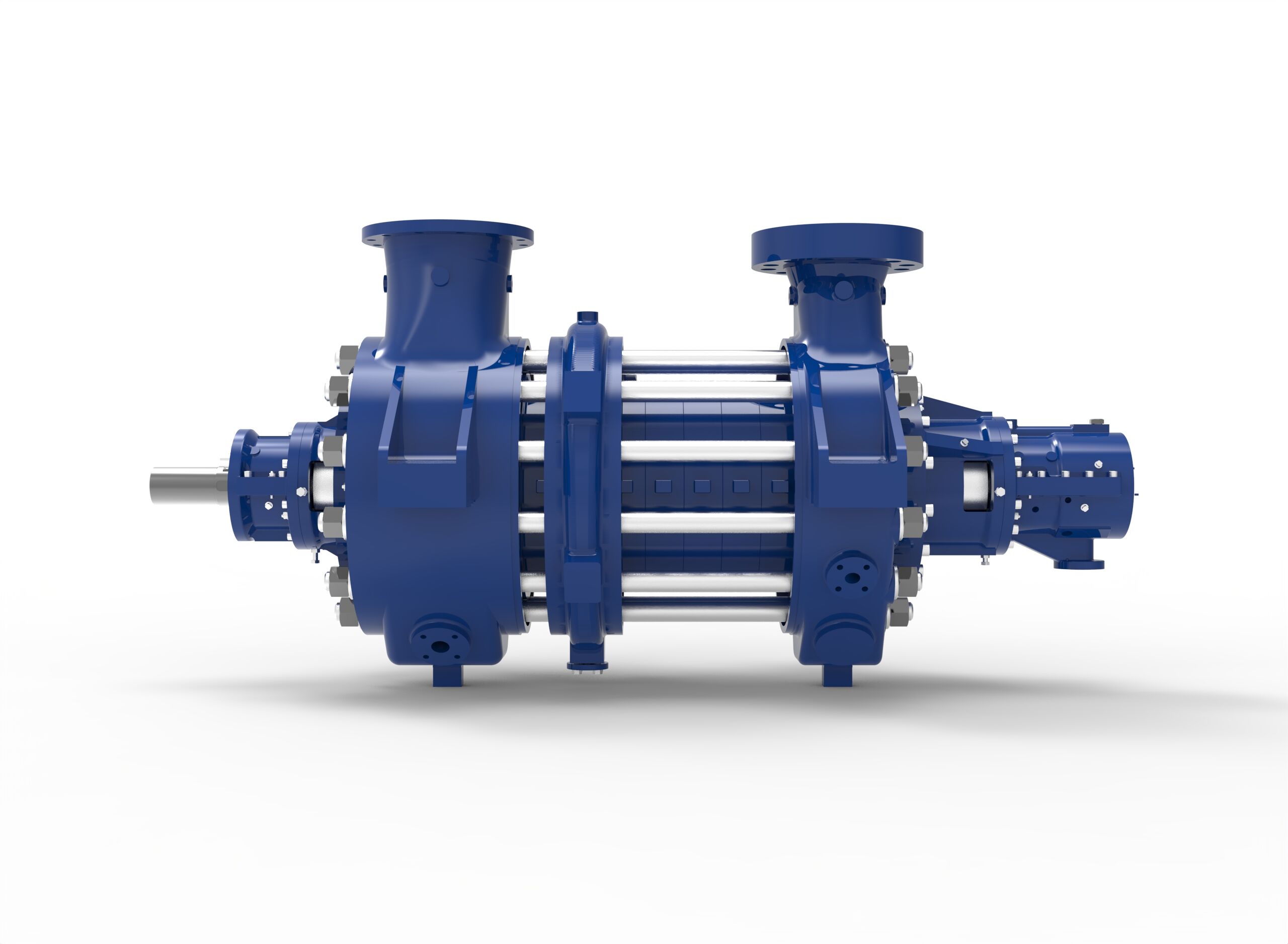

• Front view of a Termomeccanica Pompe MES & MESD BB4 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies
  • Left side view of a Termomeccanica Pompe MES & MESD BB4 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies
  • Backside view of a Termomeccanica Pompe MES & MESD BB4 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies
  • Right side view of a Termomeccanica Pompe MES & MESD BB4 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

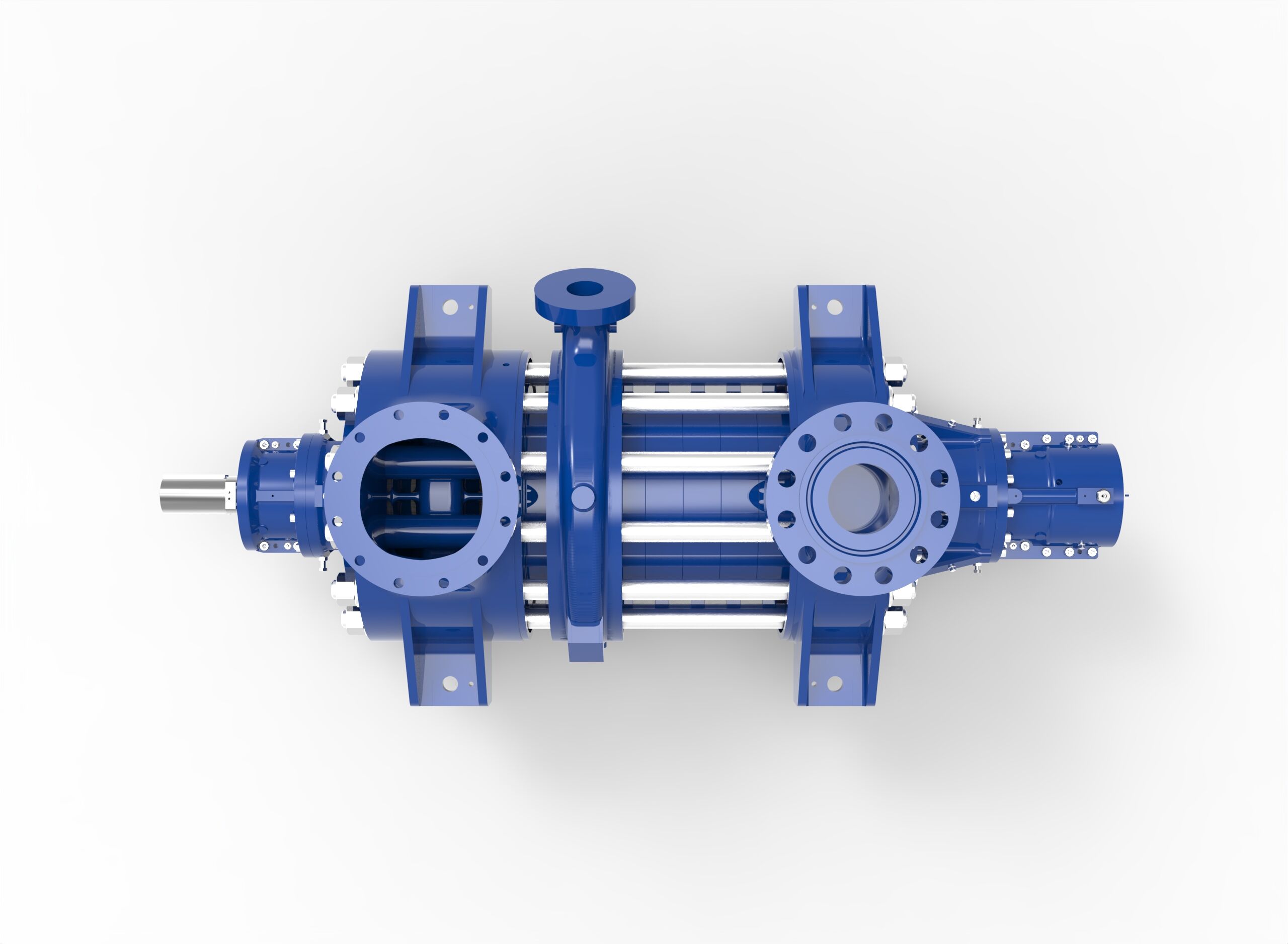

  • Top view of a Termomeccanica Pompe MES & MESD BB4 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

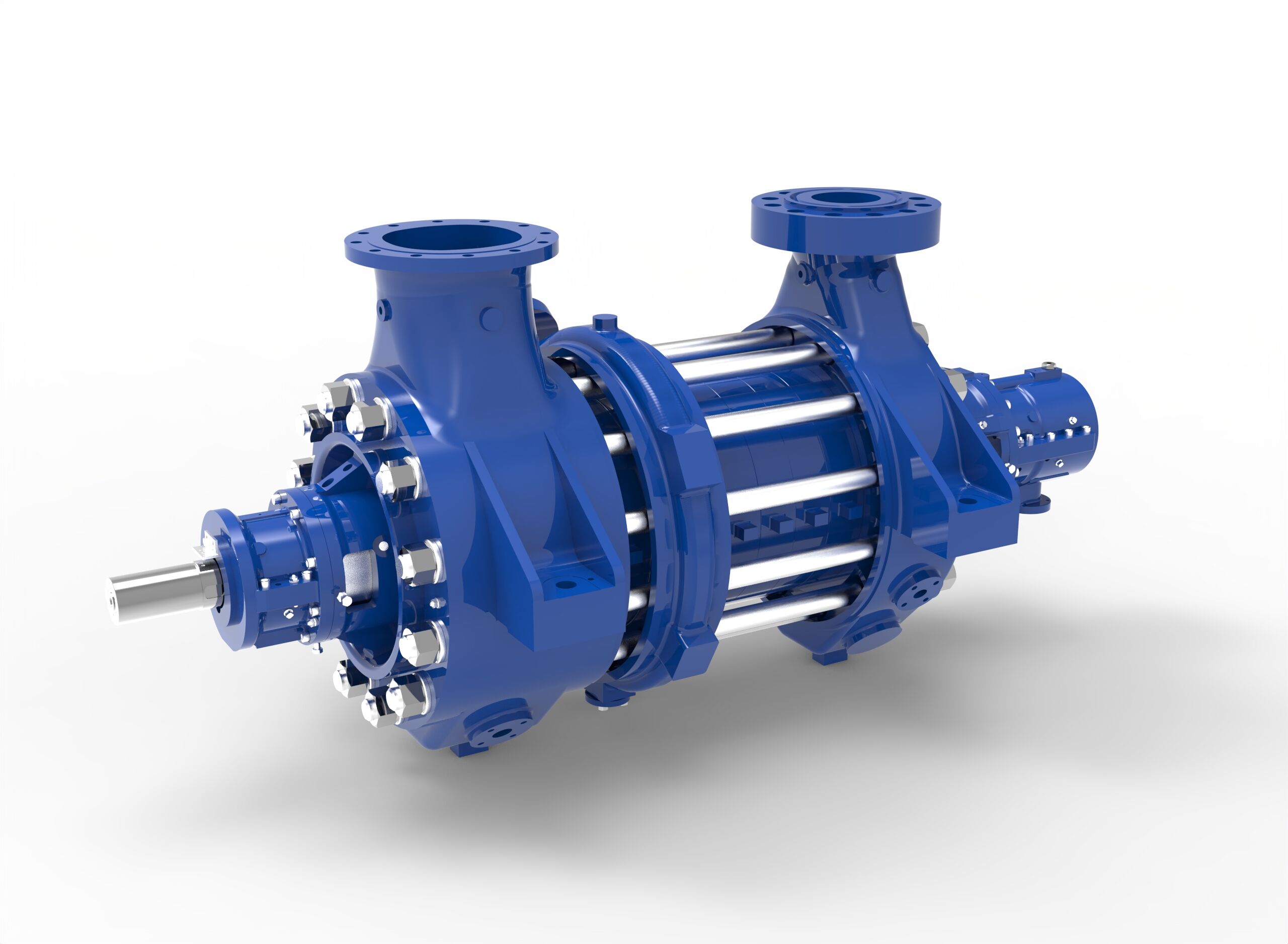

  • Angled front left side view of a Termomeccanica Pompe MES & MESD BB4 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

Termomeccanica Pompe

MES & MESD BB4 TYPE API 610 CENTRIFUGAL PUMP

Termomeccanica Pompe MES & MESD pumps are between bearings, single casing, radially split, and multistage with a diffuser design.
Suction and discharge covers are center-line mounted. Casings are pressed together by external tie bolts and sealed by confined o-rings. The MESD model has a first stage double suction impeller for low NPSH applications. Top-top suction and discharge nozzles are standard. Hydraulic axial thrust is compensated by a balancing disk or balancing drum. A bleed off nozzle can be provided. The bearing design depends on the type of axial thrust balancing system. A special product lubrication bearing design is available for high pressure reverse osmosis service.

OPERATING RANGE

  • Capacity up to 2,000 m³/h (8,800 gpm)
  • Head up to 4,000 m (13,100 ft.)
  • Pressure up to 450 bar (6,530 psig)
  • Temperature up to 220°C (428°F)
  • Speed of rotation up 7,000 RPM

MAIN APPLICATIONS

  • Main & start-up boiler feed water for traditional power plants
  • Sea water transfer in nuclear power plants
  • Water transmission pipelines & water distribution
  • Condensate extraction
  • High pressure auxiliary services in general industry, petrochemical & RO desalination plants
  • Fire fighting systems

DESIGN STANDARD

  • API 610 Latest Edition for O&G applications
