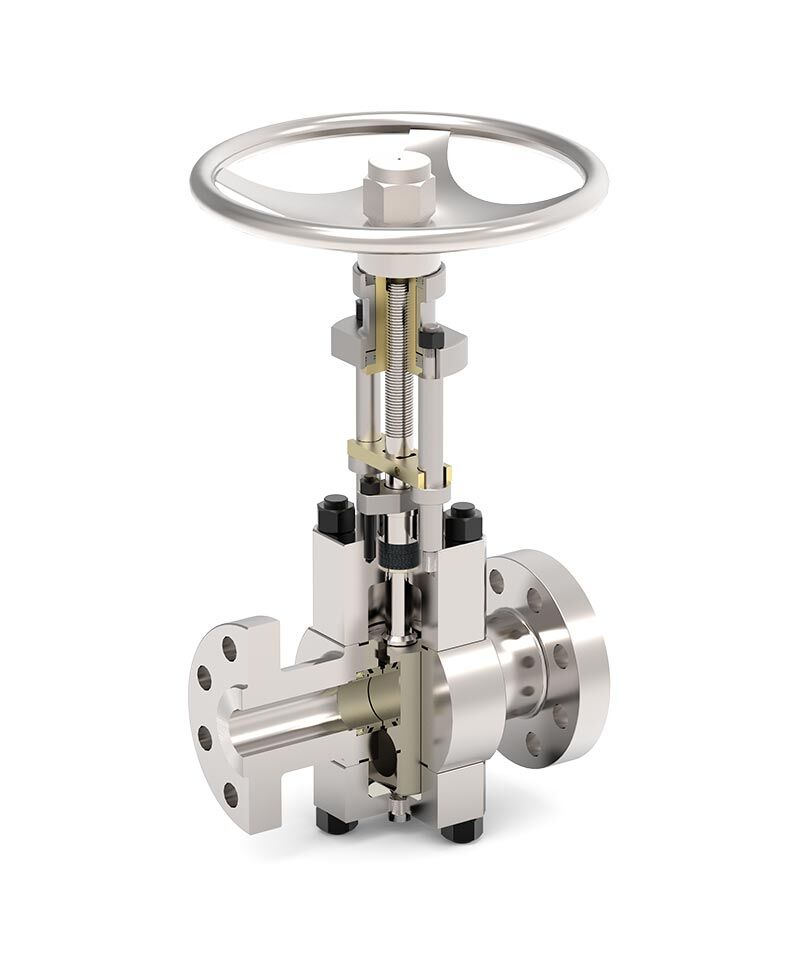

• Red Point Through Conduit Gate Valve Dn50 1500lbs

Red Point®

Through Conduit Gate Valves

Through conduit gate valves are used in applications like: offshore platforms, onshore terminals, transmission lines.

Commonly used types of medium in these applications are: non-corrosive liquids, gas, water, sour service, hydrocarbon liquids or gas.

Our through conduit gate valves are available as forged or cast valves featuring exotic material options with short delivery times.

Type of wedge

  • Solid Slab
  • Expanding Wedge

End connections

  • Flanged
  • BW
  • SW
  • THR
  • HUB
  • PE

Options

  • Extended Bonnet
  • Bellow Sealed
  • Heating Jacket
  • DBB Configuration

Bellow seal materials

  • 304
  • 321
  • 316Ti
  • Alloy 625
  • C276

Size & bore

Forged Valves:

  • ANSI 1” – 6”
  • DN 25 to DN 100



Cast Valves:

  • ANSI 6” to 16”
  • DN 10 to DN 400

Construction

  • Pressure Seal Bonnet

Operated

  • Handwheel
  • Gear
  • Bare Stem
  • Actuator

Through Conduit

  • Expanding wedge or slab gate construction

Design & testing

  • All available international standards according to API, EN, ISO

Pressure range

Forged Valves:

  • ANSI 125 to 4,500 lbs
  • ISO PN 10 to PN 640



Cast Valves:

  • ANSI 125 to 2,500 lbs
  • ISO PN 10 to PN 400

Types of Through Conduit Valves

The through conduit gate valve is a typical parallel gate valve. Red Point® manufactures through conduit gate valves in two series: slab gate with self relieving seats, and expanding wedge construction. To reduce the operating force during opening and closing, a pressure balanced stem is part of our capabilities.

Hard Facing Disc

  • Wedge and seats are ground and lapped to a mirror finish and tightly guided to prevent dragging and seat damage
  • Body and bonnet joint accurately machined with high surface finish stem and packing chamber
  • Low emission valve technology optimized for extended service life
  • Low compression packing reduces friction and allows more room to re-torque in the field
  • Packing ring construction for excellent sealing and is also a corrosion inhibitor
  • Due to the full bore configuration the valve is piggable
  • Option: live loaded gland bolting
  • Lantern ring with double packing (upper & lower) for critical services

Red Point’s through conduit gate valves can be deployed for a wide variety of applications in the oil & gas and petrochemical industries when high quality, reliable valves are required. A few example applications include:

  • High-temperature services
  • High-cycle and switching services
  • Emergency shutdown valves
  • High-integrity pressure protection system
  • High-pressure oxygen, nitrogen, or hydrogen
  • Solids handling (powders, fines, dust, and catalysts)
  • Polyethylene or polypropylene
  • Coal conversion & gasification
  • Thermal fluids
  • Separator, filter, and drying systems
  • Compressor stations
  • On/off isolation service
  • Oil & gas manifolds

Nickel Alloys (Monel®, Inconel®, Hastelloy®, Incoloy®), Duplex and Super Duplex, Carbon Steel and Low Temp Carbon Steel, Low Alloy Steel, Stainless steel, Titanium, Zirconium
