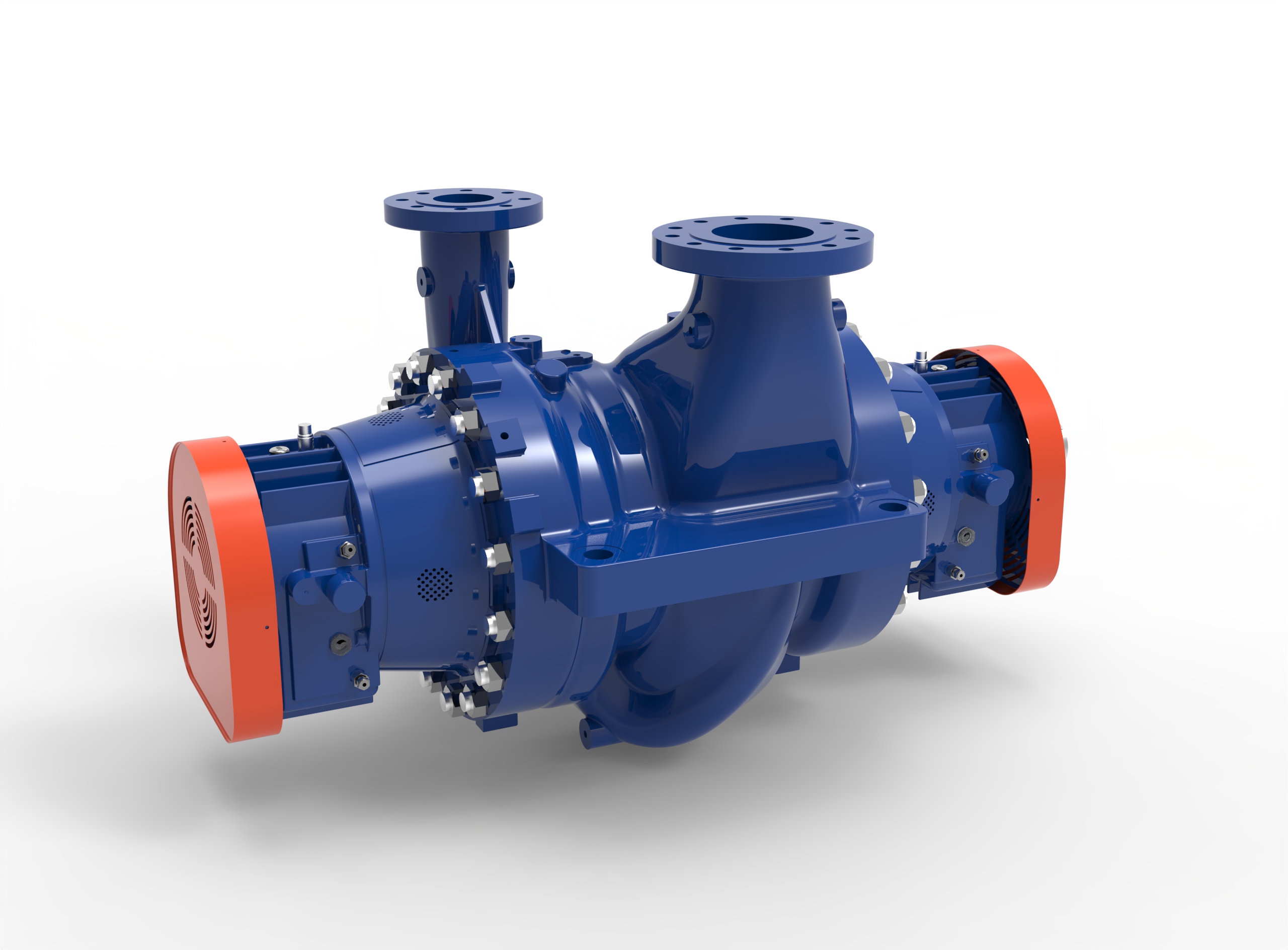

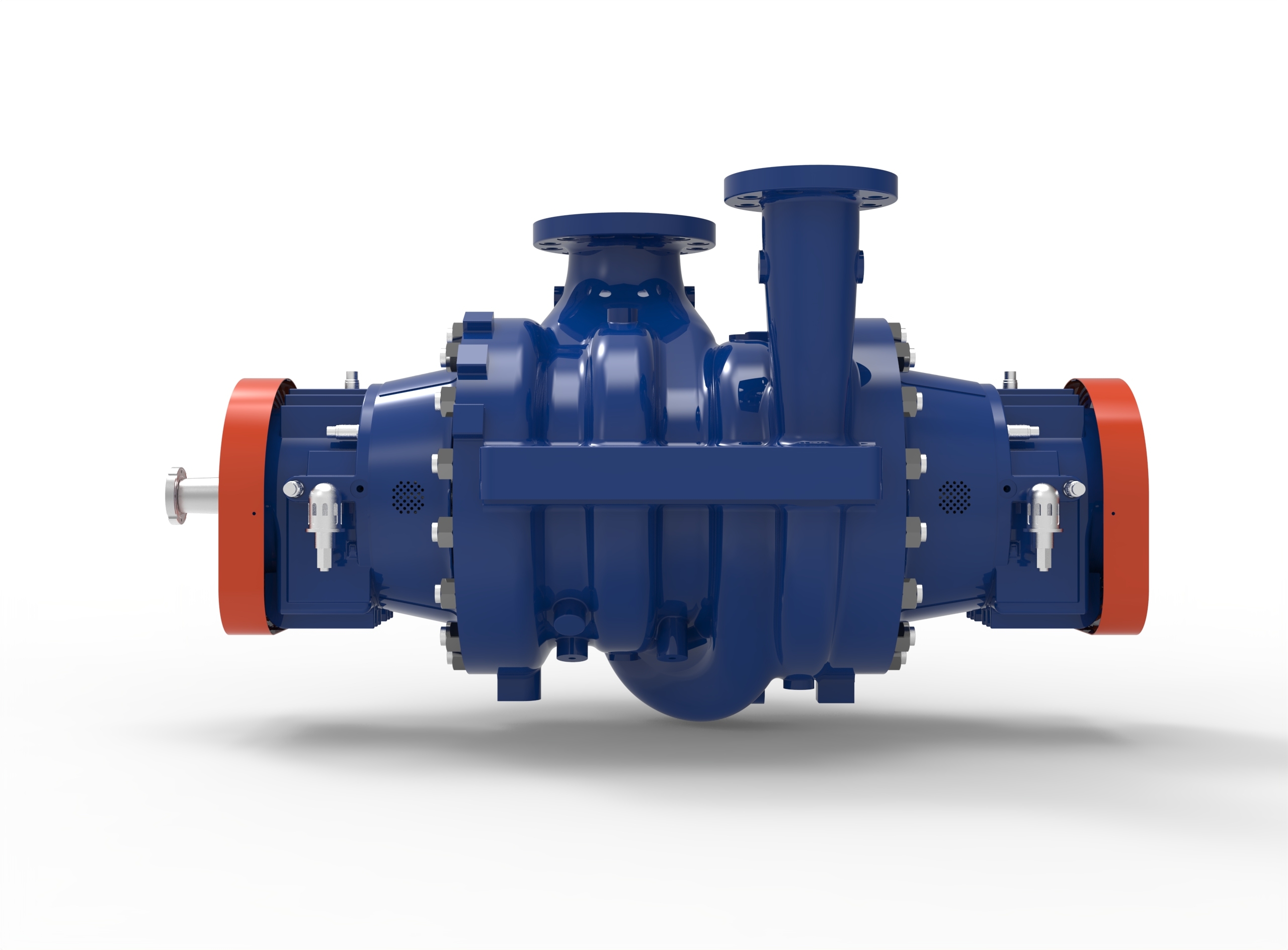

• Left side view of a Termomeccanica Pompe A2P 610 Centrifugal Pump manufactured by Trillium Flow Technologies

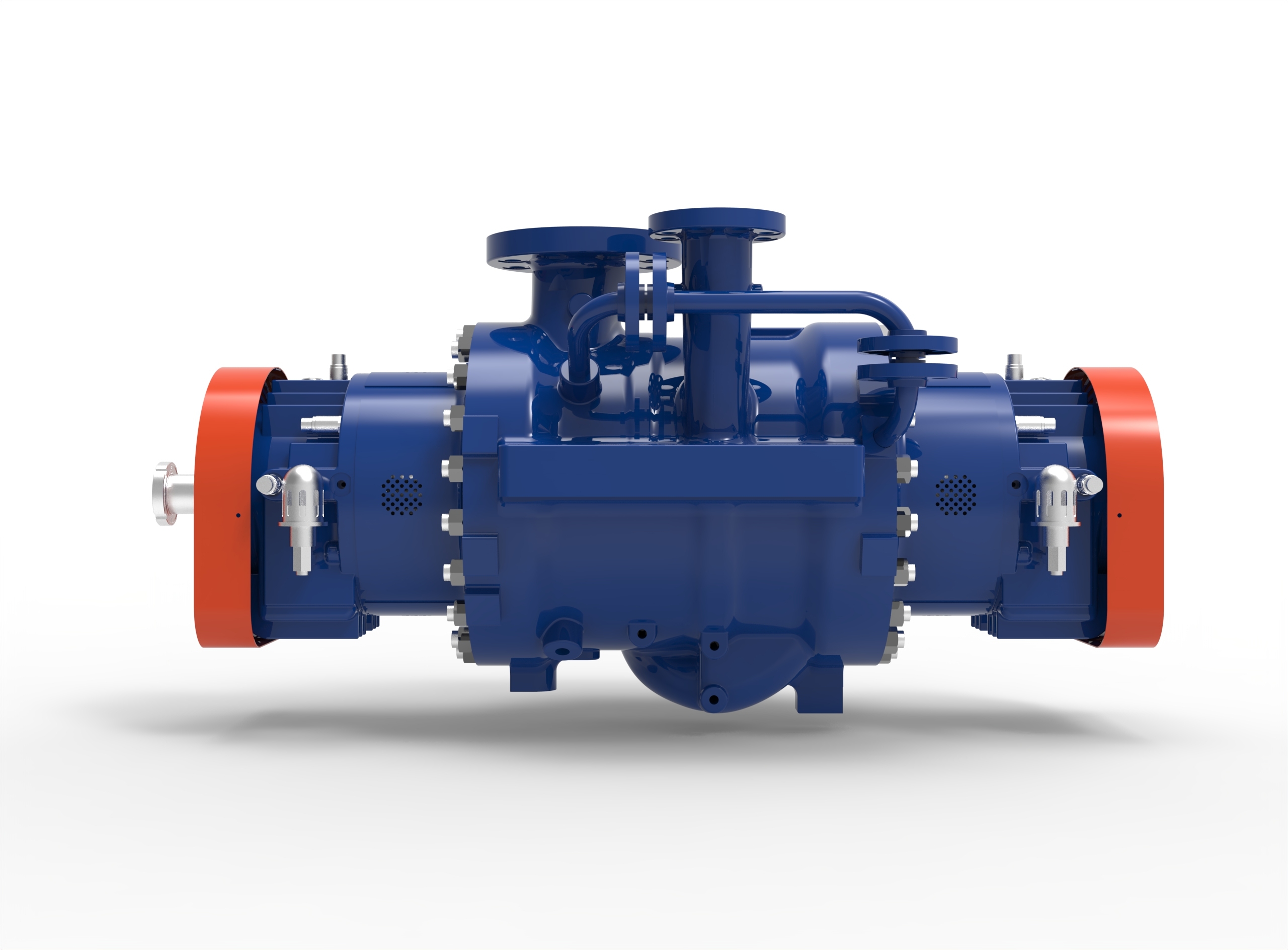

  • Backside view of a Termomeccanica Pompe A2P 610 Centrifugal Pump manufactured by Trillium Flow Technologies

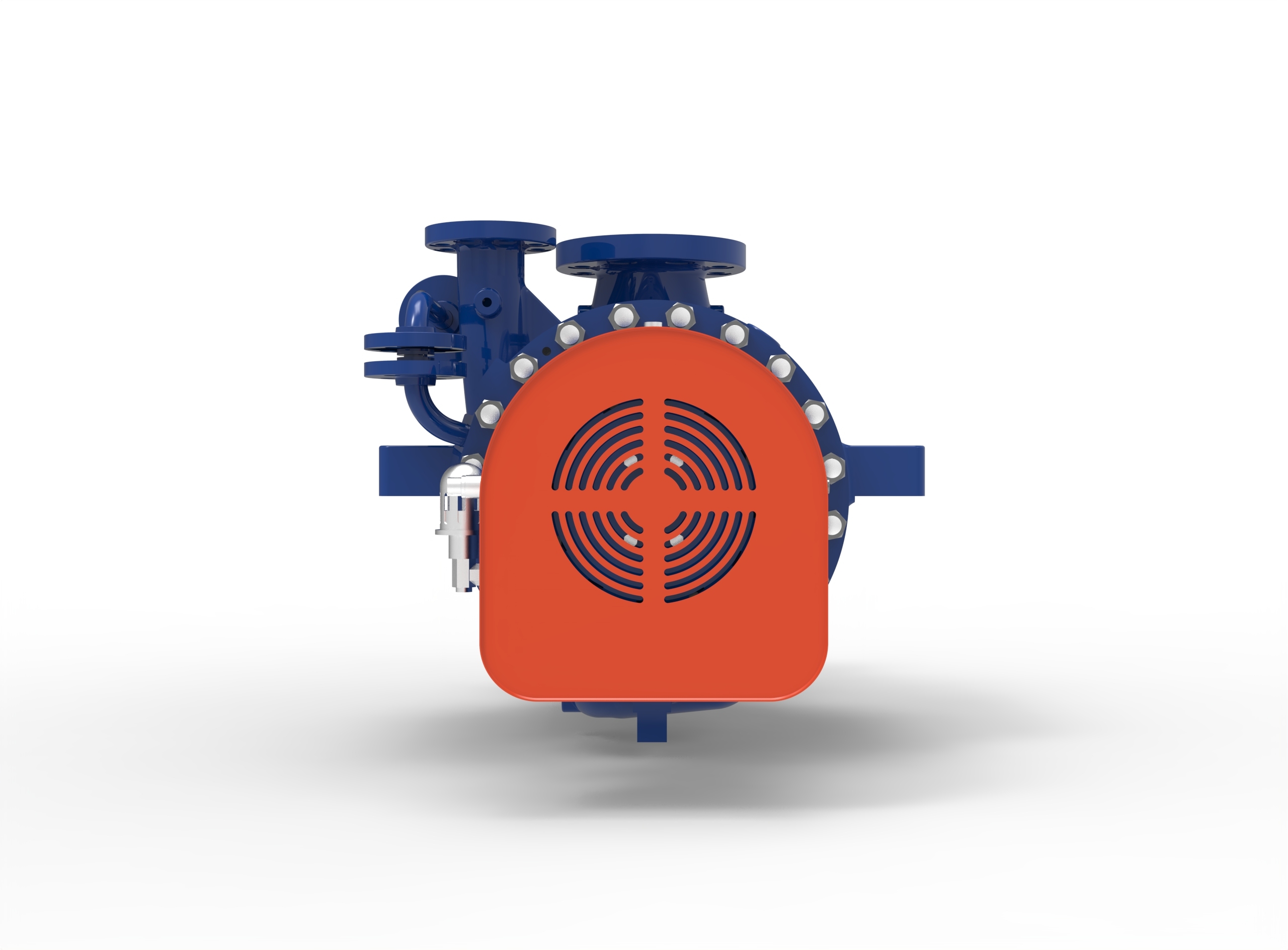

  • Right side view of a Termomeccanica Pompe A2P 610 Centrifugal Pump manufactured by Trillium Flow Technologies

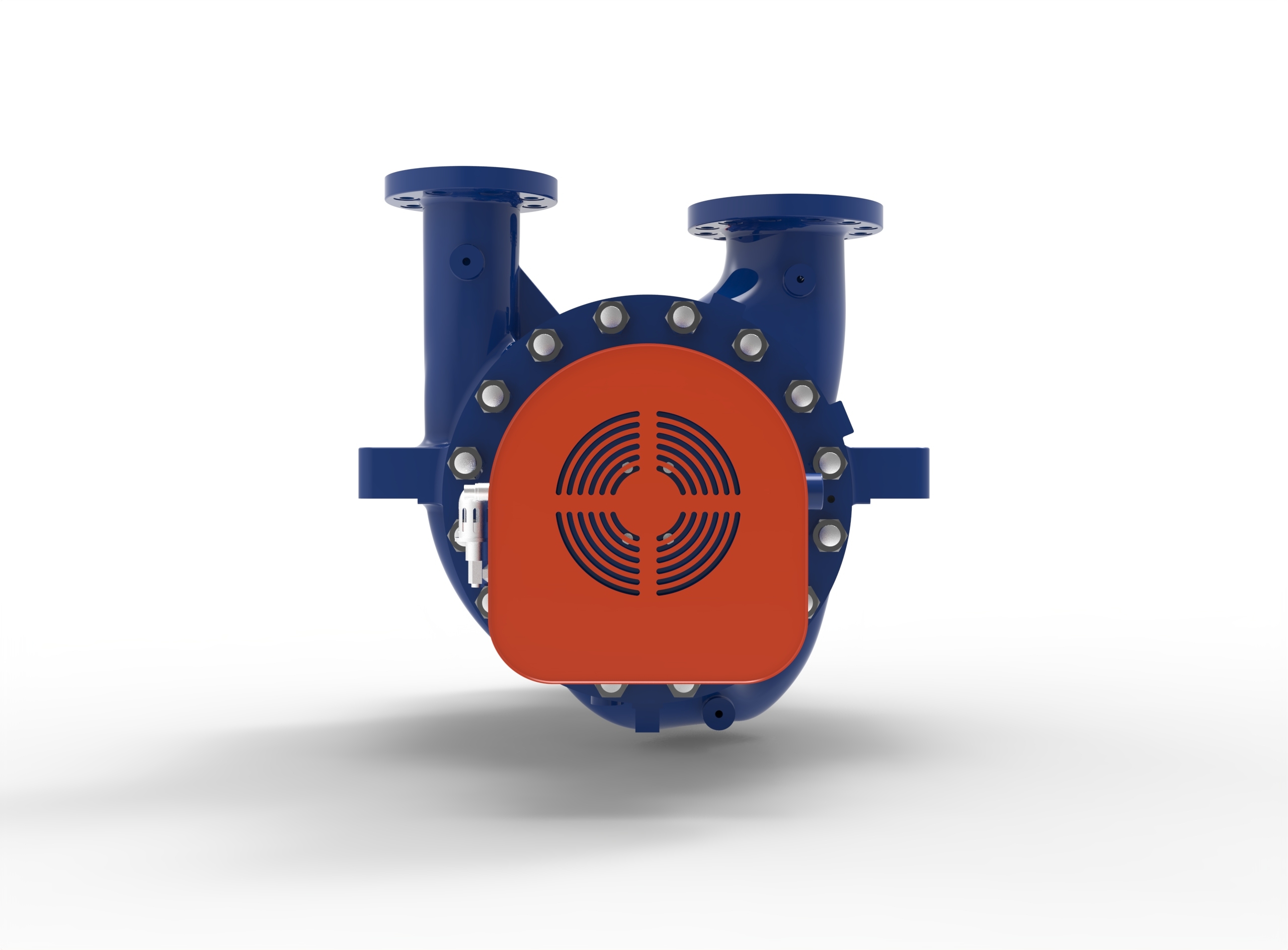

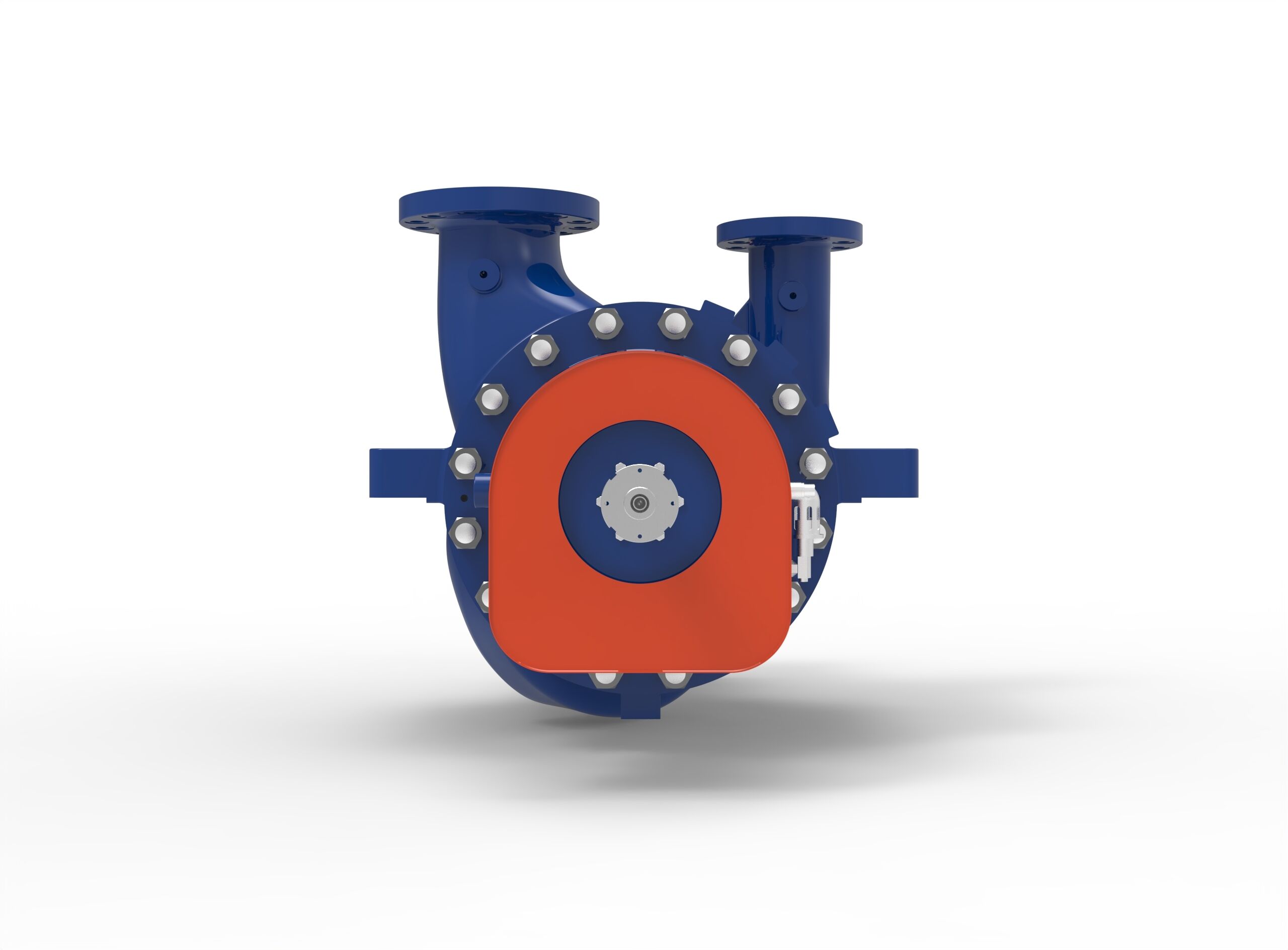

  • Front view of a Termomeccanica Pompe A2P 610 Centrifugal Pump manufactured by Trillium Flow Technologies

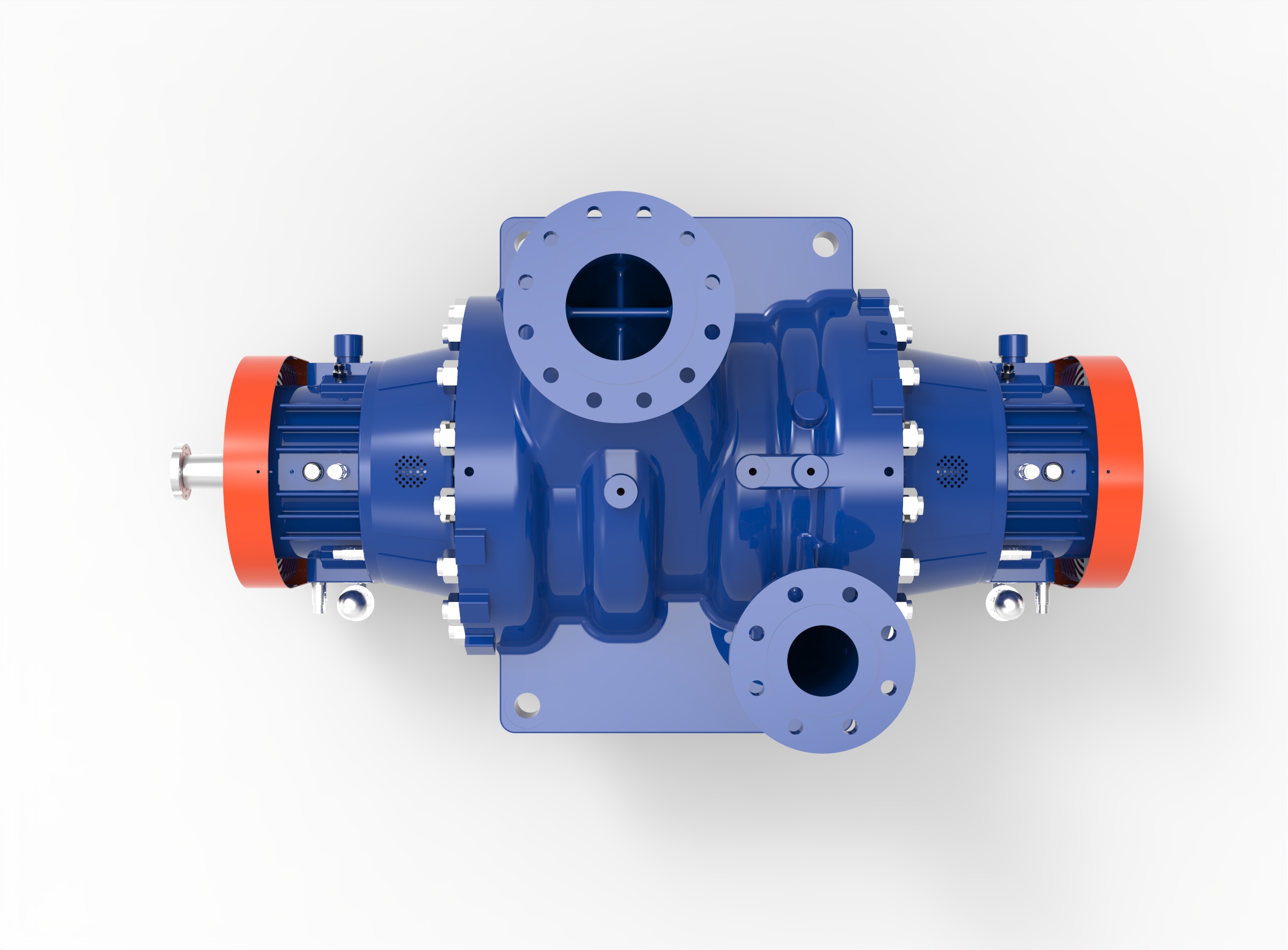

  • Top view of a Termomeccanica Pompe A2P 610 Centrifugal Pump manufactured by Trillium Flow Technologies

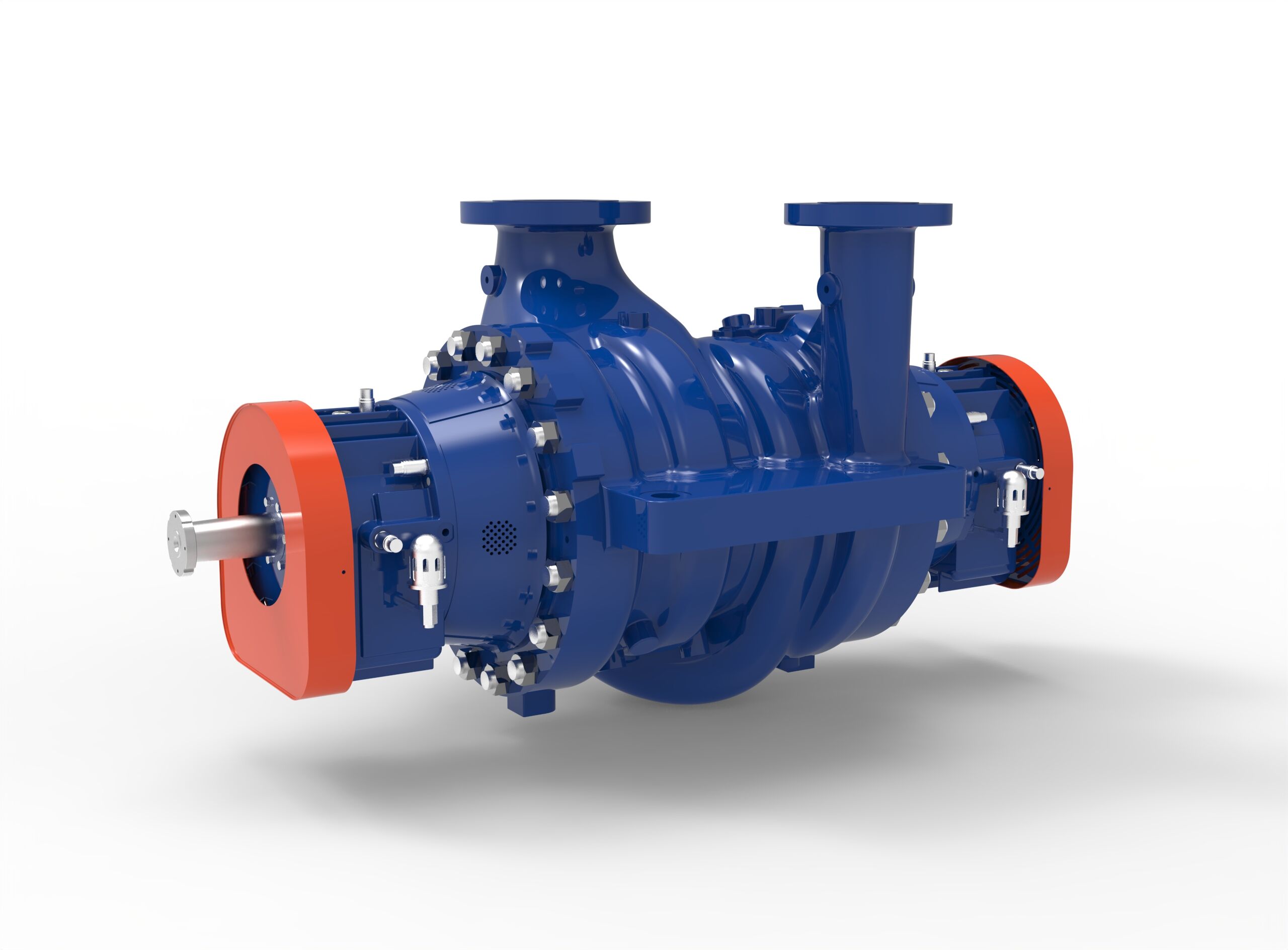

  • Angled back left side view of a Termomeccanica Pompe A2P 610 Centrifugal Pump manufactured by Trillium Flow Technologies

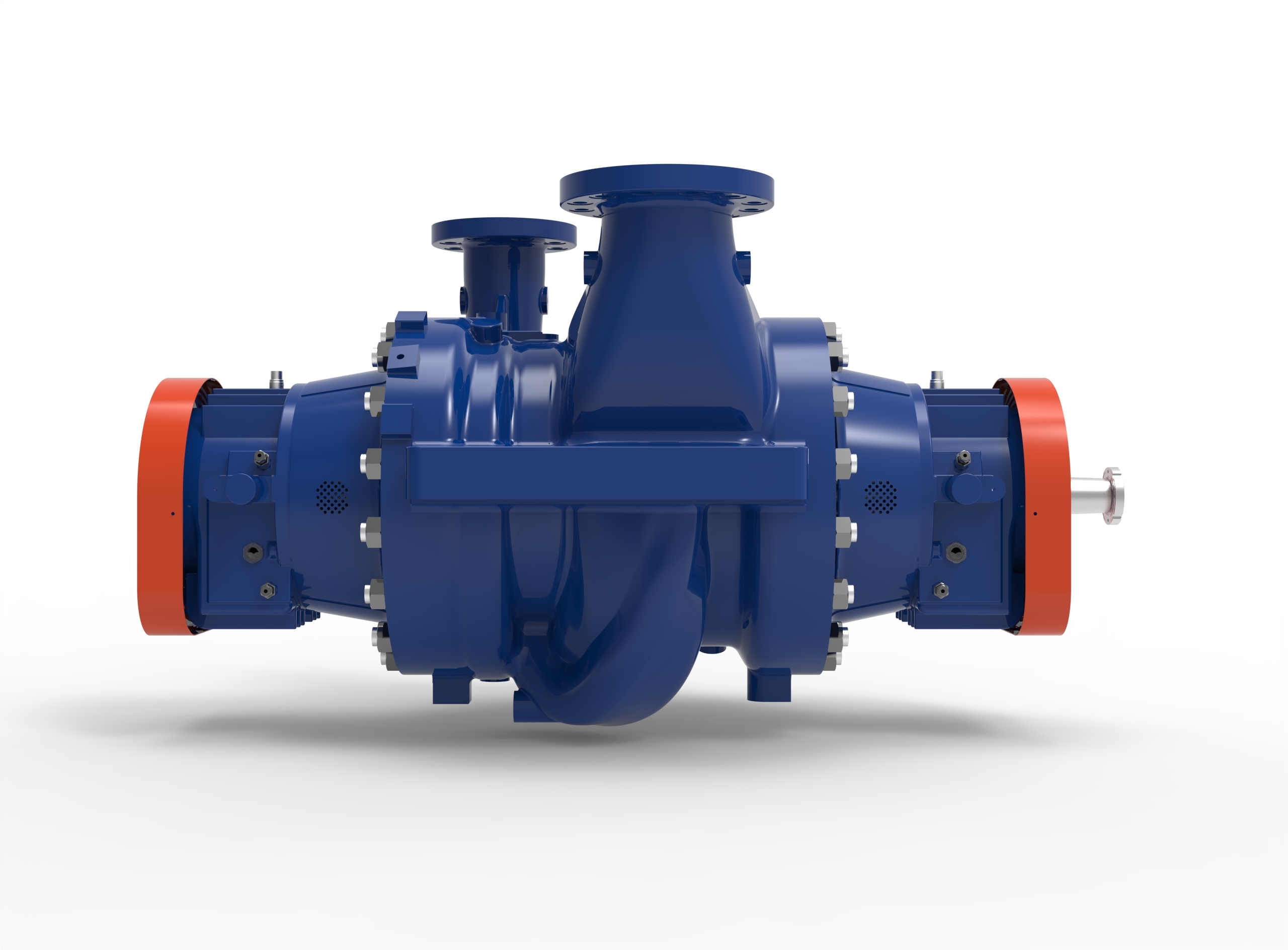

  • Left side view of a Termomeccanica Pompe A2PD 610 Centrifugal Pump manufactured by Trillium Flow Technologies

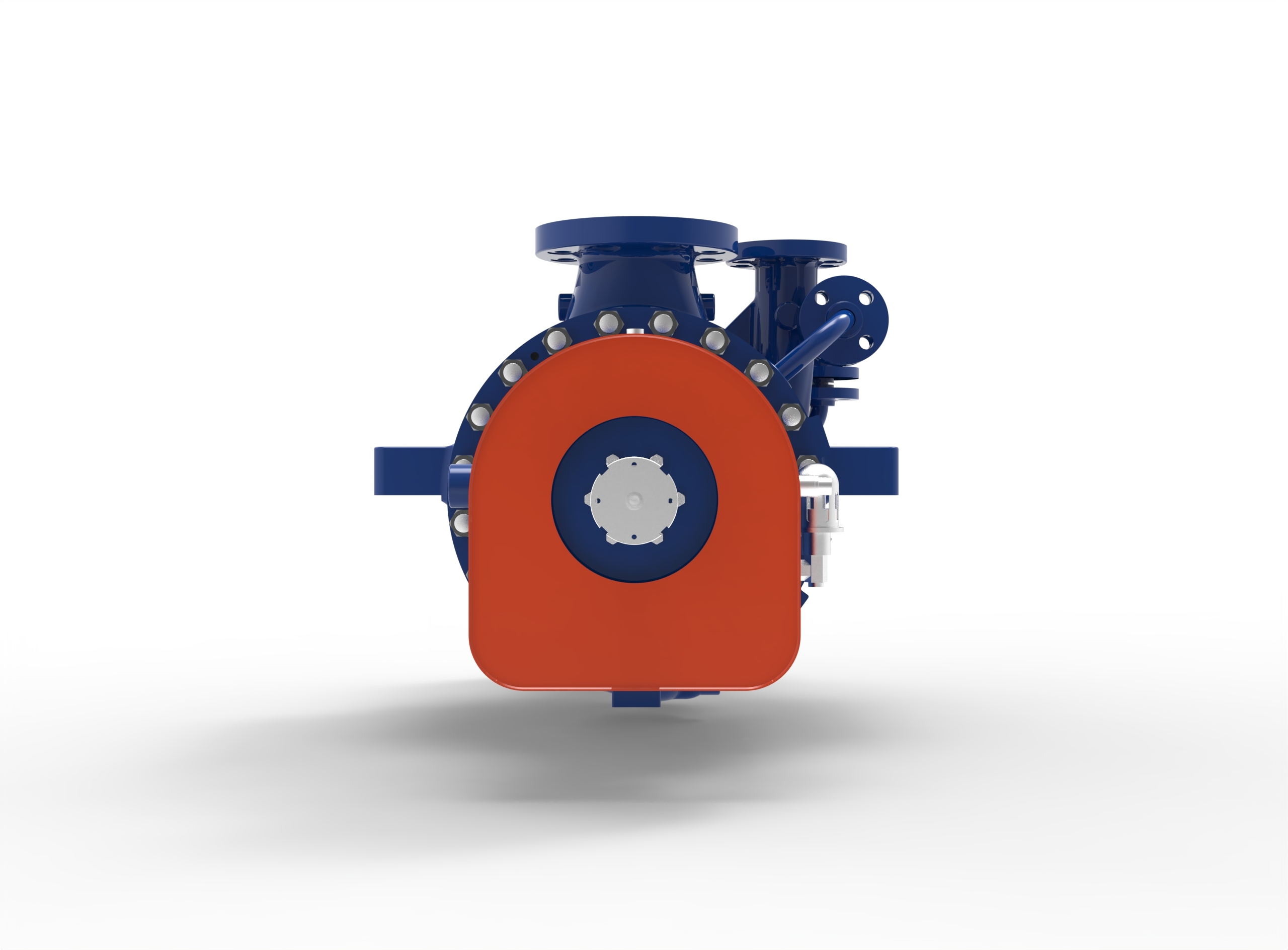

  • Front view of a Termomeccanica Pompe A2PD 610 Centrifugal Pump manufactured by Trillium Flow Technologies
  • Right side view of a Termomeccanica Pompe A2PD 610 Centrifugal Pump manufactured by Trillium Flow Technologies
  • Backside view of a Termomeccanica Pompe A2PD 610 Centrifugal Pump manufactured by Trillium Flow Technologies

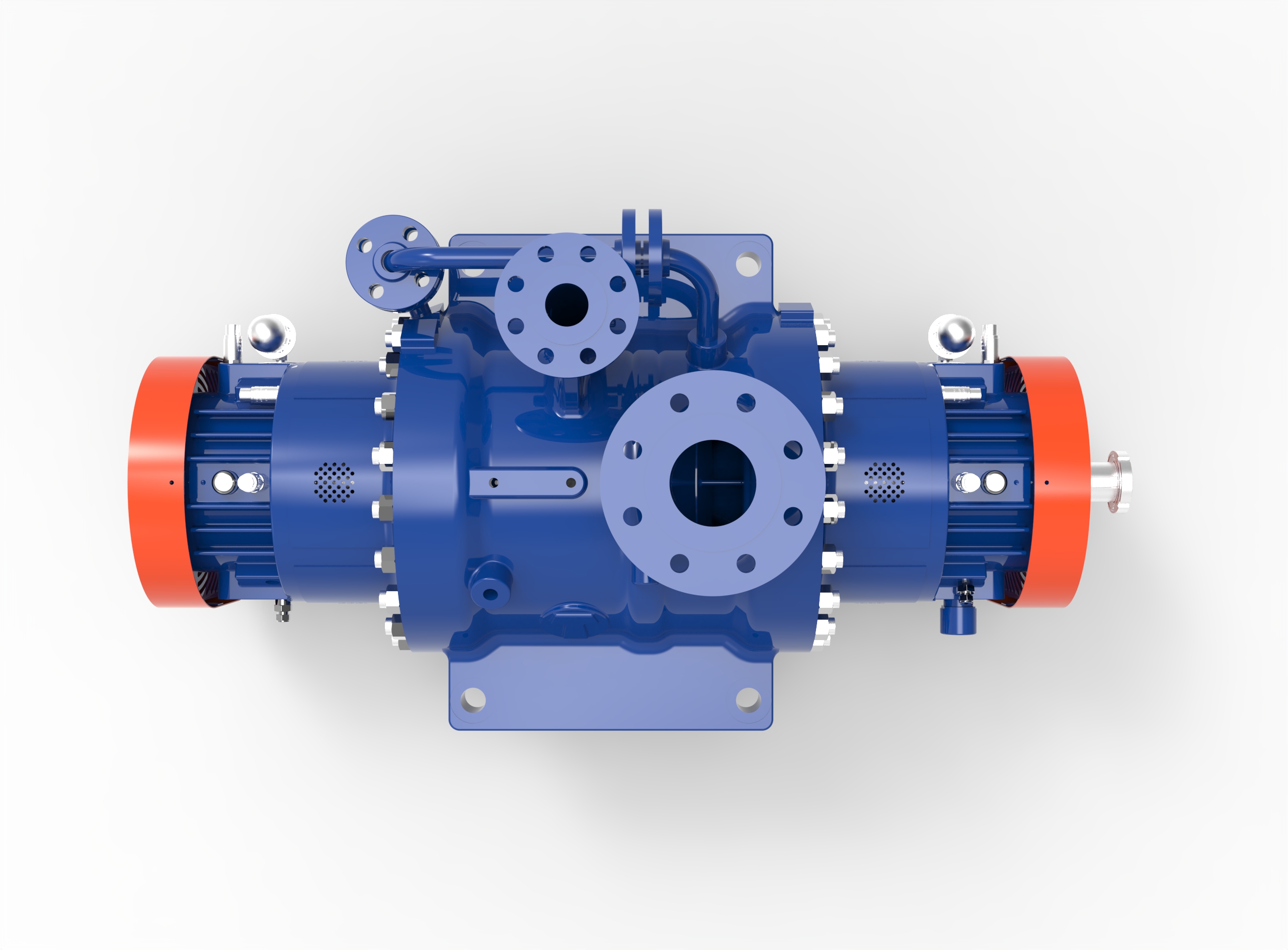

  • Top view of a Termomeccanica Pompe A2PD 610 Centrifugal Pump manufactured by Trillium Flow Technologies
  • Angled front right side view of a Termomeccanica Pompe A2PD 610 Centrifugal Pump manufactured by Trillium Flow Technologies

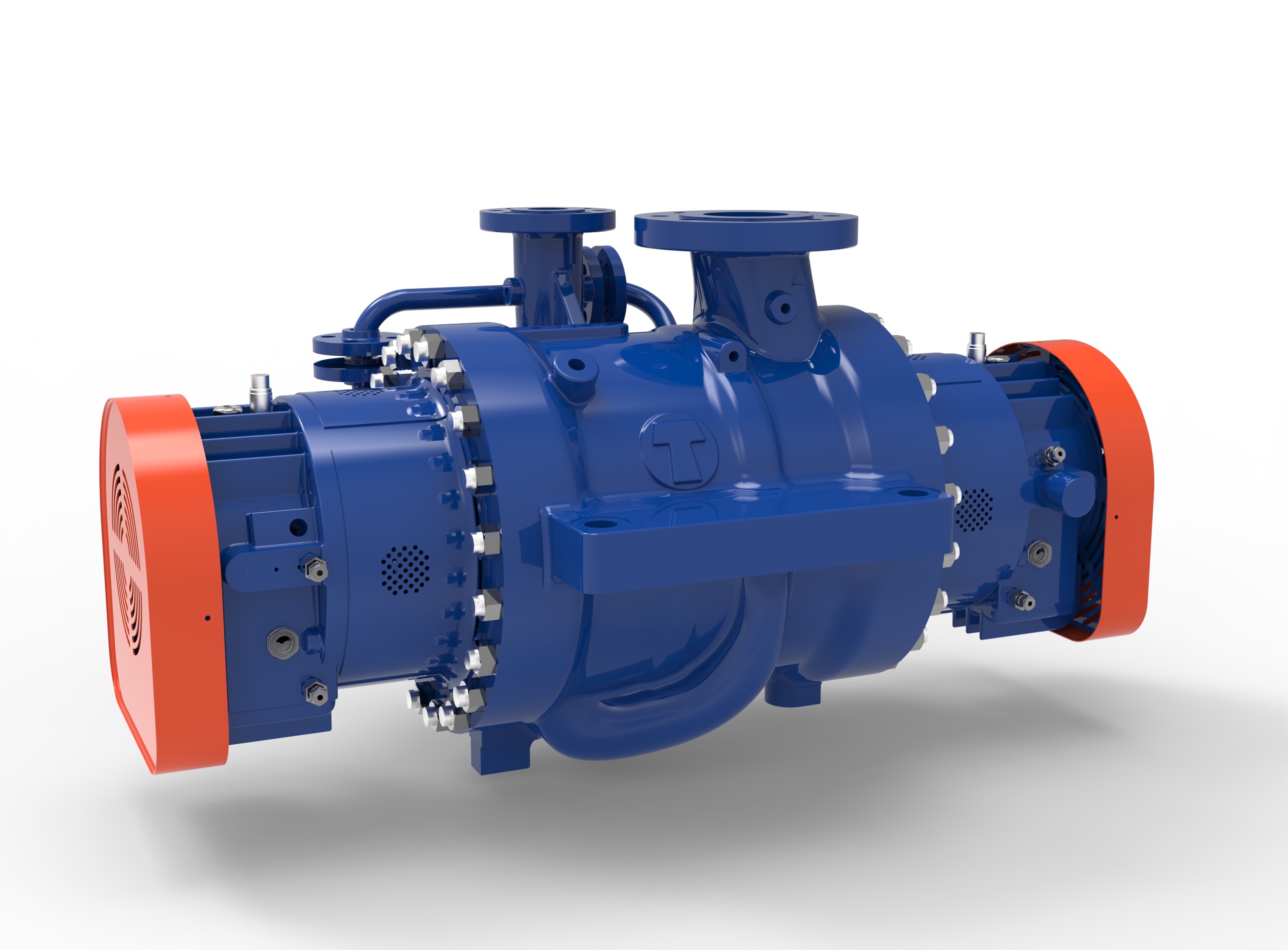

  • Angled back left side view of a Termomeccanica Pompe A2PD 610 Centrifugal Pump manufactured by Trillium Flow Technologies

Termomeccanica Pompe

A2P & A2PD BB2 TYPE API 610 CENTRIFUGAL PUMP

Termomeccanica Pompe A2P & A2PD pumps are between bearings, radially split, two stage, and double volute heavy duty process pumps, centerline mounted for high temperature, high pressure services. Top-top nozzles are standard, but side-top or side-side nozzles are available upon request. On A2P models, the two single suction impellers with back-to-back arrangement compensate for axial hydraulic loads. A2PD models have a first stage double suction impeller for low NPSH applications.

OPERATING RANGE

  • Capacity up to 2,000 m³/h (8,800 gpm)
  • Head up to 750 m (2,460 ft.)
  • Pressure up to 150 bar (2,180 psig)
  • Temperature up to 450°C (840°F)

MAIN APPLICATIONS

  • Oil well water injection
  • Offshore installation
  • Hydrocarbon pipelines
  • Liquefied gas industry
  • Refinery & petrochemical services

DESIGN STANDARD

  • API 610 Latest Edition for O&G applications
