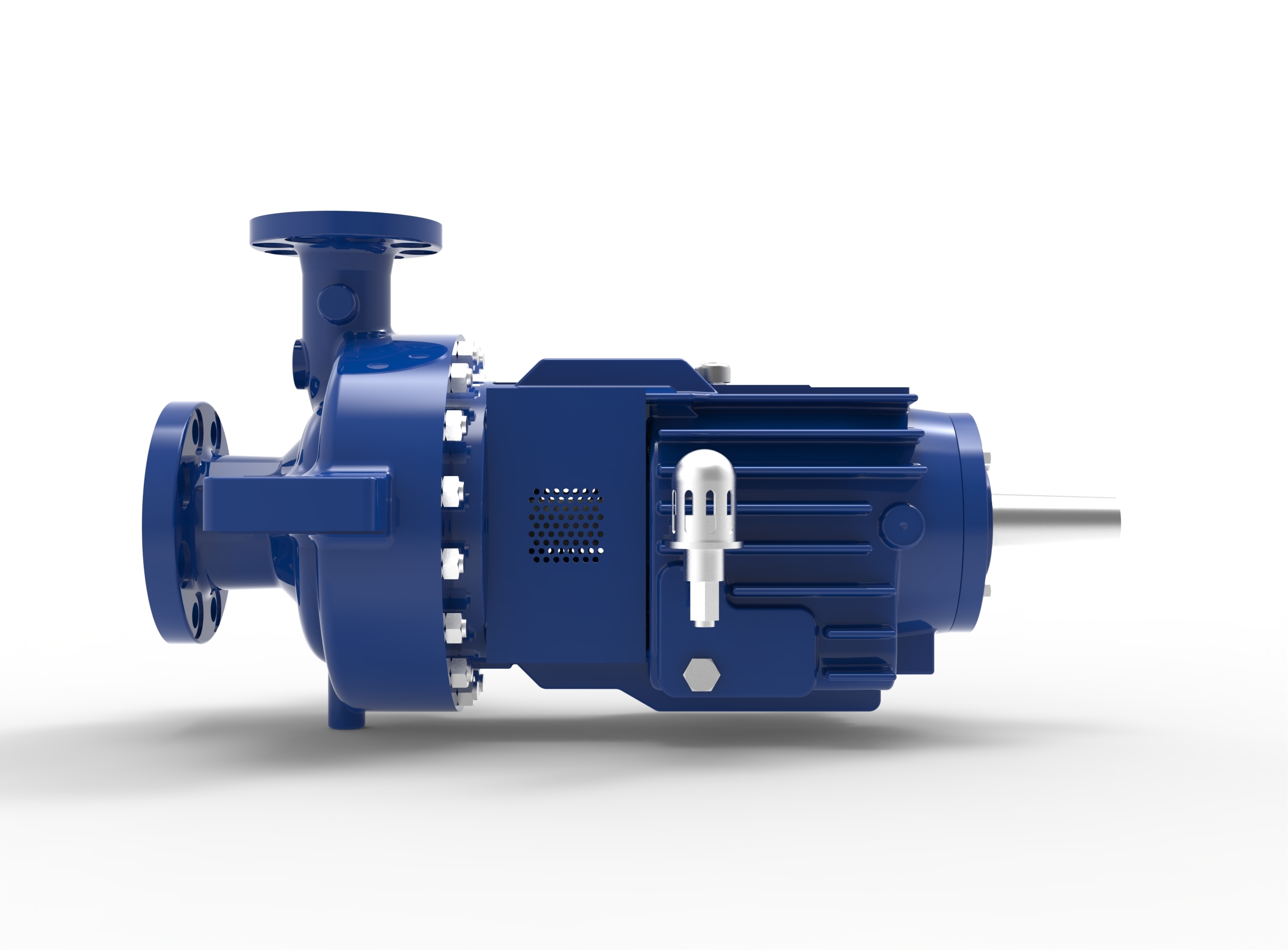

• Left side view of a Termomeccanica Pompe AP OH2 610 Centrifugal Pump manufactured by Trillium Flow Technologies

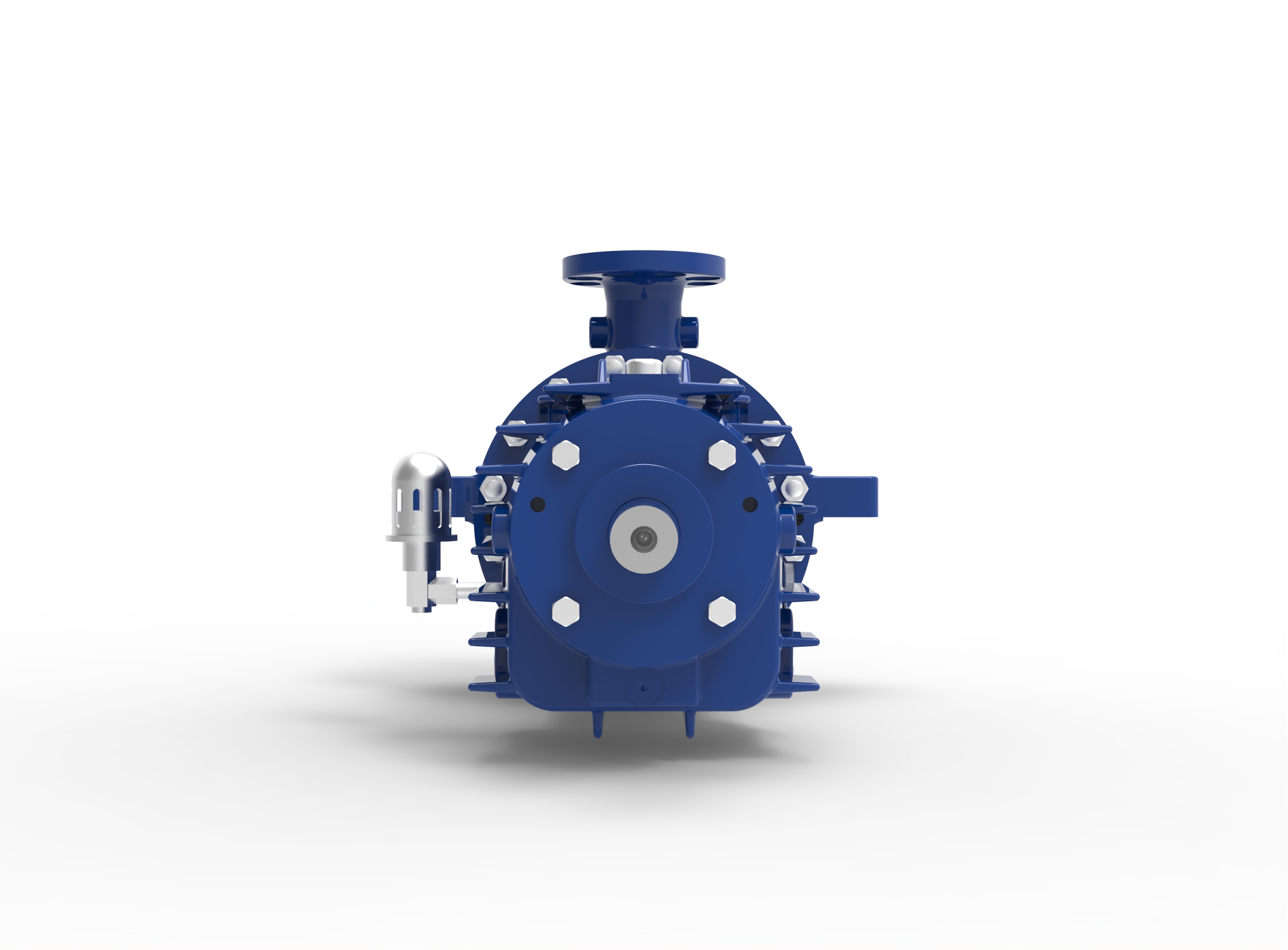

  • Backside view of a Termomeccanica Pompe AP OH2 610 Centrifugal Pump manufactured by Trillium Flow Technologies
  • Right side view of a Termomeccanica Pompe AP OH2 610 Centrifugal Pump manufactured by Trillium Flow Technologies

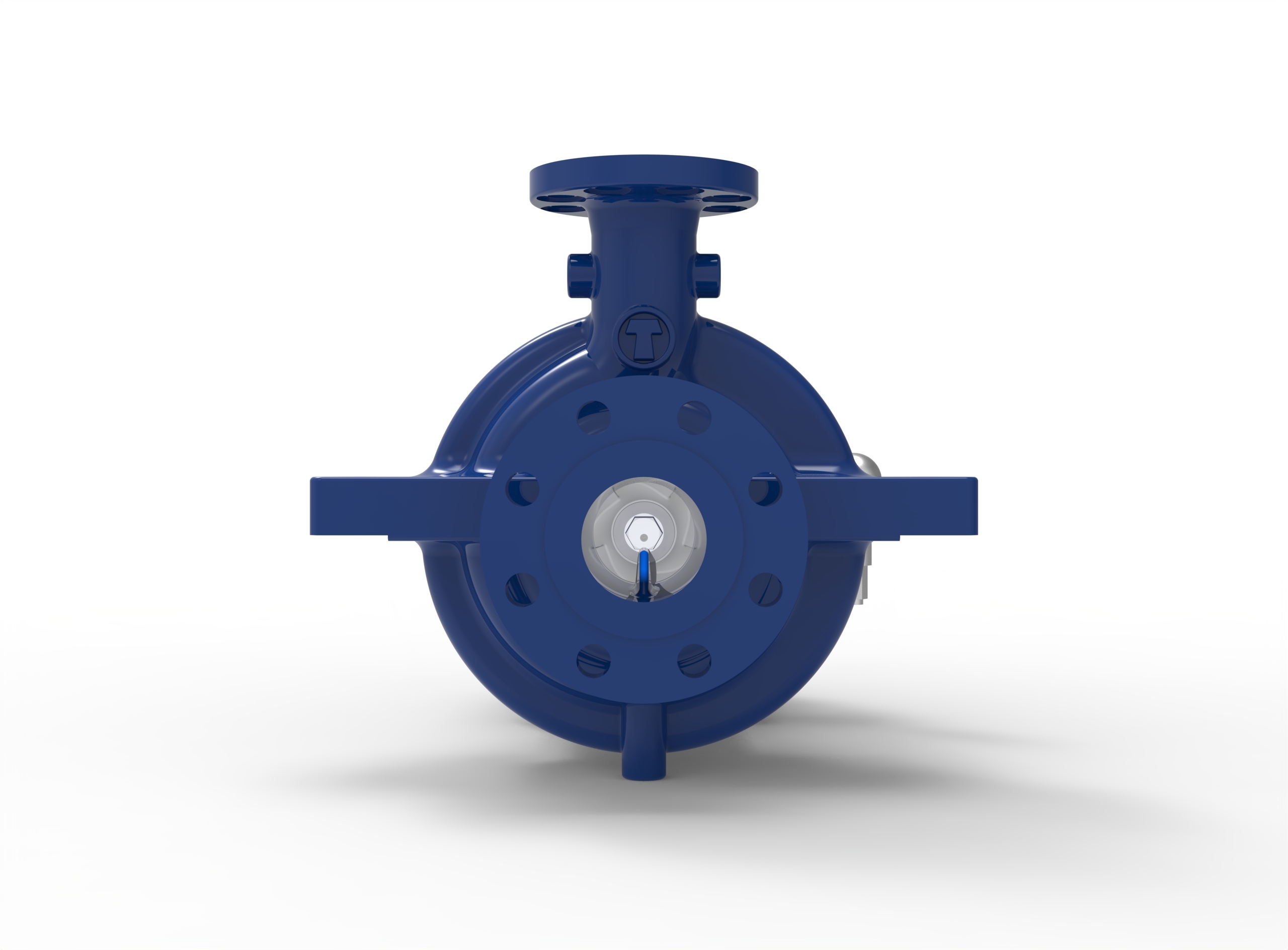

  • Front view of a Termomeccanica Pompe AP OH2 610 Centrifugal Pump manufactured by Trillium Flow Technologies

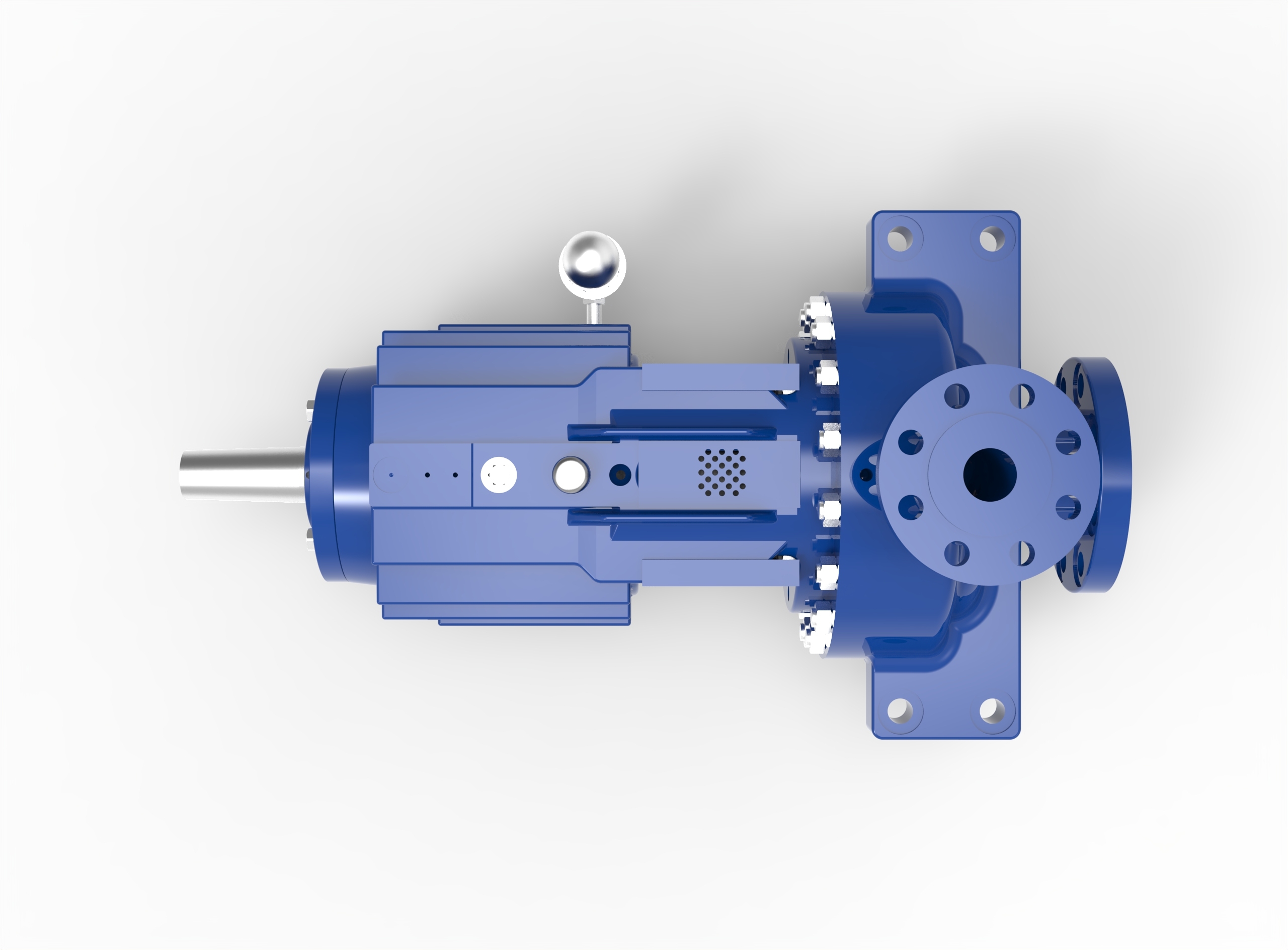

  • Top view of a Termomeccanica Pompe AP OH2 610 Centrifugal Pump manufactured by Trillium Flow Technologies

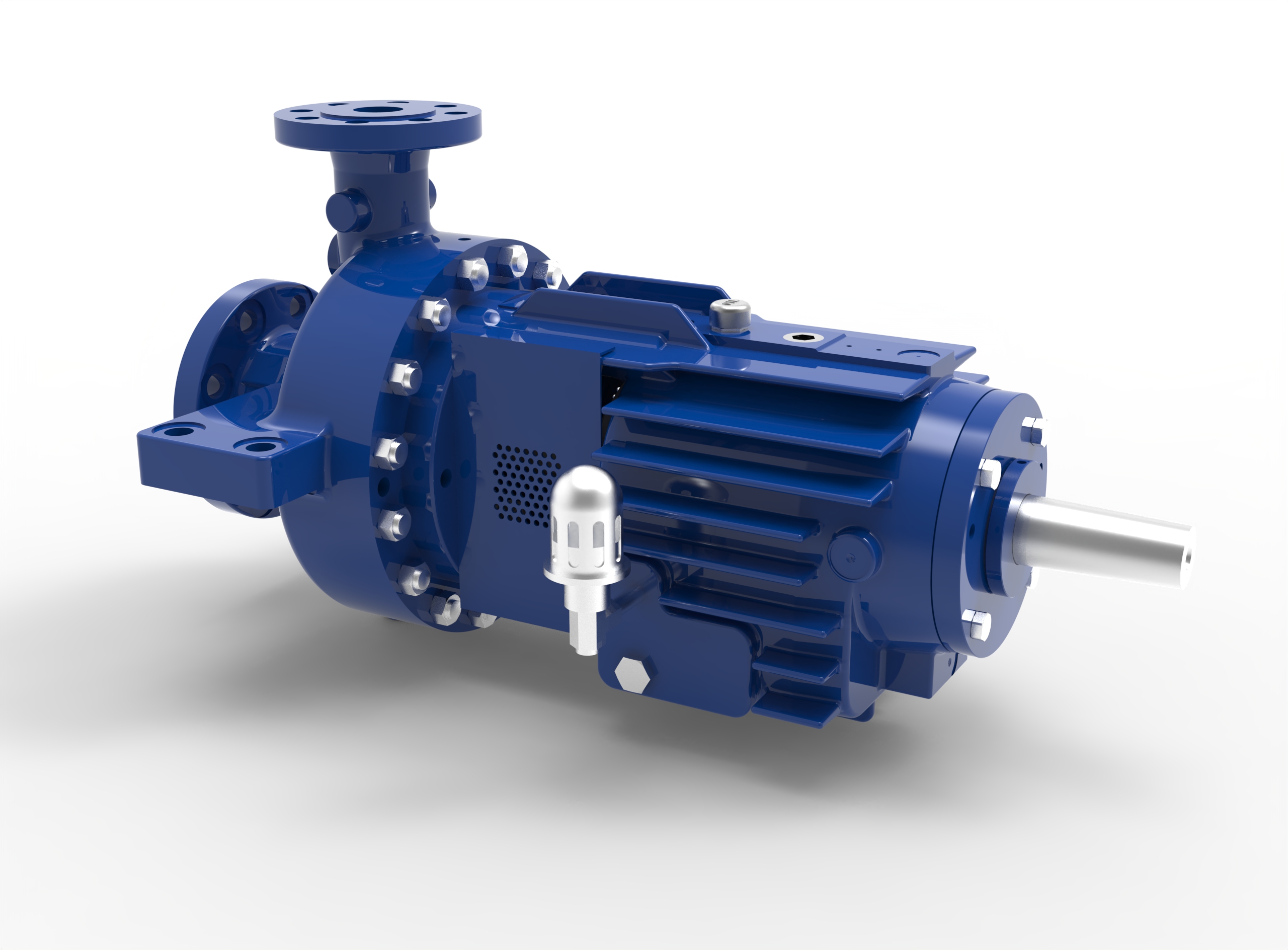

  • Angled front left side view of a Termomeccanica Pompe AP OH2 610 Centrifugal Pump manufactured by Trillium Flow Technologies

Termomeccanica Pompe

AP OH2 TYPE API 610 CENTRIFUGAL PUMP

Termomeccanica Pompe AP pumps are single stage, single suction radial impeller, end/top centrifigual pumps for heavy duty services, especially in oil & gas processing. The back pull-out arrangement allows for easy maintenance while the center-line assembly, large diameter shaft, and very stiff bearing casing assure proper alignment of the rotating parts during the most critical conditions. The seal chamber is according to API 682 for any mechanical seal configuration and API 610 for the seal flushing plan.

OPERATING RANGE

  • Capacity up to 4,000 m³/h (17,610 gpm)
  • Head up to 400 m (1,300 ft.)
  • Pressure up to 100 bar (1,450 psig)
  • Temperature range from -100°C (-150°F) to 450°C (840°F)

MAIN APPLICATIONS

  • Heavy duty services in Oil & Gas processing
  • Boiler circulation & other high temperature industrial services
  • Water market & general auxiliary pumping systems

DESIGN STANDARD

  • API 610 Latest Edition for O&G applications
