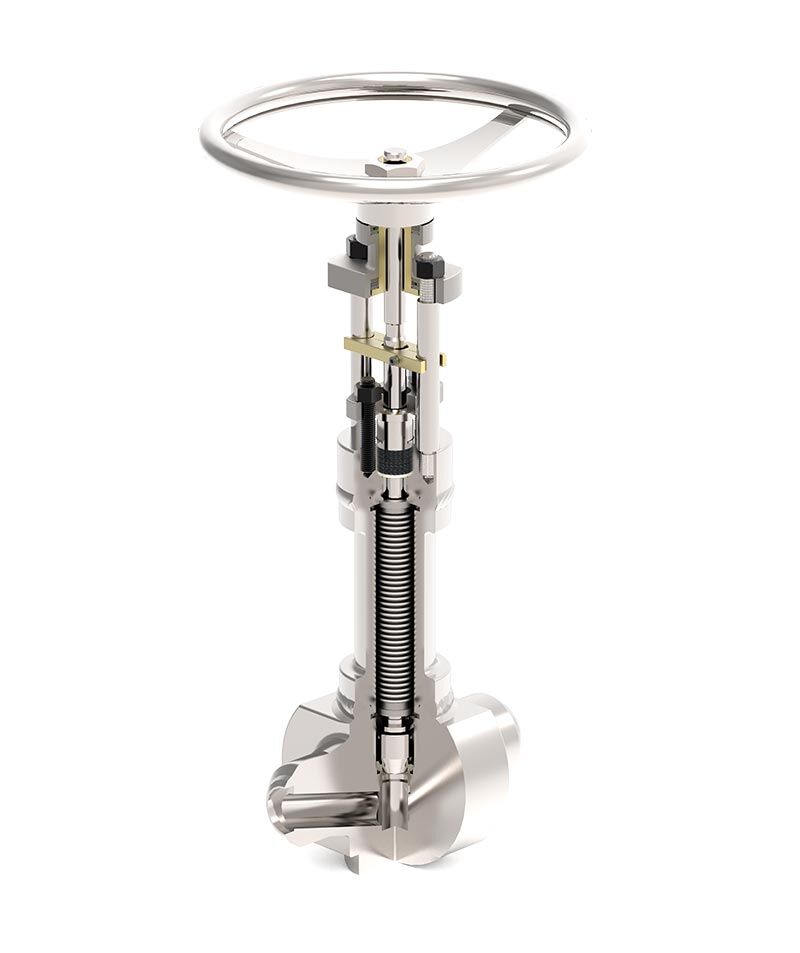

• Red Point Globe Valve Bellow Dn40 600lbs

RED POINT®

Bellow Sealed Globe Valves

Bellow Sealed Globe Valves from Red Point® can be deployed for a wide variety of applications in the oil & gas and petrochemical industries when high quality, reliable valves are required.

Type of disc

  • Plug
  • Needle
  • Swivel
  • Regulating Disc

Construction

  • Bolted
  • Welded
  • Extended
  • Pressure Seal Bonnet

Pattern

  • Straight
  • Angle
  • Y-type

End connections

  • Flanged
  • BW
  • SW
  • THR
  • HUB

Options

  • Extended Bonnet
  • Bellow Sealed
  • Heating Jacket
  • Screw-Down/Non-Return

Seating options

  • Soft or metal seated
  • Renewable
  • HF

Operated

  • Handwheel
  • Actuator Operated
  • Bare Stem

Bellow seal materials

  • 304
  • 321
  • 316Ti
  • Alloy 625
  • C276

Design & testing

– All available international standards according to API, EN, ISO
– Fire safe design

Size & bore

  • ANSI 1/4 – 16”
  • DN 6 – DN 400

Pressure range

  • ANSI 125 – 4,500 lbs.
  • DIN PN 10 – PN 400

No torsion of bellows and proper stem guiding of non-rotating stem prevents torsion of bellows and ensures a long cycle life. A typical long cycle life of bellows valve is more than 10,000 cycles.

In particular, chemical fluids processed in the pipes are often toxic, radioactive, and hazardous. Bellow sealed valves are used to prevent leakage of any toxic chemicals to the atmosphere. The bellow can be supplied in different materials like 316Ti, 321, C276, or Alloy 625. Red Point® has a large inventory of bellows to cover a range of valves from 1/2  to 2 inches with a pressure rating of 150 to 1,500 pounds.

Bellow sealed globe valves by Red Point® can be deployed for a wide variety of applications in the oil & gas and petrochemical industries when high quality, reliable valves are required. A few example applications include:

  • High-temperature services
  • High-cycle and switching services
  • Emergency shutdown valves
  • High-integrity pressure protection system
  • High-pressure oxygen, nitrogen, or hydrogen
  • Solids handling (powders, fines, dust, and catalysts)
  • Polyethylene or polypropylene
  • Coal conversion, and gasification
  • Thermal fluids
  • Separator, filter, and drying systems
  • Compressor stations
  • On/off isolation service
  • Oil & gas manifolds

Nickel Alloys (Monel®, Inconel®, Hastelloy®, Incoloy®), Duplex and Super Duplex, Carbon Steel and Low Temp Carbon Steel, Low Alloy Steel, Stainless Steel, Titanium, Zirconium
