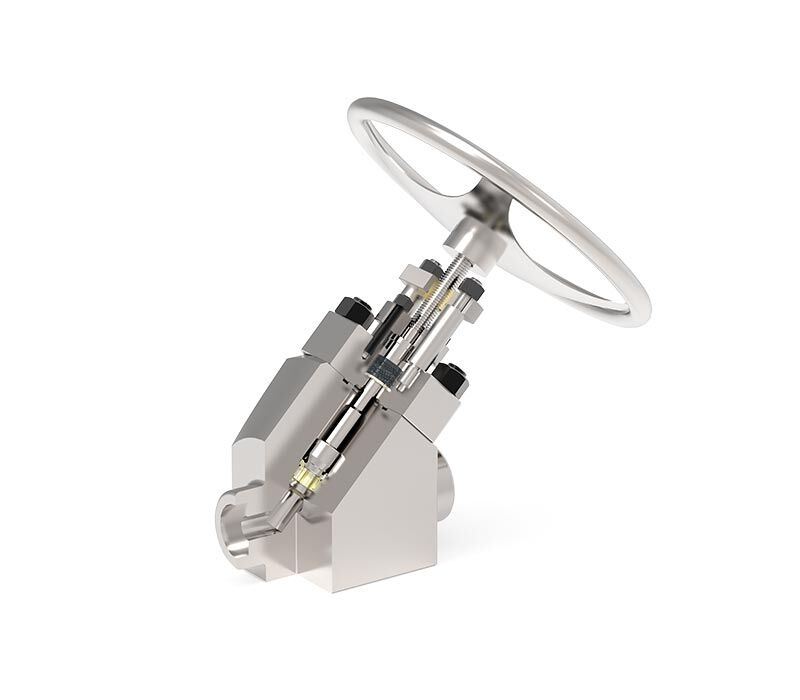

• Red Point Globe Valve Y Type Sw Dn50 1500lbs

Red Point®

Y-Type Design Globe Valves

Y pattern globe valve are used as an alternative for the high pressure drop inherent in standard globe valves. The Y type design reduces the flow resistance of the globe valve to a minimum. Seat and stem are angled at approximately 45 degrees, which gives a straighter flow-path at full opening and offers the least resistance to flow. These valves are used for throttling during seasonal or startup operations.

Type of disc

  • Plug
  • Needle
  • Swivel
  • Regulating Disc

Pattern

  • Angle
  • Y-type

Options

  • Extended Bonnet
  • Bellow Sealed
  • Heating Jacket
  • Screw-Down/Non-Return

Operated

  • Handwheel
  • Actuator Operated
  • Bare Stem

Design & testing

  • All available international standards according to API, EN, ISO
  • Fire safe design

Pressure range

  • ANSI 125 – 4,500 lbs.,
  • DIN PN 10 – PN 400

Construction

  • Bolted
  • Welded
  • Extended

End connections

  • Flanged
  • BW
  • SW
  • THR
  • HUB

Seating options

  • Soft or metal seated
  • Renewable
  • HF

Bellow seal materials

  • 304
  • 321
  • 316Ti
  • Alloy 625
  • C276

Size & bore

  • ANSI 1/4 – 16”
  • DN 6 – DN 400
To prevent wear and tear due to the abrasive media, Red Point uses several surface treatment techniques to increase the service lifetime of valves and its components.
Depending on the material in question, a few techniques we can use are overlay welding, HVOF, Kolsterizing, anodizing or just plain heat treatment.
These treatments, in combination with a keen design, entered to your specific process conditions, will result in a high quality valve, which will perform for many years.

Red Point’s globe valves with Y-type design can be deployed for a wide variety of applications in the oil & gas and petrochemical industries when high quality, reliable valves are required. A few example applications include:

  • High-temperature services
  • High-cycle and switching services
  • Emergency shutdown valves
  • High-integrity pressure protection system
  • High-pressure oxygen, nitrogen, or hydrogen
  • Solids handling (powders, fines, dust, and catalysts)
  • Polyethylene or polypropylene
  • Coal conversion & gasification
  • Thermal fluids
  • Separator, filter, and drying systems
  • Compressor stations
  • On/off isolation service
  • Oil & gas manifolds

Nickel Alloys (Monel®, Inconel®, Hastelloy®, Incoloy®), Duplex and Super Duplex, Carbon Steel and Low Temp Carbon Steel, Low Alloy Steel, Stainless Steel, Titanium, Zirconium
