• Red Point Globe Valves

Globe Valves

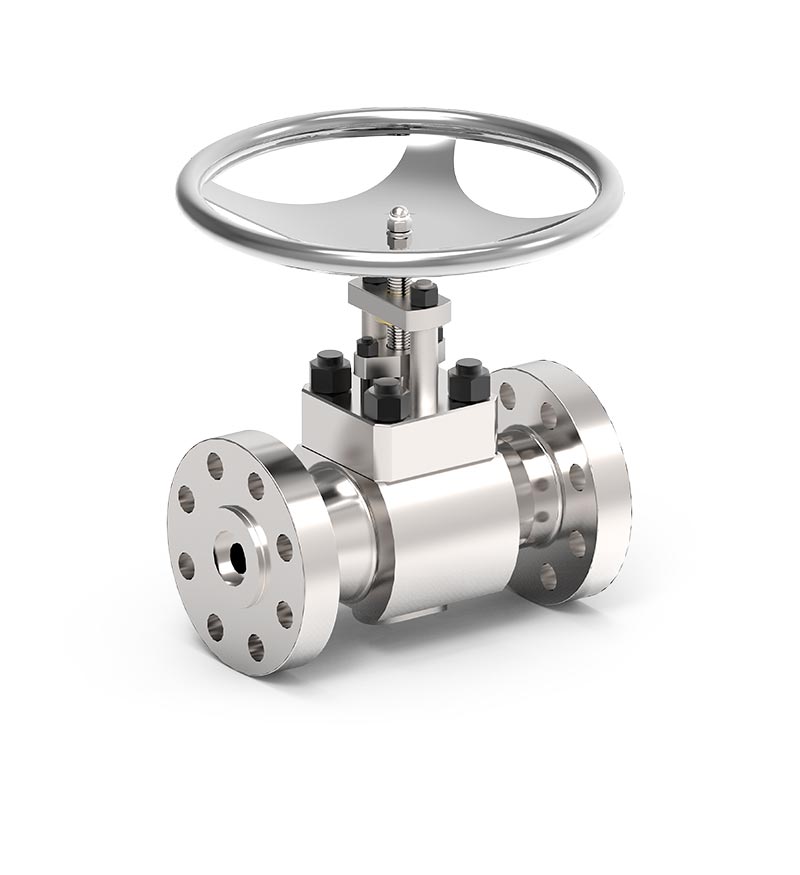

Standard Bonnet Design Globe Valves

Globe valves are used in Oil & Gas, Chemical, Petrochemical, and Urea & Fertilizer applications. They are used to process media like Acetic Acid, Sour Service (H2S), Hydrocarbon Gas, and Sulphuric Acid.

Type of disc

  • Plug
  • Needle
  • Swivel
  • Regulating Disc

Pattern

  • Straight

Options

  • Extended Bonnet
  • Bellow Sealed
  • Heating Jacket
  • Screw-Down/Non-Return

Operated

  • Handwheel
  • Actuator Operated
  • Bare Stem

Design & testing

  • All available international standards according to API, EN, ISO
  • Fire safe design

Pressure range

  • ANSI 125 – 4,500 lbs.
  • DIN PN 10 – PN 400

Construction

  • Bolted
  • Welded
  • Extended

End connections

  • Flanged
  • BW
  • SW
  • THR
  • HUB

Seating options

  • Soft or Metal Seated
  • Renewable
  • HF

Bellow seal materials

  • 304
  • 321
  • 316Ti
  • Alloy 625
  • C276

Size & bore

  • ANSI 1/4 – 16”
  • DN 6 – DN 400

Stem Construction

The standard stem construction deployed by Red Point® is a non-rotating, rising stem construction. This feature has several benefits. For instance, a shorter, linear passage for the stem through the stempacking leads to significantly lower friction of the stem and lower operating torque. Less wear on the packing means little or no fugitive emission. All Red Point® Globe valve designs have FE-class A.

A non-rotating stem gives us the opportunity to use an integral stem/disc design. This also results in less wear and tear to the disc and seat.

Globe valves are linear motion close-down valves. They are primarily designed to regulate flow in the partially open position. When considering Globe valves for on-off isolation service, design selection should receive careful consideration because maintaining a tight seal against the strong force pushing up on the disc can be challenging.

Hard Facing Disc

To prevent wear and tear due to the abrasive media, Red Point® uses several surface treatment techniques to increase the service lifetime of valves and their components. Depending on the material in question, we can use overlay welding, HVOF, Kolsterizing, anodizing, or heat treatment. These treatments, in combination with a keen design, entered to your specific process conditions, will result in a high quality valve, which will perform for many years.

  • Disc and seats are ground and lapped to a mirror finish and tightly guided to prevent dragging and seat damage
  • Body and bonnet joint accurately machined with high surface finish stem and packing chamber
  • Low emission valve technology with a design optimized for extended service life
  • Low compression packing reduces friction and allows more room to re-torque in the field
  • Packing ring construction for excellent sealing and a corrosion inhibitor

The Red Point® standard Globe valves design can be deployed for a wide variety of applications in the oil & gas and petrochemical industries when high quality, reliable valves are required. A few example applications include:

  • High-temperature services
  • High-cycle and switching services
  • Emergency shutdown valves
  • High-integrity pressure protection system
  • High-pressure oxygen, nitrogen or hydrogen
  • Solids handling (powders, fines, dust, and catalysts)
  • Polyethylene or polypropylene
  • Coal conversion and gasification
  • Thermal fluids
  • Separator, filter, and drying systems
  • Compressor stations
  • On/off isolation service
  • Oil & gas manifolds

Nickel Alloys (Monel®, Inconel®, Hastelloy®, Incoloy®), Duplex and Super Duplex, Carbon Steel and Low Temp Carbon Steel, Low Alloy Steel, Stainless Steel, Titanium, Zirconium

DOWNLOADS

RELATED PRODUCTS

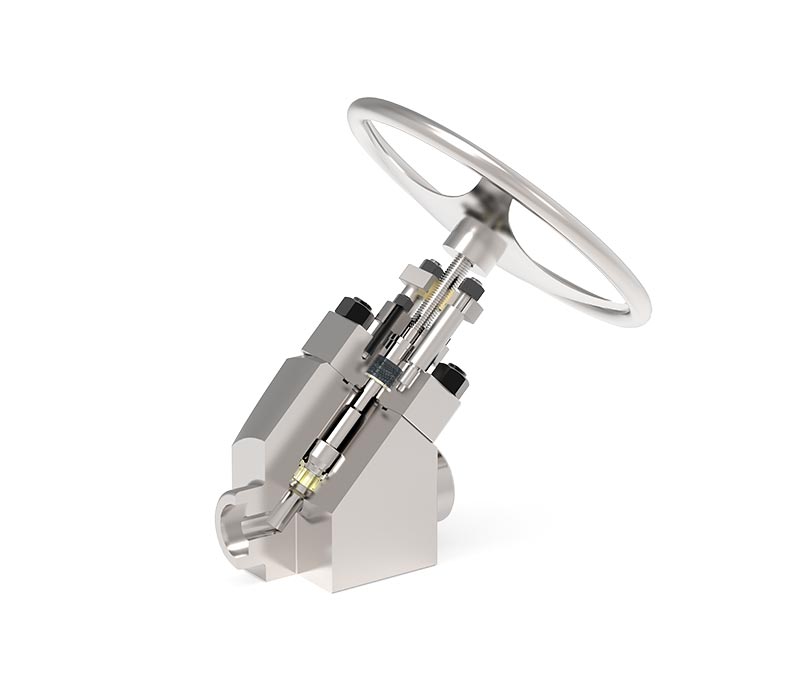

  • Red Point®
    Red Point®
    Fertilizer,General Industry,Industries,Mining & Minerals,Nuclear Power,Oil & Gas,Oil & Gas - Downstream,Oil & Gas - Midstream,Oil & Gas - Upstream,Renewable Power,Traditional Power

    Globe Valves,Main_Valves

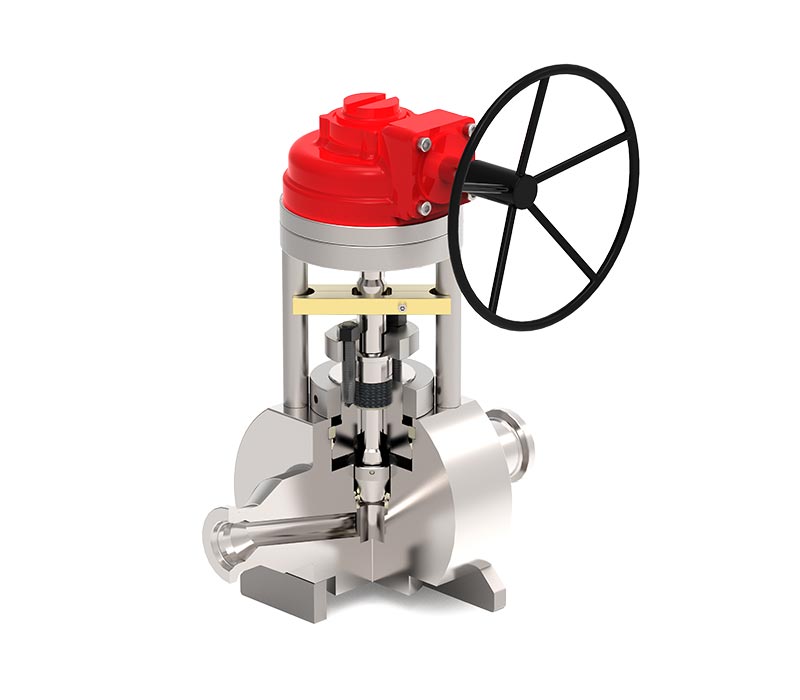

  • Red Point®
    Red Point®
    Fertilizer,General Industry,Industries,Mining & Minerals,Nuclear Power,Oil & Gas,Oil & Gas - Downstream,Oil & Gas - Midstream,Oil & Gas - Upstream,Renewable Power,Traditional Power

    Globe Valves,Main_Valves

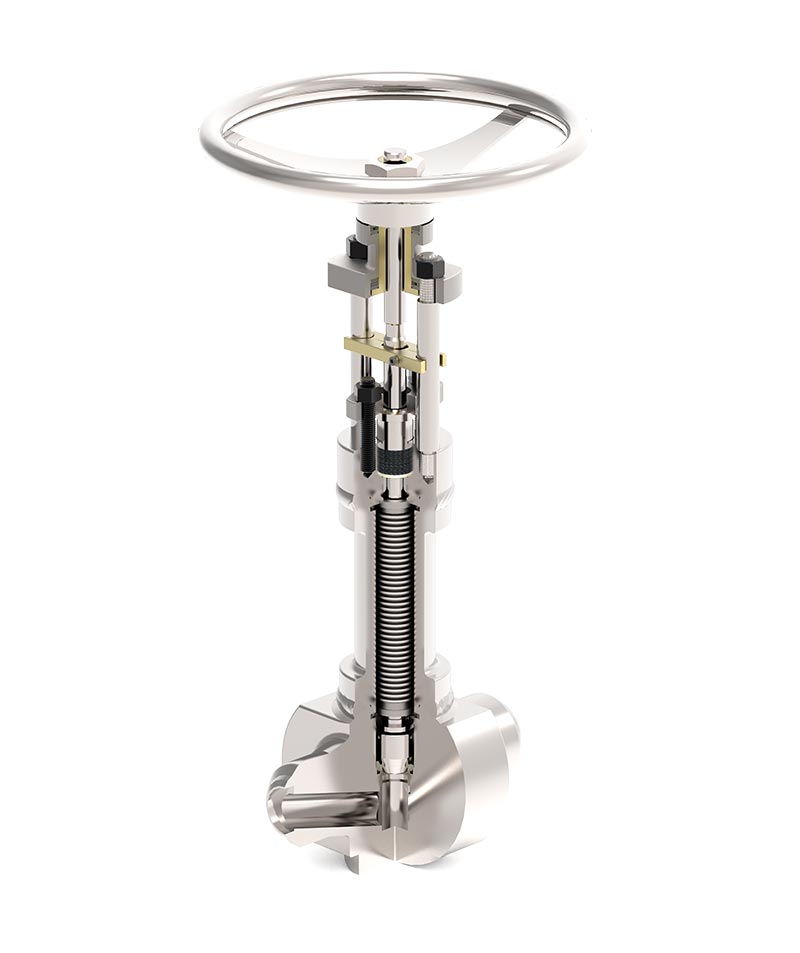

  • Red Point®
    Red Point®
    Fertilizer,General Industry,Industries,Mining & Minerals,Nuclear Power,Oil & Gas,Oil & Gas - Downstream,Oil & Gas - Midstream,Oil & Gas - Upstream,Renewable Power,Traditional Power

    Globe Valves,Main_Valves

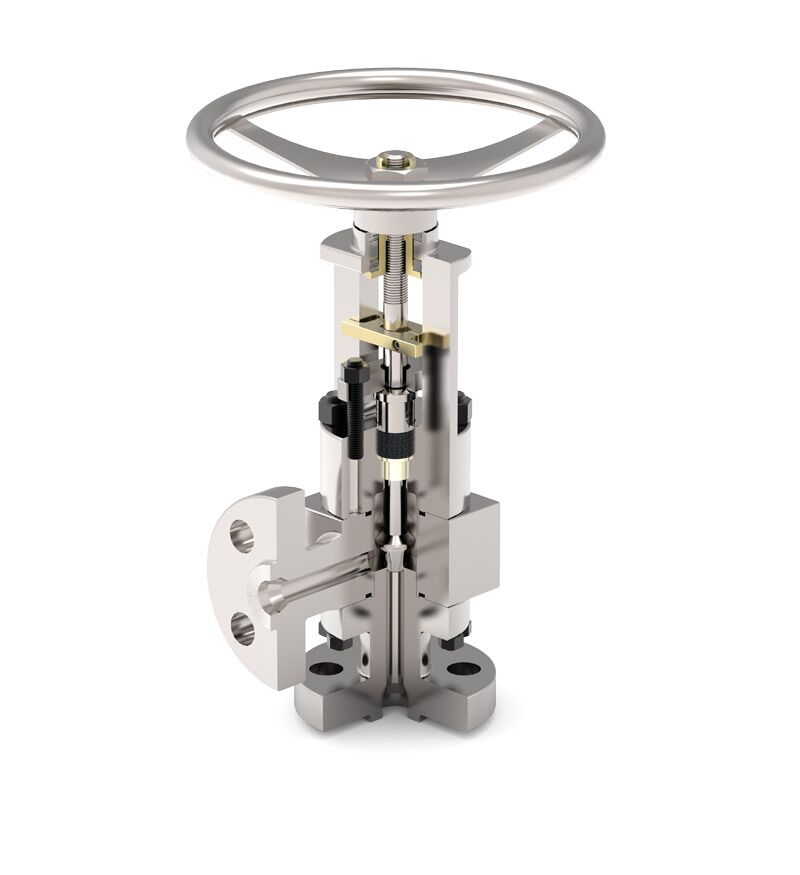

  • Red Point®
    Red Point®
    Fertilizer,General Industry,Industries,Mining & Minerals,Nuclear Power,Oil & Gas,Oil & Gas - Downstream,Oil & Gas - Midstream,Oil & Gas - Upstream,Renewable Power,Traditional Power

    Globe Valves,Main_Valves

  • Red Point®
    Red Point®
    Fertilizer,General Industry,Industries,Mining & Minerals,Nuclear Power,Oil & Gas,Oil & Gas - Downstream,Oil & Gas - Midstream,Oil & Gas - Upstream,Renewable Power,Traditional Power

    Globe Valves,Main_Valves

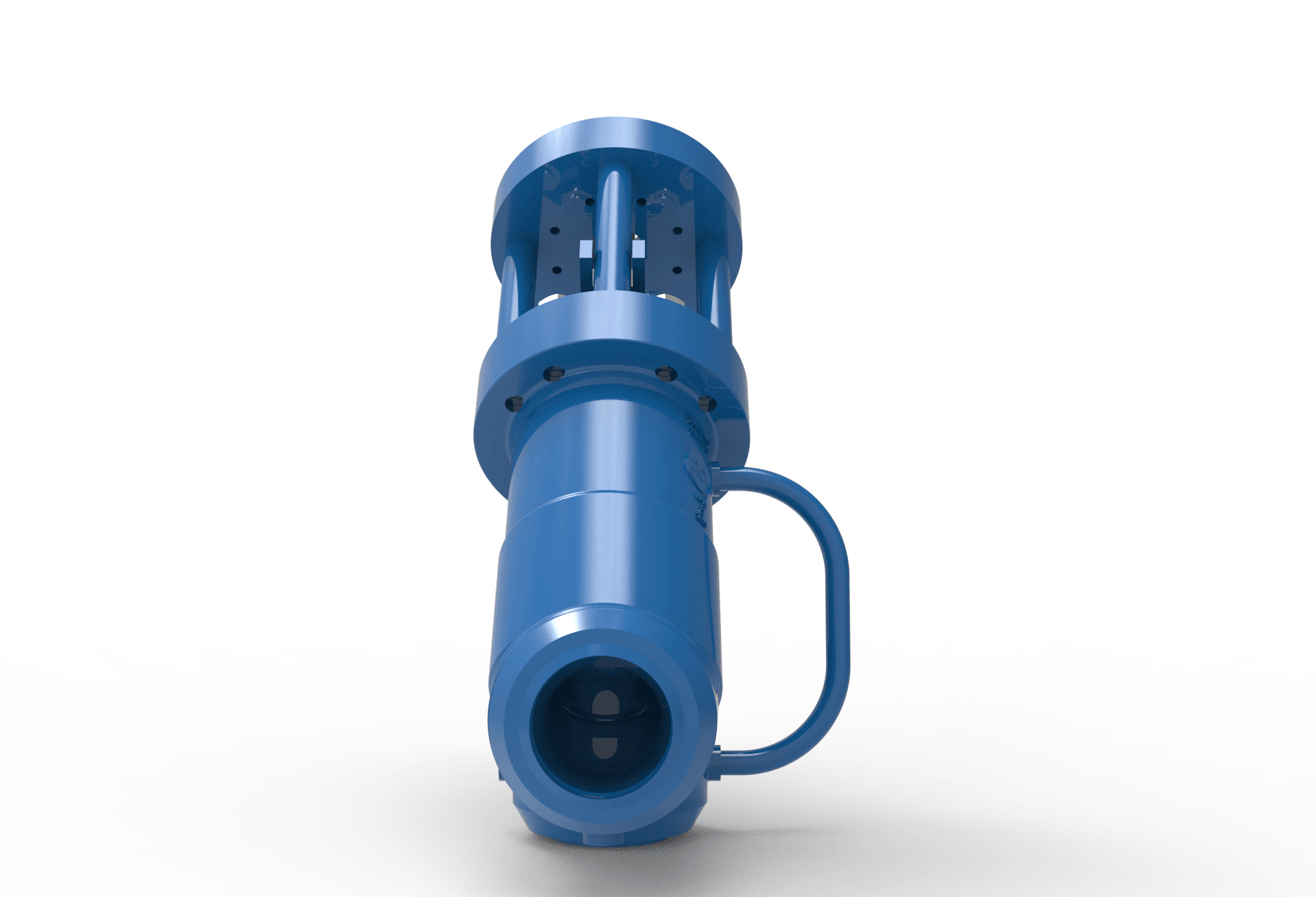

  • Atwood & Morrill®
    Red Point®
    Industries,Traditional Power

    Check Valves,Gate Valves,Globe Valves,Isolation Valves,Main_Valves

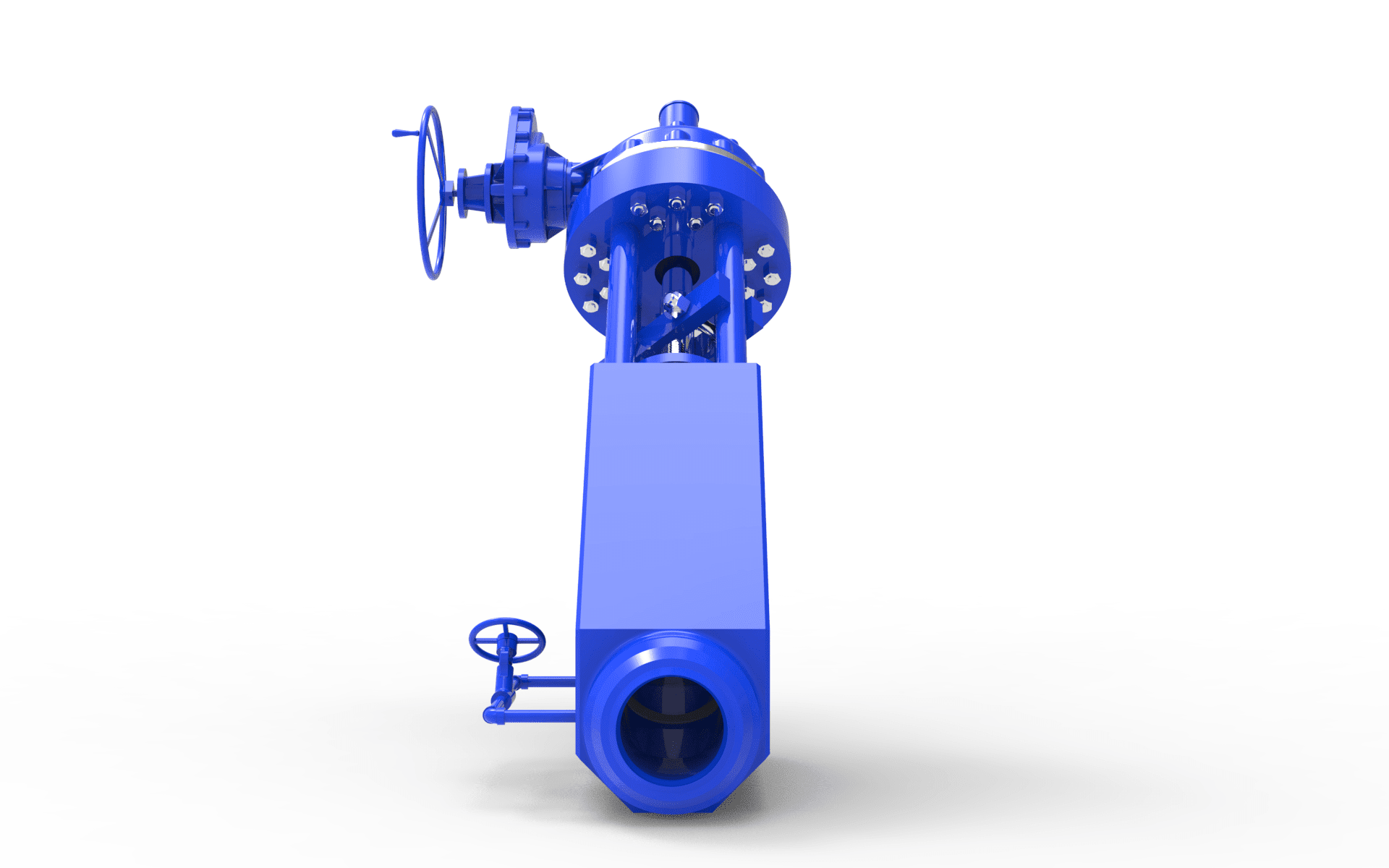

  • Atwood & Morrill®
