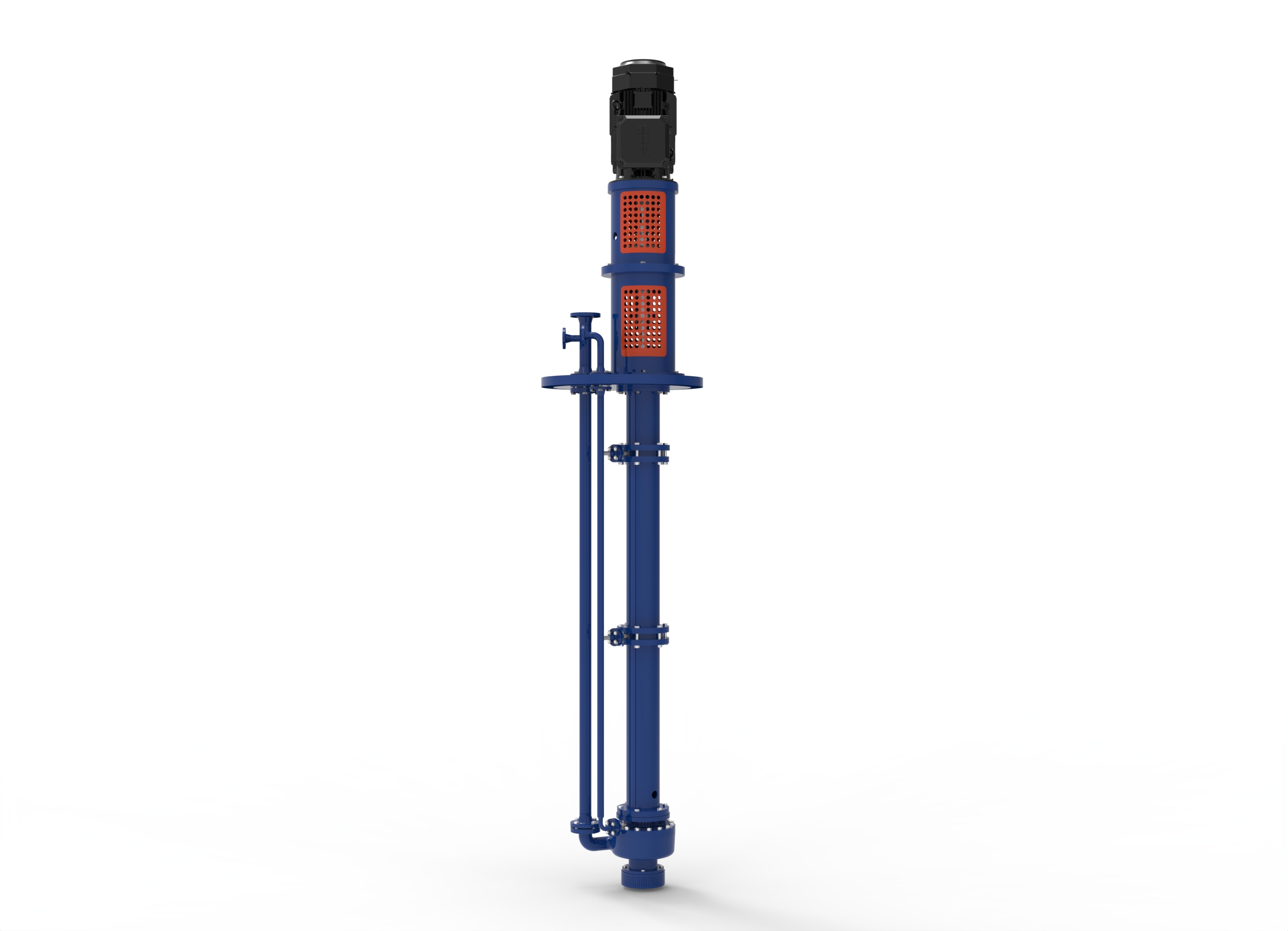

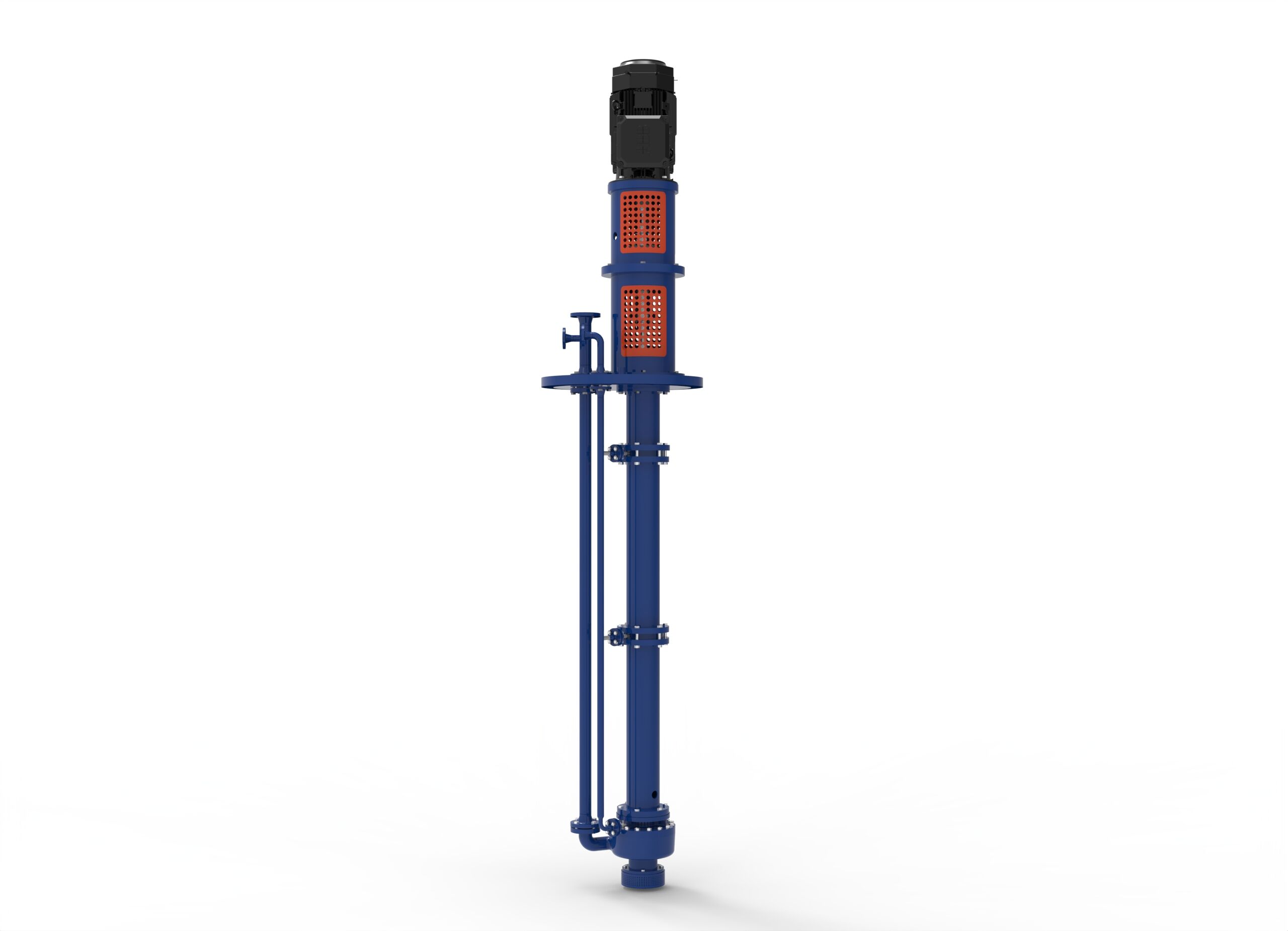

• Front view of a Termomeccanica Pompe CPPL VS4 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

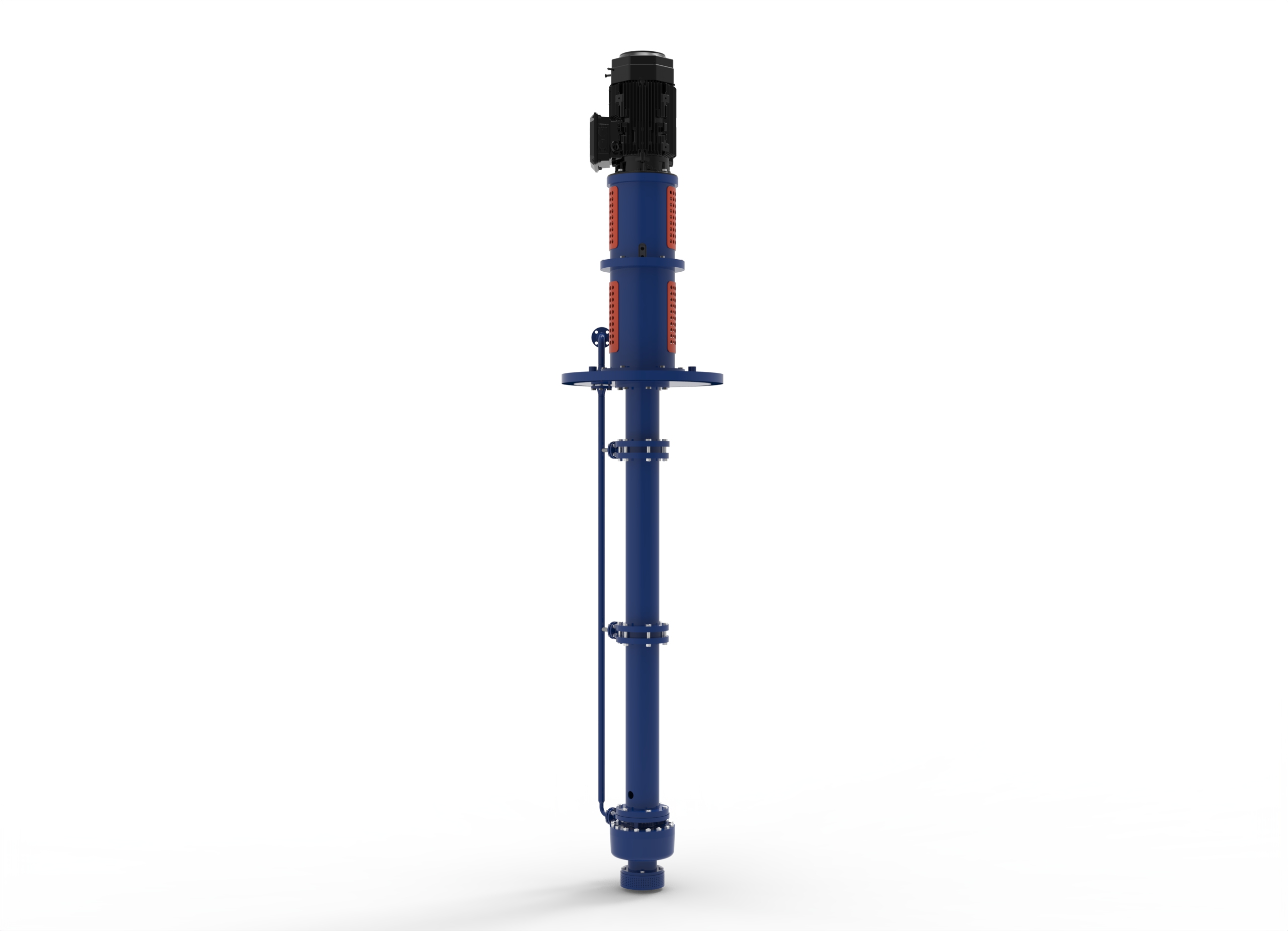

  • Right side view of a Termomeccanica Pompe CPPL VS4 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

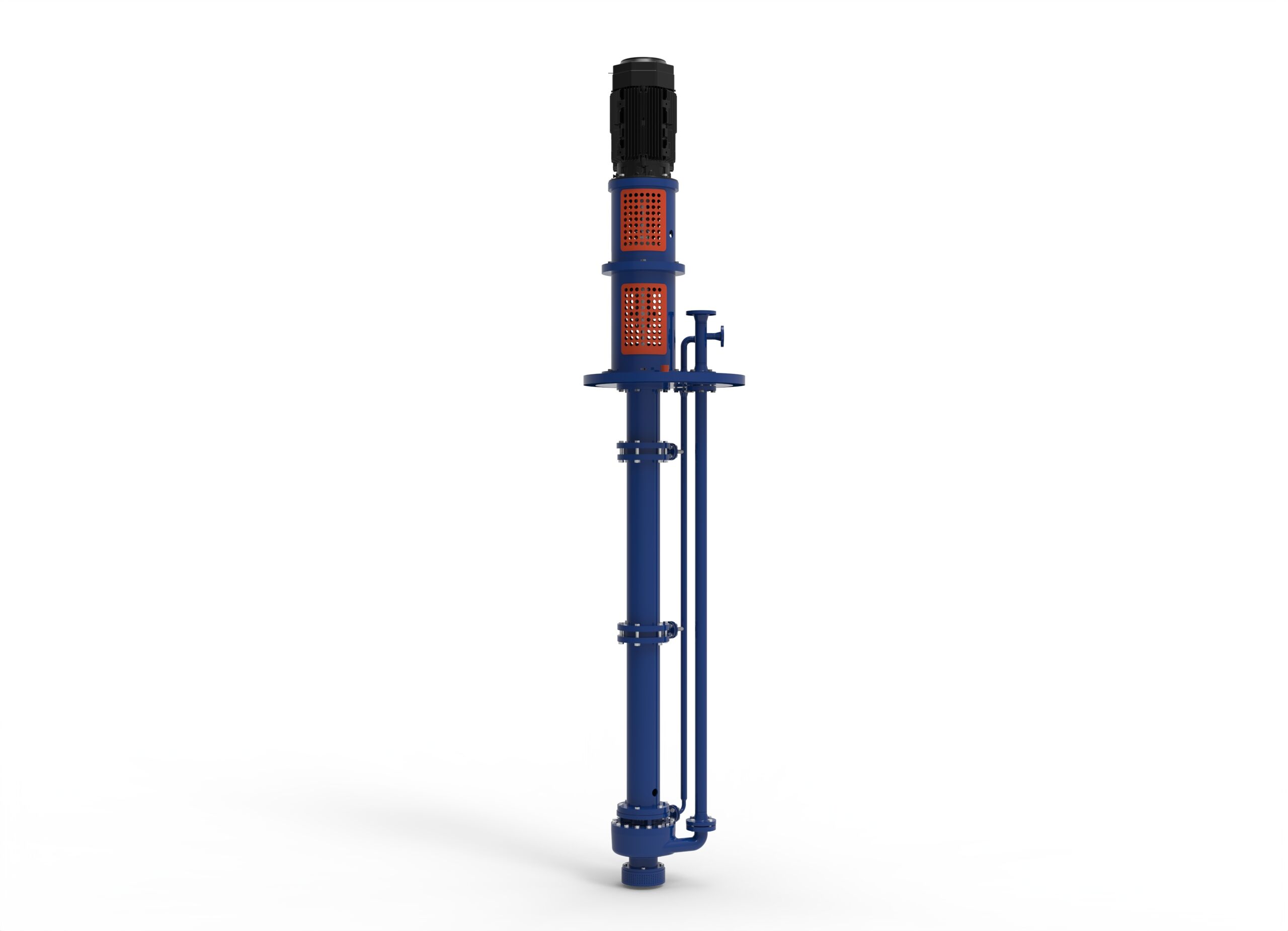

  • Backside view of a Termomeccanica Pompe CPPL VS4 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

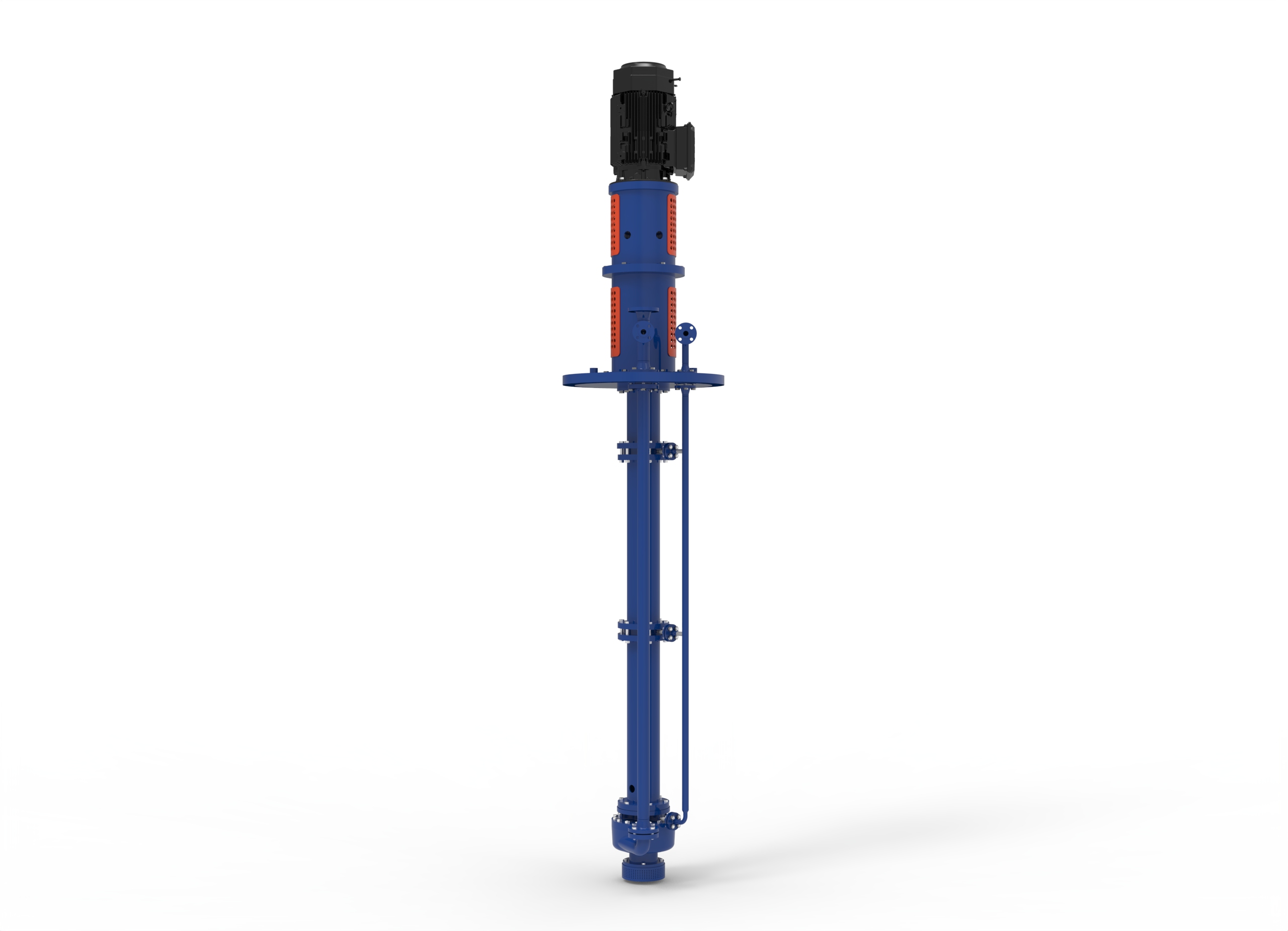

  • Left side view of a Termomeccanica Pompe CPPL VS4 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

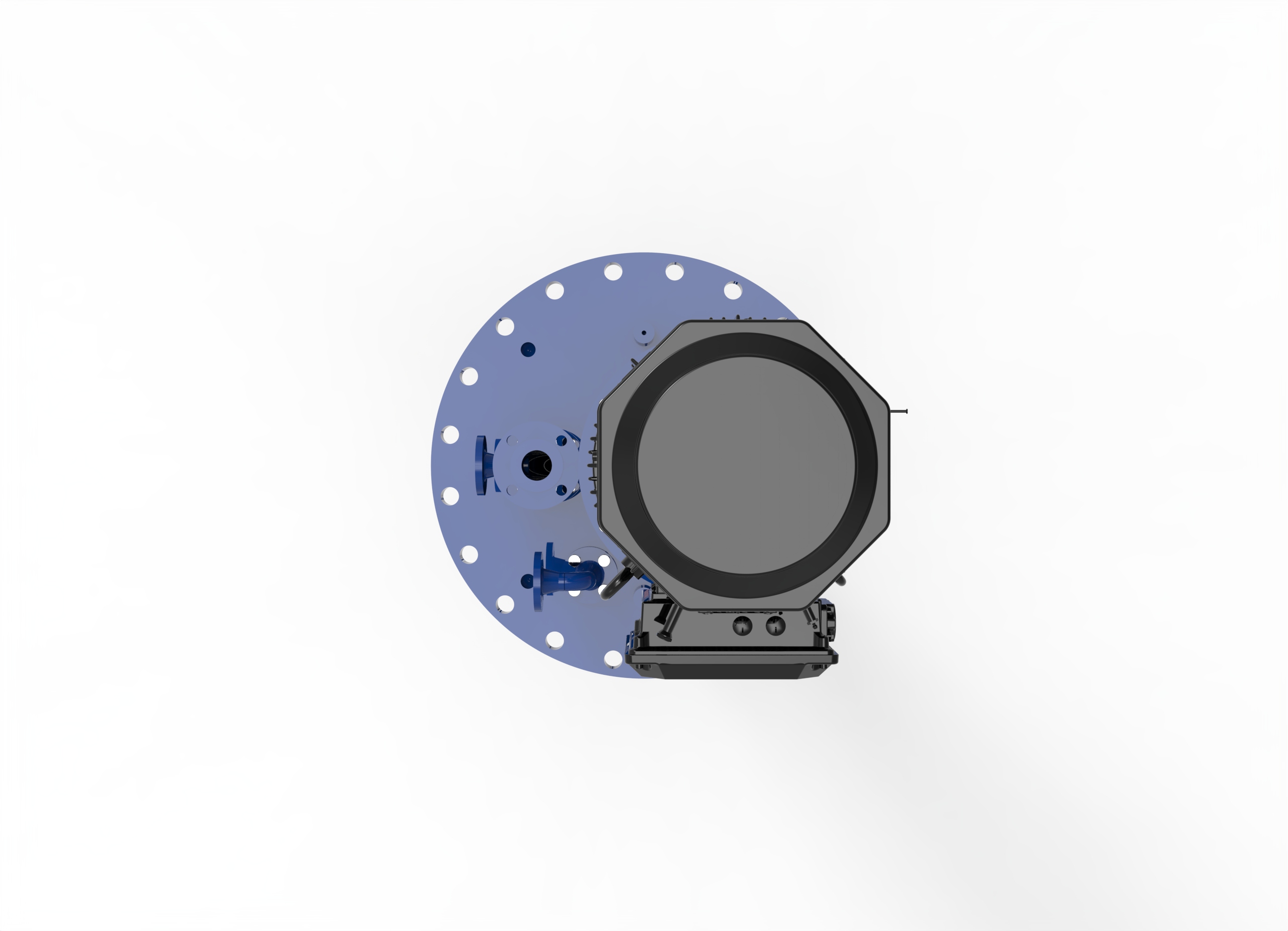

  • Top view of a Termomeccanica Pompe CPPL VS4 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

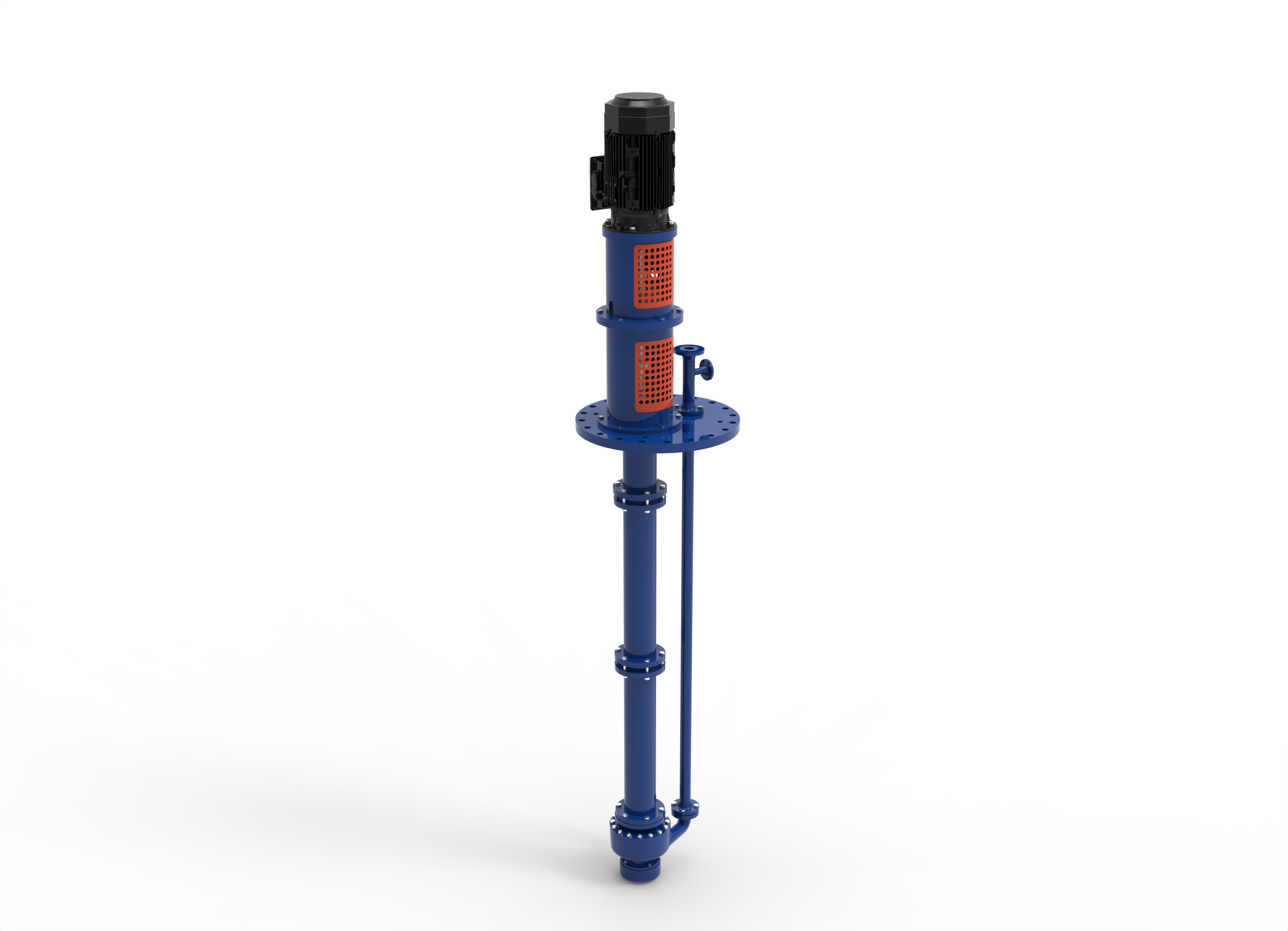

  • Angled front right side view of a Termomeccanica Pompe CPPL VS4 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

Termomeccanica Pompe

CPPL VS4 TYPE API 610 CENTRIFUGAL PUMP

Termomeccanica Pompe CPPL pumps are designed for installation in wet pit depths up to 10 meters and have a volute casing with radial split design. The motor support is bolted to the pump mounting plate. The lower pump shaft can be a single piece or divided into sections connected by rigid couplings; intermediate radial bushings are fitted on bearing holders, which are fixed between the column pipe flanges.
The discharge column is external and parallel to the column pipe and connects the discharge branch of the casing to the pump mounting plate.

OPERATING RANGE

  • Capacity up to 1,000 m³/h (44,000 gpm)
  • Head up to 200 m (650 ft.)
  • Pressure up to 40 bar (580 psig)
  • Temperature range from -30°C (-86°F) to 260°C (500°F)

MAIN APPLICATIONS

  • Hydrocarbon & chemical processing
  • Liquid transfer
  • Recovered oil tank
  • Drain water services
  • General Industry
  • Melted sulphur

DESIGN STANDARD

  • API 610 Latest Edition for O&G applications
