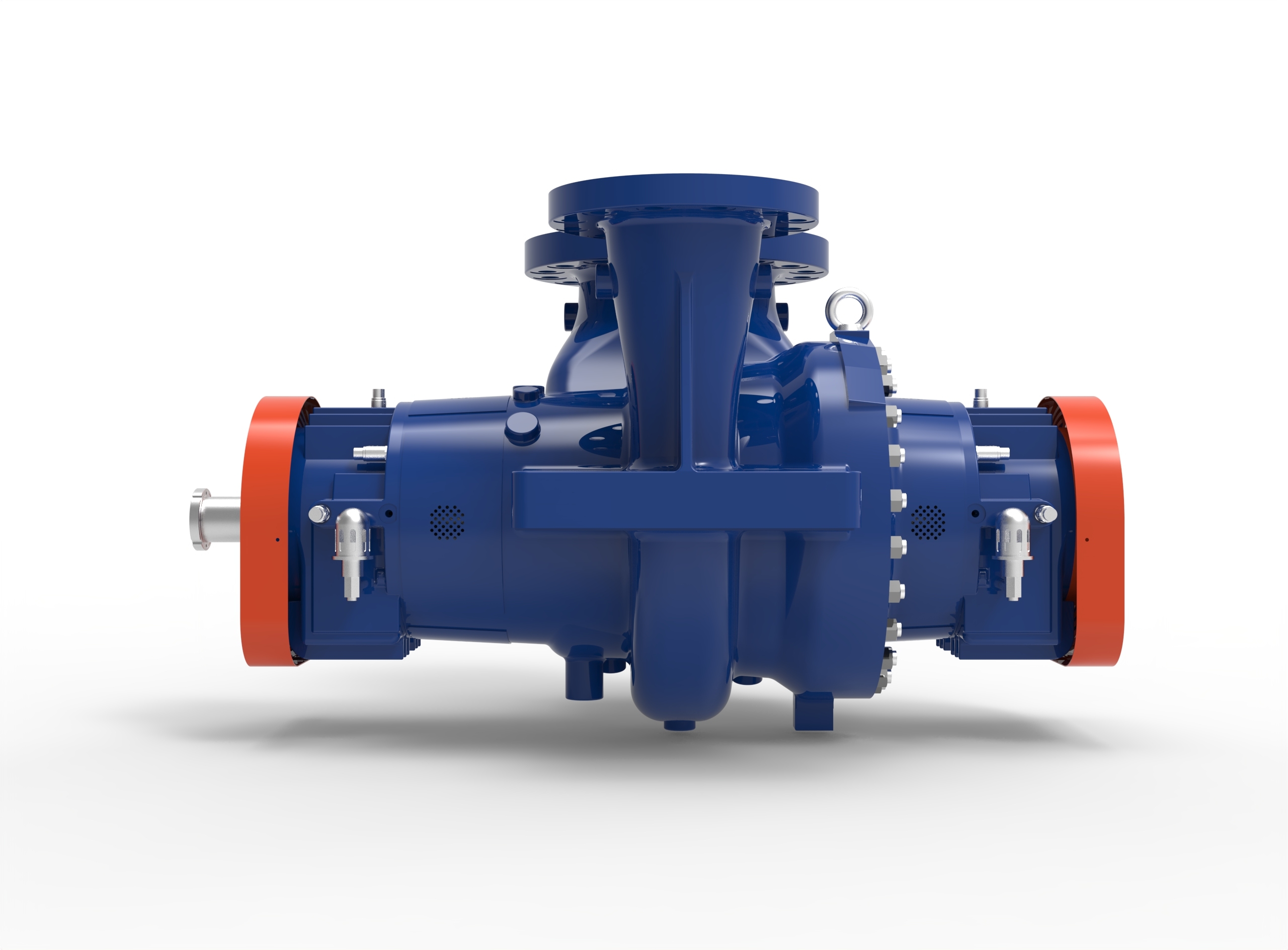

• Front view of a Termomeccanica Pompe DP BB2 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

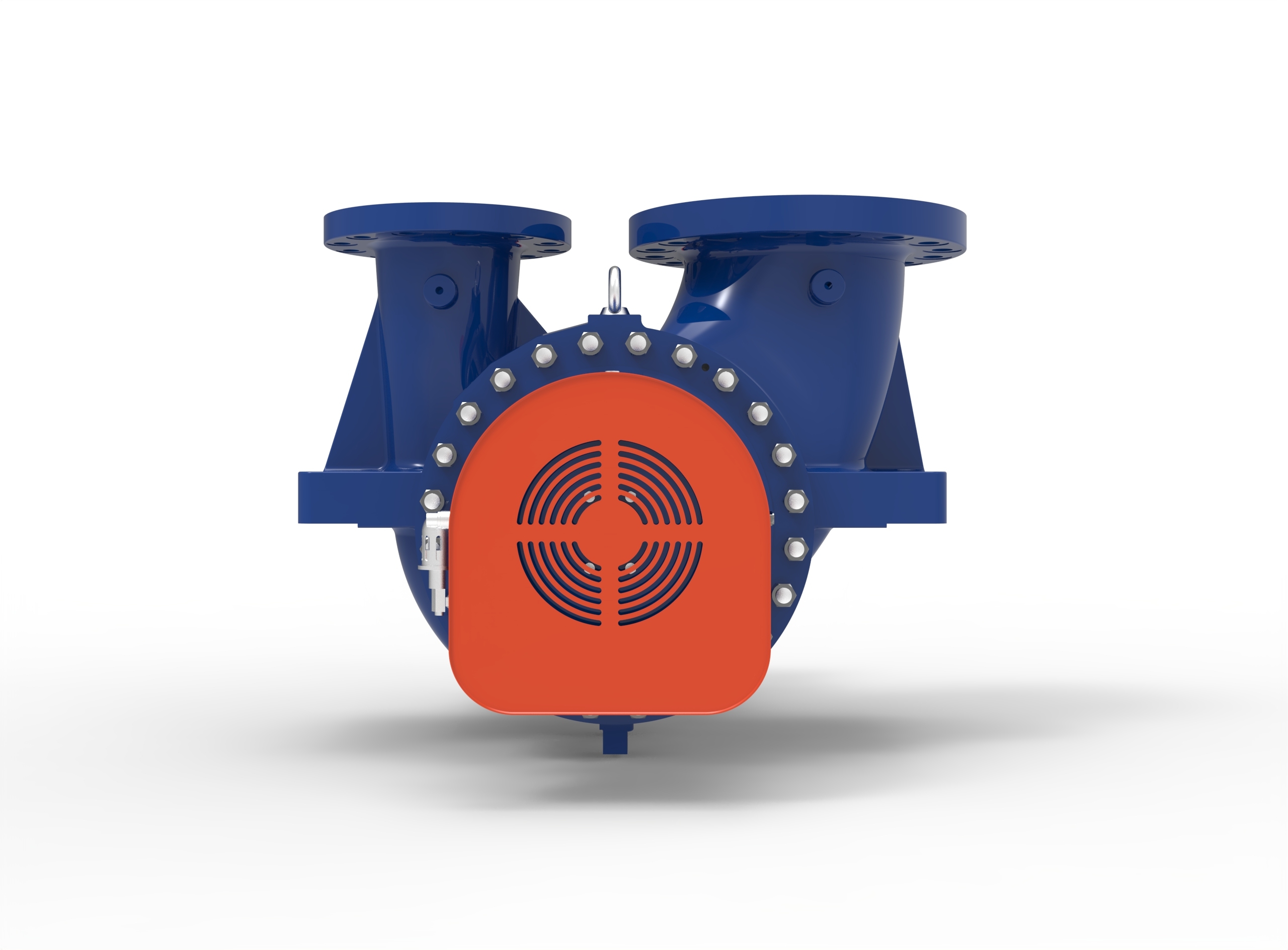

  • Right side view of a Termomeccanica Pompe DP BB2 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

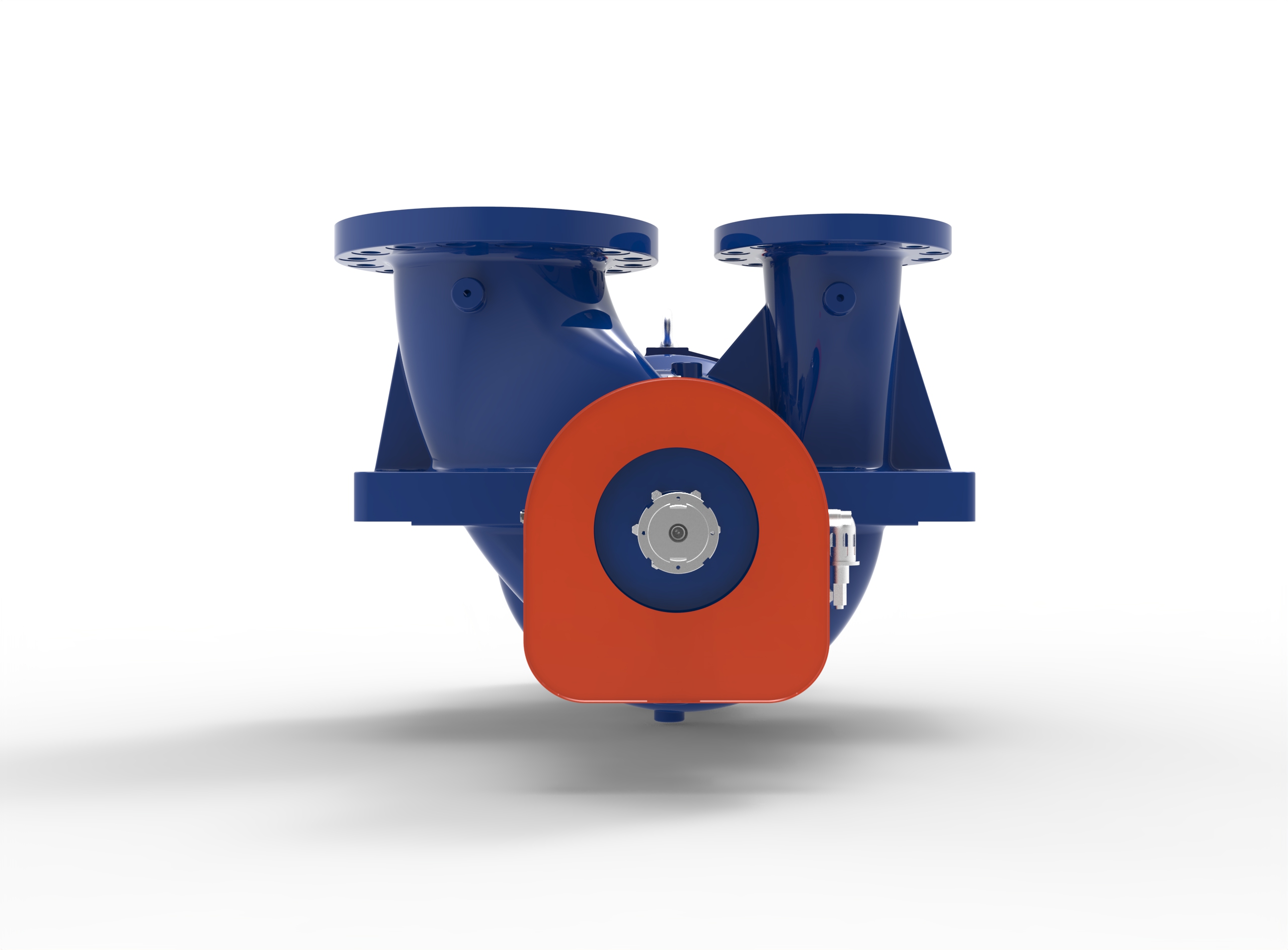

  • Backside view of a Termomeccanica Pompe DP BB2 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies
  • Left side view of a Termomeccanica Pompe DP BB2 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

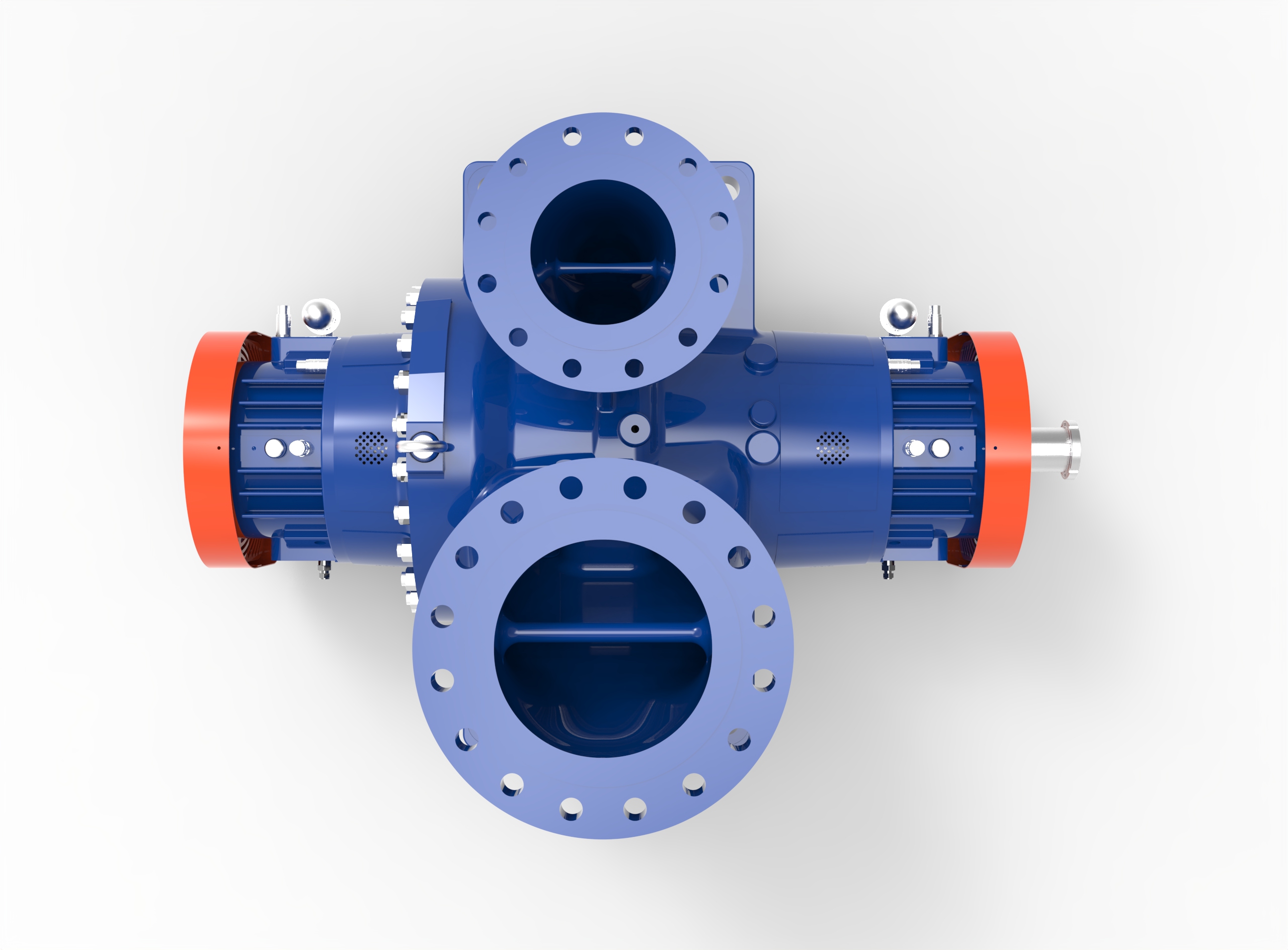

  • Top view of a Termomeccanica Pompe DP BB2 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

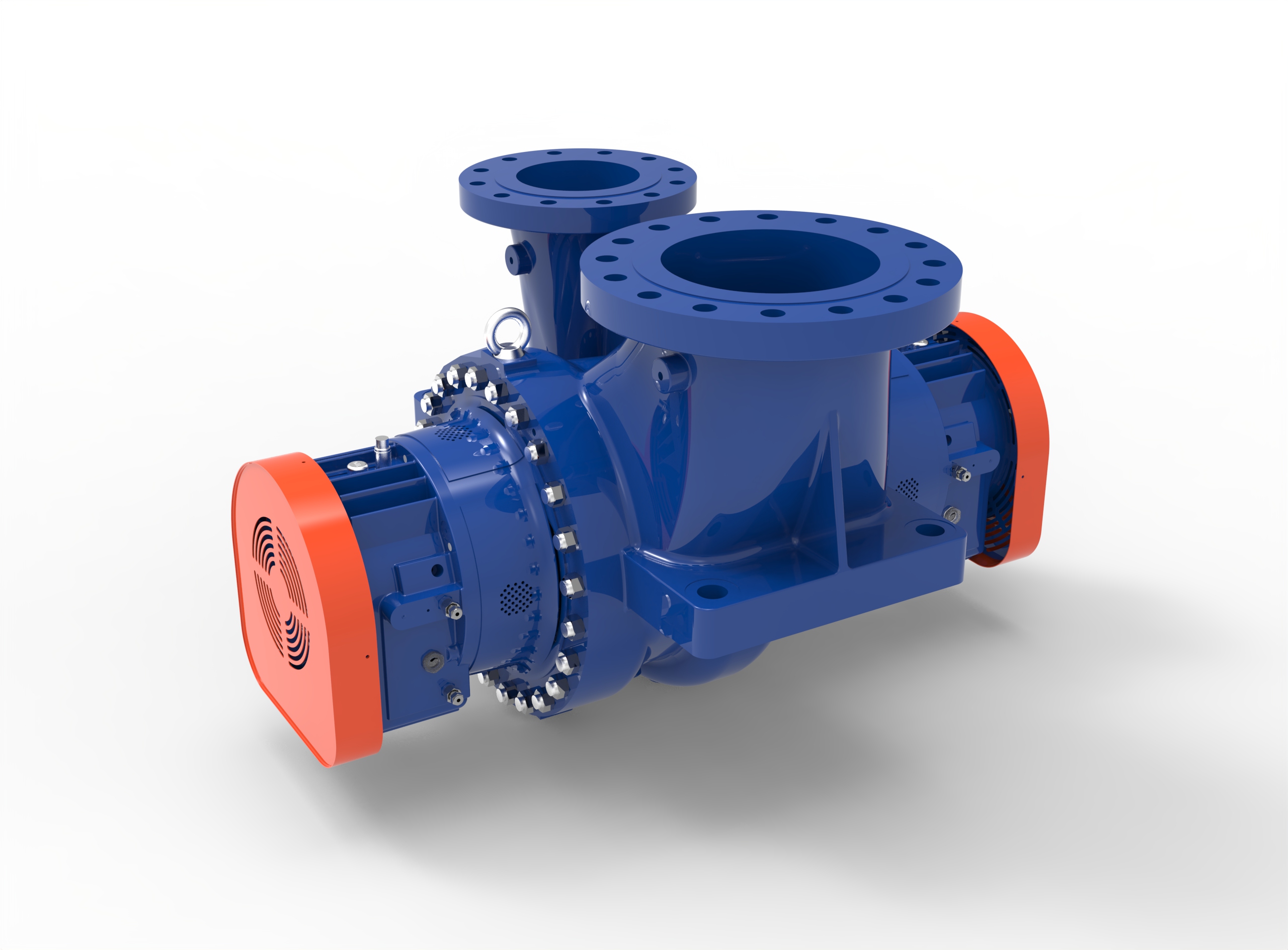

  • Angled front left side view of a Termomeccanica Pompe DP BB2 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

Termomeccanica Pompe

DP BB2 TYPE API 610 CENTRIFUGAL PUMP

Termomeccanica Pompe DP pumps are between bearings, radially split, single stage, with a double suction impeller and double volute.
DP pumps are heavy duty process pumps, centerline mounted for high temperature, high pressure services. Nozzles are top-top but side-side, bottom-side, and side-top options are available upon request. The double volute casing reduces radial hydraulic thrust while the double cover design allows easy access for maintenance. On the largest sizes, a single cover solution is adopted.

OPERATING RANGE

  • Capacity up to 5,000 m³/h (22,014 gpm)
  • Head up to 600 m (1,970 ft.)
  • Pressure up to 150 bar (2,180 psig)
  • Temperature up to 450°C (840°F)
  • Speed of rotation up 6,000 RPM

MAIN APPLICATIONS

  • Oil well water injection
  • Oil transfer
  • FPSO – FSO
  • Hydrocarbon pipelines
  • Refinery & petrochemical services
  • Boiler feed and booster in fossil fuel and nuclear power plants
  • Auxiliary services in nuclear power and general industry plants

DESIGN STANDARD

  • API 610 Latest Edition for O&G applications
