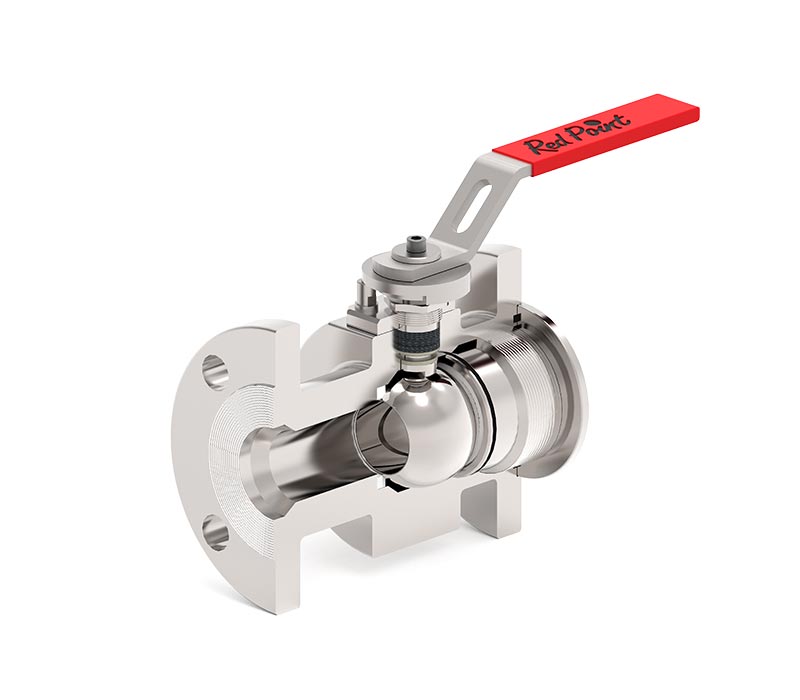

• Red Point Ball Valve Side Entry Dn50 150lbs.

RED POINT®

End Entry Construction Ball Valves

Red Point’s end entry seated floating ball valves can be deployed for a wide variety of applications in the oil & gas, petrochemical, mining, and power industries when high quality, reliable valves are required.

Design

  • Floating End Entry

Design Standard

  • ASMEB16.34
  • EN12516
  • API608
  • API6D
  • BS5351
  • DIN3357
  • JIS2071
  • MSS SP72

End connections

  • Flanged
  • BW
  • SW
  • THR
  • HUB

Operated

  • Lever
  • Gear
  • Actuator (pneumatic – electric – hydraulic)

Fire safe

  • Design and Certified API607, API6Fa, ISO10497

Mounting pad

  • ISO5211 – Top Flange

Size & bore

  • ANSI 1/4 – 6”
  • DN 6 – DN 150

Seats

  • Soft Seated
  • Self-Relieving

Construction

  • One Piece Body
  • Anti Static Device
  • Blow-Out Proof Stem

Face to Face

  • ASME B16.10
  • EN558
  • JIS B2002
  • MSS SP72

Design & Testing

All available international standards according to API6D, API598, EN12266, MSS SP82, ISO5208

Fugitive emission

  • ISO EN15848-1
  • EN15848-2

Options

  • Extended Bonnet
  • Lipseals
  • Local CRA Overlay
  • Heating Jacket
  • Drain & Vent
  • AED Seals
  • Mechanically Linked V-port

Pressure range

  • ANSI 150 – 1,500 lbs.
  • DIN PN 10 – PN 260

Ball Seat Design

The shaped sealing surface feature of the valve makes the sealing more reliable. Designs with various types of low friction seat materials are available.

Hard Facing and Soft Seat Options

Thermoplastic seat materials include: TFM, PTFE, RPTFE, PEEK, POM, PCTFE
For Cryogenic service with valves equipped with a cavity relief hole in the ball, special cryo-seating construction that withstands fluctuations in pressure and temperature are utilized.

A few example applications include:

  • High-cycle and switching services
  • Oxygen, nitrogen, or hydrogen
  • Polyethylene or polypropylene
  • Oil & Gas services
  • Hydrogen
  • Food/Pharma
  • Toxic/Lethal service
  • Autoclave services
  • Coal conversion & gasification
  • Separator, filter, and drying systems
  • Compressor stations
  • Cryogenic services

Nickel Alloys (Monel®, Inconel®, Hastelloy®, Incoloy®), Duplex and Super Duplex, Carbon Steel and Low Temp Carbon Steel, Low Alloy Steel, Stainless Steel, Titanium, Zirconium
