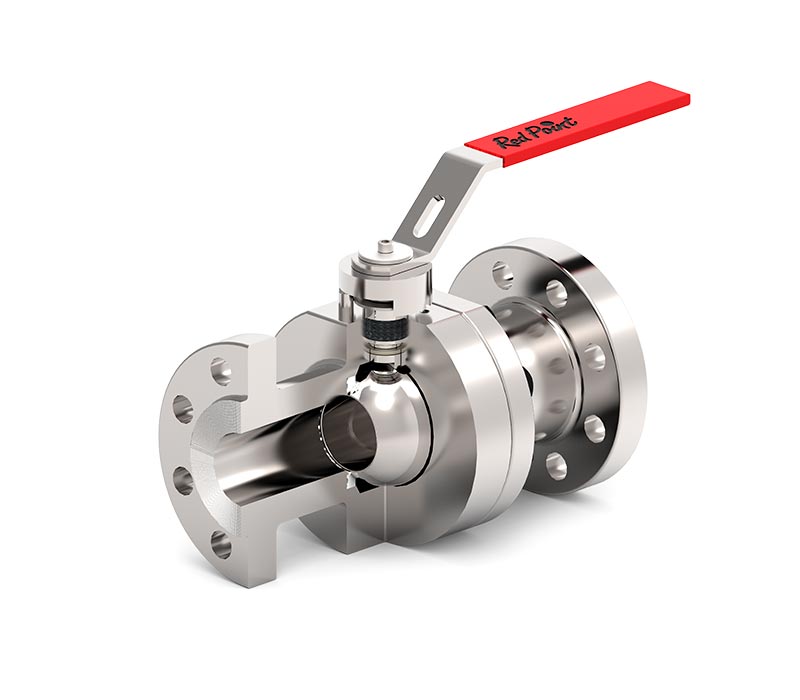

Floating Ball Soft Seated Ball Valves

Red Point’s soft seated floating ball valves can be deployed for a wide variety of applications in the oil & gas, petrochemical, mining, and power industries when high quality, reliable valves are required.

Construction

One Piece Body (Top Entry)
Split Body (Side or End Entry)
Anti Static Device & Blow-Out Proof Stem

Operated

Lever
Gear
Actuator (pneumatic – electric – hydraulic)

Face to Face

ASME B16.10
EN558
JIS B2002
MSS SP72

Mounting pad

ISO5211 – Top Flange

Options

Extended Bonnet
Lug Type
Lipseals
Local CRA Overlay
Heating Jacket
Drain & Vent AED Seals,
Mechanically Linked V-Port

Pressure range

ANSI 150 – 4,500 lbs.
DIN PN 10 – PN 400
API 5,000 – 10,000 psi

End connections

Flanged
BW
SW
THR
HUB

Design & Testing

All available international standards according to API6D, API598, EN12266, MSS SP82, ISO5208

Fire Safe

Design and Certified API607, API6Fa, ISO10497

Fugitive emission

ISO EN15848-1
EN15848-2

Size & bore

ANSI 1/4 – 16”
DN 6 – DN 200

Ball Seat Designs, Hard Facing, & Soft Seats

Ball Seat Design

The shaped sealing surface feature of the valve makes the sealing more reliable. Designs with various types of low friction seat materials are available.

Hard Facing and Soft Seats

Thermoplastic seat materials available include: TFM, PTFE, RPTFE, PEEK, POM, PCTFE
For Cryogenic service, valves equipped with a cavity relief hole within the ball, special cryo-seating construction is used that withstands fluctuations of pressure and temperature.

Applications

A few example applications include:

High-cycle and switching services
Oxygen, nitrogen, or hydrogen
Polyethylene or polypropylene
Oil & Gas services
Hydrogen
Food/Pharma
Toxic/Lethal service
Autoclave services
Coal conversion & gasification
Separator, filter, and drying systems
Compressor stations
Cryogenic services

Body Materials Available

Nickel Alloys (Monel^®, Inconel^®, Hastelloy^®, Incoloy^®), Duplex and Super Duplex, Carbon Steel and Low Temp Carbon Steel, Low Alloy Steel, Stainless Steel, Titanium, Zirconium
