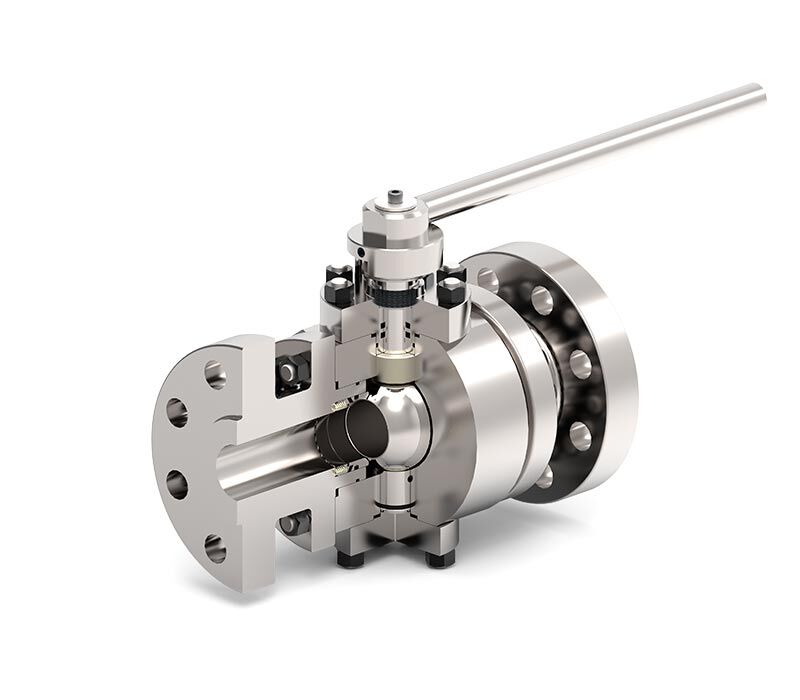

• RED POINT® METAL SEATED TRM BALL VALVES

RED POINT®

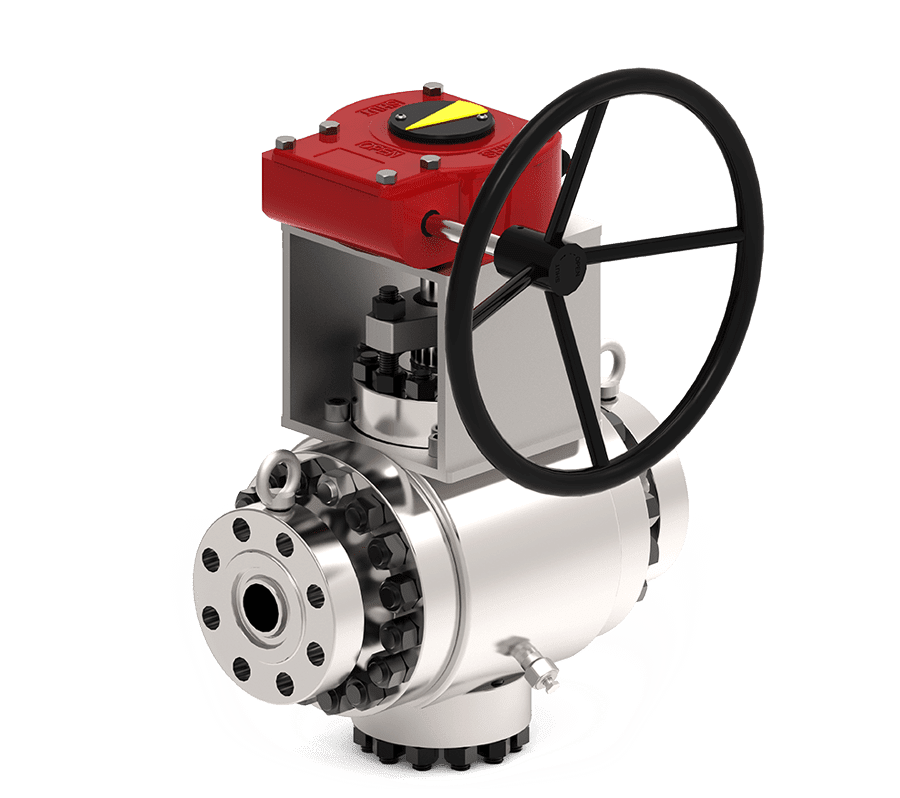

Metal seated TRM Ball valves

Red Point’s metal seated TRM ball valves can be deployed for a wide variety of applications in the oil & gas, petrochemical, mining, and power industries when high quality, reliable valves are required.

Construction

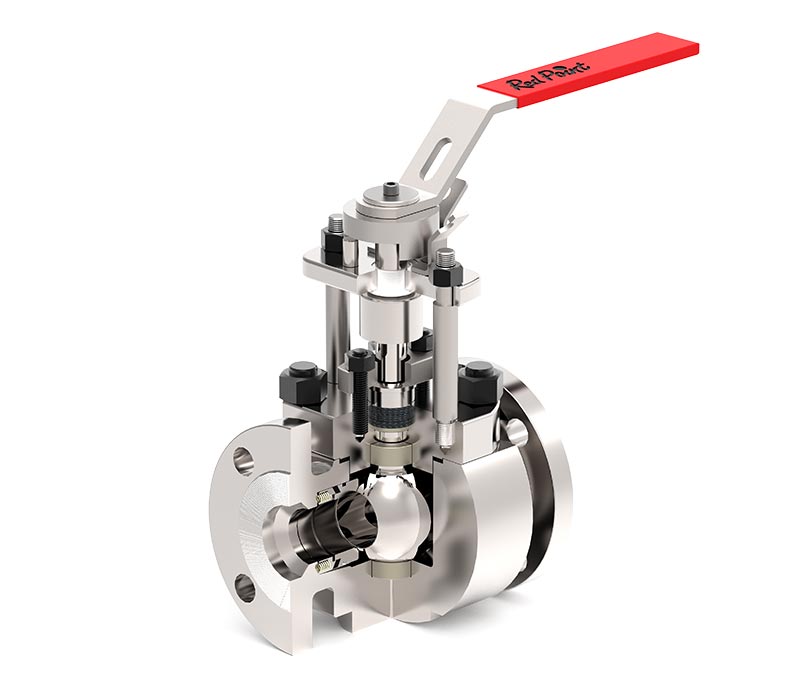

  • Two Piece Body or Three Piece Body
  • Blow-Out Proof Stem

End connections

  • Flanged
  • BW
  • SW
  • THR
  • HUB

Design

  • API6D
  • ASME B16.34

Face to Face

  • ASME B16.10
  • EN558
  • JIS B2002
  • MSS SP72

Fugitive emission

  • ISO EN15848-1
  • ISO EN15848-2

Options

  • Extended Bonnet
  • Lipseals
  • Local CRA Overlay
  • Injection Sealing Seat & Packing
  • Heating Jacket
  • Drain & Vent
  • AED Seals
  • DBB- DIB1 – DIB2 as per API6D

Pressure range

  • ANSI 150 – 4,500 lbs.
  • DIN PN 10 – PN 400
  • API 5,000 – 10,000 psi

Sealing

  • Uni-Directional or Bi-Directional

Operated

  • Lever, Gear, Actuator (pneumatic – electric – hydraulic)

Testing

  • API6D
  • API598
  • EN12266
  • MSS SP82
  • ISO5208
  • API6A

Fire Safe

  • Design and Certified API607, API6Fa, ISO10497

Mounting pad

  • ISO5211 – Top Flange

Size & bore

  • ANSI 1/4 – 16”
  • DN 6 – DN 400

Temperature

  • -196°C – 816°C (-320°F – 1,500°F)

Ball Seat Designs

  • Maintains tight contact between ball/seat regardless of valve installation orientation
  • Low coefficient of friction
  • Excellent sliding and running properties
  • Optimal selection of flexibility and stiffness of both ball and seat rings

Hard Facing

To prevent wear and tear controlling physical and chemical characteristics, Red Point® uses several qualified surface treatment techniques to increase the service lifetime of valves and its components. Depending on the material in question, pressure, temperature, and service conditions a few techniques can be used. These surface treatments, in combination with a high class design, entered to your specific process conditions, will result in a high quality valve, which guarantees a long cycle life.

A few example applications include:

  • High-temperature services
  • High-pressure services
  • High-cycle and switching services
  • Emergency shutdown valves
  • High-integrity pressure protection system
  • Solids handling (powders, fines, dust, and catalysts)
  • Coal conversion & gasification
  • Thermal fluids
  • Oil & Gas services
  • Toxic/Lethal services
  • Autoclave services
  • Solar power molten salt
  • Catalyst
  • Delayed coking
  • High Pressure Acid Leach processes

Nickel Alloys (Monel®, Inconel®, Hastelloy®, Incoloy®), Duplex and Super Duplex, Carbon Steel and Low Temp Carbon Steel, Low Alloy Steel, Stainless Steel, Titanium, Zirconium
