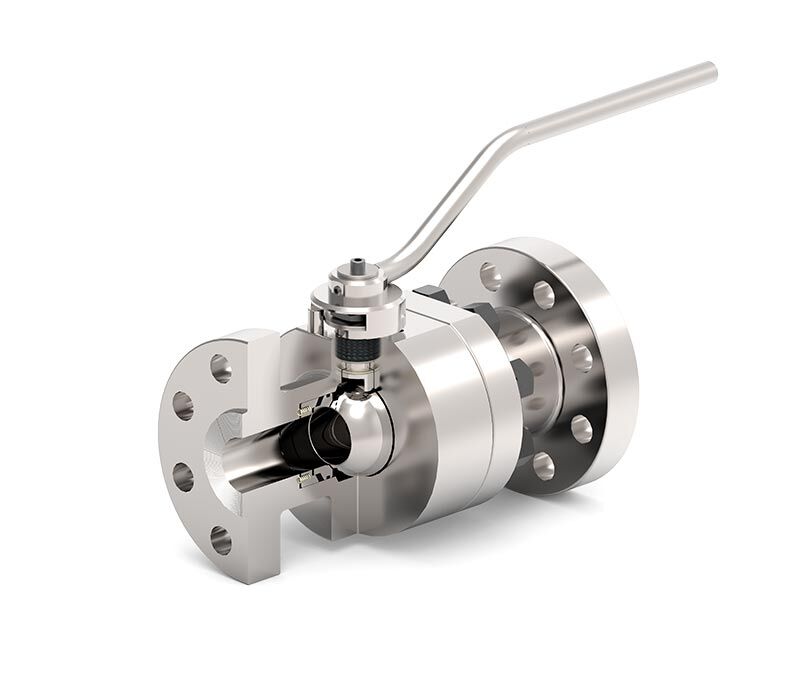

• Red Point Ball Valve Floating Metal Dn50 1500lbs

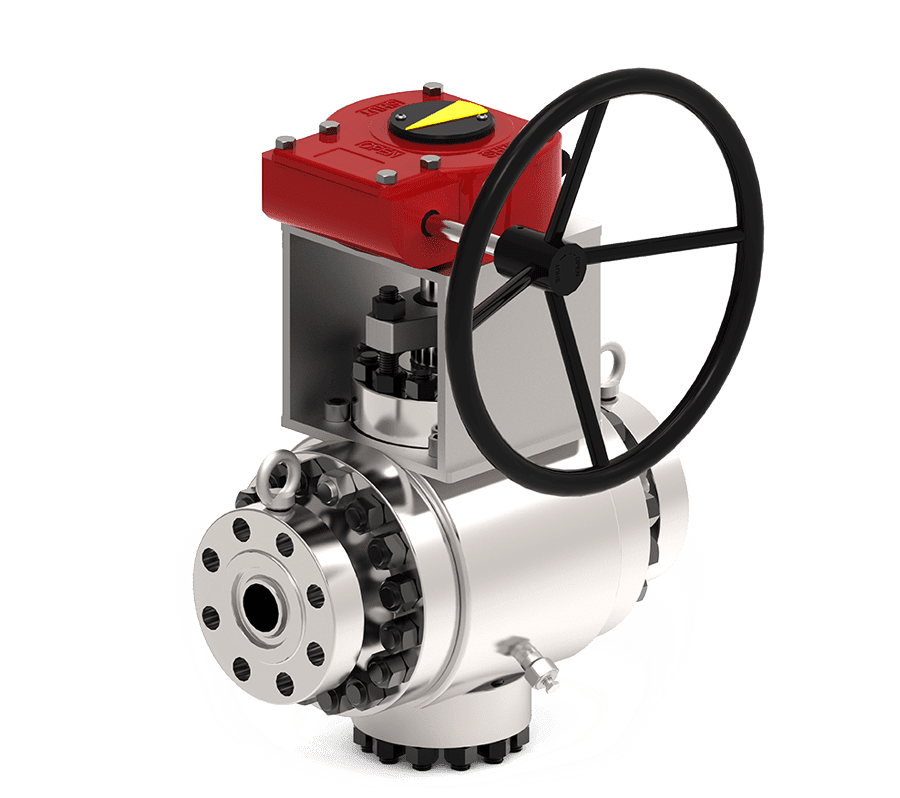

  • Red Point Api6a Feature

RED POINT®

Floating Ball Metal Seated Ball Valves

Red Point’s metal seated floating ball valves can be deployed for a wide variety of applications in the oil & gas, petrochemical, mining, and power industries when high quality, reliable valves are required.

Construction

  • One Piece Body (Top Entry)
  • Split Body (Side or End Entry)
  • Anti-Static Device & Blow-Out Proof Stem

End connections

  • Flanged
  • BW
  • SW
  • THR
  • HUB

Operated

  • Lever
  • Gear
  • Actuator (pneumatic – electric – hydraulic)

Design & Testing

All available international standards according to API6D, API598, EN12266, MSS SP82, ISO5208, API6A

Face to Face

  • ASME B16.10
  • EN558
  • JIS B2002
  • MSS SP72

Fire Safe

  • Design and Certified API607, API6Fa, ISO10497

Mounting pad

  • ISO5211 – Top Flange

Fugitive emission

  • ISO EN15848-1
  • ISO EN15848-2

Options

  • Extended Bonnet
  • Lipseals
  • Local CRA
  • Overlay
  • Heating Jacket
  • Drain & Vent
  • Mechanically Linked

Size & bore

  • ANSI 1/4 – 16”
  • DN 6 – DN 200

Pressure range

  • ANSI 150 – 4,500 lbs.
  • DIN PN 10 – PN 400
  • API 5,000 – 10,000 psi

Temperature

  • -196°C – 816 °C
  • -320°F – 1,500°F

Ball Seat Design

Maintains tight contact between ball and seat regardless of valve installation orientation.

  • Low coefficient of friction
  • Excellent sliding and running properties
  • Optimal selection of flexibility and stiffness of both ball and seat rings

Hard facing

To prevent wear and tear controlling physical and chemical characteristics, Red Point® uses several qualified surface treatment techniques to increase the service lifetime of valves and its components. Depending on the material in question, pressure, temperature, and service conditions a few techniques can be used. These surface treatments, in combination with a high class design, entered to your specific process conditions, will result in a high quality valve, which guarantees a long cycle life.

A few example applications include:

  • High-cycle and switching services
  • Oxygen, nitrogen, or hydrogen
  • Polyethylene or polypropylene
  • Oil & Gas services
  • Hydrogen
  • Food/Pharma
  • Toxic/Lethal service
  • Autoclave services
  • Coal conversion & gasification
  • Separator, filter, and drying systems
  • Compressor stations
  • Cryogenic services

Nickel Alloys (Monel®, Inconel®, Hastelloy®, Incoloy®), Duplex and Super Duplex, Carbon Steel and Low Temp Carbon Steel, Low Alloy Steel, Stainless Steel, Titanium, Zirconium
