RED POINT®

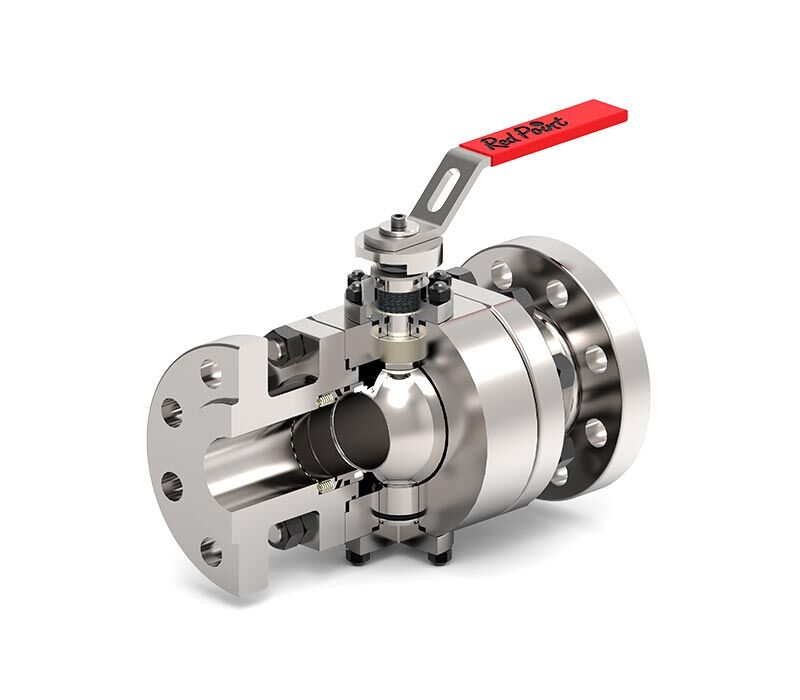

Soft seated TRM Ball valves

Red Point’s soft seated TRM ball valves can be deployed for a wide variety of applications in the oil & gas, petrochemical, mining, and power industries when high quality, reliable valves are required.

Construction

  • One Piece Body
  • Split Body
  • Blow-Out Proof Stem

Operated

  • Lever, Gear, Actuator (pneumatic – electric – hydraulic)

Face to Face

  • ASME B16.10
  • EN558
  • JIS B2002
  • MSS SP72

Mounting pad

  • ISO5211 – Top Flange

Options

  • Extended Bonnet
  • Lipseals
  • Single or Double Piston Design (SPE-DPE)
  • Injection Sealing Seat & Packing
  • Local CRA Overlay
  • Heating Jacket
  • Drain & Vent
  • AED Seals
  • DBB- DIB1 – DIB2 as per API6D
  • 2-way
  • 3-way
  • 4-way
  • Mechanically Linked

End connections

  • Flanged
  • BW
  • SW
  • THR
  • HUB

Design & Testing

  • All available international standards according to API6D, API598, EN12266, MSS SP82, ISO5208, API6A

Fire Safe

  • Design and Certified API607, API6Fa, ISO10497

Fugitive emission

  • ISO EN15848-1
  • ISO EN15848-2

Size & bore

  • ANSI 1/4 – 16”
  • DN 6 – DN 400

Pressure range

  • ANSI 150 – 4,500 lbs.
  • DIN PN 10 – PN 400
  • API 5,000 – 10,000 psi
Ball Seat Design

  • Maintains tight contact between ball/seat regardless of valve installation orientation
  • Low coefficient of friction
  • Excellent sliding and running properties
  • Optimal selection of flexibility and stiffness of both ball and seat rings

Soft Seat Options

Thermoplastic seat materials include: Graphite, Devlon, TFM, PTFE, RPTFE, PEEK, POM, PCTFE, Nylon

A few example applications include:

  • High-cycle and switching services
  • Emergency shutdown valves
  • High-integrity pressure protection system
  • High-pressure oxygen, nitrogen, or hydrogen
  • Polyethylene or polypropylene
  • Oil & Gas services
  • Hydrogen
  • Food/Pharma
  • Toxic/Lethal service
  • Autoclave services
  • Coal conversion & gasification
  • Separator, filter, and drying systems
  • Compressor stations

Nickel Alloys (Monel®, Inconel®, Hastelloy®, Incoloy®), Duplex and Super Duplex, Carbon Steel and Low Temp Carbon Steel, Low Alloy Steel, Stainless Steel, Titanium, Zirconium
