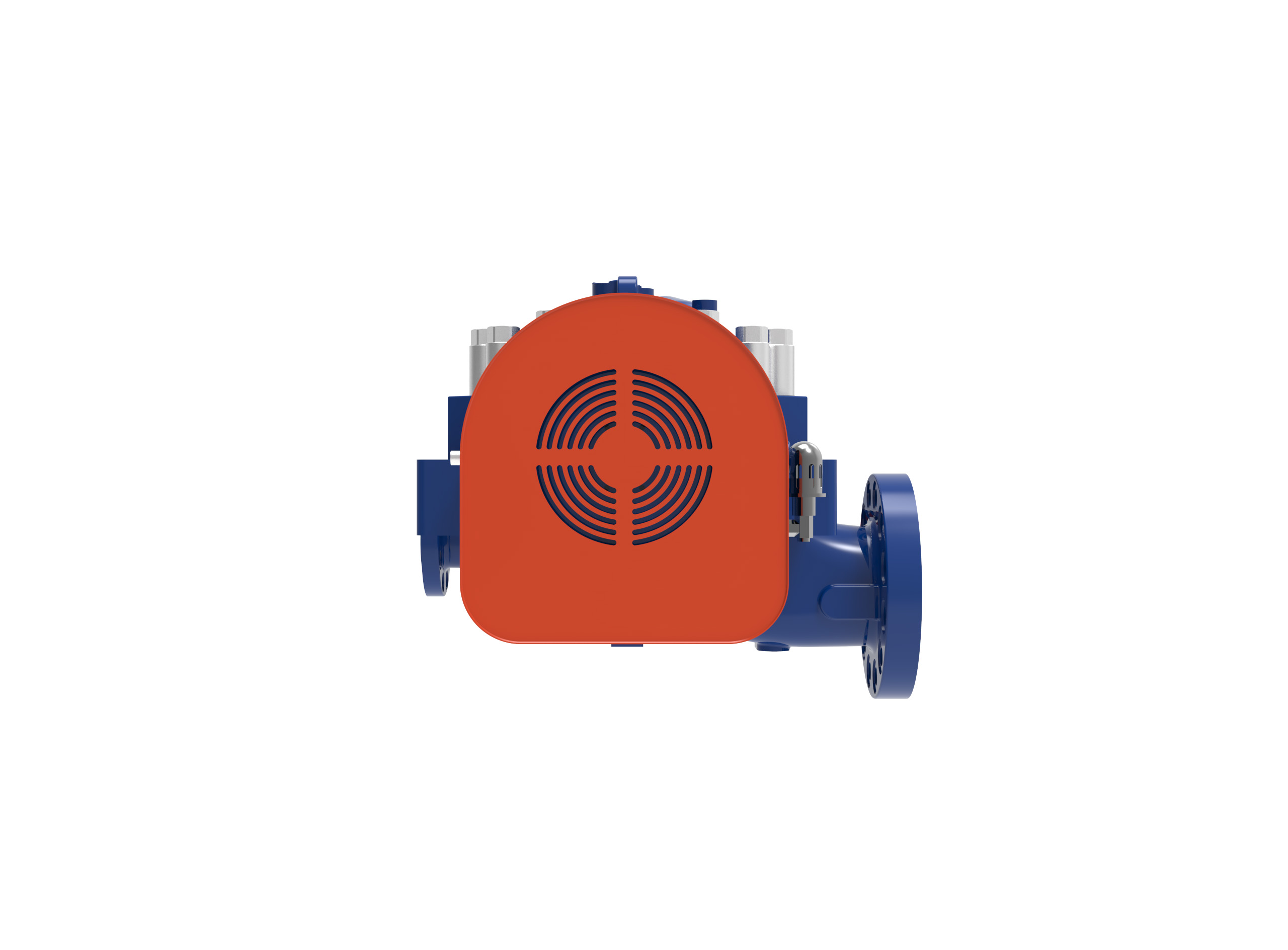

• Front side view of a Termomeccanica Pompe PF BB3 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

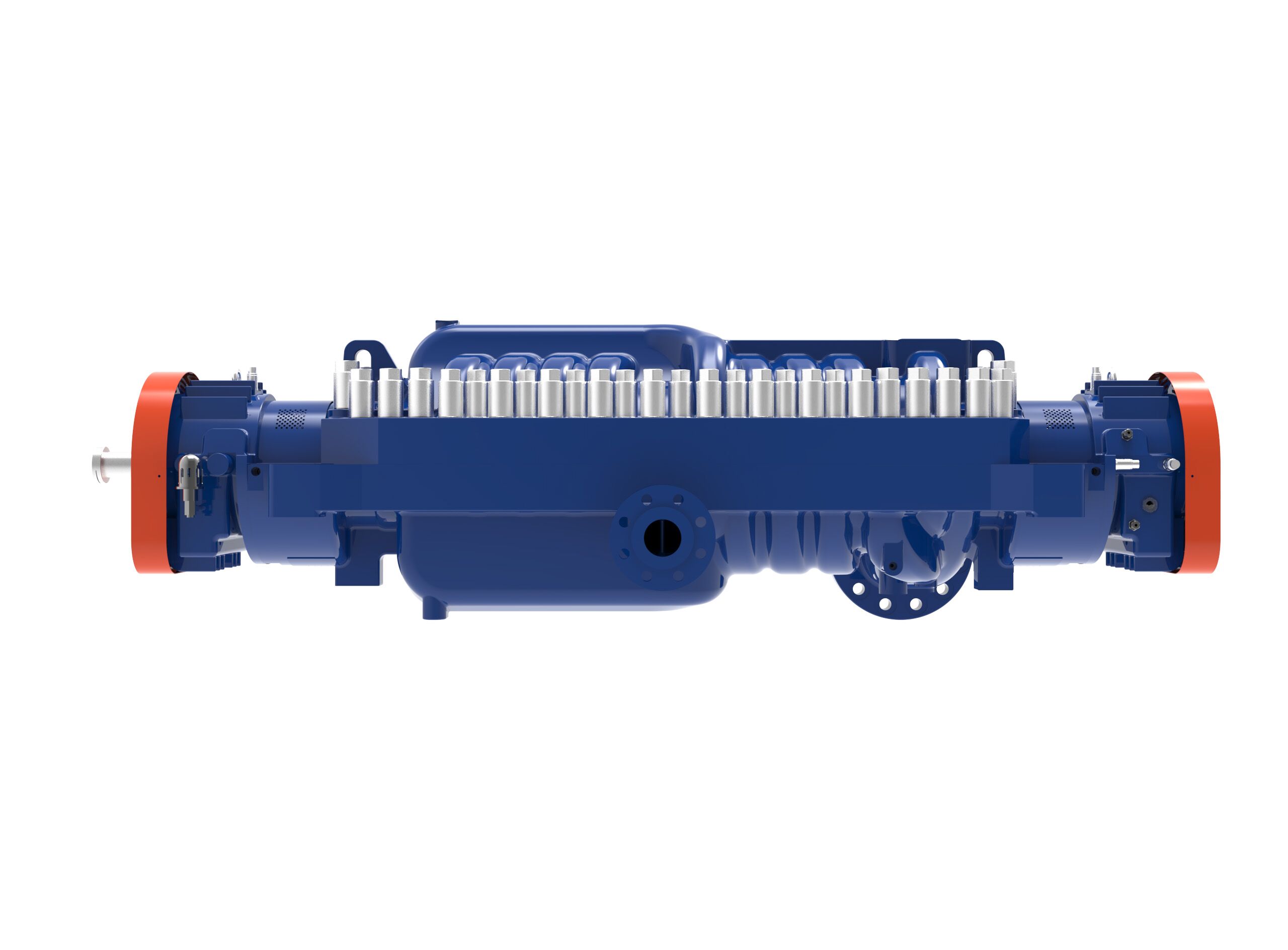

  • Right side view of a Termomeccanica Pompe PF BB3 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

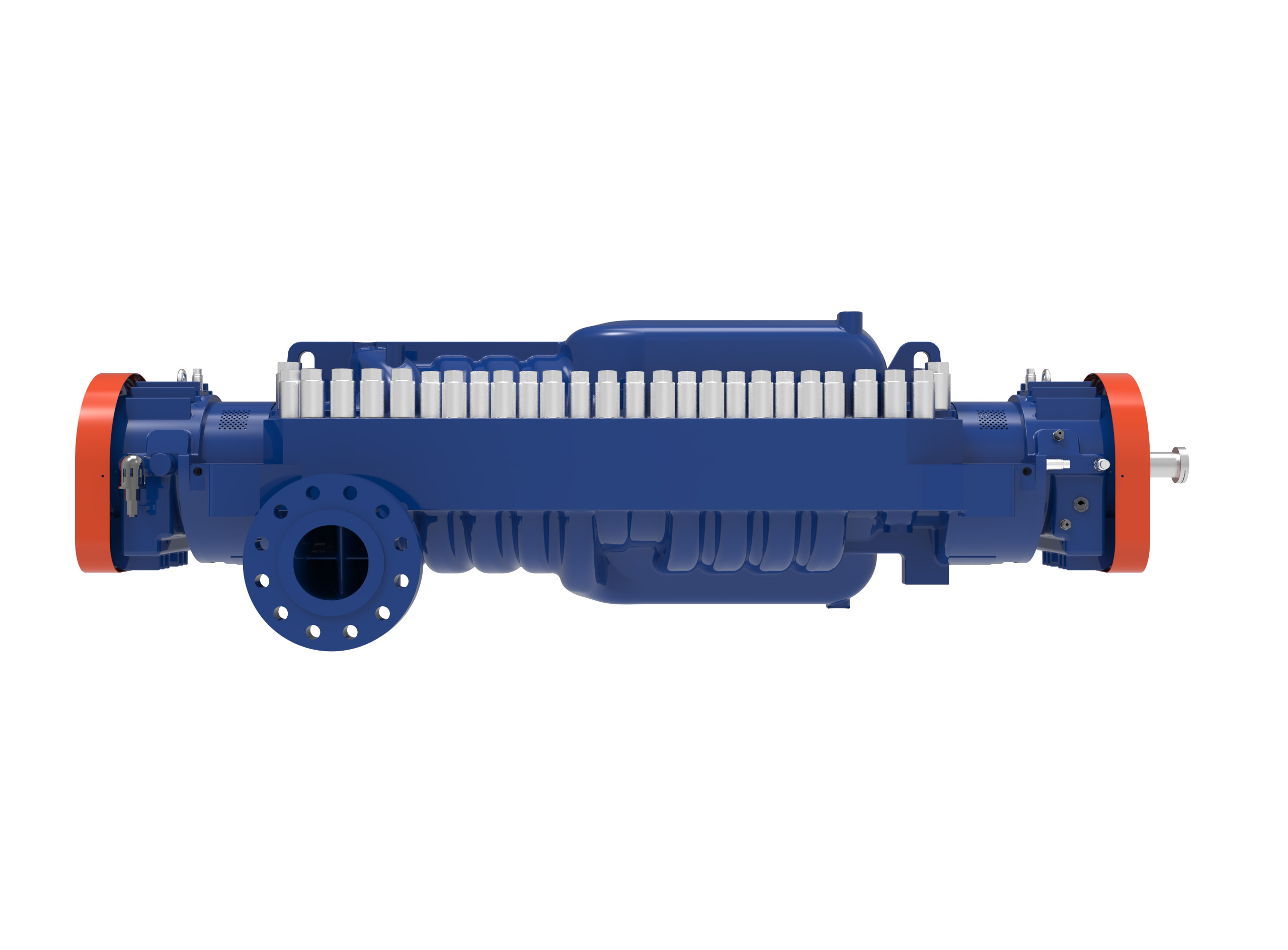

  • Backside view of a Termomeccanica Pompe PF BB3 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

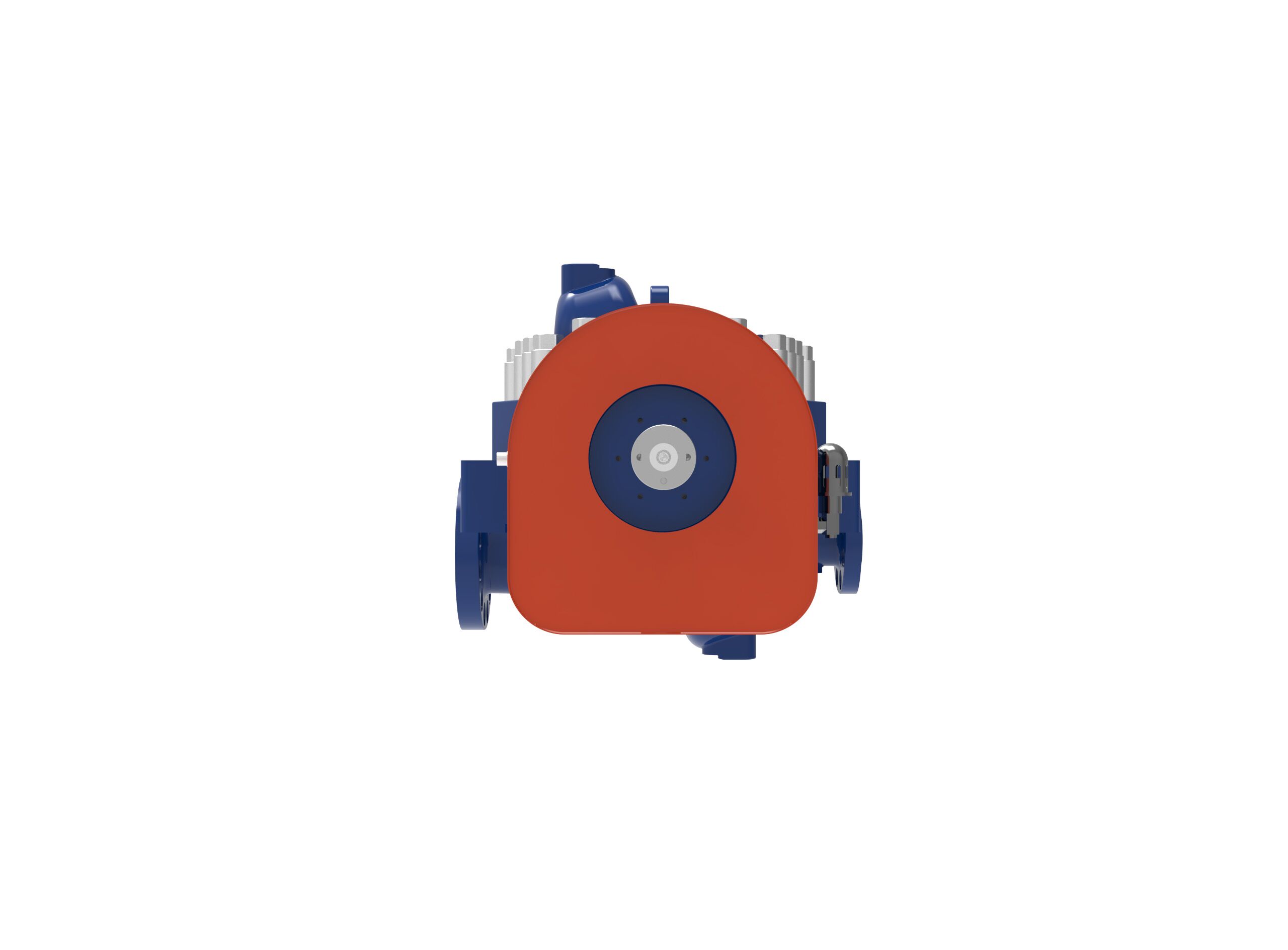

  • Left side view of a Termomeccanica Pompe PF BB3 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

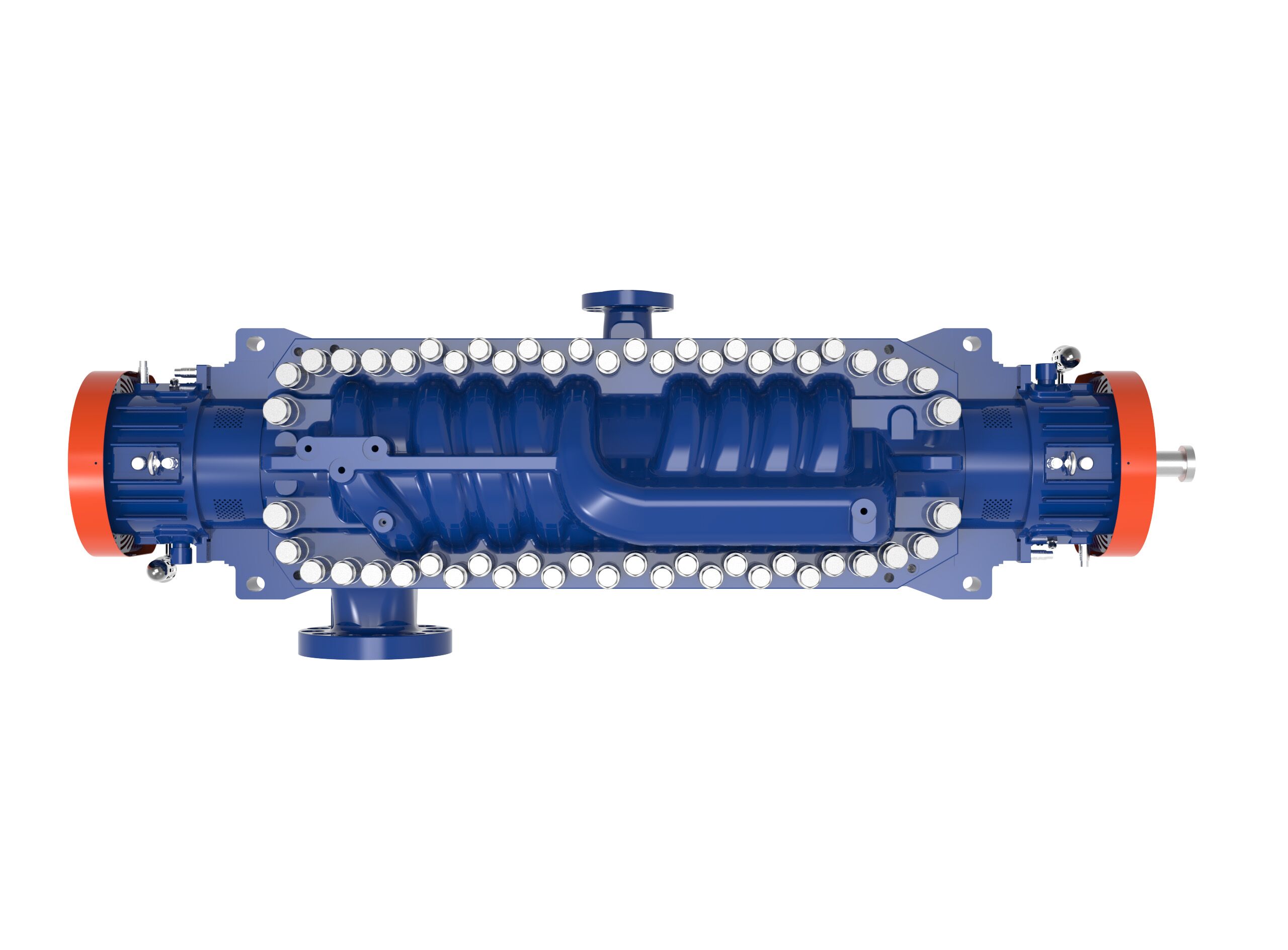

  • Top view of a Termomeccanica Pompe PF BB3 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

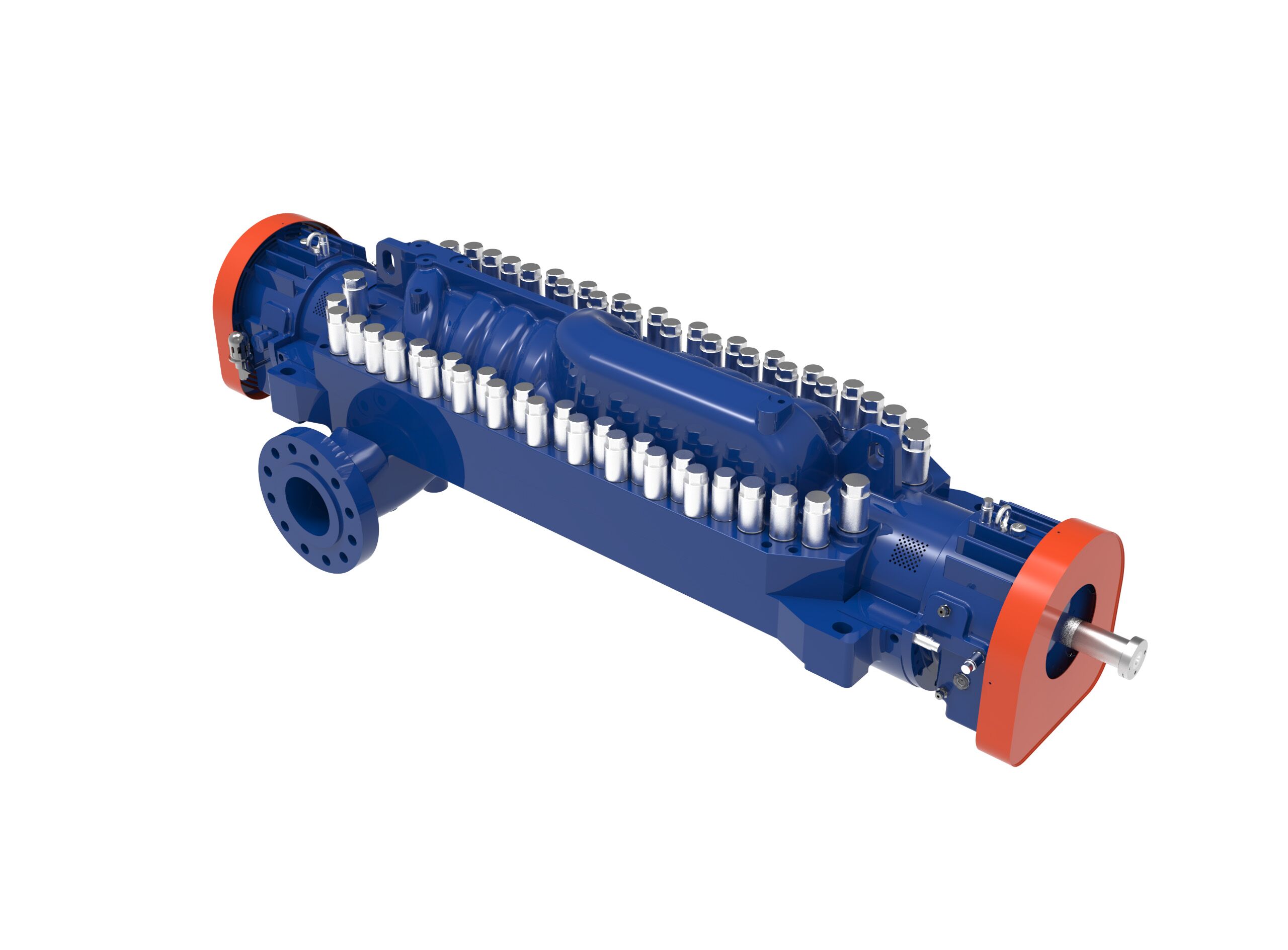

  • Angled front right side view of a Termomeccanica Pompe PF BB3 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

Termomeccanica Pompe

PF BB3 TYPE API 610 CENTRIFUGAL PUMP

Termomeccanica Pompe PF pumps are heavy duty, high pressure, with double volute casing and multistage opposed impellers, and are near centerline mounted.The first stage impellers are double entry for low NPSH applications. The opposed impellers arrangement is for axial thrust balancing and minimum bearing loads. Suction and discharge nozzles are integrally cast with the bottom half casing, on opposite sides. Ball/ball, sleeve/ball and sleeve/tilting pads solutions are available.

OPERATING RANGE

  • Capacity up to 3,000 m³/h (13,210 gpm)
  • Head up to 2,500 m (8,200 ft.)
  • Pressure up to 300 bar (4,350 psig)
  • Temperature up to 200°C (390°F)
  • Speed of rotation up 6,000 RPM

MAIN APPLICATIONS

  • Oil well water injection
  • Offshore installation
  • Hydrocarbon pipelines
  • Liquefied gas industry
  • Water transportation
  • Reverse Osmosis
  • HP service
  • Boiler feed water service in traditional power plants
  • Nuclear auxiliary services
  • Fire fighting

DESIGN STANDARD

  • API 610 Latest Edition for O&G applications
