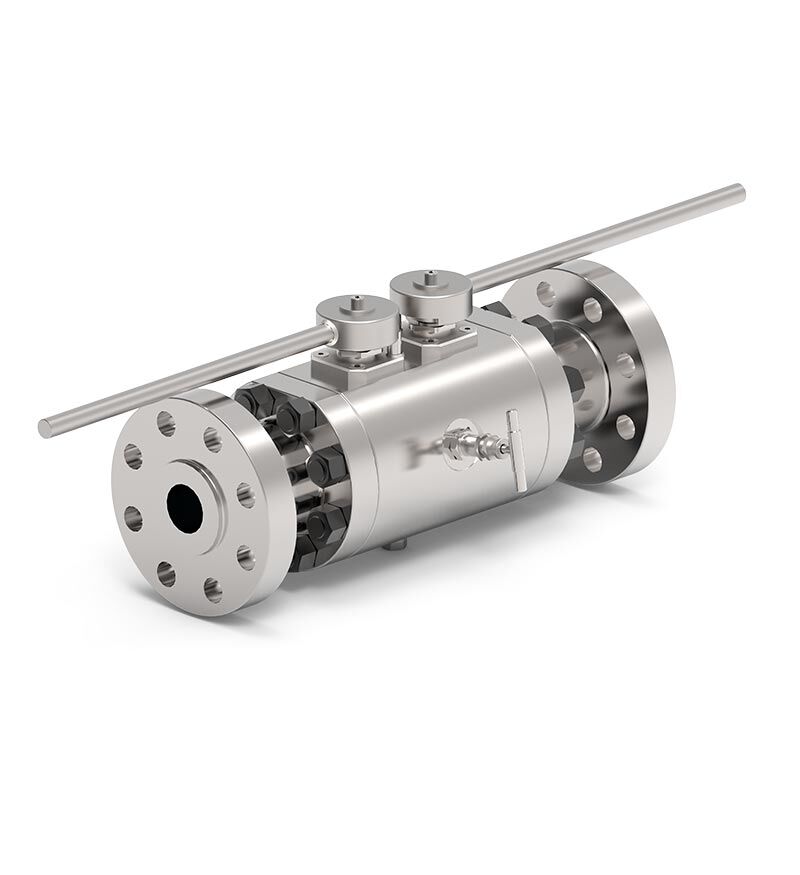

• RED POINT® DOUBLE BLOCK & BLEED VALVES,Double Block & Bleed valve

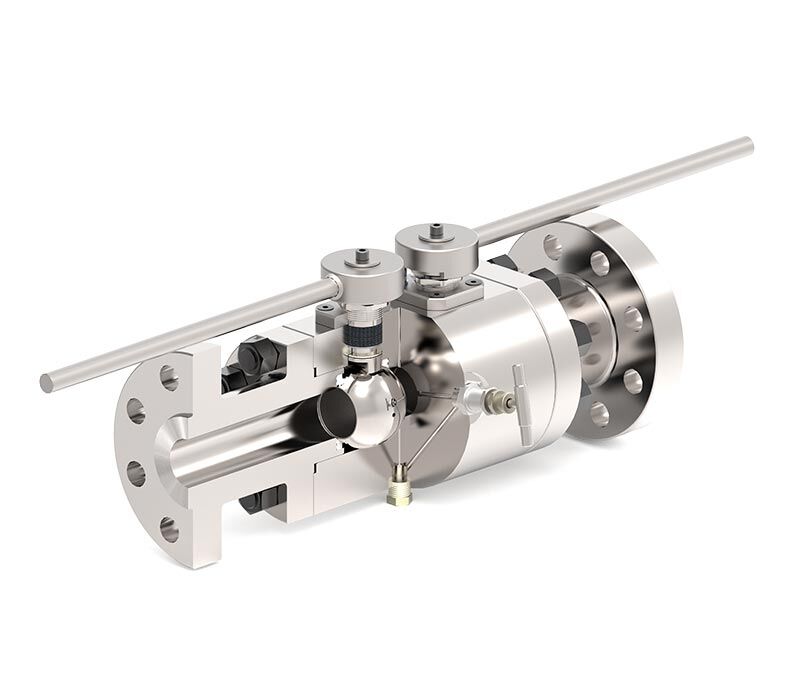

  • RED POINT® DOUBLE BLOCK & BLEED VALVES,Double Block & Bleed valve, floating soft seated

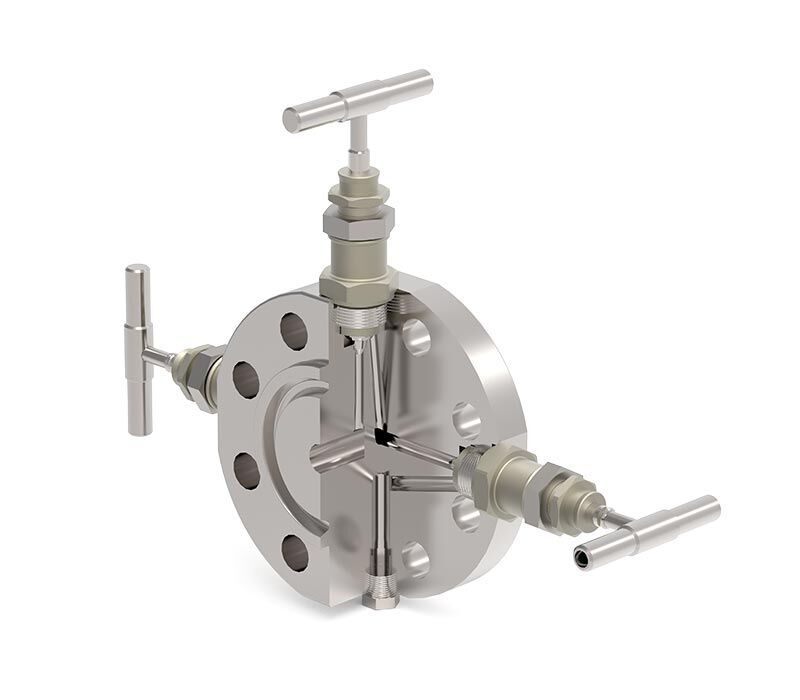

  • RED POINT® DOUBLE BLOCK & BLEED VALVES,Double Block & Bleed valve, monoflange

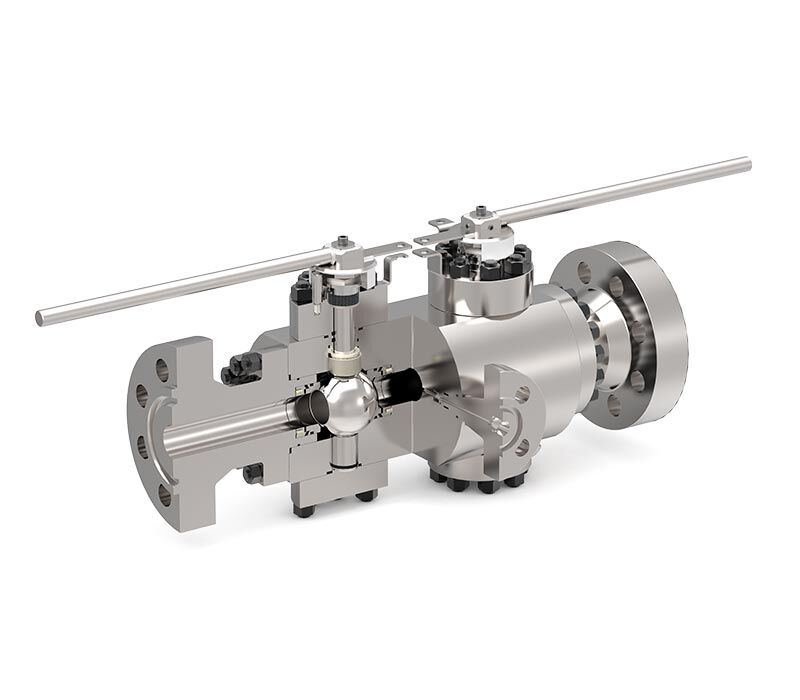

  • RED POINT® DOUBLE BLOCK & BLEED VALVES, Double Block & Bleed valve, metal seated

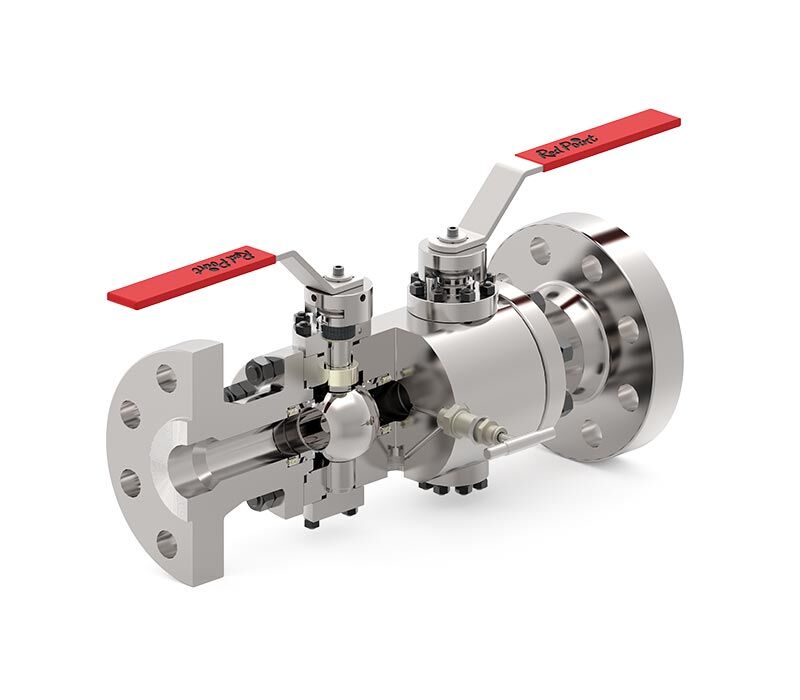

  • RED POINT® DOUBLE BLOCK & BLEED VALVES,Double Block & Bleed valve, soft seated

RED POINT®

Double Block & Bleed Valves

A Double Block & Bleed valve can perform the tasks of three separate valves. It would replace two separate isolations valves and one drain valve. This results in huge space savings and a sizeable weight reduction, which are positive benefits for FPSO’s and oil platforms. Double Block & Bleed valves can be supplied according to API6D and API6A.

Design

  • Floating or Trunnion Mounted
  • Single or Double Ball

Construction

  • One piece body (top, side, or end entry)
  • Split body (two or three piece)

Size ANSI

  • 0.25 – 16”

Pressure ANSI

  • 150 – 4,500 lbs.

End connections

  • Flanged
  • BW
  • SW
  • THR
  • HUB
  • PE

Operated

  • Lever
  • Gear
  • Bare Stem
  • Actuator

Available Materials

  • Duplex
  • Super Duplex
  • Stainless Steel
  • Carbon Steel
  • Alloy 600
  • Alloy 625
  • C 276
  • Alloy 800
  • Alloy 825
  • Titanium
  • Zirconium

Seats

  • Soft or metal seated

Seat materials

  • Graphite
  • Devlon
  • TFM
  • PTFE
  • PEEK
  • POM
  • PCTFE

Size DN

  • DN 6 – DN 400

Pressure PN

  • PN 10 – PN 400

Hard facing

  • Various hard facing on ball and seats

Options

  • Extended Stem
  • Extended Bonnet
  • Single or Double Piston

Design & Testing

All available international standards according to API, EN, ISO.
