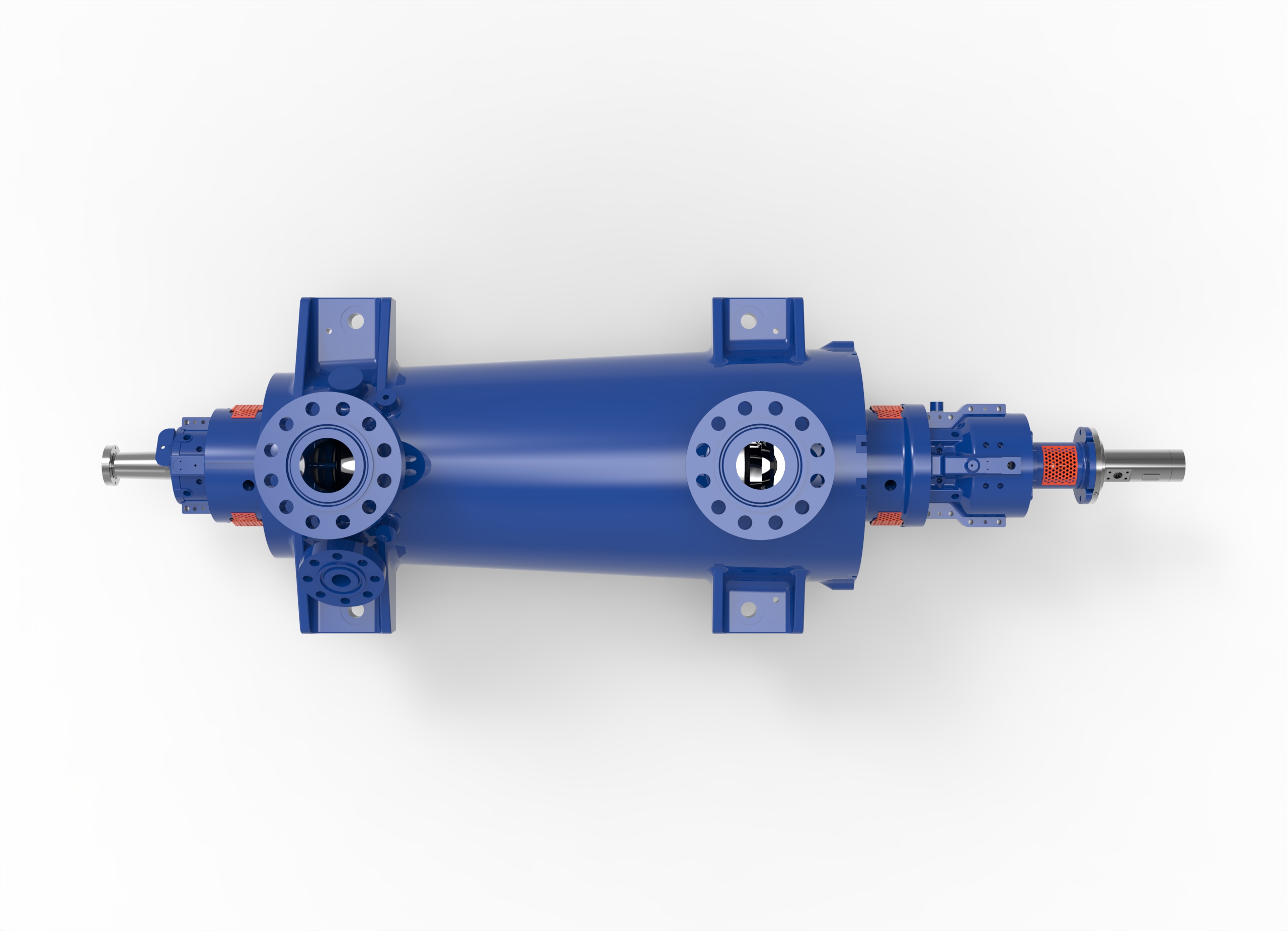

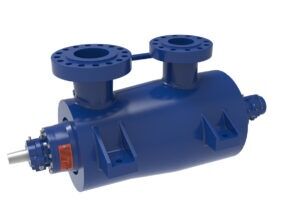

  • BB5 - TMP model: MESB – MESB-D Centrifugal-Pump - Perspective View

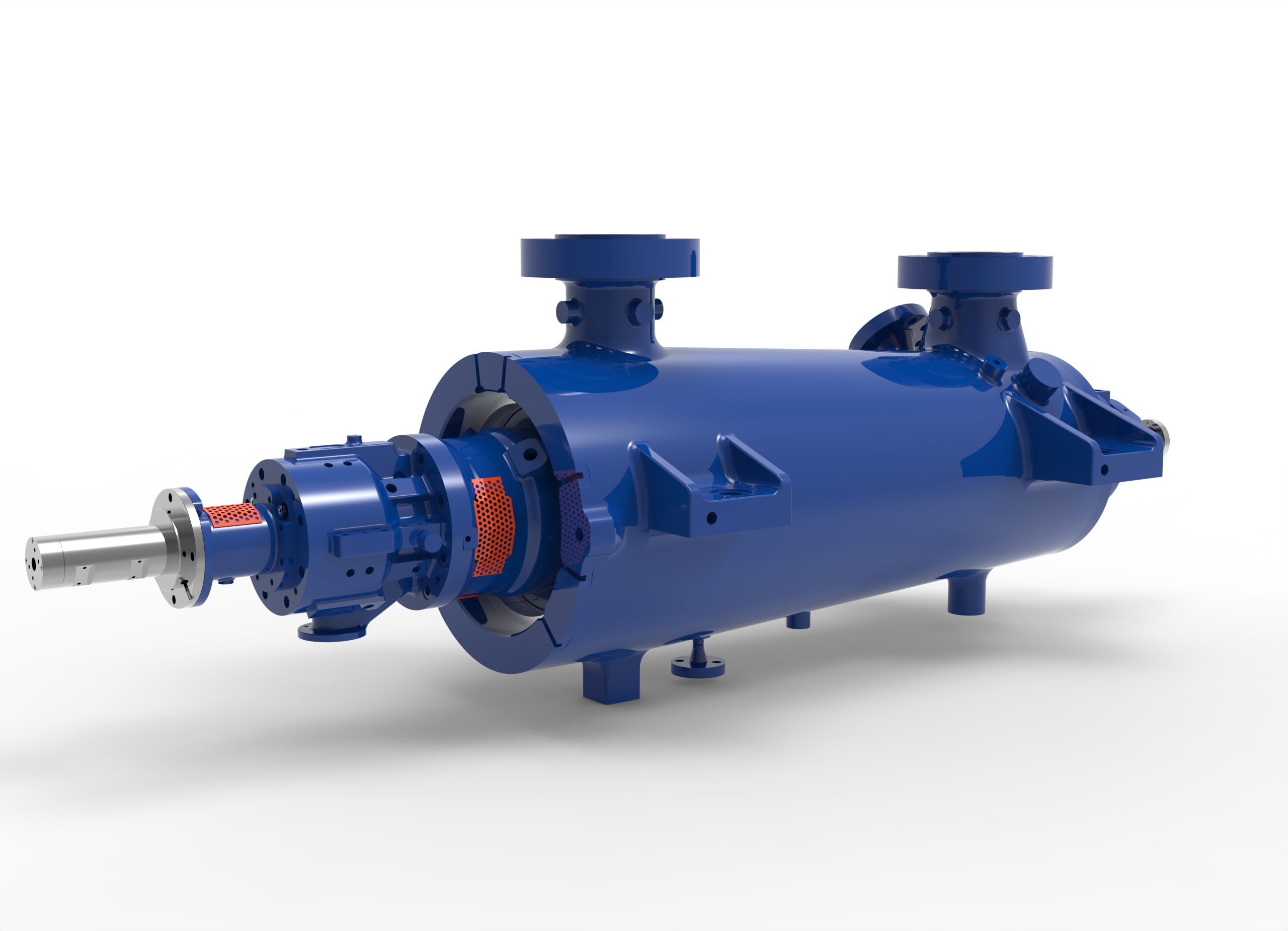

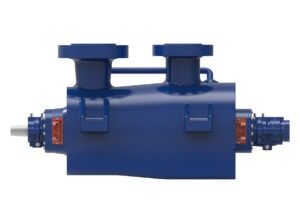

  • BB5 - TMP model: MESB – MESB-D Centrifugal-Pump - Side View

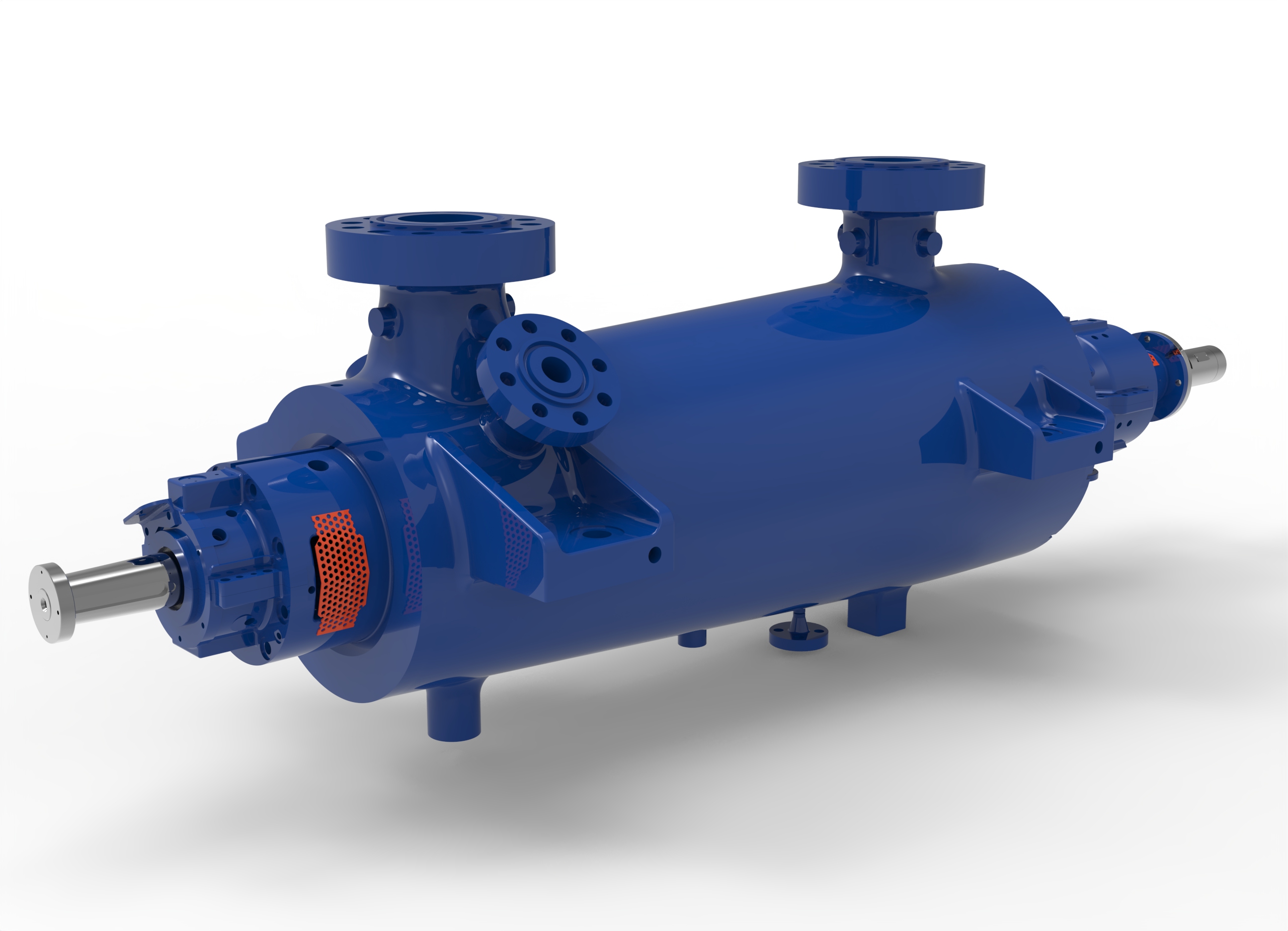

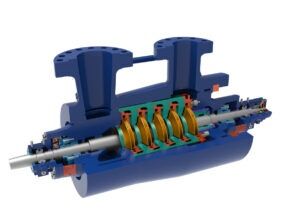

  • BB5 - TMP model: MESB – MESB-D Centrifugal-Pump - Side View 1

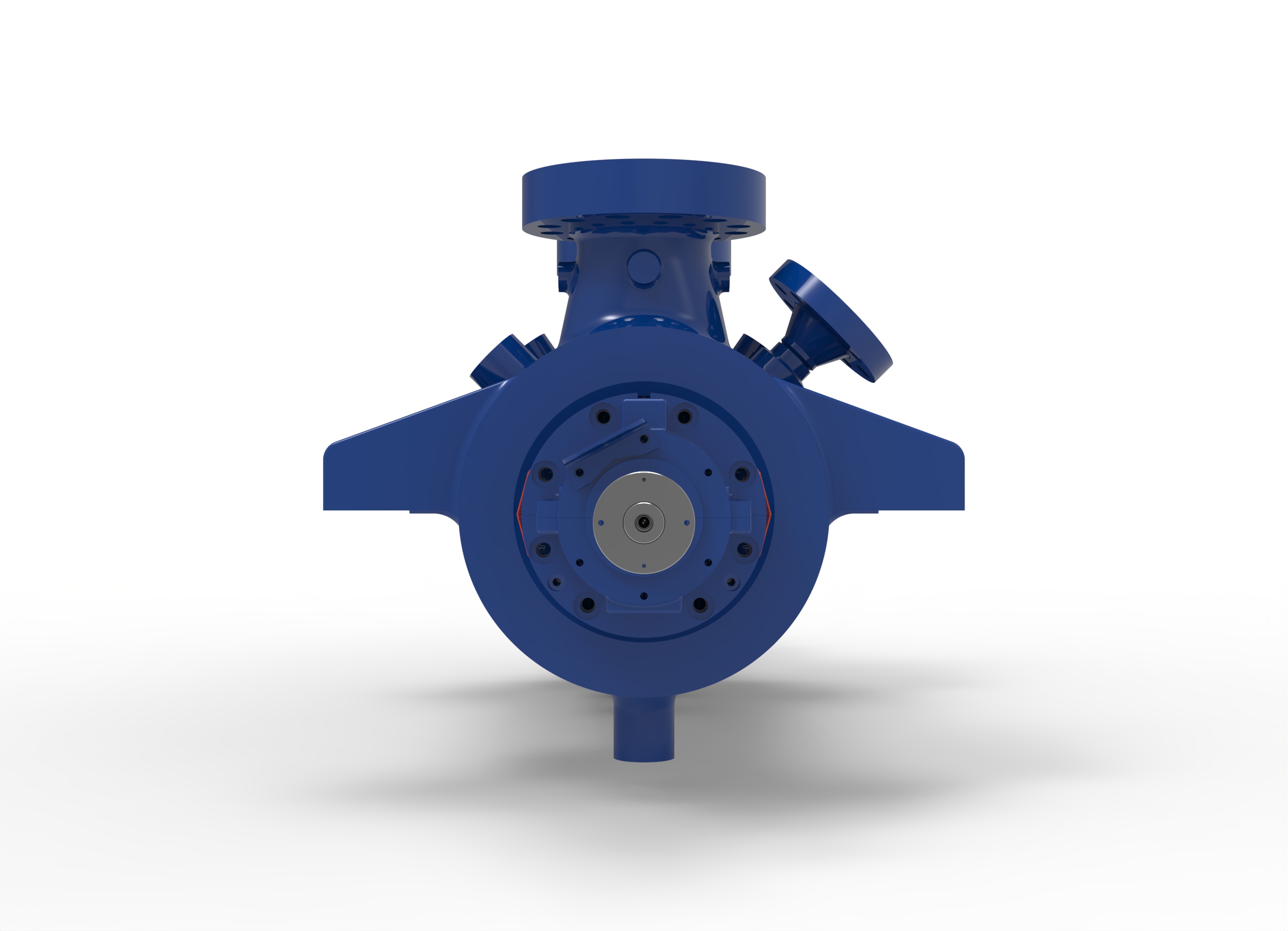

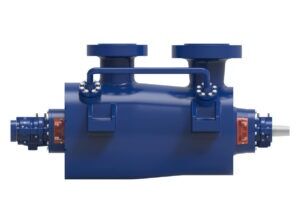

  • BB5 - TMP model: MESB – MESB-D Centrifugal-Pump - Side View 2

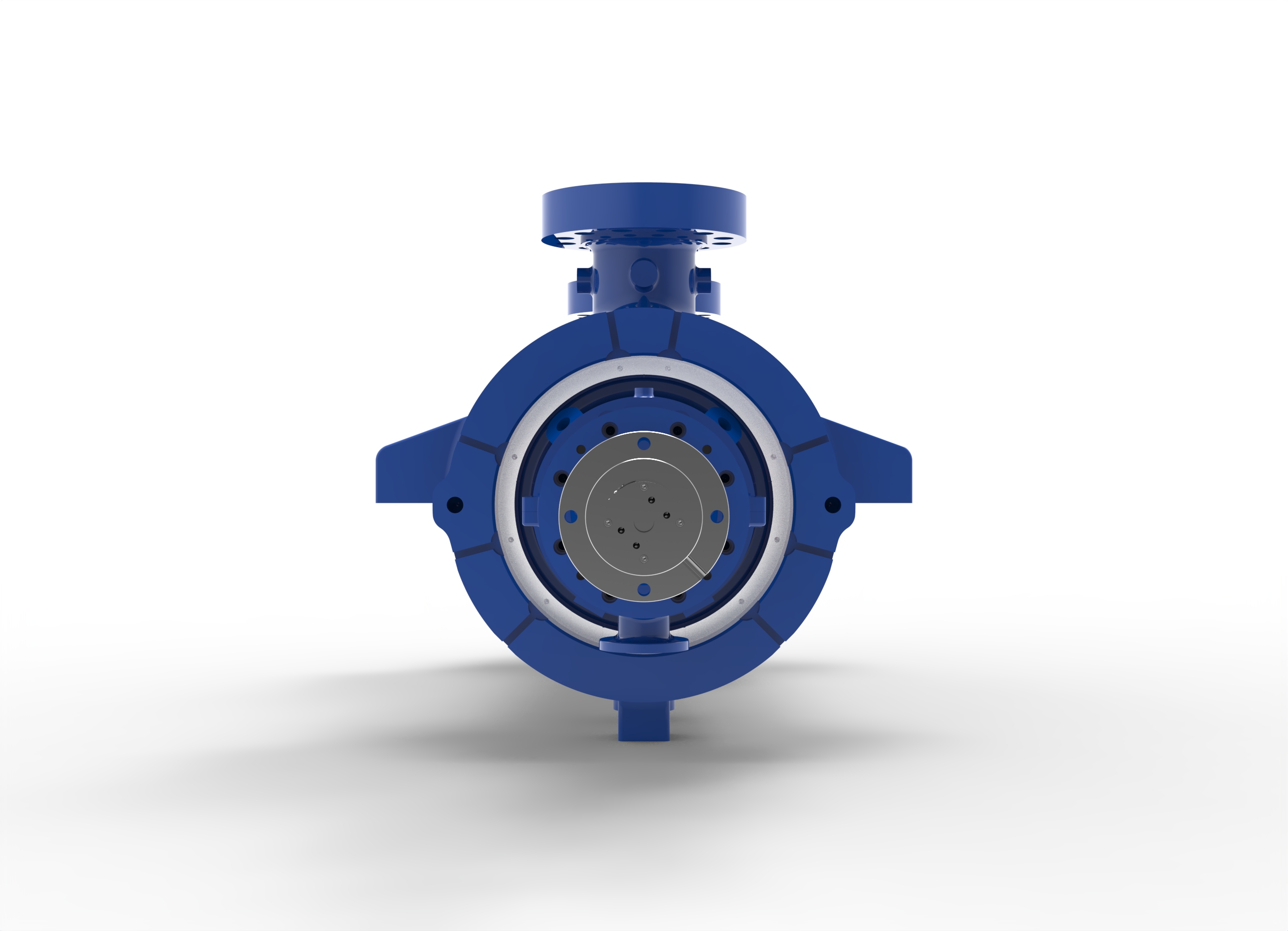

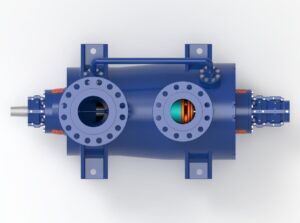

  • BB5 - TMP model: MESB – MESB-D Centrifugal-Pump - Side View 3

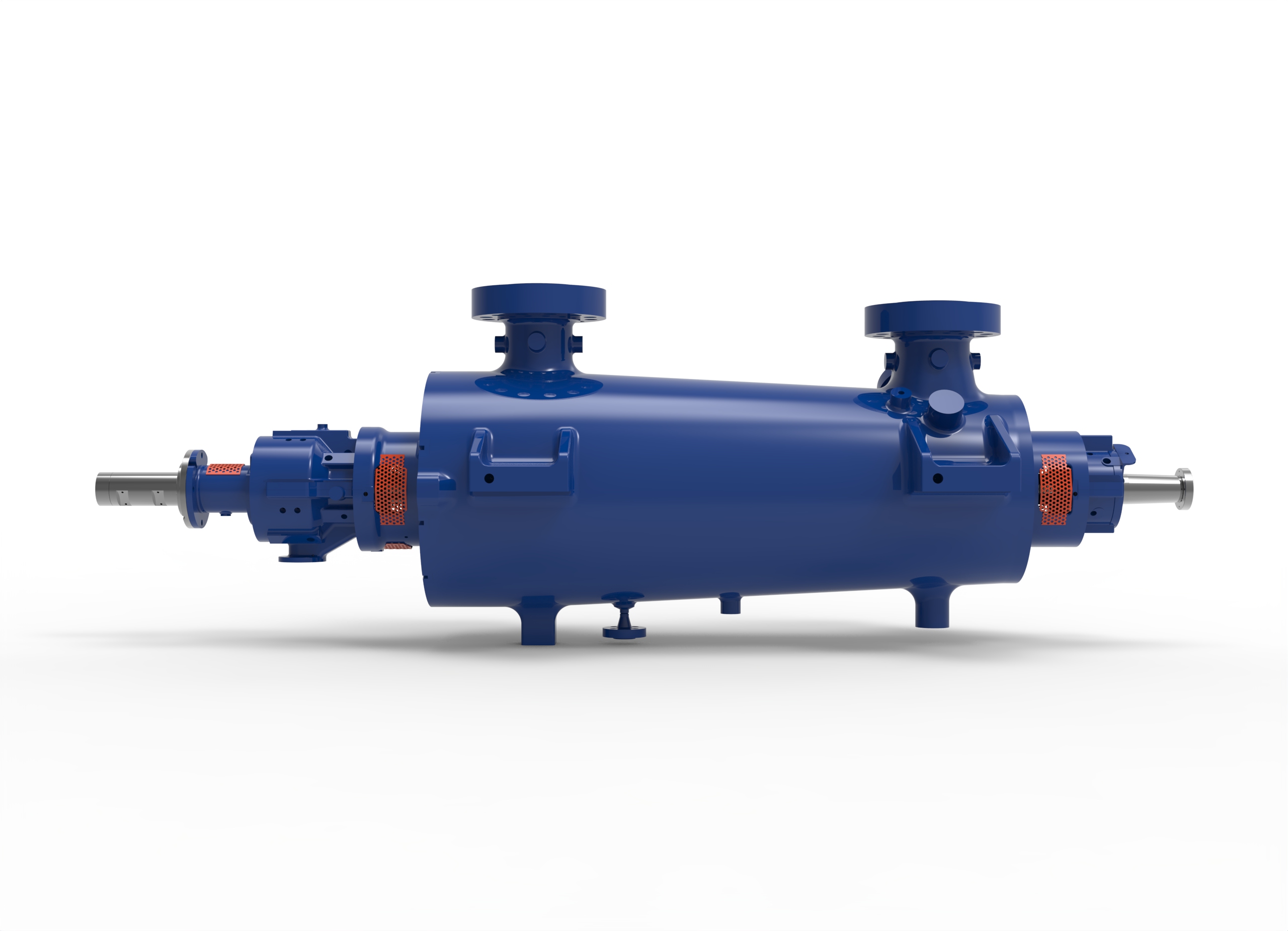

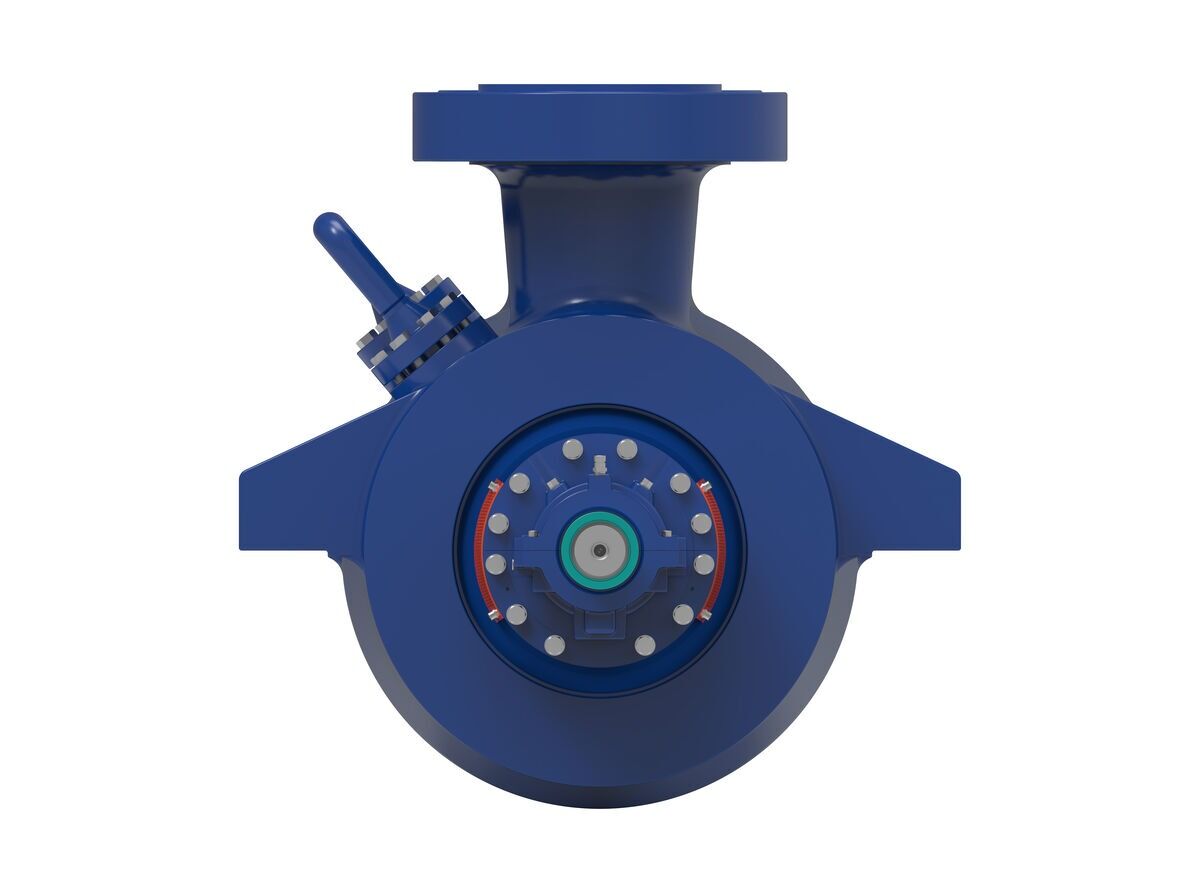

  • BB5 - TMP model: MESB – MESB-D Centrifugal-Pump - Side View 4
  • BB5 - TMP model: MESB – MESB-D Centrifugal-Pump - Side View 5
  • AHPB & AHPB-DS BB5 type API 610 Centrifugal Pump - Side Mechanical View 2

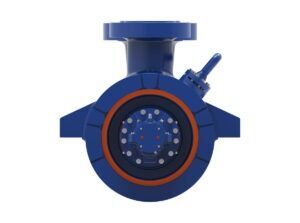

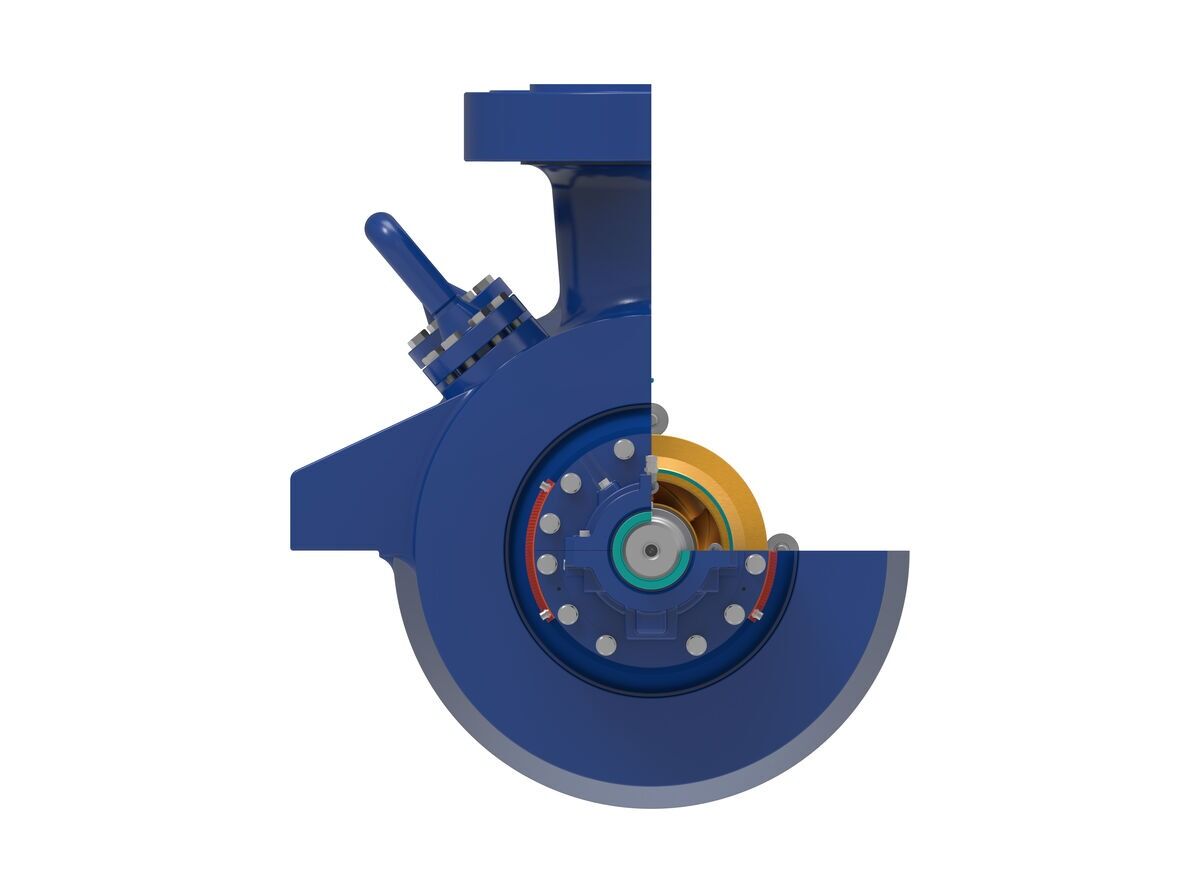

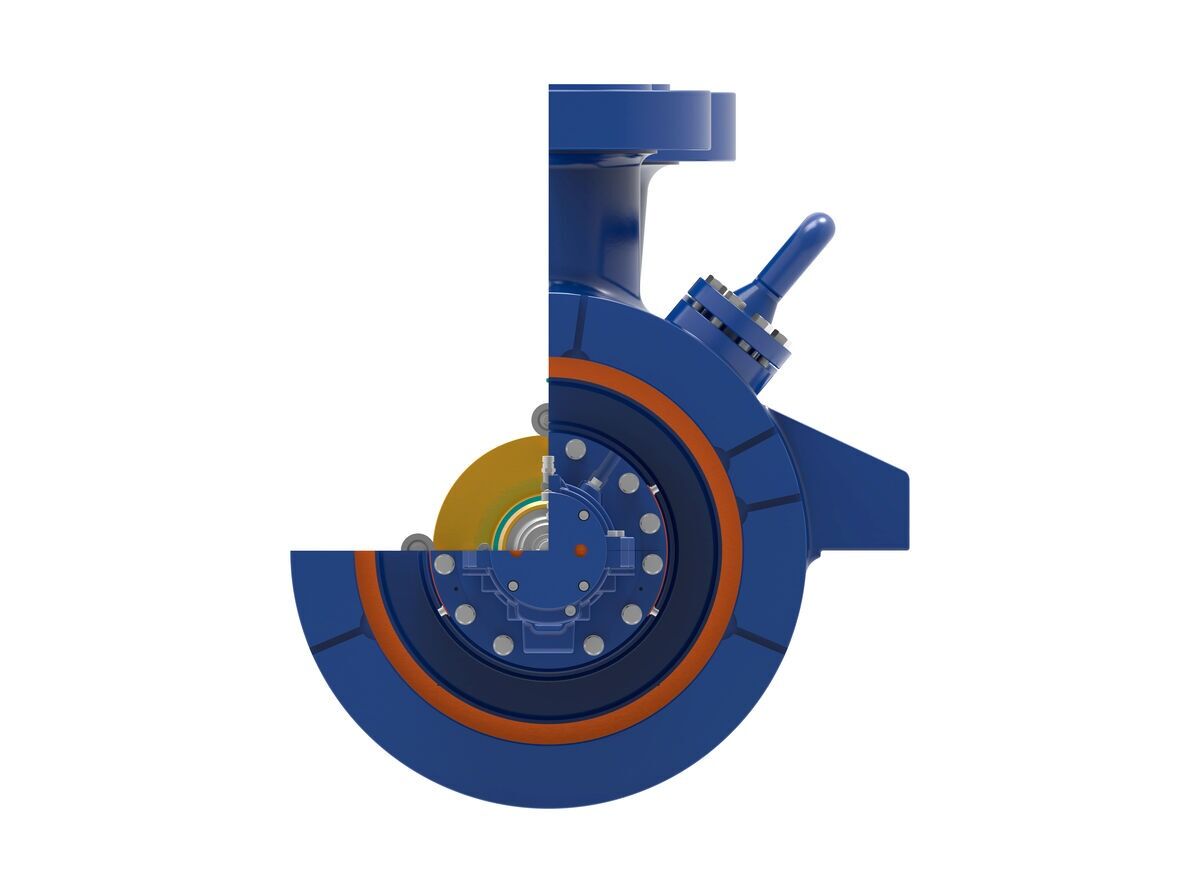

  • BB5 - TMP model: MESB – MESB-D Centrifugal-Pump - Verticle Mechanical View

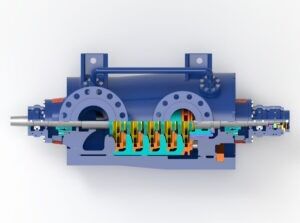

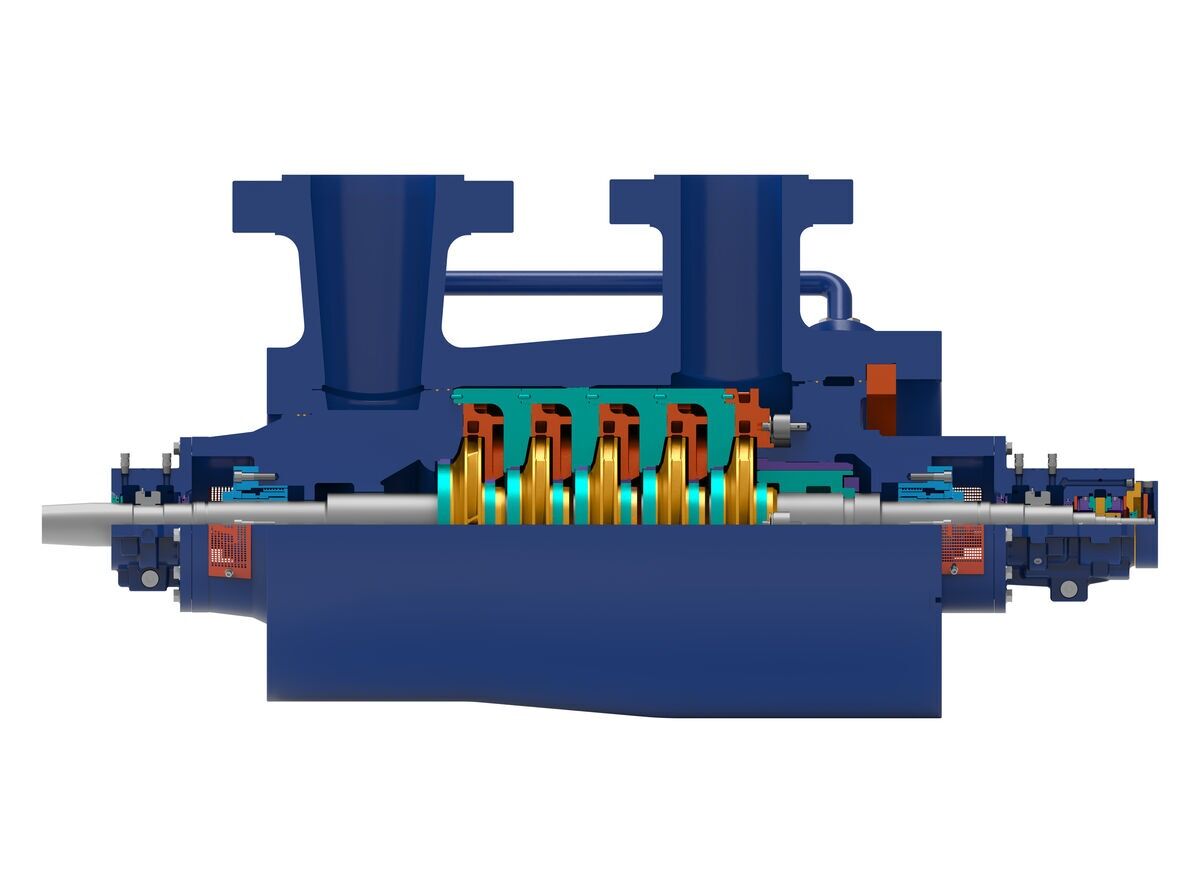

  • BB5 - TMP model: MESB – MESB-D Centrifugal-Pump - Side Mechanical View

Gabbioneta Pumps® Termomeccanica Pompe

API-610 type:
BB5 – TMP model:
MESB – MESB-D

Trillium Flow Technologies updated MESB pump range builds on the engineering excellence, innovation, and heritage of our Gabbioneta Pumps® and Termomeccanica Pompe brands. Our expertise in designing and manufacturing BB5 pumps dates back to the 1970s, with hundreds of units installed worldwide. This API-compliant BB5 pump range is a radially split, multi-stage, between-bearings, centerline-mounted pump with either a single or double suction first stage impeller for reduced NPSHr. The MESB has an inline impeller arrangement to minimise bearing span, and provide a more compact design. The pump range is available with bolted or shear ring end cover arrangements.

Key Features

  • API 610 compliant
  • Integral case connections to avoid non-destructive testing
  • Heavy-duty shaft to minimize rotor defection and maximize uptime
  • API 682 compliant seal chamber
  • Single or Double suction Impeller
  • Bolted or shear ring end cover arrangements.
  • Bearing housing leverages common parts across all Trillium Flow Technologies between bearings pumps
  • Balance line to ensure both seals remain at equal pressure
  • Inline impeller arrangement

Main Applications

  • Water Injection
  • Crude oil transmission
  • Boiler feed water

Options

  • All API material options:
  • S-4,S-5,S-6,S-8,C-6,A-8,D-1,D-2, plus bespoke options
  • Bolted or shear ring end cover arrangements
  • Composite wear parts, for improved efficiency and rotor dynamics
  • Specialist Options: high speed over 6000 RPM
