GABBIONETA PUMPS®

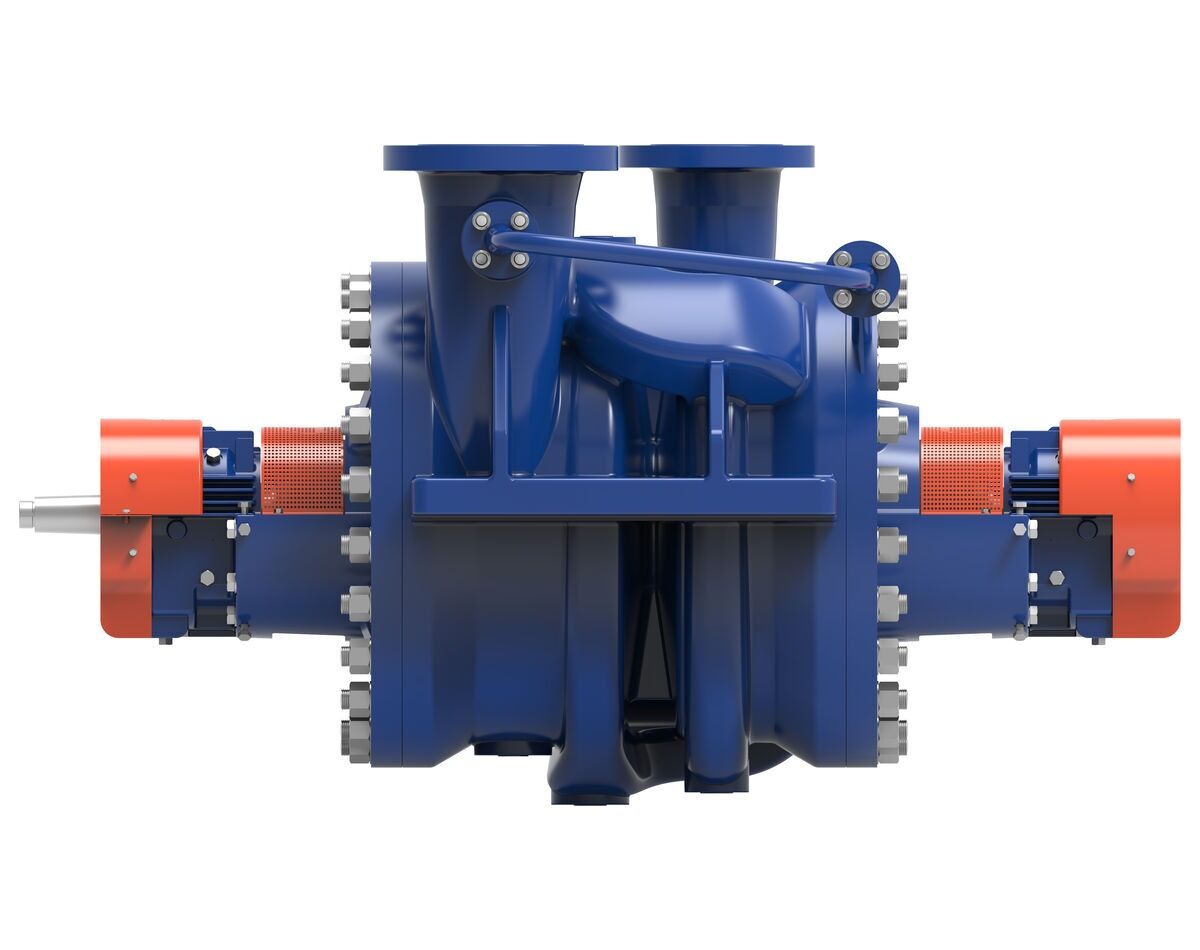

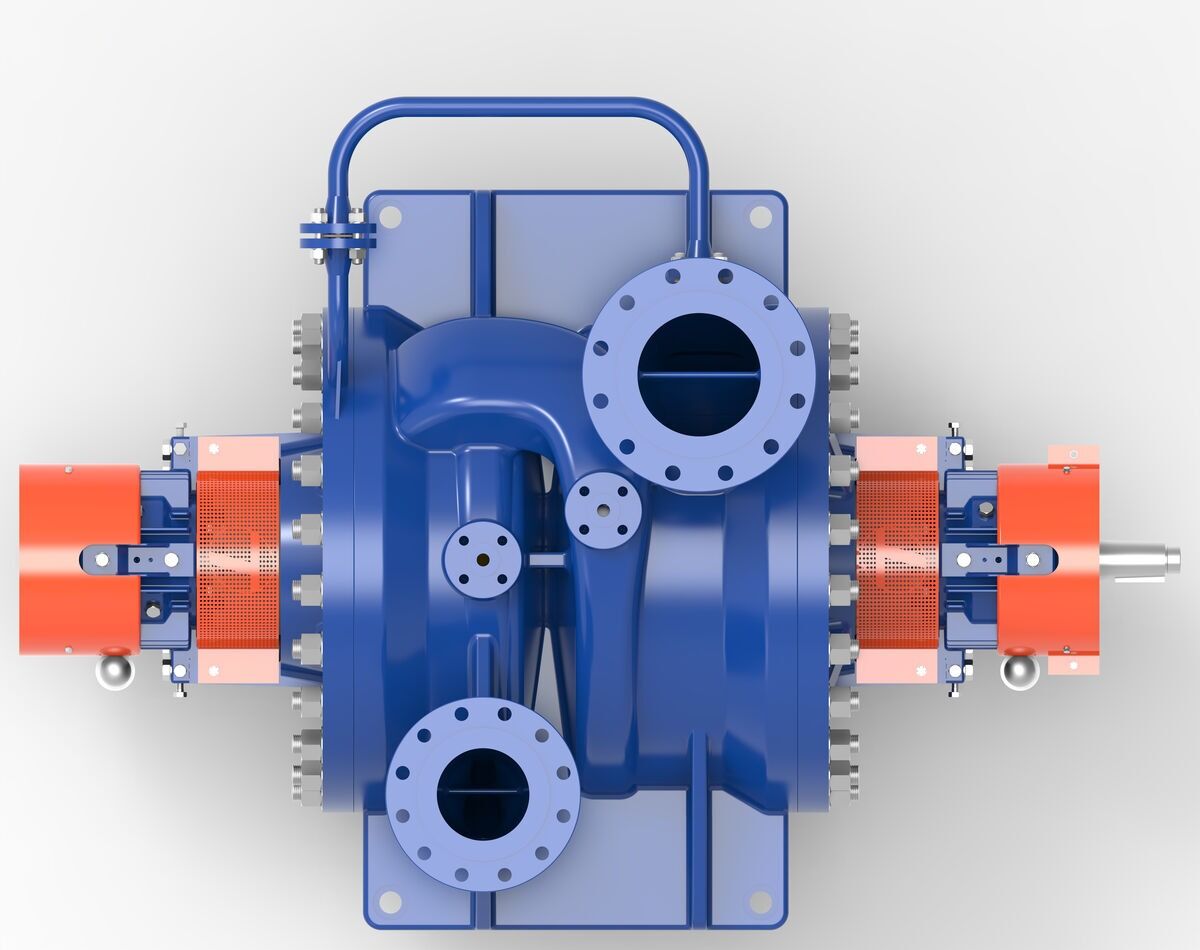

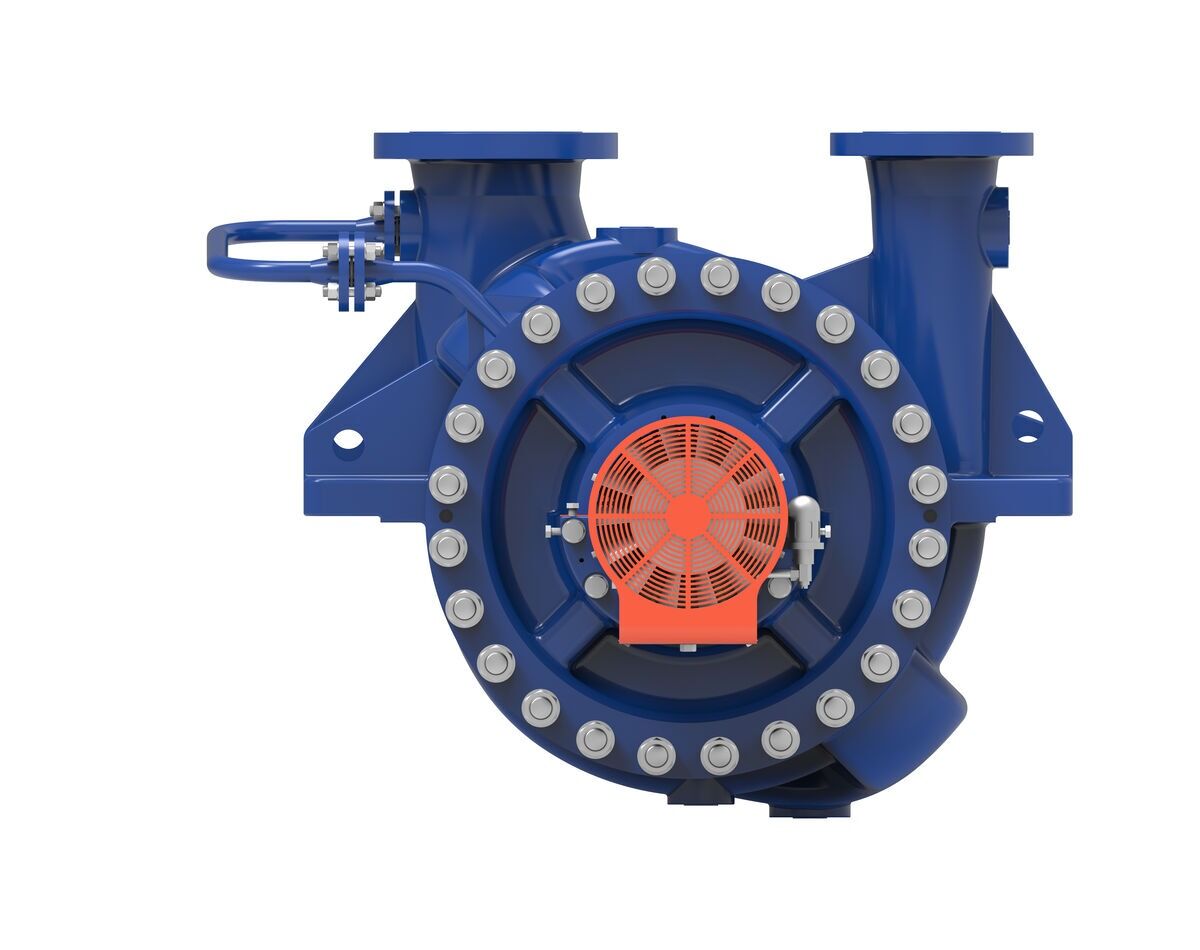

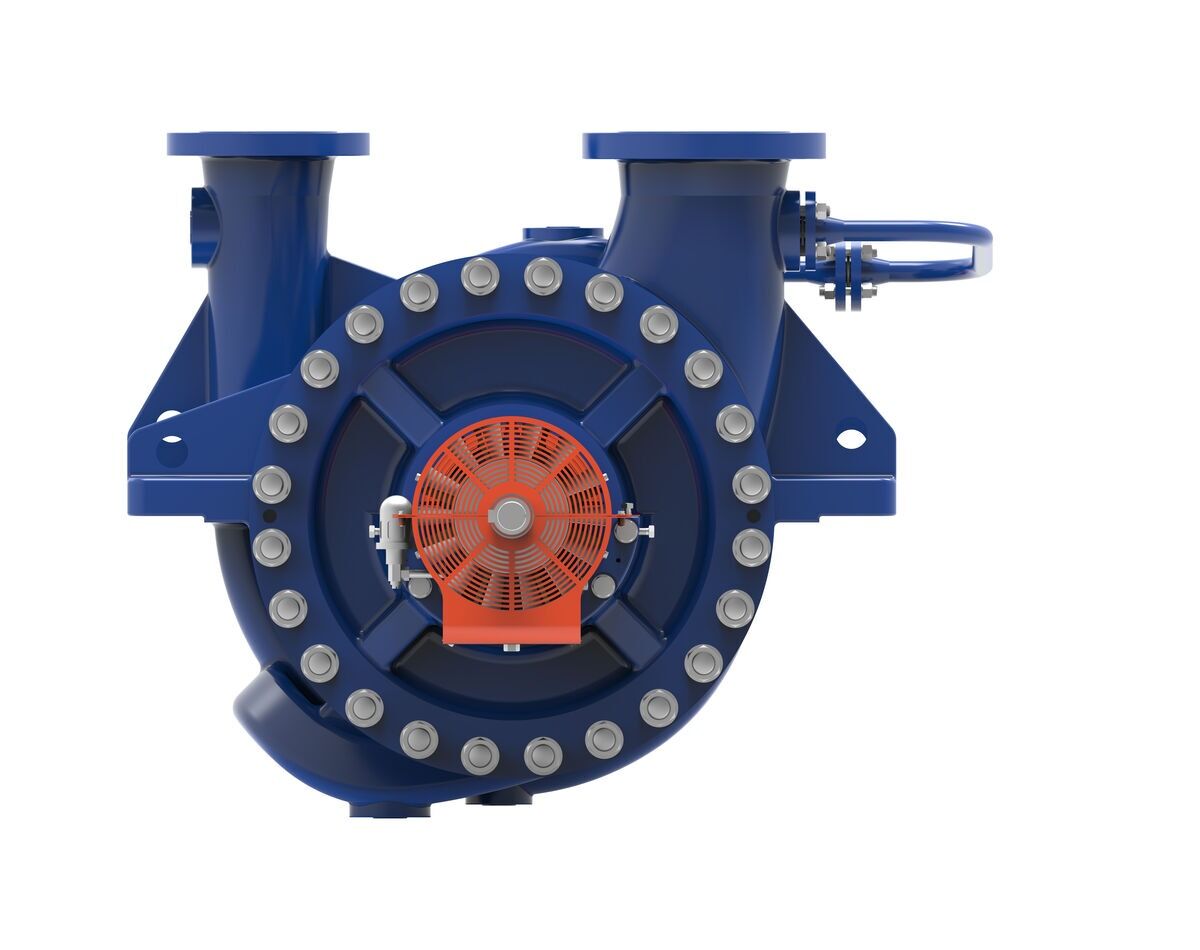

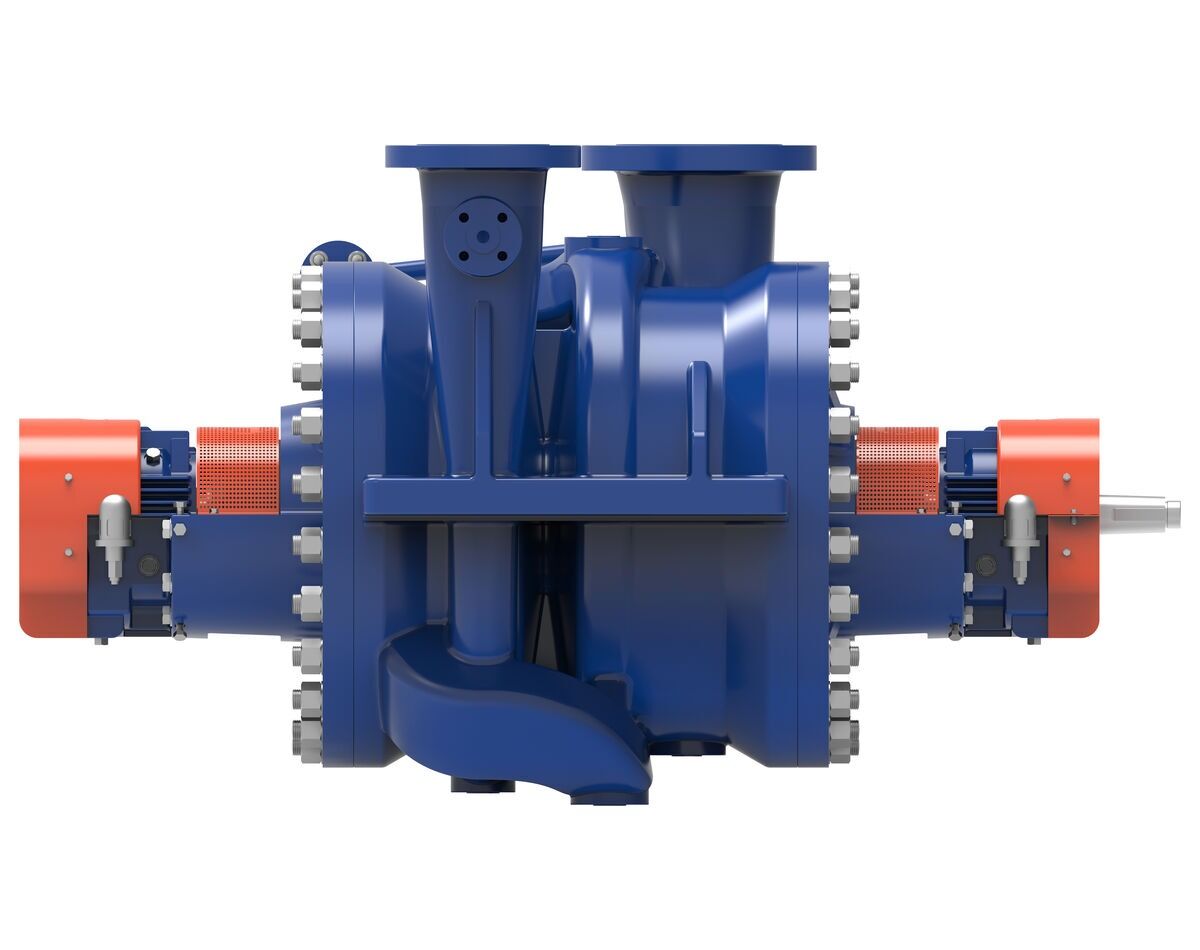

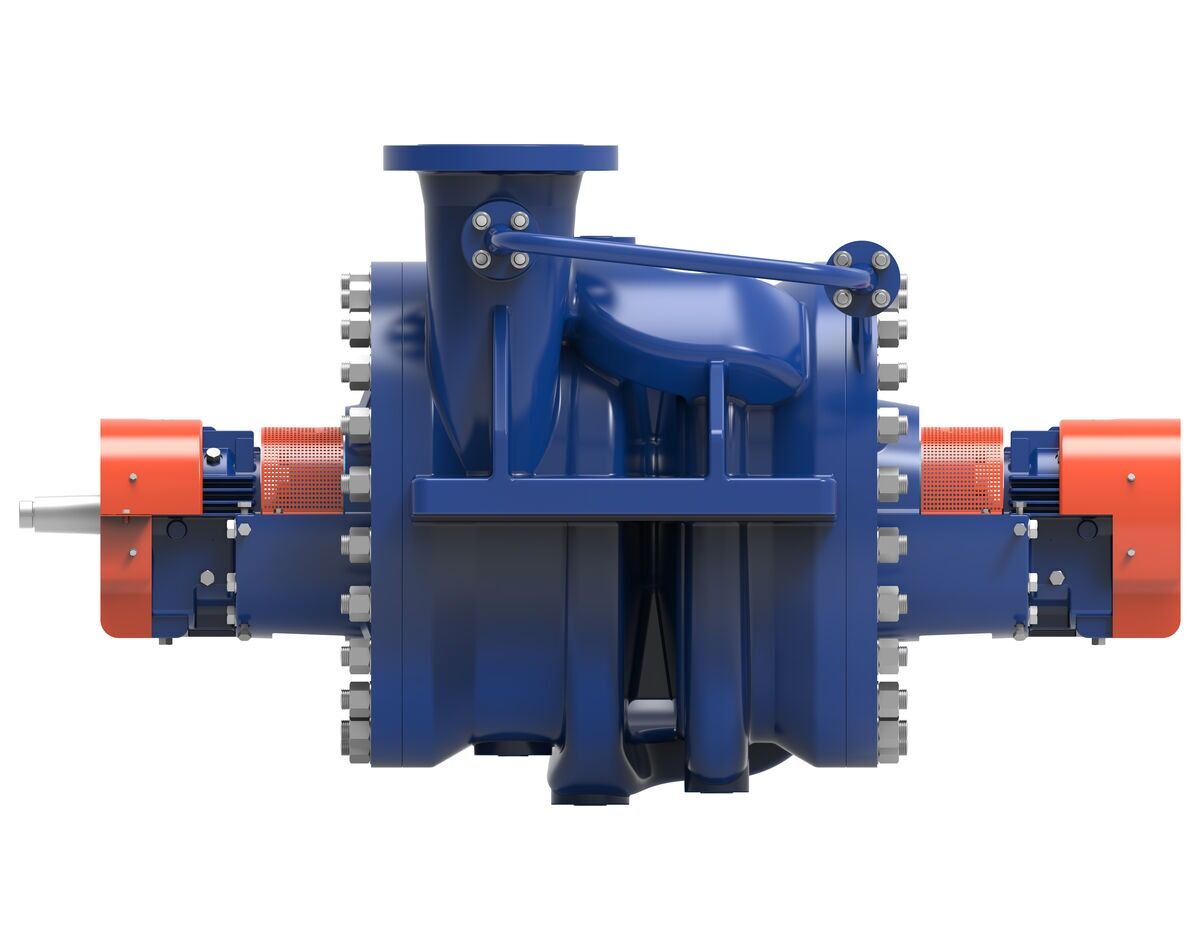

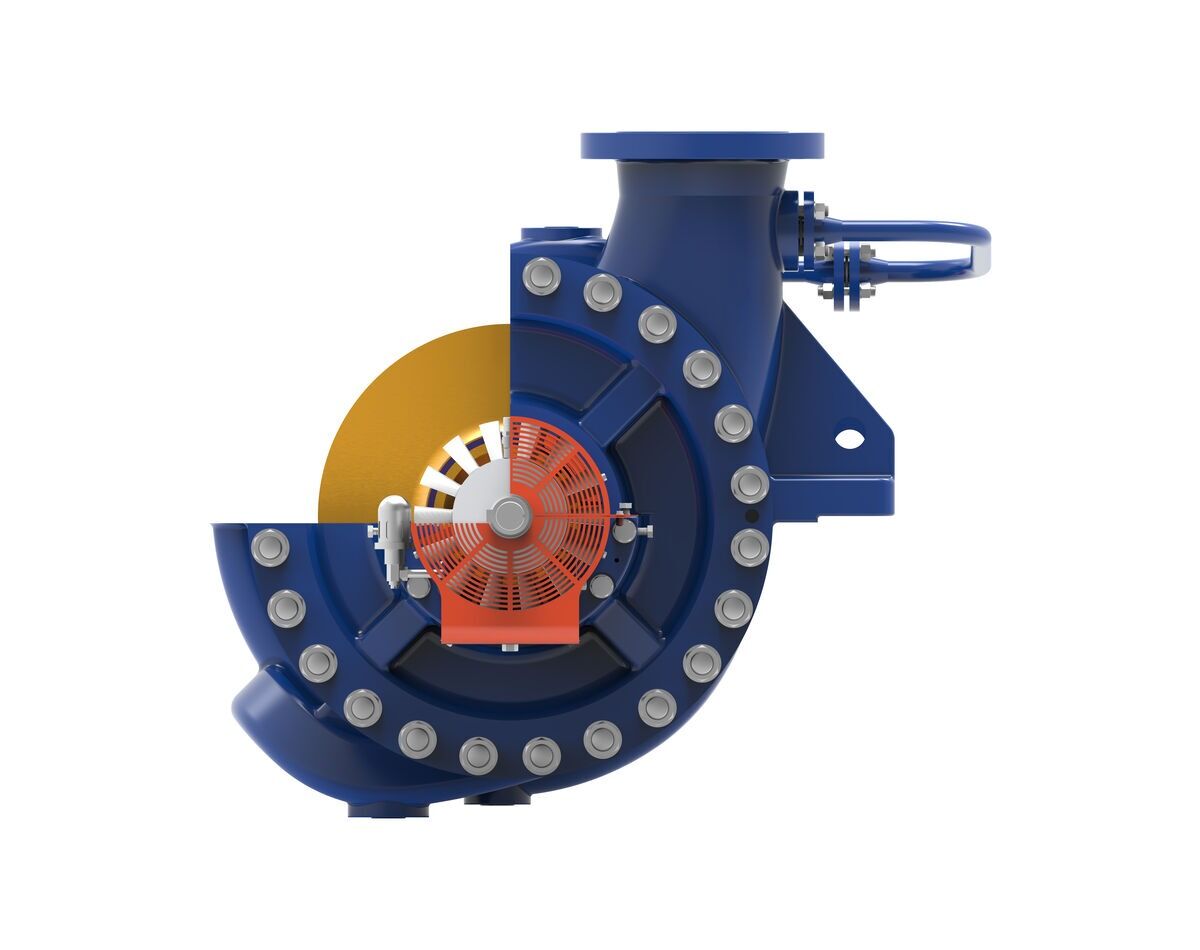

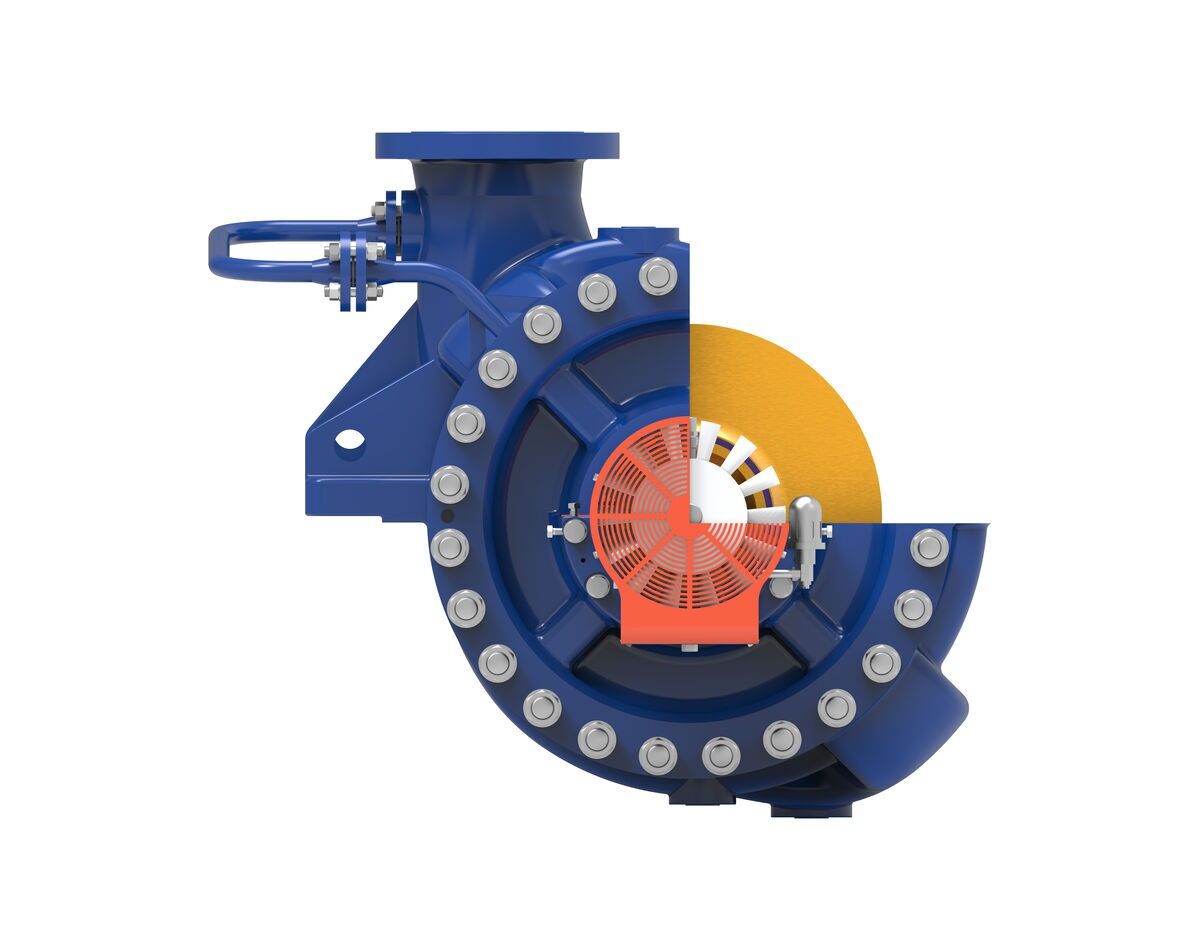

DH & DDH BB2 Type API 610 Centrifugal Pump

Gabbioneta Pumps® DH and DDH process pumps, built for reliable service and easy maintenance, offer operational flexibility and stability in high temperatures. The DH & DDH range Gabbioneta Pumps® are heavy-duty, horizontal, between bearings, two stage pumps with radial split casing.

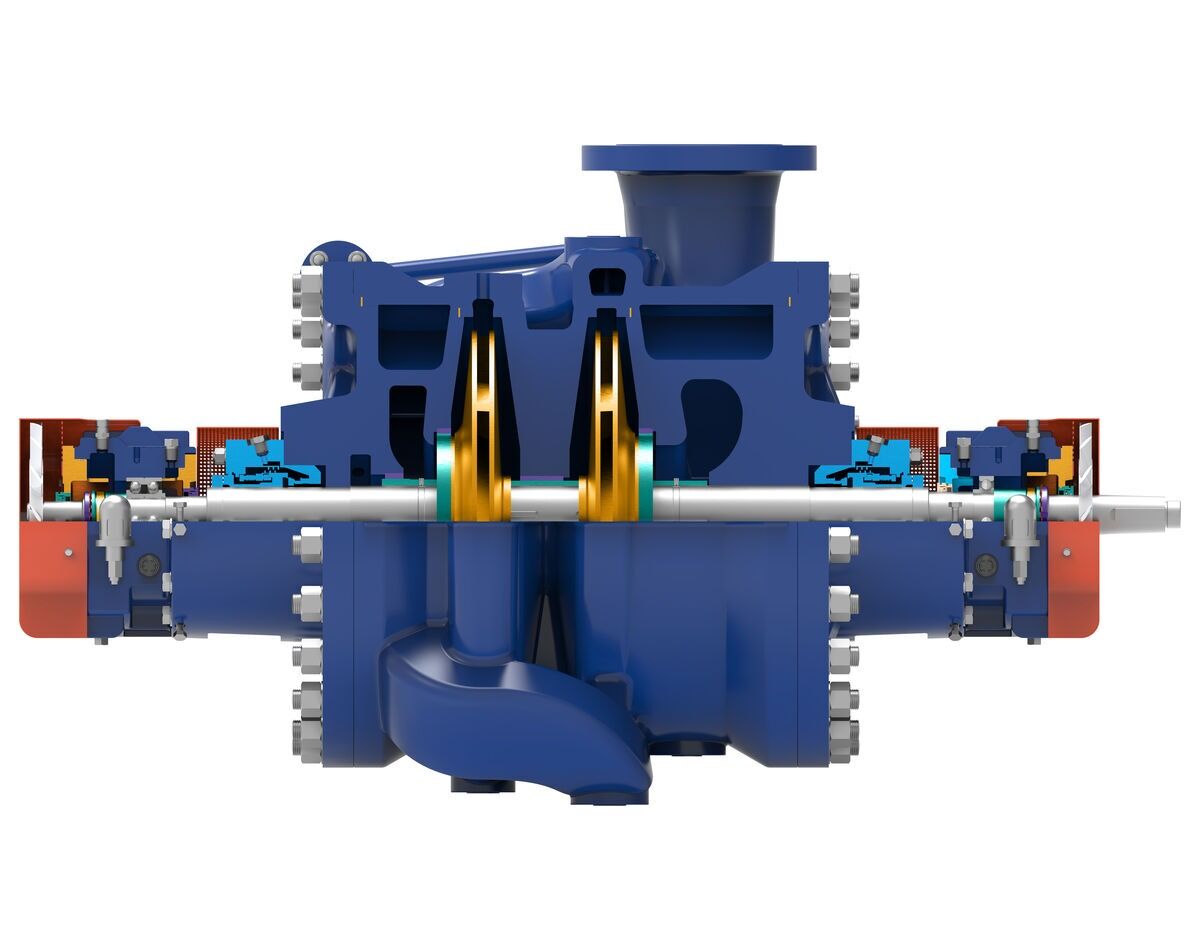

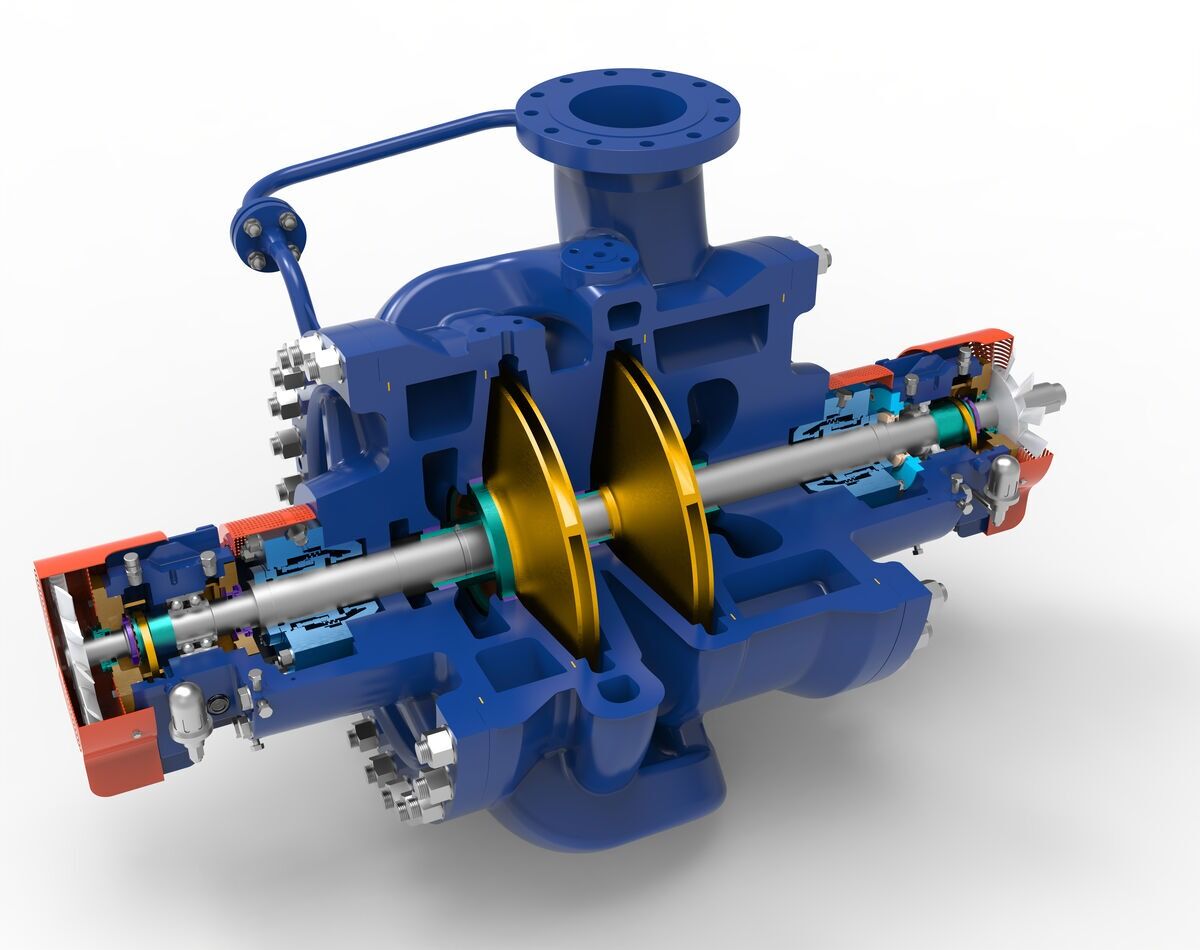

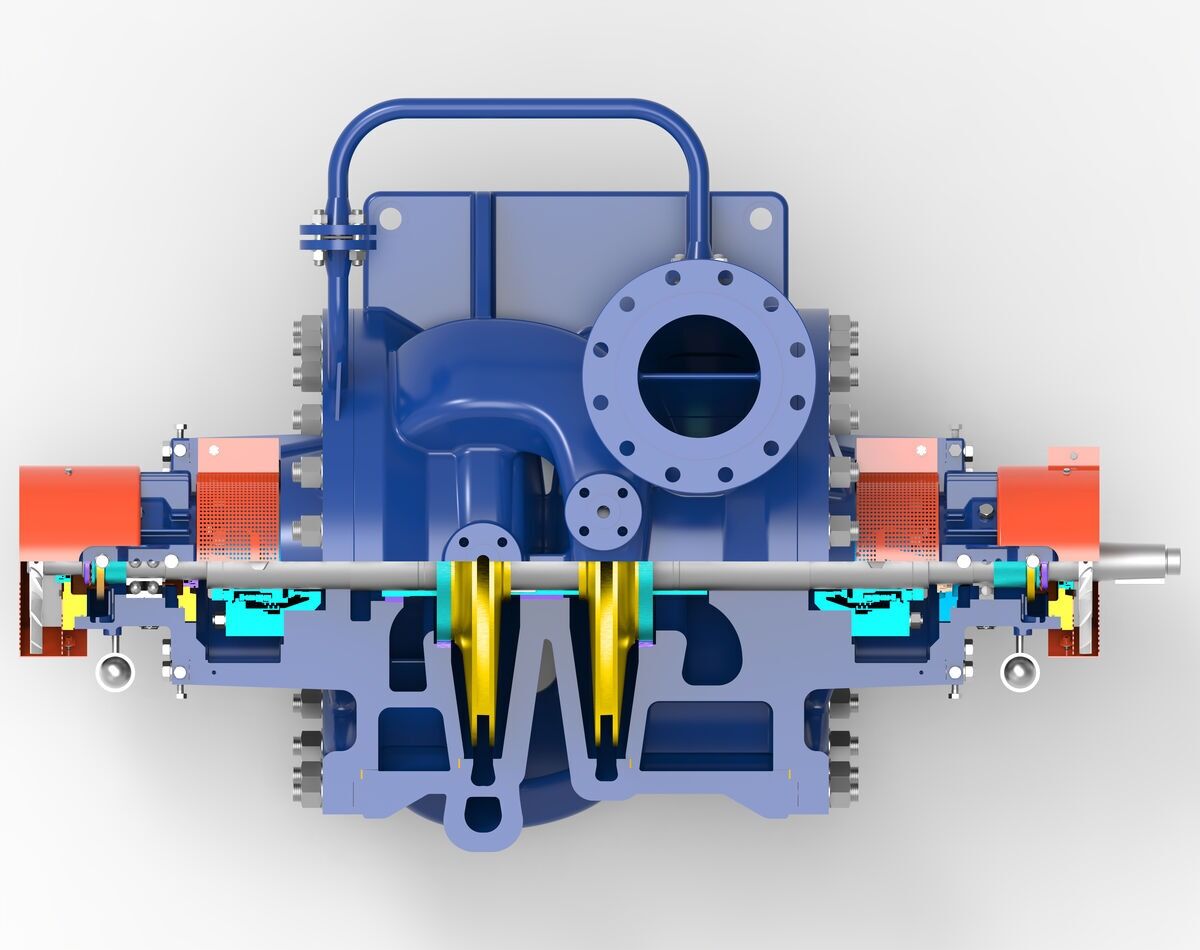

Two single suction back to back impellers for DH or a double suction first stage impeller, plus a second stage with balancing drum for DDH, assure adequate axial thrust balance and allow the acceptance any type of balanced mechanical seals, in accordance with the API 682 standard.

TECHNICAL DATA

  • Capacity up to 350 m3/h (1,500 gpm) DH 1,800 m3/h (8,000 gpm) DDH
  • Head up to 760 m (2,500 ft.) DH
  • Operating temperature from -30ºC (-20 ºF) to 455 ºC (851ºF)
  • Standard design pressure 40 bar (580 psig), special executions up to 150 bar (2,200 psig)
  • Rotational speed up to 3,600 RPM

DESIGN STANDARD

  • API 610 latest edition

MATERIALS

  • All API 610 class materials.
  • Special materials upon request.
