GABBIONETA PUMPS®

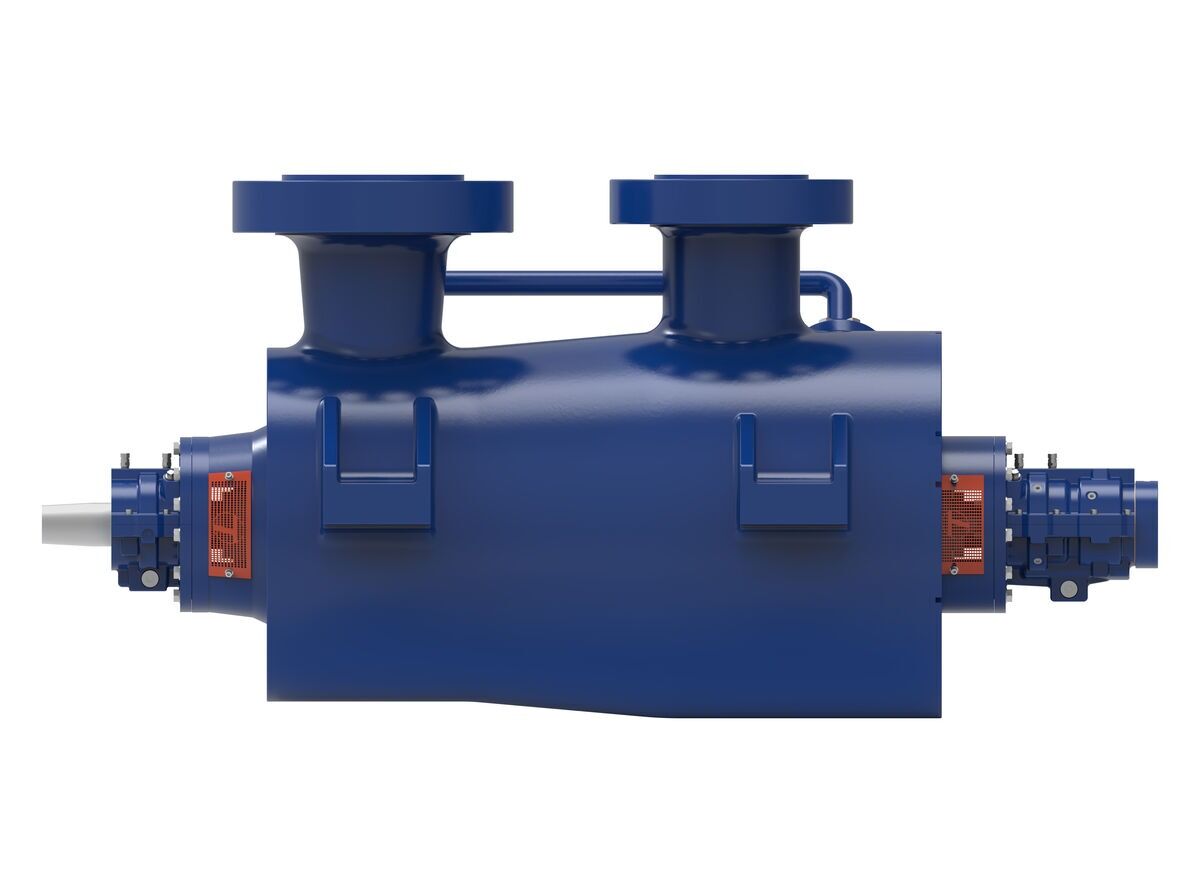

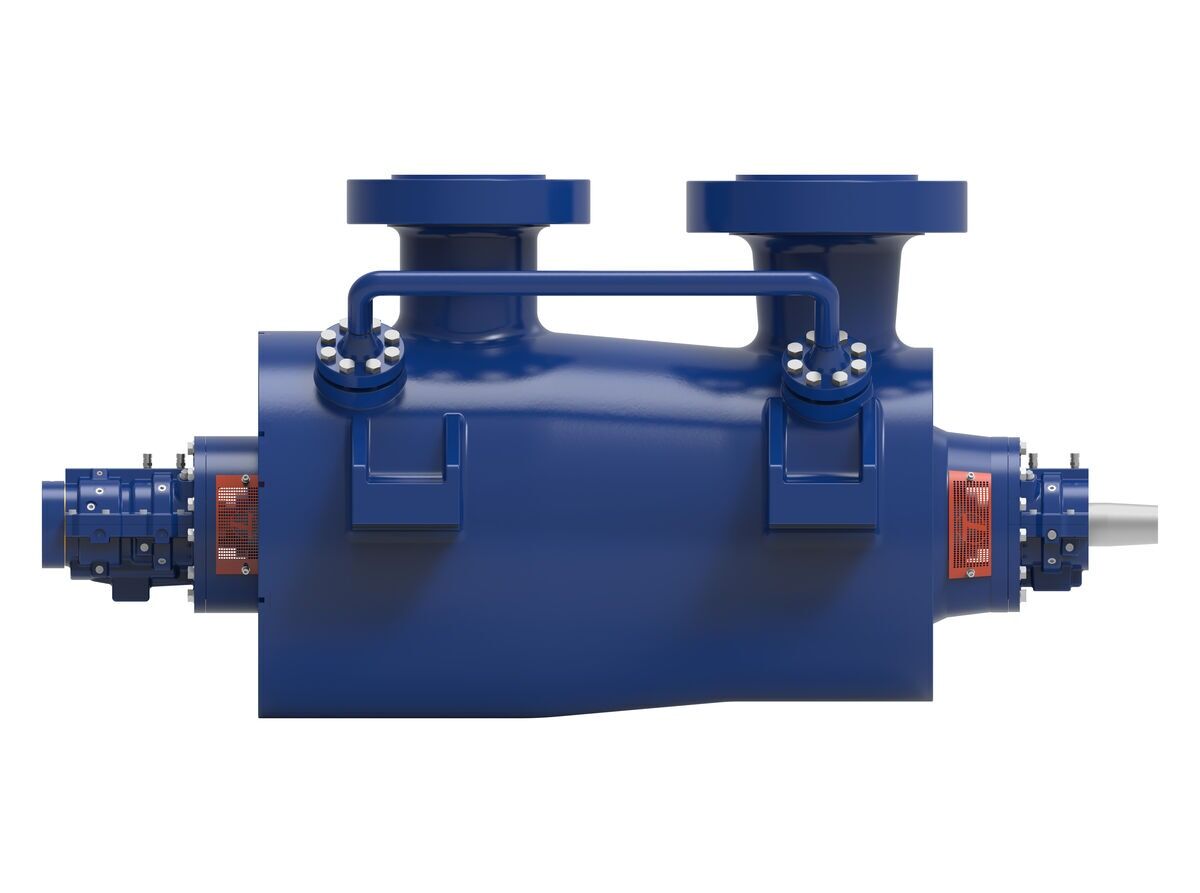

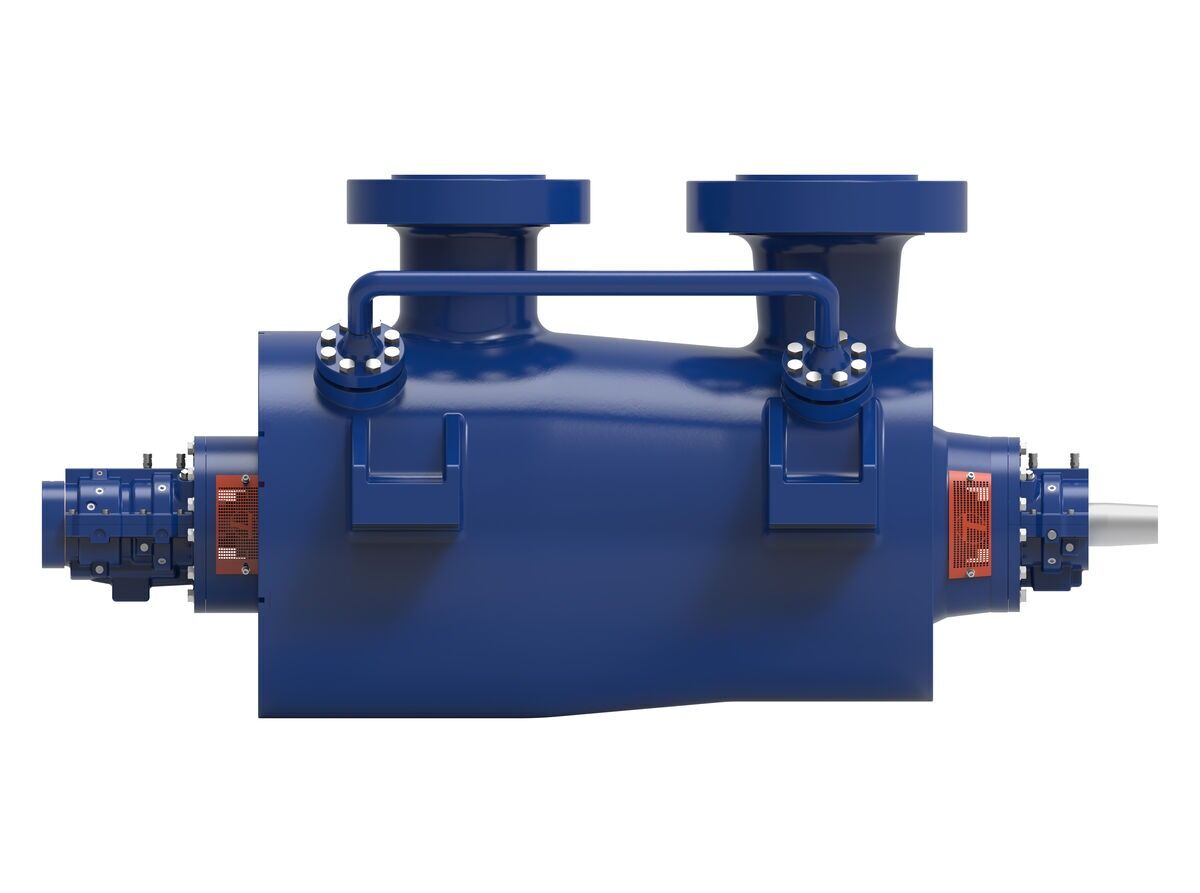

AHPB & AHPB-DS BB5 type API 610 Centrifugal Pump

The Gabbioneta Pumps® AHPB series is built to reliably minimize axial and radial hydraulic thrust in high-temperature environments while resisting corrosion.

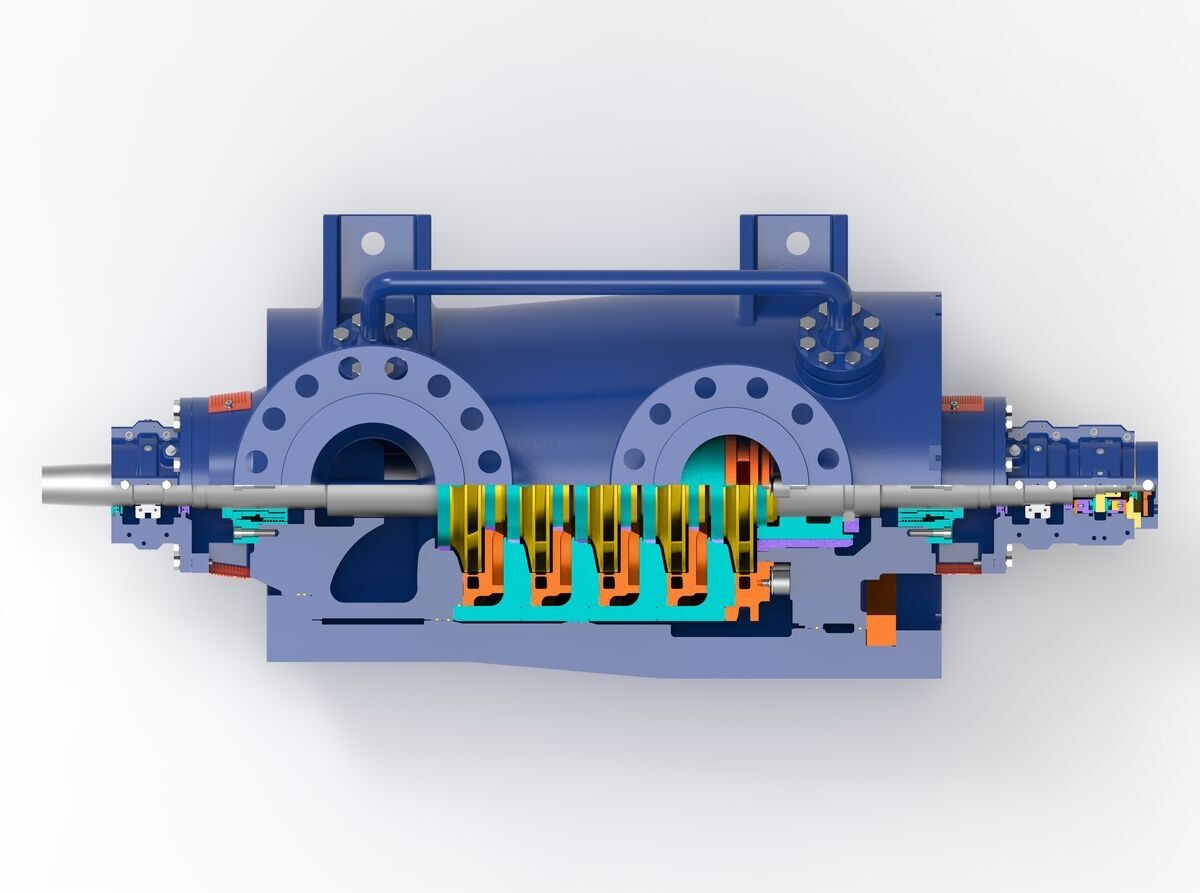

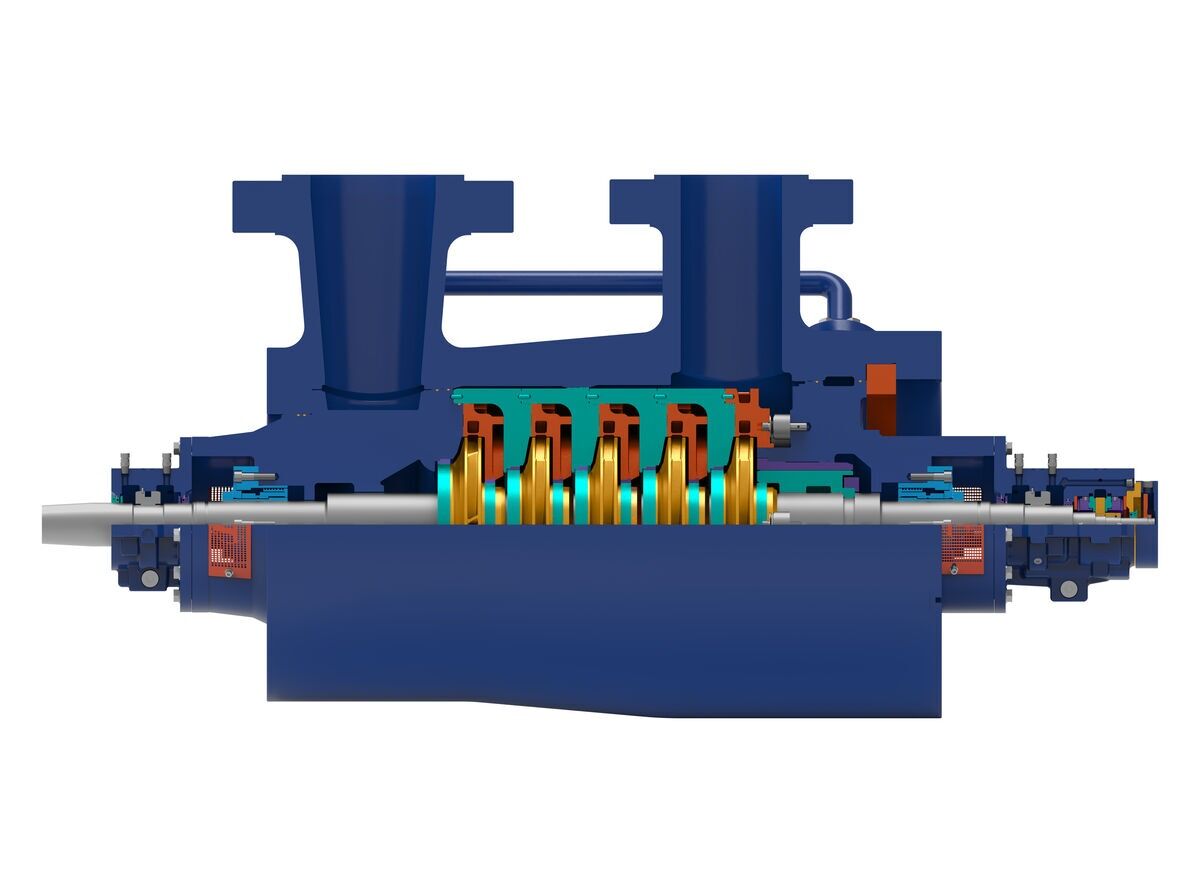

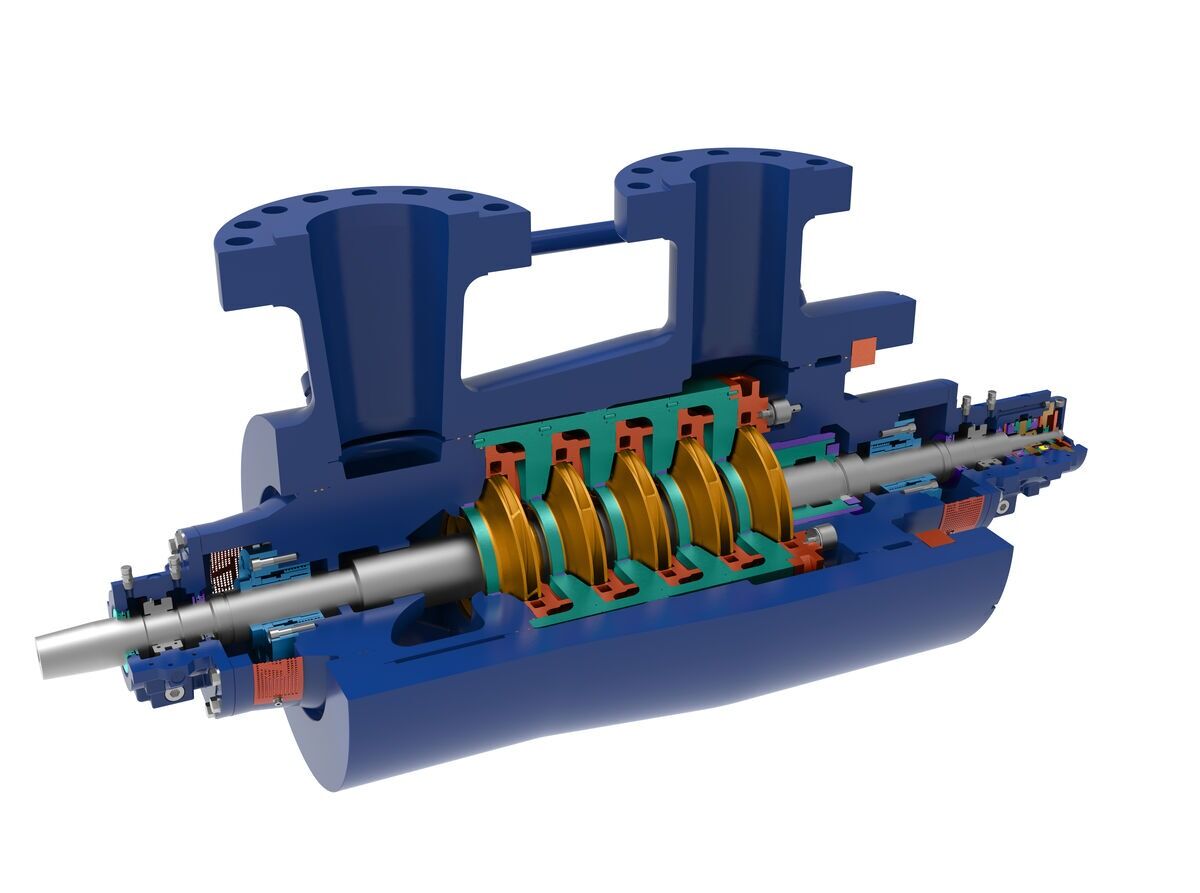

The AHPB & AHPB-DS Gabbioneta Pumps® are heavy-duty, double casing, multistage, radial split pumps with single or double first stage impellers. This series offers a wide range of sizes with a number of stages combinations, with various arrangements of suction and discharge nozzles. When required, three bearings arrangements and de-staged construction complete the vast variety of this product offering.

TECHNICAL DATA

  • Capacity up to 1,800 m3/h (8,000 gpm)
  • Head up to 3,600 m (12,000 ft.)
  • Operating temperature from -30 ºC (-20 ºF) to 400 ºC (750 ºF)
  • Standard design pressure 40 bar (580 psig), special executions up to 350 bar (5,000 psig)
  • Rotational speed up to 7,000 RPM

DESIGN STANDARD

  • API 610 latest edition

MATERIALS

  • All API 610 class materials.
  • Special materials upon request.
