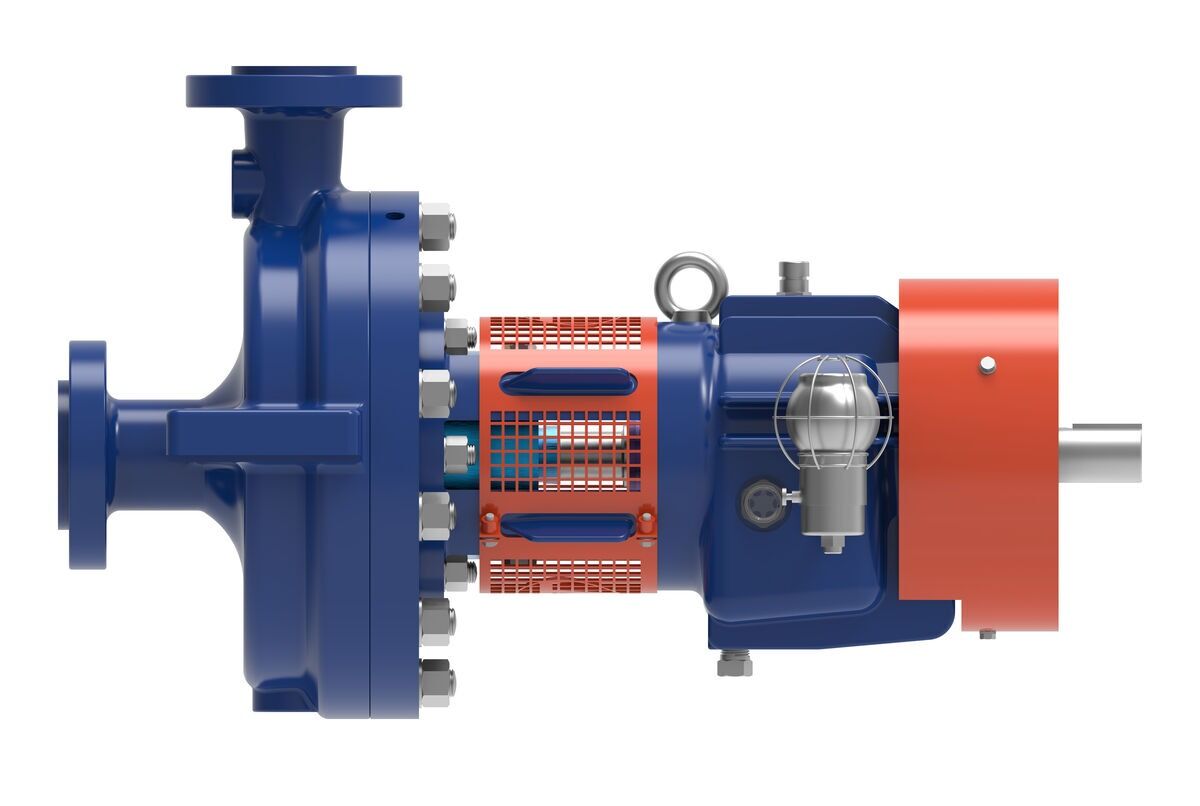

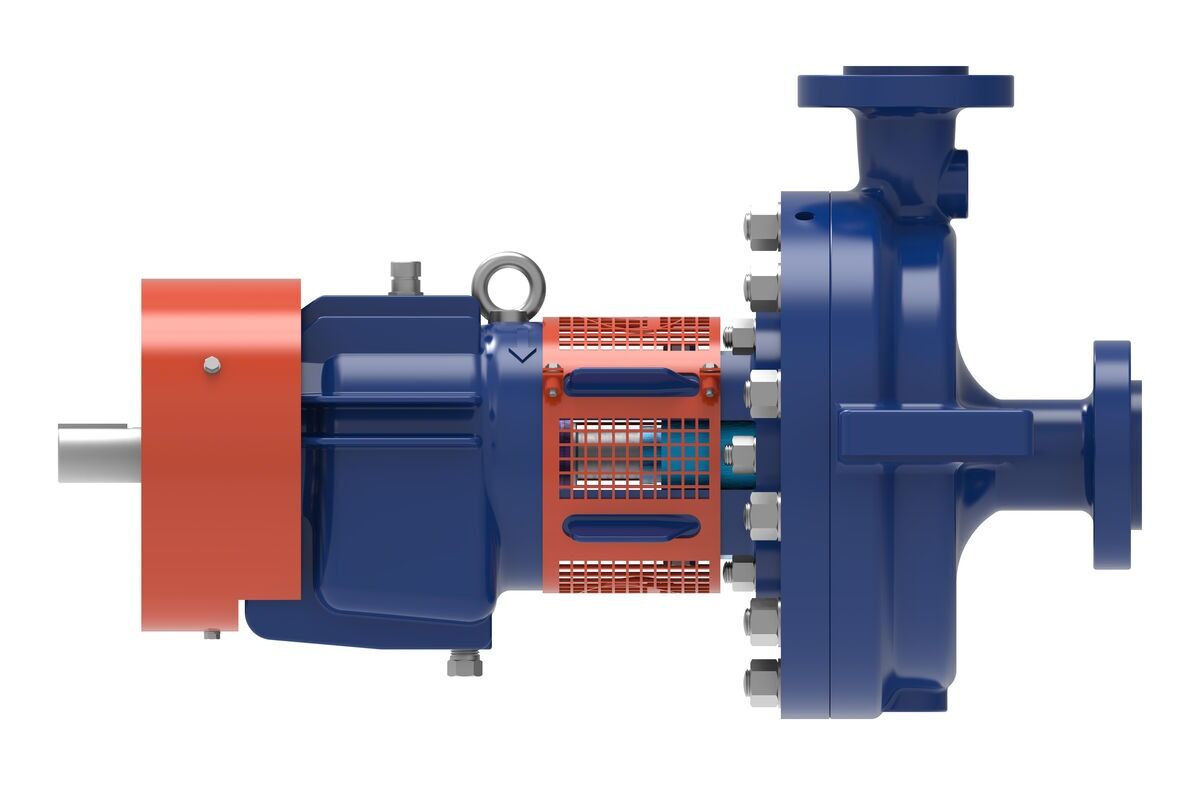

  • RL OH2 type API 610 Centrifugal Pump - Side View

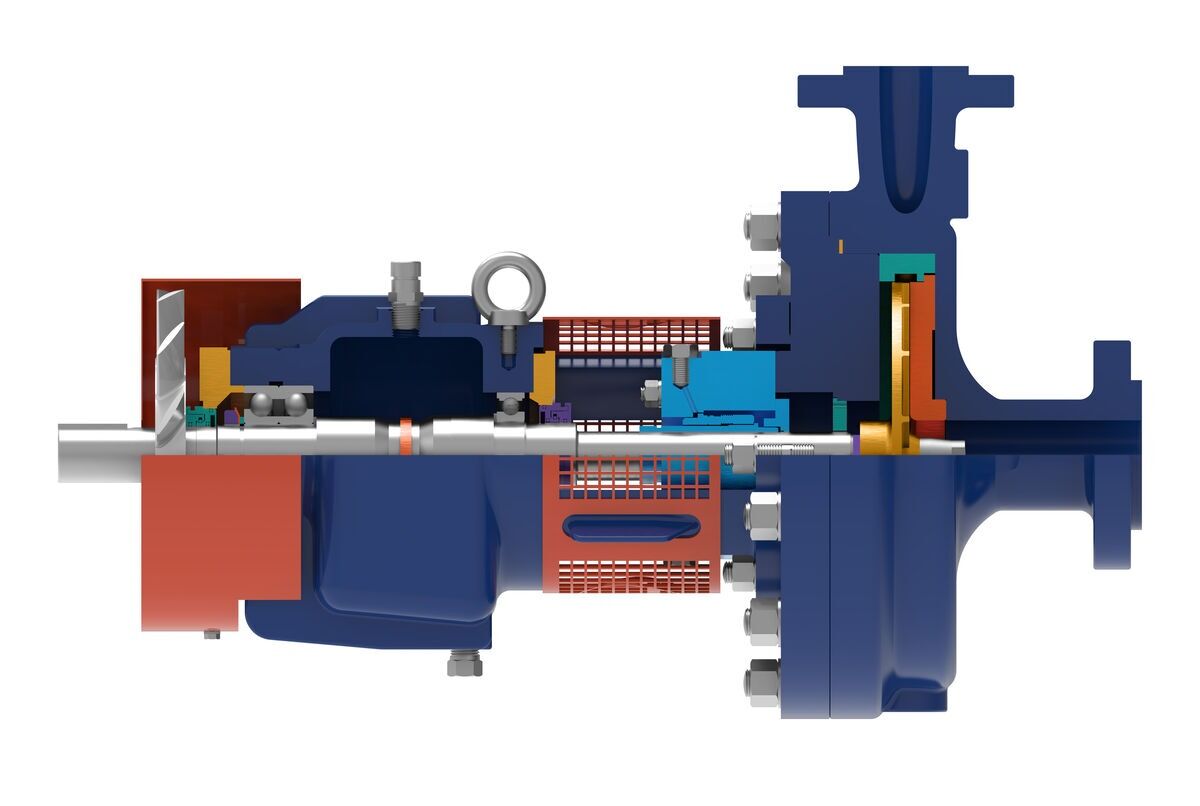

  • RL OH2 type API 610 Centrifugal Pump - Side Mechanical View 1

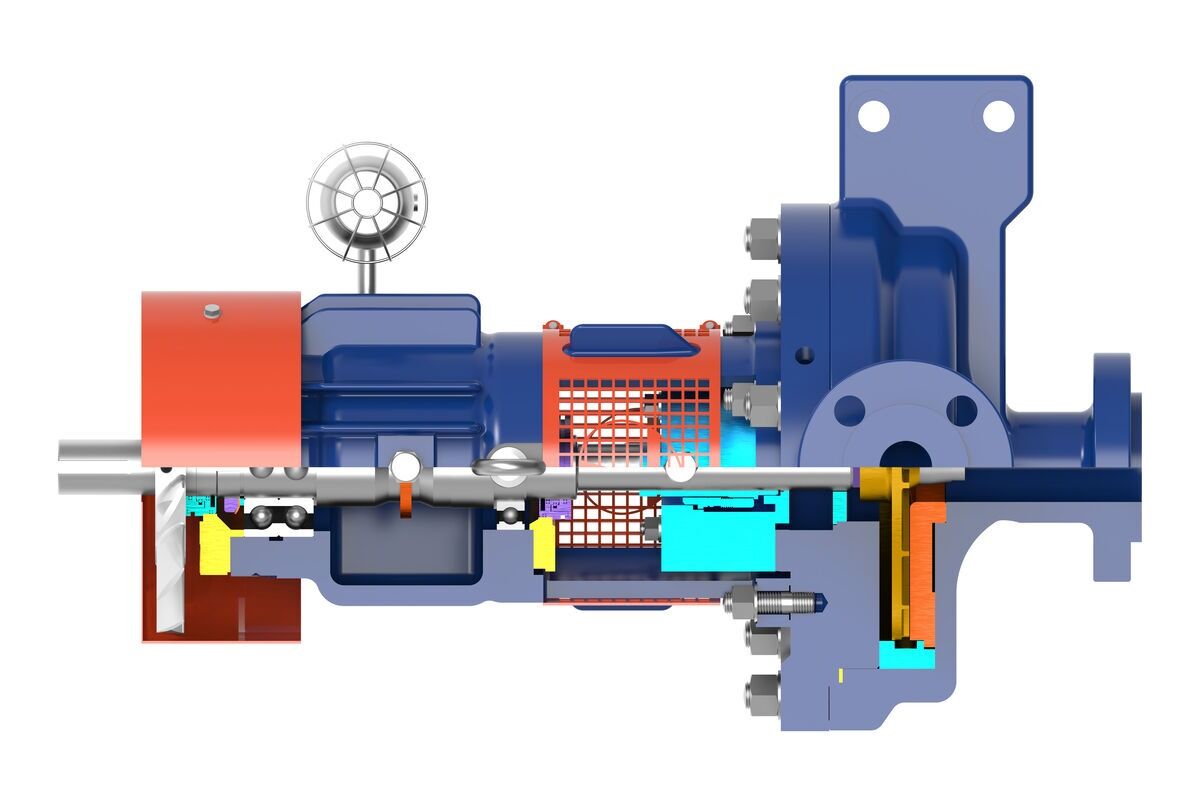

  • RL OH2 type API 610 Centrifugal Pump - Side Mechanical View 2
  • RL OH2 type API 610 Centrifugal Pump - Side Mechanical View 3
  • RL OH2 type API 610 Centrifugal Pump - Side Mechanical View 4
  • RL OH2 type API 610 Centrifugal Pump - Side Mechanical View 5

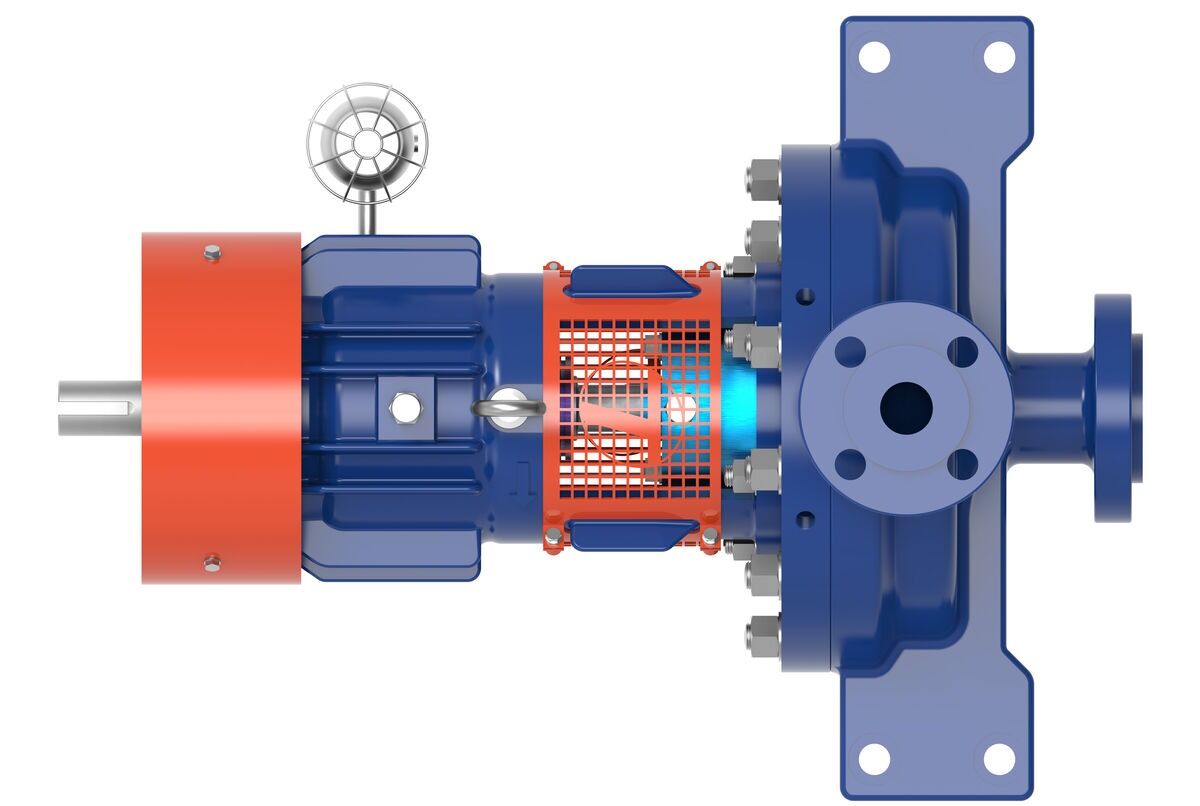

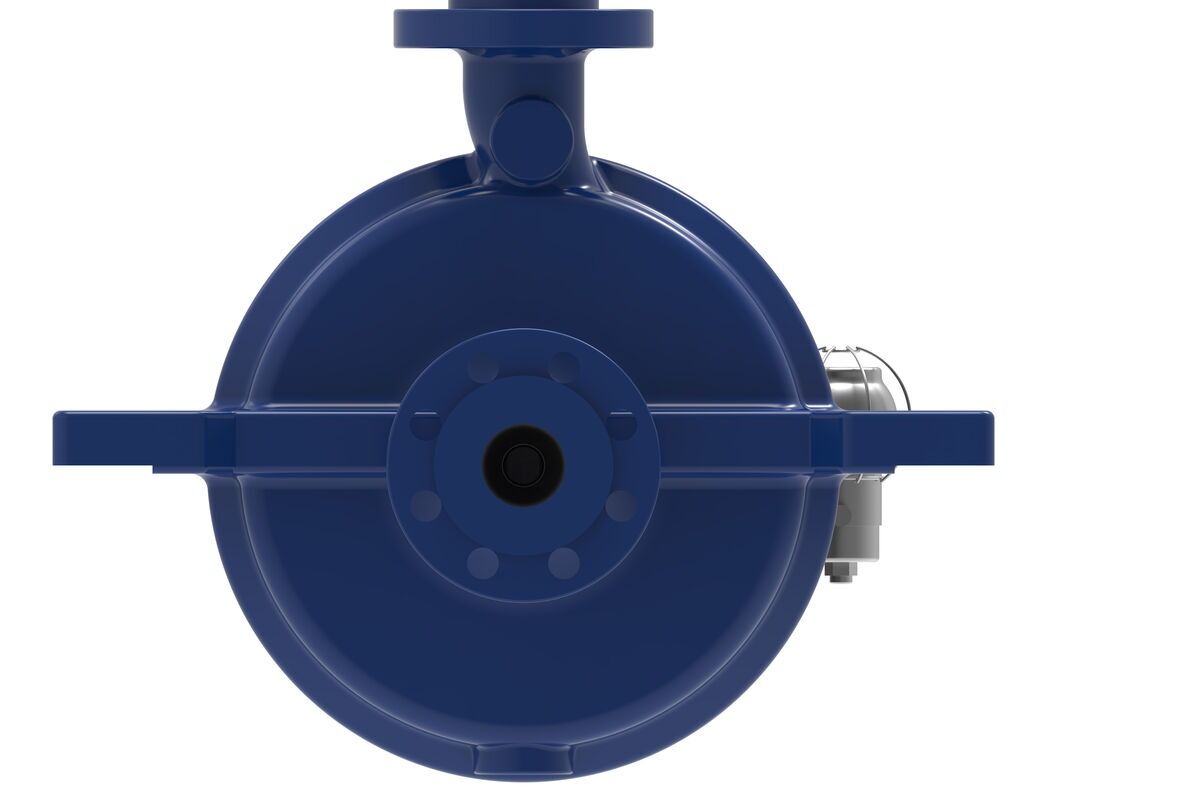

  • RL OH2 type API 610 Centrifugal Pump - Verticle View

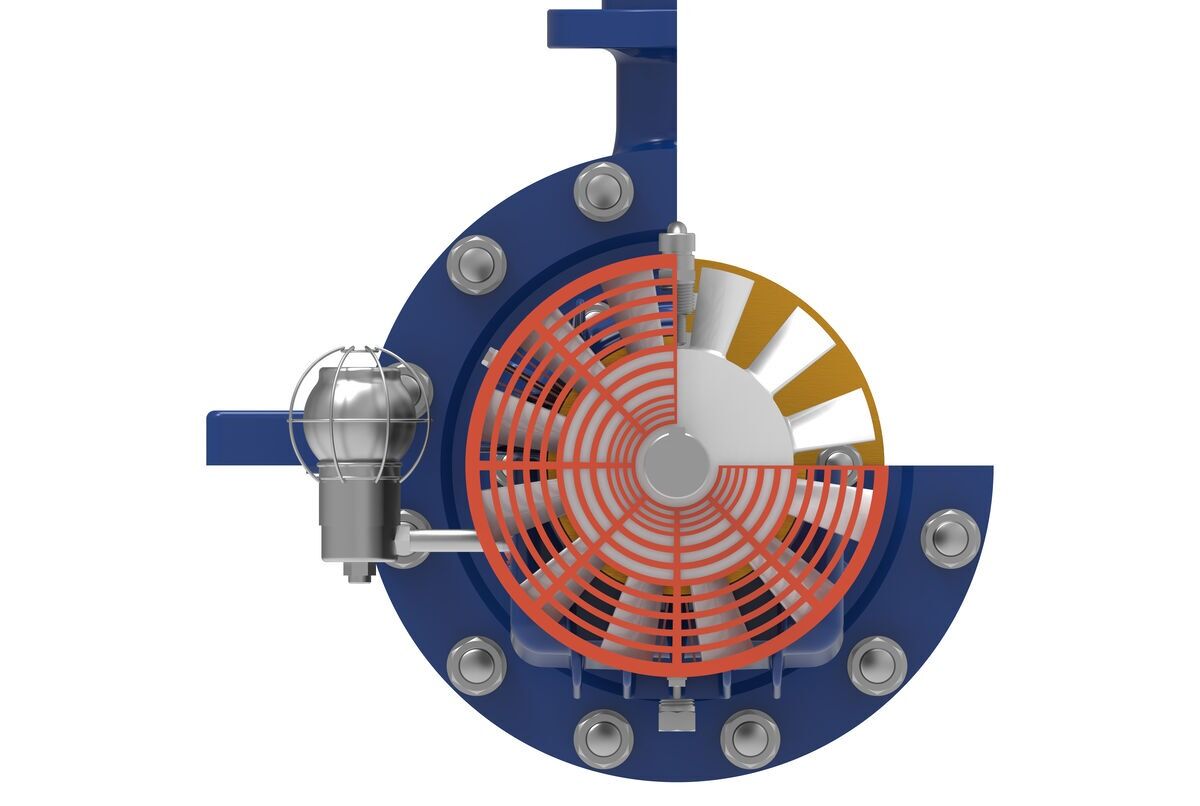

  • RL OH2 type API 610 Centrifugal Pump - Vertical Mechanical View
  • RL OH2 type API 610 Centrifugal Pump - Side Mechanical View 5
  • RL OH2 type API 610 Centrifugal Pump - Side Mechanical View 5

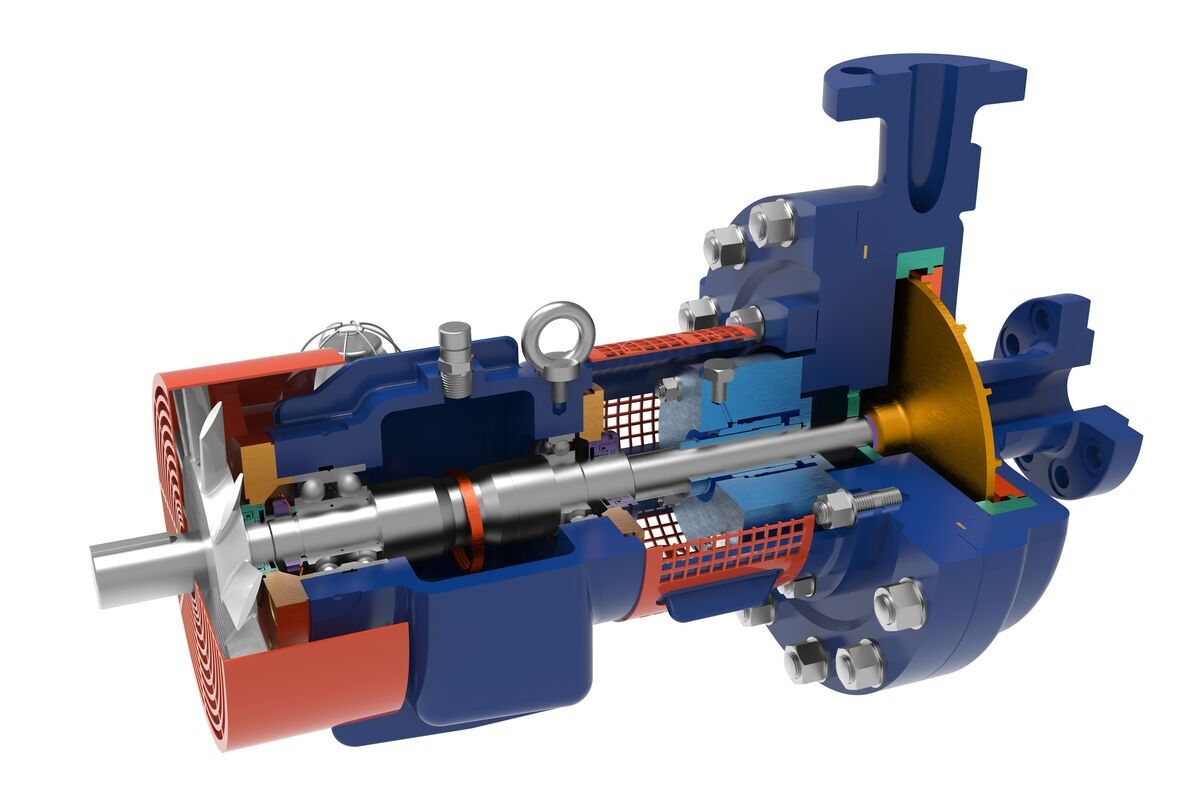

  • RL OH2 type API 610 Centrifugal Pump - Perspective View

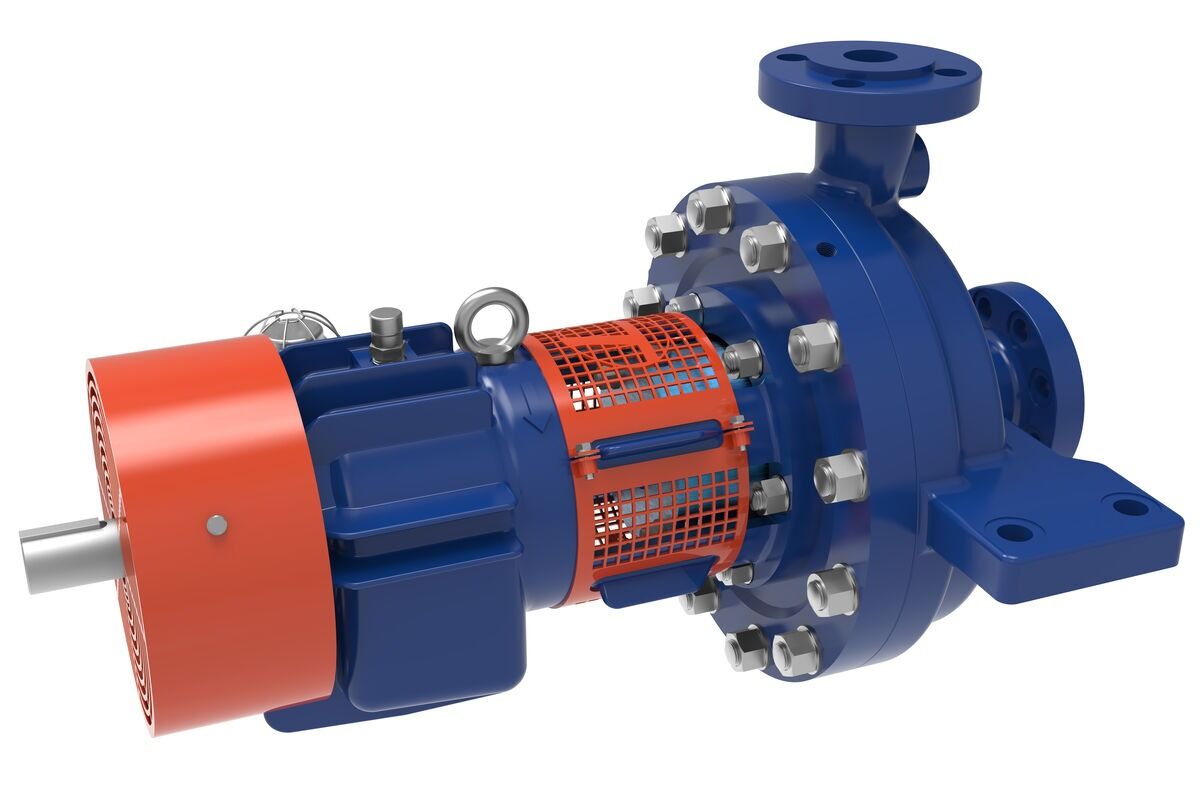

  • RL OH2 type API 610 Centrifugal Pump - Perspective View 1

Gabbioneta Pumps® Termomeccanica Pompe

RL OH2 type API 610 Centrifugal Pump

Trillium Flow Technologies’ updated RL pump range combines the engineering excellence, innovation, and heritage of our Gabbioneta Pumps® and Termomeccanica Pompe brands. Our expertise in designing and manufacturing OH2 low-flow, high-head pumps dates back to the 1960s, with thousands of units installed globally.

This API-compliant RL pump range is engineered with a back pull-out design for ease of maintenance and maximum hydraulic flexibility; our OH2 pump excels across many applications and features a Barske style impeller for low flow, high head applications.

Key Features

  • Fully API 610 compliant
  • Integral case connections to avoid non-destructive testing on larger frame sizes
  • Heavy-duty shaft to minimize rotor defection and maximize uptime
  • API 682 compliant seal chamber
  • Single Impeller with optimised hydraulics to minimise NPSH requirements
  • Heavy-duty case suitable for 2x API nozzle loads
  • Back pull out design for simple maintenance
  • Back pull out design also allows quick hydraulic re-rates
  • Barske impeller for low flow, high head applications

Options

  • All API material options:
    • S-4,S-5,S-6,S-8,C-6,A-8,D-1,D-2, plus bespoke options
  • High temperature alignment options
  • Bearing arrangements to accommodate Oil mist, purge mist and various cooling configuration.
  • Magnetic coupling options also available
  • Specialist Options: Inducer, High Temperature Alignment

Main Applications

  • High Temperature Refining
  • Hydrocarbon Transfer
  • Petrochemical plants
  • Booster applications
