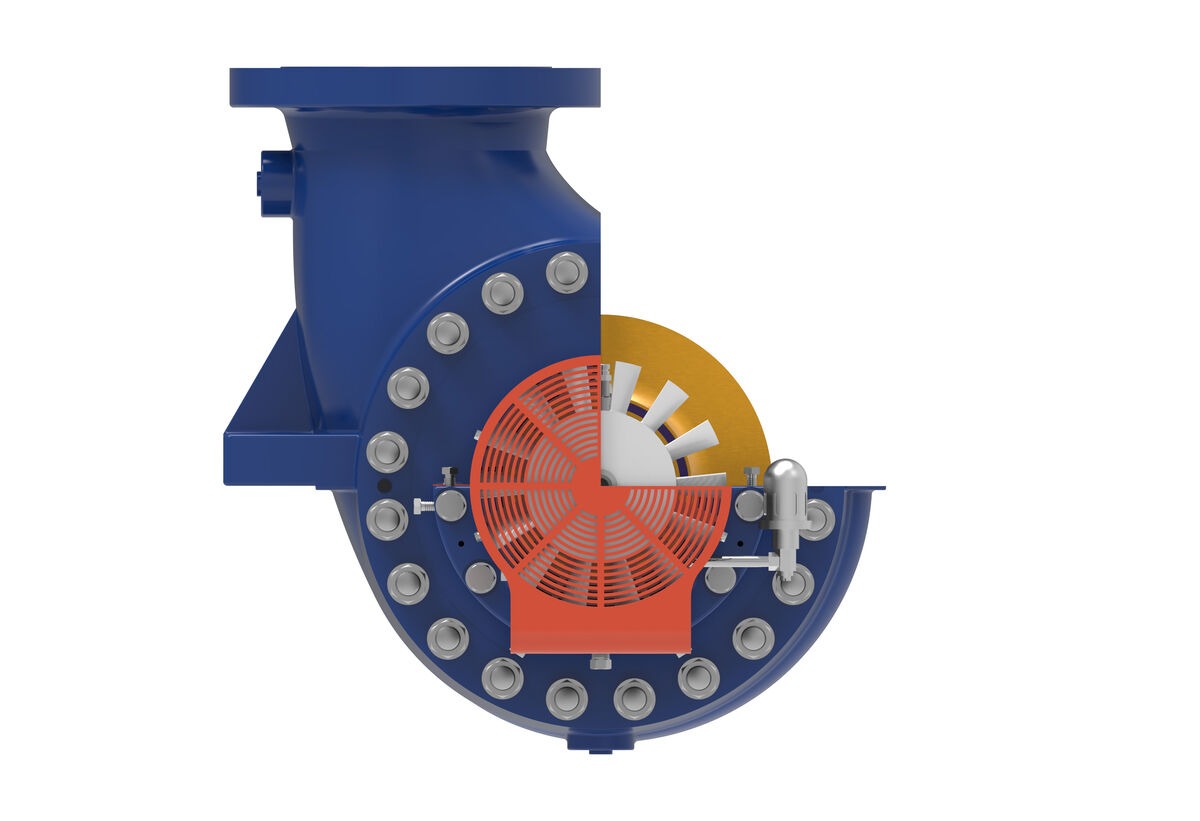

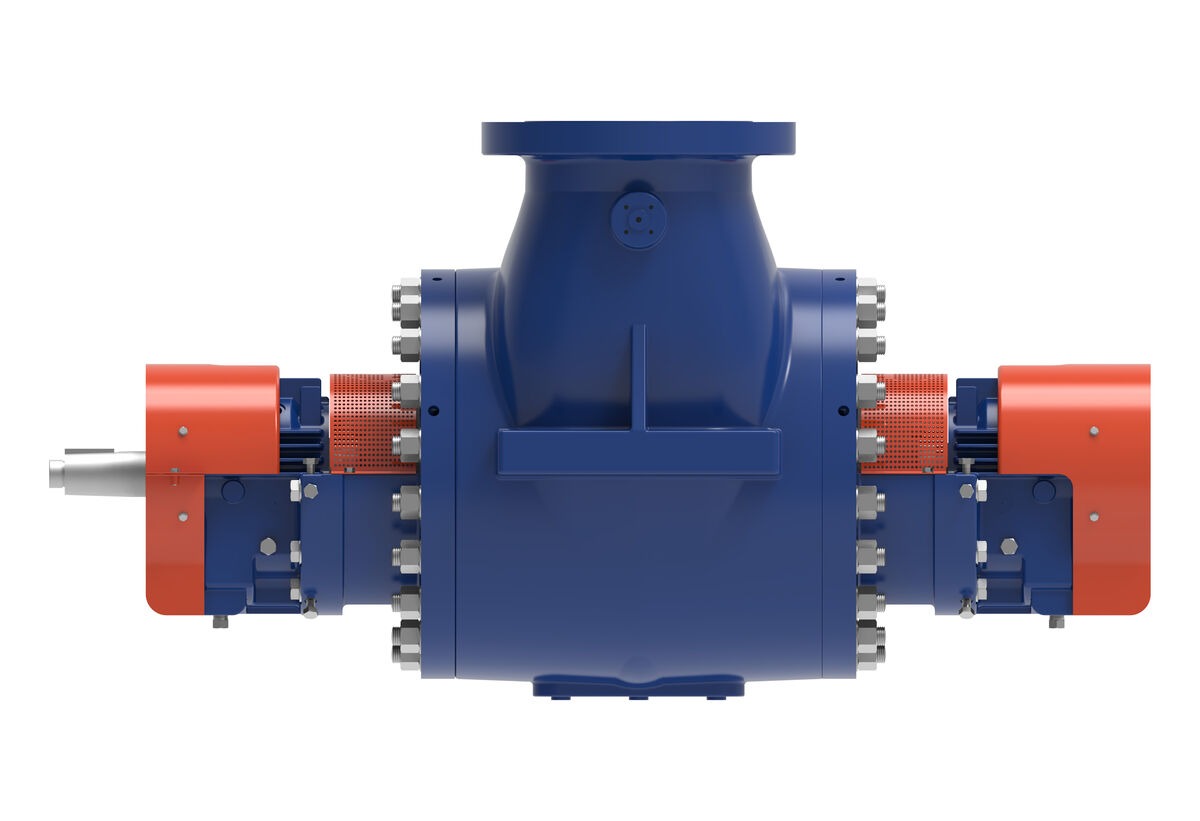

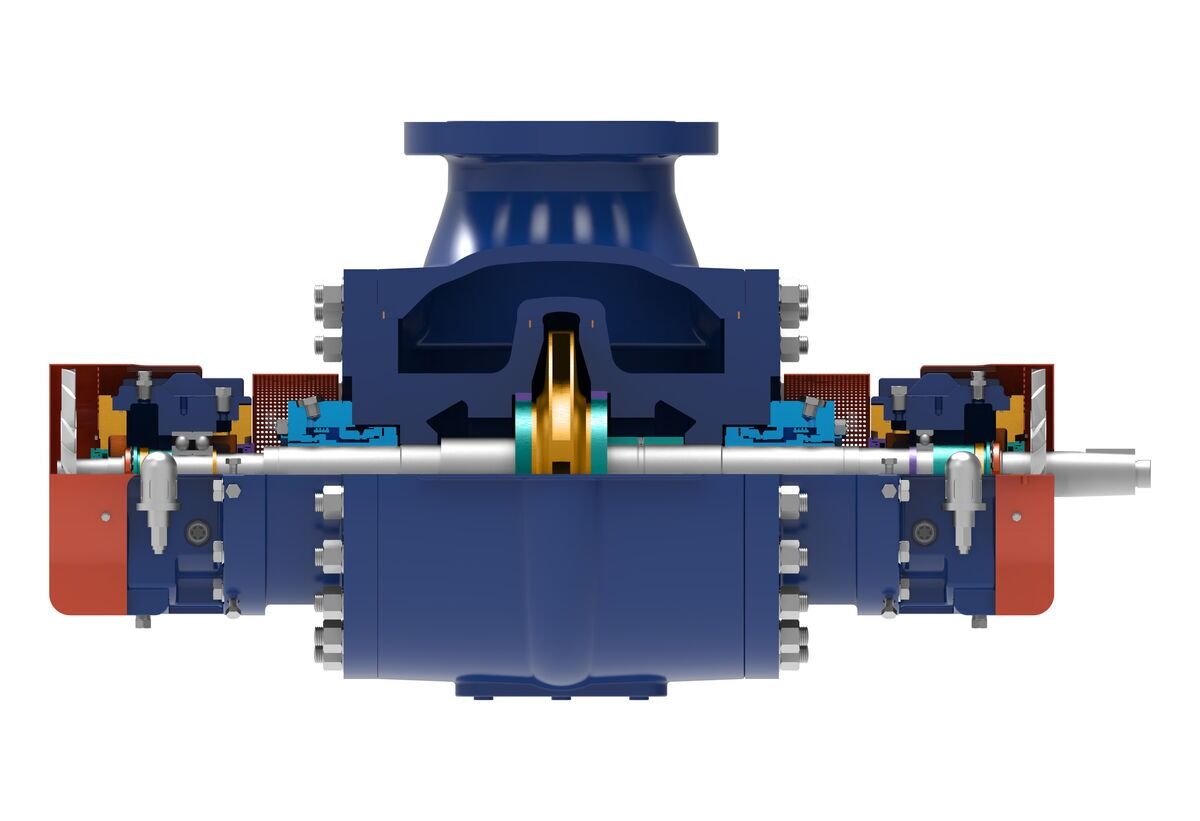

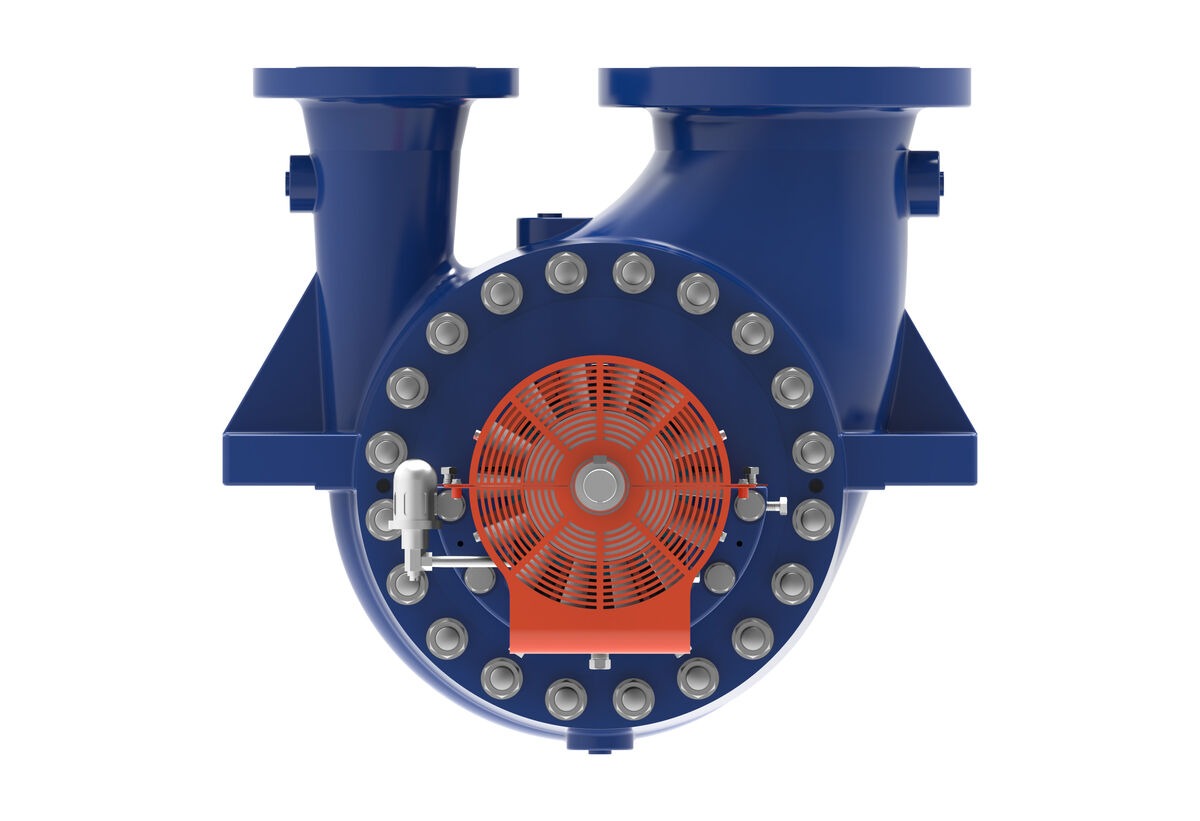

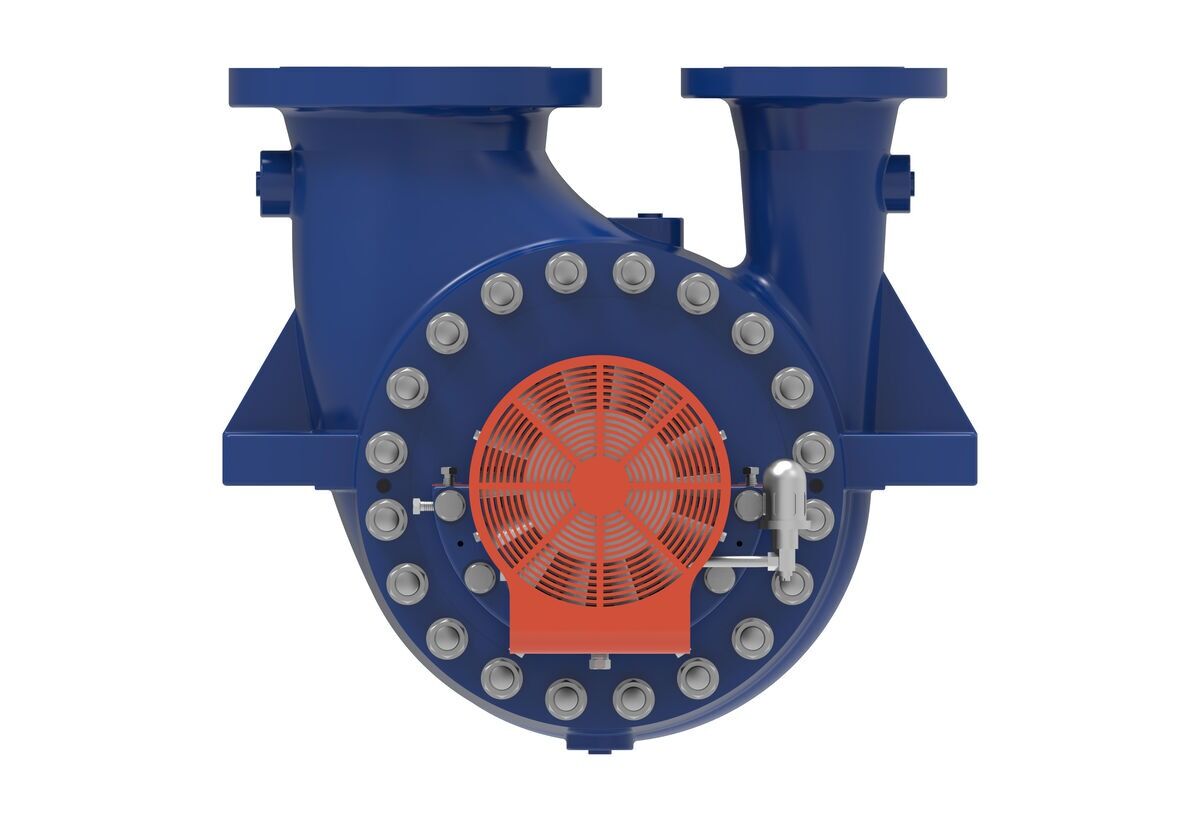

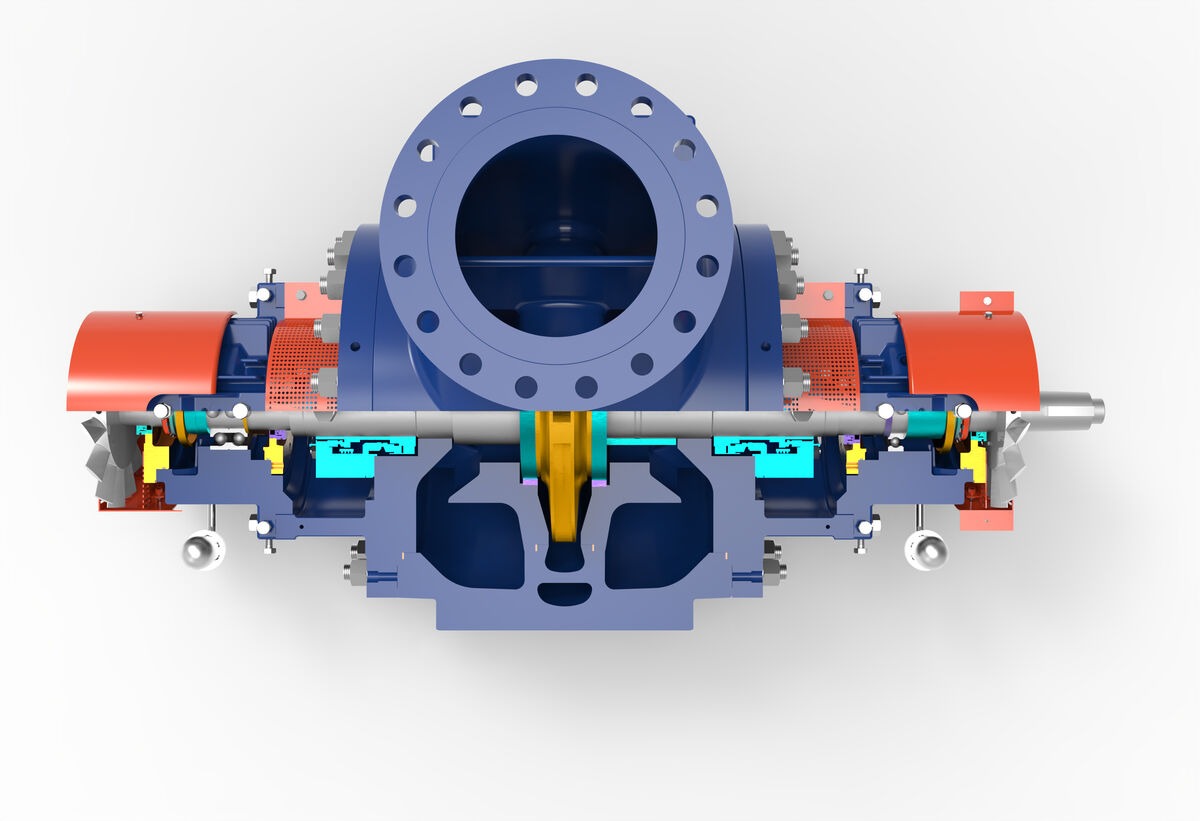

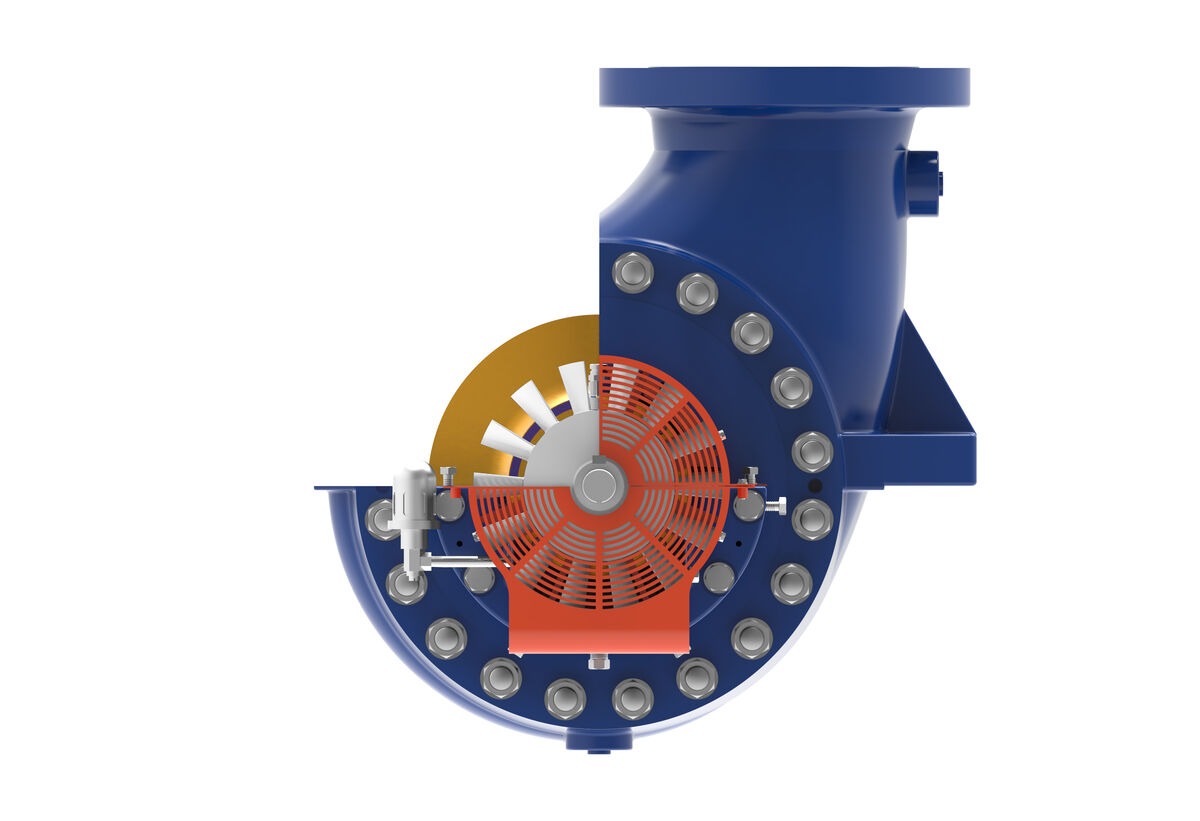

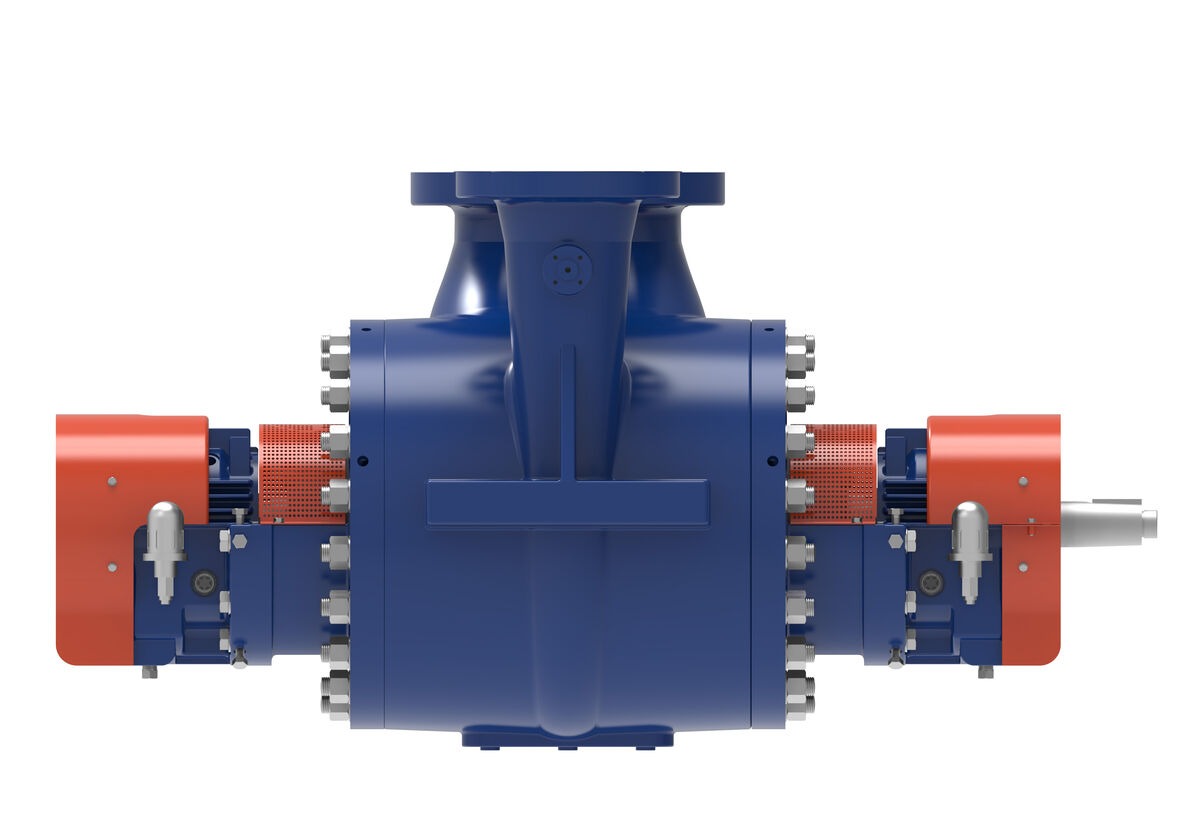

• DSA BB2 Type API 610 Centrifugal Pump - Side Mechanical View
  • DSA BB2 Type API 610 Centrifugal Pump - Side Mechanical View 1
  • DSA BB2 Type API 610 Centrifugal Pump - Side Mechanical View 2
  • DSA BB2 Type API 610 Centrifugal Pump - Side Mechanical View 3
  • DSA BB2 Type API 610 Centrifugal Pump - Side Mechanical View 4
  • DSA BB2 Type API 610 Centrifugal Pump - Side Mechanical View 5
  • DSA BB2 Type API 610 Centrifugal Pump - Side Mechanical View 6
  • DSA BB2 Type API 610 Centrifugal Pump - Side Mechanical View 7

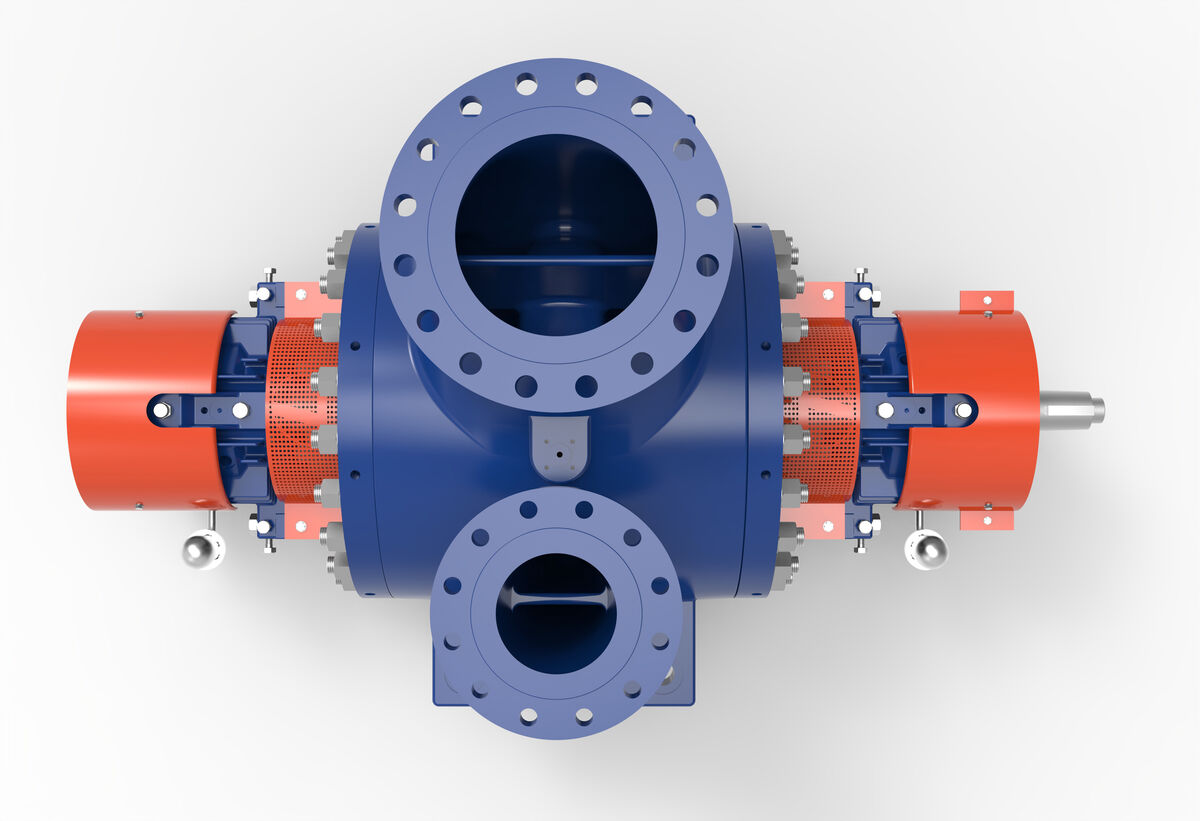

  • DSA BB2 Type API 610 Centrifugal Pump - Verticle View

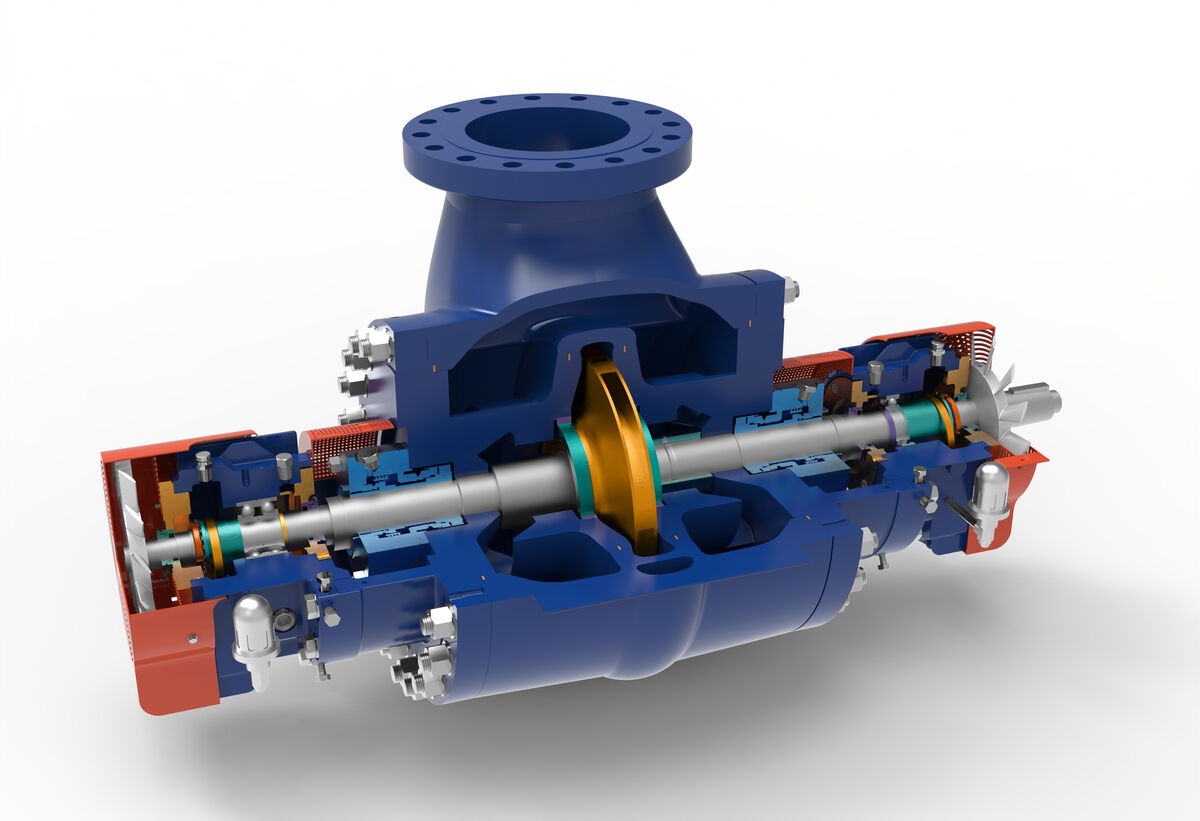

  • DSA BB2 Type API 610 Centrifugal Pump - Perspective View 1
  • DSA BB2 Type API 610 Centrifugal Pump - Perspective View 2
  • AHP & AHP-DS BB3 Type API 610 Centrifugal Pump - Perspective View

Gabbioneta Pumps® Termomeccanica Pompe

DSA BB2 Type API 610 Centrifugal Pump

Gabbioneta® DSA Pumps offer axial balance, proven reliability, and easy maintenance in the toughest conditions, including temperatures over 120°C. The DSA Gabbioneta Pumps® are horizontal, between bearings, with radial split casing and a double suction impeller. A wide range of sizes, various arrangements of suction and discharge nozzles, and three bearings arrangements are available.

TECHNICAL DATA

  • Capacity up to 12,000 m3/h (52,800 gpm)
  • Head up to 380 m (1,200 ft.)
  • Operating temperature from -30ºC (-20ºF) to 455ºC (851ºF)
  • Standard design pressure 40 bar (580 psig), special executions up to 100 bar (1,400 psig)
  • Rotational speed up to 3,600 RPM

DESIGN STANDARD

  • API 610 latest edition

MATERIALS

  • All API 610 class materials.
  • Special materials upon request.

DOWNLOADS

RELATED PRODUCTS

  • Gabbioneta Pumps® Termomeccanica Pompe
    Red Point®
    API,ASME,FPSO,General Industry,Hydrogen,Industries,ISO,Liquid,Media,Oil & Gas,Oil & Gas - Downstream,Oil & Gas - Midstream,Oil & Gas - Upstream,Standard,Traditional Energy,Water & Wastewater
    Between Bearings,Main_Pumps

    API-610 type: BB5 – TMP model: MESB – MESB-D

    Front side view of a Termomeccanica Pompe MESB & MESBD BB5 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

    MORE INFORMATION

    Between Bearings,Main_Pumps

  • Gabbioneta Pumps® Termomeccanica Pompe
    Red Point®
    API,ASME,Desalination,FPSO,General Industry,Industries,ISO,Liquid,LNG,Media,Oil & Gas,Oil & Gas - Downstream,Oil & Gas - Midstream,Oil & Gas - Upstream,Standard,Traditional Energy,Water & Wastewater
    Between Bearings,Main_Pumps

    DD BB1 TYPE API 610 CENTRIFUGAL PUMP

    Front view of a Termomeccanica Pompe DD BB1 TYPE API 610 Centrifugal Pump manufactured by Trillium Flow Technologies

    MORE INFORMATION

    Between Bearings,Main_Pumps

  • Gabbioneta Pumps® Termomeccanica Pompe
    Red Point®
    API,Fertilizer,FPSO,Hydrogen,Industries,Liquid,Media,Oil & Gas,Oil & Gas - Downstream,Oil & Gas - Midstream,Oil & Gas - Upstream,Standard
    Between Bearings,Main_Pumps

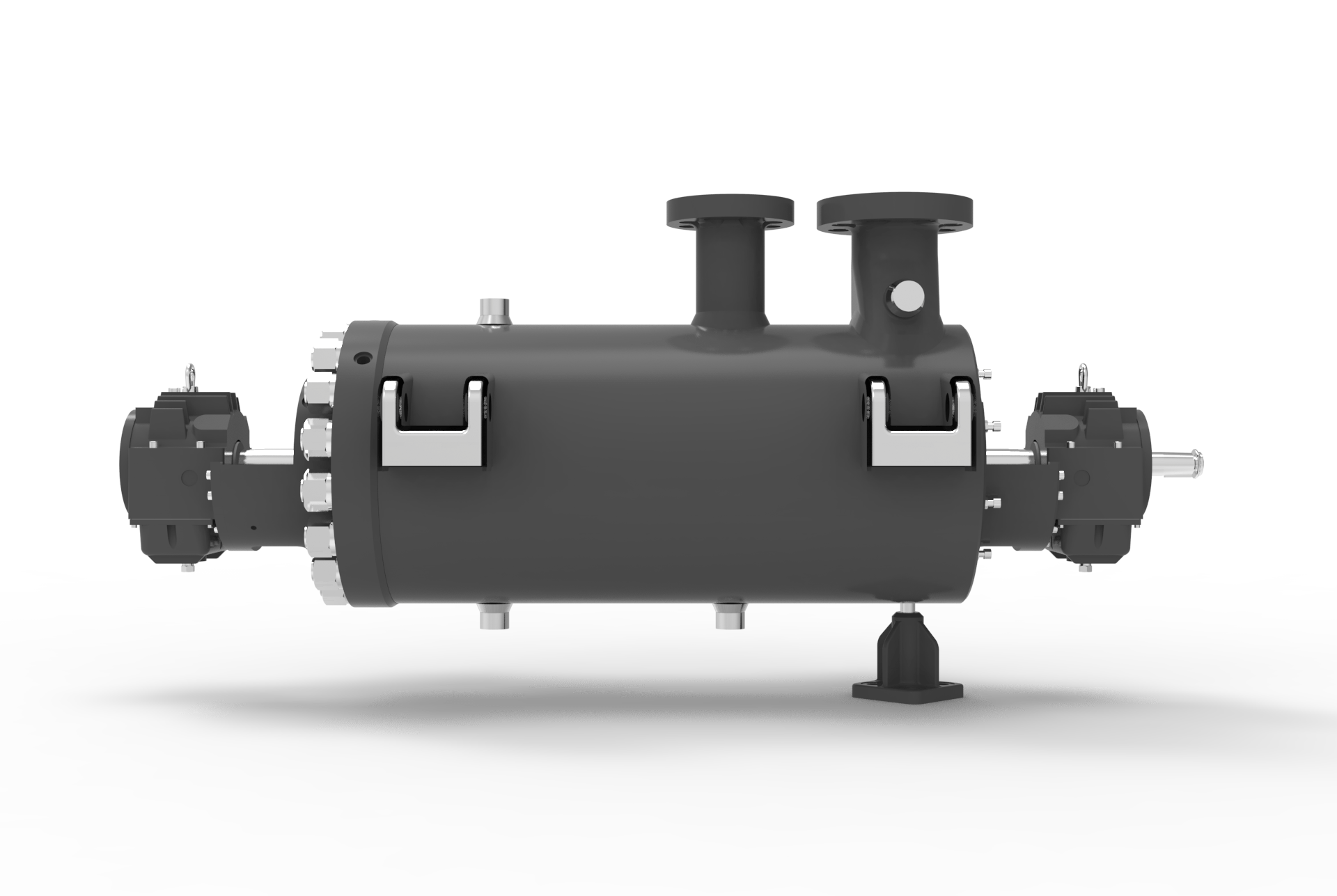

    AHPB AHPB-D BB5 type API 610 Centrifugal Pump

    BB5 - TMP model: MESB – MESB-D Centrifugal-Pump

    MORE INFORMATION

    Between Bearings,Main_Pumps

  • Gabbioneta Pumps® Termomeccanica Pompe
    Red Point®
    API,Fertilizer,FPSO,Industries,Liquid,LNG,Media,Oil & Gas,Oil & Gas - Downstream,Oil & Gas - Midstream,Standard
    Between Bearings,Main_Pumps

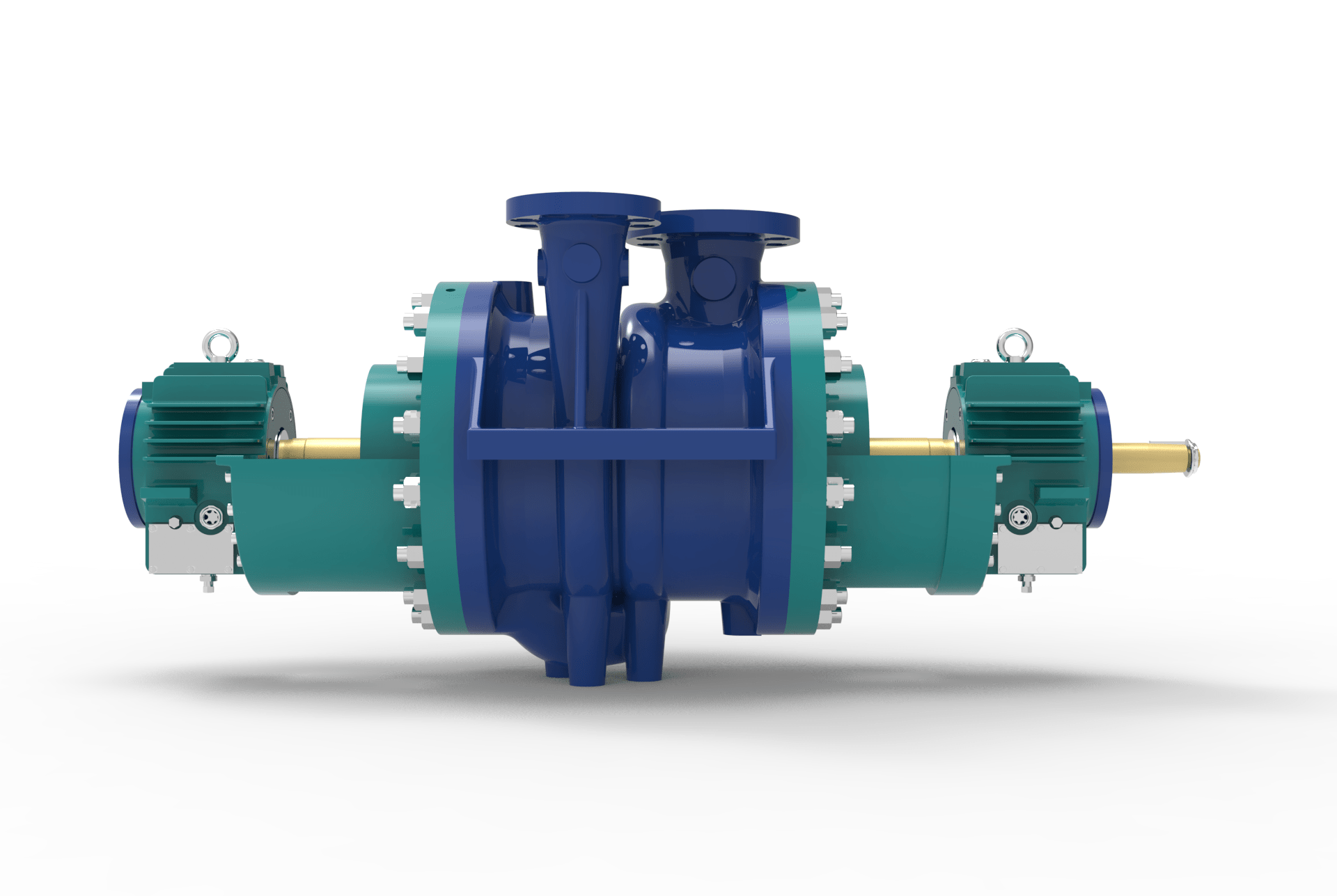

    DH & DDH BB2 Type API 610 Centrifugal Pump

    AHP & AHP-DS BB3 Type API 610 Centrifugal Pump - Rear Mechanical View

    MORE INFORMATION

    Between Bearings,Main_Pumps

  • Gabbioneta Pumps® Termomeccanica Pompe
    Red Point®
    API,Fertilizer,FPSO,Industries,Liquid,LNG,Media,Oil & Gas,Oil & Gas - Downstream,Oil & Gas - Midstream,Oil & Gas - Upstream,Standard,Water & Wastewater
    Between Bearings,Main_Pumps

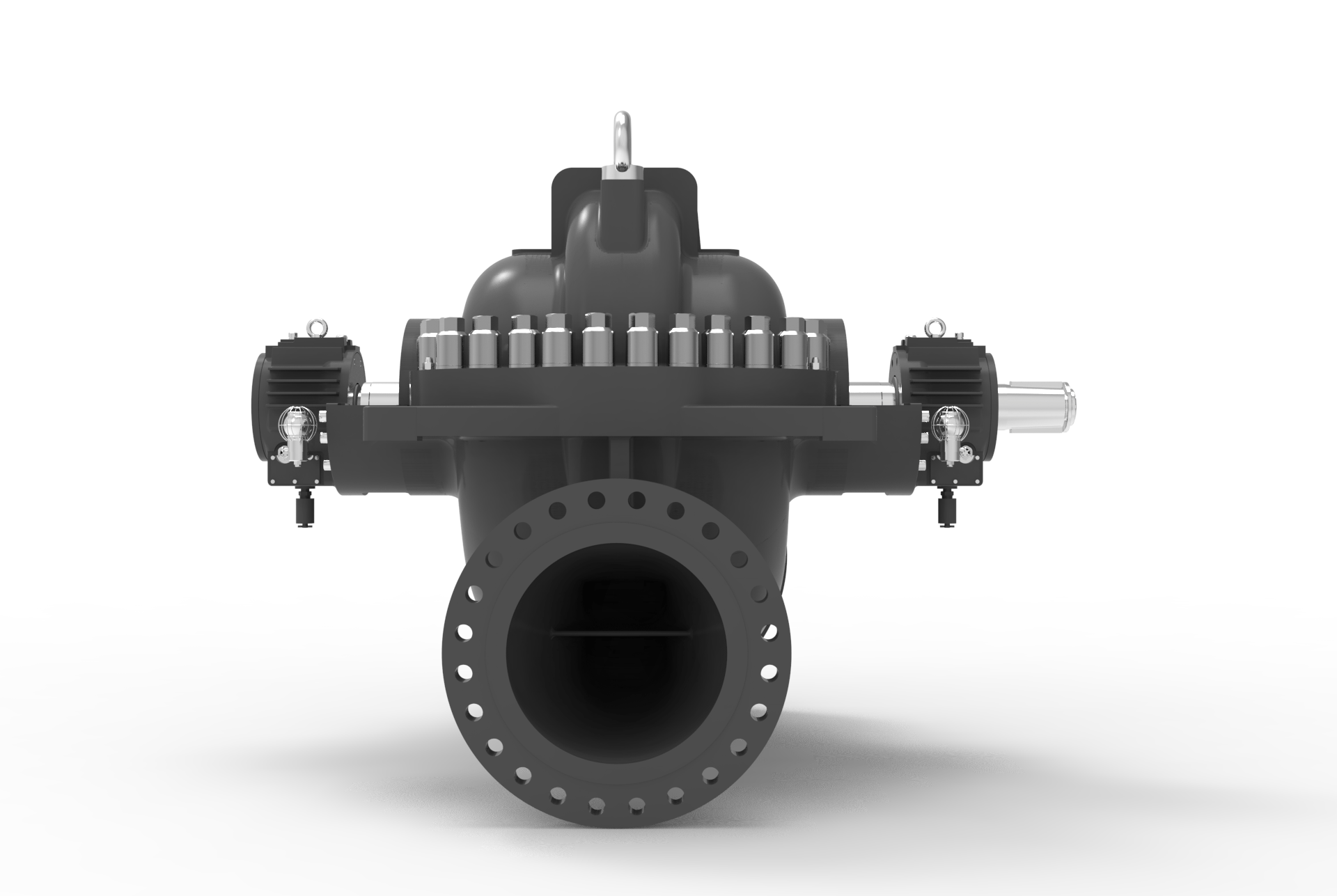

    AXD BB1 type API 610 Centrifugal Pump

    AHP & AHP-DS BB3 Type API 610 Centrifugal Pump - Side Mechanical View 2

    MORE INFORMATION

    Between Bearings,Main_Pumps

  • Gabbioneta Pumps® Termomeccanica Pompe
    Red Point®
    API,FPSO,General Industry,Industries,Liquid,LNG,Media,Oil & Gas,Oil & Gas - Downstream,Oil & Gas - Midstream,Oil & Gas - Upstream,Standard,Water & Wastewater
    Main_Pumps,Overhung

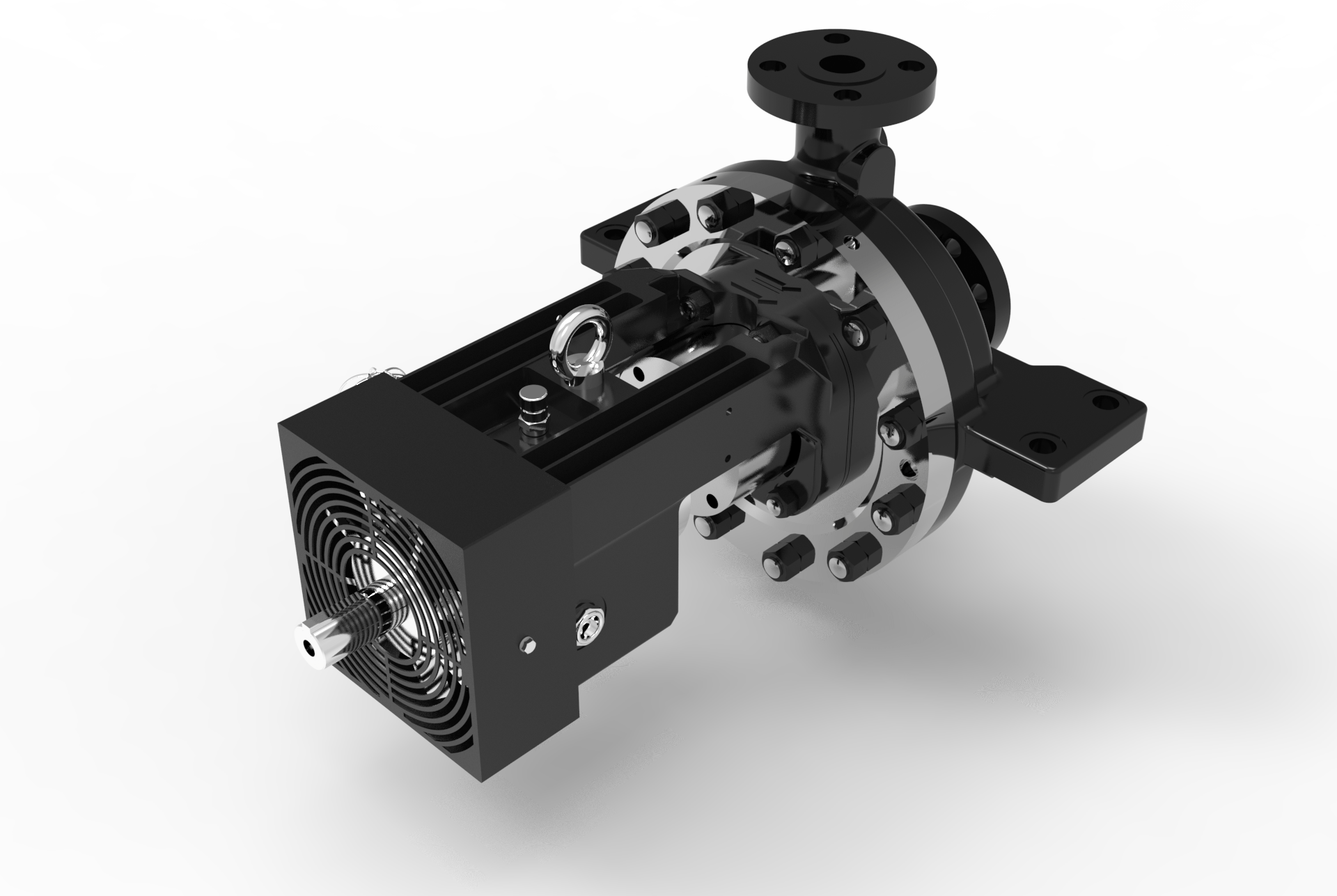

    RL OH2 type API 610 Centrifugal Pump

    RL OH2 type API 610 Centrifugal Pump

    MORE INFORMATION

    Main_Pumps,Overhung

  • Gabbioneta Pumps® Termomeccanica Pompe
    Red Point®
    API,Desalination,FPSO,General Industry,Industries,Liquid,LNG,Media,Oil & Gas,Oil & Gas - Downstream,Oil & Gas - Midstream,Oil & Gas - Upstream,Standard,Water & Wastewater
    Main_Pumps,Overhung

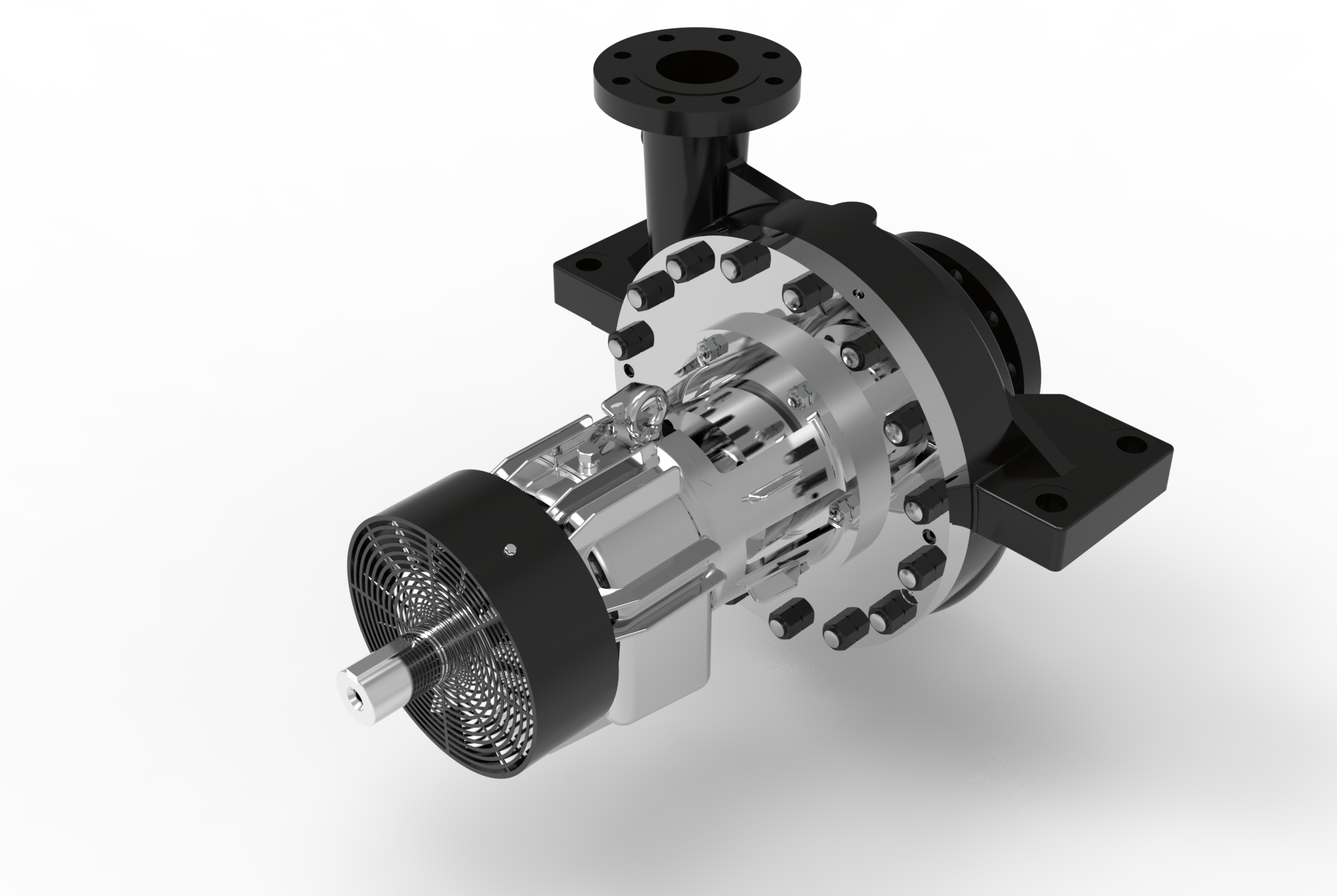

    R OH2 type API 610 Centrifugal Pump

    R OH2 type API 610 Centrifugal Pump

    MORE INFORMATION

    Main_Pumps,Overhung

  • Gabbioneta Pumps® Termomeccanica Pompe
    Red Point®
    API,Desalination,Fertilizer,FPSO,General Industry,Industries,Liquid,LNG,Media,Mining & Minerals,Nuclear Power,Oil & Gas,Oil & Gas - Downstream,Oil & Gas - Midstream,Oil & Gas - Upstream,Renewable Power,Standard,Traditional Energy,Traditional Power,Water & Wastewater
    Between Bearings,Main_Pumps

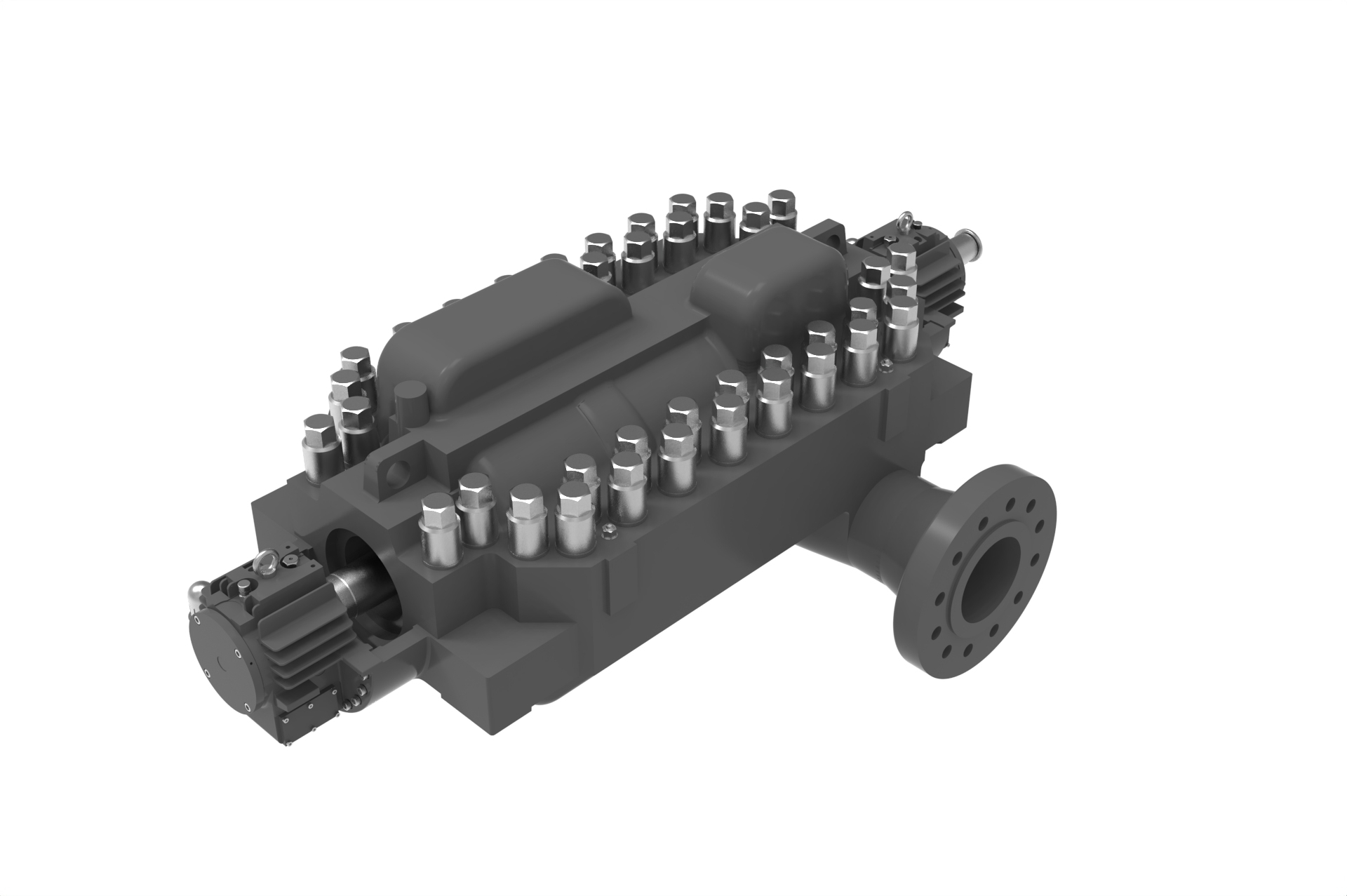

    AHP AHP-D BB3 Type API 610 Centrifugal Pump
