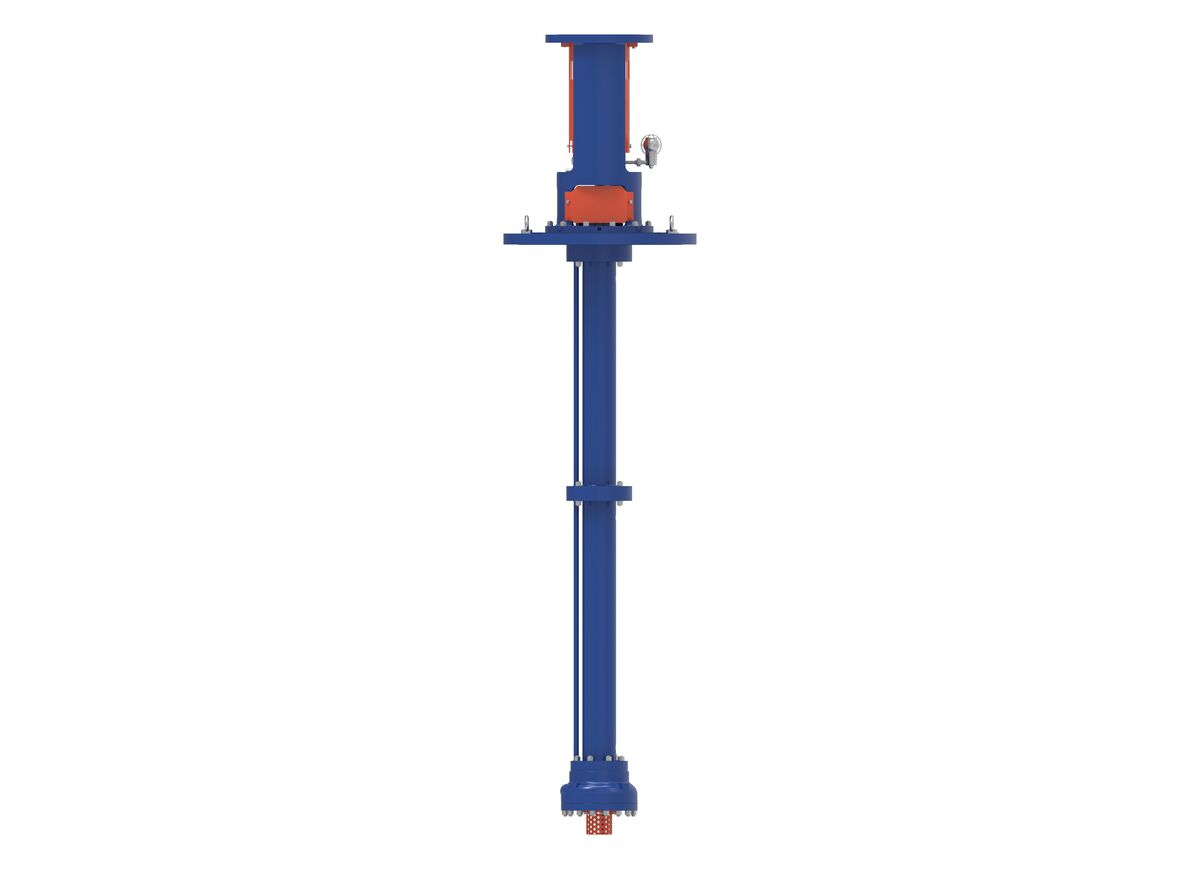

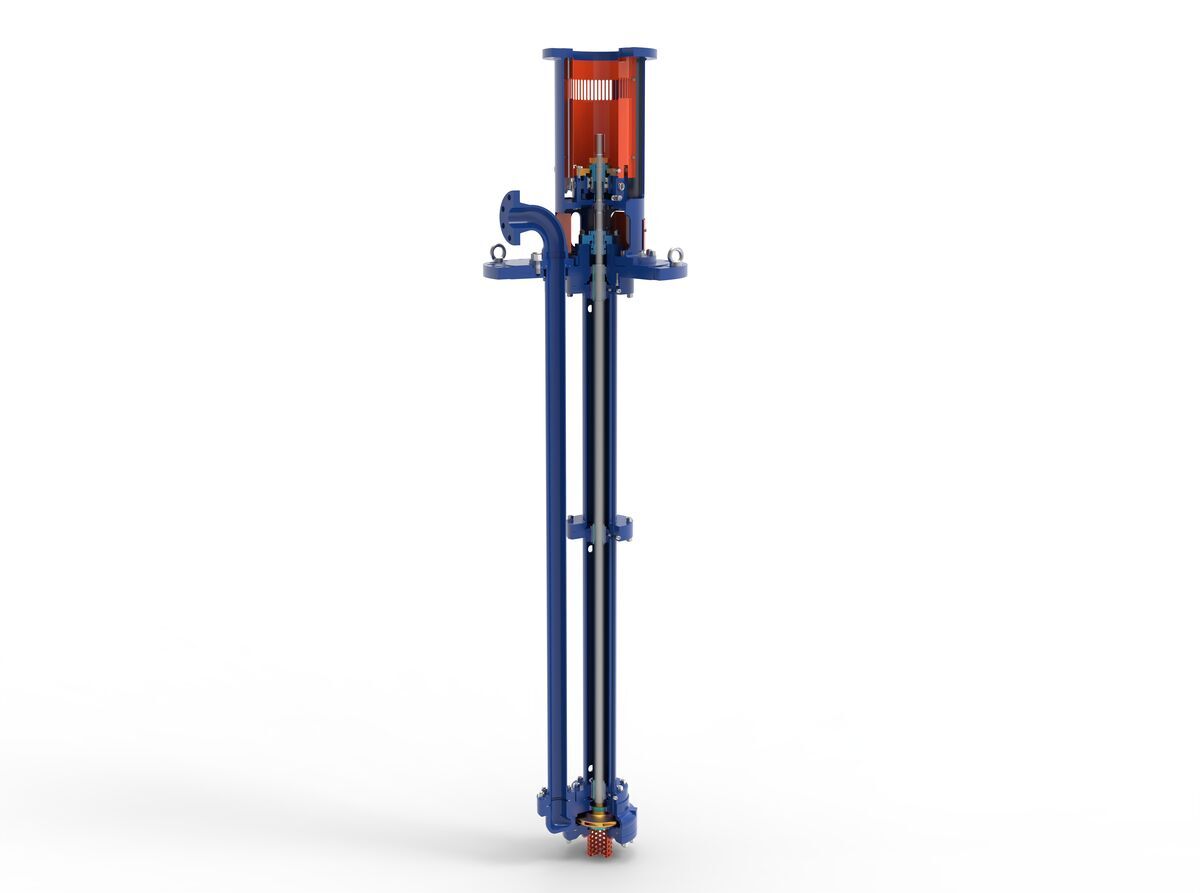

• GABBIONETA PUMPS® VI VS4 TYPE API 610 CENTRIFUGAL PUMP left side view

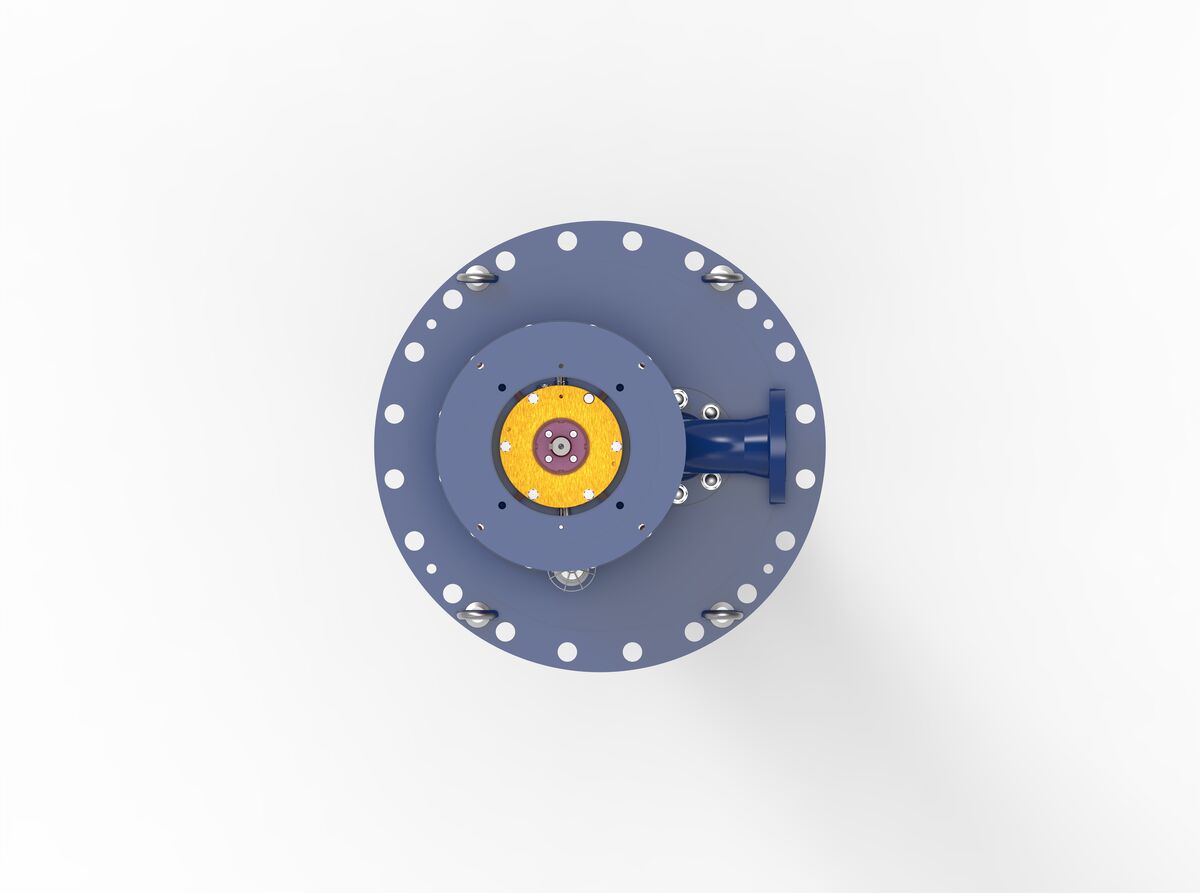

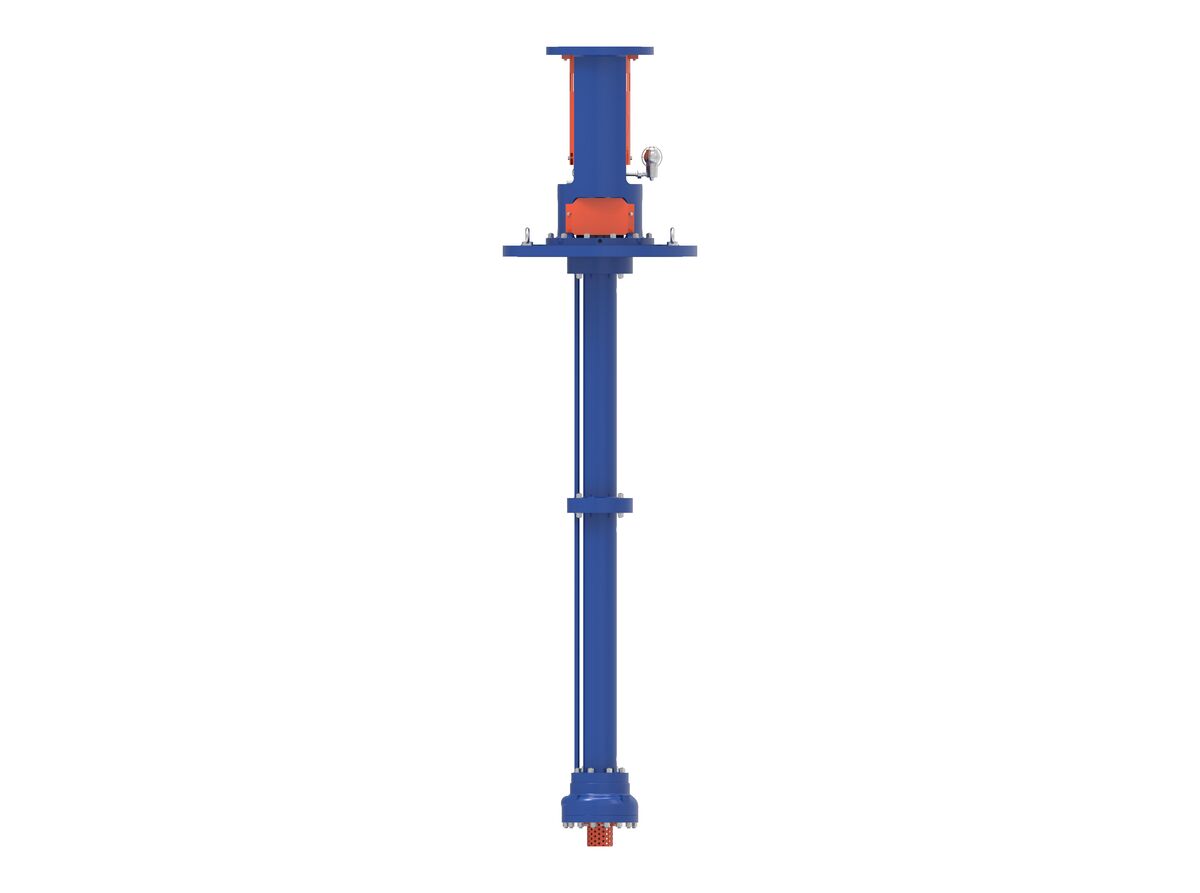

  • GABBIONETA PUMPS® VI VS4 TYPE API 610 CENTRIFUGAL PUMP top view

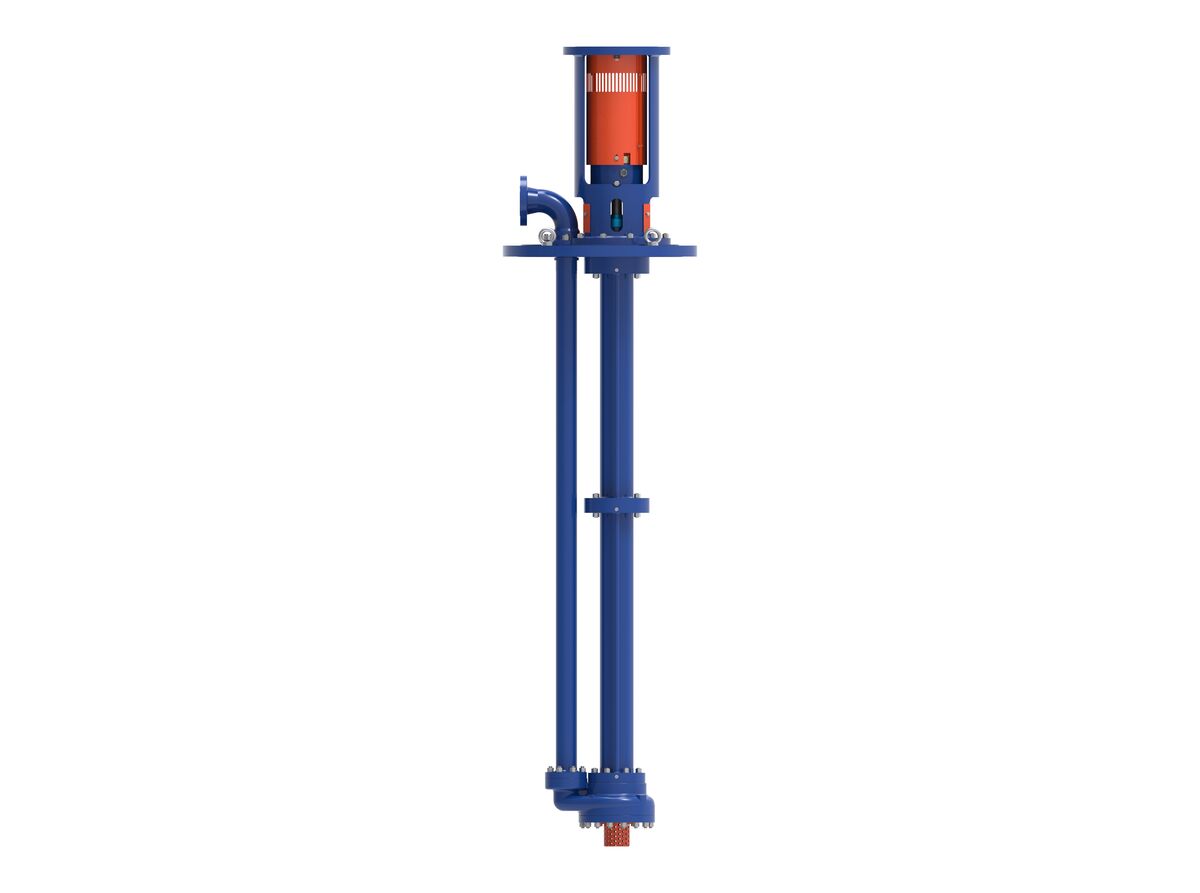

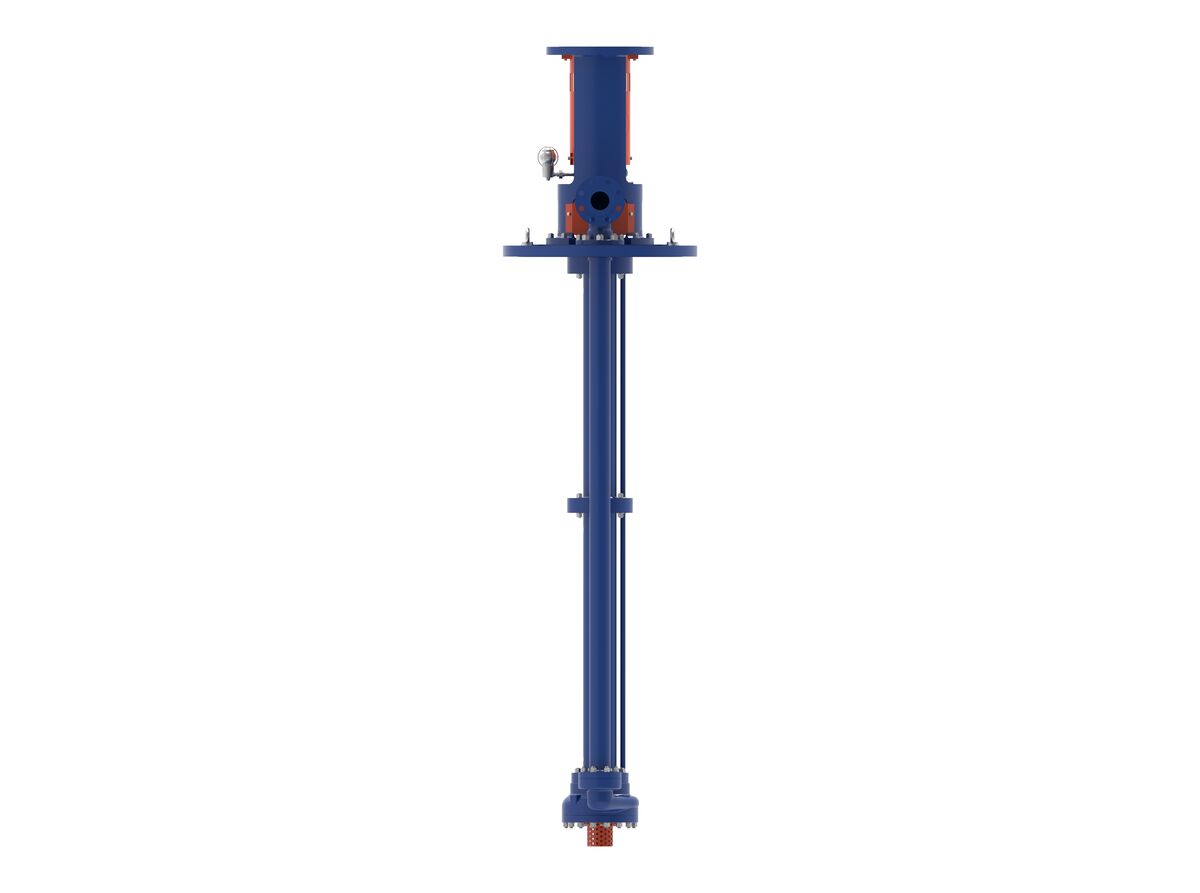

  • GABBIONETA PUMPS® VI VS4 TYPE API 610 CENTRIFUGAL PUMP right side view
  • GABBIONETA PUMPS® VI VS4 TYPE API 610 CENTRIFUGAL PUMP back view

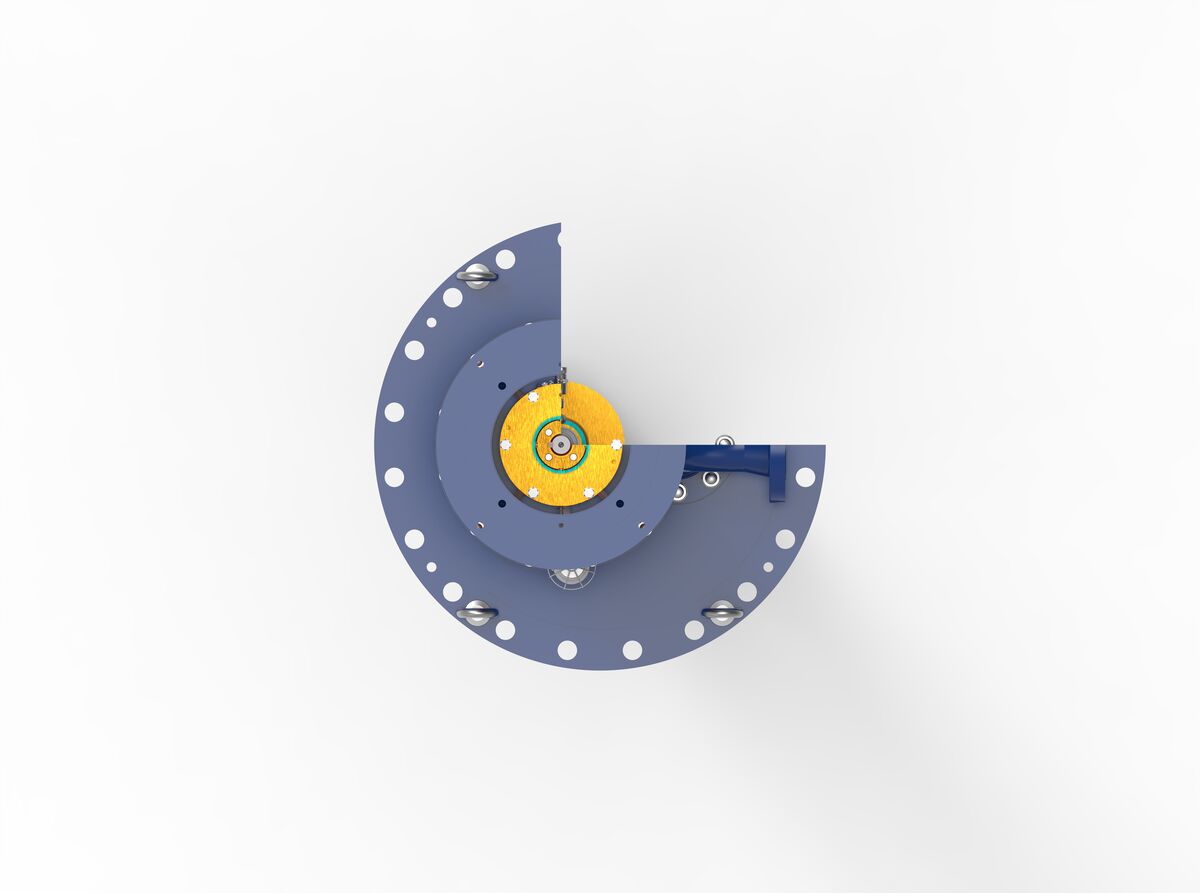

  • GABBIONETA PUMPS® VI VS4 TYPE API 610 CENTRIFUGAL PUMP top view horizontal

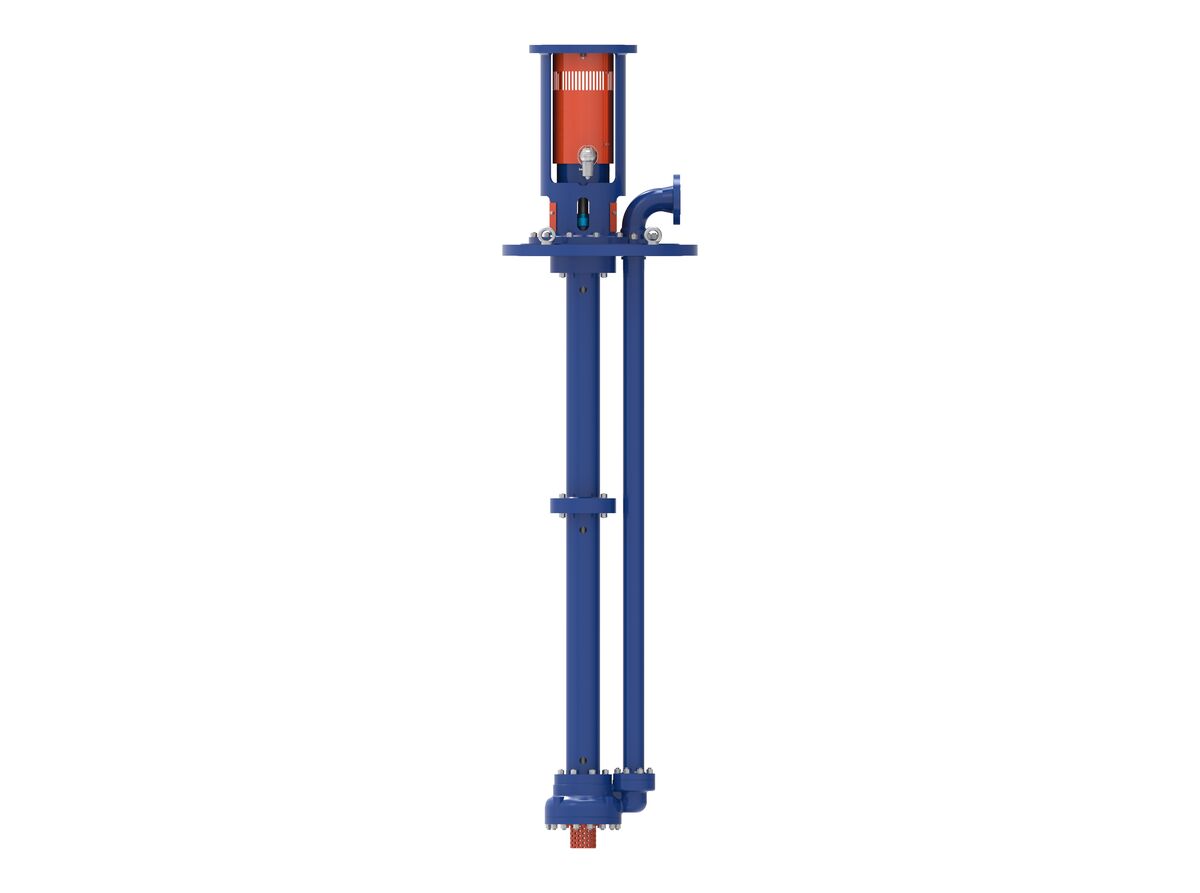

  • GABBIONETA PUMPS® VI VS4 TYPE API 610 CENTRIFUGAL PUMP angled view

GABBIONETA PUMPS®

VI VS4 Type API 610 Centrifugal Pump

Gabbioneta VI are VS4 robust process pumps specifically designed to minimize overall dimensions. The VI Gabbioneta Pumps® are vertical, single stage heavy-duty process pumps, with side discharge.

VI pumps have a closed type impeller with front and rear rings as well as balancing holes, to minimize the axial thrust, and a large eye to meet low NPSH requirements. The pump shaft is fully machined to respect the most restrictive run-out API requirements, labyrinths and deflectors at both bearing housing covers allow maximum protection against dirt and the discharge column mounted with a sliding fit through the sole plate accounts for thermal expansions.

As an option, a full jacketed construction can be added to minimize pump distortions caused by local heating, additional rigid coupling can facilitate mechanical seal maintenance activities, a suction strainer will benefit particularly dirty services, and open impellers can be used for waxy or fibrous solids.

TECHNICAL DATA

  • Capacity up to 4,000 m3/h (17,600 gpm)
  • Head up to 200 m (700 ft.)
  • Operating temperature from -30ºC (-20ºF) to 450ºC (850ºF)
  • Standard design pressure 40 bar (580 psig)
  • Rotational speed up to 3,600 RPM

DESIGN STANDARD

  • API 610 latest edition

MATERIALS

  • All API 610 class materials.
  • Special materials upon request.
