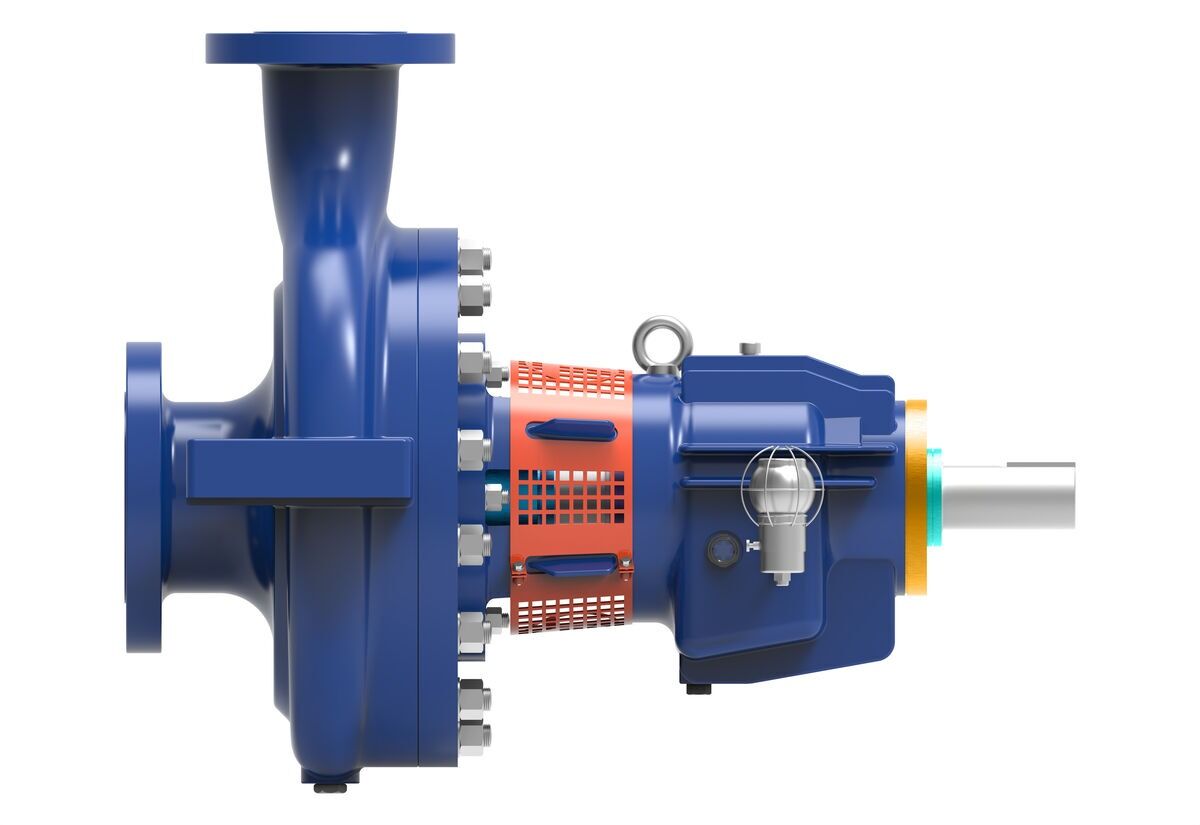

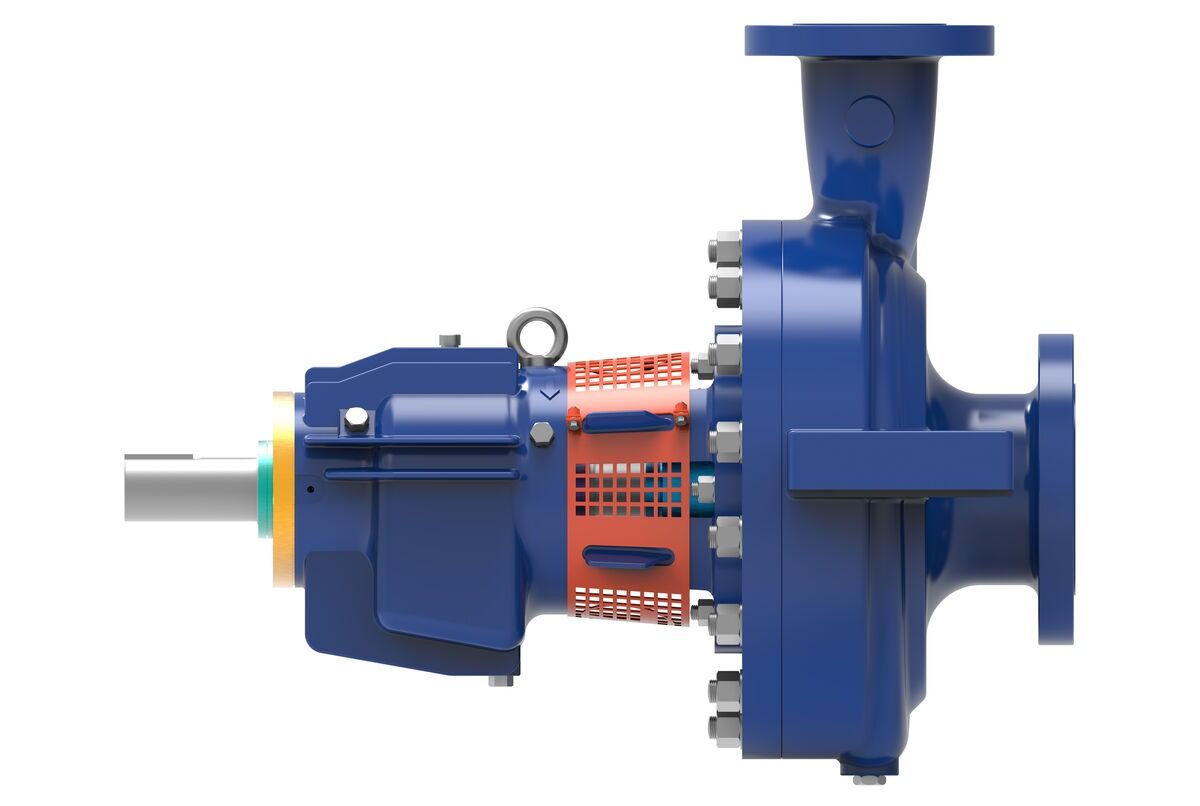

• GABBIONETA PUMPS® R OH2 TYPE API 610 CENTRIFUGAL PUMP left side horizontal view

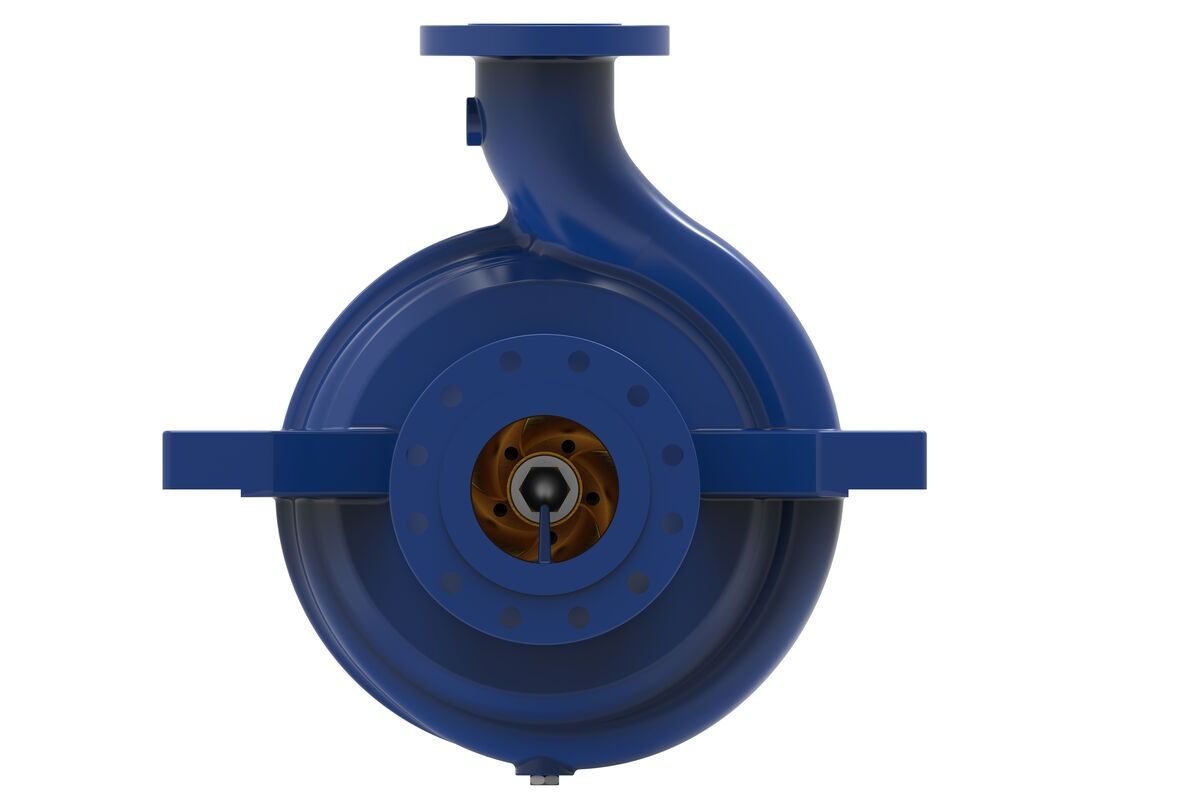

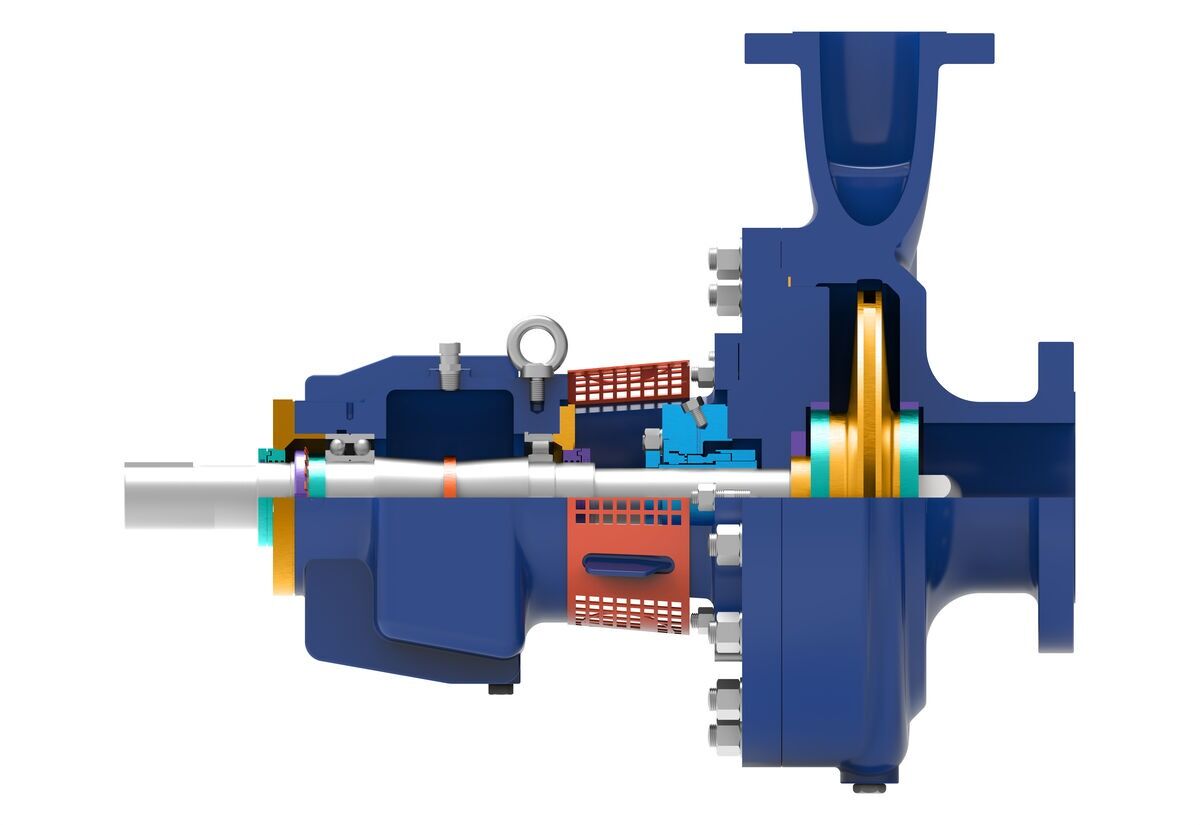

  • GABBIONETA PUMPS® R OH2 TYPE API 610 CENTRIFUGAL PUMP front view

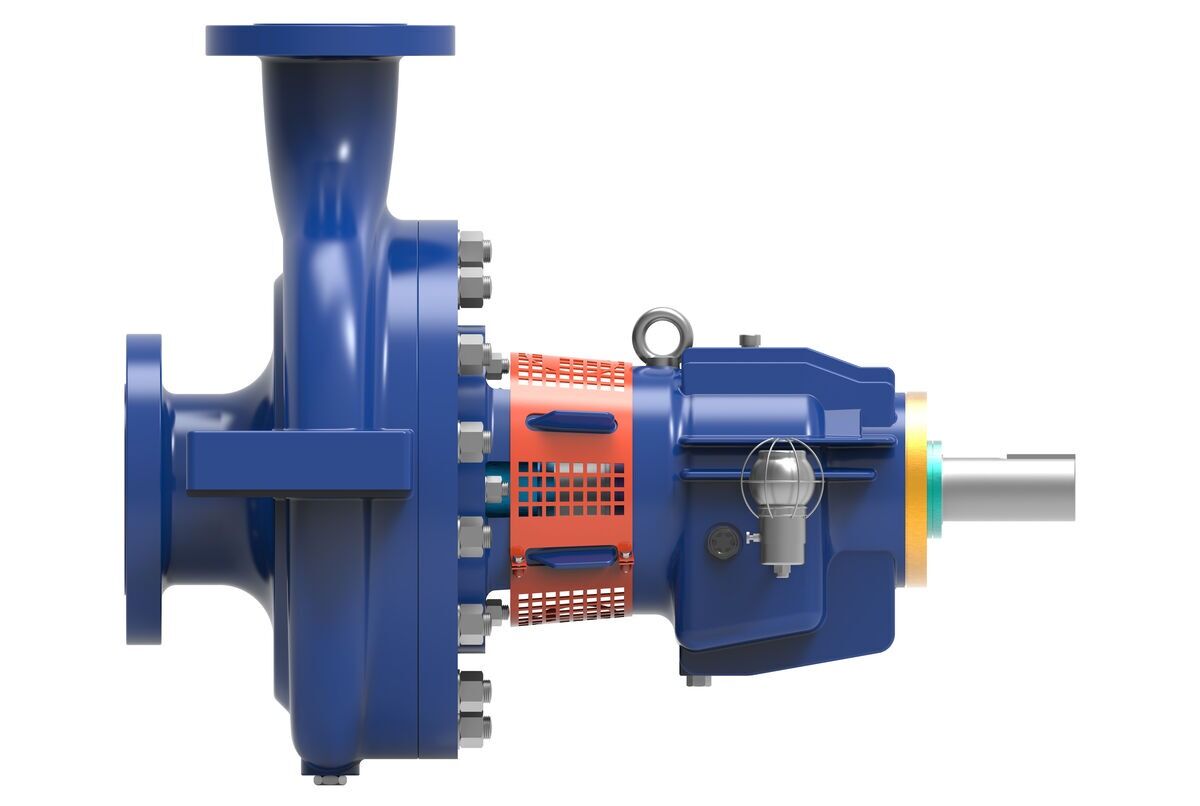

  • GABBIONETA PUMPS® R OH2 TYPE API 610 CENTRIFUGAL PUMP right side horizontal view

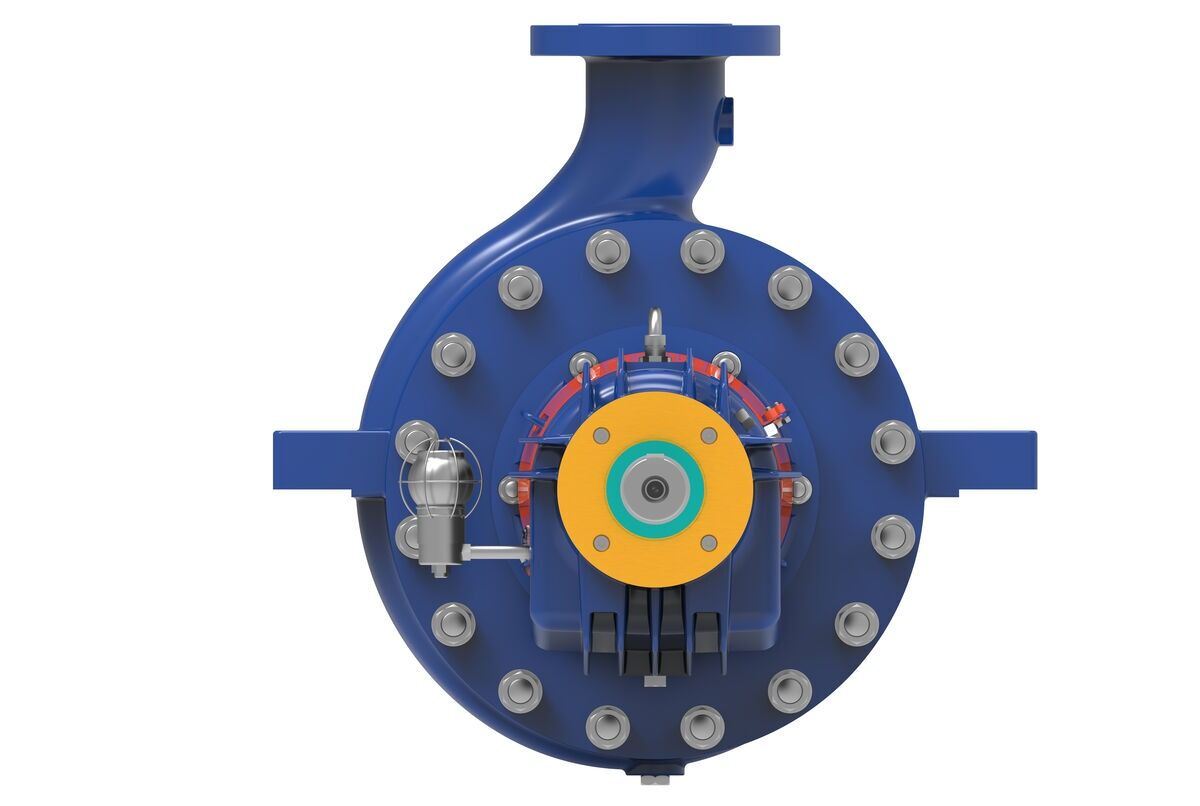

  • GABBIONETA PUMPS® R OH2 TYPE API 610 CENTRIFUGAL PUMP back view

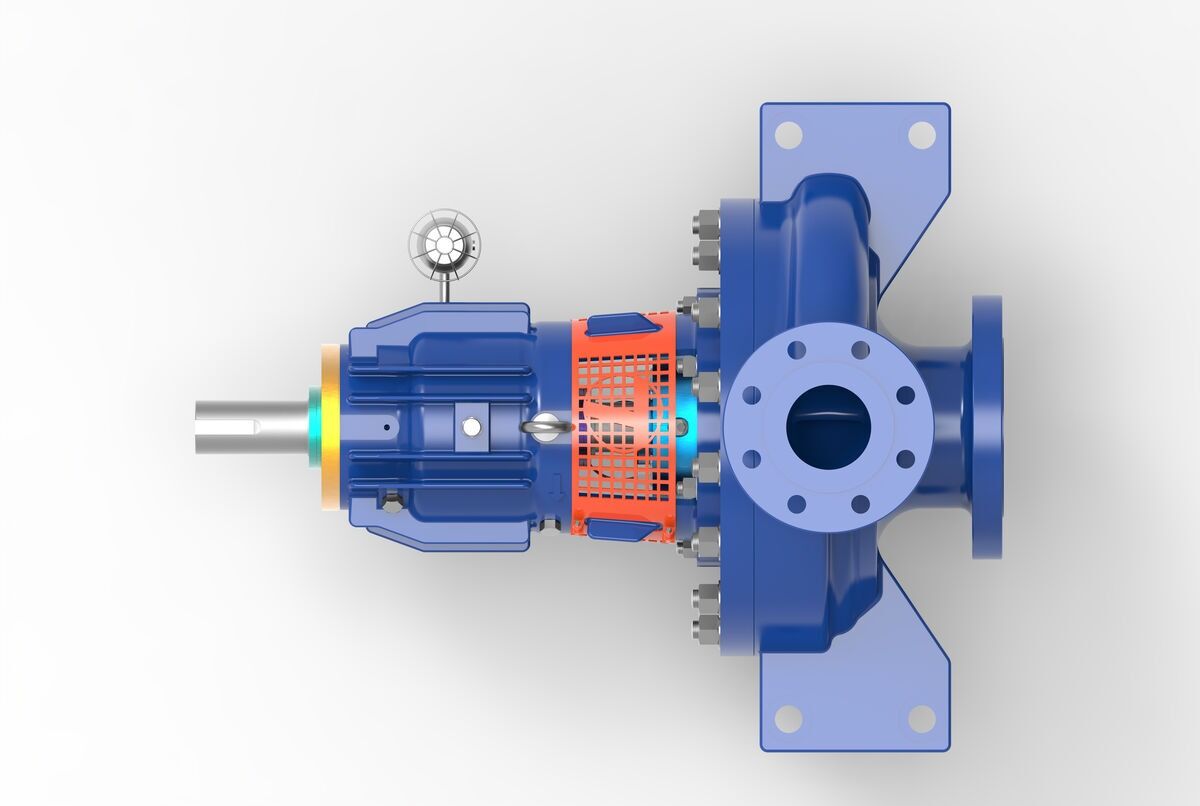

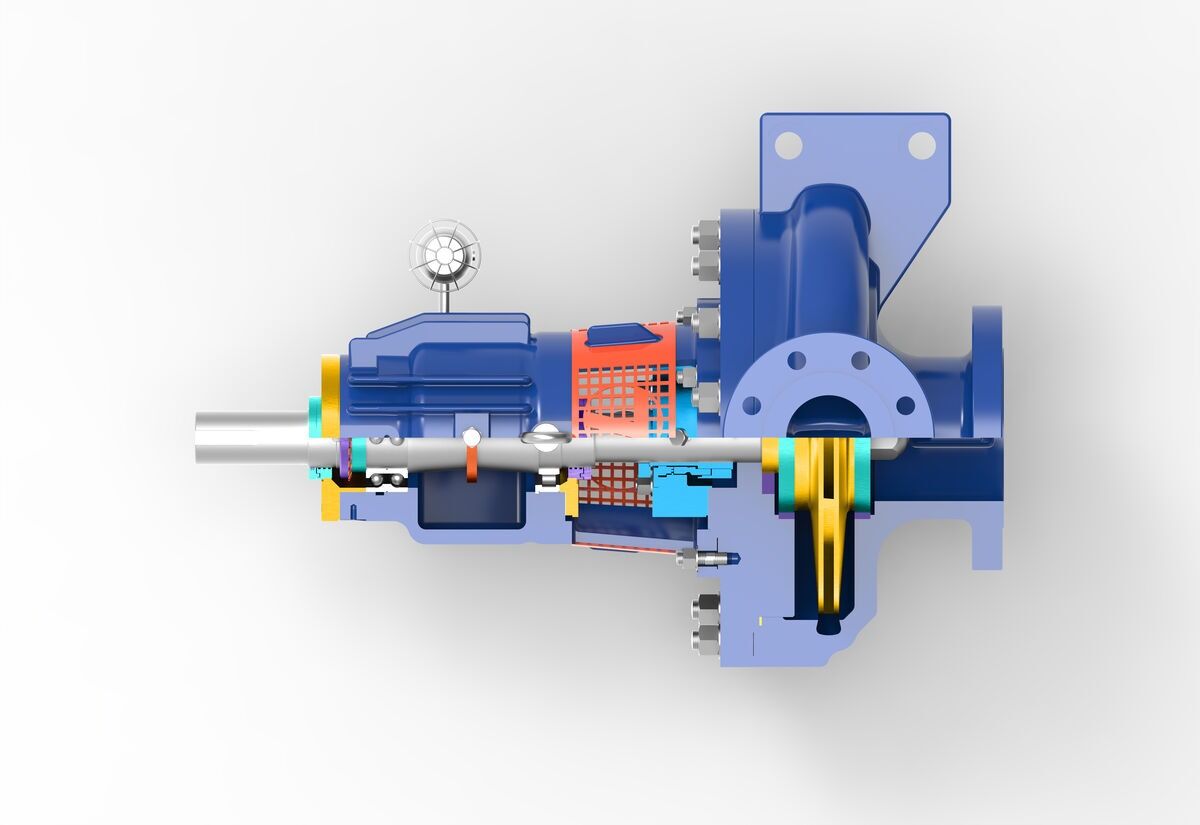

  • GABBIONETA PUMPS® R OH2 TYPE API 610 CENTRIFUGAL PUMP top view

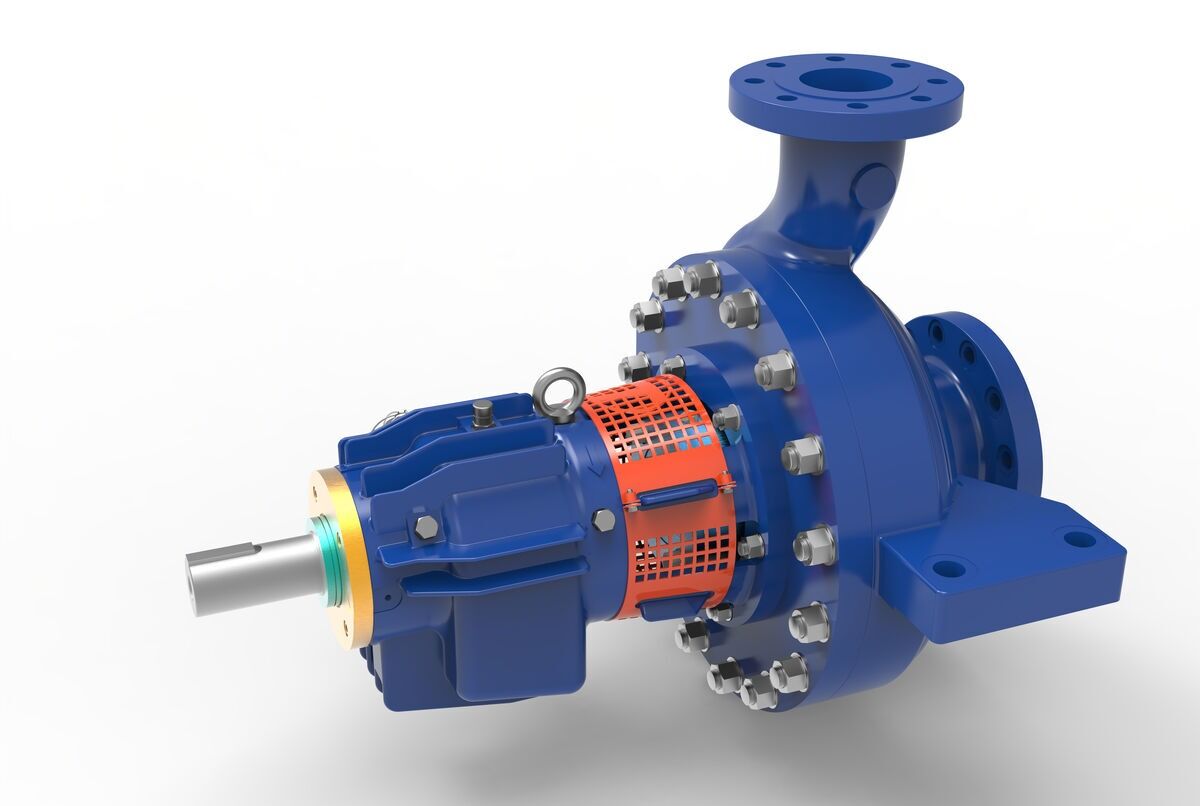

  • GABBIONETA PUMPS® R OH2 TYPE API 610 CENTRIFUGAL PUMP left angled view

GABBIONETA PUMPS®

R OH2 type API 610 Centrifugal Pump

The all-around Gabbioneta R range process pumps provide superior efficiency for more than 100 different hydraulic configurations suitable for heavy-duty use. The R Range Gabbioneta Pumps® are overhung, horizontal radially split, centerline supported, heavy-duty process pumps, designed in a back pull-out configuration for easy maintenance, and centerline feet mounted for high temperature stability.

Coverage includes more than 100 different hydraulics, for optimum efficiency over a wide operating range. The shaft flexibility index is in full compliance with API 610 Annex K, and the twin volute configuration minimizes radial loads.

TECHNICAL DATA

  • Capacity up to 2,500 m3/h (11,000 gpm)
  • Head up to 380 m (1,200 ft.)
  • Operating temperature from -100ºC (-150ºF) to 450ºC (850ºF)
  • Standard design pressure 40 bar (580 psig), special executions up to 210 bar (3,000 psig)
  • Rotational speed up to 3,600 RPM

DESIGN STANDARD

  • API 610 latest edition

MATERIALS

  • All API 610 class materials.
  • Special materials upon request.
