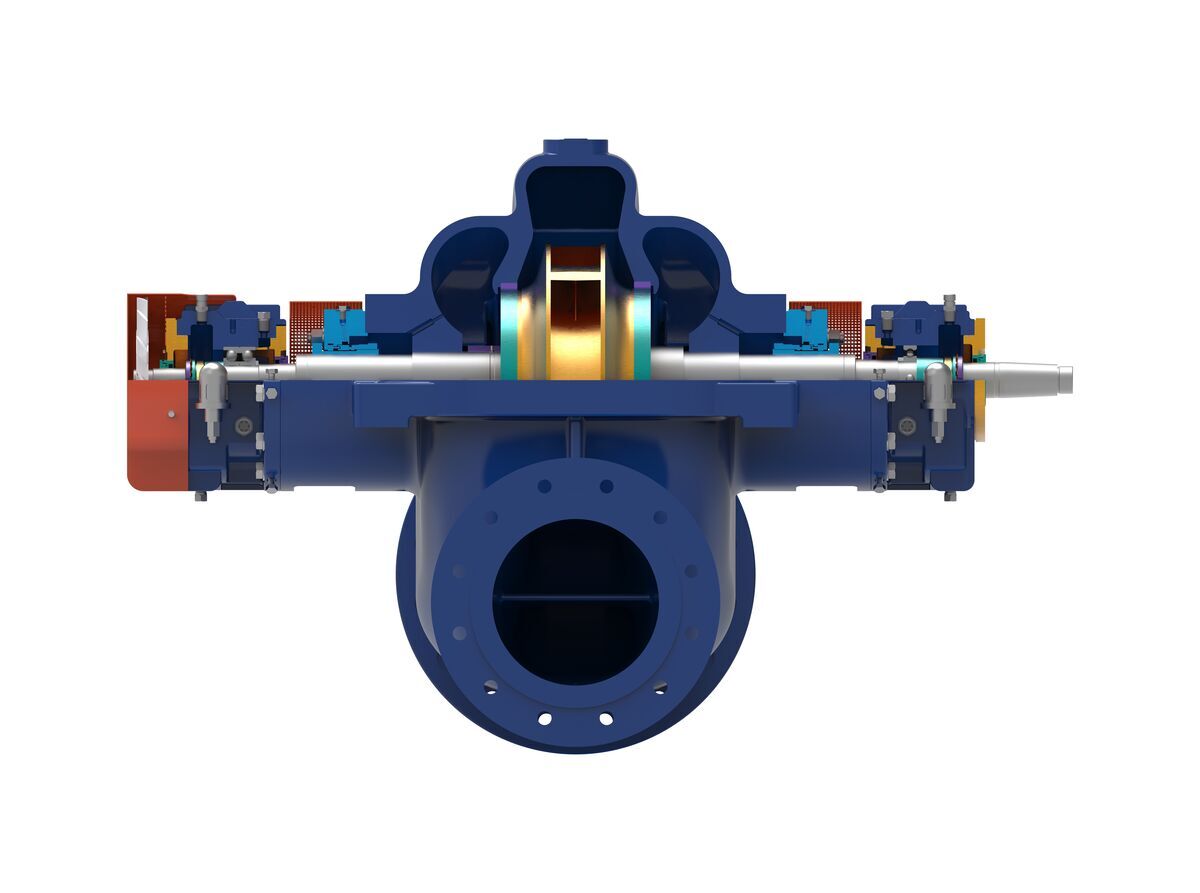

• AXD BB1 type API 610 Centrifugal Pump - Side View

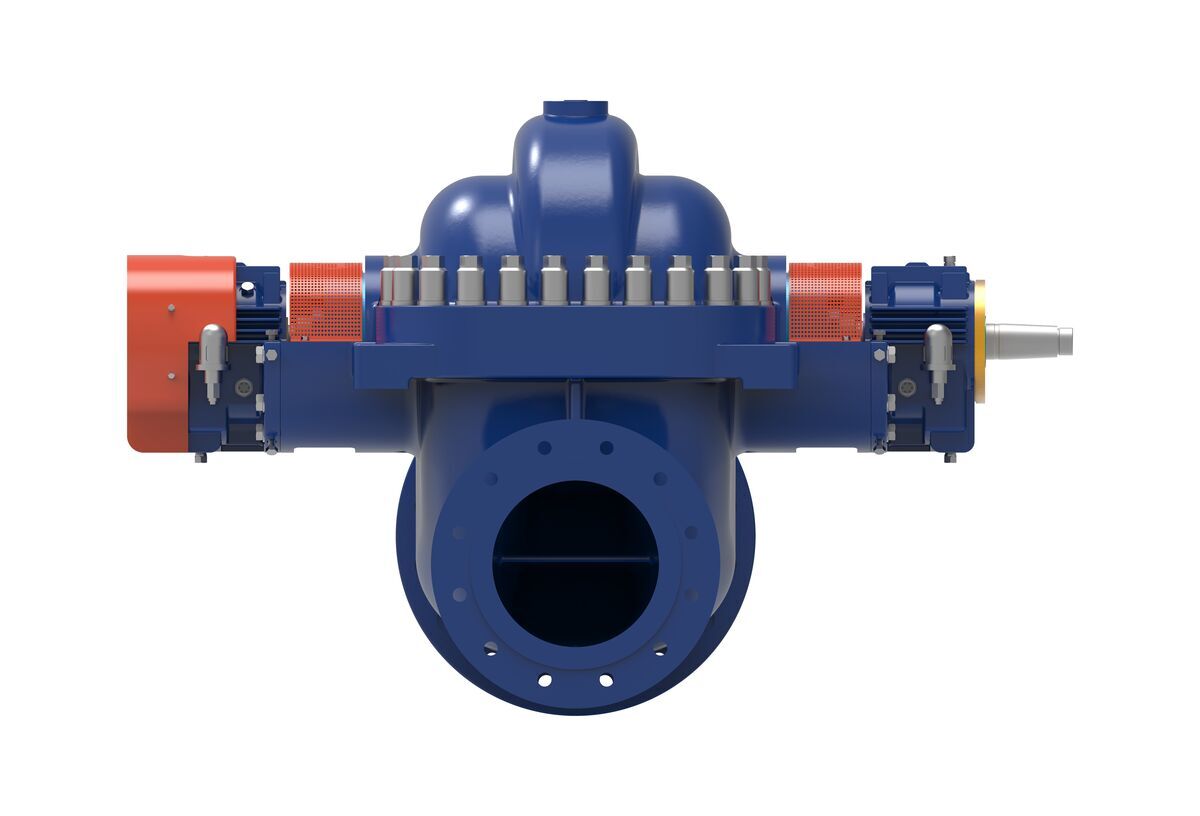

  • AXD BB1 type API 610 Centrifugal Pump - Side Mechanical View
  • AXD BB1 type API 610 Centrifugal Pump - Angled View

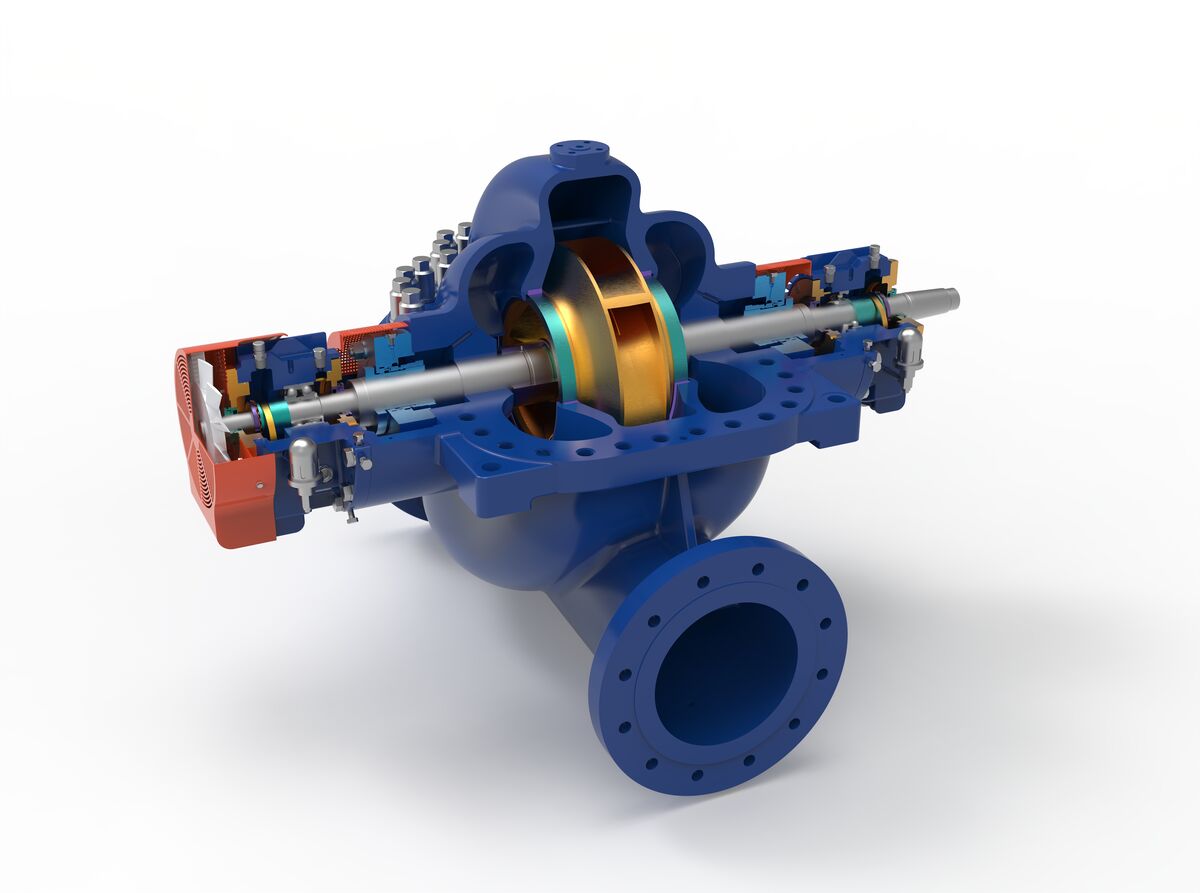

  • AXD BB1 type API 610 Centrifugal Pump - Angled Mechanical View

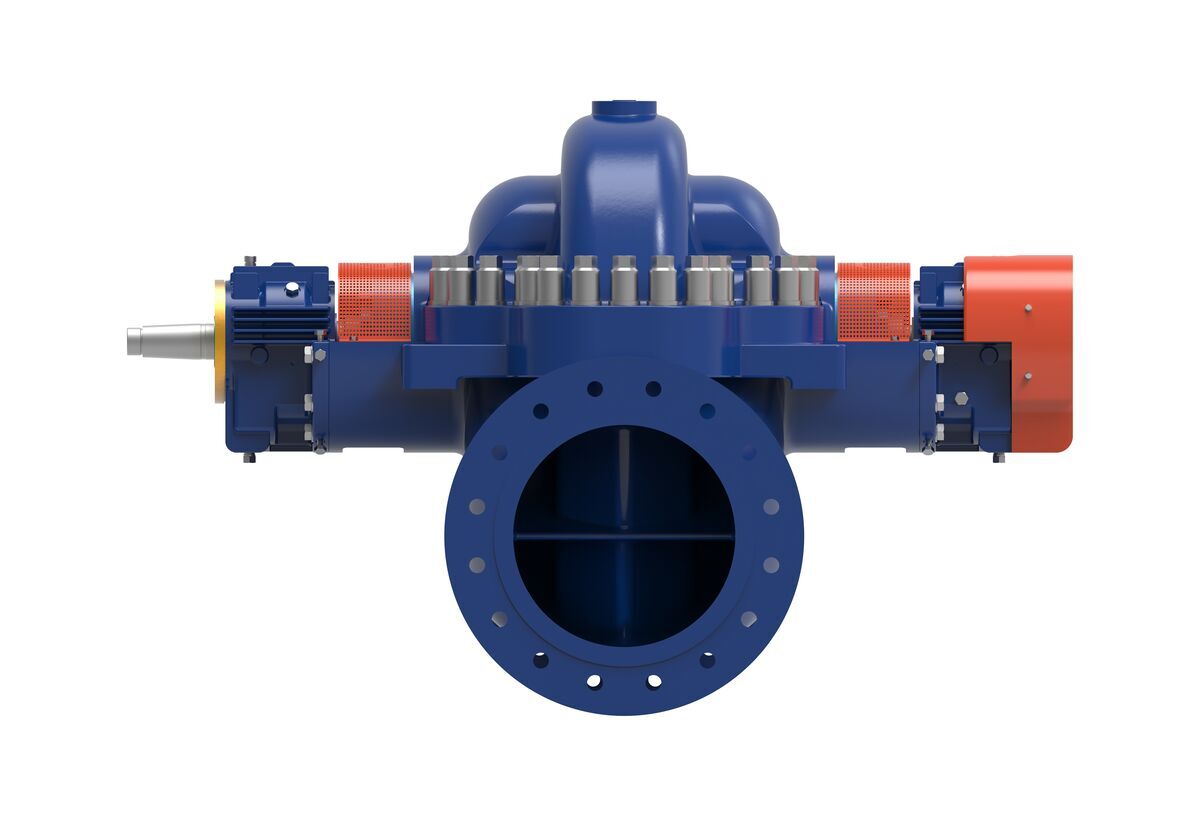

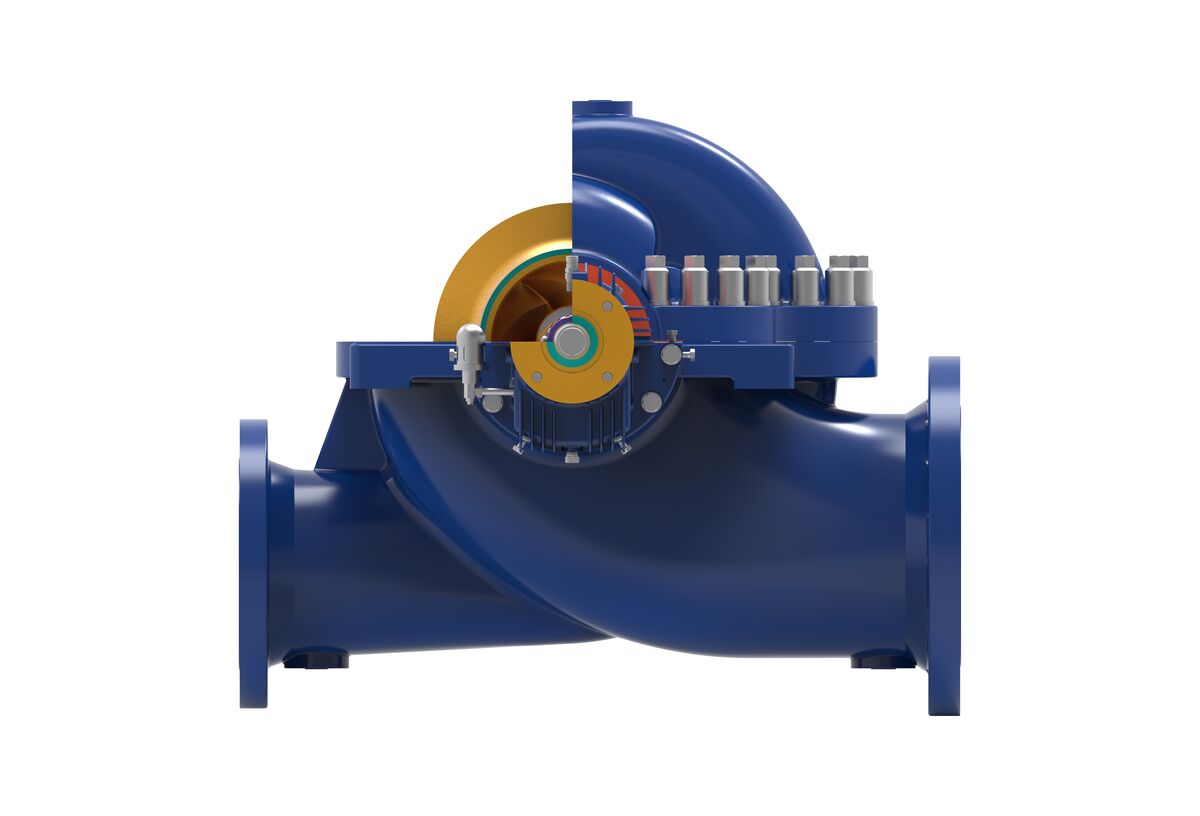

  • AXD BB1 type API 610 Centrifugal Pump - Side Mechanical View 1

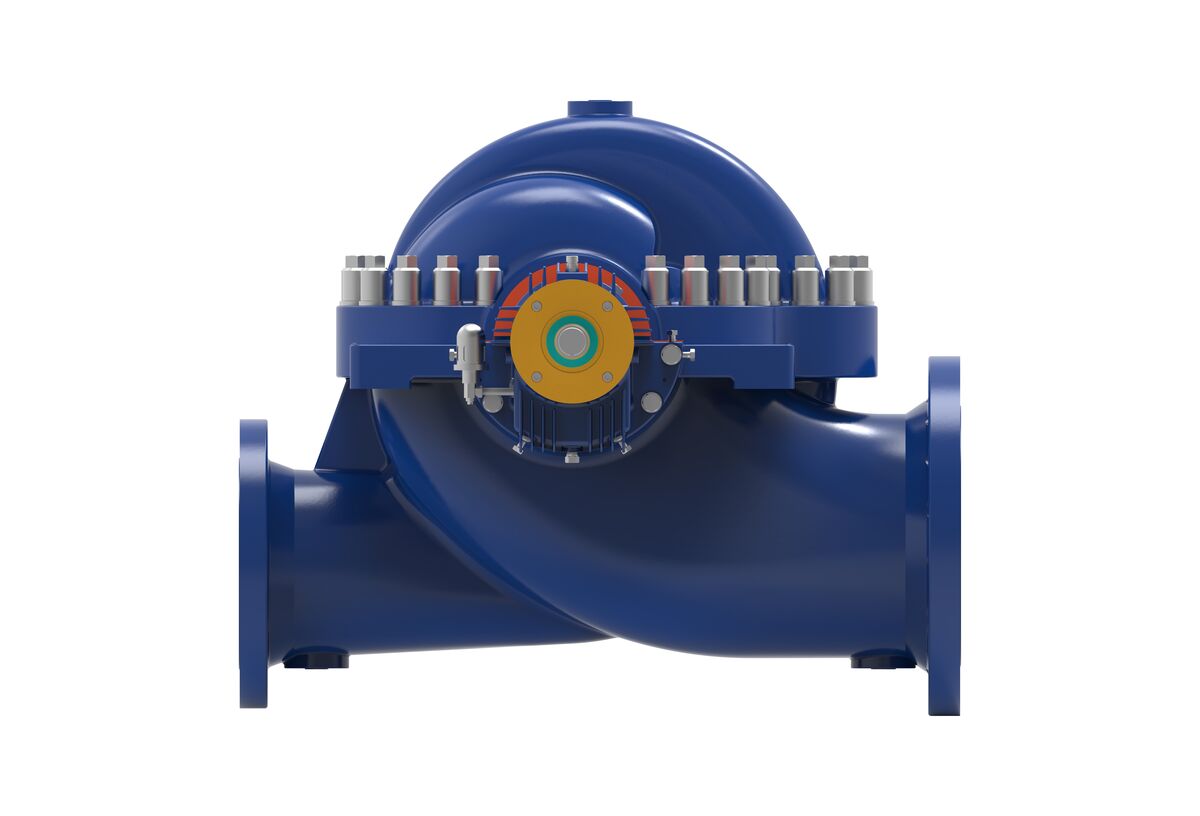

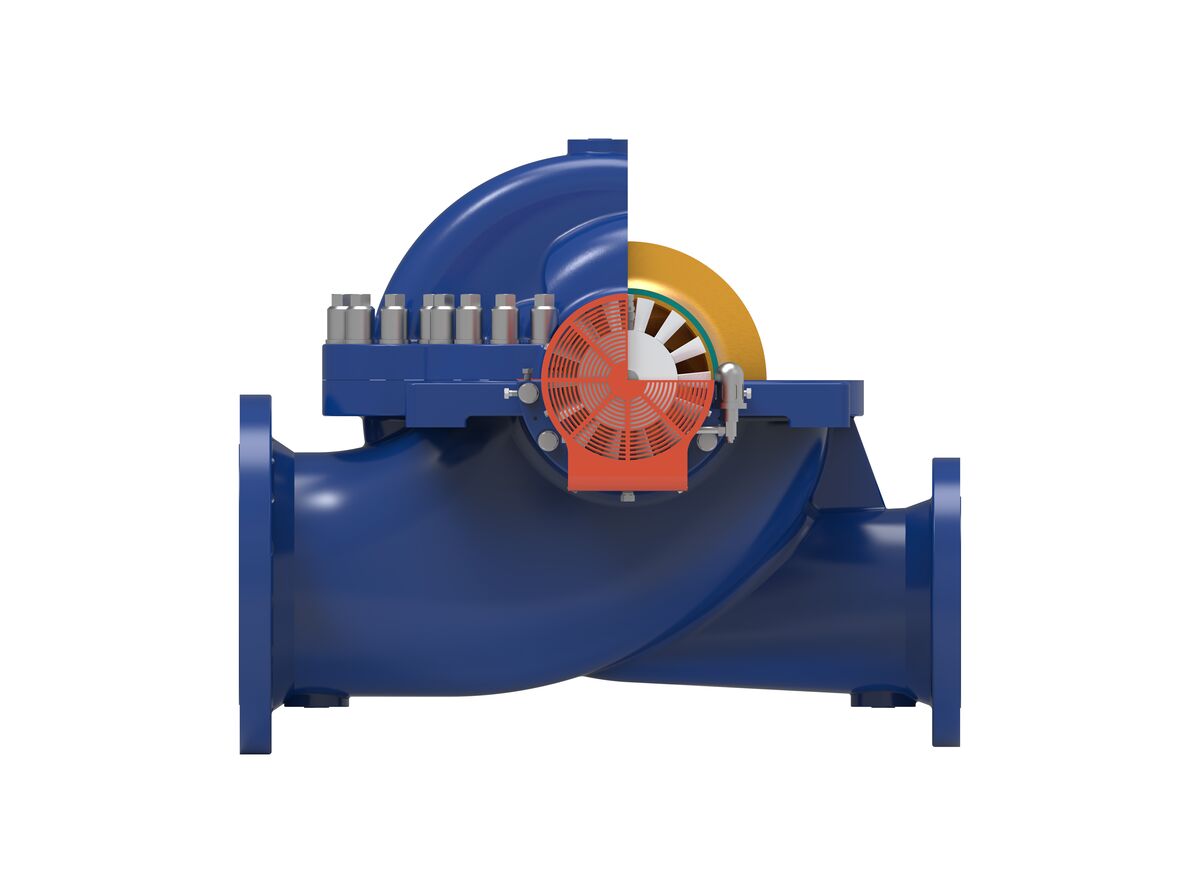

  • AXD BB1 type API 610 Centrifugal Pump - Side Mechanical View 2

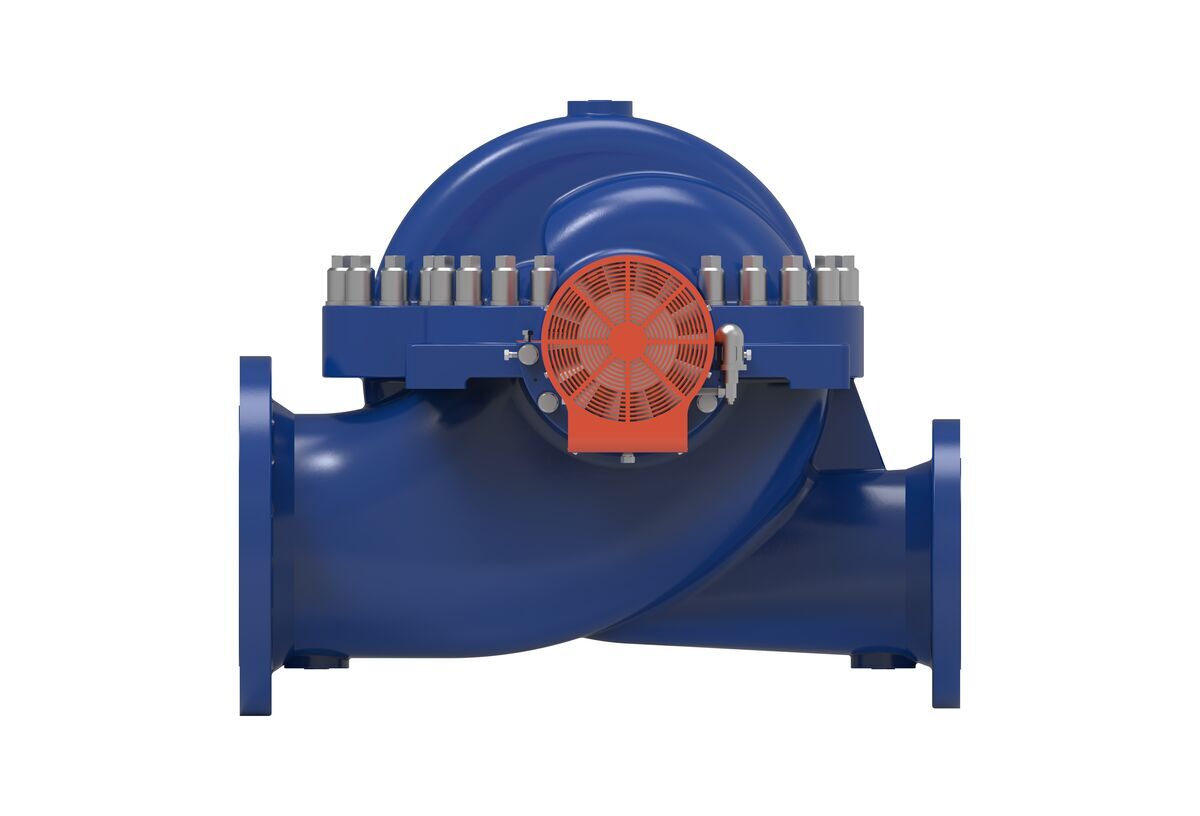

  • AXD BB1 type API 610 Centrifugal Pump - Side Mechanical View 3

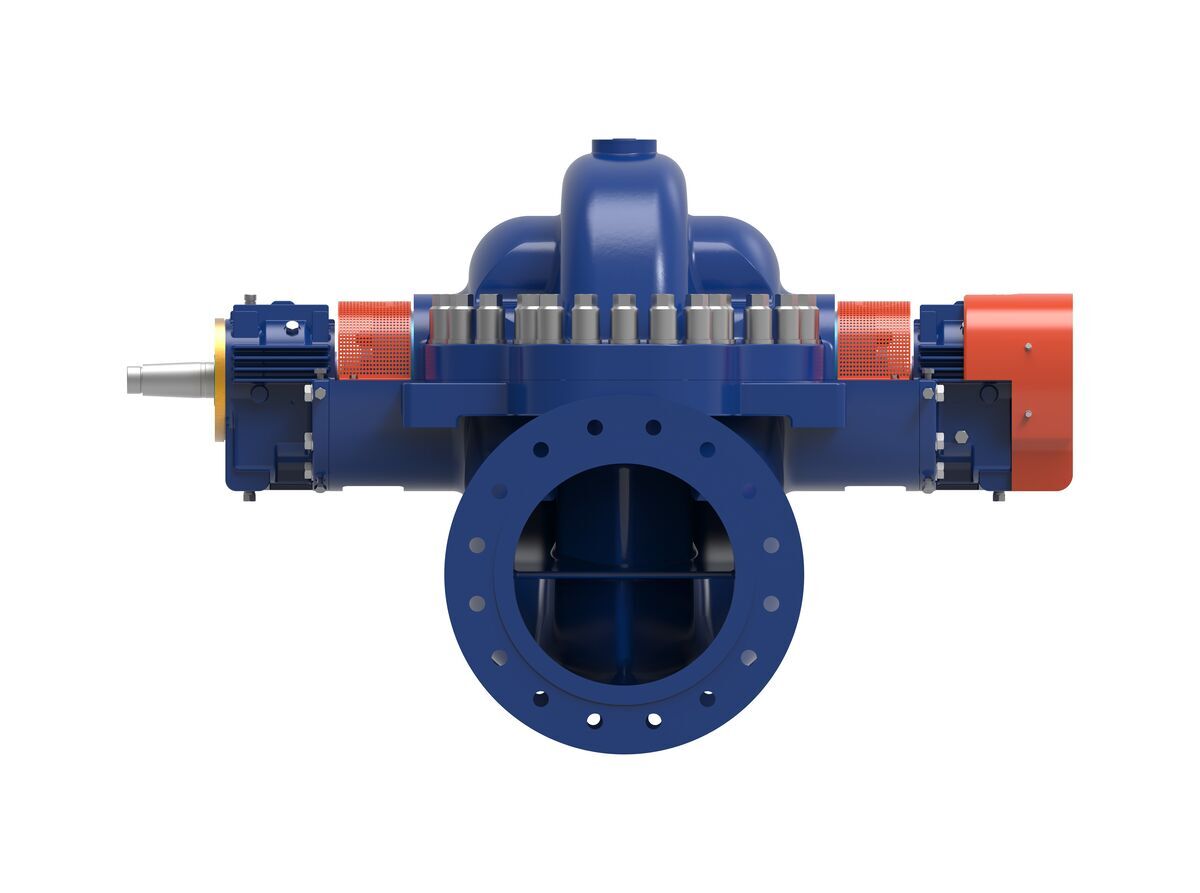

  • AXD BB1 type API 610 Centrifugal Pump - Side Mechanical View 4

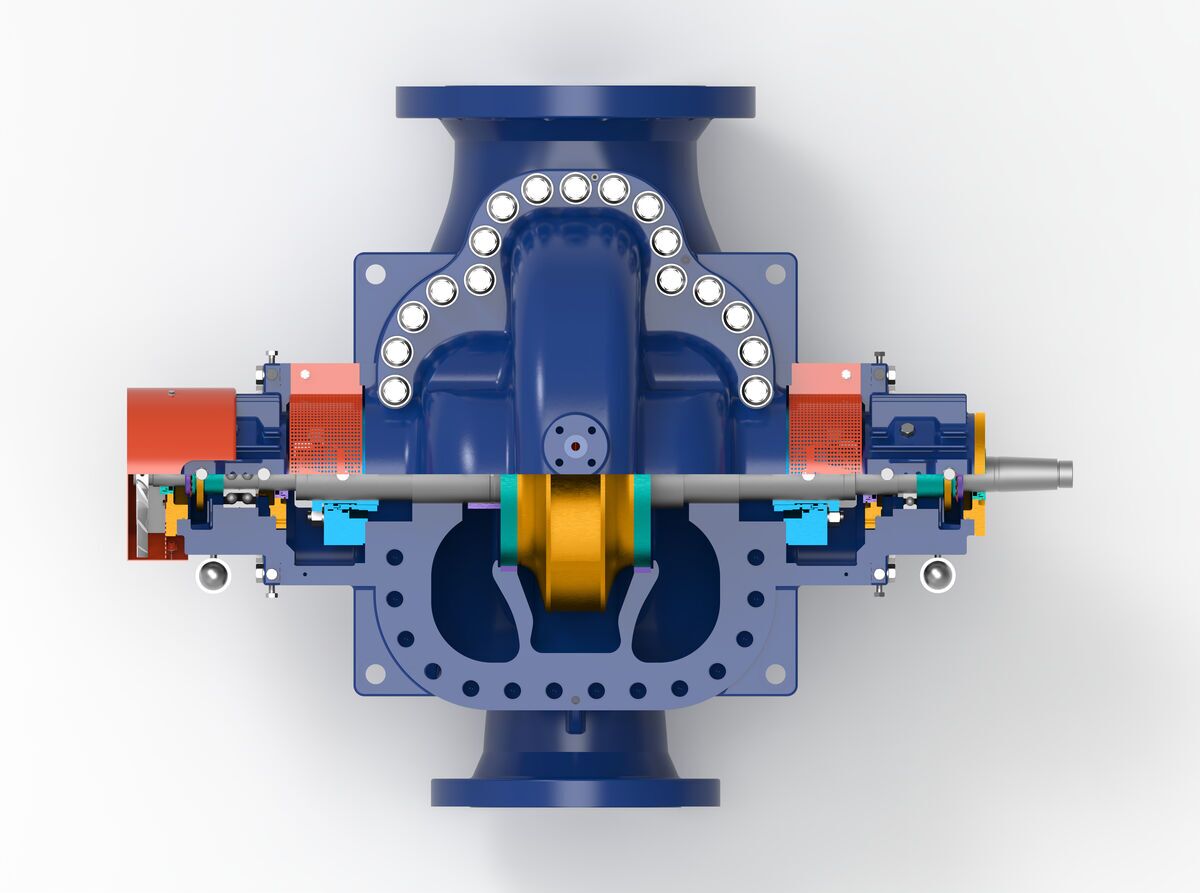

  • AXD BB1 type API 610 Centrifugal Pump - Top Mechanical View

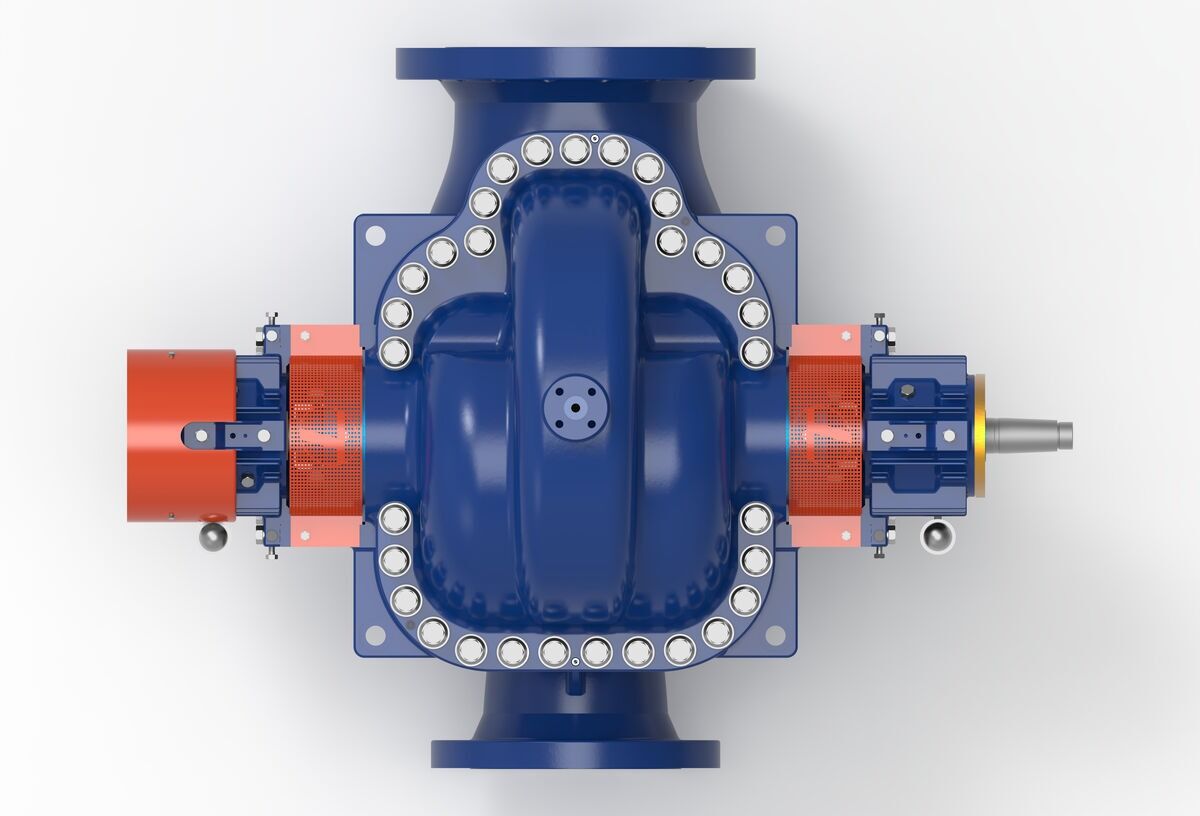

  • AXD BB1 type API 610 Centrifugal Pump - Top Mechanical View 1
  • AHP & AHP-DS BB3 Type API 610 Centrifugal Pump - Side Mechanical View 2
  • AHP & AHP-DS BB3 Type API 610 Centrifugal Pump - Side Mechanical View

Gabbioneta Pumps® Termomeccanica Pompe

AXD BB1 type API 610 Centrifugal Pump

The Gabbioneta Pumps® AXD & AXDD pumps offer easy maintenance and proven reliability for the tough conditions encountered in refineries and petrochemical plants.

Trillium Flow Technologies updated AXD pump range combines the engineering excellence, innovation, and heritage of our Gabbioneta Pumps® and Termomeccanica Pompe brands. Our expertise in designing and manufacturing BB1 pumps dates back to the 1960s, with thousands of units installed worldwide.

This API-compliant BB1 pump range is axially split, one or two-stage, between-bearings, and are centerline-mounted with either a single or double suction first stage impeller.

Key Features

  • API 610 compliant
  • Integral case connections to avoid non-destructive testing
  • Heavy-duty shaft to minimize rotor defection and maximize uptime
  • API 682 compliant seal chamber
  • Double suction Impeller
  • Centreline mounted case configuration
  • Bearing housing leverages common parts across all Trillium Flow Technologies between bearings pumps
  • Bespoke high efficiency hydraulics

Options

  • All API material options:
  • S-4,S-5,S-6,S-8,C-6,A-8,D-1,D-2, plus bespoke options
  • 2 stage options for higher head applications
  • Vertical configuration with product lubricated bearing available for select applications
  • High efficiency options with industry leading hydraulics
  • Composite wear parts, for improved efficiency and rotor dynamics

Main Applications

  • Water transportation, supply & distribution
  • Sea water desalination
  • Crude oil pipeline
  • Tank farm transfer
  • Booster applications
