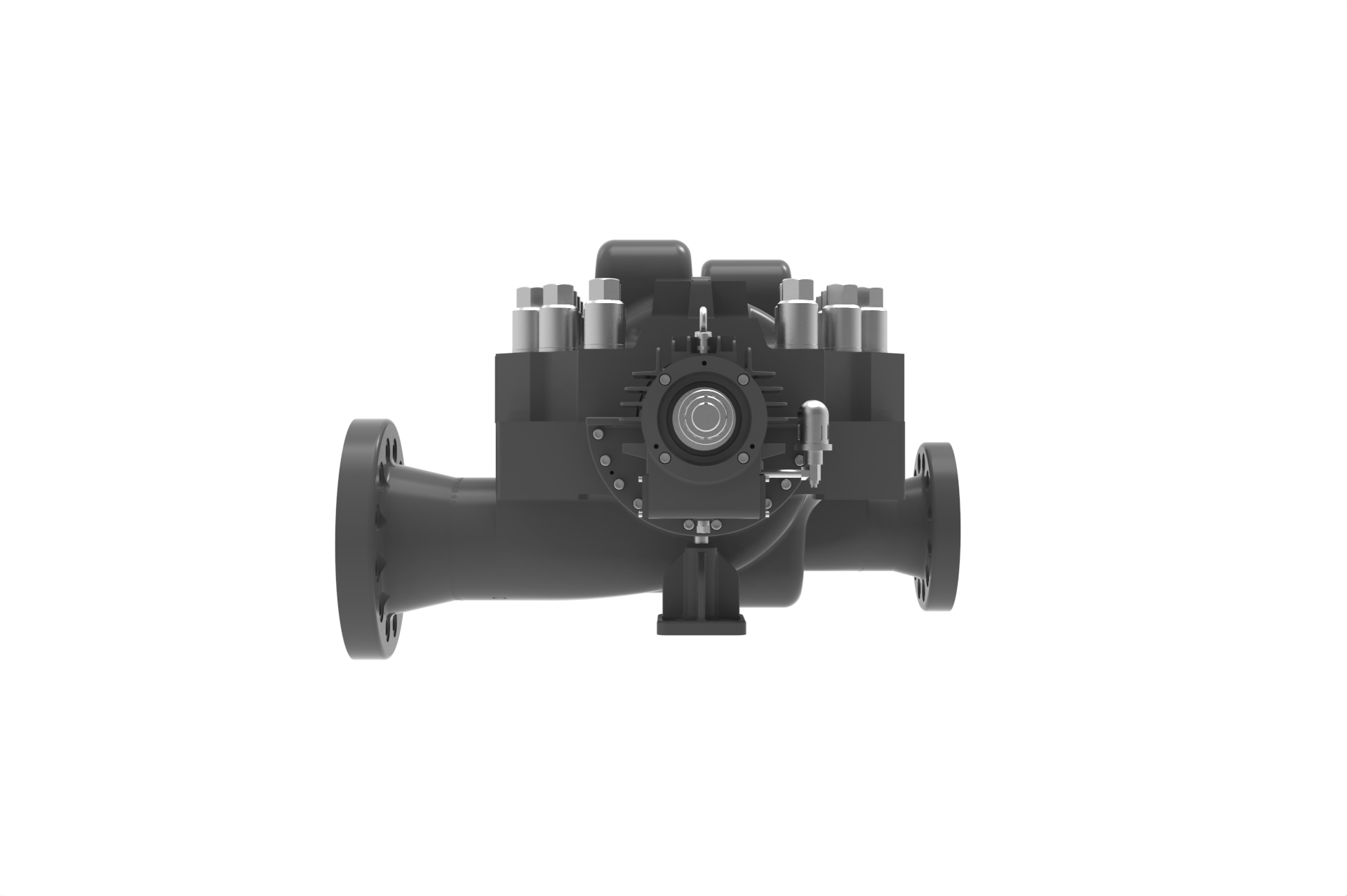

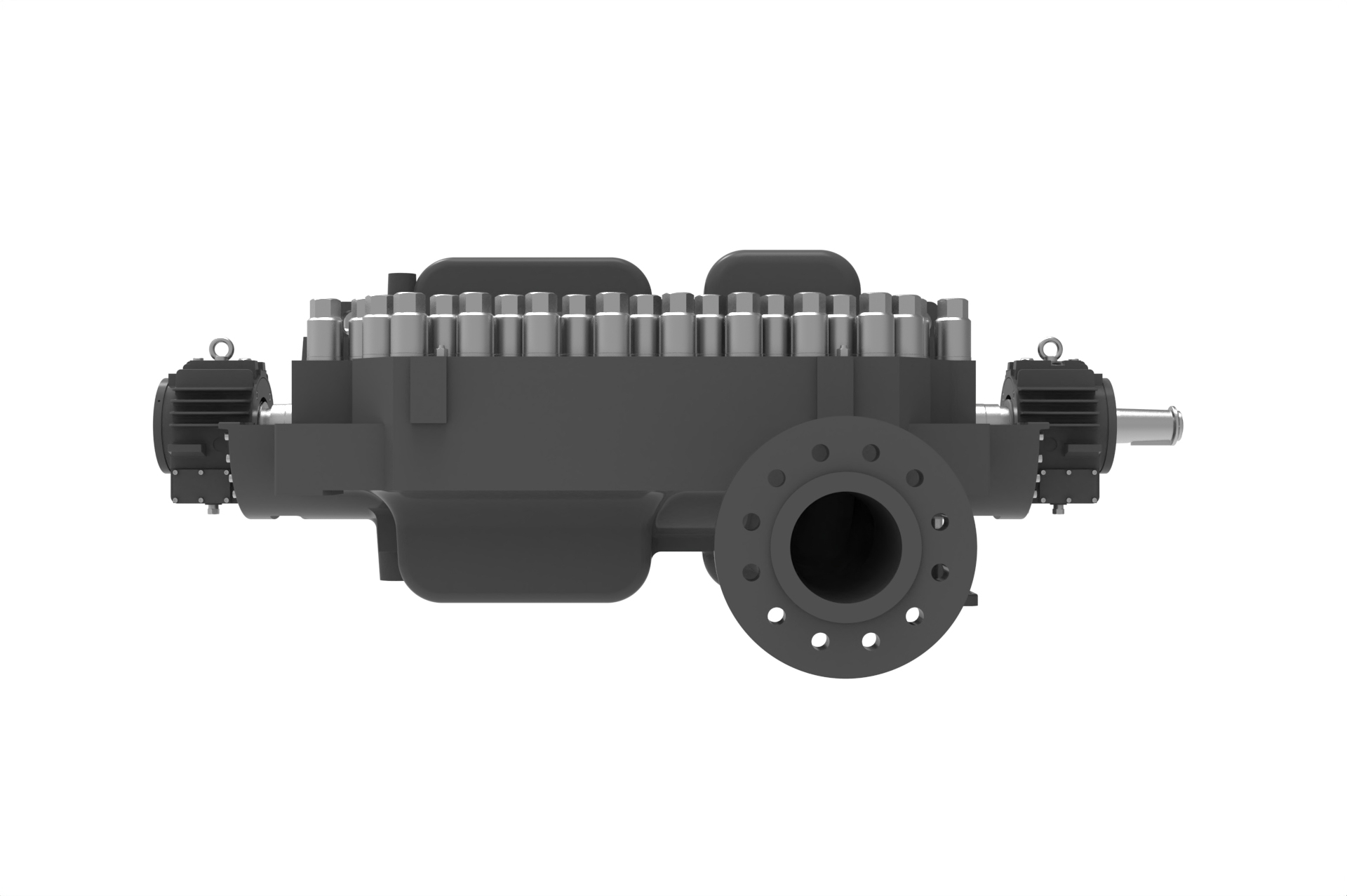

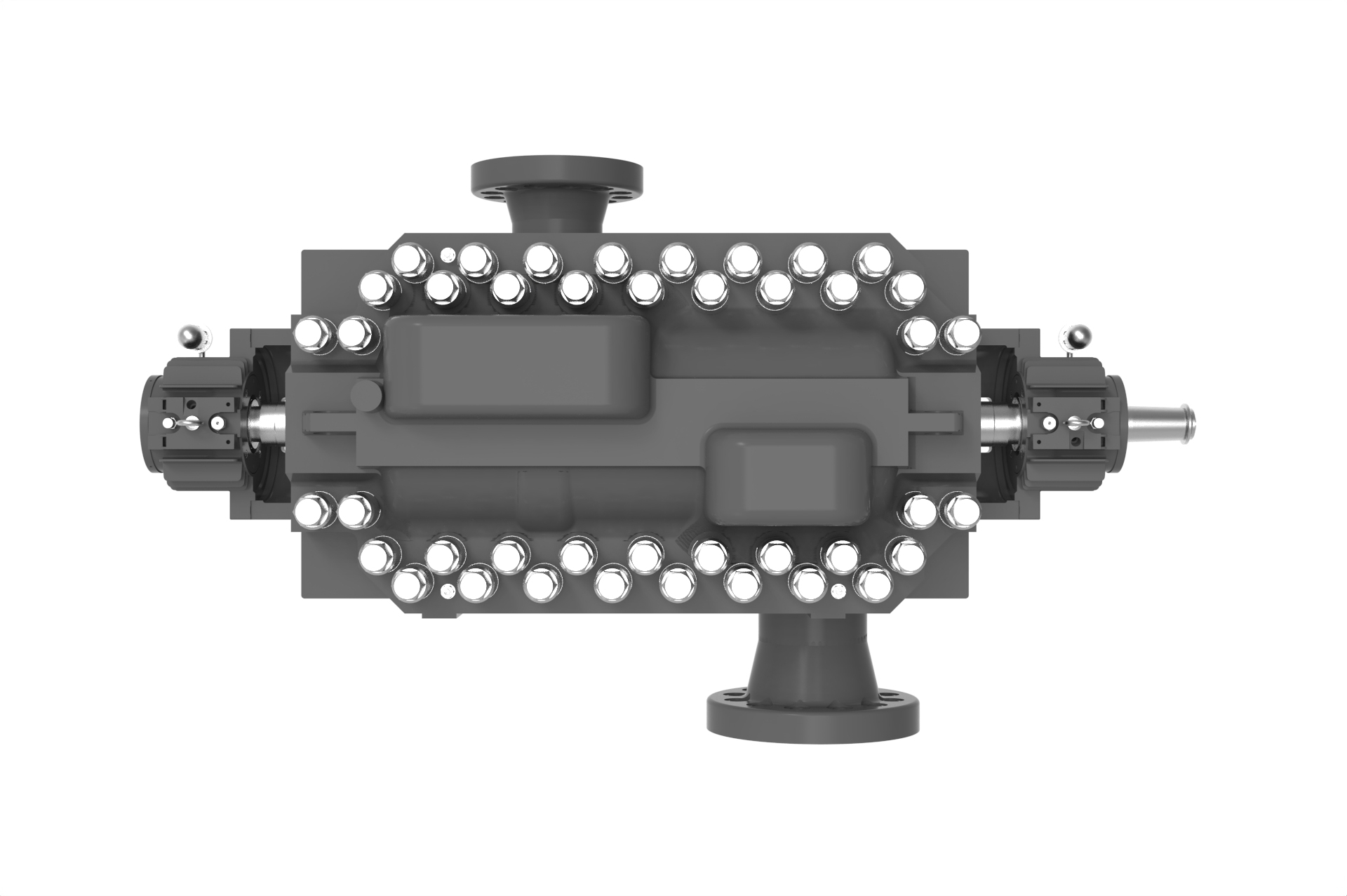

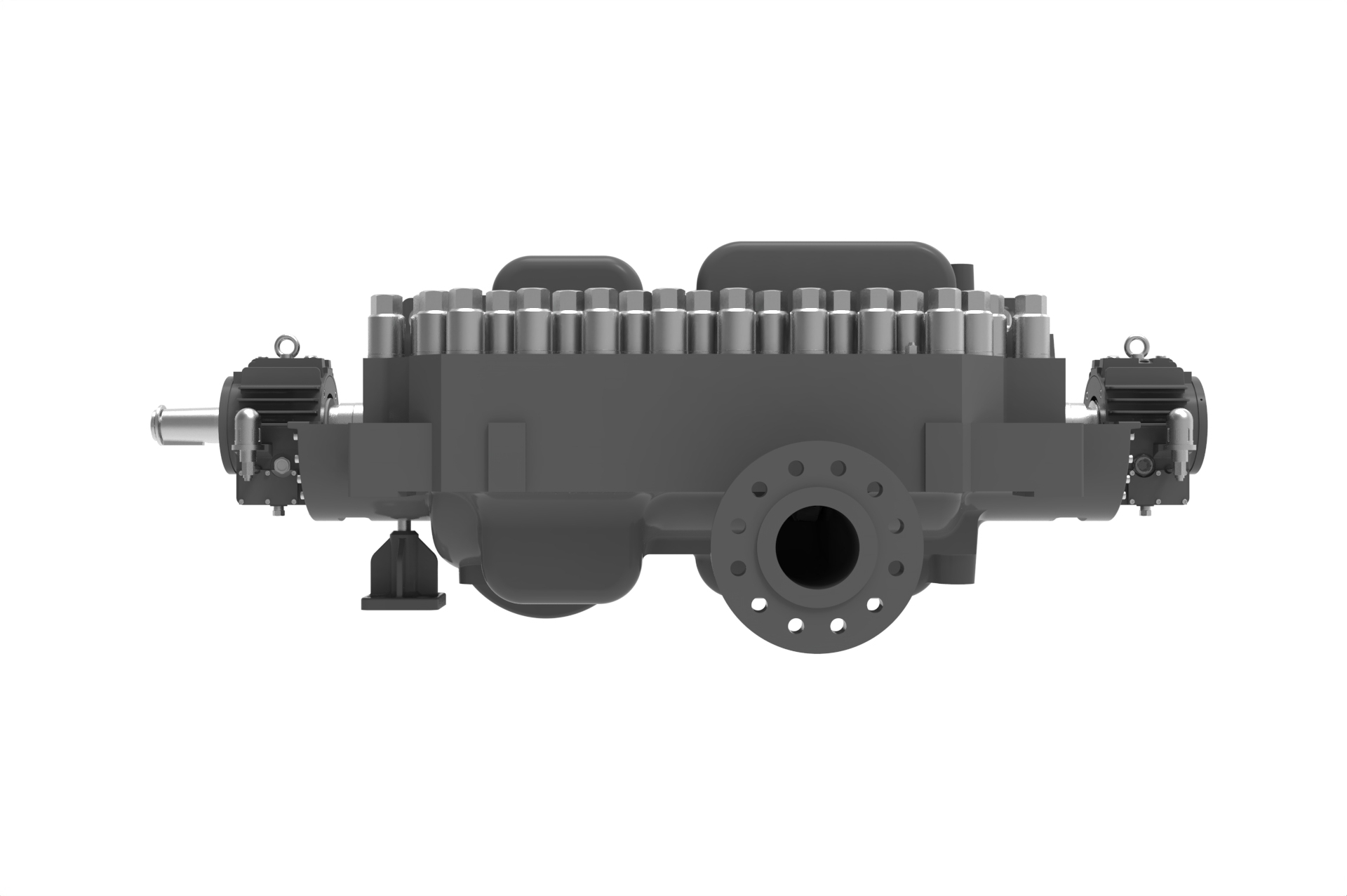

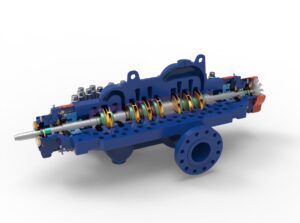

• AHP & AHP-DS BB3 Type API 610 Centrifugal Pump - Angled Mechanical View 3

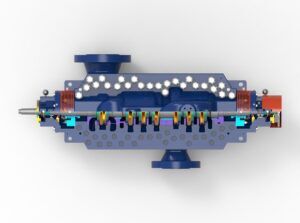

  • AHP & AHP-DS BB3 Type API 610 Centrifugal Pump - Angled Mechanical View 2

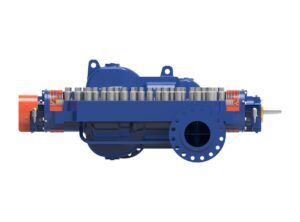

  • AHP & AHP-DS BB3 Type API 610 Centrifugal Pump

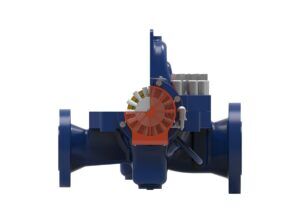

  • AHP & AHP-DS BB3 Type API 610 Centrifugal Pump
  • AHP & AHP-DS BB3 Type API 610 Centrifugal Pump
  • AHP & AHP-DS BB3 Type API 610 Centrifugal Pump
  • AHP & AHP-DS BB3 Type API 610 Centrifugal Pump
  • AHP & AHP-DS BB3 Type API 610 Centrifugal Pump
  • AHP & AHP-DS BB3 Type API 610 Centrifugal Pump

Gabbioneta Pumps® Termomeccanica Pompe

AHP AHP-D BB3 Type API 610 Centrifugal Pump

This Gabbioneta Pumps® series offers reliable operation and easy internal inspection and maintenance while reducing axial and radial loads.

The AHP and AHP-DS range Gabbioneta Pumps® are heavy-duty process multistage horizontal, between bearings, volute type pumps, with axial split casing that allows easy internal inspection and maintenance, and single or double entry first stage impeller. An opposed impeller configuration allows minimal axial thrust.

TECHNICAL DATA

  • Capacity up to 2,000 m3/h (8,800 gpm)
  • Head up to 2,500 m (8,200 ft.)
  • Operating temperature from -30 ºC (-20 ºF) to  200 ºC (400 ºF)
  • Standard design pressure 40 bar (580 psig), special executions up to 210 bar (3,000 psig)
  • Rotational speed up to 3,600 RPM

DESIGN STANDARD

  • API 610 latest edition

MATERIALS

  • All API 610 class materials
  • Special materials, upon request
